boring mills and machining centers used for sale (3,109)

X=3500mm Y=2000mm Z=1250mm W=800mm H=360° spindle 130 mm, ISO 50, max. 1600 rpm table 1600 x 1800 mm with a load of 12000 kg with Siemens electric and CNC Heidenhain TNC 415B Oil cooled: Schimpke. Dismantled. The machine has been used very little = in very good technical condition.

FUJII SEIKI Heavy Duty Lathe (Japanese Origin) Technical Specifications: • Turning length: 2,000 x 26,000 mm • Modular bed • Capacity between centers: 60 tons • Drilling attachment included • Drilling tool length capacity: 12,000 mm Condition: Available Location: South America Machine suitable for heavy-duty machining of long shafts and large industrial components.

Lealde Valvecenter-5V CNC turning and drilling center Year 1997 designed specifically for valve bodies (oil & gas valves, pipeline valves, etc.). It performs turning, drilling, and machining of valve components in one setup.  Used mainly in valve manufacturing plants and heavy machining shops. Maximum swing over longitudinal guides: 1000 mm Maximum swing over cross guides: 700 mm Main spindle nose: DIN 55021 – Form B Spindle through-hole diameter: 139 mm Front spindle bearing diameter: 200 mm Maximum spindle speed: 1000 rpm Maximum spindle torque: 3434 Nm Axis Rapid Traverse • W axis: 20,000 mm/min • X / X1 / X2 axes: 17,400 mm/min • Z axis: 15,000 mm/min Travels Turning slide – transverse travel: 1250 mm Drilling slide – longitudinal travel: 1350 mm Drilling slide – transverse travel: 135 + 135 mm Motors Main spindle motor power:  ...

Lealde Valvecenter-5V CNC turning and drilling center Year 1997 designed specifically for valve bodies (oil & gas valves, pipeline valves, etc.). It performs turning, drilling, and machining of valve components in one setup.  Used mainly in valve manufacturing plants and heavy machining shops. Maximum swing over longitudinal guides: 1000 mm Maximum swing over cross guides: 700 mm Main spindle nose: DIN 55021 – Form B Spindle through-hole diameter: 139 mm Front spindle bearing diameter: 200 mm Maximum spindle speed: 1000 rpm Maximum spindle torque: 3434 Nm Axis Rapid Traverse • W axis: 20,000 mm/min • X / X1 / X2 axes: 17,400 mm/min • Z axis: 15,000 mm/min Travels Turning slide – transverse travel: 1250 mm Drilling slide – longitudinal travel: 1350 mm Drilling slide – transverse travel: 135 + 135 mm Motors Main spindle motor power:  ...

Key data: 762 mm, 508 mm, 508 mm

2023 HAAS UMC-750SS 5-Axis CNC Vertical Machining Center Condition: Used Location: USA Description This 2023 HAAS UMC-750SS is in excellent condition and ready for continued productive service. The machine has been well maintained and represents a strong opportunity for high-speed 5-axis machining. Specifications have been compiled from inspection, operator input, manuals, and OEM sources. Buyers are encouraged to independently verify all specifications, condition details, and availability prior to purchase. Price, location, and specifications are subject to change. Specifications Travels • X-Axis: 30” (762 mm) • Y-Axis: 20” (508 mm) • Z-Axis: 20” (508 mm) • Number of Axes: 5 Spindle • Power: 30 HP (22.4 kW) • Max Speed: 15,000 RPM • Taper: CT40 or BT40 Tool Changer • ATC Capacity: 40 tools Table • Table Width: 19.7 ...

2000 Toshiba BTD-200QF CNC Horizontal Boring Mill Spindle Diameter: 4.33" Extended Quill Diameter: 7.87" Taper In Spindle: #50 Vertical Head Travel, Y-Axis: 39.37" Table Cross Travel, X-Axis: 39.37" Spindle Travel, Z-Axis: 15.74" Saddle Travel, W-Axis: 27.55" Table Size, (2) Pallets: 39.37" x 39.37" Table Capacity: 6,000 lbs Table Indexing: 0.001 Degree Rapid Traverse (X,Y,Z Axes): 472.4 IPM Feed Rates: .04-236.2 IPM Table Load Capacity: 6,600 LBS Spindle Speeds (2 Ranges): 20-3000 RPM Floor Space, L x W x H: 173" x 174" X 126" Machine Weight: 39,600 lbs. -EQUIPPED WITH- Tosnuc 888 CNC Controls 40-Station Automatic Tool Changer (2) 39.37" x 39.37" Pallets with Pallet Shuttle System Thru Spindle Coolant Marposs Probing System Chip Conveyor 30 HP Spindle Motor

Key data: 150 mm, 13500 mm, 3500 mm

Floor Type Horizontal Milling and Boring Machine Model : BF-150B with Fanuc series 311 — Model A CNC Controller in perfect working condition to be inspected in power YOM 2012 CNC Fanuc 31i Inspection Under power X - cross 13,500 mm Y - vertical . 3,500 mm W - boring ... 1,000 mm Z - quill ... 450 mm Spindle Taper ... No 50 Spindle Motor ... 26/ 22 kW 2 Angle Heads ATC 60 2 Rotary Tables 2m x 3m

Key data: 420 mm, 300 mm, 250 mm

YASDA YMC 430 Ver. II 5-Axis CNC Vertical Machining Center, 40K RPM, Trunnion Table, 32 ATC, HSK-E32, Fanuc 31i-B5, Hard Milling, LOW HOURS, Year: 2017 CNC Control: yes Type of CNC Control: FANUC 31i-B５ Cutting Time Hours: 8138 X-axis travel: 16.5"/420mm Y-axis travel: 11.8"/300mm Z-axis travel: 9.8"/250mm Table to spindle nose distance: 5.9" - 15.7" / 150mm - 400mm Spindle taper hole: HSK-E32 Spindle speed range: 200-40,000 RPMs Spindle drive motor: 10 HP / 7.5 KW AC ( Continuous ) Table working size: 600mm x 350mm / 26.6" x 13.7" Table Loading capacity: 33 lbs. / 15 kg. Rapid Feed Rate X, Y, Z: 787.4 ipm /20000 mm/min - Standard MODE MAXIMUM CUTTING FEED: 393.7 ipm / 5,000mm/min Min. input increment: 0.0001mm (0.01μm) Optical scale feed back: X, Y, Z-axis 0.000001mm (0.001μm) command available Tool storage capacity: 32 tools Max. tool dia. / length / mass: φ50m ...

Mitsubishi MAF 210/150A Year: 1977 Table Size: 3000 × 3000 mm | Load Capacity: 60,000 kg Axis Travel: X: 14,000 mm | Y: 4500 mm | Z: 900 mm Spindle: Ø164 mm | 4–3460 rpm | 37/45 kW DC motor Control: ISO/EIA compatible | 5-axis interpolation | M-NUX115 DRO Accuracy: ±0.015 mm/m (X/Y), Repeatability ±0.01 mm Included Accessories: • Tool locking (5 pull studs) • Digital readout system • NC controller with startup components • Setup/leveling blocks • Maintenance toolkit • Protective covers Optional Add-ons (upon request): • Chip conveyor and coolant system • Rotary/angled fixturing • Pendant control • Bellows or floor plate systems • Special tooling packages Utilities & Installation: • Power: AC 220V (standard) • Air: 2–7 kg/cm² at 100 L/min • Installation space & foundation info on request

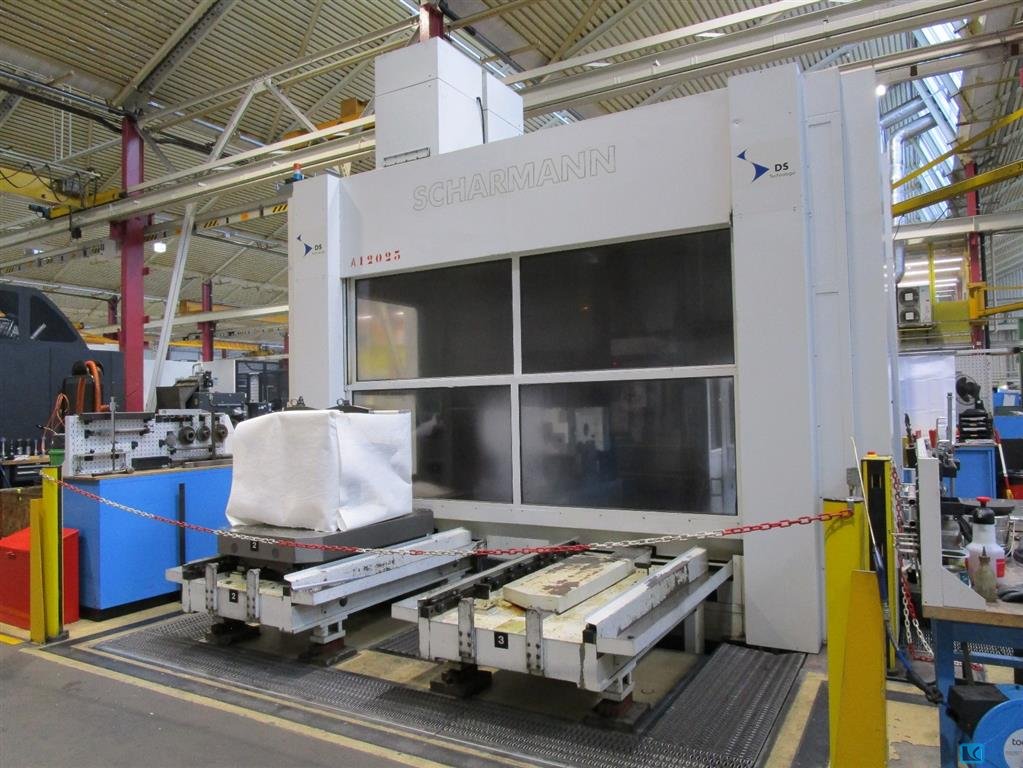

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

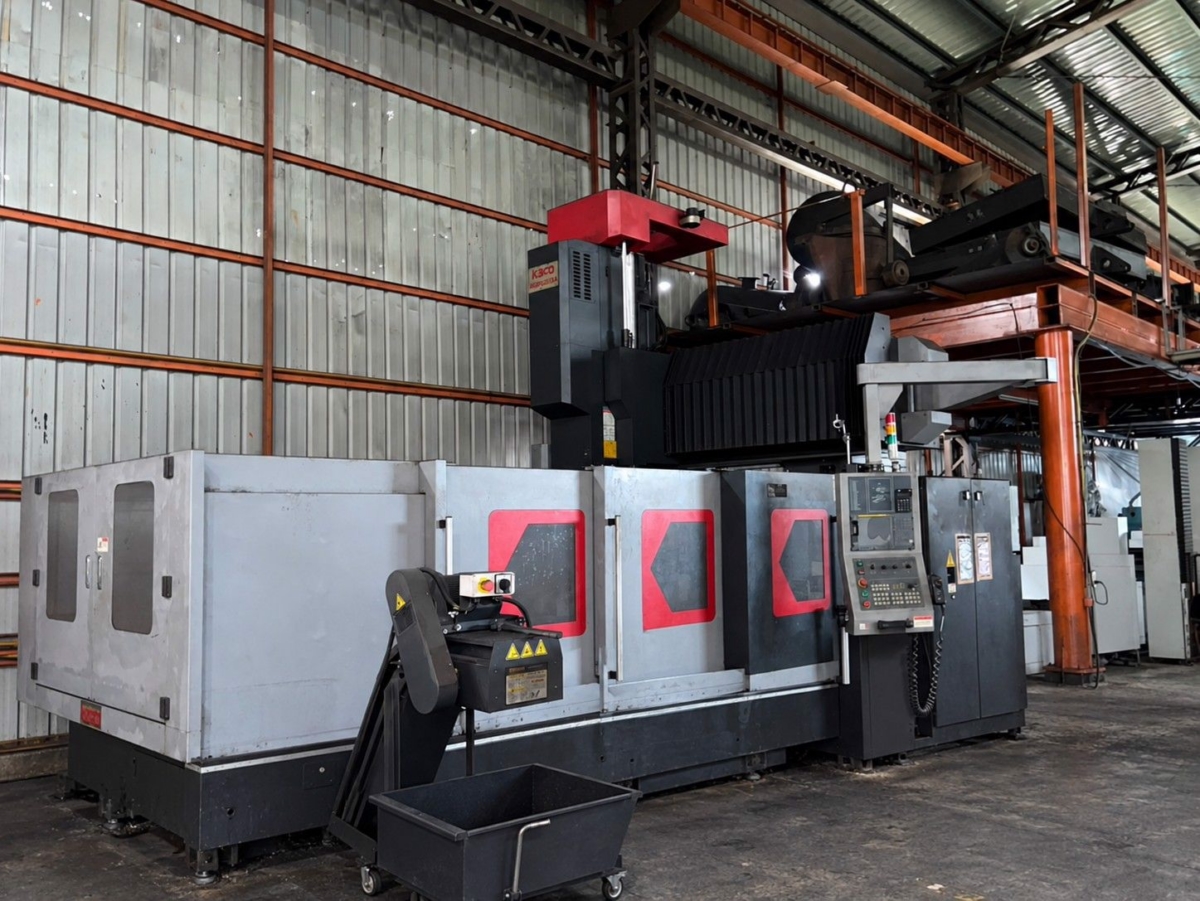

Double Column Machine SNK RB-7VM Year 2007 5 axis control (X,Y,Z, Wm, Ws) FANUC 18i-MB Bet Column : 4100 Table : 6000 X 3500 XYZ: 6250 x 4500 x 600 W: 2100 Main axis / Quil: 90/ 300 40~8000 rpm ATC :40, AAC Angular Attachment : (L=300)

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Double Column Machining Center TOSHIBA MPC-3180B Table mm.8000 x 2700 Distance between columns mm.3100 X mm.9000 Y mm.3900 Z Verticaal RAM stroke mm.900 W Vertical Crossrail stroke mm.1600 Automatic indexed every 5 degrees 5 face head Distance table to spindle nose mm.2440 Table load Kg. 20.000 Spindle speed 5-3000 rpm 2 ranges Spindle taper BT 50 Ram section 380 x 380 Machine dimensions mm.29110 x 9900 x 7260 Machine weight Kg. 151.000 Year 2007 Standard options : 5-face cutter head Automatic attachment (5-face cutter head or other attachments)index (AAI) (4-position index by 90.) Automatic tool loading/unloading device for vertical spindle and horizontal spindle) CNC controller including standard and pack specifications Pendant operation box with electrically-driven free arm Hydraulic unit Oil cooling unit (AKZ 908) Hydraulic crossrail servo balancing s ...

Takang TKV-860-HT CNC Twin Spindle Vertical Turning Center Year 2015 . GENERAL SPECIFICATIONS Max. Cutting Diameter: 800 to 1000mm Max. Swing Diameter: 1000mm Max. Cutting Length: 860mm Spindle Motor (FANUC aP40): (2) 50 HP Alpha P40 2-Speed Gearbox Motors Spindle Speed Range: 10-1500 RPM Spindle Nose: A2-11 Spindle: Spindle Motor (FANUC aP40): (2) 50hp Alpha P40 2-Speed Gearbox Motors Spindle Speed Range: 10 - 1,500rpm Max Chuck Diameter: Installed 31.5" 3- Jaw Hydraulic Chucks Spindle Nose: A2-11 Front Bearing Diameter: 7.87" Spindle Bearings: Double Row Cylindrical and Angular Contact Spindle Speed Selection: Direct RPM Programming Spindle Speed Override: 50% ~ 200% Speed Range Shift: 2- Speed Gearbox Programmable High-Low Range Axis Drives: X Axis Travel (FANUC a22/3000i AC 4.0 HP): 18.31" Z Axis Travel (FANUC a22/3000iB AC 5.0 HP): 33.07" X Axis Thrust Force: ...

Kramatorsk Model KJ1910 serial number 1913 Swing Over Bed: 1600mm Maximum Workpiece Length: 6300mm Maximum Drilling Diameter: 991mm Spindle power: 125.00kW Spindle Speed: 1 - 320 RPM Infinitely Variable power Existing Additional Chuck workholding range: 200 - 1250mm diameter, workpiece weight capacity using two open roll supports: 60,000kg, size range in closed backrest: 200 - 800mm, size range in open backrest: 630 - 1380mm, pressure head speed range: .125 - 500 infinitely variable, pressure head spindle bore diameter: 182 mm, pressure head motor power: 75kW DC, headstock speed ranges: 3, pressure head speed ranges: 2 Machine Length: 22950mm Machine Width: 4375mm Machine height: 2670mm Weight: 101091kg Condition Good

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 2292.56 €: 10 mm: B 16 : 220 mm: 250 - 3000 U/min: 0,45 kW: 320 mm: 520 mm: 820 mm: 44 kg: 60 mm: 140 - 315 mm: 300 x 250 mm: 70 mmDrilling capacity / normal drilling Performance 10/12 (in E335/ST60)Robust, high quality and inclined rotation hood for easy speed readingLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionUndervoltage releaseDrill protection with electr. FuseConnection cable with Schuko plug (1.2 m)3 years warranty for single shift operationArt. - No. 217.400 with drill head height adjustmentOPTIONS:Machine cabinet with door and drawerDrill package 2 (vice &, keyless chuck)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 Wochen ab Auftragse : 880.52 €: 150 mm: 40 mm: 200 mm: 33 kg[felix] 2.0 Easy and safe drilling operations - Thanks to the innovative machine vice by Felix Röwekamper.The machine vice for freely adjustable clamping of the workpiece.Simple, fast, secure and superior in use. With two hand movements the vice is clamped on the drilling machine table, precisely and safely adjusted.Prism jaws with shoulder and horizontal and vertical holding recesses to clamp a wide range of workpiecesHardened and precision ground clamping jawsNo additional clamping devices necessaryThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2024 : 3982 : prompt, Zwischenverkauf v : Spanien : 10830 €: 207.94 €: 1 : 35 mm: MK 4 : 300 mm: stufenlos 100 - 2.000 U/min: 3 kW: bis M 27 : 1100 mm: 600 mm: 1950 mm: 360 kg: 0,10 / 0,20 / 0,30 (3) mm/U: 150 mm: 125 mm: 90-890 mm: 1250 mm: 480 x 480 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEcolumn drilling machine with vario gear1-stage V-belt drive with stepless variable speed with a frequency converter and digital speed display3 automatic feedschuck guardleft-right drillingT-Slots and integrated coolant equipment in base standintegrated lightingdrill guardHEIGHT ADJUSTABLE, ROTATING AND TILTING TABLE WITH T-SLOTSreverse for tappingfast and precise setting and control of the speed without switching operations and without defined levelsmore particularly robust parts for wear resistant operation and smooth runningcompact design with high performanceCE normsuser manual  ...

: neu : ca. 2 - 4 Wochen ab Auftr : Polen : 1595 €: 23 mm: 19 mm Weldon : 1.6 kW: M20 : 266 mm: 259 mm: 500 mm: 17 kg: 23 mm: 50 mm: 75 mm: 190 mm: 160 - 250 / 390 - 580 U/min: 8 mmThe PRO-52T drilling machine is suitable for hole cutting and tapping applications.Powerful variable speed motor enables milling capacity up to 50mm (2”) and drilling capacity up to 23 mm (7/8”).Machine’s forward &, reverse work modes allow thread cutting up to M20 with Promotech’s new tapping system.Two speed gearbox with continuous speed adjustment allows to set the optimal speed depending on diameter, steel gradeor tool quality.Intelligent speed control system maintains constant motor speed regardless of changing loads.Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety.Features and benefits:• powerful motor with heavy duty 2-speed gearbox• Ele ...

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 8144.6 €: 157.19 €: 25 mm: MK 3 : 280 mm: 125 - 4000 (2 Stufen) U/min: 0,9 / 1,45 kW: M20 : 520 mm: 820 mm: 1900 mm: 275 kg: 125 mm: 110 mm: 240 - 790 mm: 420 x 340 mm: 125 mmDrilling capacity / normal drilling performance 25/30 (in E335/ST60)Drilling depth adjustment with fine adjustmentDigital drilling depth and speed displayEmergency stop pushbuttonUndervoltage releaseelectr. Drilling machine guardManual reversing switch for clockwise and anticlockwise rotationConnection cable (1.5 m) with CEE plugThermal overload protectionOPTIONS:Drill package (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 - 14 Wochen ab Auf : Spanien : 50410 €: 952.75 €: 35 mm: MK 4 : 390 mm: 94- 2.225 (16) 50 Hz 113 U/min: M35 : 1660 mm: 1510 mm: 2600 mm: 910 kg: 180 mm: 190 - 650 mm: 1310 mm: 125 mm: 400 x 420 mm: 0,10 - 0,18 - 0,24 (3) mm/min: 750 - 1.500 U/minERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEdrilling and milling machineautomatic feedprecision electromagnetic clutchesgeared drivecross tablefixed base and displaceable headstockcontrol panelcooling equipment with electric motor pumphand wheel for fine tuningclamping device for toolsadjustable stopdrill guardOPTIONAL EQUIPMENT (PRICES ON REQUEST):Digital read out for drilling depthTapping deviceMotorized longitudinal and/or transverse feedDigital read out for table axes and/or drill head height adjustmentThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 15095.86 €: 289.84 €: 30 mm: MK 3 : 300 mm: 0 - 4000 U/min: 3 kW: M30x3,5 : 900 mm: 610 mm: 1980 mm: 385 kg: 0,10 / 0,16 / 0,25 mm/U: 125 mm: 150 - 700 mm: 590 x 450 mm: 125 mmDrilling capacity / normal drilling capacity 30/35 (in E335/ST60)Main switchDispositif de taraudageControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEmergency stop buttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with CEE plug3 years warranty for single shift operationMechanical feed of the Z-axis incl. electromagnetic clutch for (3) feed ratesDrilling cross with pushbutton (on/off) for feed rateIn tapping mode: Right-left lifting via drill cross switch or opti ...

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

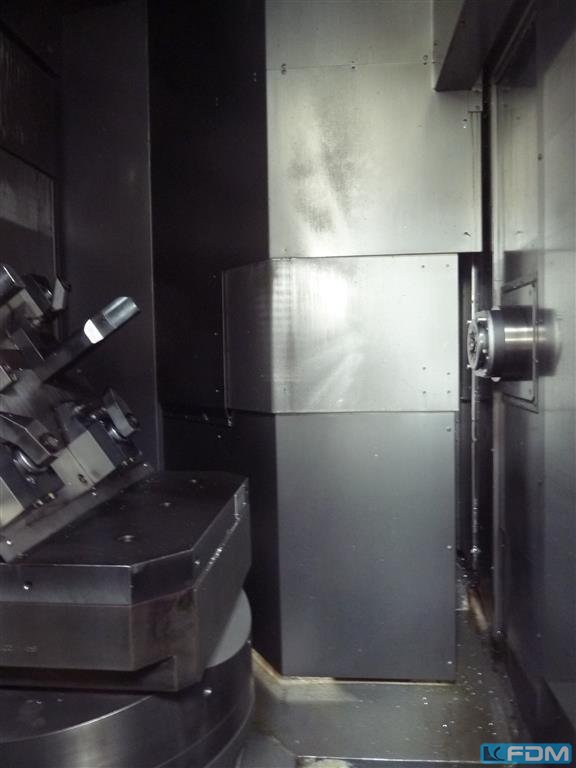

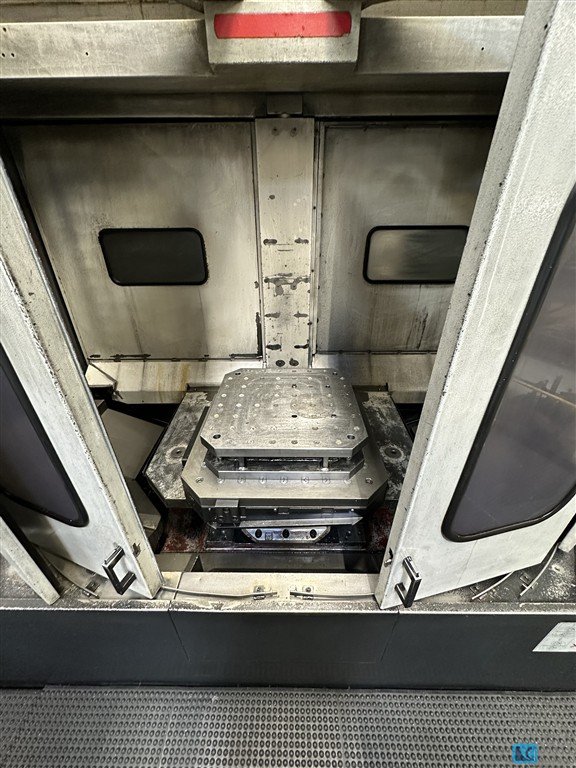

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

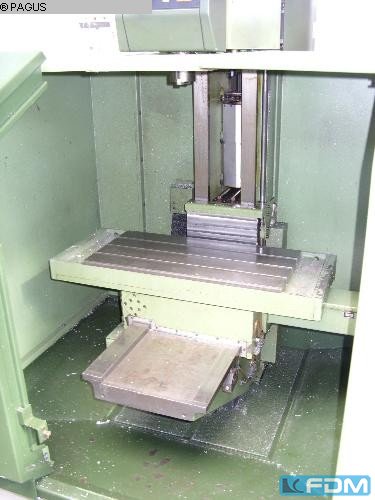

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

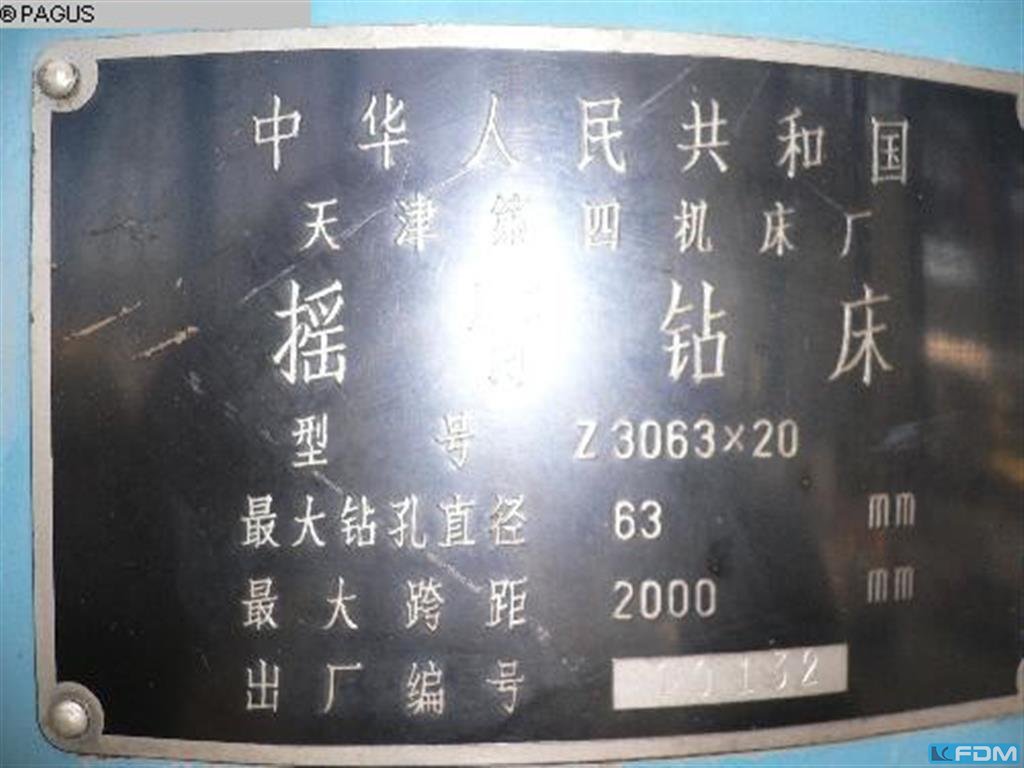

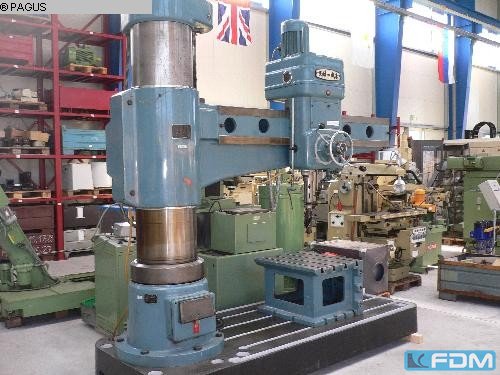

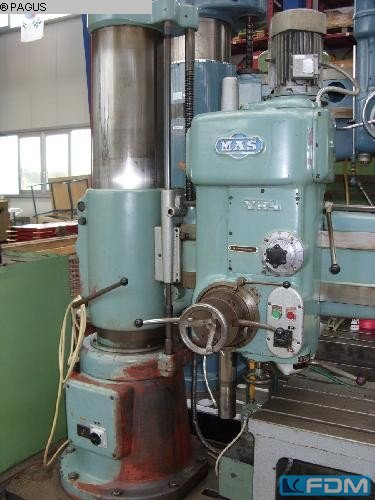

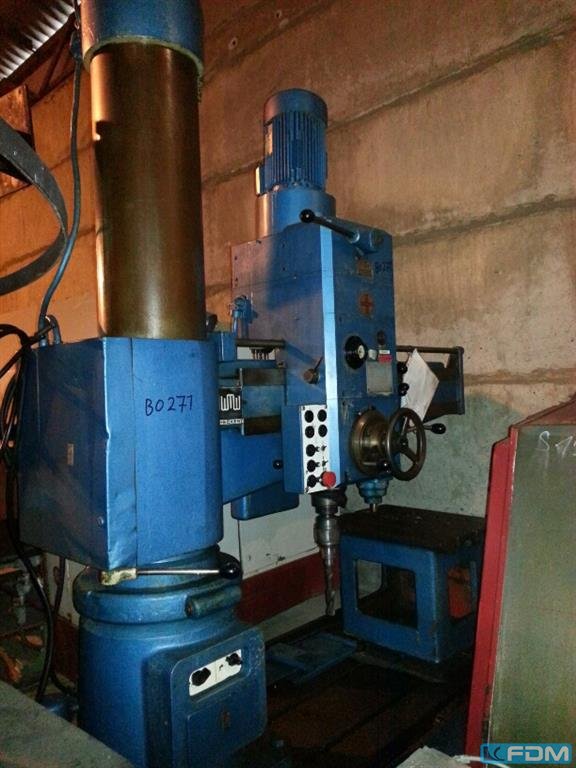

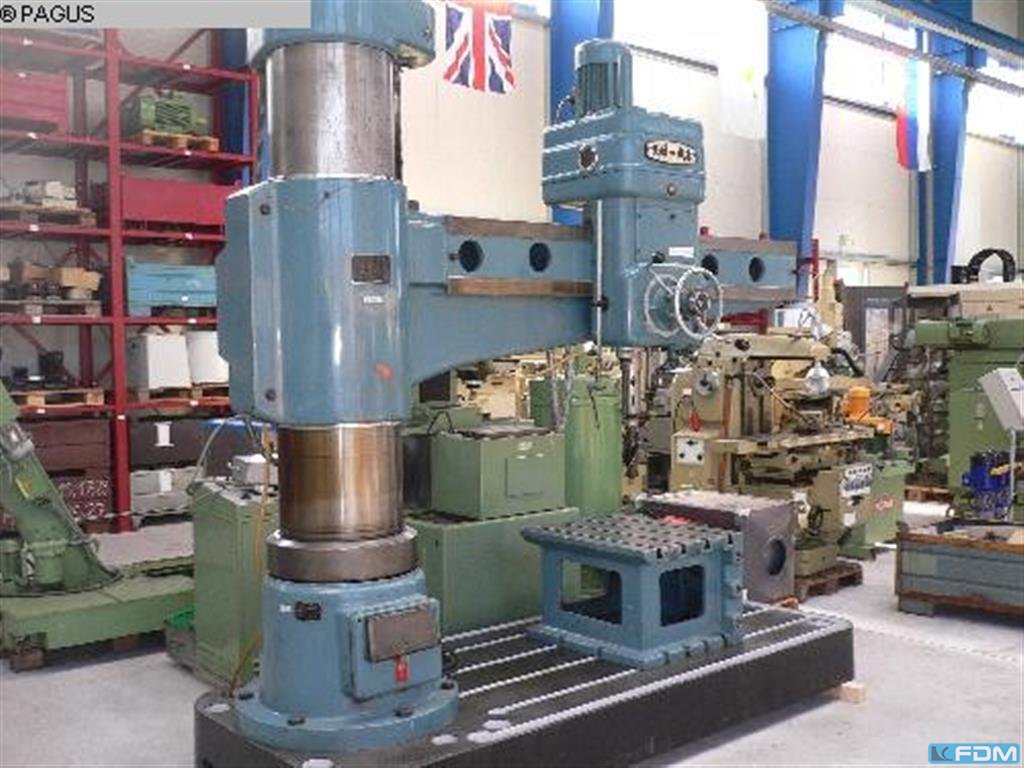

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

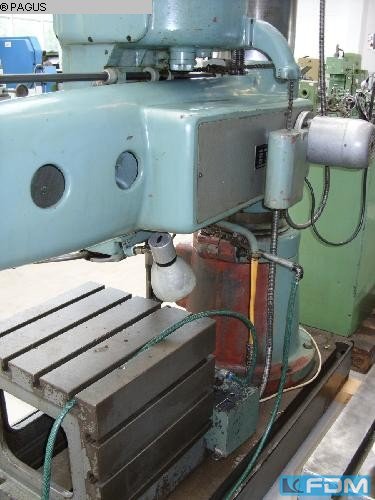

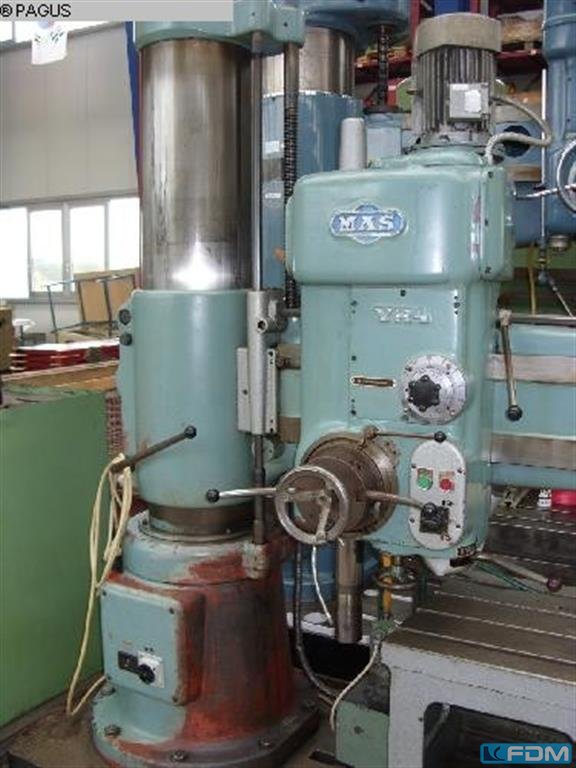

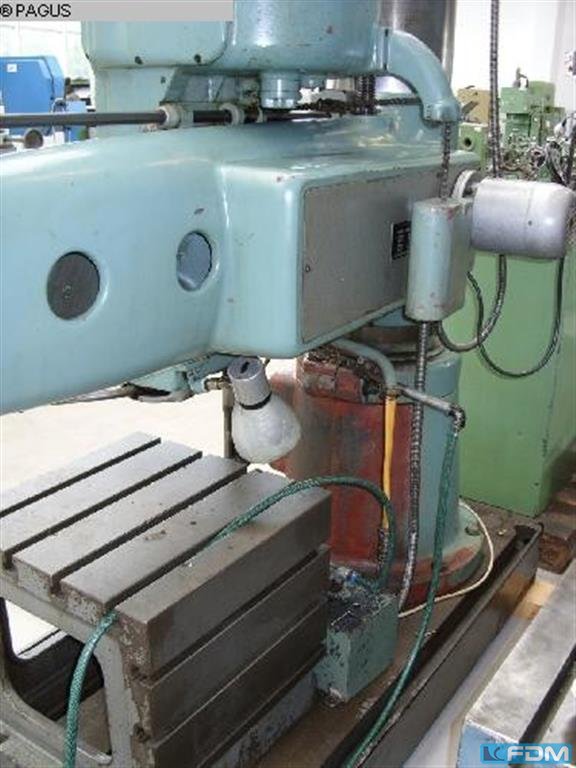

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

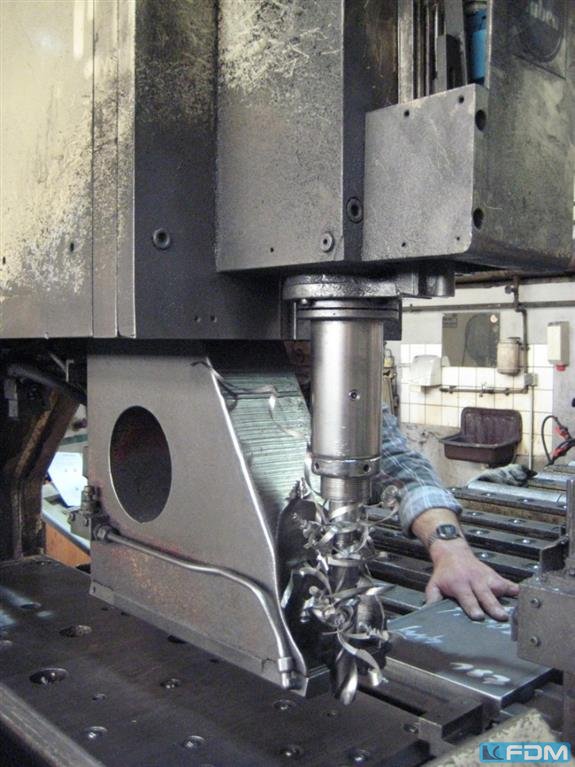

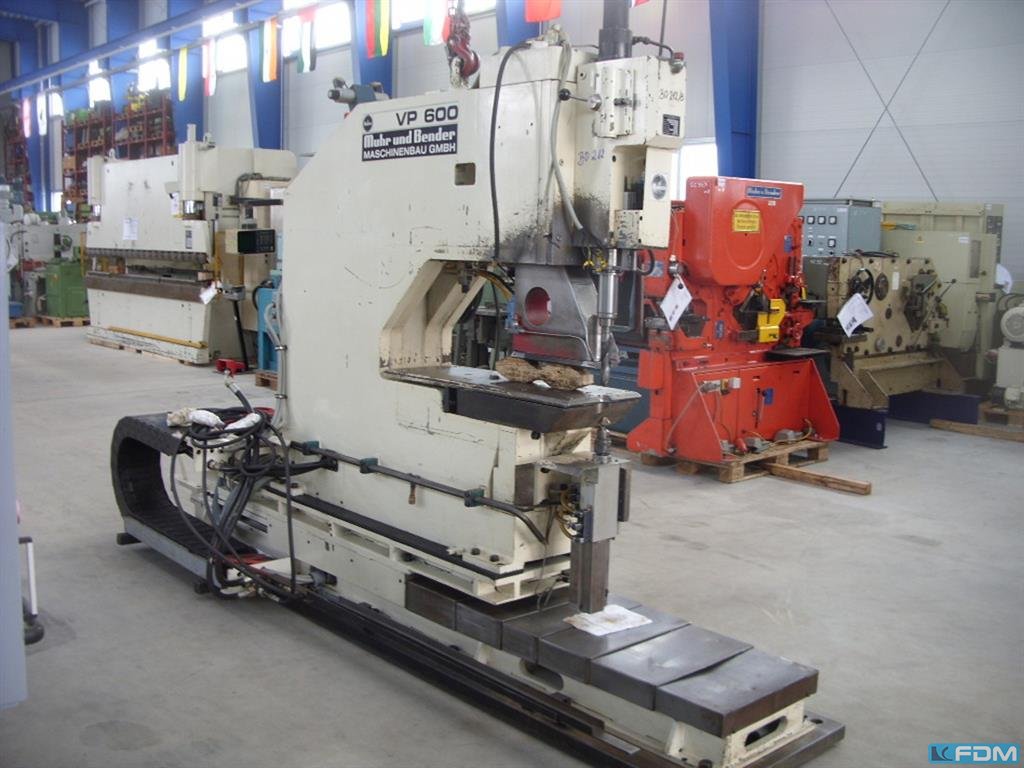

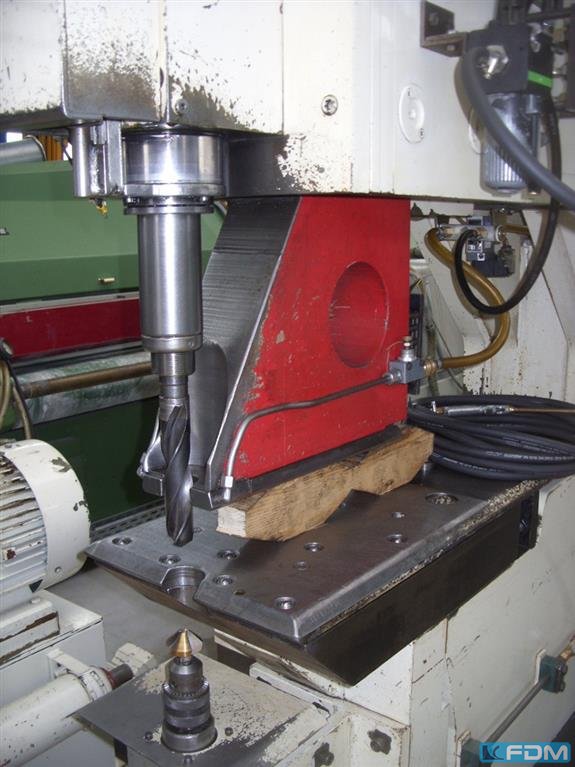

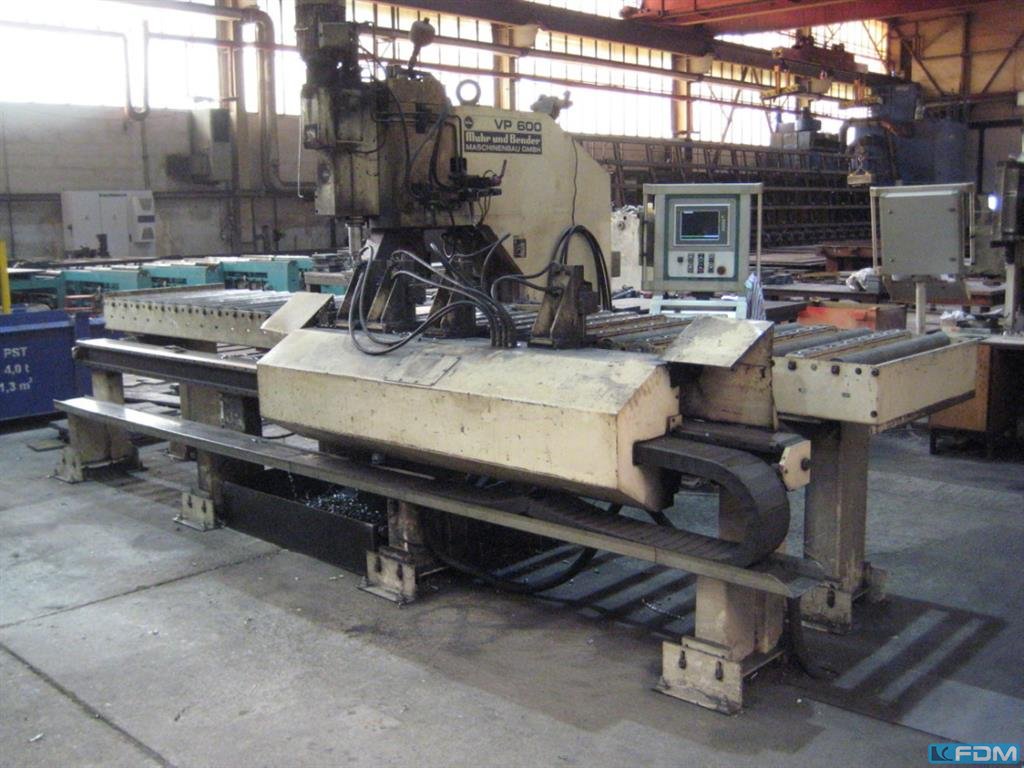

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...
