turbines used for sale (122)

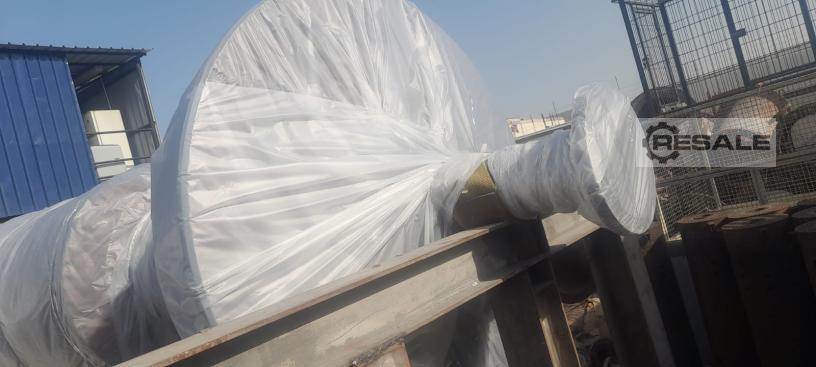

Steam Turbine Siemens SST-300 UK Power Generators is offering Brand New Steam Turbine Siemens SST-300 – in factory packing from the year 2021. This turbine has never been installed and available with all its equipment and accessories, below are the details of the main components. Along with it see at the end of this document the pictures as it is stored in warehouse securely, in good environment. SO2 Blower o Vendor: Howden o SAR Blower, specifically an SF11.2 Centrifugal Turbo Compressor. o Technical Data: Operates with an inlet pressure of 0.91 bara, continuous pressure at 57°C, and short-time temperature at 65°C. It is electrically driven, requiring 1989 kW of power, and runs at a speed of 4733 rpm. The blower was constructed in 2021. o Dimensions/Weight: The skid (including the blower and gearbox) has a footprint of 5m x 5m.  ...

800kW CAPSTONE C800S Containerised set with MATTEI Compressor. Make and model: Capstone C800S Capacity: 4 x 200kW Year: 2019 Fuel: Landfill Gas Hours and status: Bay A: 2,527h - Powerhead broke in June 2023. (This is a backup bay with no head recovery). Bay B: 25,113h - Ready to operate - New Powerhead installed in April 2022 at 12,142h. Bay C: 16,590h - Powerhead ok, replaced in December 2022 at 10,294h - Stopped because of an electrical problem on the control board March 2023. Bay D: 19,093h - Powerhead broke down in March 2024. General information: Stopped in March 2024, stored since. Ready to be shipped. MATTEI Compressor in 10 foot container Make and model: MATTEI G135K7-50-25 Fuel: Landfill Gas Hours: 18 329h (back up with another compressor) Available for sale from Gas Engine Exchange . Please check our complete range of equipment at gasengineexchange.com.  ...

Capacity: 3,224 kW Volts: 400 HZ: 50 Condition: Very Good Scope of Supply: Complete Turbine Power Station with turbine and alternator, Control Panel, Condensor, Cooling Towers, Spilling Unit, Switchgear, Synchronisation panel, Transformer, Piping / wiring / pumps. Total cost for power plant components was around 3 million on the actual power plant components. Nominal Steam requirement to run the turbine is 17, 5 t/h at 29 barg & 350 °C. Available for sale from Gas Engine Exchange . Please check our full range of equipment at gasengineexchange.com.

Kawasaki M7A-03D 7.2MW Natural Gas Turbine Complete CHP Generating Set Completely self-contained Kawasaki M7A-03D 7.2MW Gas Turbine and Generator package with Heat Recovery (Thermic Fluid Heater and HRSG Hot Water Generator) in acoustic enclosure. Runs parallel with grid. Island operation mode. Make and Model: Kawasaki TD80A Capacity: 7200kW Hrs: 10,000 V: 11,000 HZ: 50 Year: 2010 Fuel: Natural Gas Scope of supply: Gas Turbine GPB 80, M7A-03 DLE Single Gas Fuel, single shaft with DLE Combustor, reduction gear box, coupling with guard, Diaphragm Type, Generator (TD80A, 2011) Heat Recovery System - Thermic Fluid Heater, HRSG Hot Water Generator Acoustic Canopy with Lighting Control and Instrumentation Exhaust collector and/or diffuser, Gas Fuel system, Lube oil system, Inlet ducting, Inlet filtration system, Inlet silencer, Combustion system, Protection system ...

Turbogas Turbine GE5/1 5MW Natural gas for sale. Complete turbogas turbine plant with electric generator, recovery boiler and exchangers, dry cooler, diverter. Total Hours: 36,000 8,000 hours from the last overhaul. THERMAL POWER 9,0 MWt Saturated steam production 13,000 kg/h at 10BARg Voltage 11000 V Frequency 50 hZ Also available: - GE5/1 used turbine in nitrogen storage with 72,000 hours + 8,000 Hours after the last overhaul + one used generator Price: €240,000. - NEW GE5 Turbine Spare Parts (value 1 million) Price : €320,000. Available for sale from Gas Engine Exchange. Please check our complete range of equipment at gasengineexchange .

Quality Used Power Plant with two (2) Solar Centaur 40, 3.0 MW, (Each), 13,800v 60 Hz. Enclosed. Equipment Description Complete power plant with 2 turbine generator systems. Everything included The equipment has very little hours since installation. They will need to be moved off the site. They are located in The USA. They were overhauled in 2020 installed and never used. The following is included: Control Panels, New Square D Switchgear, 15kv, 1200 amp. for synchronizing the generators to each other and the grid. Grid protection hardware and software. Inlet system with filter cleaning system New control system Exhaust system complete New Oil coolers Gearboxes have been overhauled Generator ends have less than 800 hours on them, one is new 0.0 hours A control room enclosure complete with all control switches New battery chargers

1. EQUIPMENT OVERVIEW SIEMENS SGT-500 GAS TURBINES Quantity: Two (2) Units Available Condition: New Surplus / Zero Hours Manufacturing & Storage • Manufactured in 2007 • New surplus, never used • Zero operating hours • Stored strictly in accordance with OEM preservation procedures • Originally supplied for an FPSO project that was cancelled Certification • Marine Rated • DNV (Det Norske Veritas) certified 2. GAS TURBINE – TECHNICAL DATA • Model: Siemens SGT-500 • Configuration: Single-shaft industrial gas turbine • Fuel: Dual fuel – Natural Gas / Diesel • Frequency Capability: 50 / 60 Hz Power Output (ISO conditions – indicative) • Natural Gas: approx. 17.4 MW • Diesel: approx. 17.0 MW (Output may be slightly higher depending on site conditions) Performance • Specific Fuel Consumption • 221 g/kWh (Na ...

Two (2) Overhauled Solar Mars 100 Version 15000SAN – 10 Mw, 13,800v. 60 Hz (each) ISO - Natural Gas Turbine Generator. DOM – 2011 – warranty expired – sold as is – where is - These two units have been dismantled. SCOPE of SUPPLY: Complete Gas Turbines including: Gas turbine (axial compressor, combustion chamber, and power turbine), Intake volute, inlet silencers, Exhaust volute, exhaust silencers, Lubricating oil system, oil tank, heater, main and auxiliary oil pumps (main mechanical, AC electric pre/post, DC electric backup), filter, 120V DC starter, pressure and temperature regulator, oil mist separator, ventilation flame arrester, Starter motor, Oil pressure regulation system, Thermostat valve, Duplex filter holder with its 6-way valve, CO2 piping system, fire detection, and fire extinguishing system CO2, Instrumentation associated with the turbine (pressure transmitters, ...

82MW ISO rated combined cycle power plant. The plant’s main equipment is composed of a Rolls Royce Trent 60 DLE Gas Turbine (also known as the SGT-A65), a Nooter/Eriksen HRSG, and a Siemens SST-300 Steam Turbine. These are below; 1. Rolls Royce USA, manufactured Trent 60 (SGT-A65) Gas Turbine Generator Set; · Manufactured in 2016, delivered in August 2017. Never used. · 65.9 MW(e) ISO · 43.8% Gross efficiency / 8,228 kJ/kWh Heat Rate · DLE Dry Low Emissions with ≤ 25 ppmvd at 15% O2 on fuel gas · Cold start to full power in under 10minutes · 50Hz, but easily convertible to 60Hz · Engine still preserved in original shipping container · An aero derivative gas turbine 2. HRSG is licensed by Nooter Eriksen USA; 3. Siemens Steam Turbine Generator SST-300 C2S/C160; · Manufactured in 2016 · Output 15.75MW ISO · Speed 7059 RPM · Adm ...

Steam turbine Siemens SST400 Year: 2011 Disassembled and put in a storage. Very low working hours. Power:30mW Voltage:10.5kV/50Hz Fuel: Biomass Generator: SGen5-100A-4P Turbo gear unit Flender-Graffenstaden TX80/3 Transformer Siemens S10-40000/110 Condenser Full set of manual books No boilers, no voltage control cabinet (7) Steam turbine Siemens SST-400 Year: 2011 Never used and never installed. Still in original wooden crates. Packing lists. 7 sets available Power:30mW Voltage:10.5kV/50Hz Fuel: Biomass Generator: SGen5-100A-4P Control system Accessories Full set of manual books No boilers Price: on request

750 MW each, UNUSED Gas Based Complete Combined Cycle Power Plants 2 units available Technical Specifications: The Project Details: 1. EACH module has two Gas turbines GE 9FA.03 (DLN2+) and one Steam turbine GE D11. Each GT exhaust is directed to the triple pressure unfired, natural circulation horizontal, type CMI USA HRSG. This configuration helps turndown operation of station up to 45%. 2. The Station is based on robust design of GE Gas Turbine with high efficiency DLN2+ Dry low Nox system, each GT is site rated for an output of 235 MW and the triple pressure reheat GE D11 Steam Turbine with downstream Exhaust, is site rated at 266 MW. The HRSG is a Triple pressure, Natural circulation, Horizontal design type with Deaerator atop the LP drum. Thus Net Combined cycle efficiency at Site condition is approx 57% on LHV basis. The inherent design of the gas turbine reduced the N ...

HHI-BBC Turbine Housing RPM - 17400 Only the turbine hull.

MBARBECOL turbine flap PN-5478 MAN 28/32 engine Just the turbine hull.

Hydropower - Power: 240 kW consisting of: 1 piece turbine Pelton/ paygap 225m, water quantity 130 l/s, manufacturer; Escher-Wyss 1 piece generator power 240 kW, manufacturer; Barthold

Pratt & Whitney gas turbine generator Model : FT8 Twin pac Power output : 48 MW Voltage : 11 KV Frequency : 50 Hz

GE Model : LM6000PA Power Output : 42 MWe ISO condition Voltage : 11KV Frequency : 50Hz Total 2 nos.

Complete 48 MW Westinghouse W251-B11A Gas Turbine with a Brush electric generator, 3000 rpm, 50 HZ, 11.5 KV, may be modified as Dual Fuel GT ied

51 MW - CCGT comprising 3 x 12 MW Solar Gas Turbine generator and 1 x 15 MW steam turbine generator Model : TITAN 130 Capacity : 12 MW Voltage ; 11 KV / 50 Hz Qty : 3 sets Titan 130 + 1 set STG Year : 2012 Running hr : 6000 hrs since new

A complete industrial power plant based on a gas-powered turbine plant is offered. The plant consists of a Turbomach gas turbine with generator, integrated lubricating oil system, fuel gas supply, air and exhaust systems as well as electrical, pneumatic and safety equipment. The power plant is designed for stationary continuous operation and was used for decentralised power generation in an industrial environment. The plant is fully documented and comes from a professional industrial project. Power plant with gas turbine and generator Turbine Manufacturer: Turbomach A Caterpillar Company Plant Type: Gas-Powered Industrial Power Plant Design: Stationary system for decentralised power generation Electrical power: 4,259 kW Power Supply: Medium Voltage Commissioning: 2013 Turbine concept: Single-shaft gas turbine Combustion system: SoLoNOx Generator: Directly flanged Fuel: ...

Siemens steam turbine 3,370 kW nominal output. Speed: 11,500 r/min, live steam 80 bar, live steam 500 °C.

Turbine power 294 kW at 1.35 bar and 170°C including exhaust gas heat exchanger

Turbine power 330 kW at 1.35 bar and 170°C including exhaust gas heat exchanger

Machine Type: Steam Turbine Manufacturer: Siemens (formerly KK&K or Kühnle, Kopp & Kausch) Model No.: SST-060 Serial number: 4.345.107 Year of Make: 2016 Operating hours: 0 h Condition: new, has never been put into operation Power: 1,047 kW Live steam parameters: 29.0 bar (26.0-34.0 bar), 480 °C (430-500 °C) Evaporation parameters: -0.36 bar (max. 0.50 bar), 425 °C Generator: AvK, 400 V, 2,165 A, 50 Hz, 1,500 kVA, cos φ 0.80 Dimensions: approx. 5.0 m long x 2.8 m wide x 2.8 m high (turbo generator set without control cabinet and ancillary systems) Scope: turbine, gearbox, generator, oil generator, oil cooler, control cabinet

BVI / ThyssenKrupp Condensing steam turbine MARC6-C03 2005 power generator with 135,000 operating hours, without steam condenser and AC generator. Inlet pressure 89 bar, outlet pressure 0.11 bar, 21,000 KWel x 1,500 rpm, Steam turbine BVI / ThyssenKrupp MARC6-C03 Manufacturer: BVI / ThyssenKrupp Model No.: MARC6-C03 Type: Steam Condensation Serial number: P-900078 Power [KW]: 23,545 Pressure Input [bar]: 89 Temperature Input [°C]: 520 Pressure output [bar]: 0.11 Year of Make: 2005 Hours: 135,000 Weight [kg]: 58,000 Dimensions LxWxH [cm]: 510x400x340

SGT – 800 Gas Turbine Generator Set, 45,3 MW, with integral Local Equipment Room: Unit(s) to be supplied are unused, with zero running hours, never installed. Gas Turbine Package: Original year of assembly: 2022-2023 SGT 800 Gas Turbine Core Engine Original assembly location: Europe Never installed AC Generator: Original assembly location: SIEMENS Electrical Machines Original year of assembly: 2022-23 Package and core engine serial numbers will be confirmed upon placement of order The units` supporting documentation is available for review at any time with prior notice Scope of Supply: Driven unit AC Generator 11 kV 3 phase 50 / 60 Hz 4 pole 0.8 power factor Cylindrical pole brushless type Filter ventilated Class F insulation with class F total temperature rise Generator bearing temperature instrumentation Lubricating oil piping from gas turbine to driven unit  ...

Kaplan turbine Escher Wass with standing shaft, used very good condition Gradient 7.00m-7.2 m Water volume 6000l/sec, power 500 hp, speed 375T/min

Emergency power gas turbine from 1977 with few running hours, without generator and controller. 1 available 456 KW x 1,500 1/min Manafacture: Garrett Model No.: ME831-800A Type: Gas turbine Serial Number: P-830005 Power [KW]: 456 Year of construction: 1977 Weight [kg]: 915 Dimensions LxWxH [cm]: 270x120x120

537 KW Tuthill Nadrowski back-pressure steam turbine C4. S-GIII from 2004, only turbine (was used as a pump). 1 available inlet pressure 90 bar, outlet pressure 18 bar, Price: € 19,500 each, plus VAT and FCA-free Manufacturer: TUTHILL Nadrowski Model: C4. S-G III Type: Steam Back Pressure Serial Number: 21004 Power [kW]: 537 Pressure inlet [bar]: 90 Pressure outlet [bar]: 18 Speed (rpm) 3.554 Year of construction: 2004 Weight [kg]: 2.440 Dimensions LxWxH [cm]: 370x138x174

Turbine Turbine operating hours: 30,000h Backpressure turbine Manufacturer: Kkk First start-up: 2002 Type: CFR5 G6a Power max: 2500 kW Operating efficiency: 2200 kW, Number of revolutions: 23000 rpm, Live steam pressure: 65 bar, Live steam pressure temperature: 480 C, Evaporation pressure: 1-17 bar, Investments in 2002 , Entire steam transformation station renewed from 63 bar to 2.5 bar in 2002, El. Generator Fa. Leroy Somer, el. Power 2 MW, 525 V, 2488 kVA, renewed, complete measurement, control and control of the turbine renewed, steam turbine renewed with energy production General overhaul of the entire plant from 2002 to 2004, steam generator renewed, automatic corder and ash removal system renewed, water treatment plant renewed, complete instrumentation renewed, flue gas cleaning plant Lurgie renewed from 1991 - 2001 Mistakes excepted!

1 x Steam turbine generator 3817 KW KKK Siemens CFR5 G6b 5,000 KWe x 1,500 rpm 50 Hz 6,300 V for sale in operational condition Turbine Manufacturer KKK Siemens Model CFR5 G6b Steam pressure fresh [bar] 64 Dampfdr. Ed. [bar] 8.5 Generator Manufacturer INDAR Model BZK-710-S/A-4 P Generator [KW] 5.000 Turn around. [per min] 1,500 Frequency [per sec] 50 Voltage [V] 6,300 Current [A] 458 Scope of delivery: The system has been completely dismantled and is complete including the control system. Technical documentation: available Spare parts / tools: not available The plant was dismantled in working order. Last major overhaul: unknown Sales are "as is" or after prior inspection by a company engaged by us on request
