The machine is functioning properly. Currently there is no battery present; This must be provided by the buyer himself. Auction-ID: A3-40481-5000

Engine: 133CC extra thick seam welded 134L drum Large mixing capacity of 100 liters Gasoline Seam-Welded Cement Mixer Robot-welded one-piece chassis Two 12\" composite puncture-proof wheels Three securely lockable working positions and a 360-degree swivel and tilt mechanism for easy loading, mixing and unloading. Designed for all-day use Auction-ID: A1-40210-56

track-mounted jaw crusher MC140 Inlet width 1400 mm Weight 160 t Capacity up to 600 t/h Good condition

Impact crusher 8/4/3 S3 Infeed width 480 mm Inlet height 400 mm Maximum feed up to 250 mm hard rock Capacity up to 60 t/h depending on gap setting Drive power 45 - 90 kW The machine has completely new wear parts The rotor is overhauled with new blow bars Includes hydraulic power unit for swingarms and housing Basic machine with infeed hopper

Slicer IFE 2 x 5 m 1 Deck Version Screen lining, wire cross-tensioned Very good condition, few operating hours from a pilot plant

Split sieve coverings for an IFE dewatering screening machine 1 pcs L 500 mm x W 800 mm gap 0.3mm 1 pcs L 1000 mm x W 800mm gap 0.3 mm 2 pcs L1000mm x W 800 mm gap 0.3 mm 3 pcs L1000mm x W 800 mm gap 0.3 mm 5 pcs L1000mm x W 800 mm gap 0.3 mm The pads are unused or only in use for a short time

Screening machine large, Terra St used, overhauled

2 cyclones as good as new Type AKA VORTEX Twin TRT 4118 Throughput per twin 95m3/h total 190m3/h Diameter 200mm, cutting cut approx. 50my 1 pcs new cyclone Type AKA Vortex KRS3128 II 40m3/h DM 150 mm All cyclones including overflow line and shut-off valve If required, a refurbished PUMP METSO VASA is also available Drive 30 kW available are also handed in individually

Pre-breaker with crusher Suitable for soft lime, marl, coal Power up to 200- 600 t/h Task size up to 1500mm Drive - electric transformer station 30kV/400V Drive power approx. 500 kVA Plant weight approx. 130 tons Task bunker 25m3 Chain conveyor Roller rust Schlagwalzenbecher Deduction tape Dust removal system Caterpillar suspension - not self-driving Conveyor belt 3 x 40m Telestack, self-driving, belt width 1200mm Immediately available

Four nearly new moulds for garden wall and fence.

BRICK FACTORY, RED BRICK, CLAY BRICK PLANTS - second hand, used, We offer also DE montage and Montage. Also control renewing. Porenbetonwerk, Kalk Sandstein Werk, Dachziegelwerk, Ton Ziegelwerk, Aerated concrete plant, Lime sandstone factory, calcium silicate blocks, Roofing tile works, Clay brick plant, ERICH PETER MACHINES-PLANTS GMBH A-7083 Purbach Hofgartengasse 7 Phone: +43 664 3358378 Mail: office@machines-plants.at Web: www.machines-plants.at

Autoclaved Aerated Concrete AAC Production Line, Porenbetonwerk, Aerated concrete plant, ERICH PETER MACHINES-PLANTS GMBH A-7083 Purbach Hofgartengasse 7 Phone: +43 664 3358378 Mail: office@machines-plants.at Web: www.machines-plants.at

with technical advice, Affordable housing Low-cost housing, cmodul austria low cost housing • Pallet circulation systems for filigree and double wall elements NEW & USED • Machines and systems for prefabricated parts - battery formwork, tilting tables and special moulds • Stationary concrete block paving stone and edge stone installations + shapes as NEW • Mobile concrete stone machines + moulds as NEW • Concrete pipe and shaft ring machines and parts thereof • KS - Lime sandstone works • Dry mortar plants and parts thereof • Brickworks and parts thereof our used lines meets after reinstallation by us the Definition RETROFIT

-Sale by owner AT THE CAMP ERICH PETER MACHINES-PLANTS GMBH A - 7083 Purbach - Austria Mobile: +43-664-3358378 office@machines-plants.at www.machines-plants.at for fully automatic packaging of block and bricks in Special design for stacking and setting up concrete elements Drive: Electro-hydraulic, wheels of the clamfore truck made of Vulkollan Stacking device: All-wheel steering with + 90 0 steering impact from straight line. Control: PLC from Siemens The respective stowage inserts are detected by light barriers Hydraulic: Gear constant pump, ultra-fine filter in high-pressure circuit, return filtering Front and rear wheels can be steered separately or separately. Maximum stacking height of the forklift 1,250 mm Special gripper clamp, in which a complete stoare is held and can be handled, a set of ...

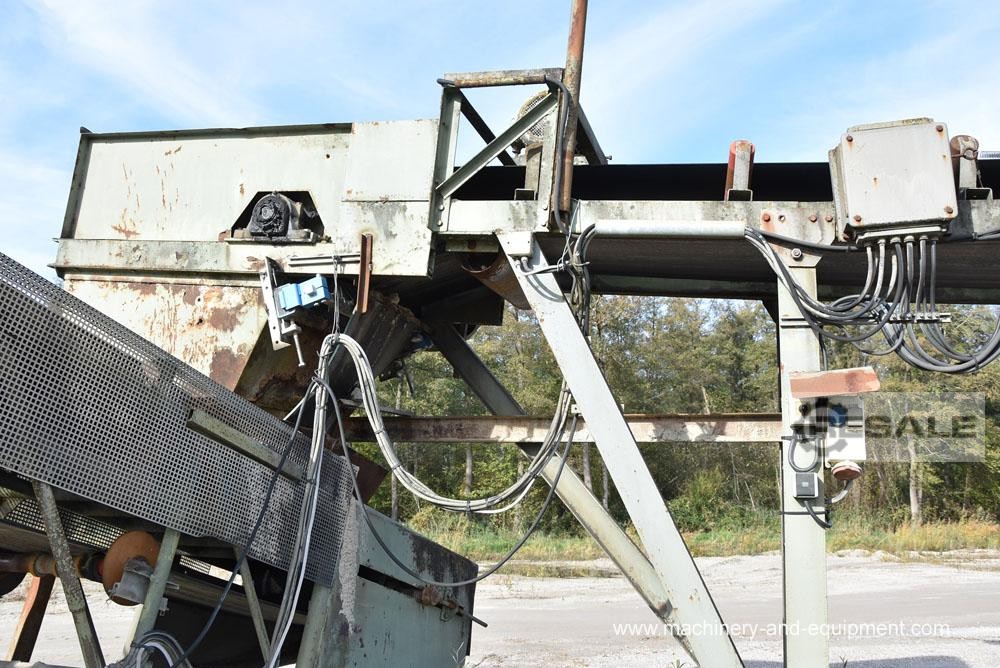

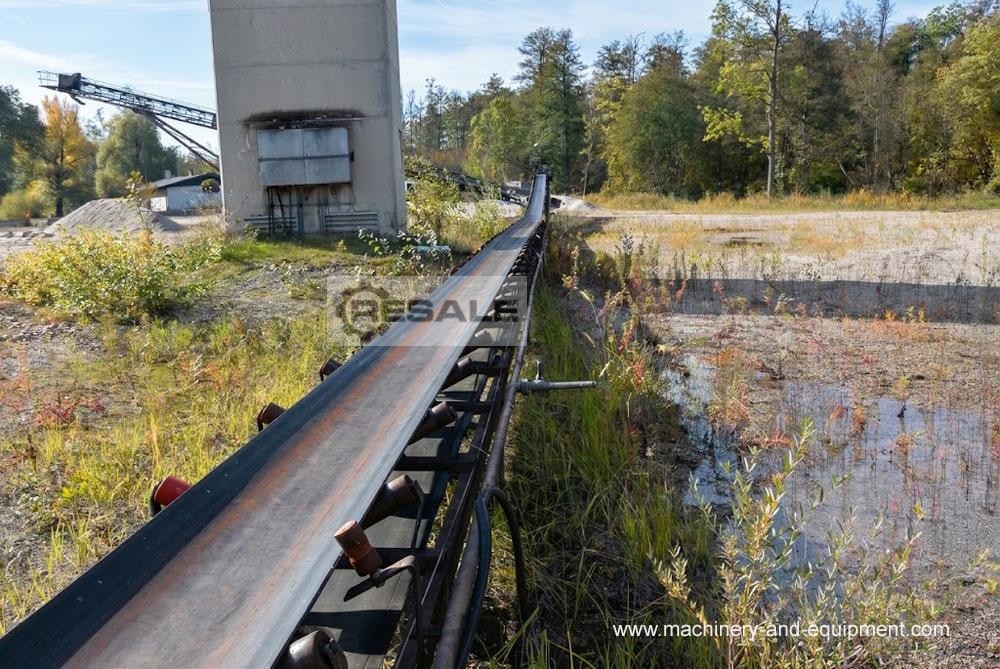

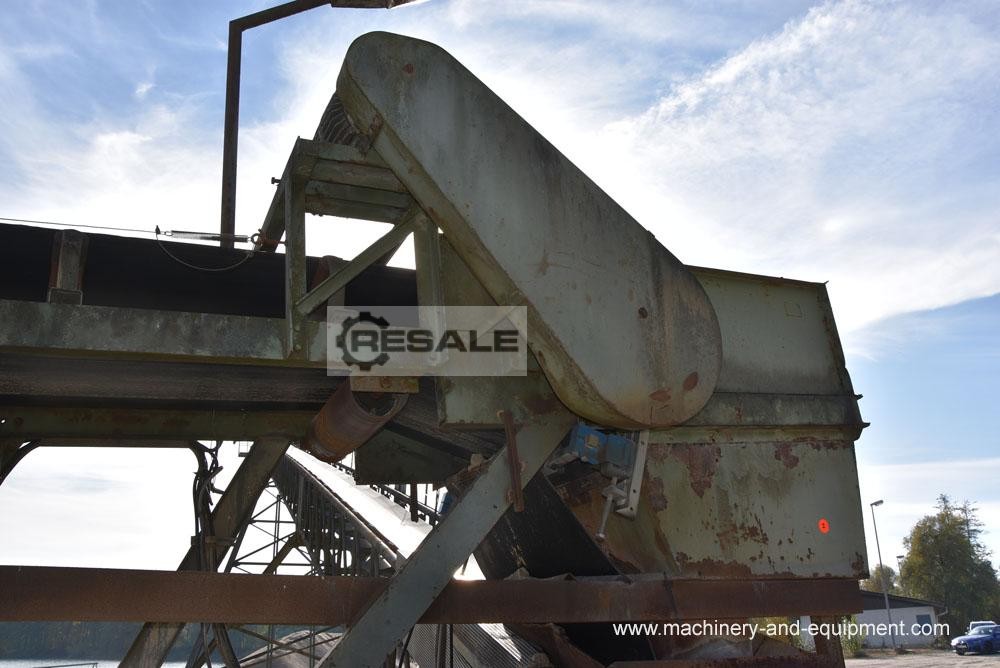

TECHNICAL SPECIFICATIONS Description: Conveyor belt system Version: stationary Wheelbase: 140 m Strip width: 650 mm Year of manufacture: unknown Drive power: 18.5 kW Drive type: Slip-on gear motor (SEW) A-Prop Support Catwalk: single-sided Belt quality: Good Belt tension: Weight tensioning station Belt turning station: yes Top Strap Cover: Yes Galvanized version: yes Segment length: approx. 25 m SPECIFIC COMMENT - Good condition - Incl. control box - Incl. feed hopper, approx. 9 cbm

TECHNICAL SPECIFICATIONS Manufacturer: AMMANN Description: Drum washing system, washing drum with screen cylinder Year of manufacture: unknown, approx. 1980 Drum length: approx. 10,500 mm Drum diameter: approx. 2,500 mm Diameter drum, outer ring: approx. 2,800 mm Length of screen cylinder: approx. 2,250 mm Diameter of screen cylinder: approx. 1,500 mm Perforation of screen cylinder: 90 mm Number of drive motors: 2 pcs. (AMMANN) Drive power: 2 x 22 kW Tire diameter: 800 mm Number of tyres: 18 pcs. Chassis length: approx. 10,000 mm Chassis width: 3,400 mm Weight drum: approx. 27 tons. Total weight of the system: approx. 37. SPECIFIC COMMENT - Ideal for separation of organic contaminants from gravel mixtures - Conveyor buckets and lifting bars in the interior

TECHNICAL SPECIFICATIONS Dimensions (LxWxH): 10,000 x 1,200 x 1,200 mm Pavement: one-sided Hot-dip galvanizing: yes Weight: approx. 1,500 kg / segment Available quantity: 35 pcs. SPECIFIC COMMENT - Steel bridge elements for belt guidance - Robust construction - Designed for a strip width of 1,000 mm - CAD drawing available - Can also be purchased separately

TECHNICAL SPECIFICATIONS Manufacturer: GHH Designation: Double toggle jaw crusher Design: Heavy duty version Type: 86 Year of construction: 1968 Throughput: 45 - 55 cbm/h at crushing gap 80 - 100 mm Inlet opening: 800 x 630 mm Maximum feed size: approx. 450 mm Drive power: 112 kW Weight: 27.000 kg SPECIFIC COMMENT Complete semi-mobile system consisting of: - GHH double toggle jaw crusher - Feed funnel - Plate tape 1,000 x 5,000 mm - Plaster tape (under the plate tape) 800 x 8,000 mm - Solid steel construction ---------------------------------------------------------- TECHNICAL SPECIFICATIONS Manufacturer: GHH Description: Double toggle jaw crusher Version: Heavy duty version Type: 86 Year of construction: 1968 Throughput capacity: 45 - 55 cbm/h with crushing gap 80 - 100 mm Feed opening: 800 x 630 mm Maximum feed size: approx. approx. 450 mm Drive power ...

TECHNICAL SPECIFICATIONS Manufacturer: MOGENSEN Designation: Stangensizer / Stangenrost Type: DX3527 Year of construction: 1994 Version: Two-deck Clear length: 3,500 mm Clear width: 2,300 mm Total height: 2,750 mm Rod diameter above: 70 mm Rod diameter bottom: 40 mm Top gap distance: 216 mm Gap distance below: 330 mm SPECIFIC COMMENT - Reappraisal 2020, since then unused - Robust construction - Ideal for coarse separation

Complete Terrace Slab, Exposed Concrete, Terrazzo Slab Production Line Consisting of: Henke hermetic press 600 tons, direct washing system, flat deposit, blasting system, impregnation and coating system as well as packaging system Formats 40/40, 40/60, 30/60, 50/50, 60/60 and 60/80 Complete terrace tile/slab, exposed aggregate concrete and terrazzo tile production line Consisting of: Henke Hermetik 600-tonne press, direct washing system, flat cycle, shot blasting system, impregnation and coating system and packaging system Formats 40/40, 40/60, 30/60, 50/50, 60/60 and 60/80

Rotary table press for the production of single-layer concrete panels with 5 stations Pressing force: 900 tons

Complete plant for the production of sand-lime bricks - Autonomous production plant with 6 employees - The plant is designed for a production of 50,000 tons /year - Pipe material round stone, aggregate size 32-50 mm - Crushing from 16-50 to 0-3 mm - Primary crusher/fine crusher/harp sieve/filler mill - Extinguishing in reactors 1&2 - Pressing: the press presses at 120 bar - Hardening boiler steam plant/so-called autoclaves = total 6 pcs. + 1 reserve - Residual steam is reused or discharged to the other halls - Packaging system: Fully automatic

ID3704 Rösler Round vibrator / Rundvibrator year/Baujahr 2015 1060 hours/hours Round vibrator Round vibrator

Block production line HENKE - Type 140/100/40 - Board size 140 x 100 x 4.5 cm (all-plastic boards) - Control Siemens S5-115 U - uncl. 25 Molds Stone fabrication machine with facing & core concrete = Paving stones, kerbstones, kerbstones, U-stones, hollow blocks & solid block bricks can be produced - Min. product height 50 cm, max. product height 400 mm HENKE-Vibra-Matik vibration: infinitely adjustable Compaction by adjusting the imbalances - Waterjet system for product refinement, lifting ladder payload 10,000 kg, Transfer platform with skip carriage Board shelf: front track countersunk ladder, clearing lane, packager, board brush, board turning cross Rear track: Lore track, Euro pallet beaver, vertical & Horizental binding machine incl. packer and strapping system

TECHNICAL SPECIFICATIONS Manufacturer: KAUTZ Description: Elliptical shaker screen for light material separation Type: Wet screening Type: OSK 2071/2-W Number of screen decks: 2 Year of Make: 2005 Feed capacity: approx. 150 t/h Dimensions screen deck (length/width): 7,100 x 2,000 mm Screening area: 2 x 14.2 sqm Number of steps: 2 Screen covering deck 1: Synthetic Screen Covering Deck 2: Synthetic Strainer pan: available Chute car: available SPECIFIC COMMENT - Stepped screen deck with shower for separating light materials (wood, coal) - Many adjustment options due to water supply - Optimal machine for simultaneous screening and cleaning of the feed material - Only machine included in the scope of offer

ID3646 Liedlbauer Bullcon 2001 year/Baujahr 2000 approx.  2.570 hours/hours 13 t Mobile impact crusher on wheels, crusher opening length 0.66 m, crusher opening width 0.62 m, crusher has been refurbished and serviced, ready for use, optionally 2 pallets of wear and spare parts available Mobile impact mill on wheels, crusher opening length 0.66 m, crusher opening width 0.62 m, crusher has been prepared and after-sales service has been carried out, condition ready for use, optional 2 pallets of wear and spare parts available

ID3649 Nordberg LT1213 year/Year of construction 2002 approx.  10,000 hours/hours 41.5 t Mobile track impact mill, with pre-screening and side discharge belt Chain-mounted impact mill, with pre-screening and side discharge belt

TECHNICAL SPECIFICATIONS Manufacturer: BHS Sonthofen Name: Stationary rotor impact mill Type: RPM 1513 Year of Make: 2022 Operating hours: approx. 2,000 h Throughput: 30 - 70 t/h Feed size: 0 - 56 mm Rotor dimensions diameter: 1,500 mm Rotor dimensions height: 135 mm Number of impact hammers: 12 pcs. Feed opening: 610 mm Drive power: 200 kW Rotor circumferential speed: up to 71 m/s Machine weight: 12,520 kg Weight steel frame: 6,800 kg Scope of services consisting of: - Rotor impact mill -Steel frame - Siemens S7-1500 control system with frequency converter SPECIFIC COMMENT - Speed regulation by frequency converter - Application area for low-abrasive rock - Housing is designed for ring armor

TECHNICAL SPECIFICATIONS Manufacturer: KISA Description: Sword Wash Type: Stationary Type: SWX160-2400-9000 Year of Make: 2021 Throughput: 160 t/h Max. feed grain size: 150 mm Drive power: 2 x 37 kW / 400 V Trough dimensions (L/W/H): 9,000 x 2,400 x 1,492 mm Number of swords: 160 pieces Dimensions daggerboards (L/W): 420 x 270 mm Transport dimensions (L/W/H): 11,900 x 2,700 x 2,160 mm Weight: 21,000 kg SPECIFIC COMMENT - Efficient cleaning of heavily contaminated bulk materials - Solution of clay and clay - Washaway of wood and other suspended solids due to counterflow water - Two counter-rotating sword shafts

TECHNICAL SPECIFICATIONS Manufacturer: August Müller Rottweil (AMR) Description: Finger roller grate Type: Stationary Type: 11-F2-5/15 Year of Make: 2019 Slope: 11° Power: 3 x 22 kW / 400V Number of rotary shafts: 15 pieces Max. feed capacity: 150 - 250 t/h Max. drop height on the finger roller grate: 2000 mm Max. size of the feed material: 0 - 120 mm Sieving: 0 - 25 mm Weight: 16,000 kg Max. external dimensions (L/W/H): 5800mm x 2950mm x 2550mm SPECIFIC COMMENT - Plant has only been in operation for about 3 years - Processing of heavily contaminated screening waste - Spinning, equalization and cleaning of the feed material - Dismantling and loading included in the offer
