other machines for plastic used for sale (435)

Model Designation 700kN PELLETER Modes of Operation Automatic/Manual Configuration Single Station Design Self-contained Direction of pressing Horizontal Material loading Automatic Material Unloading Semi-automatic Drive Self-contained Main Ram Pressing Force (max) 700kN | 70 Tons Main Ram Pressing Force (min) 70kN | 7 Tons Main Ram Stroke (max) 70 mm | 2.75 ins Max Hopper & Die Stroke 184 mm | 7.25 ins Max Fill Length 76 mm | 3 ins Min Fill Length 25 mm | 1 ins Hydraulic Oil Specification ISO 32 Oil Tank Capacity 300 Ltrs 66 Galls Hydraulic W ...

BLS Lamination Press has been rebuilt to meet your lamination needs. Specifications: Tonnage: 20 Ton Max Temperature: 150°C Electric Heated Platen Table Size: 600 mm x 600 mm Daylight: 425 mm Open/Closing Speed: 10 mm/s Omron PLC HPU

Bespoke built Hydraulic press for the manufacture of airplane seat back Force: 100 ton Table size 2000mm x 2000mm Platens drilled for oil heating Run out table Omron PLC Cylinder in need for repair, oil heater not included

Slitter Slitter cutting width 750 MM Knife length: 750 mm Mounted on a table (table dim. 1000 x 900 mm) 2 hands control (safety matter)

1 x 'Forward Machinery Industrial Corp'. (Taiwan) 4 roll inverted L calender line, Year of manufacture: 2007, Roll dimensions: 34in (860mm) dia x 157in (4000mm) wide, Peripherally drilled (oil heating), Roller bearings, Motorised nip gap adjustment, Roll bending rolls 2 and 4, Cross axis roll 3, Independent drive to each roll:- Roll 1: 110kW, Roll 2: 150kW, Roll 3: 150kW, Roll 4: 110kW. Finished product width 3600mm. Pick off rollers, Matt finish embossing station, Edge trimming, 19 x cooling drums 355mm dia x 4000mm wide, Dual station surface winder. The line is already dismantled and ready for immediate shipment. There is also upstream equipment available by separate negotiation (high speed mixers, 2 x 100L Banbury, strainer, two roll mills etc).

QTY 1 x Berstorff 2100mm x 660mm dia two roll mill, Motorised nip adjustment, peripherally drilled rolls, FULL Unidrive gearbox with flexible couplings, 2 x DC variable speed motors. Variable friction ratio and roll speed. In very good condition.

QTY 1 x Berstorff 2100mm x 660mm dia two roll mill, Motorised nip adjustment, peripherally drilled rolls, Unidrive gearbox with flexible couplings, single 138kW fixed speed motor. Fixed friction/roll speed. In very good condition.

QTY 1 x Berstorff 2100mm x 660mm dia two roll mill, Motorised nip adjustment, peripherally drilled rolls, FULL Unidrive gearbox with flexible coupling, 2 x 68kW DC variable speed motors. Variable friction ratio/roll speeds. In very good condition.

QTY 1 x Berstorff 2100mm x 660mm dia two roll mill, Manual nip adjustment, peripherally drilled rolls, Unidrive gearbox with flexible couplings, single 106kW DC variable speed motor. Very good condition.

Qty 1 x Schwabenthan 150mm dia x 350mm wide two roll mill, Manual nip adjustment, Digital nip gap readout, Electrically heated rolls, Even/friction selectable gear ratios, Motor mounted under frame. Complete with electrical controls and in good condition. O/a dimensions 2400 x 850mm.

Qty 1 x Schwabenthan 200mm dia x 450mm wide two roll mill, Manual nip adjustment, Digital nip gap readout, Electrically heated rolls, Jahnel gearbox with 10HP motor to each roll (variable speed), Variable friction ratio/roll speeds, Stainless steel interlocked guards and tray. Complete with electrical controls and in good condition. O/a dimensions 2700 x 1500mm

Qty 1 x Berstorff 4 roll inverted L calender, serial number: 11892-907, original year 1966 (but upgraded/refurbished in 2012), Roll sizes: 850mm dia x 2440mm wide, peripherally drilled rolls (steam/high pressure hot water heating), motorised nip adjustment, cross axis, roll bending, hydraulic preload etc. 2 speed Unidrive gearbox on universal couplings, Speed setting 1: 33.7 rpm, speed setting 2: 16.85 rpm, with 98kW DC variable speed motor fitted to each roll. Operator controls renewed recently (Siemens S7 plc) Downstream equipment: Set of 5 x cooling drums Beta thickness measuring device Edge trimming unit Menzel length cutter 3 position winder Complete and in very good condition. 2 spare rolls.

Qty 1 x Guix 75 internal mixer, Chamber volume 75L, Tangential rotors, Hydraulic drop door with linear actuator and latch, Motorised lubrication and process oil system, With 250kw A.C. 1470rpm, 400V motor and controls. Rotor speed approx 60rpm. All mounted on a heavy duty steel base. Complete and in very good condition.

1 x Farrel model F80 banbury internal mixer, Serial number: 996006, Year of manufacture: 1999 (new), Chamber volume 80litre, With 4 wing ST rotors, pneumatic hopper, hydraulic drop door dicharge with Linear actuator and spade latch, FYH hydraulic dust stops, Unidrive gearbox, With 600 HP DC variable speed motor and drive/SCR controller, Complete with hydraulic unit, Lubrication system, 3 Zone TCU and Farrel series 2000 operator panel. High spec mixer (fully hard chrome plated chamber and rotors). Previously used for PVC.

1 x BUZULUK 1920mm wide Four-roll 'L' calender - Type: 03506 - Rolls dia 710x1920 mm - Year of manufacture: 1989 - Peripherally drilled rolls - High pressure hot water heating (Steam 1.6 and 3.2 MPa) - Motorised nip adjustment to rolls 1, 2 and 4 (30mm adjustment) - Cross axis on roll 3 (0-30mm) - Roller Bearings - Unidrive gearbox with DC motor to each roll - Rolls 1 and 4: 46 kW - Rolls 2 and 3: 77 kW - Working speed of 4th roll max 60m/min In very good condition.

Rodolfo Comerio 5 roll 'L' calender, Year: 1981, Peripherally drilled hard chrome plated rolls 650mm dia x 2400mm wide (2 spares), High pressure hot water heating (28 bar), Roller bearings, Motorised nip adjustment, Roll bending on rolls 2,4 and 5, Cross axis on rolls 1 and 4, With Farrel Pomini full unidrive gearbox (choiceable 2 speed 30m/min or 60m/min), dc variable speed motor to each roll 88.2kW to rolls 1,3,4 + 5, 110kW to roll 2?. Motors not included. Previously used for rigid PVC film 2000mm finished width, 100micron - 1100micron. Calender max speed 60m/min. Post calender equipment:- 7 x Take off rolls? 150mm dia x 2200mm wide (3 groups), Hydraulic embossing station 300mm dia x 2200mm wide (rubber roll driven, emboss roller free running against rubber roller), 12 x cooling drums (4 groups) 180mm dia x 2200mm. Beta thickness gauge (not available) Berstorff edge ...

1 x Adamson 96in wide x 32in dia 4 roll Z Calender line, peripherally drilled rolls with oil heating, motorised nip adjustment to rolls 1,2 and 3 (roll 4 fixed). Cross axis roll 4. Hydraulic pre-load to all rolls, Adjustable stock guides, rubber coated pressure roller with hydraulic adjustment and v/s motor to roll 4, with Adamson unidrive gearbox on universal couplings, with 500HP, 850/1300rpm, 785A, 500V, 3ph, 60Hz Reliance DC variable speed motor to rolls 1, 2 and 3. 200HP, 850/1400rpm DC variable speed motor to roll 4. 1 x Embossing station 1 x set of 8 x 96in wide x 24in dia stainless steel cooling drums. 1 x Dual turret winder. Full drawings available. We can supply the upstream equipment I.e. internal mixers that fed the calenders, along with the batching and material handling/dosage equipment. Complete line available in very good condition previously us ...

Farrel Bridge model 3D Banbury internal mixer, Machine no. 85R6001, May 1985, Chamber capacity: approx 65 litre net. 2 wing rotors, Roller bearings, FYA Seals, Drop door discharge with power pack, Pneumatic hopper, Standard Bullwheel/pinion drive, With Brush 200HP slip ring Motor, 981rpm, 3ph, 50Hz. Complete with oil immersed starter etc. Previously used on PVC

1 x Farrel Bridge four roll inclined Z formation Calender Year: 1956, Roll dimensions: 710mm dia. x 1675mm wide, Peripherally drilled rolls for heating/cooling, Drive configuration: 250 HP DC v/s motor through unidrive gearbox Roll differentials: 1&2 15%, 2&3 3%, 3&4 3% No. 4 bole speed Max 75m/min Main and auxiliary bearings: Bronze Bush type, Bearing lubrication: Re-circulating oil. Roll heating: High pressure hot water 17 bar capacity. Cheek material guides rolls 1 & 2: Fully adjustable width using 0.75 kW motor. Cross axis – yes (roll 4). Motorised roll nip adjustment – Roll adjustment 1, 2 ,and 4 – 3.75kW motors – Cross axis adjustment roll 4 – 3 kW motor, max adj. 50mm. Hydraulic pull backs – max pressure 70 bar.

For sale TWO (2) complete lines for plastic caps with molds, include: (2 pcs) CCM001 SACMI LINES with moulds for HL3 cap (Coca Cola approved high cap with Liner) Condition: Fair condition. Were Working at moment of disconnection in 2015. Origin Italy. Exworks South America 380volts 50Hz Huge Lot of Sacmi genuine spare parts.

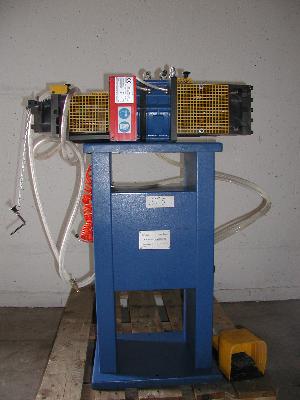

air pressure:8 bar Air consumption:NI 18 l/min.weight:110 kgdimensions of the machine ca.:700 x 300 x 1000 mm

Hours: 01940,02 Power supply: 400 V, 3-phase, 50/60 Hz Largest Heater Load: 14.5 A Short Circuit Interrupting Capacity: 5,000 A CE marking Technical data: The 1707 MKIII has 7 upper and 7 lower heating zones with hot air convection. The heated process section is approximately 1.85 m, and the maximum process temperature is 350 °C. As standard, printed circuit boards can be processed approximately 50-460 mm wide; the maximum transport speed is about 1.88 m/min. Please note: Lot 2 and lot 51-56 are sold only with reservations. The seller still has to confirm the bid Lot 2: the complete processing line. There you will also find a video on the individual process steps and machines Lot 51-56 Machining line items. These are the same parts as Lot 2. Either lot 2 OR lot 51 lot 56 is sold Auction-ID: A7-49596-55

Power 2100 W Auction-ID: A1-49516-6

Uniloy Milacron RTM 4 Uniloy Trimmer (2014) Auction-ID: A1-48805-105

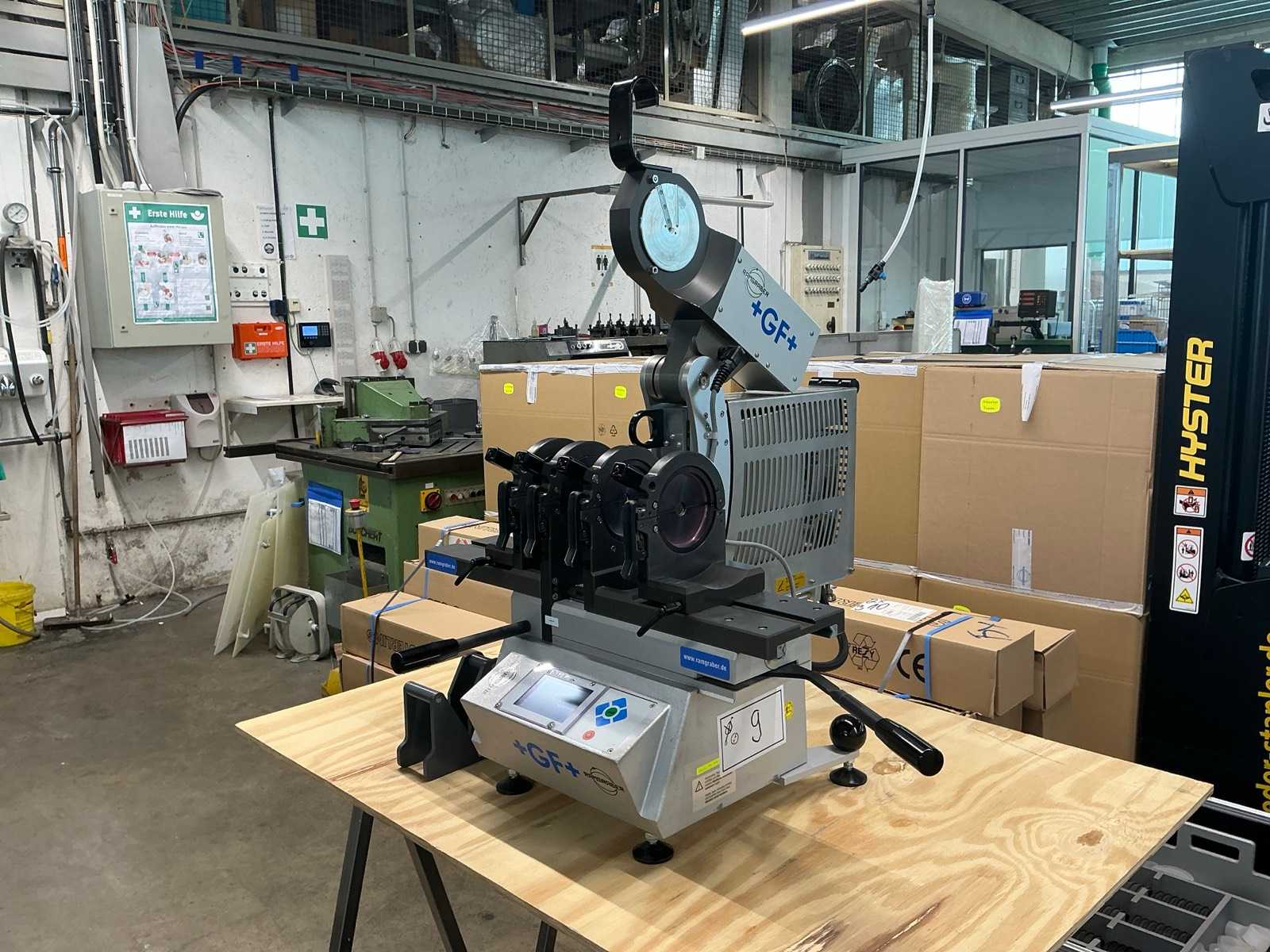

Range 20-110 mm, butt welding machine dimensions 680x900x570 mm, without rolling table, incl. accessories and transport box Auction-ID: A1-49516-7

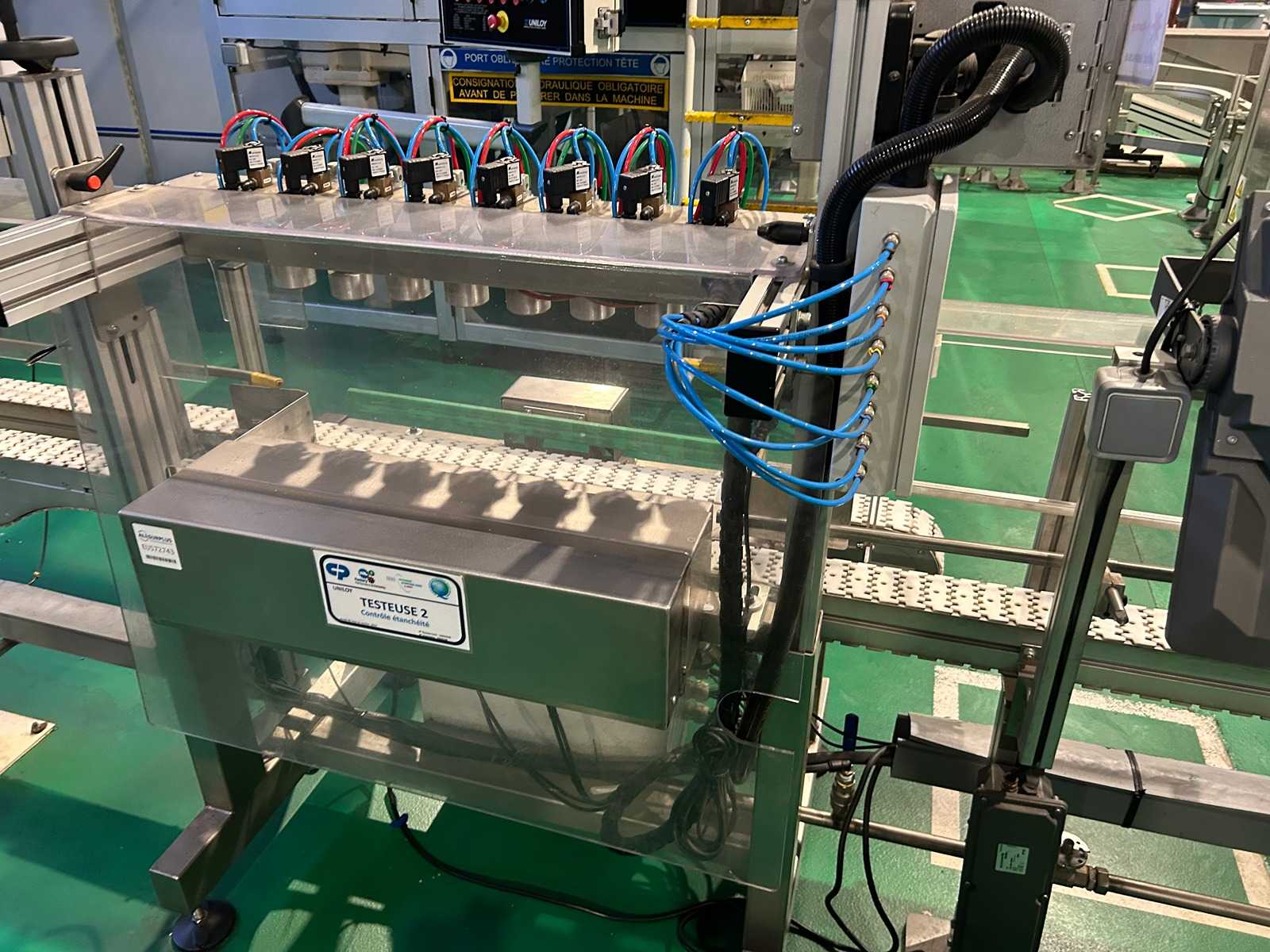

Uniloy Milacron AQS2-810 PDR SGS Uniloy Leakage Control (2014)8-head, side-shift, high-throughput leak tester designed for continuous inline inspection of HDPE/PP bottles.Featuring BMC Controls AQS2-810 ConveyorApplications: HDPE dairy bottles, juice bottles, household chemical bottles, personal-care bottles, and any blow-molded container requiring high-speed leak verification Auction-ID: A1-48805-106

Dimensions butt welding machine 670x840x950 mm, heating power 1300 W, without table, incl. accessories and transport box Auction-ID: A1-49516-9

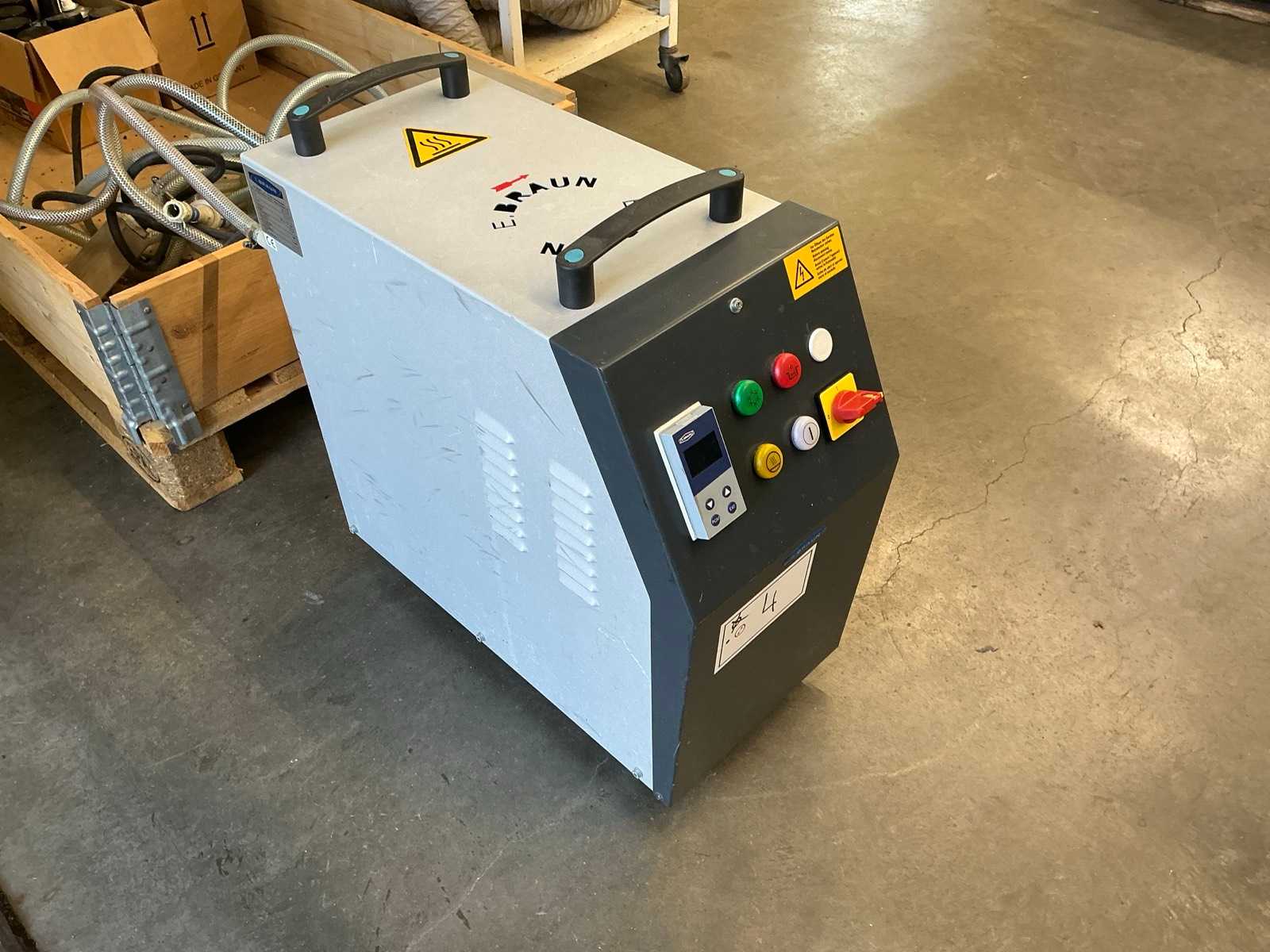

Current consumption 16 A, heating capacity 9 kW, medium water, heating temperature 100/120 °C, filling volume 6 l Auction-ID: A1-49516-4

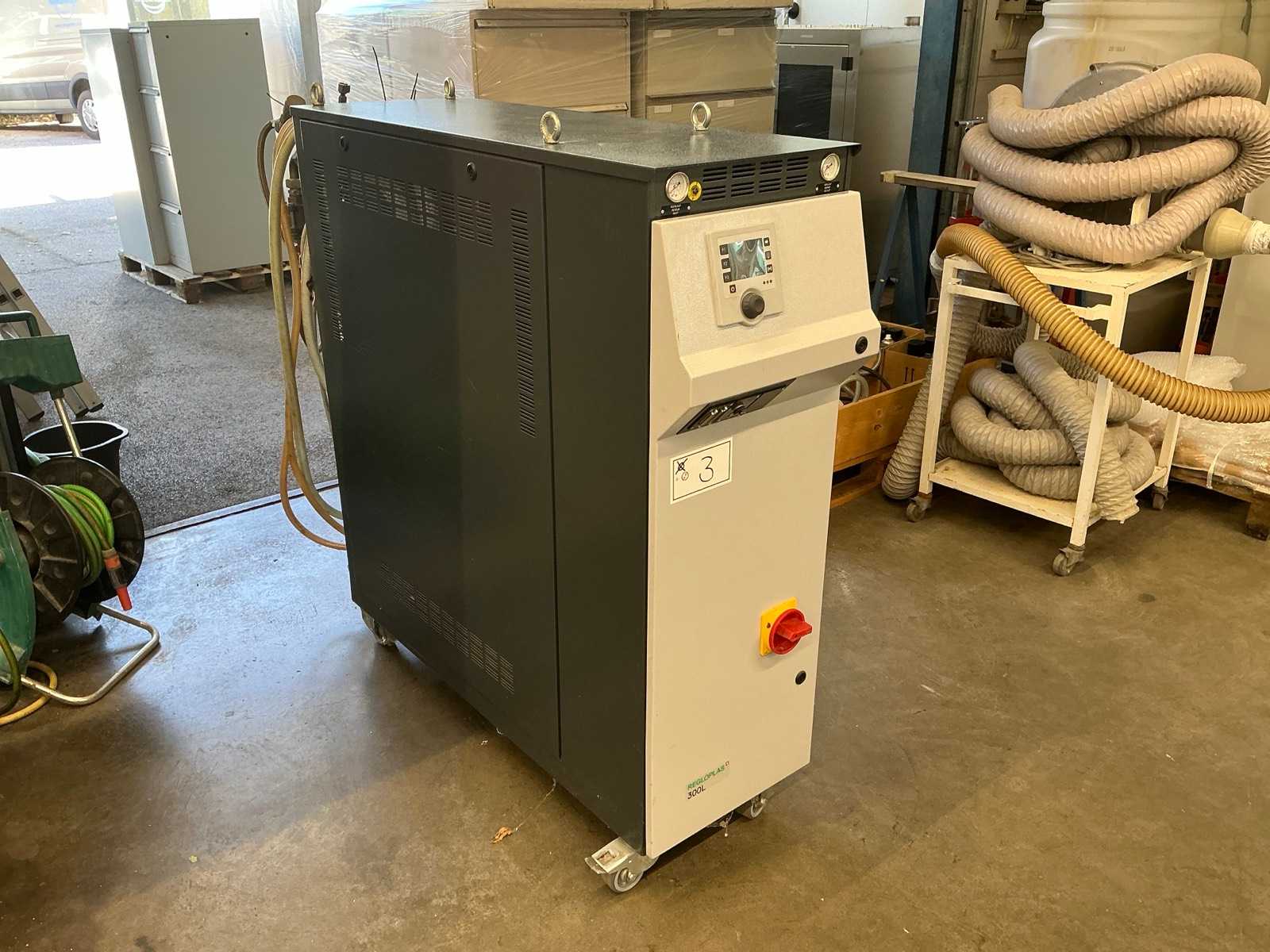

Current consumption 13 A, total power 8.5 kW, medium water, temperature range up to 180 °C, filling volume 1 l, max. flow rate 40 l/min, system pressure 14 bar Auction-ID: A1-49516-5

Medium oil, volume 300 l, temperature range up to 300 °C, total connection 35 A, total power 22.8 kW, flow rate 90 l/min Auction-ID: A1-49516-3
