Horizontal Numerically Controlled Machining Centres used for sale (49)

Key data: 1 mm, 1 mm, 2 mm

CNC 5-Axis Horizontal Machining Center Burkhardt + Weber MCC 800 A Year of construction 2019 Siemens 840D sl – OPERATE 2 pallets Pallet size 1,000 × 1,000 mm Table load max. 2,500 kg 4e Axis NC Rotary Table B-Axis 0.001° 5e axis NC swivel milling head A-axis +45° / -110° X 1,400 mm Y 1,200 mm Z 1,600 mm Spindle Holder HSK-A100 Spindle drive power 30 / 38 kW Spindle speeds 20 – 10,000 rpm 128 + 32 tool magazine positions Spindle hours: 6280 Very good Zutsnad - Excellent High precision, high productivity, cutting-edge technology, extreme reliability from a leading machining center manufacturer. This is a great opportunity for customers who machine complex parts. Offer number MH-6511

Auction-ID: A7-45667-1

Key data: 5005 mm, 3586 mm, 1106 mm

year of production: 2007 automatic tool change Work spaces [mm]: 5000x2500 Groove distance [mm]: 200 Travel ranges [mm]: 5005x3586x1106 Work feed [m/min]: 35m/min Rapid feed [m/min]: 40 Spindle speed [rpm]: 35 - 6000 Spindle torque [kW]: 37kW Max. torque [Nm/rpm]: 670/525 Tool clamping: HSK-A 100 Tool magazine [pcs.]: 100ks Machine control system: iTNC 530 2x univerzální úhlová hlava 45° Direct outlet head Power supply

Auction-ID: A1-44765-264

GENERAL Project No.: 905821 Quantity: 1 pcs. Manufacturer: SW Schwäbische Werkzeugmaschinen Type: BA 422 Control: Siemens 840 D solutionline Year of Make: 2017 Condition: Used machine Approx (hrs): 18302 Spindle in approx. (hrs.): 4718 DESCRIPTION MILLING 5 axes Travel in X 400 mm Travel in Y 500 (775) mm Travel in Z 425 mm Max. feed speed in X/Y/Z 55/70/75 m/min Max. acceleration in X/Y/Z 8/8/15 m/s2 Feed force in X/Y/Z 15000/15000/2x8000 N Direct displacement measurement system BLOCK - Milling spindle unit Tool holder HSK A-80 Max. speed milling spindle 10000 1/min Max. power at ED 10-40/100% 2x27 kW Max. torque at ED 10-40/100% 2x200 Nm Spindle diameter in the front bearing 80 mm 2 pcs horizontally arranged milling spindle(s) Spindle spacing 400 mm Pneumatic tool system control Chain tool magazine 2x30 stations Max. tool diameter 80 mm Max. ...

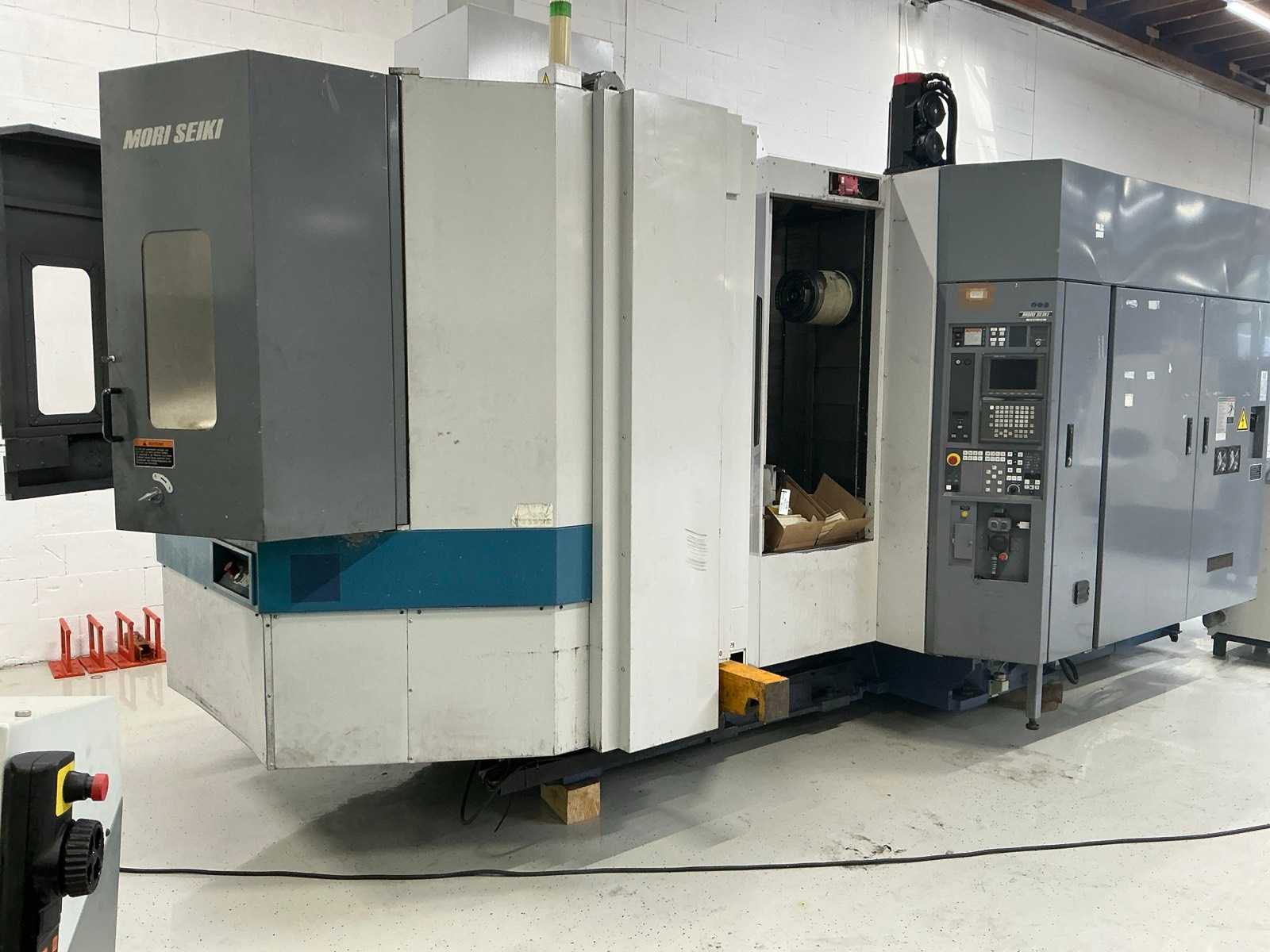

MORI SEIKI MH 40 FANUC horizontal machining centre X-axis travel: 560 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Pallet size: 400 x 400 mm Table Rotation (B-Axis): 360° (with minimum division 1° or 0.001°) Spindle Mount: BT-40 Spindle Speed: 6,000 rpm Tool Changer (ATC): 40 Total machine weight: approx. 9,500 - 10,500 kg Floor Dimensions (W x D): Approx. 2,300 x 4,200 mm Height 2350 mm Auction-ID: A7-44885-21

Auction-ID: A1-41275-2

Double Pallet Control Unit: Siemens 840D Travels :X: 560 mmY: 510 mmZ: 560 mm B: 360° Spindle speed: 18.000 rpm Table size: 400 mm x 400 mm Tool changer: 60 position Chip conveyor, Tool measurement Unit,High pressure coolant unit Can be inspected under power

Tool stations 50 pieces As a spare parts donor Auction-ID: A1-44728-11

Key data: 560 , 560 , 630

NC Rotary Table Division: 360,000 × 0.001° Rotation speed: 20 1/min Pallet changing system Pallet dimensions: 500 × 630 mm Maximum workpiece diameter: 900 mm Maximum workpiece height: 1,000 mm Chain magazine Tool stations: 80 pieces Maximum tool length: 450 mm Maximum tool diameter: 160 mm Coolant pressure 50 bar Auction-ID: A1-44728-13

Max. X-axis stroke730 mm Max. Y-axis stroke730 mm Max. Z-axis stroke880 mm Max. workpiece diameter800 mm Max. workpiece height1,000 mm Max. workpiece weight700 kg Control & software SIEMENS

Tool System / Tool Magazine Magazine Type: Chain Tool stations 80 pieces With electrical defect Coolant pressure 50 bar Auction-ID: A1-44728-31

Control Siemens Sinumerik 840D Travel X/Y/Z: 560 x 560 x 510 mm Spindle speed 15,000 min-1 2-fold pallet changer 400 x 400 mm Tool magazine for 40 Wkz., SK 40 Paper filter Conveyor

6. Pallet system Pallet size: 500 × 630 mm 7.2 Tool magazine Magazine Type: Chain Stack slots: 80 Auction-ID: A1-44728-7

CNC controller: HEIDENHAIN iTNC 530 Axes X-axis travel mm: 700 Y-axis travel mm: 700 Z-axis travel mm: 700 Distance spindle nose - table surface mm: 100 - 800 Rapid traverse m/min: 60 Acceleration in the axes m/s2: 6 / 6 / 5 Worktable Number of pallets: 2 + 5 Table dimensions mm: 500 x 500 Maximum workpiece size (D x H) mm: 800 x 1.000 Max. workpiece weight kg: 600 T-Slot version: DIN 55201-A2 APC time s: 9,5 División estandar Grados: 360º (1º) Spindle Spindle speed rpm: 18.000 Spindle drive power kW: 34 / 28 Spindle torque Nm: 110 Tool system Tool holder: HSK-A63 Tool magazine slots: 120 Max. Tool Diameter: 80 Max. Tool Length mm: 550 Max tool weight kg: 12 Chip-to-chip time s: 2,9 Equipment Electronic Handwheel Chip conveyor Rotating inspection windows Rinsing gun Signal lamp Tool breakage probe 3D quickSET Workare ...

Tool System / Tool Magazine Tool stations 80 pieces Magazine Type: Chain Coolant pressure 50 bar4 additional working pallets 400mmx 500mm Auction-ID: A1-44728-23

Control: Heidenhain iTNC 530 Year of Make: 2009 Travel: X-axis: 650 mm Y-axis: 700 mm Z-axis: 700 mm B-axis: 360 C° Recording: 40 ISO Tool magazine: 120-fold Speed: 12,000 rpm Conveyor Coolant system with filter 600 L and 40 bar 2-fold pallet changer 3-D Probe (Renishaw) Blum Laser New Weiss spindle in 2022

Tool System / Tool Magazine Magazine Type: Chain Tool spaces 80 pieces each Built in 1999 / 2001, a working one can be built from both machines Auction-ID: A1-44728-27

Key data: 730 mm, 730 mm, 740 mm

Mazak PFH 5800 (10 Pallet) CNC Horizontal Machining Center CNC control Mazatrol 640M Pallet table size 500 x 500 mm Number of pallets 10 Table load 700 kg X-axis travel 730 mm Y-axis travel 730 mm Z-axis travel 740 mm Table indexing 360 x1° Spindle taper CAT 40 Spindle 12,000 1/min Spindle motor 22/15 kW Magazine capacity 80 Required footprint 9850 x 10145 mm If you have any questions about the machine, please do not hesitate to contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.

NC Rotary Table Speed rotary table (B-axis): 40 1/min Tool magazine Tool stations 80 pieces, 60 of which are still populated Coolant pressure 50 bar including 2 additional work pallets Auction-ID: A1-44728-19

Key data: 730 mm, 730 mm, 740 mm

Mazak HC Nexus 5000-ll CNC Horizontal Machining Center CNC Control Mazatrol Matrix Pallet table size 500 x 500 mm Number of pallets 2 Table load 700 KG Travel X-Y-Z axes 730x 730x740 mm Table Indexing 0.001° Spindle taper DIN 69871A-40 Spindle speed 18,000 1/min Spindle motor 35-26 kW Mazgazin capacity 80 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail.

Duration 14394 Hours Workspace Distance pallet surface – spindle center: 75 – 995 mm Distance between pallet centre and spindle head: 150 – 1,140 mm Max. workpiece size: 1,050 × 1,115 mm Pallet table Pallet size: 630 × 630 mm (option 800 × 800 mm) Max. table load: 1,200 kg Spindle Speed range: 45 – 12,000 rpm⁻¹ Max. torque: 451 Nm (up to 550 rpm⁻¹) Tool holder: HSK 100 High-pressure cooling Coolant pressure: 50 bar Tool Changer Tool stations. 60 Pieces Max. tool weight: 20 kg (option 30 kg) Max. tool diameter: 110 mm (at full occupancy) 230 mm (for free neighboring stations) Max. tool length: 600 mm NC table (B-axis) Indexing increment: 0.001° Indexing time 90° (incl. clamps): 2.1 s Indexing time 180° (incl. terminals): 2.5 s Indexing Accuracy: 5\" Repeatability: ± 2\" Rapid traverse B-axis: 27,000°/min B-axis feed: 0 – 27,000°/min Scraper plate must  ...

Key data: 880 mm, 730 mm, 730 mm

GENERAL Project No.: 905698 Quantity: 1 pcs. Manufacturer: DMG MORI Type: NHX 5000 Control: Siemens 840 D solutionline Year of Make: 2016 Condition: Used machine Approx. (hrs): 26,341 Spindle in approx. (hrs.): 9,666 DESCRIPTION MILL Travel in X 880 mm Travel in Y 730 mm Travel in Z 730 mm Max. rapid traverse speed in X/Y/Z 60/60/60 m/min Max. feed speed in X/Y/Z 6/6/6 m/min Tool holder HSK 63 Max. speed milling spindle 20000 1/min Max. power at ED 10-40/100% 15/11 kW Tool magazine 40 stations Rotating pallet changer (set-up station can be rotated by motor) 2-fold Max. workpiece weight per pallet 500 kg Rotary table NC-controlled Clamping hydraulics OTHER EQUIPMENT IR Workpiece Probes Tool breakage detection by means of a probe Splash protection cladding with fully encapsulated working area Rotating viewing window Lighting in the work area Scrap ...

Tool magazine Magazine slots: 50 Auction-ID: A1-44728-15

Key data: 400 mm, 500 mm, 425 mm

GENERAL Project No.: 905673 Quantity: 1 pcs. Manufacturer: SW (Schwäbische Werkzeugmaschinen) Type: BA W04-22 Control: Siemens 840 D Year of Make: 2008 Condition: Used machine Layers approx.: 2-3 layers DESCRIPTION MILL Travel in X 400 mm Travel in Y 500 (775) mm Travel in Z 425 mm Max. rapid traverse speed in X/Y/Z 100/100/100 m/min Max. acceleration in X/Y/Z 14/14/20 m/s2 Feed force in X/Y/Z 10000/10000/2×5000 N Direct displacement measurement system X/Y/Z/A(U)/C1(C2)/W1(W2) Linear Actuator X/Y/Z Tool holder HSK-A 63 Max. speed milling spindle 17500 1/min Max. power at ED 10-40/100% 35/26 kW Max. torque at ED 10-40/100% 80/60 Nm Spindle diameter in the front bearing 80 mm 2 pcs horizontally arranged milling spindle Spindle spacing 400 mm Pneumatic tool system control Pneumatic tool taper cleaning in milling spindle Torque support for multi-spindle  ...

Tool magazine and tool changer Magazine Type: Chain Tool stations 80 pieces Maximum tool diameter: All seats occupied: 95 mm Adjacent places available NC Rotary Table Speed rotary table (B-axis): 20 1/min Coolant pressure 50 bar Auction-ID: A1-44728-17

Key data: 1400 mm, 1200 mm, 1350 mm

A horizontal machining center from the manufacturer Mori Seiki NH 8000 DCG is offered here. The machine is in good condition and can be visited. Make: Mori Seiki Huzvdlw Type: NH 8000 DCG Year of Make: 2008 Control: Fanuc MSX-701III Specifications: Travel: X-axis 1400 mm Y-axis 1200 mm Z-axis 1350 mm B-axis rotary table 360x0.001° automaton. Tool changer with 60 tool positions Tool holder HSK 100 2-fold pallet changing system Pallet dimensions 800 mm x 800 mm max. tool length 800 mm max. tool weight 30 kg Spindle power 37 KW Max. spindle speed 8000rpm. IKZ cooling system

Tool positions in the magazine: 80 pieces Coolant pressure 50 bar including 2 additional work pallets Auction-ID: A1-44728-25

Key data: 6000 , 4100 , 800

Gantry/Bridge Mill Make: Okuma Model: MCR-A5CII Year: 2015 Machine Location: Upon Request Additional Specifications Available Upon Request Travels: X: 263.78″ (Table Front/Back) Y: 161.42″ (Spindlehead Horizontal) Z: 31.50″ (Ram Vertical) W: 47.24″ (Crossrail Vertical) Effective Width Between Columns: 143.70″ Table to Spindle Nose: 0″ to 70.87″ Table: 118.1″ x 255.9″ (3000 mm x 6500 mm) Max. Load: 81,400lbs T-Slots: 24H7 Width x 15# Spindle: 30 to 6,000 30 to 10,000 7/24 Taper No. 50 ATC Equipped With Accessories: -Main motor and standard electricals: 30 to 4,000 min-1 -Spindle cooler: Oil controller -Thermo-Friendly specs: TAS-S, TAS-T -Synchronized W axis NC (NC crossrail): Absoscale detection (W axis) -Auto Tool changer: 50 tools -ATC air blower and spindle air curtain: Air blower (blast) -Seesaw pendant operation panel: Vertical travel ...

NC Rotary Table Division: 360,000 × 0.001° Rotation speed: 20 1/min Pallet changing system Pallet dimensions: 500 × 630 mm Maximum workpiece diameter: 900 mm Maximum workpiece height: 1,000 mm Maximum clamping mass Axle dynamics power: 1,400 kg Axis dynamics speed: 800 kg Chain magazine Tool slots 40 pieces Maximum tool length: 450 mm Maximum tool diameter: 160 mm Auction-ID: A1-44728-3

HELLER MC16 4-axis horizontal milling center YOM 2000 4-Axis SIEMENS CNC Path Control, Model SINUMERIC 840 D Longitudinal X-axis 630 mm Vertical Y-axis 630 mm Cross Z-axis 630 mm NC rotary table Tilting B axis 360.000 x 0,001 ° Pallet size 400 x 500 mm Max. workpiece size Ø x height 720 x 800 mm Max. workpiece weight 500 kg Pallet exchange time 9 sec. Turning Speed B axis 40 rpm/min Tool holder cone HSK 63 Tool size Ø x lg. x weight 150 x 227 x 12 mm/kg Spindle speeds, infinitely variable 45 – 24,000 rpm Feeds / quick feeds XYZ: 1 – 60,000 mm/min Feed force 10.000 nm Spindel torque 48/72 nm Spindle drive 30 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Total weight 12.5 tons Accessories / Special Features : -Separate standing 80 position Rack-Type tool Magazine with tool placement door and double Swivel gripper, own SIEMENS PC-Control with screen To ...

Tool magazine Chain Tool stations 100 pieces Max. tool diameter (all slots occupied): 112 mm Max. permissible tool weight: 25 / 35 daN Max. permissible weight torque of the tool on the gripper: 2200 / 5000 Ncm Max. tool length (from spindle nose): 600 mm NC Rotary Table Division: 360 × 1° Pallet Changer Pallet dimensions: 800 × 800 mm Coolant Setup Coolant pressure 50 bar Auction-ID: A1-44728-9

5-Axis Horizontal Machining Centre MCM Tank 1300 5-AXIS New in 2017 Siemens 840D solution line Twin pallets 630 x 800 mm Work weight max. 1500 kg NC rotary table - 4th axis B-Axis 360° / 0.001° NC-Tilting head 5th axis A-Axis +80°/-95° / 0.001° X 1300 mm Y 1400 mm Z 1400 mm Feeds and rapids to 50000 mm/min. Spindle drive 40/52 KW Spindle speeds to 10000 rpm Tool taper ISO 50 199 tool ATC Linear scales for higher accuracies Renishaw sample Chip conveyor CTS 65 bar Beautiful machine – excellent condition Operating hours 11544 - 05/2020) Spindle Working hours 6784 (05/2021) Inspect under power Proposal Number MH-6155

Tool magazine and tool changer Magazine Type: Chain Tool stations 80 pieces With electrical defect Coolant pressure 50 bar 2 additional work tables 400mm x 500mm Auction-ID: A1-44728-21

5-Axis Horizontal Machining Center with Pallet changer Mandelli Spark 3500X New in 2018 Siemens Sinumerik 840D control Number of pallets 2 Pallet size 1250 x 1600 mm Pallet load capacity max. 5100 kg 4th axis 0.001° NC rotary table 5th Axis NC-Tilting milling head A-Axis +80° ~ -120° X 3500mm Y 1850mm Z 1800 mm Feeds X,Y,Z up to 20000 mm/min. Rapids X,Y,Z up to 35000 mm/min. Tool taper HSK-A100 Spindle drive motor rating 46/67.7 kW Spindle speeds up to 6000 rpm. Spindle torque max. 1851 Nm 200 station tool magazines. Tool diameter max. 120 mm/425 mm Tool length max. 600 mm Tool weight max. 35 kg Coolant through the spindle 25/40/60 bar Proposal Number MH-6234

x-travel: 1400 mmy-travel: 1200 mmz-travel: 1325 mmcontrol: Mazatrol Smotth G numbers of pallets: 2 size of pallet: 800 x 800 mmmax. workpiece height: 1450 mmmax. workpiecediameter: 1450 mmturning speed range - milling: 10000 U/mintool taper: BT 50 Tool changer: 120 pos.power capacity - milling spindle: 37 kWb-axis (table): 360000 x 1 °rapid traverse: 60 m/minworkpiece weight: 2200 kgtotal power requirement: 102 kVAweight of the machine ca.: 31 tdimensions of the machine ca.: 3,88 x 8,05 mequipped with:- CNC Control MAZATROL Smooth G- ATC 120-fold (BT 50)- Chip Conveyor- HP Coolant with internal Spindle Cooling 70 BAR- 360000 ° positions indexing table- pallet changer with safety cover (2 Pallets)- Spindle cooling unit- Flood cooling- Niagara cooling / rinsing system- Blowout through the spindle- Coolant and chip protection through fully enclosed working space- Workspace door lock- wor ...

as spare parts dispenser, suitable for lot 31 Auction-ID: A1-44728-33

Tool magazine Tool stations 80 pieces Maximum tool weight: 25 kg Maximum tool length: 500 mm Maximum tool diameter: 228 mm NC Rotary Table Division: 360,000 × 0.001° Swivel range: 360° Pallet changing system Pallet dimensions: 630 × 630 mm Coolant Setup Coolant pressure 50 bar Auction-ID: A1-44728-5

x-travel: 1300 mmy-travel: 1300 mmz-travel: 1300 mmControl: Siemens 840D SL table-size: dia. 800 mmtable weight: 1500 Kgc-axis: 360 / 0,0001 °number of spindle speeds: 10000 U/min/rpmtool taper: ISO 50 spindle drive: 40 / 52 kWrapid travel x/y/z: 50 m/minTools changer: 199 pos.dimension of workpiece: 1400 x 1120 mmtotal power requirement: 42 kVAweight of the machine ca.: - tdimensions of the machine ca.: 11,9 x 6,1 x 5,2 m4-axis BAZequipped with:- CNC control Siemens 840D Solution Line- pallet changer with 4 pallets (dia. 800mm)- rotary table (B axis)- tool changer 199-fold (SK 50)- coolant system- Chip conveyorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 2200 mmy-travel: 1600 mmz-travel: 1850 mmcontrol: Mazatrol Matrix Smooth G max. workpiece diameter: dia 2400 x 2000 mmmax. table load: 6000 kgsize of pallet: 1250 x 1250 mmB - Axis: 0,0001 °turning speeds: 10000 U/mindrive capacity - spindle motor: 37/30 kWmax. torque on the spindle: 350 Nmno. of tools in magazin: 120 tool adaptor: BT 50 Rapid Travel X / Y / Z-Achse: 43 m/mindimensions of the machine ca.: 11 x 7,1 x 4,5 mdistance spindle /table: 100 - 1700 mmtotal power requirement: 120 kVAweight of the machine ca.: 57,5 tequipped with:- CNC control Mazatrol Smooth G- B-axis (0.0001°)- ATC 80-fold (BT 50)- Chip Conveyor- 2-fold Pallet Changer- High Pressure cooling through Unit- Chip Conveyor- Renishaw Laser Tool Measur.- Thread Cutting Function-Power-On Time: , Automatic Cutting: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 750 mmz-travel: 770 mmControl: FANUC Prof 3/A rapid travel x/y/z: 30000 mm/minpalets changer: 630 x 630 table weight: 1200 Kgspindle speed:: 14000 U/minspindle taper: HSK A 63 spindle motor: 30/25 kWtool change unit: 40 posdistance spindle center to table: 100-850 mmInternal cooling system: weight of the machine ca.: 17 tdimensions of the machine ca.: 7,9 x 4,2 x 3,3 mEquipped with:- Fanuc Professional 3/A CNC control- Coolant through spindle- Pallet changer- Tool changer (HSK-A63)- Knoll coolant system (renewed)- Chip conveyor- Mütek briquette press (2015)The machine has been used reliably in single-shift operation in recent years, operating hours: Spindle hours:The scope of delivery includes numerous HSK-63 tool holders – both thosecurrently in the machine and a complete Euro pallet withadditional tool holders.- Two clamping towers (without pallets)The  ...

x-travel: 730 mmy-travel: 730 mmz-travel: 880 mmControl: FANUC 31i-B spindle turning speed - stepless: 15000 U/minspindle taper: BT 40 Big Plus spindle motor: 18,5 / 30 kWpallet table size: 500 x 500 mmworkpiece weight: 500 kgdistance spindle center to table: 80 - 810 mmRapid Travel X / Y / Z-Achse: 60 m/mindimension of workpiece: 800 x 1000 mmtotal power requirement: 80 kVAweight of the machine ca.: 11,5 tdimensions of the machine ca.: 5,45 x 2,68 x 2,88 mHorizontal CNC machining centre- CNC control FANUC 31i-B- Tool changer 60-fold (BT 40 Big Plus)- 2 pallet changer(pallet 24-M16)- Table / Pallet indexing Full B axis.- Pullstud Nikken PS-806. Maximum torque 229.9/ 206.9/ 147.2/ 119.4N.m.- Coolant/Filtering Unit- Chip Conveyor- ExhausterThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-axis: 550 mmy-axis: 450 mmz-axis: 375 mmcontrol: SIEMENS 840D SL spindle turning speed range: 1-17.500 U/minweight of the machine ca.: 10 tdimensions of the machine ca.: H 6,30 x 3,85 x 3,70 mThe machine is designed for friction stir welding.Reinforced Z-axis (5000 N) required for the welding process.Spindle speed increased to 1-17,500 rpm.including swivel axisOperating hours: approx. 11,111 h.Spindle running time: approx. 4,116 h.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1400 mmy-travel: 1050 mmz-travel: 1200 mmControl: Fanuc 31i spindle turning speed - stepless: 6000 U/minspindle taper: ISO 50 spindle motor: 35 / 22 kWpallet table size: 800 x 800 mmworkpiece weight: 2000 kgdistance spindle center to table: 75 - 1125 mmRapid Travel X / Y / Z-Achse: 24 m/mindimension of workpiece: 1450 x 1550 mmtotal power requirement: 71 kVAweight of the machine ca.: 27 tdimensions of the machine ca.: 7,3 x 4,3 x 3,75 mHorizontal 4-axis CNC machining centre- Fanuc 31i CNC control- 60-position tool changer (ISO 50)- Rotary table (1° division) with 2 pallets- High-pressure cooling 70 bar with cyclone filter system- Chip conveyor- Tool loading management- Renishaw RMP 60- TS 27R tool probeSpindle running hours 6000h, running hours: 8050hThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1000 mmy-travel: 800 mmz-travel: 800 mmcontrol: SIN840D speeds: 10 - 10.000 U/minfeed range: 1 - 36000 mm/minB - axis: 360 x 1 °surface area: 2 x 500 x 630 mmrepeating accuracy: + / - 3 tool diameter: 100 mmworkpiece length: 650 mmworkpiece weight max.: 40 kgtool taper DIN 69871: SK 50 workpiece weight: 800 kg tool magacine with: 100 Plätzenwotkpiece diameter with 2 vacant positions: 325 mmChip to chip time: ca. 8,00 sec.change time of pallets: ca. 12,00 sectotal power requirement: 65,00 kWweight of the machine ca.: 20,00 tdimensions of the machine ca.: 7,80 x 3,50 x H3,40 mHorizontal machining center with SIEMENS SIN840D control.NC-rotary table, chip conveyor, coolant-unit, coolant through the spindleMagazine with 2 cassette à 50 pockets.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Horizontal machining center, 6 pallets, Priced to sell - dismantled and loaded into truck, OKUMA MA40 HA 6P OSP U100M CNC 6 pallets 400mm x 400mm max 400 kgs max workpiece dimensions 600710 Spindle BT40 / coolant through the spindle 4th axis 1° Tool changer: 100 pos. X = 560mm, Y = 610mm, Z = 560mm 40 m/min under power Mimu Machine Tools (Italy), X: 560, pallet: 6, Pallet size: 400400

x-travel: 600 mmy-travel: 560 mmz-travel: 560 mmB-axis (table): 360 mmControl: Siemens 840D total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
