109 ALZMETALL used machine for sale

bore capacity in steel St 60: 30 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 100 - 1.800 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

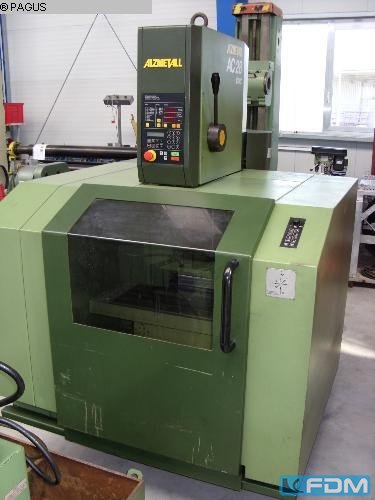

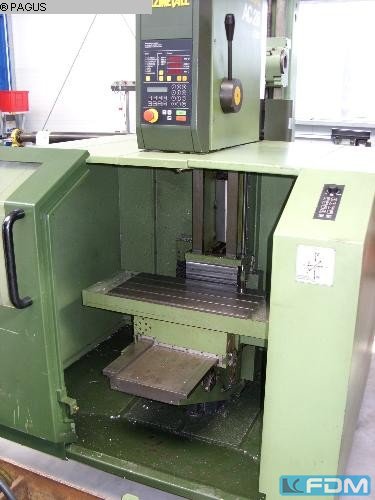

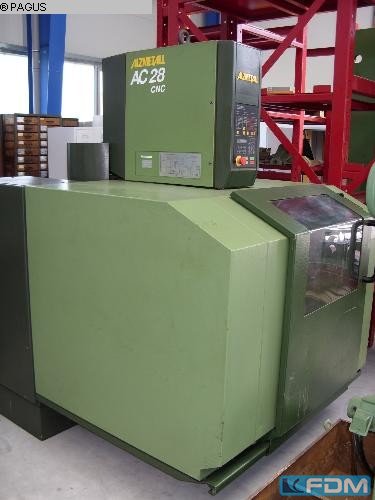

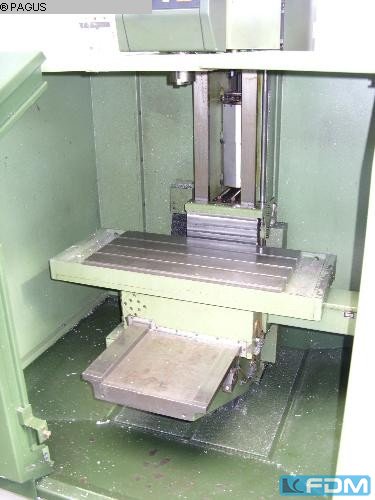

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

bore capacity in steel (diameter): 36 mm throat: 300 mm bore stroke: 160 mm : 4 speeds: 100 - 1600 U/min column diameter: 145 mm table-size: 500 x 370 mm total power requirement: 2,2 kW weight: 440 kg dimensions: 1200 x 800 x 2300 mm comes from a vocational school Features: - automatic feed - infinitely variable speed control - digital speed display - adjustable drilling depth stop - drill spindle guard The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm threading: bis M 30 throat: 330 mm bore stroke: 180 mm : 4 speeds: 60 - 765 U/min table-size: 720 x 360 mm total power requirement: 2,6 / 3,2 kW weight: 350 kg dimensions: 720 x 1100 x 2050 mm Equipment: - automatic feed - infinitely variable speed - thread cutting device - adjustable drilling depth stop - coolant device - spindle protection - drill chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40.0 mm threading: M 24 in St 60 throat: 293 mm bore stroke: 140 mm morse taper: 3 Kurzspindel MK table:: 514 x 360 mm turning speeds: 160 - 2250 U/min column diameter: 115 mm throat: 293 mm distance spindle /table: min 117 / max 701 mm T-slots: 2 x 14 x 224 feed: 0.1 + 0.2 mm/U total power requirement: 1.45 / 1.90 kW weight: 370 kg dimensions of the machine ca.: 1200 x 800 x 1840 mm current new price ~ 12.500 euros special price on request Equipment: - robust column drill - V-belt - - infinitely variable speed adjustment - analog speed system - automatic spindle feed - thread cutting device - pole-changing drive motor - height-adjustable work table - machined base plate - feed overload protection - Main switch with motor protection switch - Mushroom pushbutton (latching) for EMERGENCY STOP - Spindle protection - Operating instructions in German Spec ...

bore capacity in steel (diameter): 20 mm throat: 322,5 mm bore stroke: 160 mm bore capacity in cast iron: 23 mm feed: 1-3000 mm/min tool taper: SK 30 spindle speed:: 55-5000 U/min table surface area: ca. 614 x 370 mm column diameter: 145 mm machine weight ab.: 550 kg with multi-spindle boring head: ARBO 20 Automatic turret drilling head with 6 machining stations TYPE ARBO 20 6 work spindles of your choice incl. spindle guard, flange quill, extended column, special software, without protective cover on the machine table manual included (machine and turret drilling head) machine is in a good condition, liitle used. Preowner is a public institution Standard Equipment Machine table adjustment and clamping at the rear of the machine Full motor protection with PTC thermistors for protection against thermal overload - with insulation class F (155°C) Infinitely variable speed control Protection ...

bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 200 mm table surface area: 720 x 560 mm 0: 60 - 765 U/min feed: 0,15 - 0,2 - 0,3 - 0,36 mm/U tool taper: MK 4 total power requirement: 3,0 kW weight of the machine ca.: 0,4 t Drill with: Feed 2 gears Left/right rotation Foot switch Coolant pump Machine light new quick-release chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel St 60: 25 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 : M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514x360 mm T-Slots Amount - Width - Distance: 2x14x224 mm distance spindle - column min./max.: 132/724 mm feed: von Hand 0: stufenlos Spindle Speed: 225-4300 U/min. engine: 1,0/1,6 kW voltage: 400 V Standard equipment: - 7 TFT LCD display with touch function: Manual input of spindle speed set value Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status indicators and warnings on the display Service information Selectable operating language: DE/EN/FR/ES/IT/NL/RU - Thread cutting device, for thread cutting with stop, max. 6 threads/min (thread cutting capacity depending on spi ...

bore capacity in steel St 60: 25 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 225 - 4300 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 / 23 mm throat: 320 mm bore stroke: 180 mm : 4 speeds: 30 - 765 U/min table-size: 720 x 550 mm weight: 480 kg dimensions: 750 x 900 x 1900 mm Equipment: - Multi-spindle head, drill Ø 23 mm - automatic feed - coolant device - infinitely variable speed - adjustable drilling depth stop The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm throat: 295 mm bore stroke: 140 mm : 3 speeds: 160 - 2250 U/min table-size: 375 x 415 mm total power requirement: 1,5 / 1,9 kW weight: 350 kg dimensions: 590 x 500 x 1900 mm Equipment: - Automatic feed - Thread cutting device - coolant device - infinitely variable speed - Adjustable drilling depth stop - EMERGENCY STOP switch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

taper MK: 4 serial number: 520 weight of the machine ca.: 440 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 3 bore capacity in steel (diameter): 40 mm bore stroke: 180 mm weight of the machine ca.: 2,3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 180 mm spindle turning speed range: 25-640 U/min column diameter: 180 mm table-size: Ø ca. 560 mm surface area: Ø 445 mm feeds: 0,1, 0,2, 0,3 mm/U spindle taper MT: 4 weight of the machine ca.: 1 t dimensions: ca. 650 x 1000 x 2100 mm with thread cutting device foot switch With coolant device in the base steplessly variable speeds, 2 gear stages, and 2 motor speeds The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm throat: 295 mm bore stroke: 120 mm : 3 speeds: 125 - 3000 U/min table-size: 300 x 300 mm column diameter: 115 mm total power requirement: 0,75 kW weight: 225 kg dimensions: 900 x 600 x 1800 mm Equipment: - V-belt driven pillar drill - Adjustable drilling depth stop - height-adjustable work table with T-slots - drill chuck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 mm : M 24 : M 30 spindle turning speed - stepless: 160-2250 U/min : MK 3 spindle stroke: 120 mm throat: 293 mm column diameter: 115 mm : 515x360 mm distance spindle /table: min./max. 117/701 mm : 2 x 14 x 224 mm feed: 0,1 + 0,2 mm/U Machine height: 1840 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 34 mm : 40 mm : 40 mm : MK 4 : 100-1.800 U/min. throat: 300 mm : 615x430 mm : 2 x 14 x 224 mm : 138/688 mm column diameter: 145 mm spindle stroke: 160 mm feeds: 0,1-0,2-0,3-0,4 mm/U Machine height: 1865 mm total power requirement: 1,4/2,2 kW Standard equipment: - Electromagnetic feed clutch with overload protection and electrical Cross Handle Switches - Main switch lockable - Motor protection switch - Mushroom pushbutton (latching) for EMERGENCY STOP in the front panel - Speed adjustment stepless - Speed display digital - Protection class IP 54 - Motor insulation class F - Spindle protection with electrical protection Pos. 20.1 Tapping device with foot switch, for thread cutting with Stop, max. 6 threads/min., (Tapping power dependent on spindle speed) Pos. 25. Coolant device B, consisting of: separate container (33 l), pump with Motor protection switch, complete fitting The data for ...

serial number: 1296 : ja changer: ja fach documentation: ja control: Heidenhain 426 weight of the machine ca.: 6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Column Drill ALZMETALL Type AB 4 SVMasch. No. 14805 Year of construction approx. 1980Drilling capacity 40 mmSpindle holder MK 4 - Short quillThroat projection 340 mmQuill stroke 180 mmTable size 710 x 560 mmColumn diameter 160 mmSpindle speed 30 - 765 rpm. infinitely variableMotor power 2.3 and 3.4 kW pole-switchableMains connection 380 volts, 50 Hz- Spindle speed over 2 motor speeds and infinitely variable gear- Gears with 2 gear stages for high torque at low speeds- Spindle on/off via

with NC round table WALTER 1000 mm, see pictures

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)
