boring mills and machining centers used for sale (3,022)

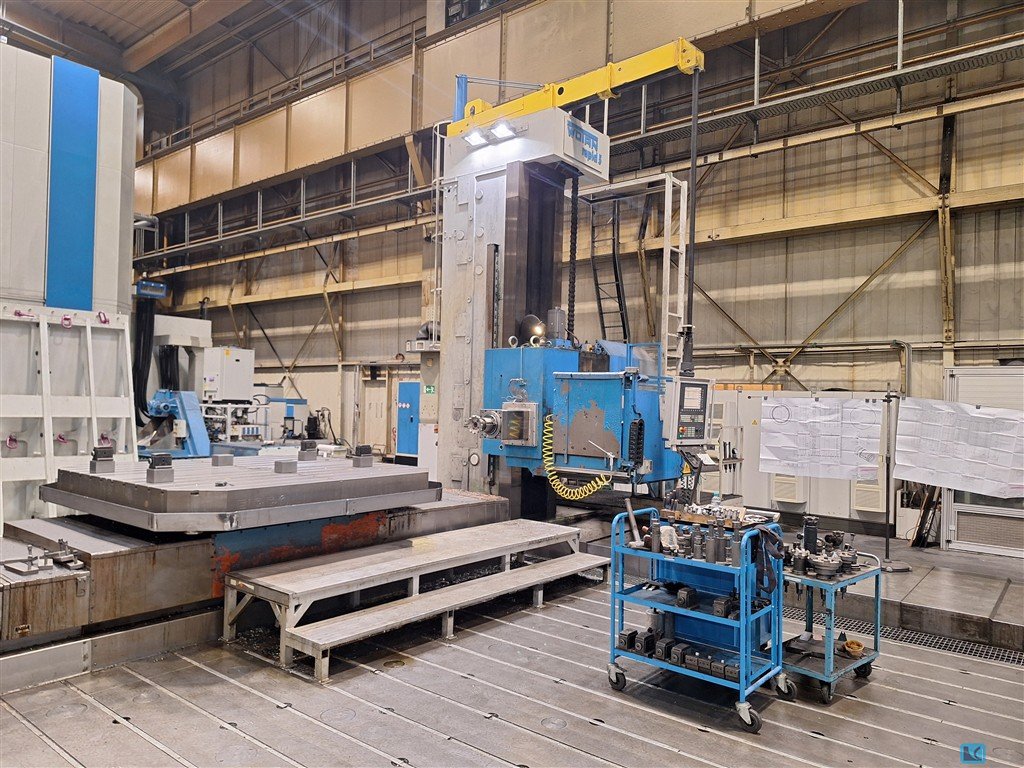

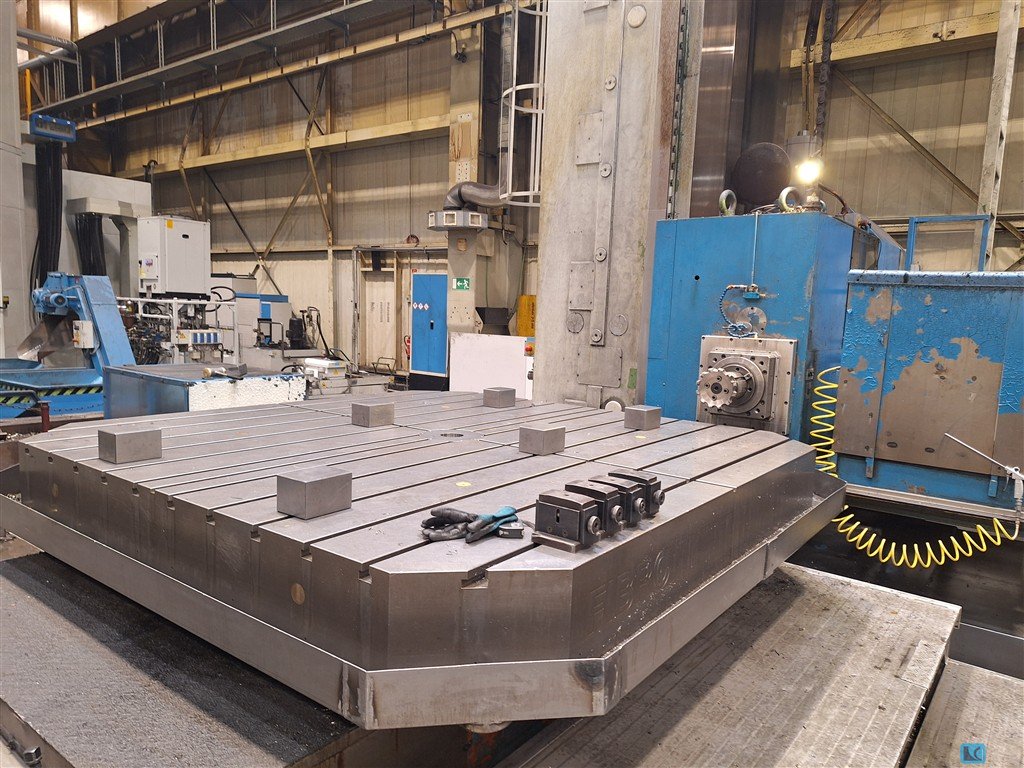

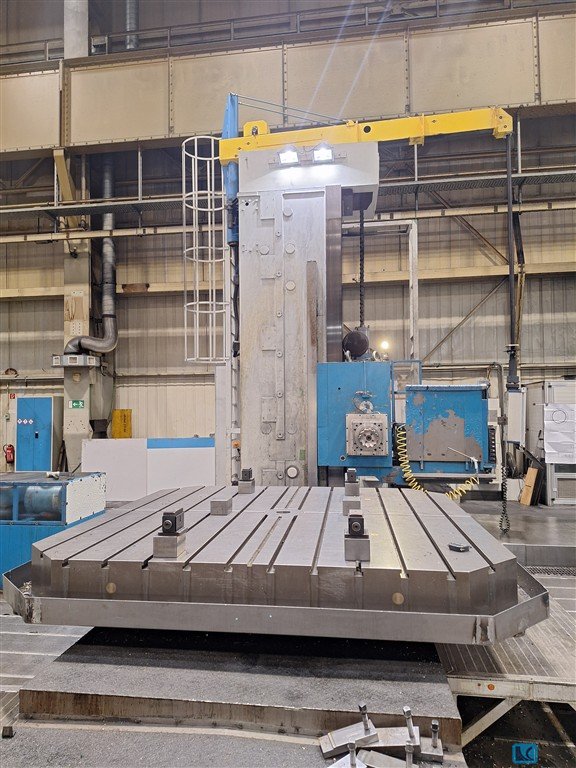

X=3500mm Y=2000mm Z=1250mm W=800mm H=360° spindle 130 mm, ISO 50, max. 1600 rpm table 1600 x 1800 mm with a load of 12000 kg with Siemens electric and CNC Heidenhain TNC 415B Oil cooled: Schimpke. Dismantled. The machine has been used very little = in very good technical condition.

FUJII SEIKI Heavy Duty Lathe (Japanese Origin) Technical Specifications: • Turning length: 2,000 x 26,000 mm • Modular bed • Capacity between centers: 60 tons • Drilling attachment included • Drilling tool length capacity: 12,000 mm Condition: Available Location: South America Machine suitable for heavy-duty machining of long shafts and large industrial components.

Lealde Valvecenter-5V CNC turning and drilling center Year 1997 designed specifically for valve bodies (oil & gas valves, pipeline valves, etc.). It performs turning, drilling, and machining of valve components in one setup.  Used mainly in valve manufacturing plants and heavy machining shops. Maximum swing over longitudinal guides: 1000 mm Maximum swing over cross guides: 700 mm Main spindle nose: DIN 55021 – Form B Spindle through-hole diameter: 139 mm Front spindle bearing diameter: 200 mm Maximum spindle speed: 1000 rpm Maximum spindle torque: 3434 Nm Axis Rapid Traverse • W axis: 20,000 mm/min • X / X1 / X2 axes: 17,400 mm/min • Z axis: 15,000 mm/min Travels Turning slide – transverse travel: 1250 mm Drilling slide – longitudinal travel: 1350 mm Drilling slide – transverse travel: 135 + 135 mm Motors Main spindle motor power:  ...

Lealde Valvecenter-5V CNC turning and drilling center Year 1997 designed specifically for valve bodies (oil & gas valves, pipeline valves, etc.). It performs turning, drilling, and machining of valve components in one setup.  Used mainly in valve manufacturing plants and heavy machining shops. Maximum swing over longitudinal guides: 1000 mm Maximum swing over cross guides: 700 mm Main spindle nose: DIN 55021 – Form B Spindle through-hole diameter: 139 mm Front spindle bearing diameter: 200 mm Maximum spindle speed: 1000 rpm Maximum spindle torque: 3434 Nm Axis Rapid Traverse • W axis: 20,000 mm/min • X / X1 / X2 axes: 17,400 mm/min • Z axis: 15,000 mm/min Travels Turning slide – transverse travel: 1250 mm Drilling slide – longitudinal travel: 1350 mm Drilling slide – transverse travel: 135 + 135 mm Motors Main spindle motor power:  ...

Key data: 762 mm, 508 mm, 508 mm

2023 HAAS UMC-750SS 5-Axis CNC Vertical Machining Center Condition: Used Location: USA Description This 2023 HAAS UMC-750SS is in excellent condition and ready for continued productive service. The machine has been well maintained and represents a strong opportunity for high-speed 5-axis machining. Specifications have been compiled from inspection, operator input, manuals, and OEM sources. Buyers are encouraged to independently verify all specifications, condition details, and availability prior to purchase. Price, location, and specifications are subject to change. Specifications Travels • X-Axis: 30” (762 mm) • Y-Axis: 20” (508 mm) • Z-Axis: 20” (508 mm) • Number of Axes: 5 Spindle • Power: 30 HP (22.4 kW) • Max Speed: 15,000 RPM • Taper: CT40 or BT40 Tool Changer • ATC Capacity: 40 tools Table • Table Width: 19.7 ...

2000 Toshiba BTD-200QF CNC Horizontal Boring Mill Spindle Diameter: 4.33" Extended Quill Diameter: 7.87" Taper In Spindle: #50 Vertical Head Travel, Y-Axis: 39.37" Table Cross Travel, X-Axis: 39.37" Spindle Travel, Z-Axis: 15.74" Saddle Travel, W-Axis: 27.55" Table Size, (2) Pallets: 39.37" x 39.37" Table Capacity: 6,000 lbs Table Indexing: 0.001 Degree Rapid Traverse (X,Y,Z Axes): 472.4 IPM Feed Rates: .04-236.2 IPM Table Load Capacity: 6,600 LBS Spindle Speeds (2 Ranges): 20-3000 RPM Floor Space, L x W x H: 173" x 174" X 126" Machine Weight: 39,600 lbs. -EQUIPPED WITH- Tosnuc 888 CNC Controls 40-Station Automatic Tool Changer (2) 39.37" x 39.37" Pallets with Pallet Shuttle System Thru Spindle Coolant Marposs Probing System Chip Conveyor 30 HP Spindle Motor

Key data: 150 mm, 13500 mm, 3500 mm

Floor Type Horizontal Milling and Boring Machine Model : BF-150B with Fanuc series 311 — Model A CNC Controller in perfect working condition to be inspected in power YOM 2012 CNC Fanuc 31i Inspection Under power X - cross 13,500 mm Y - vertical . 3,500 mm W - boring ... 1,000 mm Z - quill ... 450 mm Spindle Taper ... No 50 Spindle Motor ... 26/ 22 kW 2 Angle Heads ATC 60 2 Rotary Tables 2m x 3m

Key data: 420 mm, 300 mm, 250 mm

YASDA YMC 430 Ver. II 5-Axis CNC Vertical Machining Center, 40K RPM, Trunnion Table, 32 ATC, HSK-E32, Fanuc 31i-B5, Hard Milling, LOW HOURS, Year: 2017 CNC Control: yes Type of CNC Control: FANUC 31i-B５ Cutting Time Hours: 8138 X-axis travel: 16.5"/420mm Y-axis travel: 11.8"/300mm Z-axis travel: 9.8"/250mm Table to spindle nose distance: 5.9" - 15.7" / 150mm - 400mm Spindle taper hole: HSK-E32 Spindle speed range: 200-40,000 RPMs Spindle drive motor: 10 HP / 7.5 KW AC ( Continuous ) Table working size: 600mm x 350mm / 26.6" x 13.7" Table Loading capacity: 33 lbs. / 15 kg. Rapid Feed Rate X, Y, Z: 787.4 ipm /20000 mm/min - Standard MODE MAXIMUM CUTTING FEED: 393.7 ipm / 5,000mm/min Min. input increment: 0.0001mm (0.01μm) Optical scale feed back: X, Y, Z-axis 0.000001mm (0.001μm) command available Tool storage capacity: 32 tools Max. tool dia. / length / mass: φ50m ...

Mitsubishi MAF 210/150A Year: 1977 Table Size: 3000 × 3000 mm | Load Capacity: 60,000 kg Axis Travel: X: 14,000 mm | Y: 4500 mm | Z: 900 mm Spindle: Ø164 mm | 4–3460 rpm | 37/45 kW DC motor Control: ISO/EIA compatible | 5-axis interpolation | M-NUX115 DRO Accuracy: ±0.015 mm/m (X/Y), Repeatability ±0.01 mm Included Accessories: • Tool locking (5 pull studs) • Digital readout system • NC controller with startup components • Setup/leveling blocks • Maintenance toolkit • Protective covers Optional Add-ons (upon request): • Chip conveyor and coolant system • Rotary/angled fixturing • Pendant control • Bellows or floor plate systems • Special tooling packages Utilities & Installation: • Power: AC 220V (standard) • Air: 2–7 kg/cm² at 100 L/min • Installation space & foundation info on request

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

Double Column Machine SNK RB-7VM Year 2007 5 axis control (X,Y,Z, Wm, Ws) FANUC 18i-MB Bet Column : 4100 Table : 6000 X 3500 XYZ: 6250 x 4500 x 600 W: 2100 Main axis / Quil: 90/ 300 40~8000 rpm ATC :40, AAC Angular Attachment : (L=300)

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Double Column Machining Center TOSHIBA MPC-3180B Table mm.8000 x 2700 Distance between columns mm.3100 X mm.9000 Y mm.3900 Z Verticaal RAM stroke mm.900 W Vertical Crossrail stroke mm.1600 Automatic indexed every 5 degrees 5 face head Distance table to spindle nose mm.2440 Table load Kg. 20.000 Spindle speed 5-3000 rpm 2 ranges Spindle taper BT 50 Ram section 380 x 380 Machine dimensions mm.29110 x 9900 x 7260 Machine weight Kg. 151.000 Year 2007 Standard options : 5-face cutter head Automatic attachment (5-face cutter head or other attachments)index (AAI) (4-position index by 90.) Automatic tool loading/unloading device for vertical spindle and horizontal spindle) CNC controller including standard and pack specifications Pendant operation box with electrically-driven free arm Hydraulic unit Oil cooling unit (AKZ 908) Hydraulic crossrail servo balancing s ...

Takang TKV-860-HT CNC Twin Spindle Vertical Turning Center Year 2015 . GENERAL SPECIFICATIONS Max. Cutting Diameter: 800 to 1000mm Max. Swing Diameter: 1000mm Max. Cutting Length: 860mm Spindle Motor (FANUC aP40): (2) 50 HP Alpha P40 2-Speed Gearbox Motors Spindle Speed Range: 10-1500 RPM Spindle Nose: A2-11 Spindle: Spindle Motor (FANUC aP40): (2) 50hp Alpha P40 2-Speed Gearbox Motors Spindle Speed Range: 10 - 1,500rpm Max Chuck Diameter: Installed 31.5" 3- Jaw Hydraulic Chucks Spindle Nose: A2-11 Front Bearing Diameter: 7.87" Spindle Bearings: Double Row Cylindrical and Angular Contact Spindle Speed Selection: Direct RPM Programming Spindle Speed Override: 50% ~ 200% Speed Range Shift: 2- Speed Gearbox Programmable High-Low Range Axis Drives: X Axis Travel (FANUC a22/3000i AC 4.0 HP): 18.31" Z Axis Travel (FANUC a22/3000iB AC 5.0 HP): 33.07" X Axis Thrust Force: ...

Kramatorsk Model KJ1910 serial number 1913 Swing Over Bed: 1600mm Maximum Workpiece Length: 6300mm Maximum Drilling Diameter: 991mm Spindle power: 125.00kW Spindle Speed: 1 - 320 RPM Infinitely Variable power Existing Additional Chuck workholding range: 200 - 1250mm diameter, workpiece weight capacity using two open roll supports: 60,000kg, size range in closed backrest: 200 - 800mm, size range in open backrest: 630 - 1380mm, pressure head speed range: .125 - 500 infinitely variable, pressure head spindle bore diameter: 182 mm, pressure head motor power: 75kW DC, headstock speed ranges: 3, pressure head speed ranges: 2 Machine Length: 22950mm Machine Width: 4375mm Machine height: 2670mm Weight: 101091kg Condition Good

bore capacity in steel (diameter): 40.0 / 50.0 mmthroat: 300 mmbore stroke: 160 mmturning speeds: 100 - 1600 U/mintable:: 615 x 430 mmbore spindles - Morse Taper: 4 Kurzspindel MKcolumn diameter: 145 mmfeed: 0.1-0.2-0.3-0.4 mm/Udistance spindle /table: 147 / 688 mmengine output: 1.8 / 2.9 kWweight: 450 kg Current list price: approx. 20,000 euros Special price available upon request Features:- Heavy-duty column drill press Drive: V-belt - VARIO- Automatic spindle feed with electromagnetic feed clutch and electric cross-handle control- 4x feed rates: 0.1/0.2/0.3/0.4 mm/rev - stepless speed adjustment - Digital speed display- Pole-reversible drive motor - Right/left rotation of the drill spindle - Spindle guard with electrical safety lock - Coolant system with separate reservoir- User manual (PDF)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 7035.46 €: 135.78 €: 25 mm: MK 3 : 280 mm: 125 - 4000 (2 Stufen) U/min: 0,9 / 1,45 kW: M20 : 520 mm: 820 mm: 1900 mm: 275 kg: 125 mm: 110 mm: 240 - 790 mm: 420 x 340 mmDrilling capacity / normal drilling performance 25/30 (in E335/ST60)Drilling depth adjustment with fine adjustmentEmergency stop pushbuttonUndervoltage releaseelectr. Drilling machine guardManual reversing switch for clockwise and anticlockwise rotationConnection cable (1.5 m) with CEE plugThermal overload protectionOPTIONS (PRICES ON REQUEST):Drill package (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 Wochen ab Auftragse : 571.15 €: 120 mm: 40 mm: 200 mm: 33 kg[felix] 2.0 Easy and safe drilling operations - Thanks to the innovative machine vice by Felix Röwekamper.The machine vice for freely adjustable clamping of the workpiece.Simple, fast, secure and superior in use. With two hand movements the vice is clamped on the drilling machine table, precisely and safely adjusted.Prism jaws with shoulder and horizontal and vertical holding recesses to clamp a wide range of workpiecesHardened and precision ground clamping jawsNo additional clamping devices necessaryThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 3303.85 €: 6 mm: B 12 : 220 mm: 100 - 10000 U/min: 0,54 kW: M5 : 452 mm: 700 mm: 1130 mm: 44 kg: 60 mm: 140 - 315 mm: 300 x 250 mm: 70 mmDrilling capacity / normal drilling Performance 6/8 (in E335/ST60)Drilling capacity / normal drilling performanceThread cutting systemControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with Schuko plug3 years warranty for single shift operationOPTIONS (PRICES ON REQUEST):Machine cabinet with door and drawerDrill package 2 (vice &, keyless chuck)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 15095.86 €: 289.84 €: 30 mm: MK 3 : 300 mm: 0 - 4000 U/min: 3 kW: M30x3,5 : 900 mm: 610 mm: 1980 mm: 385 kg: 0,10 / 0,16 / 0,25 mm/U: 125 mm: 150 - 700 mm: 590 x 450 mm: 125 mmDrilling capacity / normal drilling capacity 30/35 (in E335/ST60)Main switchDispositif de taraudageControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEmergency stop buttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with CEE plug3 years warranty for single shift operationMechanical feed of the Z-axis incl. electromagnetic clutch for (3) feed ratesDrilling cross with pushbutton (on/off) for feed rateIn tapping mode: Right-left lifting via drill cross switch or opti ...

: neu : 2024 : 3984 : prompt, Zwischenverkauf v : Spanien : 10090 €: 193.73 €: 1 : 32 mm: MK 3 : 250 mm: 65 - 125 - 185 - 365 - 54 U/min: M24 : 665 mm: 640 mm: 2100 mm: 260 kg: Automatisch 0,10 - 0,20 - mm/U: 100 mm: 85 - 635 mm: 1.170 mm: 300 x 270 mm: 665 x 400 mm: 120 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEgeardrive machine3 aut. feedsleft-right drillingtable with t-slotsdepth adustable endtool ejectordrill guardCE normsuser manual in GERMANIncl. following optional equipment:lighting equipmentcoolant equipment and machine base with T-slots(symbol photo)OPTION (PRICE ON REQUEST):reverse for tappingTime of delivery with options: approx. 8 weeksThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : 2017 : 3901 : China : 8490 €: 1 : 6790 €: 32 mm: MK 4 : 300 - 1.000 mm: 32 - 2.500 (16) U/min: 1760 mm: 800 mm: 2080 mm: 1600 kg: 530 - 1.000 mm: 2.2 kW: 240 mm: 250 mm: 0,75 kW: 0,10 - 1,25 (8) mm/Ubox table 600 x 455 x 455 mmcoolant equipmentmachine lampmechanical clamping for height adjustment and spindle stockelectr. clamping for arm rotationmachine and equipment according to the CE-regulationsoperating manual in GERMAN and ENGLISHBUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISEWe offer you maximum security and complete transparency.• HONEST INSIGHTS: Detailed photos and functional videos of the current condition• LIVE ON-SITE CHECK: Live testing is possible at our facility• DIGITAL DEMONSTRATION: Individual live demonstration via video call• RISK-FREE PURCHASE: 14-day return policyDetails:https://www.hesse-maschinen.com/en/lp/used-machi ...

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 2292.56 €: 10 mm: B 16 : 220 mm: 250 - 3000 U/min: 0,45 kW: 320 mm: 520 mm: 820 mm: 44 kg: 60 mm: 140 - 315 mm: 300 x 250 mm: 70 mmDrilling capacity / normal drilling Performance 10/12 (in E335/ST60)Robust, high quality and inclined rotation hood for easy speed readingLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionUndervoltage releaseDrill protection with electr. FuseConnection cable with Schuko plug (1.2 m)3 years warranty for single shift operationArt. - No. 217.400 with drill head height adjustmentOPTIONS:Machine cabinet with door and drawerDrill package 2 (vice &, keyless chuck)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 8 Wochen ab Auftragse : Spanien : 7160 €: 138.19 €: 30 mm: MK 3 : 250 mm: 245 - 4000 U/min: M25 : 400 mm: 655 mm: 1185 mm: 280 kg: 120 mm: 100 mm: 85 - 635 mm: 1.195 mm: 300 x 270 mm: 600 x 380 mmERLO(MADE IN SPAIN)FOR MANUFACTURING USEV-belt drivemanual feedleft-right drillingautomatic tool ejectoradjustable depth stoptable with T-slotsdrill guard with micro switchlightening equipmentuser manual in English or GERMANCEOPTIONS (PRICES ON REQUEST):Variable speed incl. digital display (VE+TAK)Tapping device (IR/RS)Coolant equipment incl. T-slots in the ground plate (ERB)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 - 4 Wochen ab Auftr : Polen : 995 €: 23 mm: 19 mm Weldon : 1.15 kW: 331 mm: 254 mm: 456 mm: 155 kg: 23 mm: 50 mm: 50 mm: 160 mm: 240 / 480 U/min: 6 mmPRO-50 featuring purpose designed motor and 2-speed gear box 240/480 rpm is optimized to provide appropriate speed forwork with HSS cutters up to ? 45 mm and twist drills up to ? 23 mm. Rigid construction, optimized by means of FEA(finite element analysis) software extends tool life and enables depth of cut up to 75 mm.Compact design along with innovative smart magnet with reduced weight make it a lightweight machine.PRO-50 provides maximum holding power on thin materials thanks to Magnetic Field Shape Control (MFSC). The drill protectsboth the machine and the operator from work on too thin work piece by means of Magnetic Power Adhesion Control (MPAC).PRO-50 is also equipped with Energy Saving Base (ESB) that uses only 50% o ...

: gebraucht : 2891C : China : 250 €: 1 : 200 mm: 63 mm: 160 mmMINT CONDITIONturning basefor drilling-, shaping- and milling machinesmechanical clampingvice bocy made of cast iron(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 8 Wochen ab Auftragse : Spanien : 11530 €: 221.38 €: 40 mm: MK 4 : 300 mm: 75 - 150 - 235 - 325 - 47 U/min: 1.3 kW: Stahl: M 30, Guss: M 32 : 600 mm: 640 mm: 2020 mm: 305 kg: 0,1 — 0,2 — 0,3 mm/U: 160 mm: 125 mm: 420 x 400 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEgeardrive machine2 aut. feedsleft-right drillingdrill guardCE normsuser manual in GERMANOPTIONS (PRICES ON REQUEST): lighting equipment coolant equipment and machine base with T-slots Reverse for TappingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 760 mmy-travel: 510 mmz-travel: 610 mmtable surface area: 1.020 x 510 mmcontrol: WINMAX spindle turning speed range: 12.000 U/minspindle drive: 13,5 kW: 24 St.tool adaptor: SK 40 | |internal coolant system feed: 20 bar feed: m/minrapid traverse: 35/35/30 m/mintotal power requirement: kWweight of the machine ca.: 5,0 tdimensions of the machine ca.: mused vertical machinig centre with 4th axis - 4th axis- Dual toolchanger- internal coolant with filter- spindle oil cooling- electric hand wheelThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Connection: 230V Auction-ID: A1-48851-1100

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 6939.26 €: 133.93 €: 20 mm: MK 2 : 260 mm: 30 - 3000 U/min: 1,5 kW: M12 : 430 mm: 715 mm: 1800 mm: 290 kg: 100 mm: 110 mm: 230 - 850 mm: 420 x 340 mmDrilling capacity / normal drilling Performance 20/23 (in E335/ST60)Main switchTapping attachementControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with CEE plug3 years warranty for single shift operationArt. - No. 223.020 R1 (20-2,000 1/min)Art. - No. 223.025 R2 (30-3,000 1/min)OPTIONS (PRICES ON REQUEST):Drill package 3 (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created  ...
