Presses used for sale (34)

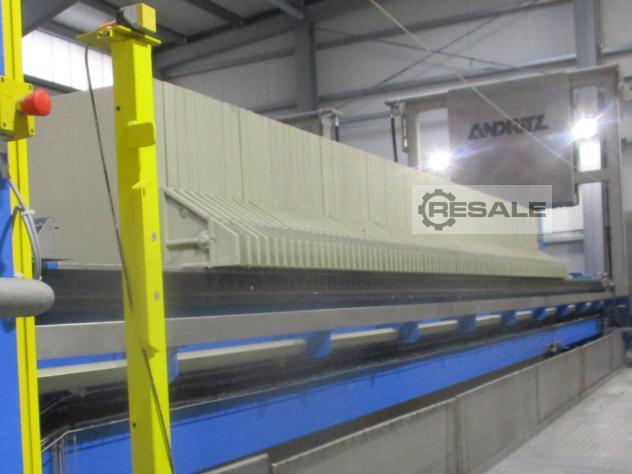

2 used Andritz chamber filter presses, built in 2014, plate size 1500 × 2000 mm Technical data: Manufacturer: Andritz Year of Make: 2014 Figurine no.: S/E/1520/C/R/W/D/K Panel size: 1500 × 2000 mm Number of plates: 97 per press Condition: used If required, incl. accessories: - New filter cloths - Filling pumps (Netzsch, partly new) - High-pressure pump for cleaning - Andritz screw conveyors We will be happy to provide further details and an overview of the spare parts on request.

Huber WAP (wash press) fully functional incl. control. Material: Stainless steel housing Screw press with perforated screen basket. Application: Treatment of screenings / screenings. Dewatering and volume reduction. Area of application: Municipal sewage treatment plants, industrial sewage treatment plants,

ManuMatik / KraussMaffei High Pressure Cylinders The high-pressure cylinders come from a commutator press and were used there until the end. Total height 184 cm Cylinder height 150 cm Circumference of the rod 28 cm Diameter 8.90 cm The following components are also installed Check Valves z2S16-1-51 Pressure Reducing Valve Zdr 6 dp0-45/40ym w80 Scope of delivery: 1 x pressing unit Complete plant closure, large selection of mezzanines, pallet racks, shelving racks, paternosters. High Quality Industrial Machinery, Lathes, Grinding Machines, Hand Machinery Suppliers in China More items - new and used - can be found in our shop! International shipping costs on request!

KOMPLETE RUF ANLAGE BRIKETPRESSE RUF600 600KG/H YEAR OF MANUFACTURE 2009

EKOTON PRODEKO-EŁK GK-8.230.20.H filter press was built in 2018 in Poland by PRODEKO-EŁK. The machine is used for the economic dehydration of sludge, based on the principle of filtering solids from the liquid. The slurry pumped in flows through chambers with filter plates, on which the solids are retained. The sludge that accumulates in this way forms a so-called filter cake”, which, after filling the space of the chambers, falls out into a container or onto a conveyor. The use of this solution significantly minimises waste disposal costs in many industrial sectors, such as the metallurgical industry, chemical industry and mining. The GK-8.230.20.H membrane filter press weighs 37000 kg. The offered PRODEKO-EŁK KMF GK-8.230.20.H chamber filter press is fully complete and consists of the following parts: – support structure with platforms – tank for clean water – pressure  ...

Kahl Flat Die Press

Filter Cloth for Chamber Filter Press Length plate format in mm: 2000 Width flap format in mm: 1500 Cloth Design: Through-Hole Cloth with Velcro Hem in mm: 30

Through-hole filter cloths for chamber filter press Length plate format in mm: 2000 Width flap format in mm: 1500 Cloth Design: Through-Hole Cloth Hem in mm: 30

Used piston press for apple juice production made by Bucher, model: HP 5000, capacity 5 t / h. New: 1985. 2 pieces available for general renovation (hydraulics) or for parts. Control cabinet available for 1 press.

Pneumatic laboratory heating press REITZ PHP3 – used demonstration machine Pressed press 3 KN (0.3 tons) With heating device up to 250 °C and temperature control - Press force 3 KN (0.3 to) - Pneumatic cylinder make Festo - Pneumatic two-hand control - Press plate guided in 4 guide columns - Working surface between guide columns 200 220 mm - Heating and insulating plate 150 x 250 mm -Temperature - Machine table made of aluminum profiles and PA plate 60060060mm - Total weight approx. 100 kg - Mobile with 4 swivel castors, 2 of which with brakes . Suitable for foil pressing and embossing under heat.

Used Monobelt, type: NP06-AD belt press for dewatering sludge. Belt width 60 cm. The belt is made entirely of stainless steel, has a fully automated high-pressure pump and two sets of flat jet nozzles for washing the belt. It is equipped with smooth belt feed regulation and a pneumatic installation that controls the belt tension and thus the sludge crushing force. It is also equipped with an automatic belt setting controller on rollers. The press control cabinet is very extensive and controls the press itself but also additional equipment (sludge pump, mixer, dispenser). Press with equipment: - screw pump for sludge with a capacity of 6 m3 per hour with capacity regulation, - dispenser of various types of emulsifiers with capacity regulation and a mixer. The whole is a complete set for work in the agri-food industry, processing, sewage treatment plants, distilleries, bre ...

Used screw press made by Italian company Bertuzzi. New 2002. Press application: Citrus juice from the extractors can be pulped to meet customers' pulp content requirements. Helicoidal depulpers model ESM and Super have been designed specifically for refining citrus juice. They take the high-pulp juice from the extractors and gradually squeeze the pulp, producing a low-pulp juice.

Used tablet press Manesty, model B3A. 16 stations, capacity up to 700 tablets/min., pressure 6 tons, 1.5 kW motor.

Manesty B3A tablet press. Condition - used machine. Technical parameters: 16 stations, pressure 6 tons. 1500 W motor. User manual available.

Used Kilian TX-40 AM rotary tablet press. Number of stations 40.

Used Goodnature cold press, model X-1. Year of production 2014. Capacity up to 1,000 bottles per day. Power supply 220V 50Hz X-1 is a professional press capable of producing a thousand bottles of cold-pressed juice per day. X-1 is used by successful cold-pressed juice producers, nut milk producers and cider producers. The machine is almost unused. She worked several times. The bags have been the same since new - they show minimal wear. It's like brand new. Everything works fine without any problems. Perfect machine for small juice producers, large grocery stores or juice shops. It can also work in the production of nut milk or cider. The machine is very easy to clean and maintain. Comes with 3 different shredding discs and 2 bags. Original user manual. The juice is squeezed gently but firmly. The operator sets the pressure and controls the time. It can work fast with lower effi ...

Promess KA-EMF20/150 Servo Press 20 KN Manufacturer: Promess Type: KA-EMF20/150 Type: Servo Press KN: 20 Item Condition: New Calibrated: Yes Strain gauge amplifier: BA 62601 More servo presses new and used - you can find them in our shop! International shipping costs on request!

Promess KA-EMF80 Servo Press 80 KN Manufacturer: Promess Type: KA-EMF80 Type: Servo Press KN: 80 Item Condition: New Calibrated: Yes Strain gauge amplifier: BA 624.u2 More servo presses new and used - you can find them in our shop! International shipping costs on request!

Used tablet press made by KORSCH Pharmapress 300 series. Model PH 343. Tablet diameter 6-13mm. 43 stations. 4 pieces available (2 x 1984, 1 x 1989, 1 x 1990)

Used tablet press made by KORSCH, model PH 343. New 1977.

Used press for pre-pressing cheese. Technical data: - producer TEWES BIS Barczewo - year of production 2006 - dimensions: overall length 4780 mm, width 1560 mm, height 3850 mm - pressing area 4.33 m3 - internal dimensions of the bath: length 3700 mm, width 1170 mm, depth 730 mm - mass of pressed cheese approx. 1000 kg - thickness of the cheese layer after pressing approx. 250 mm

Used belt press made by Monobelt, type NP12CK. New 2009. Weight 1620kg. Belt width - 1200 mm. Working flow - up to 10 m3 / h. Throughput max - 170-360 kg DM / h. Installed power: Press with 0.55 kW thickener 2.2 kW flushing pump Rinse water quantity 5 m3 / h Net weight / maximum usable weight 1620/2800 kg Sludge inlet connection DN80 1 ”GF rinse water inlet Filtrate outlet connection DN150 Manufacturer's documentation.

Used AMOS AEP 20 juice belt press, with a grinding system and a pallet generator. Belt with a capacity of 1 meter per hour, i.e. about 3 tons.

Used filter press made by Spadoni made of stainless steel. Number of plates - 103. Plates with dimensions of 600x600 mm. Hydraulical pressure.

Plate press Filter press Chamber filter press Industrial wastewater technology -used- Manufacturer: FAZZINI Type: F500 Operating pressure 15 bar Plate size 500 x 500 mm 20 plates with hydraulic unit 1.5 kW and piston pump 0.75 kW Dimensions: approx. 2400 x 750 x 1600 mm All items are checked for function before delivery, if technically possible !

Filter press plate filter ultrafiltration plate filter used Manufacturer: Rhone Poulenc Type: UFP 70 Max working pressure: 4.5 bar/64 psi Torque: 8 mxkg 6x24 plates approx. 2000 x 600 H 1700 mm Changes and errors in the technical data, Information and prices as well as intermediate sale reserved.

various dosing pumps, see pictures

Used stainless steel filter press made by Seitz, type 40/30, new 1983. Filtration area 2,88 m2. 18 plates 40/40 cm. Hand clamp. New 1983. Available 2 pcs.

Used hydraulic press PHW 12

Used filter press made by Seitz, type 40/30. PP plates with dimensions 40x40. 2 pieces available.

Laboratory press with 11 vertically arranged casting plates (each 260 mm x 250 mm), with hydraulic pump and motor 0.5 kW, oil reservoir, drain tray and drain valve. Tower can be moved forward; Cloths should be renewed.

Material: 1.4571/ stainless steel Content: 16 ltr Weight: 2000 kg Length x Width x Height: 2500 mm x 1300 mm x 2000 mm Filter area : 0,12 m² Fill : 16 ltr. Working pressure : 25 bar. Further information: Basic application area: - Suspensions with subtle and subtlest solid materials, which need for fast and optimal dehumidification a high adrift pressure difference.. - Dry sludge, those won coal is compressible and throught strong mechanical pressure arrives a drastic reduction of pore volume - Products, at those a widely dehumidification is possible after cake constitution through a displacement of pore fluid through gas - Suspensions, whose need for unproblematic abscission a degressive or a progressive supply of dehumidification potential. Very good condition. You can also get the entire system with all components you need. Write us below!

Stock# U2347-12 Used hydraulic press for removing paste/paint from mixing can. Press consist of carbon steel supporting column with height 399 cm mounted to base with dimensions 700 mm x 700 mm. Pressing head is mounted on cart which is rised and lowered by mechanical hoist which is driven by el. motor 0.37/1.5 kW, 380 V, 50 hz and is able to work up to weight range 2000 kg. Pressing head is designed for work on mixing cans with internal diamater 1100 mm. Top of pressing head is equipped with 6 clamps for mounting it on product container. Stroke of piston about 1150 mm. Piston is poweder from hydraulic device, driven by el motor 0.55 kW. Maximal working pressure up to 150 bar. Last time used in paint industry.

Stock number: UG5830 Used chamber filter press by FILTRI DIEMME model GIGANTE 1500. Frame type 1500 mm x 1500 mm /90. Press has 85 pp plates with bottom feeding inlet. Filtration surface about 321 m2. Press is equipped with control panel, Willet sludge pump designed for work on pressure 10 bar, polymer dosing system, cake washing system, photocell safety system. Plates designed for work on pressure up to 15 bar. Closing pressure 385 bar. Dimensions: length 10 m x width 2 m x height 2 m. Reported output up to 30 m3 of sludge per hour.
