milling machines used for sale

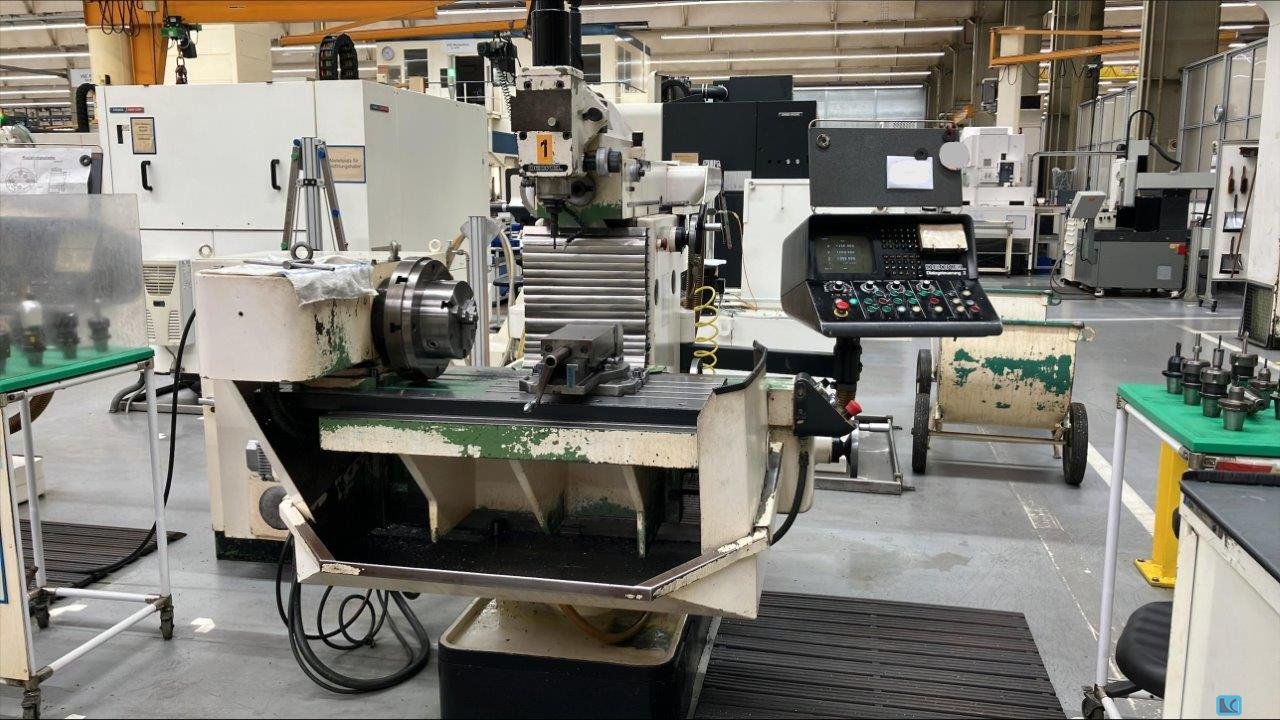

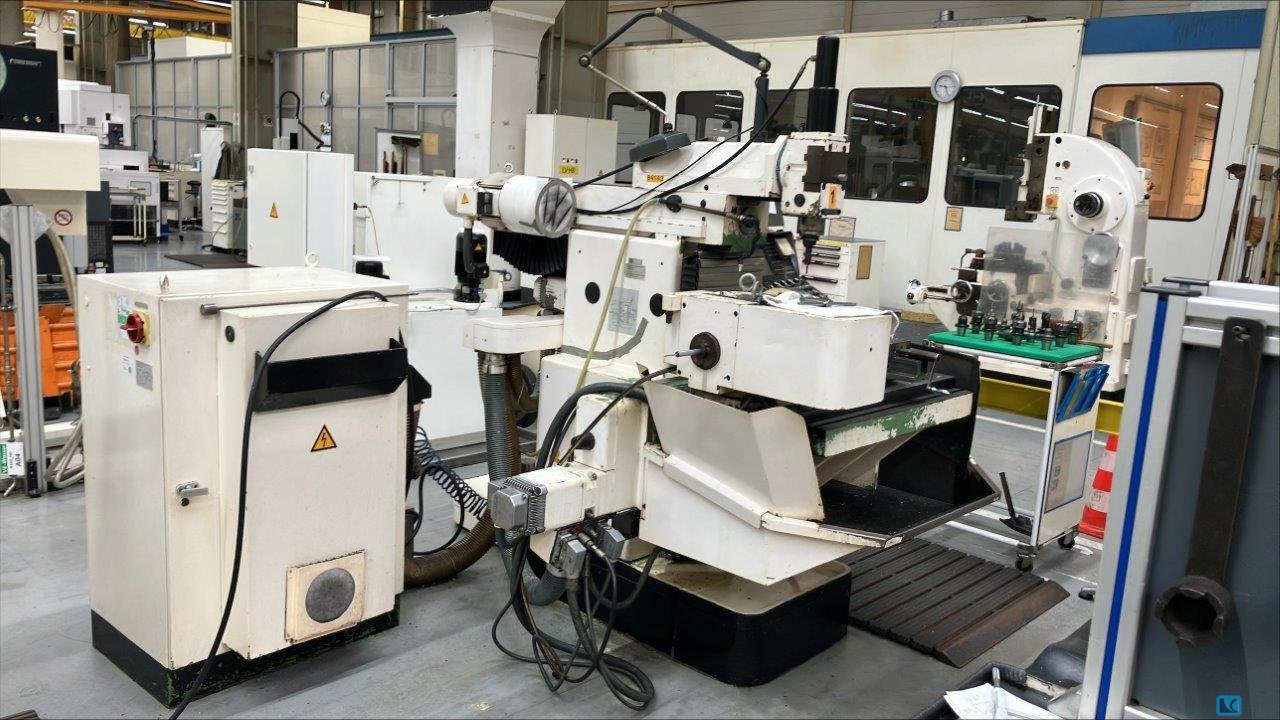

Universal tool milling machine DECKEL FP 1 With 3 axes active digital display Heidenhain TNC 123 Year of Make: 1994 Travel: X 300 Y 160 Z 340 Speed range: 40 – 2000 rpm With the following accessories: Rigid angle table 600 mm x 250 mm clamping surface Sliding vertical milling head Extendable drill quill Stepless feed via potentiometer 1 pc. machine vise 1 pc. counter holder with counter bearing 1 pc. milling mandrel long 0 22 mm , 0 16 mm , 0 27 mm Various tool holders S 22 x 2 Bellows Z axis 1 chip protection Machine Light Automatic central lubrication pump Coolant Setup Operating instructions THE MACHINE IS IN TOP CONDITION! THE MACHINE COMES FROM A TRAINING WORKSHOP!

GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools90 Max. tool length370 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinPackage Mill / Turn HSK-A 63Package Milling / Turning: Upgrade NC-swivel rotary table to Milling - Turning / direct drive Table plate C-axis d 680 mm / 26.8 in Speed C-axis 1.000 min-1 Integrated balancing sensor Motor spindle speedMASTER® HSK-A63 Spindle speed ...

GeneralUniversal Milling Machine; Control: CELOS with Heidenhain TNC 640 Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperHSK-A 63 Clamping SystemHSK-A 63 Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring systemSpindle speed 15,000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 15,000 min-1 Output 21 kW / 16 kW (28 hp / 21.5 hp) Torque 111 Nm / 85 Nm (82 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel range -35 to +110°, rot ...

CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgGeneralVertical Machining Center; Control: Control SIEMENS SINUMERIK ONE Mechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D200 mm)4th Axis package4th Axis package Option includes: - rotary table type EA-510.L NE with indirect measuring system - electrical and pneumatic preparation - software preparation to work with rotary table - cycle TRACYL which allows to define contour on the cylinder - swSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Oil- and Emulsion Mist SeparatorOil ...

GeneralUniversal Milling Machine; Control: CELOS with Heidenhain TNC 640 Technical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperSK40 Tool holder DIN ISO 7388-1-A Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minClamping SystemDIN ISO 7388-3-A, AD Rapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Longitudinal650 mmCross520 mmVertical475 mmFloor space/WeightDimensions (L x W x H)2,85 x 2,67 x 2,75 mWeight approx.7950 KgDirect measuring systemDirect path measuring systemNC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 630 x 500mm / 24.8 x 19.6 in swivel range -35 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformationTool magazin 120 pocketsTool magazine 120 places SK40 Vertical c ...

GeneralUniversal Milling Centre - Direct Measuring System X, Y, Z inclusive air purge for measuring system - Coolant Air-Blast Changeover external switchable via M-Function - DMG MORI NETservice; Control: DMG MORI ERGOline IV Multi-Touch CharacteristicsMovement B-Axis(-15/+110) degreeType of magazineChain Tool Magazine with30 PositionsClamping SystemDIN 69872 Spindle taperSK 40 DIN 69871 Drive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.15000 rpmRapid feed X / Y / Z30/30/30 m/minTable surfaceØ 630 x 500 mmMovement C-Axis360 degreeMovement X / Y / Z600/600/510 mmType of gripperDouble gripper Production Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar - Chip conveyor (scraper type) with tank capacity: 200 l(left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External elect ...

GeneralVertical Machining centre; Control: DMG MORI ERGOline IV Multi-Touch CharacteristicsTable surface900 x 600 mmTool Magazine with30 PositionsMovement X / Y / Z600/600/510 mmRapid feed X / Y / Z30/30/30 m/minAC main driveSpindle speed range 20 to 15.000 rpm AC main drive:20/14,5 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemTouch Probe Heidenhain TS 460Touch Probe HEIDENHAIN for workpiece measuring Option includes: - TS 460 Touch probe with optical signal transmission - measuring cycles - calibration ring - case for equipmentTouch probe Heidenhain TT160Touch Probe HEIDENHAIN for tool length and diameter measurement Option includes: - TT160 probe for tool measurement - measuring cycles with tool breakage monitoring - calibration tool Note: Additionally t ...

GeneralVertical Machining centre; Control: DMG MORI ERGOline IV Multi-Touch CharacteristicsTable surface1400 x 600 mmTool Magazine with60 PositionsMovement X / Y / Z1100/600/510 mmRapid feed X / Y / Z30/30/30 m/minAC main driveSpindle speed range 20 to 12.000 rpm AC main drive:13/9 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemTool clamping buttons on the headstockTool Clamping and Unclamping Buttons placed on the Headstock CoverProduction Package 80 barProduction Package 80 bar Option includes: - Internal coolant supply 80 bar; - Tank capacity: 600l with papertype filter; - Chip conveyor (scraper type) with tank capacity: 220 l (left) - Bed flushing via M-Function - Coolant spray gun for swarf removal -Roto clear with multilayer windowRoto Clear - view wind ...

GeneralVertical Machining centre; Control: DMG MORI ERGOline IV HEIDENHAIN TNC 7 CharacteristicsTable surface900 x 600 mmMovement X / Y / Z600/600/510 mmTool Magazine with30 PositionsRapid feed X / Y / Z30/30/30 m/minAC main driveSpindle speed range 20 to 15.000 rpm AC main drive:20/14,5 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemChip Removal PackageChip Removal Package Option includes: - Chip conveyor (scraper type) with tank capacity: 200 l (left) - Coolant Spray Gun for swarf removal - Signal lamp with 4 coloursRenishaw Touch Probe-Kit for HEIDENHAIN controlRenishaw Touch Probe-Kit for HEIDENHAIN control Option includes: - PP40 Touch probe with optical signal transmission - TS27R Probe for tool measurement - measuring cycles with tool breakage monitori ...

CharacteristicsTable surface900 x 600 mmTool Magazine with60 PositionsMovement X / Y / Z600/600/510 mmRapid feed X / Y / Z42/42/42 m/minGeneralVertical Machining centre; Control: DMG MORI ERGOline IV HEIDENHAIN TNC 7 Spindle speed range 20 to 12.000 rpmSpindle speed range 20 to 12.000 rpm AC main drive:13/9 kW (40/100% DC) Tool taper SK40 DIN 69871 Tool clamping according to DIN69872Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemProduction Package 80 barProduction Package 80 bar Option includes: - Internal coolant supply 80 bar - Tank capacity: 600l with papertype filter - Chip conveyor (scraper type) with tank capacity: 200 l (left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - EActive cooling systemActive cooling system for selected mechanical components in order to increase machine thermal stabilityAir coola ...

GeneralVertical Machining Centre - Direct Measuring System X, Y, Z - Coolant air-blast changeover external switchable via M-Function; - Thermal compensation - DMG MORI NETservice; Control: DMG MORI ERGOline X Multi-Touch control Siemens CharacteristicsMovement X / Y / Z800/600/510 mmType of magazineChain Tool Magazine with30 PositionsClamping SystemDIN 69872 Spindle taperSK 40 DIN 69871 Drive power (40% DC)20 kWDrive power (100% DC)14,5 kWSpeed max.15000 rpmRapid feed X / Y / Z42/42/42 m/minTable surfaceØ 800 x 620 mmMovement C-Axis360 degreeMovement B-Axis(-15/+110) degreeType of gripperDouble gripper Production Package 20 bar with chip conveyorProduction Package 20 bar with chip conveyor Option includes: - Internal coolant supply 20 bar; - Chip conveyor (scraper type) with tank capacity: 205 l (left) - Bed flushing via M-Function - Coolant spray gun for swarf removal - External electr ...

Table dimensions ... 900 x 500mm Axis X ... 700mm Axis Y ... 500mm Axis Z ... 500mm ISO 40 Spindle speed ... 0-3150 rpm L x W x H ... 2220x2115x2120mm Machine weight ... 2550kg The machine is in good condition, possible to test under power.

x-travel: 400 mmy-travel: 250 mmz-travel: 300 mmmilling head -swivable +/-: 360 °tool taper: ISO 40 spindle turning speed - stepless: 45...2240 U/minspindle turning speeds of horiz. head:: 452240 U7minTable dimensions: 630 x 345 mmtable load: 120 tfeeds - fine adjustment: 6,31250 mm/minSistance stand- table edge: min/mx: 155/500 mmdistance between table/spindle: horiz. 38...438 mmvertical movement of the milling spindle: Hub 80 mmSpindle/table distance vert.: ...400 mmtotal power requirement: 7 kWweight of the machine ca.: 1,45 tdimensions of the machine ca.: 1,45 x 1,4 x 1,75 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1190 mmy-travel: 530 mmz-travel: 540 mmtable-size: 1600 x 400 mmspindle drive: 11 kWtool taper: ISO 50 turning speeds: 28-1400 U/minfeeds: 16-800 mm/Utotal power requirement: 21 kWweight of the machine ca.: 4,8 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 600 mm, 700 mm, 600 mm

CNC Universal – Milling & Drilling Machine DECKEL MAHO DMU 60 P duoBlock NEW DMG Design With track control Heidenhain iTNC 530 Year of Make: 2010 Travels: X 600 Y 700 Z 600 Speed range: 0 – 12,000 rpm infinitely variable ( SK 40 ) With the following accessories: NC rotary table 630 mm clamping surface (table load max. 700 kg) Universal milling head with controlled B axis Universal tool changer with 40 magazine positions as a double gripper ( SK 40 ) Full protection cabin with sliding doors and interior lighting IKZ – 40 bar with paper belt filter Conveyor Rotoclear 3 D Probe Heidenhain TS 649 Electronic handwheel Operating mode 3 + 4 Oil mist extraction Coolant spray gun 3-Piece Height Adjustable Machine Shoes Operating instructions

CNC Universal – Milling & Drilling Machine DECKEL MAHO DMU 85 monoBlock NEW DMG Design With track control Heidenhain TNC 640 Year of manufacture: 2018 Travel: X 935 Y 850 Z 650 Speed range: 0 – 20,000 rpm continuously variable (HSK 63) With the following accessories: NC swivel rotary table 1000 mm x 750 mm clamping surface 3 D Probe Infrared Heidenhain Vertical tool changer with 90 magazine positions (HSK 63) Chip flushing in workroom door Chip rinsing gun with pump 1 bar/40 l min Full protection cabin with sliding doors and interior lighting Operating mode 3 + 4 IKZ 40 bar with paper belt filter Conveyor Rotoclear Coolant Setup Spindle Oil Cooler Oil mist extraction 3-Piece Height Adjustable Machine Shoes Control cabinet cooling unit (Rittal) Operating instructions

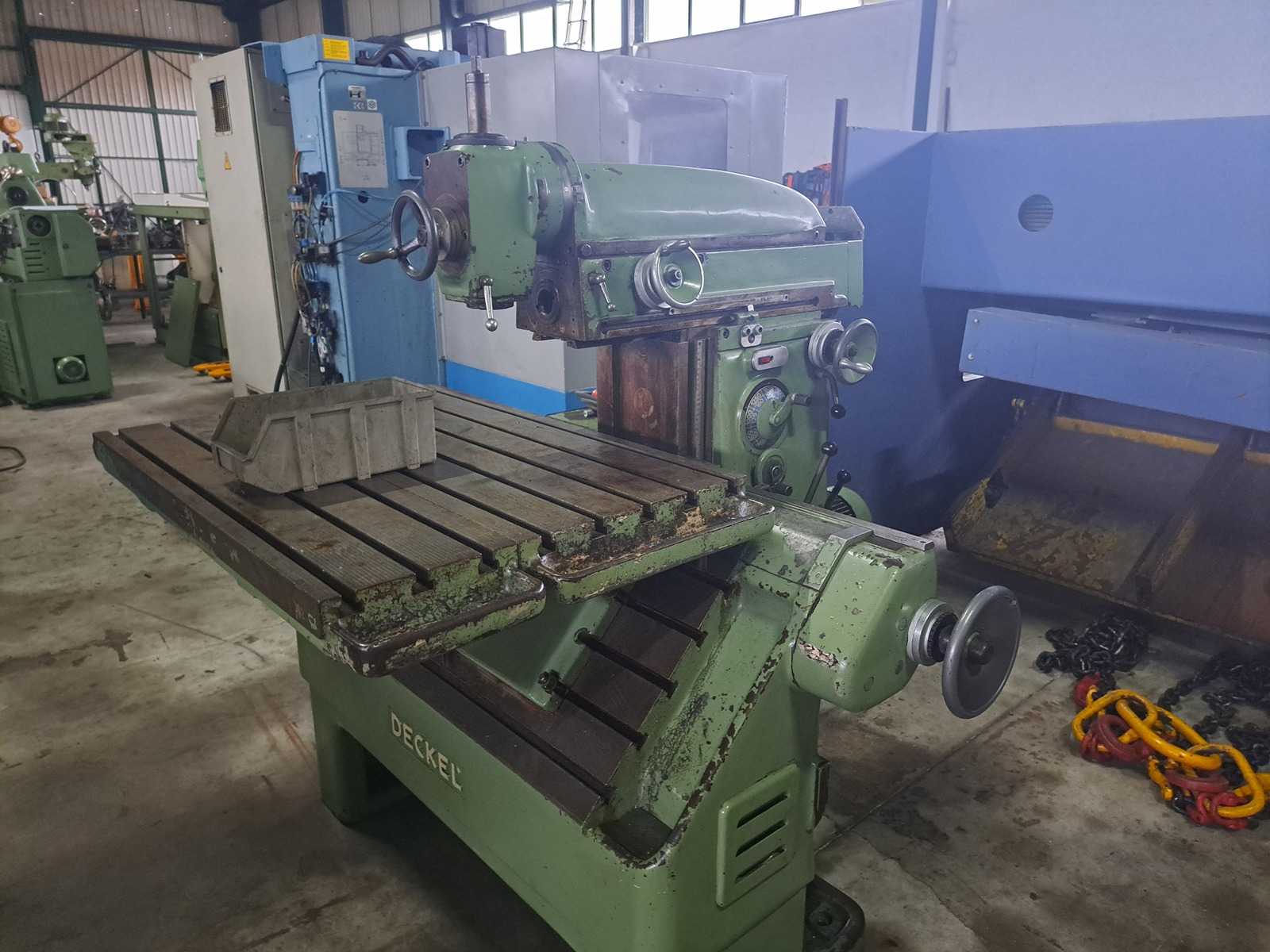

Tool milling machine Deckel FP 3 partially overhauled Article number: 07-07-091 Manufacturer: Lid Very good general condition Machine partially overhauled Delivery time: on request - subject to prior sale Year of construction: approx. 1980 L x W x H: approx. 2000x1600x1900mm Weight: approx. 1500kg Digital display: 3-axis digital display Sino New Travel: X-axis: approx. 500mm Y-axis: approx. 300mm Z-axis: approx. 380mm Table clamping surface: approx. 800x420mm Spindle: Speed range: approx. 40-2000 rpm Tool holder: ISO 40 Drive power: approx. 3.8kW Tool clamping: manual Feeds & rapid traverses: in all 3 axes Feed range: approx. 10-500mm/min Rapid traverses: approx. 1.5m/min Accessories: Vertical & horizontal milling equipment Coolant Facility New Complete documentation Various tension wrenches Horizontal spindle cover cap Safety handwheels  ...

x-travel: 8.990 mmy-travel: 3.400 mmz-travel: 1.000 mmpassage: 1.250 mmpassage width: 2.490 mmcontrol: Siemens Sinumerik 840 D surface area: 8.500 x 2.250 mmworkpiece weight: 160.000 kgturning speed range: 0 - 4.000 U/mintool taper: ISO SK 50 spindle motor: 40 kWtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mWASI / recondstruction Henry Linestandard angle head 300 mmstandard angle head 600 mm narrowextension 450 mmuniversal angle head 525 mmhirth-toothed, 360° automatically positionedThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 11.000 mmy-travel: 3.000 mmz-travel: 1.300 mmdia. of quill: 300 mmpassage width: 3.270 mmpassage: 1.500 mmsurface area: 11.000 x 3.000 mmspindle speed:: 600 U/mintool taper: SK ISO 60 spindle diameter: 200 mmcapacity: 125 KWfeeds X-axis: 0 - 20 m/minfeeds Y-axis: 0 - 2 m/minrapid travel - portal in x: 0 - 20 m/minrapid travel - portal in y: 0 - 2 m/mintotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mconverted planing machinecontrol: automatic line milling cyclestandard angle headThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

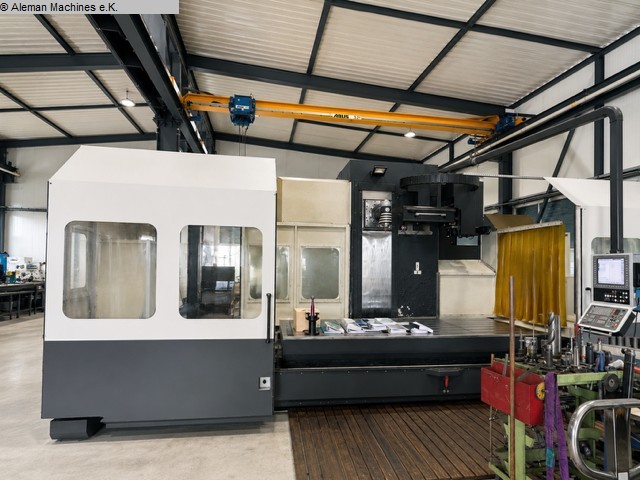

A CNC portal milling machine FKD-Feichter with 2 columns is available. Travel X/Y/Z/W: 6000mm/4800mm/1500mm/1300mm, table dimensions X/Y/Z: 6000mm/3000mm, max. workpiece weight: 115000kg, max. table surface load: 6400kg/m², total machine bed length: 14500mm, portal dimensions X/Y: 3000mm/4400mm, C-axis: 360°, A-axis: +/-120°, ram cross-section: 700mm/700mm, feed rate: 10m/min. Total system dimensions X/Y/Z: approx. 15100mm/6100mm/7000mm, total system weight: approx. 115000kg, control: Heidenhain. Including chip protection, cooling lubricant system and hydraulic unit. The machine was built at the site in 2022. The ram and spindle are currently being overhauled. Documentation available. On-site inspection is possible. Expected to be available from September 2025.

7-axis turn/milling machine Bumotec S192 – with fully automatic LNS chip conveyor and integrated mud pump Oil cooler Axle cooler Milling spindle 30000 revolutions/min. Breuning Short Bar Loader Elbaron Suction Includes 2 rotary holders and 3 drill holders with HSK 40A adapter Includes 2 collets Counter spindle can be used with 2 jaw chuck or collet E173

Milling machine Quaser MV 184 P BJ 2017

Fraese Fritz Werner TC800BJ 1984

5 Axis Milling Machine Jobs Linx 6 BJ 2001

Key data: 500 mm, 450 mm, 400 mm

X - axis 600 mm Y - axis 450 mm Z - axis 400 mm NC - Swivel Rotary Table: Table clamping area 500 x 380 mm max. table load 200 KG Swivel work table -0 / +108 ° C - Axis 360 ° Tool holder 40 SK Spindle speed range 20 - 18,000 rpm Spindle drive 35 / 25 KW Torque 130 / 87 large tool length 280 mm Tool diameter 80 / 130 mm Tool weight 6 kg Rapid traverse B / C 40 / 50 U Rapid traverse X-Y-Z 80 / 50 / 50 m/min. Total power requirement 61 KVA Machine weight approx. 6.8 tons Machine dimensions 3.4 x 2.3 x 2.6 m CNC HEIDENHAIN iTNC 530 Electr. Handwheel Probe Operating mode 4 60-speed tool changer Internal coolant supply 40 bar Conveyor

Enclosed are a few photos of our Maho MH-C 800, which we would like to sell. The machine underwent a retrofit in 2015. Machine is connected to the grid and can be viewed.

due to the purchase of a new machine, a Röders HSC machine is sold RFM 760 with slot table. Details can be found in the appendix.

Key data: 14000 mm, 4480 mm, 3000 mm

Machine type: Portal milling machine LF3550/4000CS Year of manufacture: 1966 / overhauled 2010 Manufacturer: Waldrich Siegen Control: CNC840D-Powerline Location: Gera Country of manufacture: Germany Freight base: ex warehouse / in Germany + VAT Specifications: Travel paths X-axis 14,000mm table longitudinal Y-axis 4.480mm slider-transverse Z-axis 3,000mm crossbeam vertical W-Axis 300mm Quill Vertical max. passage: transverse 3,200mm high 3.800mm Iajc Th Tn Uervx H Rscew Machine table: length 14,770mm Width 3,100mm max. table load: 145 to Quill: Tool Taper: ISO60 Power: 100KW max. rotary mom. Max. Speed 600 rpm Rapid traverses: X-axis 12m/min Y; Z-axis 6m/min Attachment heads: Voltage: manual Designation: Right angle milling head (ISO60) Orthogonal milling head (ISO60) Notes: Table guide hydrostatic Redesign of hydrostatics calculated to max. load 450 tons  ...

This 3-axis Roders RFM 760 vertical machining centre was manufactured in 2005. It features a spindle speed range of 3,000 to 42,000 rpm and travel paths of 760 mm in X, 550 mm in Y, and 300 mm in Z. Equipped with Röders RMS 6 V3.6 control, it offers precise machining capabilities. If you are looking to get high-quality milling capabilities, consider the Roders RFM 760 machine we have for sale. Contact us for further details regarding this machine.

This Datron M8 Cube was manufactured in 2015. It features a 2 kW HF spindle adjustable from 1,000 to 60,000 rpm, complemented by a HIB HF spindle cooling unit. It includes dual 15-station tool changers, a 3D probe, and a precision tool length probe. The vacuum table measures 700 mm x 500 mm, supported by a Busch R5 vacuum pump. Software V9 offers extensive programmability and tool management options. Contact us for more information about this machine.
