lathes used for sale (3,107)

The largest diameter of the workpiece mm. 4000 The largest diameter of the workpiece above the caliper mm. 3200 Maximum length of workpiece mm.20000 Main motion motor power kW 160 Largest tonn part weight. 160 Machine tonn weight. 314...

modernization 2006 Control system 'Siemens' Max working diameter: 700-1500 mm Distance between railway wheels: 1435 mm Regulating distance between railway wheels: 1524 or 1676 mm Length of railway wheels sets: 1640-3000 mm Jaws clamp diameter: 550-1350 mm Max wheel width: 140 mm Spindle turn range: 4 Spindle turn: 9, 13, 5-18, 27 rpm Stepless feed speed range: 1,6-50 mm/min Machine dimensions: 8700 x 3650 x 3250 mm

Machine is used for the processing of pipe and pipe components, including thread cutting in terms of the single and mass production. Diameter range of processable pipes: 70-290 mm Max diameter of processable work-piece: -Over stand: 800 mm -Over support: 450 mm Diameter of spindle hole: 300 mm Max turning length: -With bevel ruler: 800 mm -W/O bevel ruler: 420 mm Amount of spindle speeds: 12 Limits of spindle rotation frequency: 8-355 turn/min Amount of longitudinal and cross support servings: 32 Limits of: -Longitudinal servings: 0,064-1,025 mm/turn -Cross servings: 0,034-0,458 mm/turn Step limits of cuttable: -Metric threads: 1-12 mm -Inch threads (amount of threads for 1): 2-24 Max turn angle of bevel ruler: +- 10 degrees Overall machine dimensions: -Length: 3600 mm -Width: 1860 mm -Height: 1525 mm Machine weight with electric equipment: 9050 kg

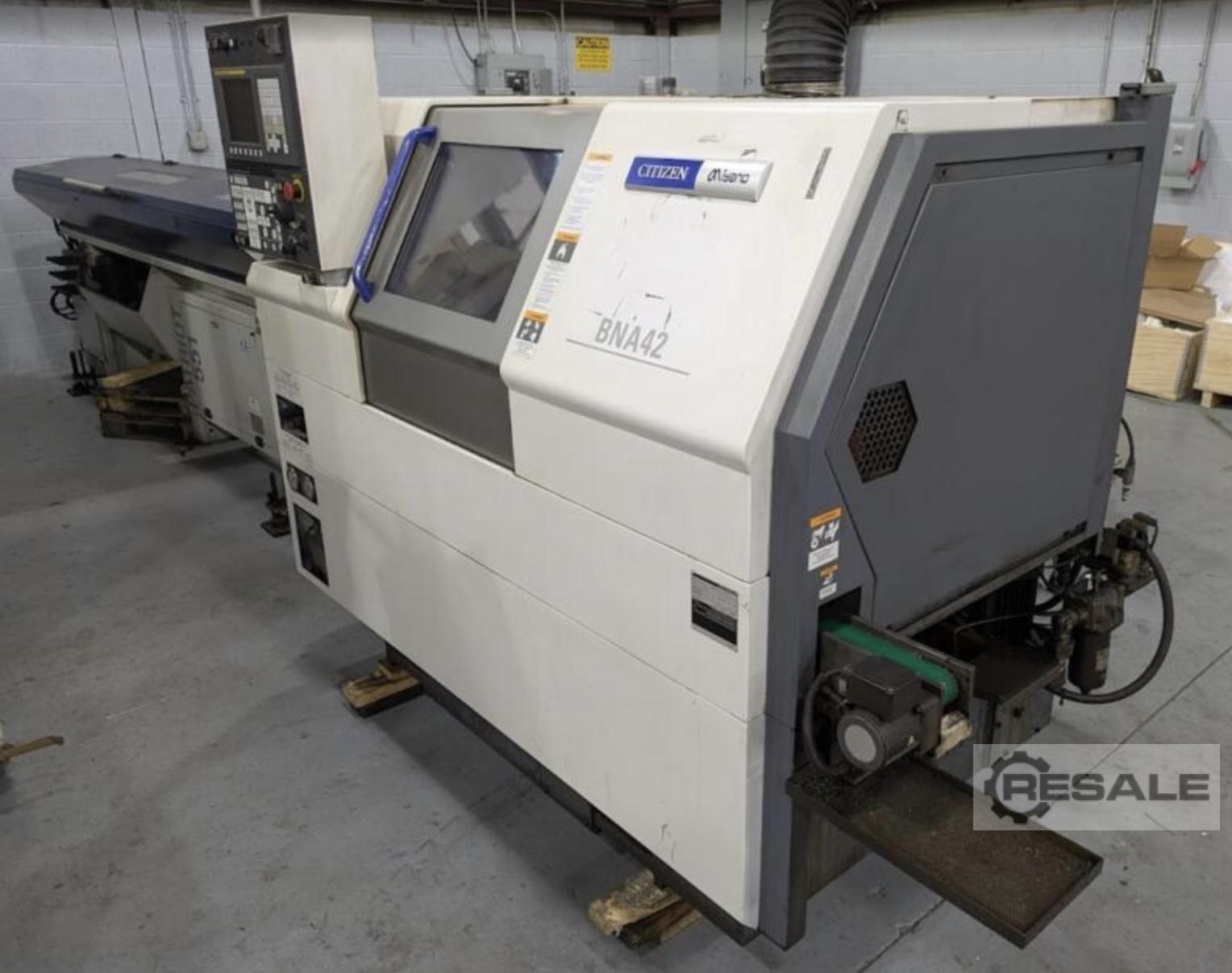

2018 CITIZEN BNA-42S2 CNC Swiss-Type Automatic Lathe Machine Specifications Manufacturer: Citizen Model: BNA-42S2 Year of Manufacture: 2018 Machine Type: CNC Swiss-Type Lathe Chuck Size: 5” Maximum Spindle Speed: 5,000 RPM Spindle Motor Power: 5.53 HP Maximum Bar Capacity, Main Spindle (SP1): 42 mm Maximum Bar Capacity, Sub Spindle (SP2): 34 mm Standard Machining Length: 100 mm Number of Spindles: 2 Draw Tube Diameter, Main Spindle (SP1): 43 mm Draw Tube Diameter, Sub Spindle (SP2): 30 mm Rapid Traverse Rate, X1 Axis: 20 m/min Rapid Traverse Rate, Z1 Axis: 20 m/min Rapid Traverse Rate, B Axis: 20 m/min Live Tool Motor Power: 2.8/1.0 kW Live Tool Torque: 16 Nm Equipment and Accessories Edge Patriot 551 Bar Feeder Chip Conveyor Parts Catcher Parts Conveyor Live Tooling Sub Spindle Y-Axis 5-Axis Machining Capability Medium-Pr ...

2022 TORNOS SWISS CNC SWISS-TYPE LATHE CNC: FANUC 31iB Maximum spindle speed: 10,000 rpm Bar capacity: up to 25.4 mm The TORNOS SWISS GT 26-6 is a compact, high-speed CNC turning center intended for precision production of small-diameter components. Its twin-spindle arrangement allows machining to be transferred between the main and counter spindle, reducing the number of separate operations required for many parts. The machine is equipped for both conventional Swiss-type work with a motorized guide bush and applications where machining without the guide bush is preferred. Machining Capacity Maximum material diameter: approximately 25.4 mm Typical part length with rotating guide bush: up to 220 mm Main spindle: 0–10,000 rpm Counter spindle: 0–10,000 rpm Main spindle power: 8.2 kW, up to 10.5 kW Counter spindle power: 8.2 kW, up to 10.5 kW Maximum torque  ...

We are pleased to offer the following CNC turning center: DOOSAN PUMA 400LMB Year: 2011 Serial No.: ML0136-004494 Specifications: 15” chuck Spindle bore: 132 mm / 5.197” Through drawbar: 116 mm / 4.56” Maximum work length: 2,028 mm / 80” Approximately 13,000 cutting hours Long-bed configuration Machine reported to be in very good condition

2006 ROMI 33×80 Oilfield Hollow-Spindle CNC Lathe Manufacturer: ROMI Model: 33×80 Year: 2006 CNC Control: FANUC 21iT Application: Oilfield / Heavy-Duty Machining Main Specifications Swing over bed: 33” Swing over cross slide: 23” Chuck size: 24” Spindle bore / bar capacity: 10.5” Maximum turning diameter: 23” Maximum turning length: 90” Maximum spindle speed: 750 rpm Main motor: 60 HP Tailstock: Yes CNC control: FANUC 21iT Electrical: 480 V / 75 A FLA Approx. machine weight: 30,000 lbs Included Equipment 2 × chip pans — approx. 5’ × 11’ × 4’ — 1,000 lbs each Chip conveyor — approx. 4’ × 12’ × 6’ — 2,000 lbs Chiller — approx. 2’ × 2’ × 5’ — 1,200 lbs Hydraulic pump — approx. 2’ × 3’ × 5’ — 1,500 lbs Shipping Dimensions Main machine: 17’ × 8’ × 7’ — approx. 30,00 ...

Key data: 5000 mm, 8000 mm, 4000 mm

Berthiez Vertical Turning Lathe • Year of manufacture: 1982 • CNC type: older system (CNC axes) Dimensions and Working Parameters • Table diameter: 5000 mm • Maximum turning diameter: 8000 mm • Maximum turning diameter at center: 5000 mm • Maximum workpiece height: 4000 mm • Ram travel (T): 3600 mm • Saddle travel (TA): 650 mm Speed and Power • Table rotation range: 0.6 – 60 rpm • Table motor power: 140 kW • Maximum load on hydraulic support: 160 t • Ram feed speed: 400 mm/min • Saddle feed speed: 2500 mm/min • Spindle rotation for milling: 0.01 – 0.50 rpm • Positioning speed: 0.001 – 0.50 rpm Tool Carriages 1. Hand-Operated (Primary) Carriage • Kulannum section size: 360 × 360 mm • Axial travel (CA): 2500 mm • Horizontal travel (CB): 3400 mm • Tilt range (E-F): 15° – 45° 2. Side Tool C ...

TSUGAMI B0385L Swiss-Type CNC Sliding Headstock Lathe Year: 2014 Condition: Tooling included (as shown in photos) Specifications subject to buyer verification Machining Capacity • Max barstock diameter: 32 mm • Max machining length: 100 mm • Max main spindle drilling diameter: 13 mm • Max main spindle tapping: M12 • Max back spindle chucking diameter: 38 mm • Max back spindle drilling diameter: 12 mm • Max back spindle tapping: M12 • Max cross drilling diameter: 10 mm • Max cross tapping: M8 • Max tool spindle slotting cutter diameter: 45 mm Spindle Speeds • Main spindle speed: 200 – 6,000 RPM • Back spindle speed: 200 – 7,000 RPM • Tool spindle speed: 200 – 5,000 RPM Tooling & Axes • Total tool capacity (standard): 20 tools • Tool size: 20 × 20 × 125 mm • Controlled linear axes: 5-axis Ra ...

Key data: 2500 mm, 8000 mm

Poreba TZB-250 CNC Heavy Duty Modular Lathe Fanuc Oi-TF CNC Control with MPG Pendant (Retrofit 2015), 78.74” 4-Jaw Face Plate Type Chuck, 98.42” Swing Over Bed, 314.96” Maximum Turning Length, 125.98” Maximum Swing Over Gap, Spindle Speeds 0.5-1000 RPM, 4.13” Spindle Bore, 4-Way Tool Post, 35,275 Lbs. Approx. Weight Capacity (Unsupported), Power Tailstock, Open Steady Rest, 75 HP Spindle Motor, S/N 1132 070

Gurutzpe B1800/3 CNC Lathe Fanuc Oi-TD CNC Control, 52” Swing Over Bed, 372” Between Centers, 36” Cushman 4-Jaw Independent Chuck, 41” Swing Over Carraige, Spindle Speeds 1-300 RPM, 4.33” Spindle Bore, Sauter 4-Position Turret, 48,400 Lbs. Weight Capacity (Unsupported), 70,500 Lbs. Weight Capacity (2 Steadies), Hydraulic Tailstock, (3) Roller-Type Steady Rests, Full Length Scale on Z-Axis, Hennig Chip Conveyor [CNC Retrofit 2010]

Key data: 6300 mm, 11200 mm, 4800 mm

Completely retrofitted Single Column Vertical Turning Lathe Blansko model SKSJ 1A equipped with one vertical head for turning and milling operations Technical characteristics: Face plate diameter 6300 mm Max. swing with moved out arm 11200 mm Maximum height of the workpiece 4800mm Max. turning diameter with column near the faceplate 8000mm Max. diameter of work piece clamped on floor grid (for internal processing) 14700mm Infinitely variable rotation of the faceplate 0.5 – 20rpm Max. work piece weight 100ton Mi ...

CAPACITIES AND CHARACTERISTICS CNC Fagor 8055 Retrofitted in 2018 TABLE – CROSS SLIDE • D – Table diameter: 2050 mm • A – Maximum turning diameter: 2300 mm • DB – Normal table height from the floor: 731 mm • H – Maximum machinable height (tool overhang 15 mm): 2000 mm • T – Vertical stroke of the cross slide: 1700 mm • Continuous range of table speeds: 1.6 to 200 rpm • Table motor power: 37 kW • Maximum allowable load on table: 20 tons • Cross slide travel speed: 400 mm/min TOOL CARRIAGE • Section of the tool carriage slide: 224 x 224 mm • C – Travel of the tool carriage slide: 1600 mm • CD – Travel to the right of the table axis: 1305 mm • CG – Travel to the left of the table axis: 400 mm • Continuous feed range: 0.05 to 24 mm/rev • Tool positioning speed: 1 to 3600 mm/min Verniers: • 1 divisi ...

Key data: 1350 mm, 11000 mm

CNC Lathe Make Swift CNC Fanuc 21i-MB Inspection Under Power Year 1978 Between centers .. 11,000 mm Swing over Bed .. 1,350 mm Swing over Carriage .. 1,000 mm Chuck dia .. 1 ,200 mm Max. Workpiece weight …….. 20 ton Motor power ………………………… 40 kW RPM …………………………………………….150 c/w 2 steadies

Key data: 1400 , 1000 , 11280

SKODA SRM heavy duty lathe Turning diameter over bed 1400mm Turning diameter over support 1000mm turning length 11280mm faceplate 1250mm Workpiece weight in the stands max. 20000kg Bezel 395mm Bezel 620mm workpiece weight 16000kg Total power requirement 40kW

HNK HCL 41x14 crankshaft CNC lathe Max. Swing Dia. Over Carriage Ø4,100mm Max. Center Distance 14,000mm Chucking Ø700~2,000 mm Steady Rest Ø510~860mm Max. Loading 160Ton

O-M LTD. CNC Vertical Boring Mill FANUC 16T-A CNC CONTROLS, RETROFIT 1994 CAPACITY: TABLE DIAMETER 4000mm MAXIMUM TURNING DIAMETER 7000mm MAXIMUM TURNING HEIGHT 2900mm MAXIMUN HEIGHT UNDER RAIL 3000mm TABLE WEIGHT CAPACITY 45400kg VERTICAL RAM TRAVEL, Z-AXIS 1500mm HORIZONTAL TRAVEL OF RAM, X-AXIS 2550mm TABLE SPEEDS RANGE .55-40 RPM TABLE SPEEDS 16 STEPS FEED RANGE VERTICAL RAM HEAD 0.003-.6 IPR RAPID TRAVERSE, HORIZONTAL HEAD 49 IPM RAPID TRAVERSE, CROSS RAIL 12 IPM RAPID TRAVERSE, COLUMN 21 IPM MAXIMUM TORQUE 58,000 LB/FT EQUIPPED WITH: FANUC 16T-A CNC CONTROLS (RETROFIT 1994) 4000mm T-SLOTTED TABLE WITH 4-TOP JAWS OPENSIDE ADJUSTABLE COLUMN VERTICAL OCTAGONAL RAM ON CROSS RAIL COOLANT CHIP GUARDS MAYFRAN CHIP CONVEYOR 50 HP MAIN MOTOR NOTE: MACHINE IS UNDER POWER FOR INSPECTION. WELL MAINTAINED MACHINE IN EXCELLENT CONDITION! RETROFIT WITH FANUC 16T-A CN ...

FRORIEP CNC Vertical Boring Mill Double Column REBUILT & CNC RETROFIT IN 1999 FEATURES: SIEMENS 840D CNC CONTROL 2-VERTICAL RAM HEADS CAPACITY: TABLE DIAMETER: 10,000mm TURNING DIAMETER WITH VERTICAL RAMS: 15,000mm MAXIMUM TURNING HEIGHT: 5000mm RAM VERTICAL TRAVEL: 2000mm RAM SWIVEL +/- 30/15 DEG MAXIMUM CUTTING FORCE RIGHT RAIL HD: 25t TABLE LOAD CAPACITY: 200t TABLE SPEED RANGES, INF VARIABLE: 4 TABLE SPEEDS: 0.13 TO 13 RPM CROSS RAIL ELEVATION MOTOR: 40.23 HP NUMBER OF FEEDS, VERTICAL & HORIZ: 30 CROSS RAIL ADJUSTMENT MOTOR 86 HP RAPID TRAVERSE MOTORS: 15.5 HP MAIN MOTOR: 250 HP EQUIPPED WITH: SIEMENS 840D CNC CONTROL NEW 1999 DUAL PENDANT OPERATED CONTROLS 2-VERTICAL CNC CONTROLLED RAMS 10,000mm DIAMETER T-SLOTTED TABLE 4-HEAVY DUTY FACE PLATE TYPE JAWS HYDROSTATIC BEARING SYSTEM FOR TABLE DUAL OPERATORS PLATFORMS DUAL JORGANSEN CHIP CONV ...

MORI SEIKI NT6600 CNC INTEGRATED MILL TURN CENTER WITH LIVE MILLING MAXIMUM SWING OVER BED: 42" MAXIMUM WORK PIECE DIAMETER: 42" MAXIMUM WORK PIECE LENGTH: 239" MAXIMUM BAR DIAMETER: 6.4" SPINDLE BORE: 7" X AXIS TRAVEL: 41" Y AXIS TRAVEL: 26" Z AXIS TRAVEL: 242" B AXIS: +/- 120 DEG. MAIN SPINDLE SPEED: 1500 RPM MAIN SPINDLE MOTOR: 40 HP MILLING SPINDLE SPEED: 8000 RPM MILLING SPINDLE MOTOR: 40 HP ELECTRICS: 220V/3P/60Hz/216A OAD (APPROXIMATE): 490" X 182" X 169" HIGH WEIGHT (APPROXIMATE): 120,560 LBS. EQUIPPED WITH: C AXIS YAXIS B AXIS LIVE TOOLING/MILLING 20" CHUCK FS-31iA5 CNC CONTROL 140 POSITION AUTOMATIC TOOL CHANGER PROGRAMMABLE TAILSTOCK COOLANT THROUGH SPINDLE (HIGH PRESSURE) CHIP CONVEYOR Additional Control Options: Automatic Power Shut-Off MAPPS 4 System Part Program Storage: 8mb Stored Programs: 1000 Remote Communication Function ATA Flash M ...

CNC SPINNING LATHE MANUFACTURER: M+M MODEL: HF450TT/2S SERIAL NUMBER: 26-2453-00 YEAR: 2000 CONTROL MANUFACTURER AND MODEL: Tracktronic Z-AXIS CENTER HEIGHT: 419mm DISTANCE BETWEEN CENTERS: 1200mm Z -AXIS TOOLING ADAPTER: DIN 55027/ Size 15 Z-AXIS DRIVE POWER: 80kW Z -AXIS DRIVE ZF REDUCTION RATE: 1:4 Z-AXIS DRIVE SPEED: 0-1000 RPM step less variable X - SLIDE TRAVEL: 500mm X - SLIDE FORCE: 100kN X - SLIDE VELOCITY: 400mm/min Y - SLIDE TRAVEL: 275mm Y - SLIDE FORCE: 100kN Y - SLIDE VELOCITY: 400mm/min TAILSTOCK TRAVEL: 600mm TAILSTOCK CLAMPING FORCE: 80kN EJECTOR TRAVEL: 450mm COOLANT: yes POWER 3PHASE / 50-60 Hz / 200 - 500 Volts: 3PH/60Hz/480V existing SPECIAL FEATURES OR ADDITIONAL ITEMS: POWER RATING 204 HP (152 Kw), CONTROL VOLTAGE 110VOLT / 24 VOLT DC MACHINE WEIGHT: 22000 kg CONDITION: EXCELLENT - VERY LIMITED USE

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mmswing diameter:550|650|1000|1250 mmturning height:450|500|750/950|1000 mmspindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/minTravel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mmTravel of ram (horiz.):300|340|500|700 mmrapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/minTool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kWMachine height:2600|2910|4020|4605 mmweight of the machine ca.:4500|6000|13000|18000 kghydraulic motor:2,2 kWservo motor X-axis:1,6|1,6|4|7 kwservo motor Z-axis:3|3|7|7 kwcoolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW:35|40|50|70 kvaCNC controller:Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fag ...

number of spindles:8 spindle passage:67 mmCam controlled multi spindle automatic lathe, used8 main spindlespick up in pos. 8threading attachmentCNC compound slide in pos. 5, also 2. speed in pos. 2Hydraulic spindle brake in pos. 4Incl. length measurement, incl. Brankamp cutting force monitoringtooling: could be different like picturesPlease, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: Vertical turning and grinding centreManufacturer: EMAGType: VSC 250 DSYob: 2008Control: SIEMENS 840DGrinding spindle speed: 30,000 rpmRotation spindle speed: 3,000 rpmTool places turret: 12Cooler for spindle and machine bed coolingCooling lubricant - lifting station (no independent cooling lubricant supply)Chip conveyorParts handling Air through the spindleTwo clamping circuits through the spindle (air and oil)Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

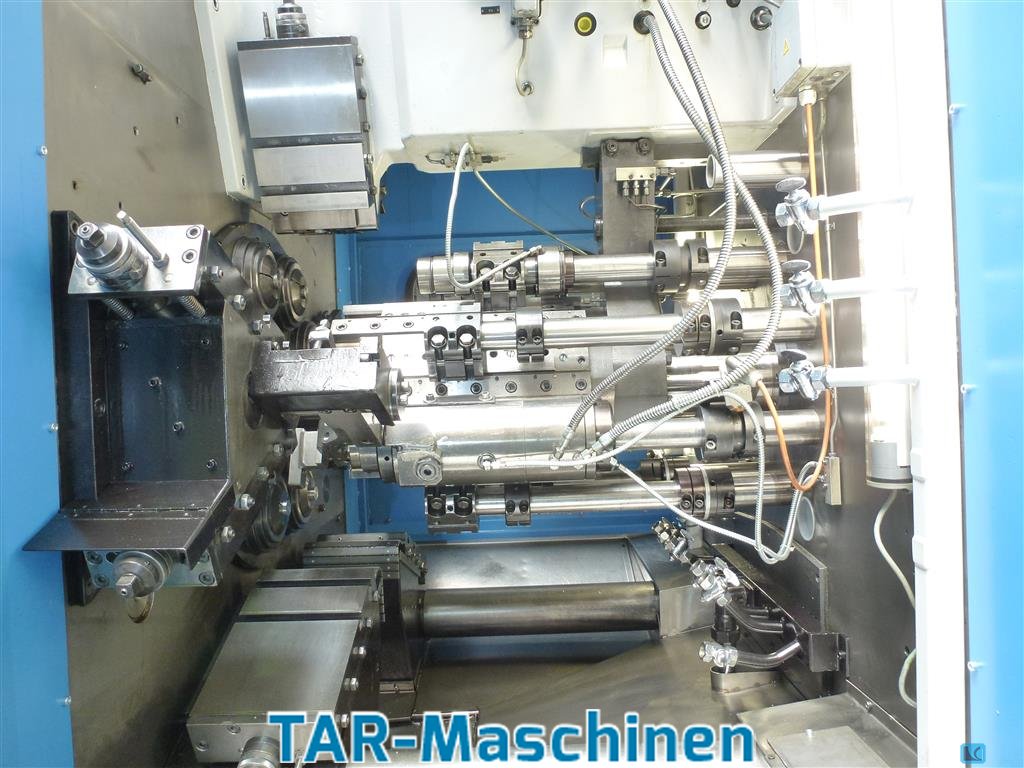

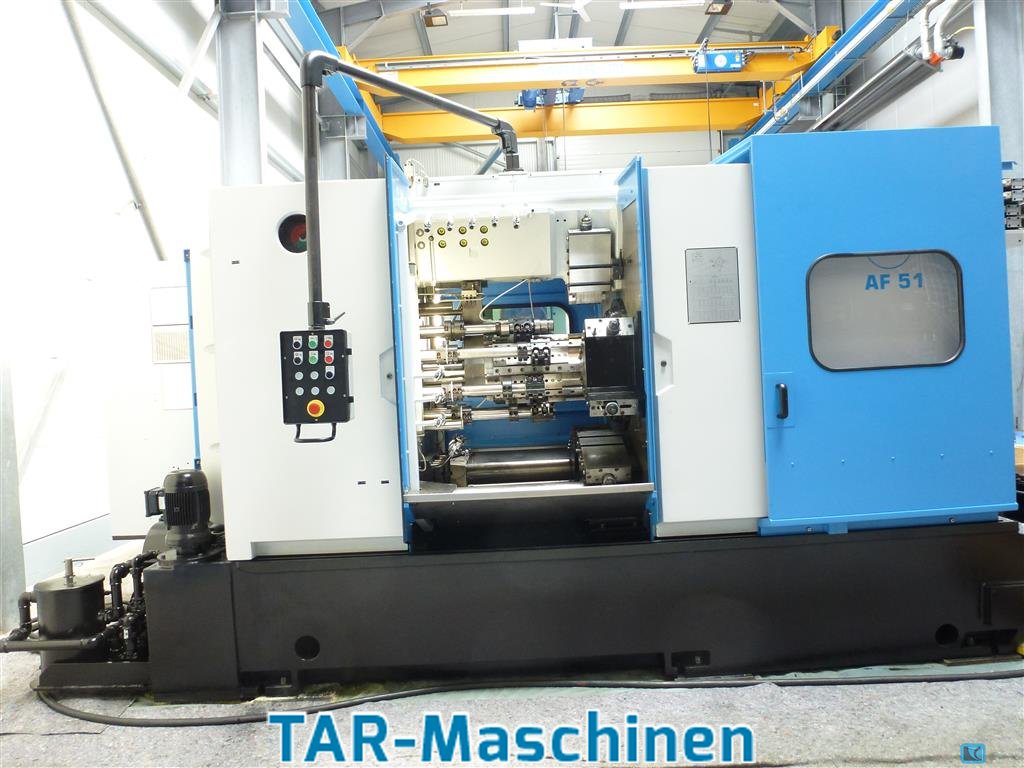

number of spindles:8 spindle passage:51 mmArticle: multi spindle automatic latheManufacturer: SchütteType: AF51Yob: 1987eight main spindlesmax. bar diameter D=51mmcontrol SIEMENS SIMATIC S5pick up in pos. 7, for rear machiningthread cutting driveindependent feed in positions 2/3electronical trip dog control ?Balluff?clear text display Wöhrlecoolant pumpmagnetic cartridge filteroil runningincl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type)Painting in light blue and light greyThe configuration of tooling will be different like pictures.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2016full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,3 x Y-axis,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot, manufacturer HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic latheManufacturer: TornosType: MultiSwiss 8x26Yob: 2019full cross slide configuration,counter spindle,part-pre-drawing device,2 x driven tools,1 rigid backworking,1 x driven backworking,2x 80 bar high pressure pumpsoptional: setting robot make HandlingTech.The scope of delivery regarding the tooling equipment could be different like pictures.Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

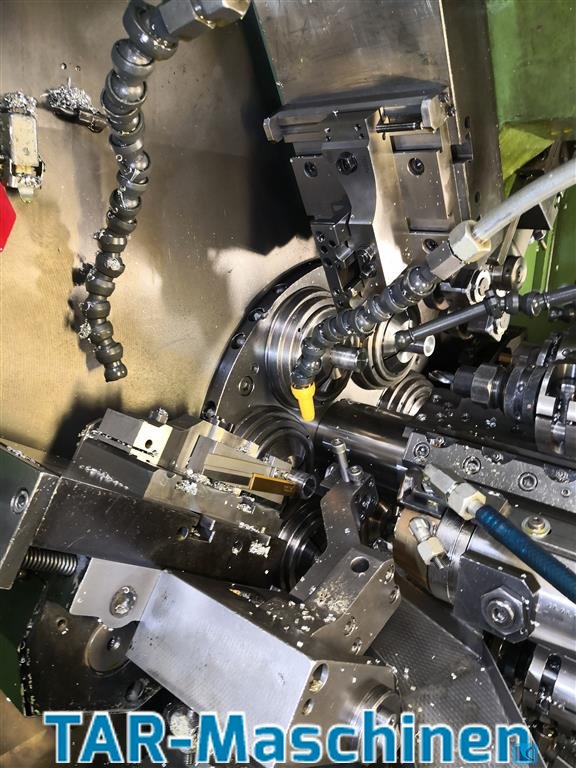

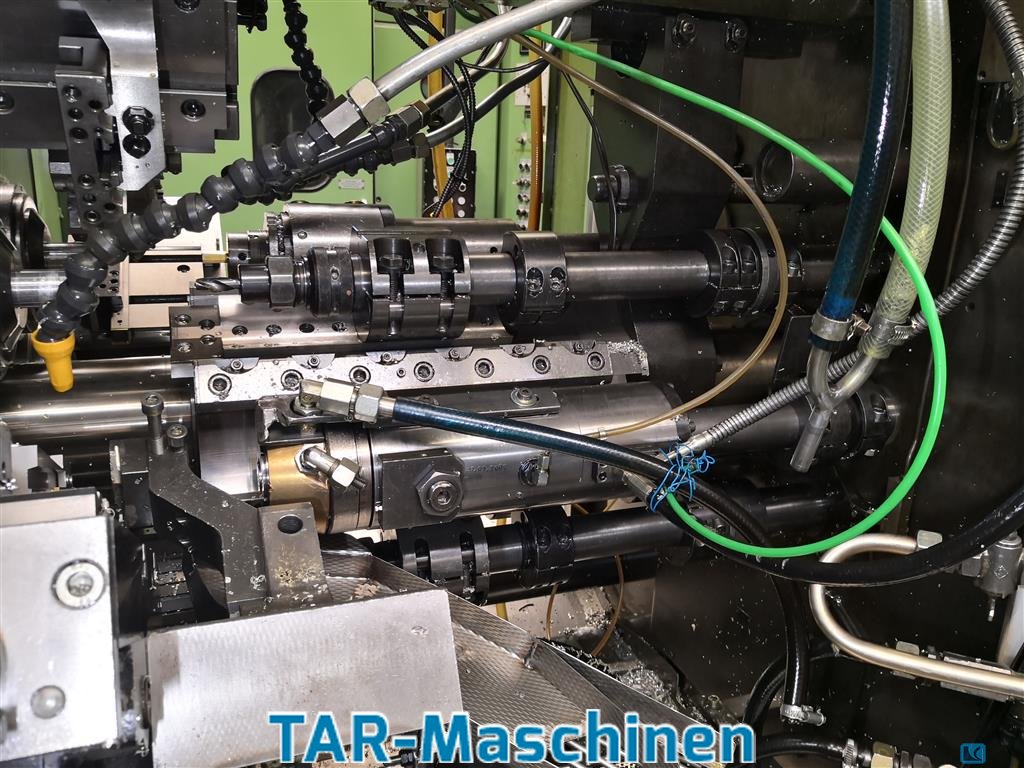

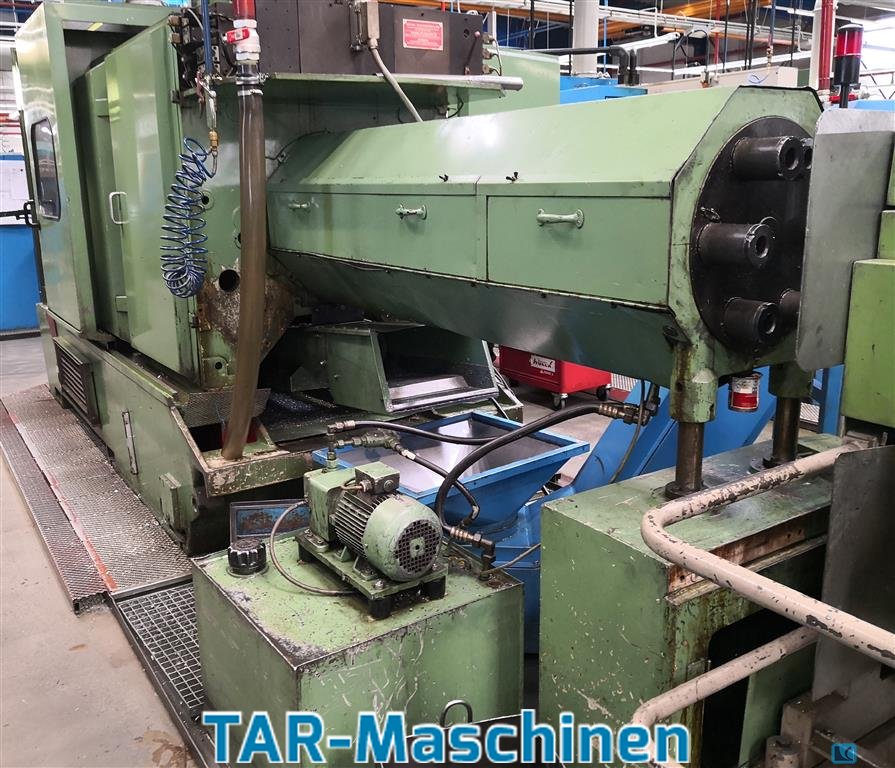

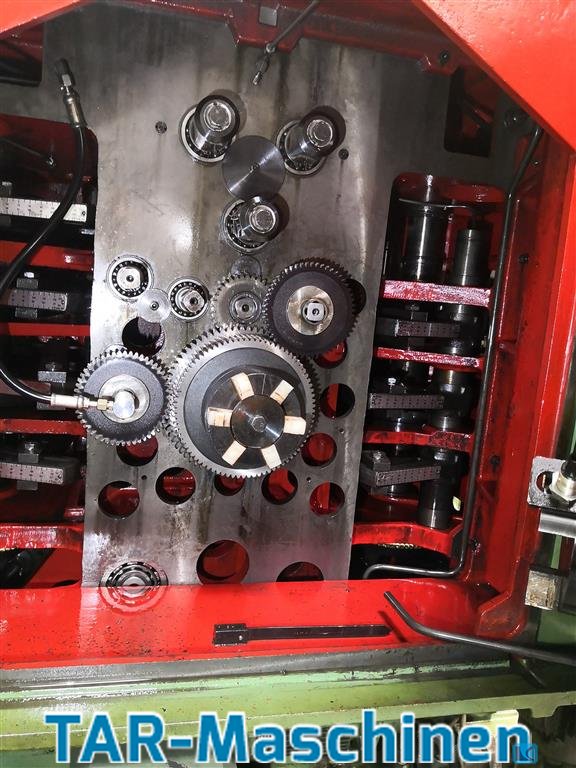

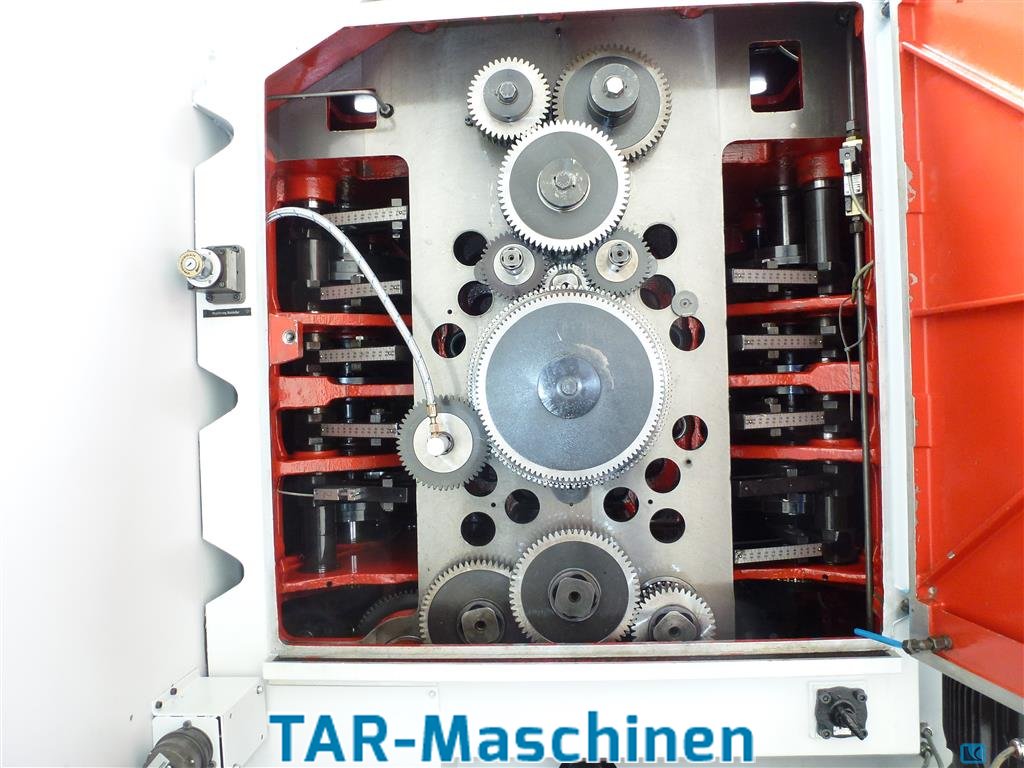

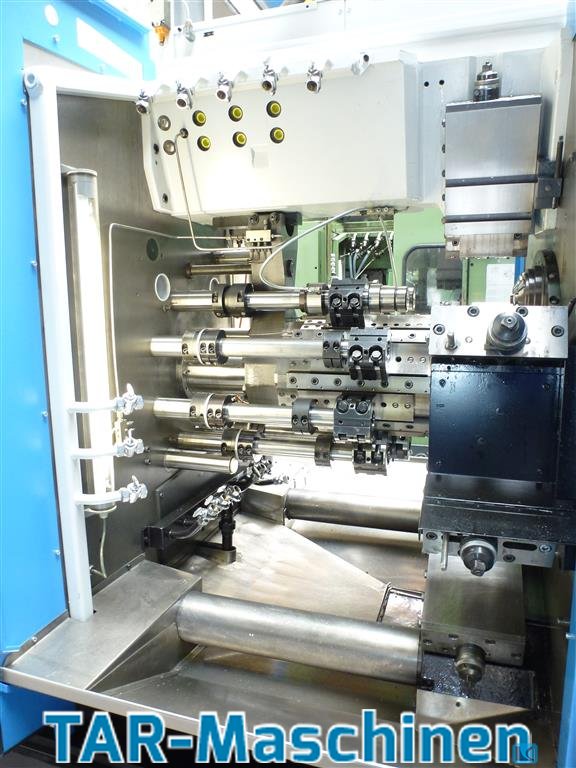

number of spindles:6 spindle passage:51 mmSchutte SF51 DNT, yob. 1987, our ID #61868Article: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF51 DNTYob: 1987Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter D=51mmelectronic cam control Balluffgripper in position 6 for backworking, sorting chuteindependent longitudinal feed layer 5screw chip conveyorTapping couplingsInterface for: Bar feeder IEMCA PRABar feeder IEMCA PRA40/33/FScope of delivery without the blue chip conveyorThe tooling will differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

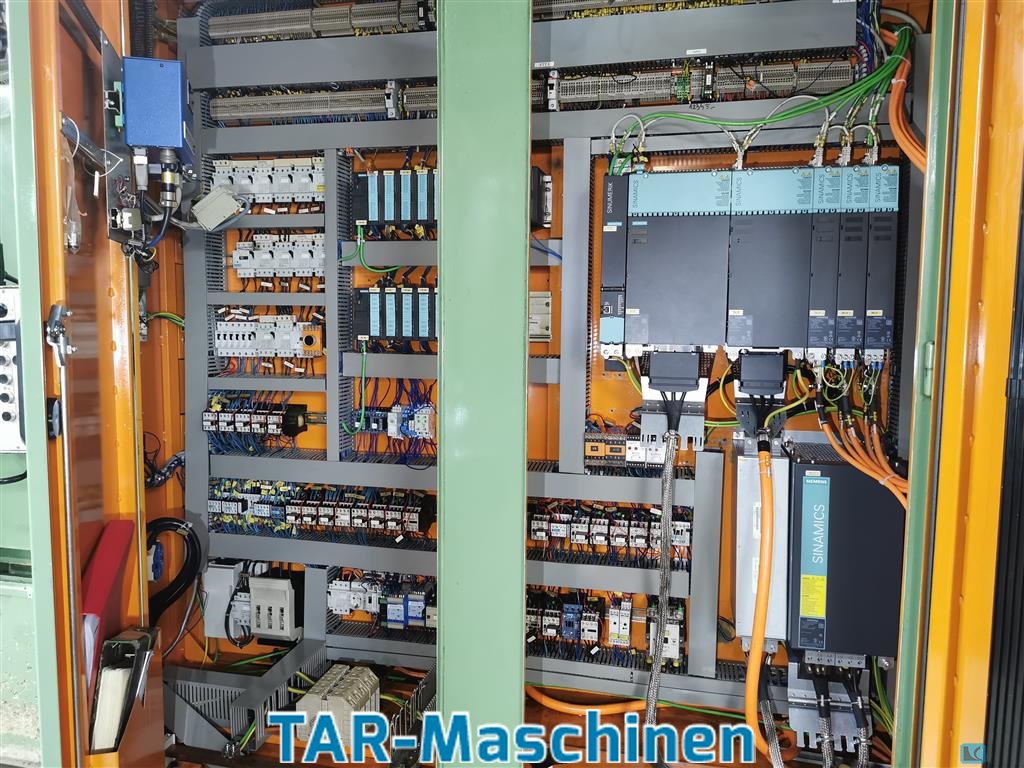

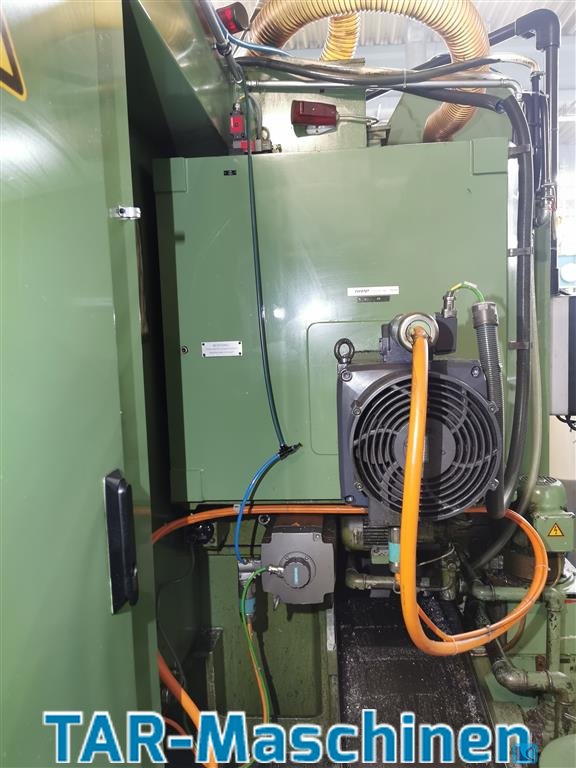

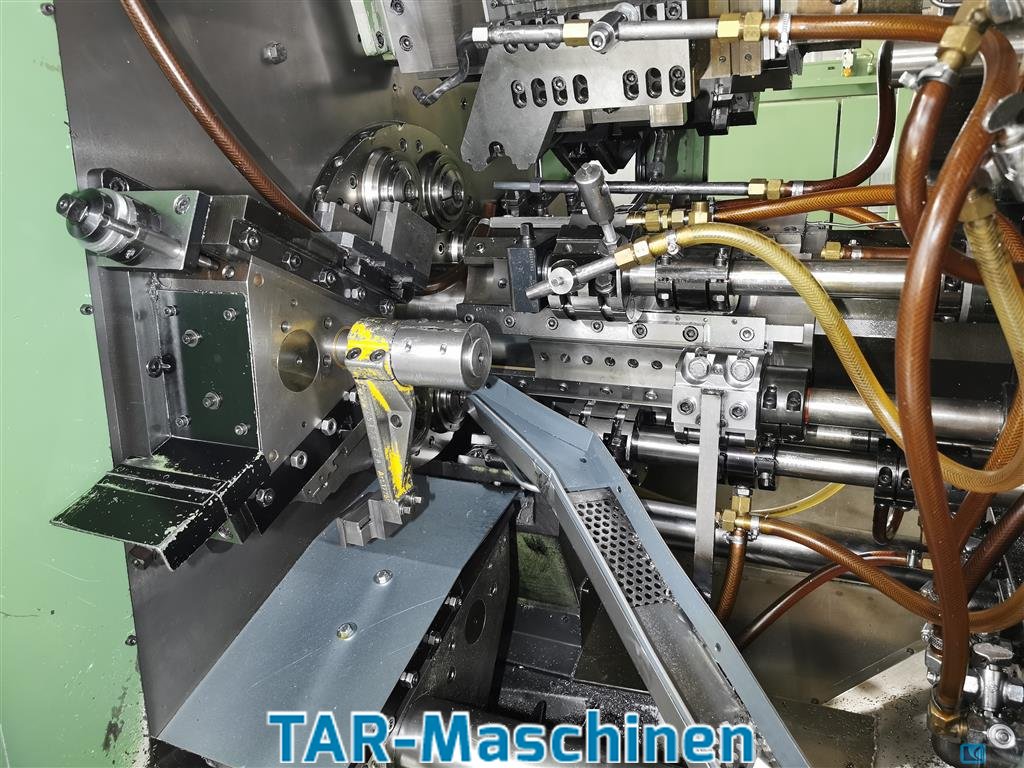

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.

turning diameter:38 mmArticle: CNC Long-turn automatic latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
