104 INDEX used machine for sale

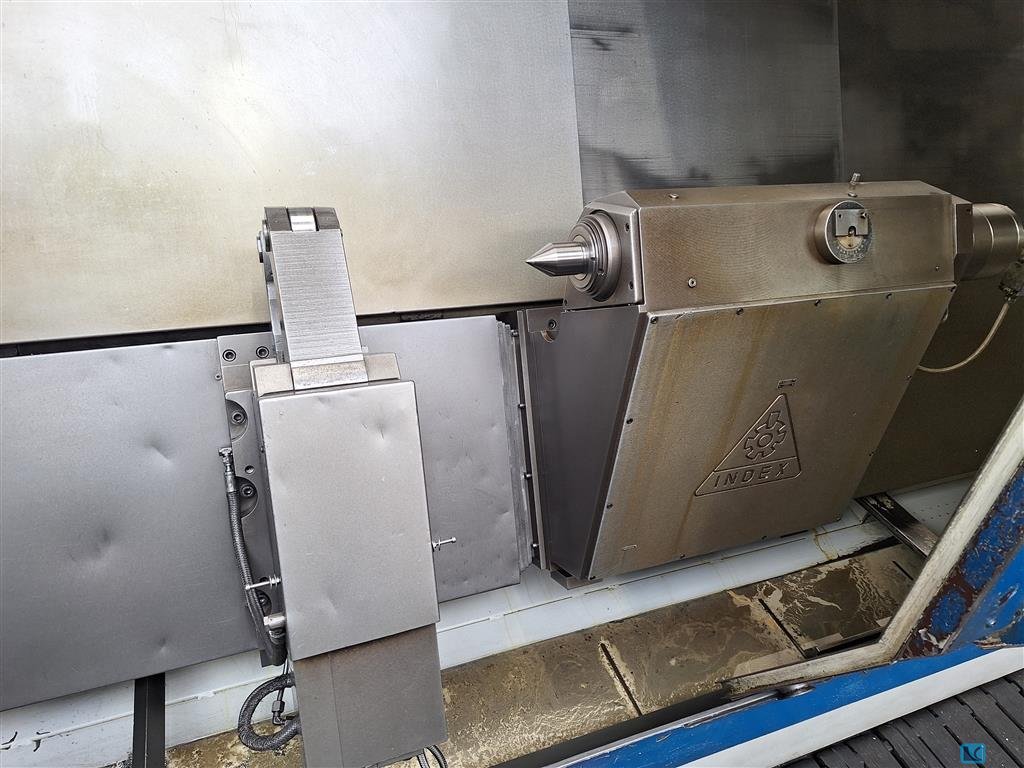

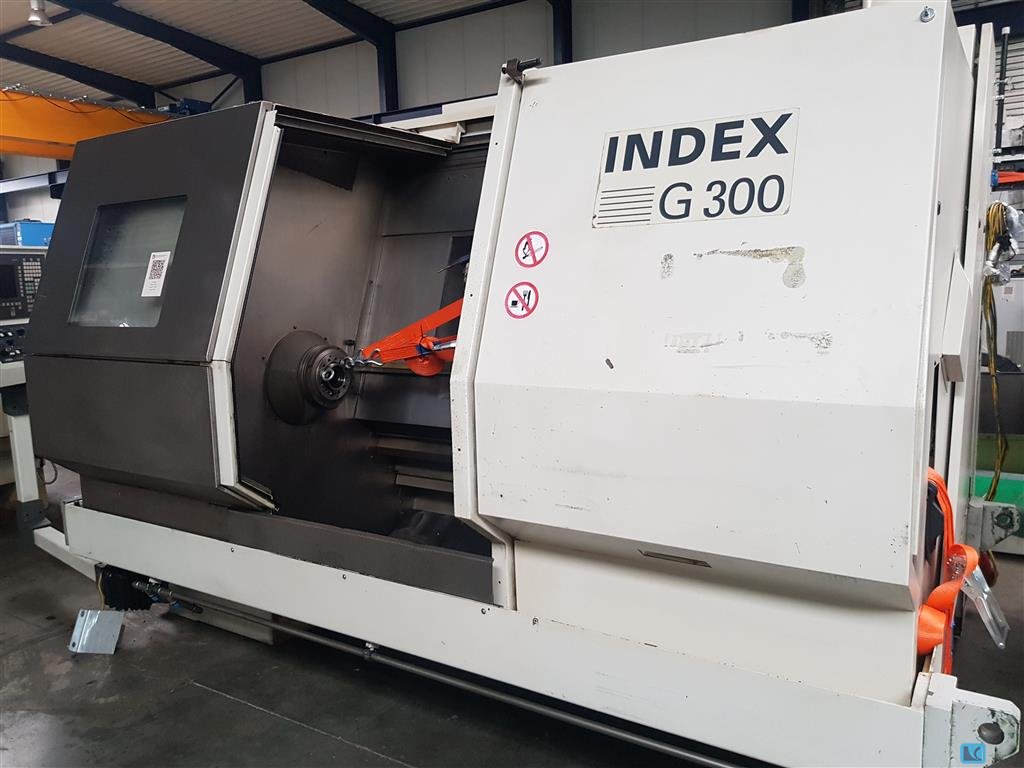

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

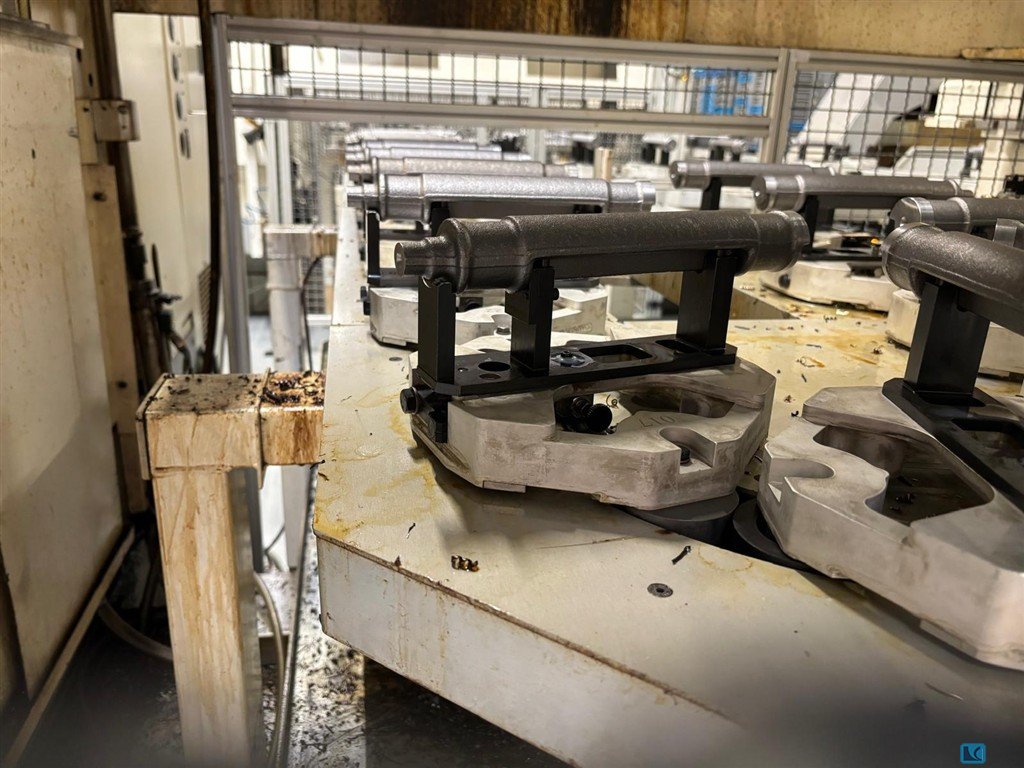

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

Out of valve production

weight of the machine ca.:2,5 t spindle passage:65 mm

turning length:400 mm total power requirement:45 kW weight of the machine ca.:4 t dimensions of the machine ca.:3,58 x 1,91 x 2,05 m spindle passage:45 mm

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter: 110 mm turning length: 450 mm control: Siemens total power requirement: kW weight of the machine ca.: 9000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 160 mm turning length: 550 mm control: Siemens total power requirement: kW weight of the machine ca.: 9000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: max. 450 mm chucking diameter: 400 mm control: Siemens 840D (Index) Main spindle:: Max. rpm: 4.200 min/-1 power capacity - main spindel: ( 35,5 / 56 ) kW max. Torque: ( 340 / 550 ) Nm C-Axis: 0,001 ° turret:: number of toolpositions: 2x 12 pos driven statition: 2x 12 pos worktool system: VDI 30 max. spindle speed driven tools: 6.000 U/min. power capacity - driven tools: 9,5 kW max. Torque: 40%: 19 Nm Y - Axis: +/- 90 mm B-Axis: +270° / -90 ° axis stroke:: x-axis: 730 mm z-axis: 340 mm y-axis: +/- 90 mm b-axis: +270° / -90 ° feeds:: rapid traverse: X: 40 / Z: 30 m/min pallet changer:: numbers of pallets: 24 pos. size of pallet: 410 x 300 mm max. workpiecediameter: 300 mm max. workpiece weight: incl. Pallet: 25 kg Chain width: 75 mm band speed: 7,5 m/min total power requirement: 56 kW weight of the machine ca.: 9,0 t dimensions of the machine ca.: 8,5 x 6,0 x 2,7  ...

Manufacturer: Index Model:G 200 RATIO LINE Year of Manufacture: 2006 Machine type: CNC Lathe Operating Hours: approximately 115,000 h TECHNICAL DATA Control: Siemens 840D (NCU 573.5, NC memory expansion to 3 MB) C-axis on main and counter spindle Thread cutting without compensation chuck Electronic shaft Additional V24 RS232 in control cabinet Transmit/Tracyl function MDE interface (machine on, machine running, piece counter) Marposs (Brankamp) collision monitoring CMS100 3D machine model for kinematic simulation in CAM programming system Control cabinet cooling unit (2 pieces) Main Spindle D65 Collet holder for pull tension HAINBUCH Counter Spindle D60 Collet holder for pull tension HAINBUCH Stop device Coolant flushing of counter spindle (shut-off valve electric) Foot switch Turret (12 stations) bottom and top Driven tools turret 1 and 2 Control function "live  ...

Manufacturer: Index Model:G 200 RATIO LINE Year of Manufacture: 2003 Machine type: CNC Lathe Operating Hours: approximately 92,000 h TECHNICAL DATA Control: Siemens 840D C-axis on main and counter spindle Thread cutting without compensation chuck Electronic shaft Additional V24 RS232 in control cabinet Transmit/Tracyl function MDE interface (machine on, machine running, piece counter) Marposs (Brankamp) collision monitoring CMS100 3D machine model for kinematic simulation in CAM programming system Control cabinet cooling unit Main Spindle D65 Collet holder for pull tension HAINBUCH Power chuck D210 with quick jaw change Manufacturer Schunk Counter Spindle D60 Collet holder for pull tension HAINBUCH Power chuck D210 with quick jaw change Manufacturer Schunk Stop device Coolant flushing of counter spindle (shut-off valve electric) Foot switch Turret (12 stations) b ...

Manufacturer: INDEX Model: MS42C Year of Manufacture: 1998 ( Machine 1 ) 2002 (machine2 ) Machine 1 : Power supply: 3-phase / 50 Hz Rated voltage: 400 V Control voltage: 24 V Rated current: 125 A Rated power: 69 kW Electrical cabinet weight: 1500 kg Machine weight: 11000 kg Machine 2 : Power supply: 3-phase / 50 Hz Rated voltage: 400 V Control voltage: 24 V Rated current: 100 A Rated power: 72 kW Electrical cabinet weight: 1500 kg Machine weight: 11000 kg Working area Maximum bar diameter (bar feed, external): 42 mm Bar feed positions: spindle positions no. 1, 3, 4, 6 Spindle circle diameter: 320 mm Main spindle (turning spindle) Clamping system: Power clamping with INDEX spring-loaded hollow clamping cylinder and draw tube Maximum clamping stroke: 4 mm Clamping force: 26 kN Drives Main spindle drive (per spindle): Motor type: Variable-speed hollow-shaft A ...

Manufacturer: INDEX Model: V200 Year of Manufacture: 2001 Type of Machine : Automatic lathe with workpiece loader from Schmid Electrical Specifications: Power Supply: 3 Phase Frequency: 50 Hz Rated Voltage: 400 V Control Voltage: 24 V Rated Current: 66 A Power Rating: Rated Power: 31 kW Weight: Control Cabinet Weight: 440 kg Machine Weight: 3,300 kg Find more here - / Contact us at -

swing diameter: 560 mm turning length: 800 mm control: C200-4D Siemens 840 D Main spindle:: spindle head: 8 DIN 55026/55021 ISO 7027/1 bar capacity: 90 mm spindle diameter in front bearing: 140 mm turning speed range - spindle: ~ 3.500 U/min drive capacity - spindle motor: 100% / 40%: 43 / 57 kW Torque: 275 / 363 Nm Indexing: 2,5 ° C-Axis: 0,001 ° turret:: Number of Turrets: 1 number of toolpositions: 12 pos. Spindle speed - driven tool stations: ~ 6.000 min -1 power capacity - driven tool-stations: 11 kW tool taper: 40 x 63 mm DIN 69880 Torque: 21,5 Nm travel -x axis: 300 mm travel -z axis: 800 mm rapid traverse: X/Z: 30 / 22,5 m/min feed power: X: 7.200 N feed power: Z: 9.000 N Tailstock:: dia. of quill: 65 mm Cone: SK 30 longitudinal travel: 800 mm rapid traverse: 10 m/min total power requirement: 51 kVA weight of the machine ca.: ca. 14 t dimensions of the machine ca.: 7,3 x 4,0 ...

Manufacturer: Index Model: G 400 Find more here - / Contact us at -

Manufacturer: Index Model:MS 25 M Year of Manufacture: 1990 Type of Machine : Lathe, 6 Spindles - Main spindle: 25 mm - Drive: Mechanical - Features & Equipment: - Bar loader (IEMCA) - Pallet changer - Chip conveyor - Driven tools - Additional accessories included Condition: Used, in good working order. Find more here - / Contact us at -

7 pcs Index VD30 mounts with capto interface, 3 pcs driven by it, mint condition!

Curve lathe INDEX B60 - not complete - as spare part dispenser - see pictures

see picture

Curve lathe INDEX ER60 - see pictures More: turnover machine MANURHIN Traminer TR22B

see pictures

various INDEX tool holders according to the list

INDEX GSC 65 CNC Lathe YOM 1997, installed 1998 Turning diameter in chuck 250 mm Swing Ø above bed, max. 300 mm Turning length 400 mm Control: Index C 200-8 (Sinumerik 880) Axes X/Z/C Travel of Slides: Turret 1- X / Z travel 163 / 550 mm Turret 2- X / Z travel140 / 250 Spindle bore, approx. 65 mm Tool holder bore 30 mm Spindle speeds 25 - 5000 rpm Feed range 0 - 15000 rpm Spindle drive 0.5 - 40 kW Total electrical load 60 kW - 380 V - 50 Hz Weight, approx. 8,500 kg Accessories & Spare parts -SIEMENS CNC Continuous Path Control, Model 880 (INDEX C 200-8). Changed monitor. -Hydraulic high-power chuck ROHM HS 200/3 -Tailstock -Turrets: 3 -Rotation tools in Turret 1- 2, in Turret 2- 3. -Milling spindle- tool in Turret 2 -Tool stations: 8 / 12 / 8 + 28 tools in magazine -Coolant device with chip conveyor. -A lot of spares and accessories

This Index G200C horizontal turning machine was manufactured in 2001. Ideal for precision turning operations, it offers robust performance and reliability. Consider the opportunity to buy this Index G200C horizontal turning machine. Contact us for more information.

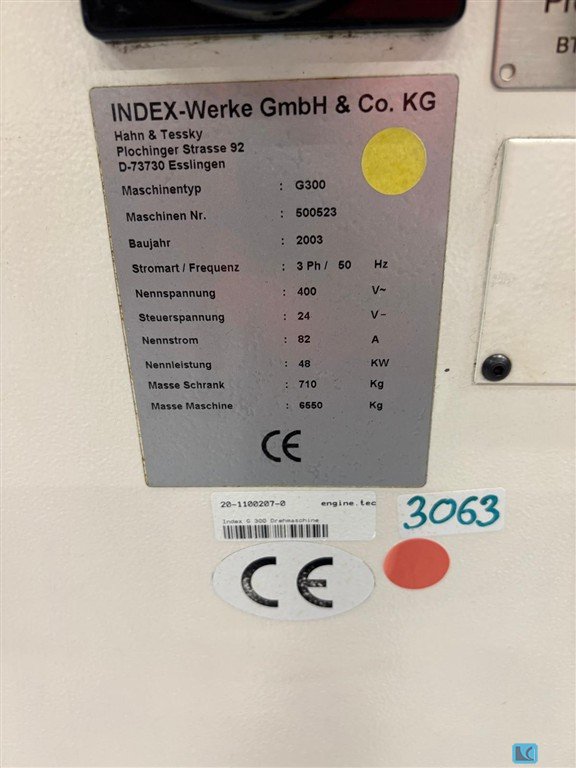

Inv. Num. : 7802 Type: G300 Producer: INDEX Created: 2003 Parameters: Control system: Siemens Maximum turning length: 710 mm Maximum turning diameter: 270 mm Number of axles: 9 pieces
