71 KEYENCE used machine for sale

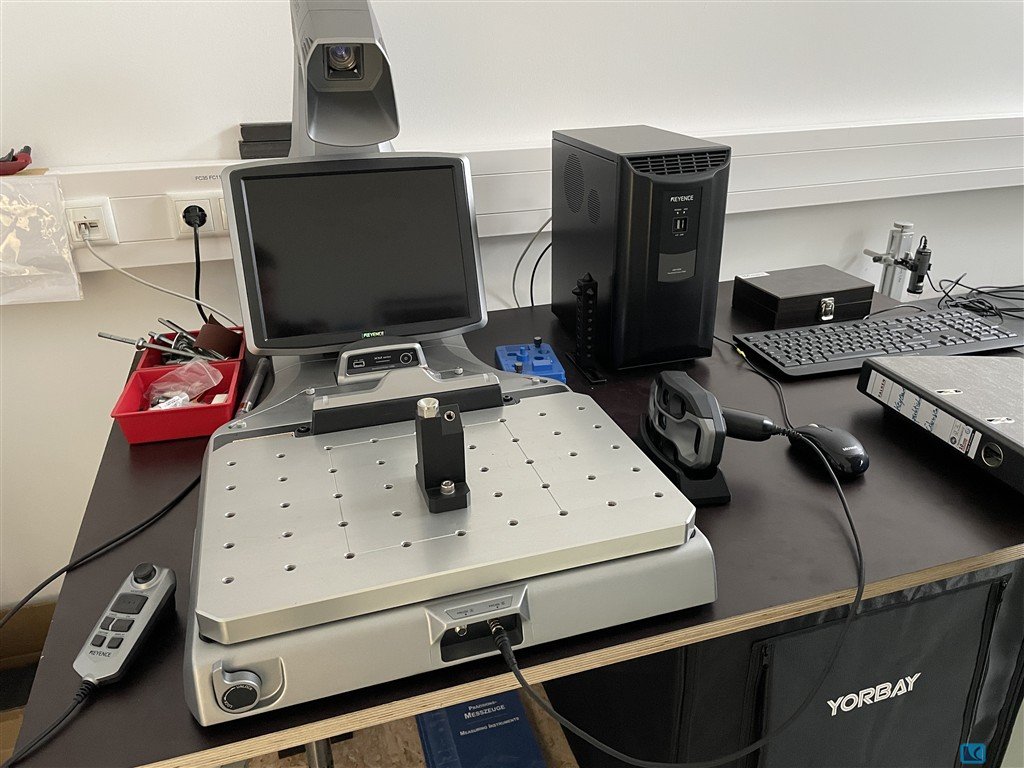

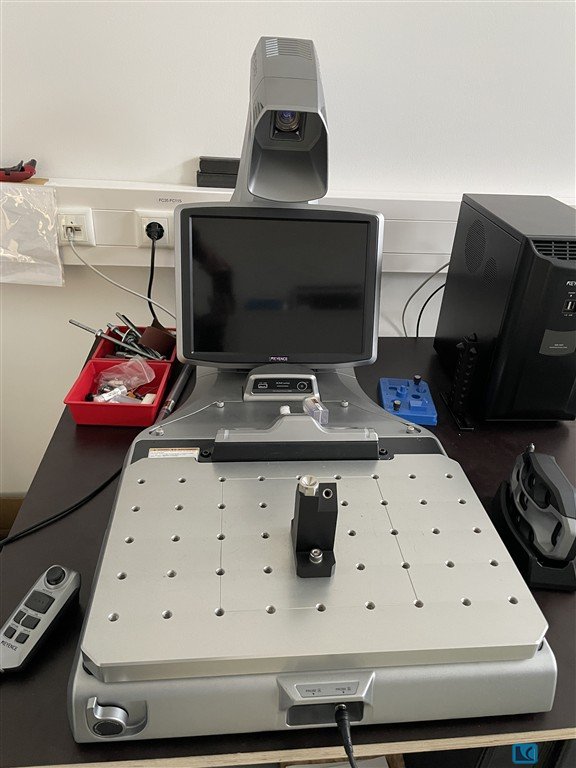

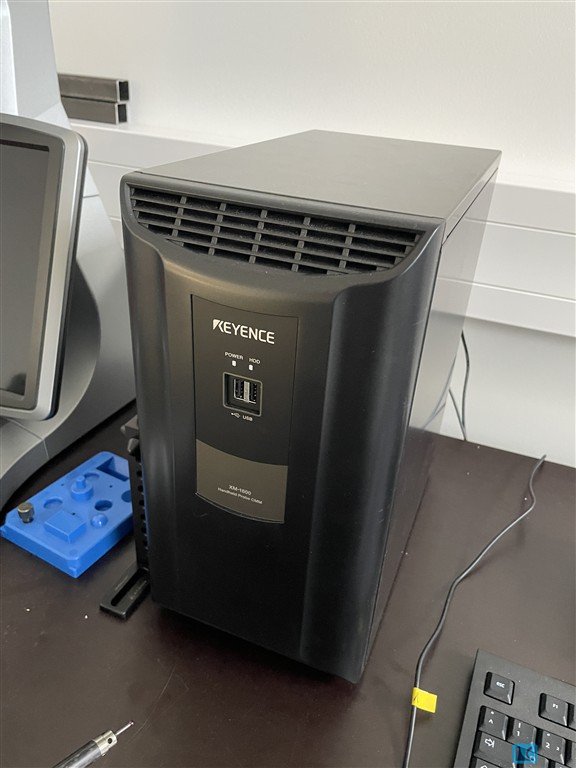

Keyence Digital Measuring Projector ? Model XM-1600 General: Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds. Measuring Head / Control Unit: ·Sensor: Monochrome CMOS 1 inch, 20 megapixels ·Display: 12.1 inch LCD monitor (WXGA 1280 x 800) ·Lens: Double telecentric lens Measuring Field and Measuring Range: ·Standard measuring field: approx. 100 mm diameter ·Precision mode measuring field: approx. 25 x 25 mm Measurement Accuracy and Repeatability: ·Display resolution: 0.1 micrometer ·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer ·Precision mode (without stage movement): approx. plus minus 0.5 micrometer Stage / Travel Axes: ·XY measuring stage: motorized ·Z axis ...

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: KEYENCE Model: VL 7701 Type: Optical 3D measuring machine Year of Manufacture: 2025 Find more here - / Contact us at -

Manufacturer: Keyence Model: Agilista 3200W Input Voltage: 100-240V AC, 50/60Hz Power Consumption: 750 VA Certification: CE Find more here - / Contact us at -

The following components make up the full WM-3000 series kit:PositionModel/ArticleDescriptionOrigin1WM-3000Coordinate Measuring System (Main Head) Japan 2WM-S1Camera Stand (Kamerastativ) —3—Laptop with Measuring Software —4WM-8C1Battery Charger (Akkuladegerät) China 5WM-B1Battery (Messstab Akku) China 6—Training Fee for WM series —7WM-V30DService Package —8OP-88032Mouse, German User Manual, and WM accessories Find more here - / Contact us at -

Manufacturer: Keyence Model: IM-8000 Type: Image Dimension Measurement System Software Version: B-13.0.0.28-11.07-20.07.09.01 / A2.05-A1.27-A3.03-9B.06-9B.06-02.01-03.02 Sensor: 20-megapixel CMOS Stage Size: 300 x 200 mm Measurement Capacity: Up to 300 features in a single measurement cycle Condition: Used, fully functional Find more here - / Contact us at -

Manufacturer: Keyence Model: IM 8020 Year of Manufacture: 2023 Find more here - / Contact us at -

Manufacturer:Keyence Model: IM6025 Year of Manufacture: 2016 Find more here - / Contact us at -

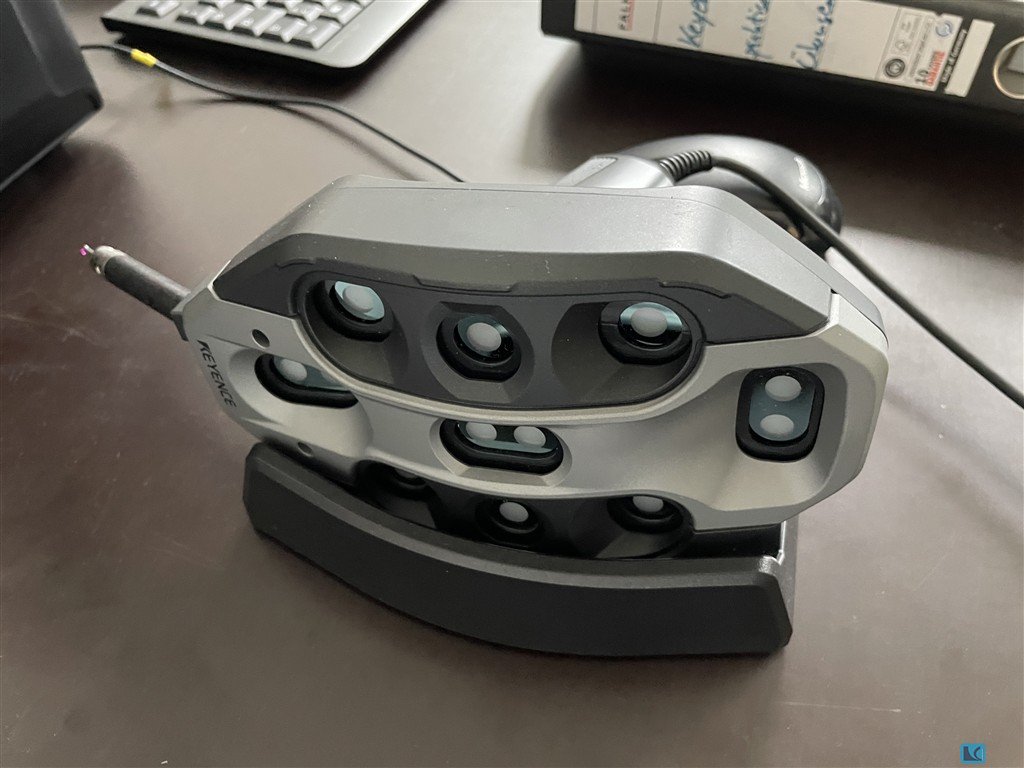

Manufacturer: Keyence Model: WM 3000 Year of Manufacture: 2020 Type of Machine : 3D coordinate measuring system The device has already been upgraded to Windows 11 Measurement Specifications - Maximum Measuring Range (W x D x H) 10000 x 3500 x 5000 mm - Guaranteed Accuracy Range (W x D x H) 3000 x 1500 x 1500 mm - Measuring Accuracy +/- (28 + 5L/1000) micrometers - Repeatability +/- 10 micrometers Minimum Display Resolution - Distance Resolution 0.001 mm - Angle Resolution 0.001 degrees Camera Unit Rotation - Theta Rotation (Pan) +/- 90 degrees - Tilt Rotation +/- 30 degrees Connectivity - External Input Voltage-free input, 2 inputs - Bluetooth Bluetooth 5 - USB USB 3.0 - Infrared Communication 945 nm Power Supply - Power Supply Type Supplied via dedicated power supply unit - Rated Voltage DC 24 V - Power Consumption 1.7 A Environmental Conditions - Operating Temperature + ...

The operating times are specified with 1387 h. However, this is the time that the printer was connected to the network. The pure printing time is 40 h The printer was serviced regularly until last year in March 2022. Technical data Model AGILISTA-3200W Printing material AR-M2 (transparent printing material), AR-H1 (heat-resistant printing material), AR-G1L (silicone rubber [low hardness]), AR-G1H (silicone rubber [high hardness]) Support material AR-S1 (water soluble support material) Installation space 297 × 210 × 200 mm (A4 size × 200 mm) Resolution 635 × 400 dpi Layer thickness High resolution AR-M2: 15 µm Normal resolution AR-M2: 20µm AR-H1: 20µm AR-G1L/H: 30µm Power supply Supply voltage 100 to 240 VAC, 50/60 Hz Power consumption Max. 750 VA Interface Ethernet 10BASE-T / 100BASE-TX Operation Interactive color touch panel Software Name Mode ...

This KEYENCE IM-7030T was manufactured in 2018. It features a digital measuring projector with a 300x200 mm measuring field, light probe, and height probe. Accessories include a control unit, AC power cable, mouse, keyboard, and a user manual in German. Consider the opportunity to buy this KEYENCE IM-7030T optical measurement machine. Contact us for more information.

Inv. Num. : 8001 Type: IM6120 Producer: KEYENCE Created: 2014 Parameters: Axis X: 100 mm Axis Z: 30 mm Measuring range: 200 x 100/125 x 25 mm Weight: 36 kg

Hello, For sale is a Keyence IM-8030T digital measurement projector including rotation axis. The measuring machine was purchased in August 2025 and has been used very rarely since then. The complete measuring unit is immediately ready for use and immediately available. Prior sale and errors excepted.

Year of manufacture 2012 A KEYENCE IM-6020 optical measuring machine is available for sale, in good working condition. The IM series is known for fast, high-precision and operator-independent measurements and is ideal for use in quality assurance, incoming goods inspection and production monitoring. Technical data (excerpt): Model: IM-6020 Year of manufacture: 09/2012 Measuring method: Optical / non-contact Measuring range (X/Y): approx. 200 × 200 mm Measuring range (Z): Height measurement via autofocus Measuring accuracy: up to approx. ±2 µm (depending on measurement conditions) Repeatability: very high, operator-independent Camera: high-resolution CCD camera Illumination: reflected light / transmitted light / contour illumination Measuring functions: Length, angle, radius and diameter measurement Contour and shape measurement Comparative measurement (OK/NOK) Automatic dimension reco ...

Year of manufacture: 09/2016 Main Features: Manufacturer: Keyence Model: IM-6025 Year: 09/2016 Measuring range: Approx. 300 × 200 mm (depending on configuration) Measuring principle: Optical 2D image processing with automatic contour detection Accuracy: High repeatability in the micron range Functions: Automatic part positioning Simultaneous multi-point measurement CAD data comparison possible SPC evaluation User-friendly interface USB and network interfaces Lighting system: LED transmitted and reflected light illumination Max. workpiece height: Up to approx. 75 mm Special features: Measurements within seconds without complex alignment Ideal for batch and random inspection Operator-independent measurement results Compact design Condition: Used, tested, and fully functional. Application area: Suitable for metal and plastic processing, stamped parts, turned parts, milled components, quali ...

Year of manufacture: 2019 The KEYENCE IM-7030 is a highly precise digital measuring projector with automatic image processing and integrated optical probe technology. The system has been specifically developed for fast and non-contact measurement of workpieces in manufacturing and quality control applications. Thanks to its fully automatic measurement process at the push of a button, the machine is especially suitable for serial inspections and repetitive measuring tasks. The machine combines easy operation with high measuring accuracy and enables rapid inspection of contours, diameters, distances, angles, and geometric features of a wide variety of workpieces. Due to its wide-field and high-precision modes, both larger components and extremely precise small parts can be measured reliably. Manufacturer: Keyence International NV/SA Type: IM-7030 Machine type: Digital measuring projector w ...

Year of manufacture: 09/2016 Main Features: Manufacturer: Keyence Model: IM-6025 Year: 09/2016 Measuring range: Approx. 300 × 200 mm (depending on configuration) Measuring principle: Optical 2D image processing with automatic contour detection Accuracy: High repeatability in the micron range Functions: Automatic part positioning Simultaneous multi-point measurement CAD data comparison possible SPC evaluation User-friendly interface USB and network interfaces Lighting system: LED transmitted and reflected light illumination Max. workpiece height: Up to approx. 75 mm Special features: Measurements within seconds without complex alignment Ideal for batch and random inspection Operator-independent measurement results Compact design Condition: Used, tested, and fully functional. Application area: Suitable for metal and plastic processing, stamped parts, turned parts, milled components, quali ...

An optical CNC 3D coordinate measuring machine Keyence is available. Display resolution: 0.1µm, repeatability: 2µm, measurement accuracy: +/-10µm, low magnification: 300mm/200mm, high magnification: 70mm/50mm, max. load capacity: 20kg, weight: approx. 30kg. Documentation available. An on-site inspection is possible.

Optical measurement machine manufactured in 2018. This KEYENCE IM 7030 features a field of view dimension of 300 x 200 x 150 mm and offers advanced software capabilities including series measurement, statistics/analysis, and automatic measurement. If you are looking to get high-quality optical measurement capabilities, consider the KEYENCE IM 7030 machine we have for sale. Contact us for further details.

Digital Microscope Controller for VHX-7000 Series Console for VHX-7000 Camera Unit High Performance Camera VHX 7020 Tripod (motorized in XYZ 100mm) VH Zoom Lens 20x-200x Tripod adapter for VH-Z20 Polarization adapter for VH-Z20 3D Measurement Software for VHX-7000 Bracket for VHX-S770E/750E Viewing by telef. Arrangement possible used, bought as seen, without warranty Price = 53000.00 € + VAT Invoice due upon readiness for shipment or delivery

Measuring range: - Standard mode 200 × 200 mm - Precision mode 125 × 125 mm Measurement repeatability: up to 0.5 μm Photoelectric sensor measurement Lighting system: transmitted light and ring light Storage: 500 GB hard drive Interfaces: 1 × LAN, 4 × USB 3.1, 2 × USB 2.0 Power supply: 240 V

An inkjet-based industrial PolyJet/material jetting 3D printer Keyence for photopolymers is available. Build volume dimensions X/Y/Z: 297mm/210mm/200mm, resolution: 635dpi/400dpi, XY resolution: 63.5µm/40µm, layer thickness range: 15µm-30µm, machine dimensions X/Y/Z: approx. 950mm/700mm/1400mm, weight: approx. 200kg. Documentation available. An on-site inspection is possible.

Camera-based code readers, uEye camera, industrial camera, high-performance camera -Manufacturer: Keyence, Industrial camera, 16x speed, 5-megapixel camera (B/W) -Type: CA-H500MX -Dimensions: 115/70/H60 mm -Weight: 0.4 kg

Proximity switch, proximity sensor, proximity sensor -Manufacturer: Keyence, proximity switch proximity sensor unused original packaging -Type: EM-030P -Number: 2x encoder available -Price per piece -Dimensions packaging: 110/105/H25 mm -Weight: 0.1 kg/pcs

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Outputs: 2 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Output: 1 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg

Fiber optic amplifier, fiber optic sensor -Manufacturer: Keyennce -Type: FS-V31CP -Weight: 0.2 kg

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Output: 1 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg

Measuring amplifier, power supply module, point-type measuring amplifier, ionizer, static eliminator, static eliminator -Manufacturer: Keyence, Static Eliminator Stabilizer -Type: SJ-M300 -Dimensions: 130/70/H35 mm -Weight: 0.1 kg

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Output: 1 -Expansion unit: PNP -Weight: 0.2 kg
