boring mills and machining centers used for sale (3,233)

Machine No.: 306916 Type: U1 Combi Volts: 380 V Power: 3 phase / 50 Hz / 1.5 kW Revolutions: 1415 rpm. Country of origin: Sweden Weight: 760 kg

Machine No.: 311615 Type: U1 Volt: 380V Power: 3 phase / 50 Hz / 1.5 kW Revolutions: 1415 rpm. Country of origin: Sweden Weight: 310 kg

Machine No.: 405823 Drilling capacity: D25 mm Projection: 255 mm Drilling depth: 135 mm Tool holder: MK3 Engine power: 0.65 / 0.9 kW Speeds: 8 / 105 – 2900 rpm Table: 500x400 mm Weight: 180 kg

S. No.: 238828

Specifications Model: 25 lpv Tool holder: MK3 Pinole stroke: 110mm Projection: 400mm Drive: 3 phase motor with 2 motor stages and V-belt drive Speeds 14 / 35 – 65 – 70 – 125 – 130 – 200 – 250 – 335 – 400 – 570 - 670 – 1140 – 990 – 1980 rpm Table dimensions: LxW 330x330mm Machine dimensions: LxWxH 410x700x1830mm On the machine, we installed a new motor and renewed the entire electrical system with the step and motor circuit breaker as well as the cables.

Iberdrill Gear Column Drill Series T, TL25 drilling capacity for steel (ST 60) at continuous power S1: D25mm drilling capacity for grey cast iron (GG 20) with continuous power S1: D30mm thread cutting capacity for steel (ST 60) with continuous power S1: M 18 thread cutting capacity for grey cast iron (GG 20) with continuous power S1: M 22 Tool holder in the spindle: MK 3 spindle stroke (drilling depth): 120 mm Motor power spindle: 0.82/1.2 kW Drive: 8-speed gearbox with pole-shiftable motor Speed adjustment: manual Speed range for 50 Hz motor, n=1,500/3,000 rpm, pole switchable 65 -125 -185 - 365 - 540 - 1,055 - 1,560 - 3,060 rpm Feed: 300 mm x 270 mm Column diameter: 100 mm Distance spindle center / column (projection) 250 mm Machine weight (net) 250kg Gross weight 310kg Dimensions transport packaging (LxWxH) 2.14m x 0.6m x 0.8m Gearbox ...

For sale used angle head, angle milling head ŠKODA

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

Technical data: working surface: 2500 x 3000 mm Table load: 30 to. The mounting pad height: 240 mm Number of T-slots: 10 Rotation speed: 0.008 ? 0.45/rpm Power: 7,5 kW

Tischaufspannflaeche Max Tischbelastung 25 to . groove distance 180 mms table movement 1,000 mms table rotation B axis 360? Aufspannflaeche 1600 x 2,500 mms number of the grooves 9 table overtakes completely in 2012 anew SIEMENS impulses, new MOOR GROVE graduations

Technical data: 2009 overtaken Table load: 100 to. Table diameter: 3500 mm Table diameter with extension arms: 6000 mm Plan disc: 8 double T-slots Slot distance: 180 mm incl. 8 extension arms to increase the diameter of the washer to 6000 mm.

Technical data: Table load: 20 to. Table length: 2,000mm Table width: 2,000mm Table height: 930mm Table shift: 1,500mm Total power: 8.1 kW

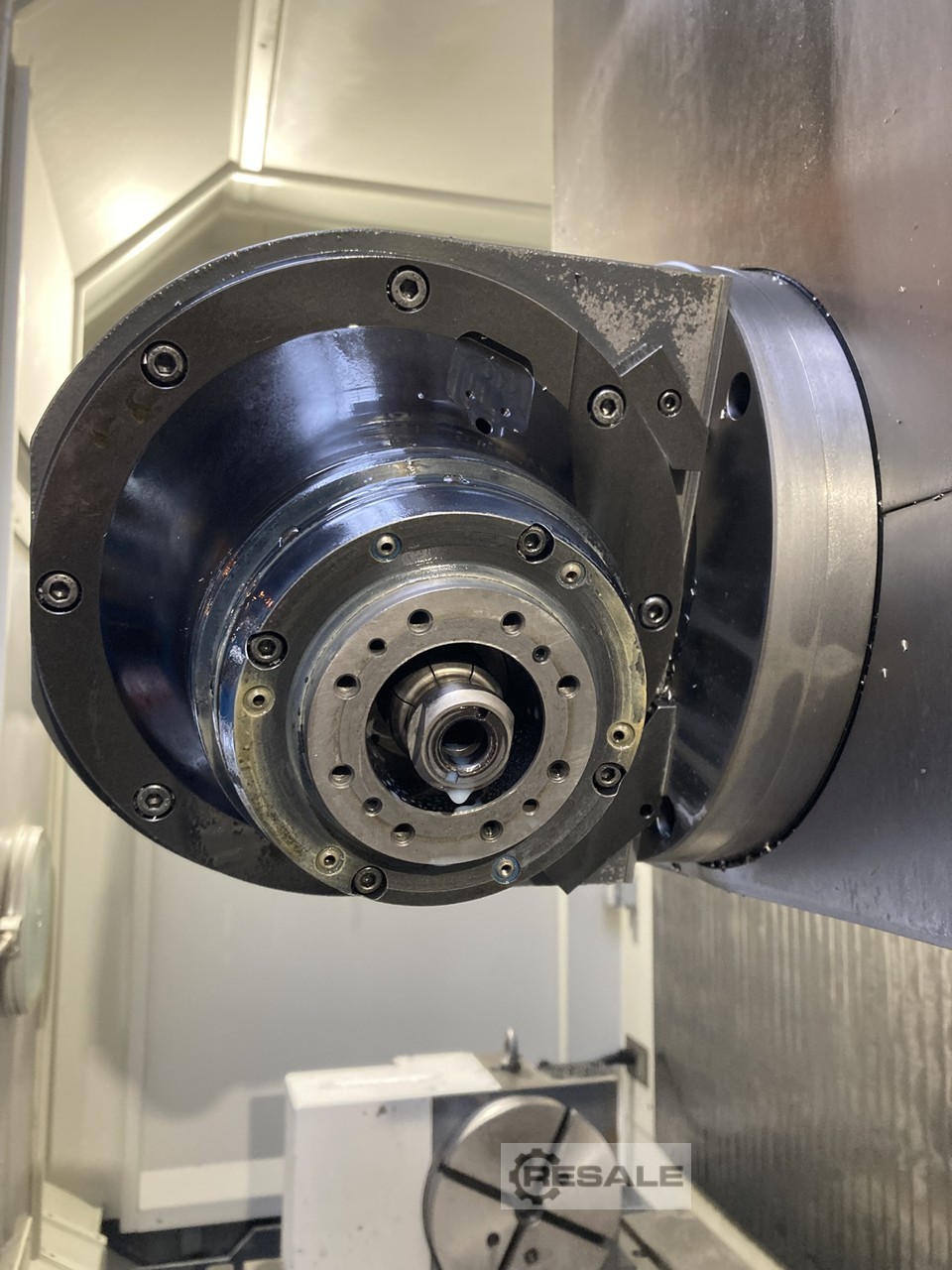

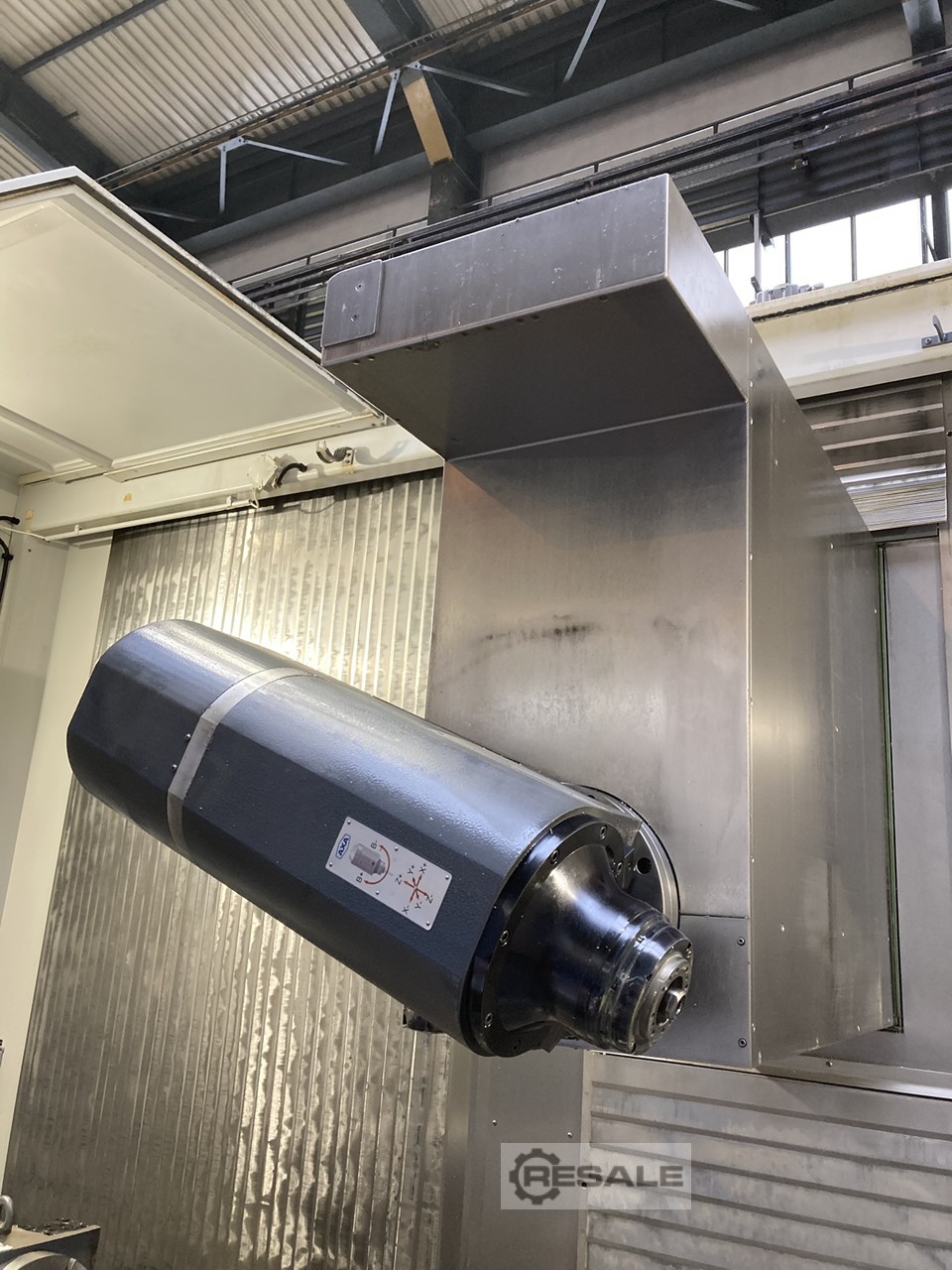

Inv. Num. : 9068 Type: VHC 3 XTS Producer: AXA Created: 2016 Parameters: Control system: HEIDENHAIN iTNC 530 Maximum vertical spindle speed: 10000 1/min X-axis travel: 3000 mm Y-axis travel: 900 mm Z-axis travel: 950 mm Cone: HSK – A 63 Number of all tools: 36 pieces Equipment: Chip conveyor NC rotary table AXA RTA 2-300 (diameter 300 mm) 3D Measuring Probe RMP60 Handwheel Hand Dishwashing Gun

Key data: 750 mm, 400 mm, 500 mm

Inv. Num. : 8792 Type: Mikron VCE 750 Producer: HAAS Created: 1997 Parameters: Control system: HAAS Work table length: 914 mm Work table width: 350 mm Maximum vertical spindle speed: 7500 1/min X-axis travel: 750 mm Y-axis travel: 400 mm Travel Z axis: 500 mm Cone: SK 40 Number of all tools: 20 pieces Equipment: 4. Axis 2023: Replacement of the manual gearbox of the tool changer Replacement of the tool plate magazine

The machine is in good technical condition, testing is possible by prior arrangement.

Key data: 1000 mm, 1100 mm, 750 mm

Control Heidenhain ... TNC 530 Clamping table surface ... 1150x900mm Axis X ... 1000mm Axis Y ... 1100mm Axis Z ... 750mm Spindle speed ... 10-18000 rpm controlled axes ... 5 IKZ ... 80bar HSK-A 63 Max. workpiece weight ... 2000kg Magazine spaces ... 60 Machine weight ... 12500kg Total power requirement... 71kVA The machine is in good condition, possible to test under power.

Key data: 1000 mm, 600 mm, 660 mm

Control Heidenhain ... TNC 620 Clamping table surface ... 1300 x 600mm Axis X ... 1000mm Axis Y ... 600mm Axis Z ... 660mm Spindle speed ... 0-10000 rpm controlled axes ... 3 cooling ... 20bar, Grundfos ISO 40 Max. table load ... 700 kg L x W x H ... 3000 x 2700 x 2940mmmm Machine weight... 5500kg Magazine spaces ... 24 Handwheel Heidenhain HR510FS Workpiece Probe Heidenhain TS460 Rinsing gun 10bar The machine has undergone a complete overhaul. More info on request. The machine is ready for the viewings.

Control Fanuc Spindle diameter ... 100mm Axis X ... 1270mm Axis Y ... 910mm Spindle speed ... 0-2000 rpm. Axis W ... 730mm Axis Z ... 900mm ISO 50 Max. table load ... 3000kg Clamping table surface ... 1000x1120mm Machine weight ... 11500kg L x W x H ... 5000 x 3000 x 2800mm Main engine power... 18.5kW Total power requirement ... 31kVA More info on request. The machine is ready for the viewings.

Inv. Num. : 9047 Type: VF 0 Producer: HAAS Created: 2001 Parameters: Work table length: 660 mm Work table width: 356 mm Maximum table load (uniform): 1361 kg Maximum vertical spindle speed: 7500 1/min X-axis travel: 508 mm Y-axis travel: 406 mm Travel Z-axis: 508 mm Machine weight: 3630 kg

Key data: 1050 mm, 510 mm, 510 mm

Inv. Num. : 9045 Type: VCN-510C Producer: MAZAK Created: 2005 Parameters: Control system: MAZATROL 640M NEXUS Work table length: 1300 mm Work table width: 550 mm Maximum table load (uniform): 1200 kg Speed: 12000 1/min X-axis travel: 1050 mm Y-axis travel: 510 mm Travel Z-axis: 510 mm Machine weight: 7100 kg

Inv. Num. : 8008 Type: DMG DMU 50 eco Producer: Deckel Maho Gildemeister Created: 2010 Parameters: Control system: Siemens Sinumerick 810D Switch-on hours: 56933 h Operating hours: 25670 h Number of axles: 5 pieces Number of stacking positions: 16 Maximum spindle speed: 8000 1/min X-axis travel: 500 mm Y-axis travel: 450 mm Travel Z axis: 400 mm Equipment: ShopMill

Key data: 90 mm, 1250 mm, 900 mm

Inv. Num. : 9038 Type: W 9 Producer: TOS Generated: Parameters: Work table length: 950 mm Work table width: 950 mm X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 900 mm Spindle diameter: 90 mm Equipment: DRO (3 axes) Rear support column Clamping angle Tools

The machine is in good technical condition, testing is possible after prior agreement. The machine is mechanically worn (play in the table axes approx. 0.1 mm). The gearbox is currently not shifting (when trying to change gear, there is no signal about shifting).

Key data: 1016 mm, 610 mm, 710 mm

Control Heidenhain ... TNC 530 Clamping table surface ... 1300 x 600mm Axis X ... 1016mm Axis Y ... 610mm Axis Z ... 710mm Spindle speed ... 0-10000 rpm controlled axes ... 3 IKZ ISO 40 Magazine spaces ... 24 Machine weight ... 5500kg

Inv. Num. : 9019 Type: W 100 A Producer: TOS Generated: Parameters: Work table length: 1250 mm Work table width: 1250 mm X-axis travel: 1600 mm Y-axis travel: 1120 mm Travel travel Z-axis: 1250 mm

for spare parts. Machine is out of service. Processor card removed

The machine is in good technical condition, after prior agreement it is possible to test it. Spindle completely overhauled summer 2023 Ball screw replaced in Z axis in 2020. Feeds: X axis 850 mm Y axis 700 mm Z axis 750 mm Working feed 1-24000 Positioning accuracy +/- 0.005 Rapid feed – 48m/min all axes. Distance spindle face – front of table 150-900 mm Distance spindle axis – pallet surface 50-750 mm Pallet – 500 x 500 Spindle alfaP22/8000 Motor power (continuous/15') – 11/15/18.5 Spindle speed – 8000 rpm Base speed – 8000 rpm Tool clamping force – 1000 N Max. torque (15') 29.2 Nm Orientation built-in sensor Taper ISO 40, taper 7/24 Power transmission – synchronizing belt and pulley Cooling through the spindle – 70 kg/cm2, max flow 20 L/min, pump power 3.7 KW Magazine for 60 tools – chain – be careful, the catalogue incorrectly states 40.

The machine is in good technical condition, testing is possible by prior arrangement.

Key data: 5005 mm, 3586 mm, 1106 mm

year of production: 2007 automatic tool change Work spaces [mm]: 5000x2500 Groove distance [mm]: 200 Travel ranges [mm]: 5005x3586x1106 Work feed [m/min]: 35m/min Rapid feed [m/min]: 40 Spindle speed [rpm]: 35 - 6000 Spindle torque [kW]: 37kW Max. torque [Nm/rpm]: 670/525 Tool clamping: HSK-A 100 Tool magazine [pcs.]: 100ks Machine control system: iTNC 530 2x univerzální úhlová hlava 45° Direct outlet head Power supply

Key data: 32 mm

dia - 32 mm
