lathes used for sale (3,157)

F 160, F 315 etc. Inside and outside turning blocks

Technical data Manufacturer: GUILD MASTER Model: CTX 400 Machine Type: CNC Lathe Control: Gildemeister CNC / ElektroPilot Operating hours: approx. 18,462 h Max. turning diameter: 400 mm (Source: online) Max. turning length: 640 mm (Source: online) Circumferential diameter over bed: 500 mm (Source: online) Spindle bore: 72 mm (Source: online) Speed range: 25 - 5,000 rpm (Source: online) X-travel: 212 mm (Source: online) Z-travel: 640 mm (Source: online) Tool turret: 12-speed (Source: online) Tool holder: VDI 30 (Source: online) Machine weight: approx. 5.1 - 5.5 t (Source: online) Configuration 3-jaw chuck Berg KH200 12-speed tool turret Powered tools available Tool turret prepared for powered tool holders Chip conveyor available Coolant equipment available Closed work area cladding CNC controller with screen Note No original technical documentation available. The technical data was r ...

This SCHÜBEL MT 630 CNC was manufactured in 1999. It is a horizontal turning machine featuring a point width of 2,000 mm, a circulation diameter of 630 mm over the bed, and 290 mm over the cross slide. The speed range is 8 - 3,000 rpm with a drive power of 28 kW. Contact us for more information about this machine.

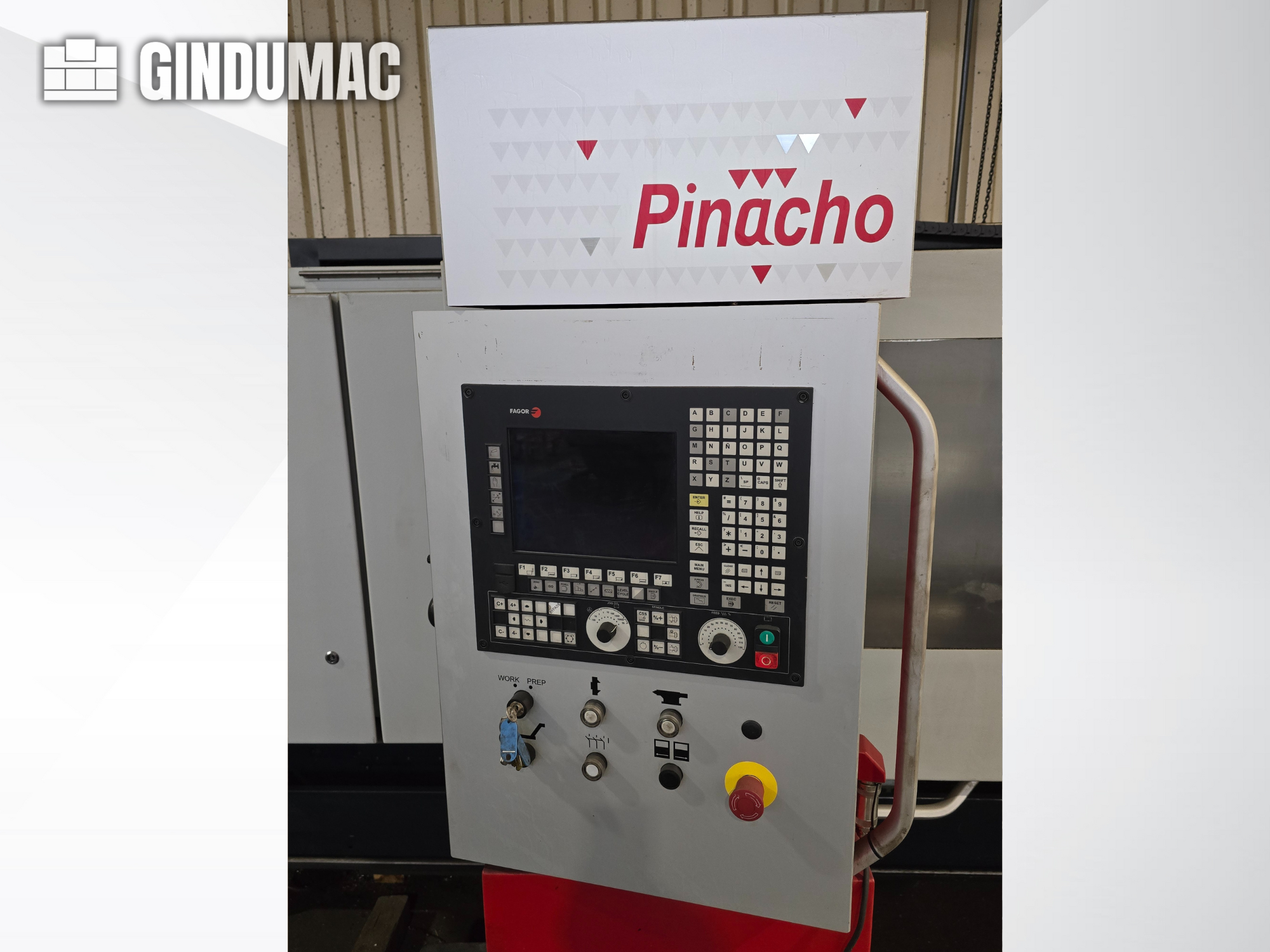

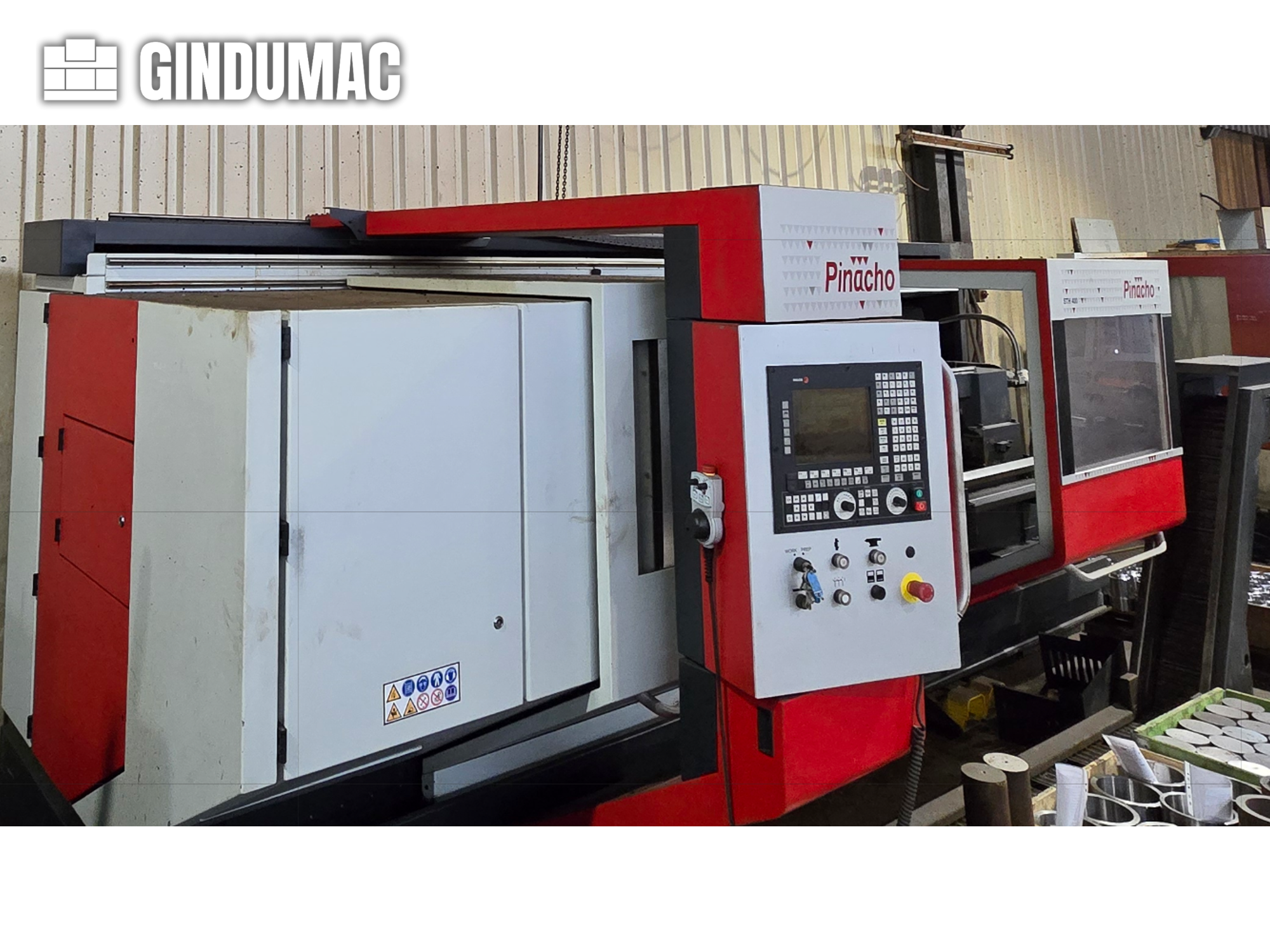

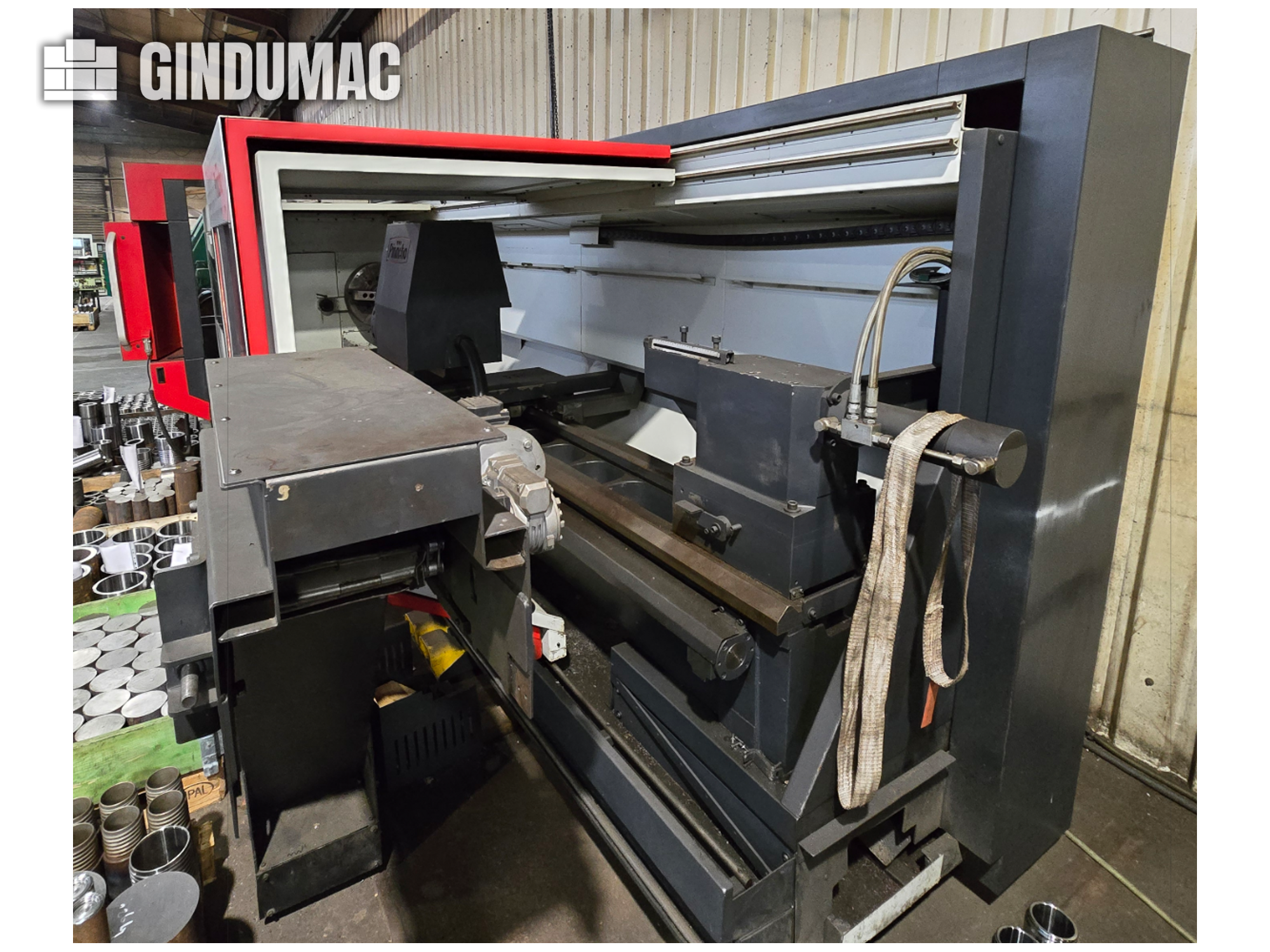

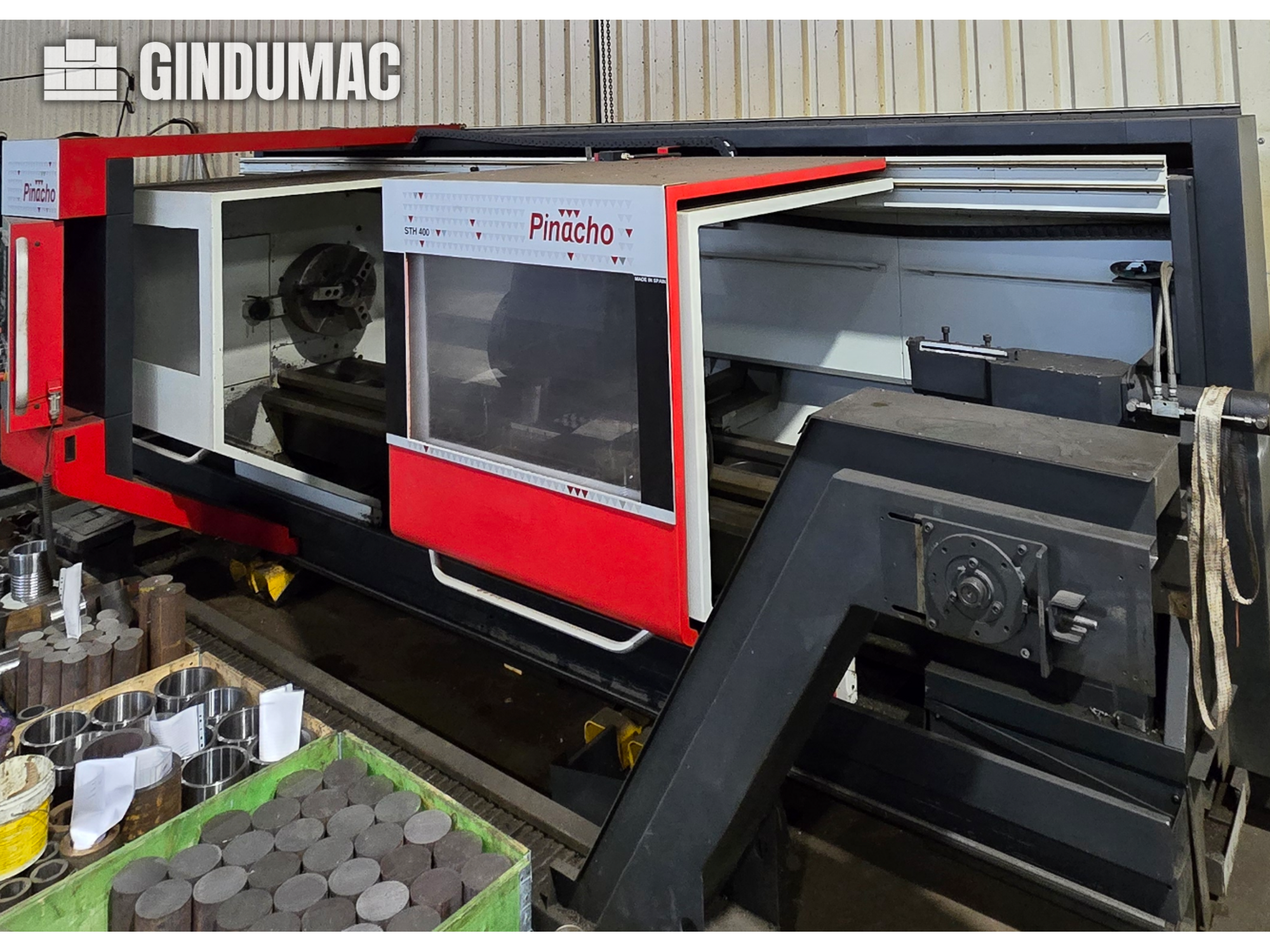

This Pinacho STH 400-105×3000 was manufactured in 2017. A robust horizontal turning machine with a swing over bed of 400 mm and a distance between centers of 3000 mm. Features a high-torque spindle and CNC-controlled feed for precise heavy-duty turning. Ideal for machining shafts, pipes, and flanges. Consider the opportunity to buy this Pinacho STH 400-105×3000 horizontal turning machine. Contact us for more information.

Technical data Turning length: 1600 mm Main spindle: integrated spindle motor ISM 90 Drive power: 41/58 kW Bar machining: Tube inner diameter 92 mm C-axis: with spindle brake (hydraulic) Turning/milling spindle: Motor spindle HSK-A63 DIN 69893 Indexing: 1° indexing Y-axis: ±110 mm B-axis: ±120° interpolating with hydraulic clamping Tool magazine: 1 x 60-fold shelf magazine Coolant tank: 500 litres Coolant pressure: 8 bar Coolant flow rate: 20 l/min Chip conveyor: Discharge height 1100 mm CNC control: SIEMENS 840D Powerline Configuration Part clamping device: hydraulic Cross slide: top with turning/milling spindle Tool changer: with handling unit and loading stations Absolute displacement measuring systems: in all linear axes Coolant cleaning: Belt filter filter unit 40 μm Preparation: Workspace extraction Linear gantry: PROMOT EURO Linear Portal EPL Automatic handling: up to 2 x 4 ...

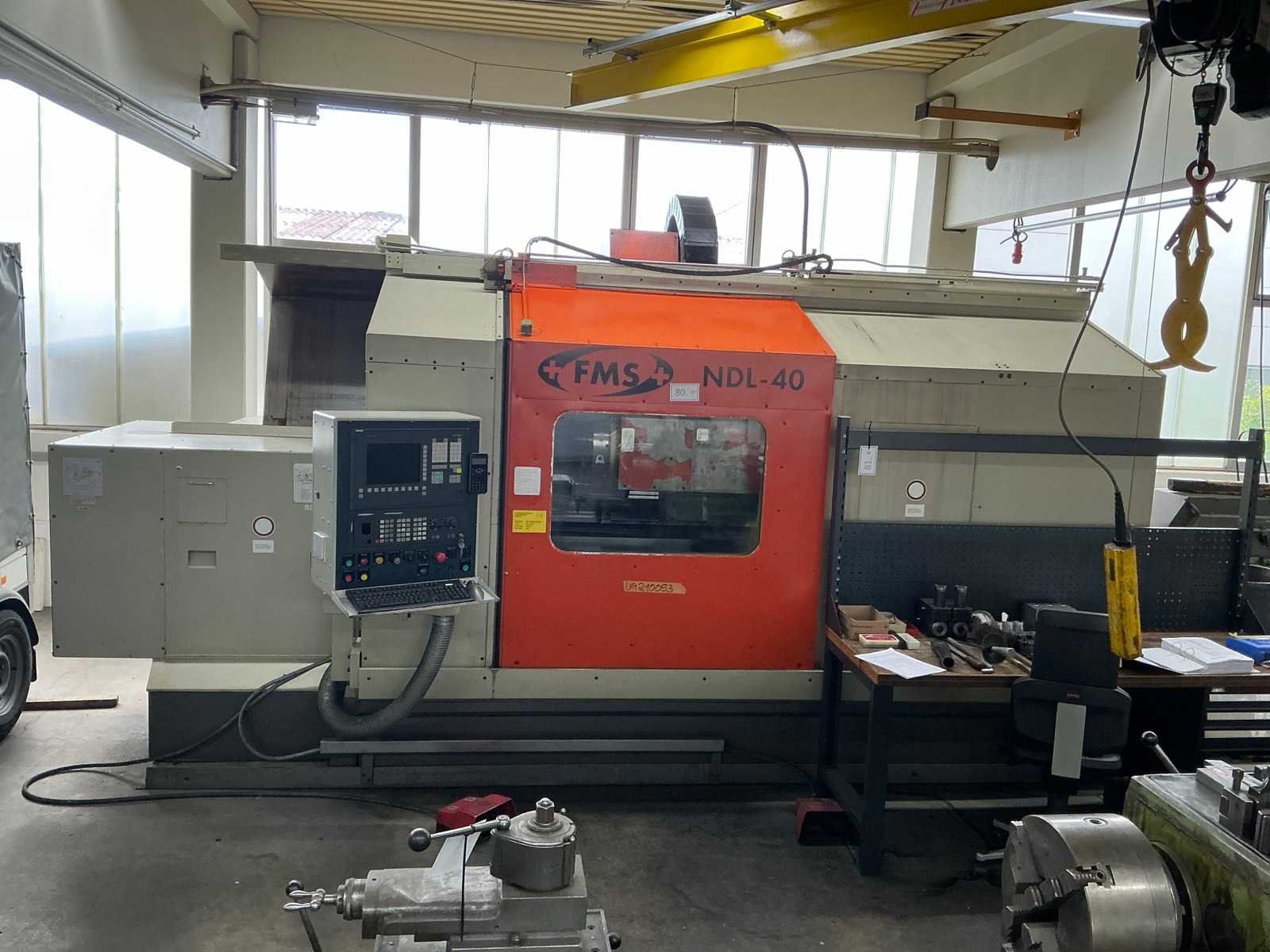

Technical data Manufacturer: FMS Drehtechnik Schaffhausen AG, Switzerland Type: NDL-40/130 Machine Type: CNC Lathe Year of Make: 2003 Control: Siemens SINUMERIK Machine No.: 16212-51 Turning length: 1500 mm Turning diameter: 400 mm Swing diameter over bed: 630 mm Swing diameter over face slide: 410 mm Speed range: 40 – 3200 rpm Main drive: 68 kW Spindle bore: 90 mm Hydr. Clamping Cylinder Passage: 86 mm Tailstock: MK5, quill stroke 120 mm Rapid traverse: 16,000 mm/min Coolant tank: 400 l Dimensions (L x W x H): approx. 5350 x 2270 x 2670 mm Machine weight: approx. 14,000 kg Configuration Siemens SINUMERIK CNC control Heidenhain Digital Display Hydraulic clamping system Tool turret Coolant system Chip conveyor Hydraulic power unit Various clamping devices and tool holders Extensive technical documentation available Machine dismantled in the production environment

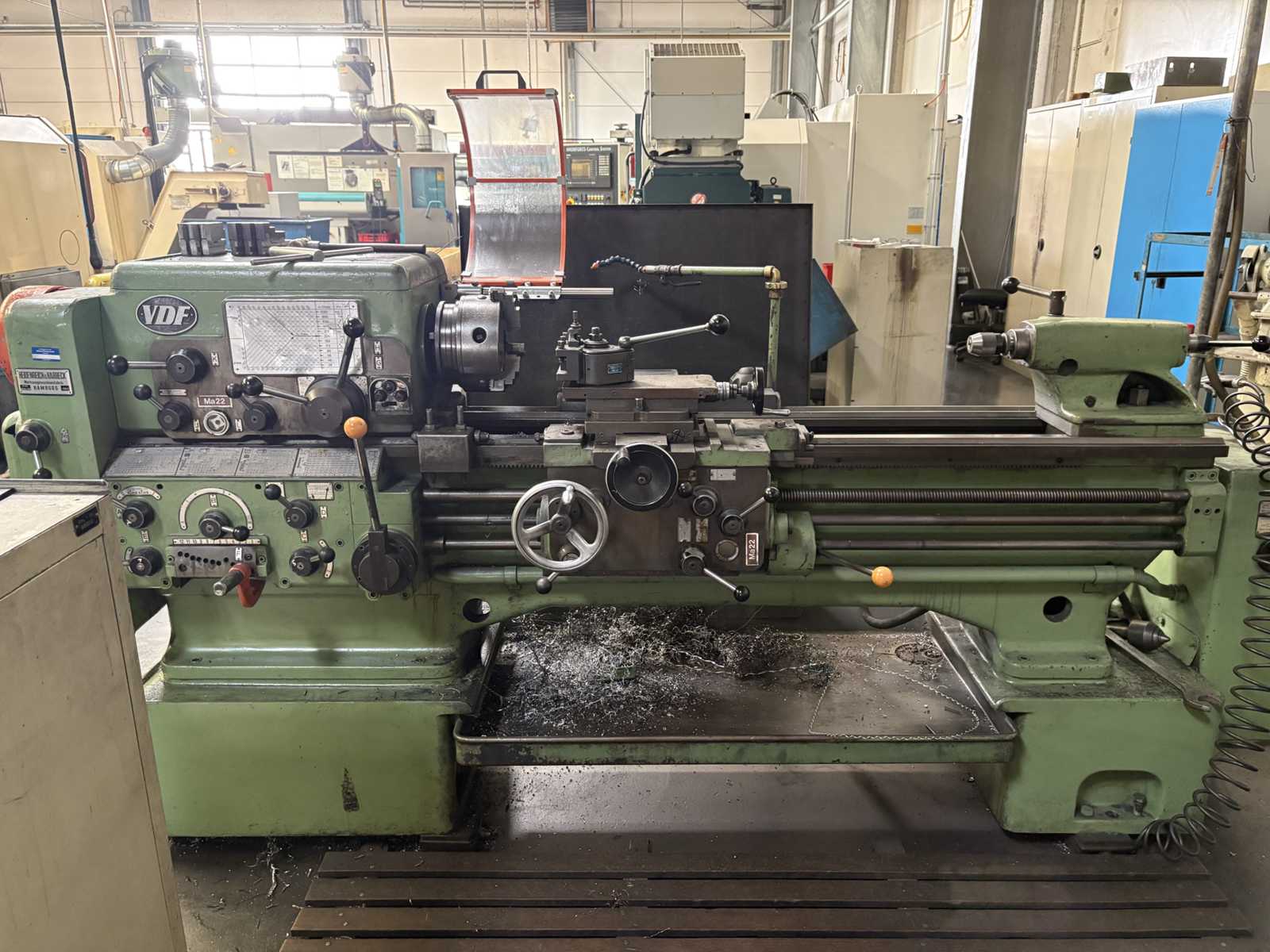

Manufacturer: Heidenreich & Harbeck (VDF), Hamburg , Type: 18 RO , Year of construction: 1960 , Working range: Center width: approx. 1,000 mm , Circulation over bed: approx. 360–380 mm , Circulation over support: approx. 200 mm , Speed range: 28 – 1,250 rpm , Multi-stage mechanical transmission , 3-jaw chuck Forkardt Ø200 mm , Operating voltage: 380 V ; Control current: 220 , frequency: 50 Hz I ; PhotosTotal current: approx. 4 A , Equipment: Multifix quick-change holder , Type B several rotary holders and drill holders ,Forkardt 3-jaw chuck Ø200 mm , extensive tool equipment , see photos for more details

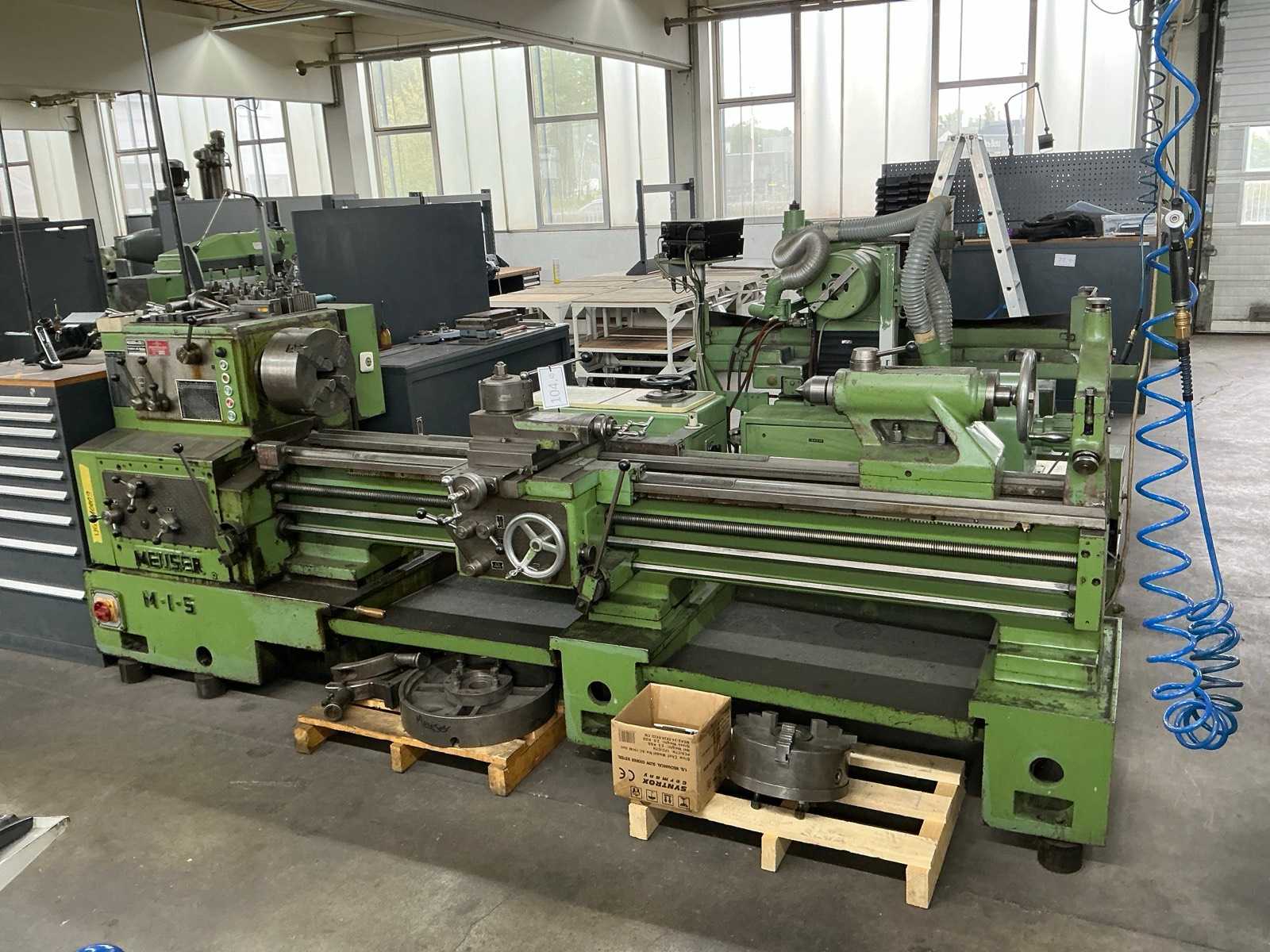

Technical data MEUSER M1 S Lead and Pull Spindle Lathe Year of Make: 1970 Speed range: 20 – 1000 rpm 4-jaw chuck approx. 400 mm Conventional lathe Configuration Tailstock available Bezel available Face Plate / Drive Plate Quick-change steel holder and tool holder Various turning tools and clamping devices Coolant system available Accessories and tool holders according to photo documentation Condition according to photo documentation

Optimum Lathe D330 x 1000 SG -Center width: 1000 mm -Circumferential diameter over bed: 330 mm -Circumferential diameter over support: approx. 190–200 mm -Spindle bore: approx. 38 mm -Spindle mount: Camlock (mostly D1-4) -Speed range: approx. 70 – 2000 rpm (stepped) -Feeds: longitudinal and flat, automatic -Threading: metric and imperial possible -Motor power: approx. 1.5 – 2.2 kW -Voltage: 400 V / 3 phases -Tailstock mount: MK3 - Spindle holder: MK5 -Work light -Three-jaw chuck -13x Face Plates/Drive Plates -Multifix with 1 steel holder -Machine feet -Lining protection Dimensions: LxWxH 1.9x0.7x1.5 meters / Weight 700Kg

Lead and tension spindle lathe Weiler Matador -Center width: 500 mm -Tip height: 140 mm -Feed range longitudinally over belt: 0.05–0.40 mm/rev -Feed range longitudinally via interchangeable gears: 0.018–0.800 mm/rev - Spindle head: size 5 -Drive: three-phase motor -Speed range: 15–3,550 rpm -Coolant pump -Collet device -Wedge bar chuck Forkardt F 16 -Quick-change holder Multifix -4 lathe chisel holders -Drill chuck -Moving centering tip Dimensions: LxWxH 1.5x0.6x1.2 meters / Weight 600Kg

Lead and tension spindle lathe Weiler Matador -Center width: 500 mm -Tip height: 140 mm -Feed range longitudinally over belt: 0.05–0.40 mm/rev -Feed range longitudinally via interchangeable gears: 0.018–0.800 mm/rev - Spindle head: size 5 -Drive: three-phase motor -Speed range: 15–3,550 rpm -Coolant pump -Wedge bar chuck Forkardt F 160 -Quick-change holder Multifix -4 lathe chisel holders -Drill chuck -Moving centering tip Dimensions: LxWxH 1.5x0.6x1.2 meters / Weight 600Kg

Lead and tension spindle lathe Weiler Matador -Center width: 500 mm -Tip height: 140 mm -Feed range longitudinally over belt: 0.05–0.40 mm/rev -Feed range longitudinally via interchangeable gears: 0.018–0.800 mm/rev - Spindle head: size 5 -Drive: three-phase motor -Speed range: 15–3,550 rpm -Coolant pump -Wedge bar chuck Forkardt F 160 -Quick-change holder rotary flash -4 lathe chisel holders Dimensions: LxWxH 1.5x0.6x1.2 meters / Weight 600Kg

WEILER CONDOR VS 2 from university (test laboratory) -Guided tours "as good as new" -Three-axis digital display "NEW" -Tip height 165mm -Circumferential diameter over bed 330mm -Tip width 800mm -Speed range 28-2800 rpm -Automatic longitudinal/plane feeds -Spindle passage 40mm -Thread/Metric/Inch etc. -Collets - quick clamping device incl. collets -Vierbackenfutter-Röhm -Face Plate -Four-jaw chuck faceplate -Lining protection -Multifix with inserts -Emergency stop -Documentation -Unless otherwise stated, the price is /net/ plus VAT -Invoice will be issued Dimensions: LxWxH 2x0.8x1.6 meters / Weight 900Kg

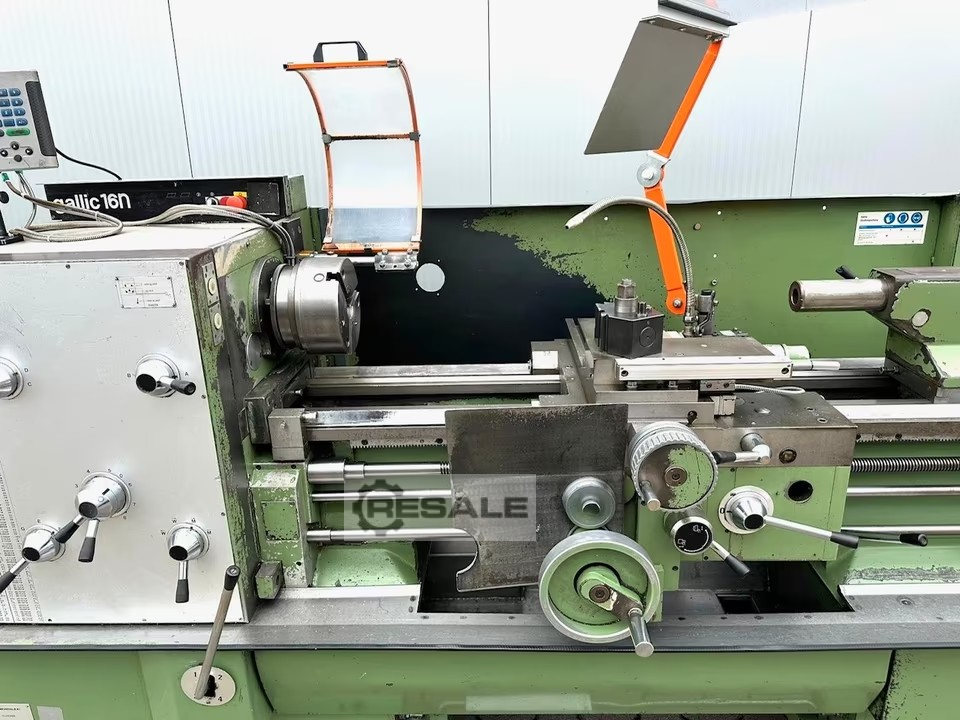

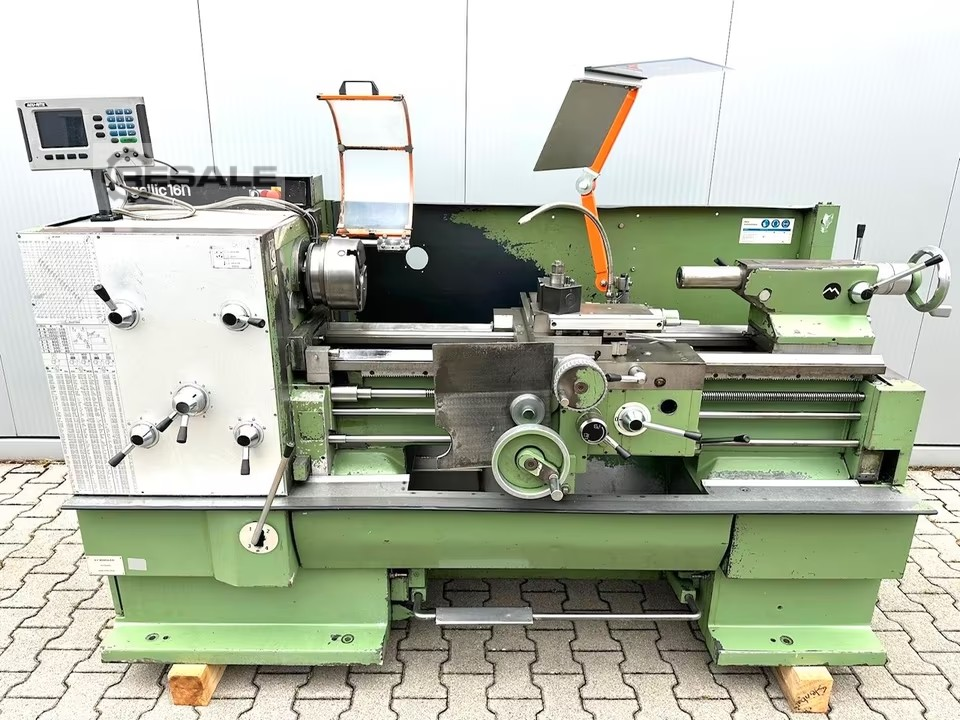

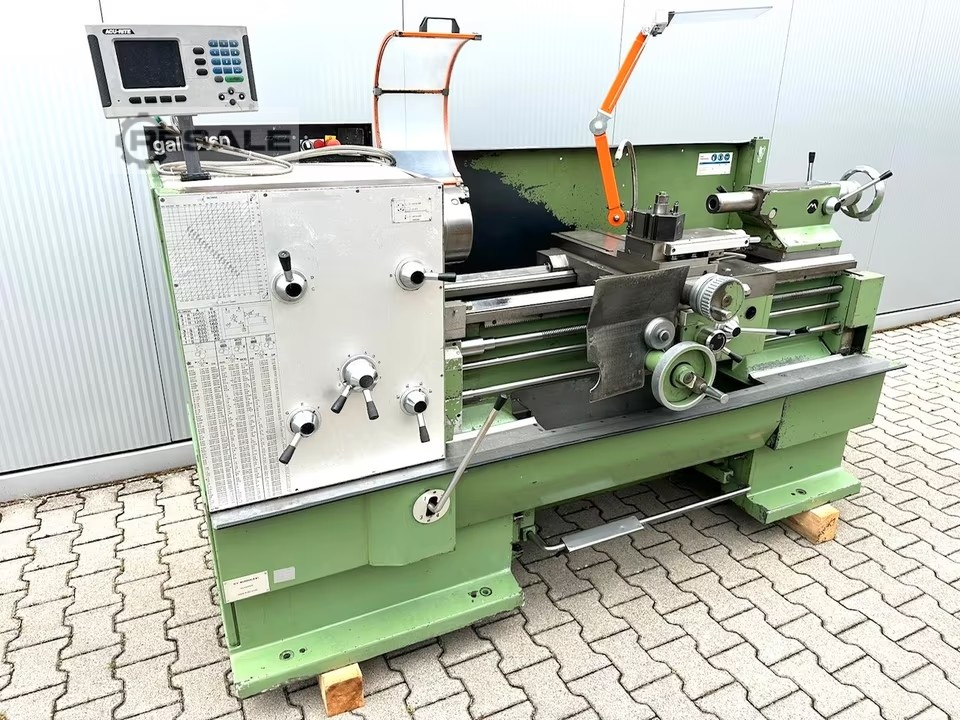

GALLIC 16 N lead and pull spindle lathe with ACU-Rite digital display - Turning diameter over support 200mm - Turning diameter over bed 320mm - Tip height 160mm - Center width 1000mm - Speed range 45-2500 rpm - Spindle bore 40mm - Automatic feeds X/Z axis -Spindle bore approx. 42mm -Quick-change holder -Thread/Metric/Inch etc. -Tailstock MK 4 -Electric lining protection -Three-jaw chuck -Swarf back wall LxWxH 2.4x1x1.7 meters / Weight 1600Kg

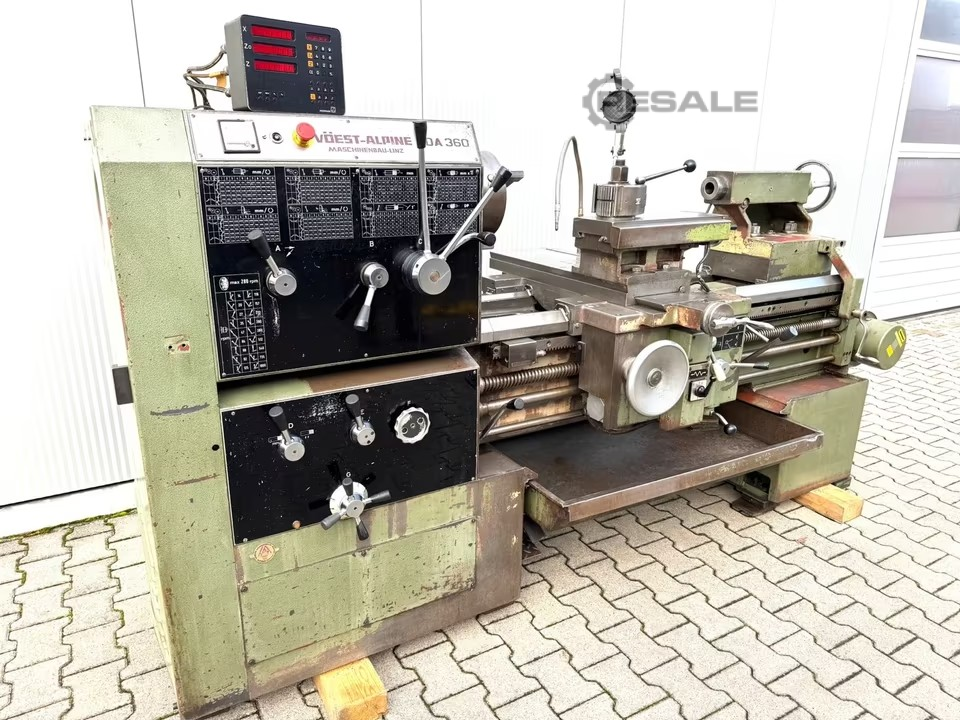

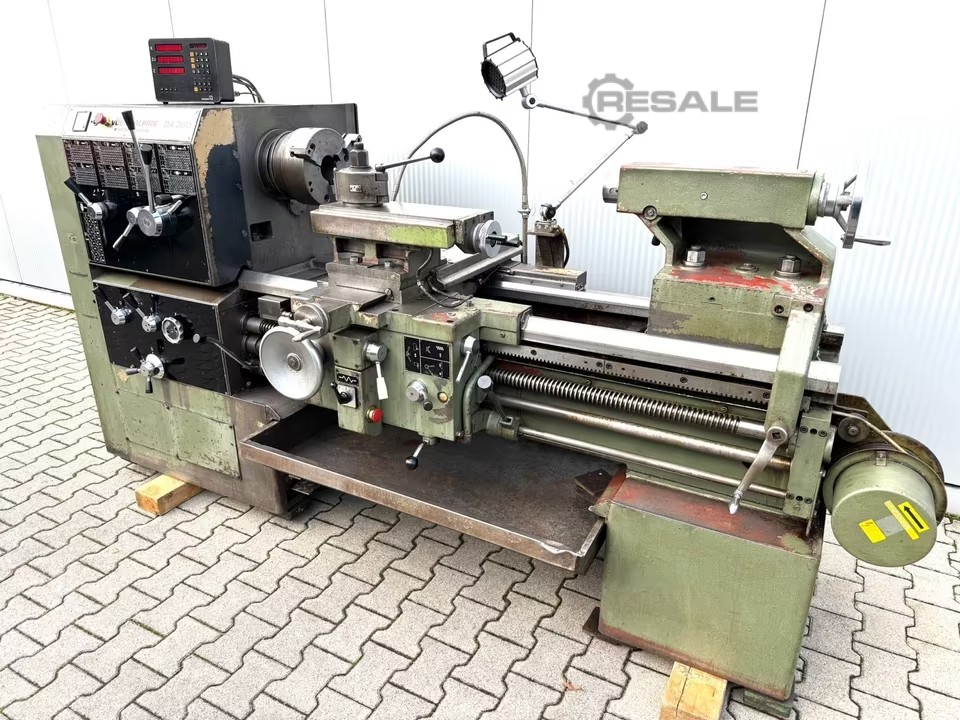

VOEST DA 360 - Lead & Pull Spindle Lathe -Heidenhain digital display -Peak height above bed 400mm -Turning diameter over bed 800mm -Turning diameter over support 500mm -Turning length 1000mm -Rod passage approx. 87mm -Speed range 14 - 1000 rpm / 18x speeds -Automatic length / face feeds -Automatic input Z-axis -Tailstock MK 5 -Wedge bar chuck 250mm -Multifix base holder with insert -Work light -Machine feet -Documentation Dimensions: LxWxH 3x1.5x1.7 meters / Weight 3500 KG

L & Z lathe / WEILER CONDOR VS 2 with new 3-axis digital display from training company -3-axis digital display "NEW" -Tip height 165mm -Circumferential diameter over bed 330mm -Tip width 800mm -Speed range 28 - 2800 rpm -Automatic longitudinal/plane feeds -Spindle passage -Tailstock with tip -Collets / quick-release device incl. 25 x collets -Three-jaw chuck - Röhm 200mm with reverse jaws -Multifix /New with insert -Work light -Emergency / Off -Bed stop -Machine feet -Documentation Dimensions: LxWxH 2x0.8x1.6 meters / Weight 900Kg

WEILER LZ330 / From educational institution incl. new 3-axis digital display -Turning diameter over bed 330mm -Turning diameter over support 165mm -Turning length 800mm -Speed range 25 - 2800 rpm -Automatic / longitudinal plan feeds -Multifix with 3x inserts -Drive power 3KW -Three-jaw chuck -Collet device with 20x collets -Copying device -Miscellaneous Accessories -Documentation Dimensions: LxWxH 1.8x0.7x1.6 meters / Weight 750Kg

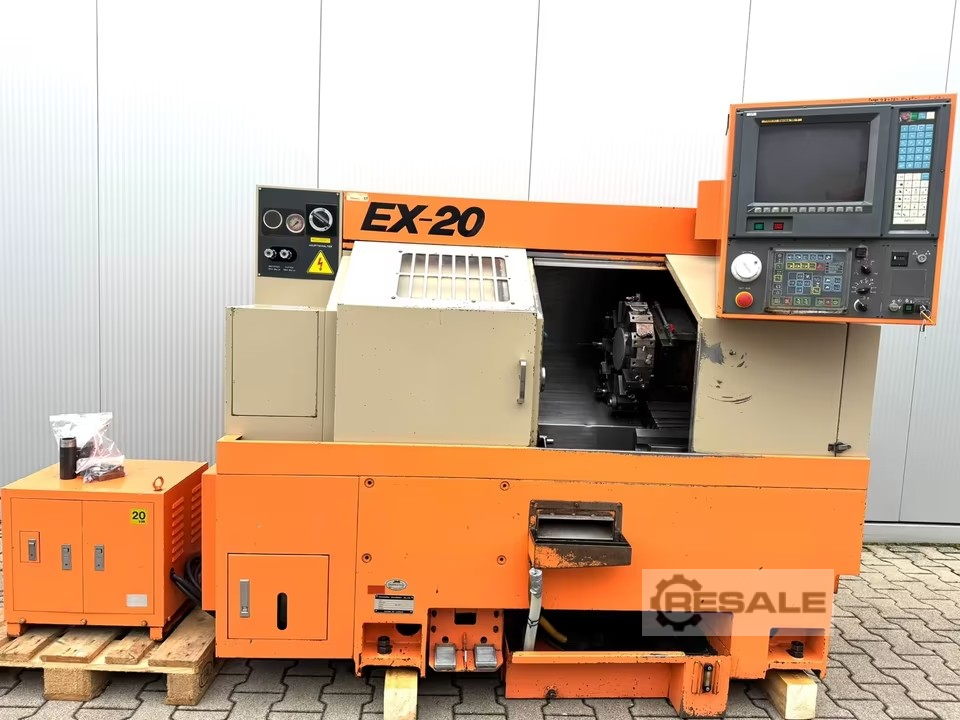

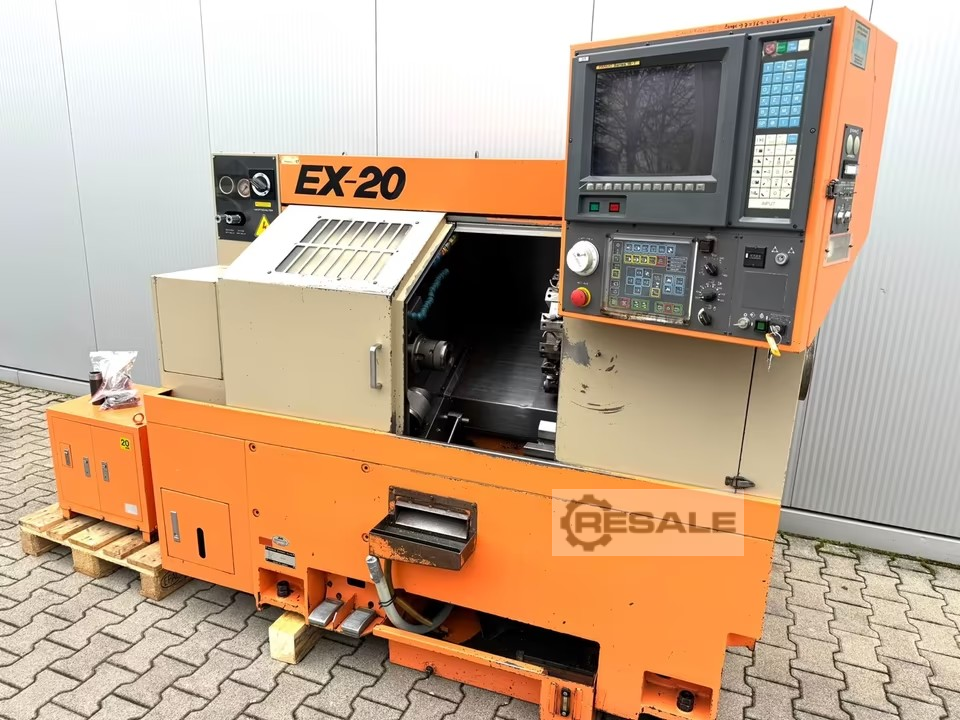

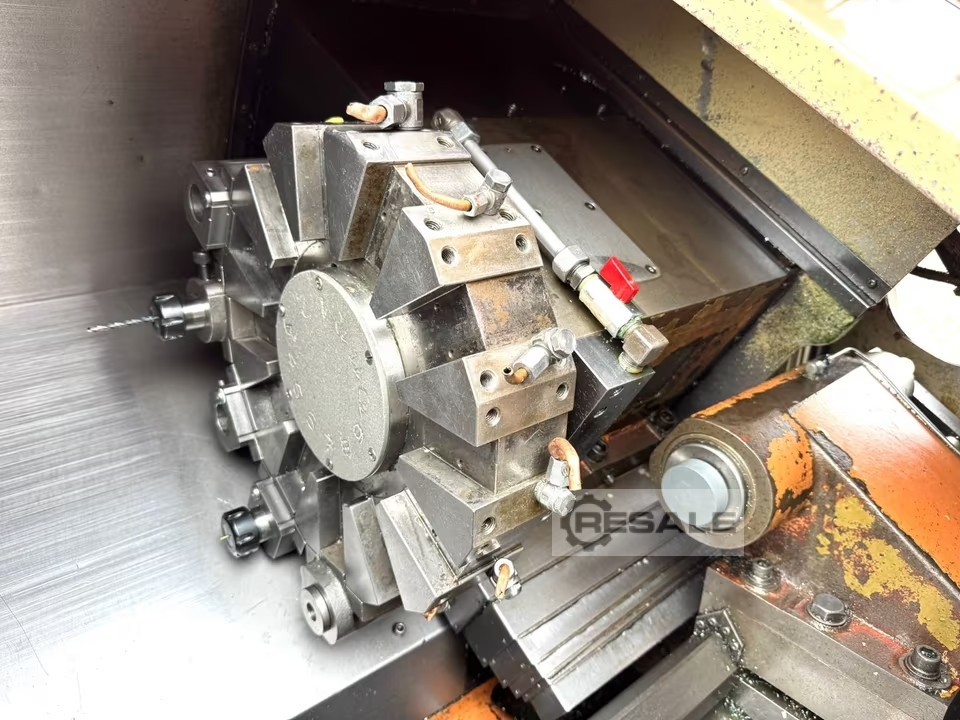

CNC lathe TAKAMAZ EX 20 / Fanuc 15 TF -Control FANUC 15 TF -Turning diameter max. 260mm -Turning length approx. 500mm -Rod passage 42mm -Spindle speeds 40 - 4000 rpm -Spindle nose A2-6 -Tool positions (stations) 12 compartment / direct mount -Tool measurement (Tooleye) -Parts catcher -Tailstock -Collet holder 173 E -Spindle motor 7.5 KW Dimensions: LxWxH 2.6x2x1.8 meters / Weight : 2800 kg

WEILER Intern 800R Ladder & Pull Spindle Lathe -Turning diameter over bed 300mm -Turning diameter over support 150mm -Turning length 800mm -Spindle bore 42mm -Speed range 40 - 2000 rpm -Automatic longitudinal/plane feeds -Thread/Metric/Inch -Tailstock MK 3 -Drive power 3KW -Multifix with inserts -Three-jaw chuck 160mm -Lining protection -Swarf back wall with work light -Interchangeable wheels -Drill chuck -Rod passage 42mm -Tool cabinet -Documentation Dimensions: LxWxH 1.8x0.8x1.6 meters / Weight 750Kg

Guide & Tension Spindle Lathe GEMA LZ 200 -Three - Axis Digital Display "NEW" -Guided tours " VERY GOOD" -Tip height 200 mm -Center width 1000 mm -Turning diameter over bed 400mm -Turning diameter over support 200mm -Spindle passage 54 mm -Automatic longitudinal/plane feeds -Speed range 36-2200 rpm -Tailstock MK 4- Adjustment 200mm -Three-jaw chuck 250mm -Electric lining protection -Multifix with inserts -Coolant device -Work light -Machine feet -Chip tray Dimensions: LxWxH 2x1.2x1.6 meters / Weight 1800Kg

Weiler Primus Type-MD-G -Tip height 125mm -Tip width 400mm -Speed range 80-4000 rpm -Spindle passage 24mm -Electric lining protection -Tailstock with drill quill -Work light -Four-jaw chuck -Multifix with inserts -Bed stop Dimensions: LxWxH 1.3x0.8x1.5 meters / Weight 400Kg

Lead & Pull Spindle Lathe / WEILER COMMODOR 230 AC -CE marking -Year of construction 2002 -Tip height 230mm -Circumferential diameter over bed 475mm -Circumferential diameter over face slide 270mm -Tip width 1000mm -Spindle speeds 25 - 2000 rpm -Automatic longitudinal/plane feeds -Tapping/Metric/Inch/Module etc. -Spindle head Din 55027 / size 6 -Tailstock MK 4 -Drive power 11KW -Electric lining protection -Multifix base holder with inserts -Three-jaw chuck -Swarf back wall with work light -2x Emergency / Off -Coolant device -Machine feet -Documentation Dimensions: LxWxH 2.6x1.1x1.6 meters / Weight 1900Kg

WEILER COMMODOR L&Z Spindle Lathe -Turning length 1000mm -Turning diameter max. 160mm Bar Passage 56mm -Speed range 25-2000 rpm -Automatic longitudinal/plane feeds - Thread: Metric/Inch/etc. -Tailstock Mk4 Hjbkn Au Ssun Ulhs Tsl -Three-jaw chuck approx. 250mm -Multifix base holder with insert -Coolant device -Electric lining protection -Swarf back wall -Machine documentation -Good operational condition Dimensions: LxWxH 2.5x1.3x1.7 meters / Weight 1500Kg

CNC Lathe Tongtai Topper TNL - 100 TL / Fanuc OT -CE marking -Fanuc OT control -Max. turning diameter 388mm -Max. turning length 580mm -Rod passage 51mm -Hollow spindle diameter 62mm -Speed 45 - 4500 rpm -Turret / 12 stations -Tool -Eye / Tool Measurement -Tool shank 25mm - Holder diameter 32mm - Axis movement X/Z 200 & 600mm -Rapid traverse X/Z axis 20 & 24 m/min -Spindle motor 15 KW -Tailstock -Footswitch -Machine feet -Chip conveyor -Documentation Dimensions: LxWxH 2.6x1.8x2 meters / Weight 4700Kg

L & Z lathe / WEILER DA 210x1000 / With new 3-axis digital display -Year of construction 2005 -CE - Identifier -Guided tours good -COMPLETE TECHNICAL DATA SEE PHOTOS - Three axis digital display "NEW" -Quick-release collet device incl. 79 x collets (173E) -Multifix base holder with inserts -Three-jaw chuck -Electric lining protection -Slide protection additionally -Coolant device -Drill chuck / rotating tip -Swarf back wall -Work light -Complete documentation Dimensions: LxWxH 2.8x1.2 x1.8 meters / Weight 1600 Kg

Lead & Pull Spindle Lathe EXCELLO - DLZ 500 SL -Tip height 250mm -Turning diameter over bed 500mm -Turning diameter over support 310mm -Center width 3000mm -Rod passage 65mm -Speeds: 28-1400 rpm -Automatic longitudinal/plane feeds -Three-jaw chuck 250mm -Four-jaw chuck 250mm -Multifix base holder with inserts -Bezel -Tool cabinet -Documentation Dimensions: LxWxH 5.5x1.4x1.6 meters / Weight 3500Kg

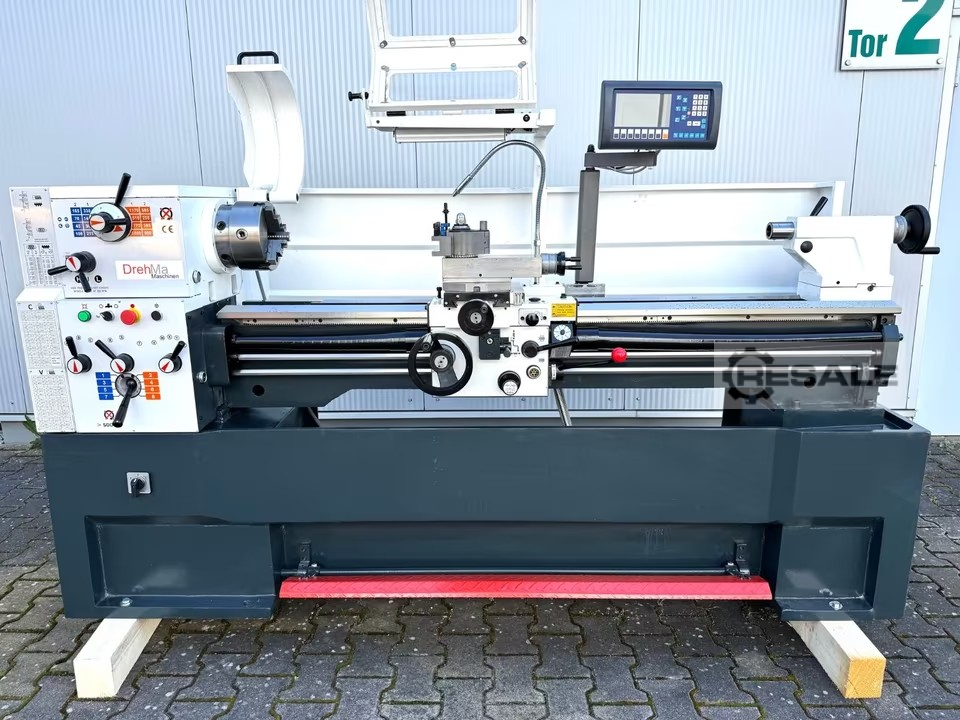

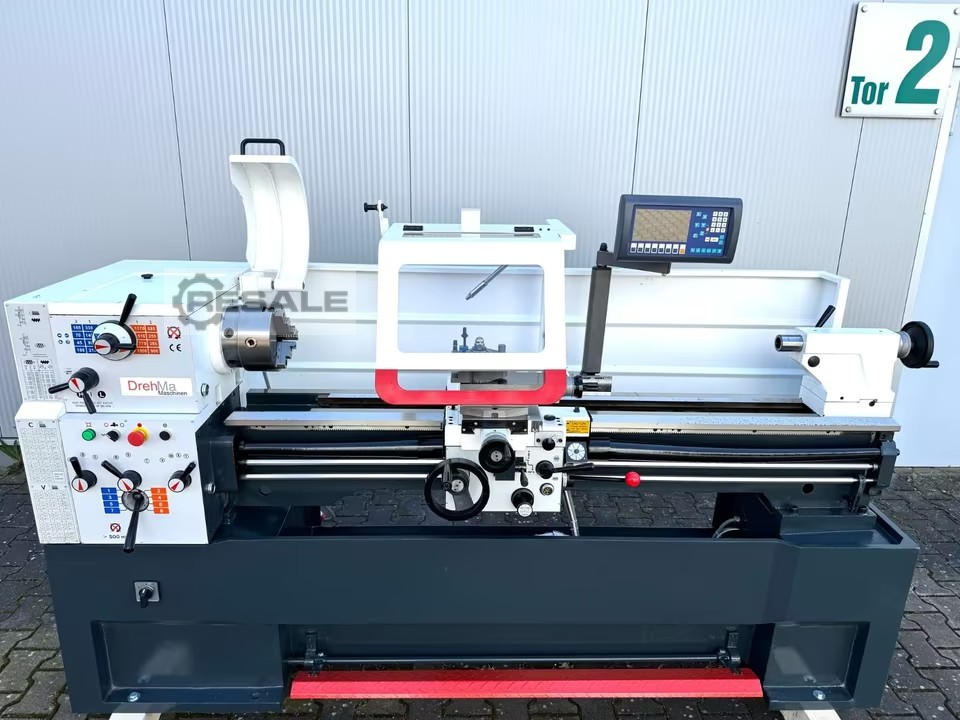

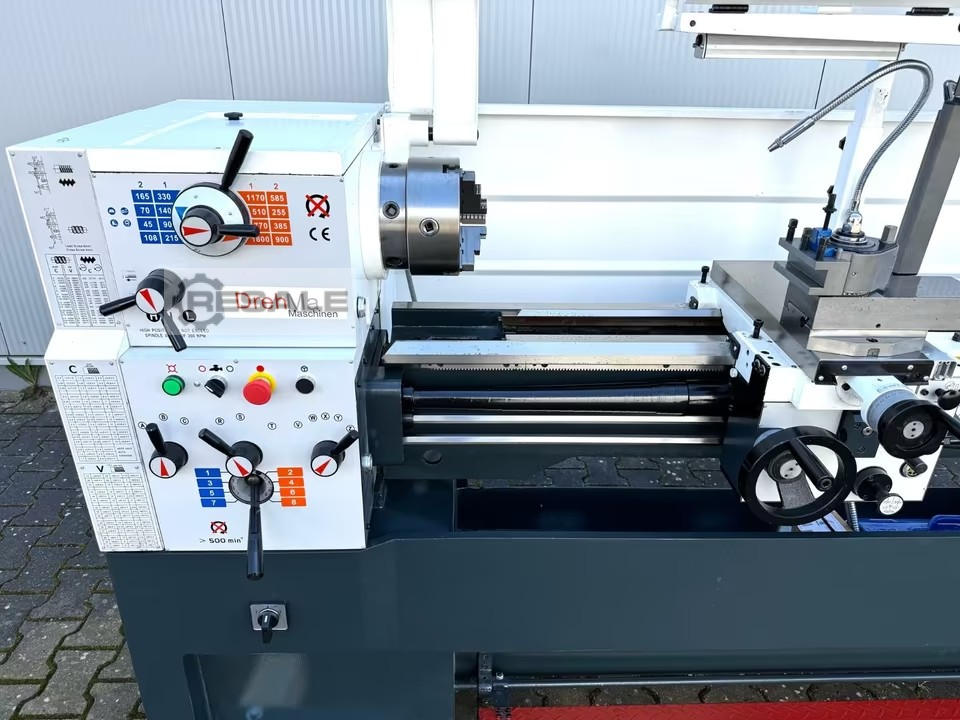

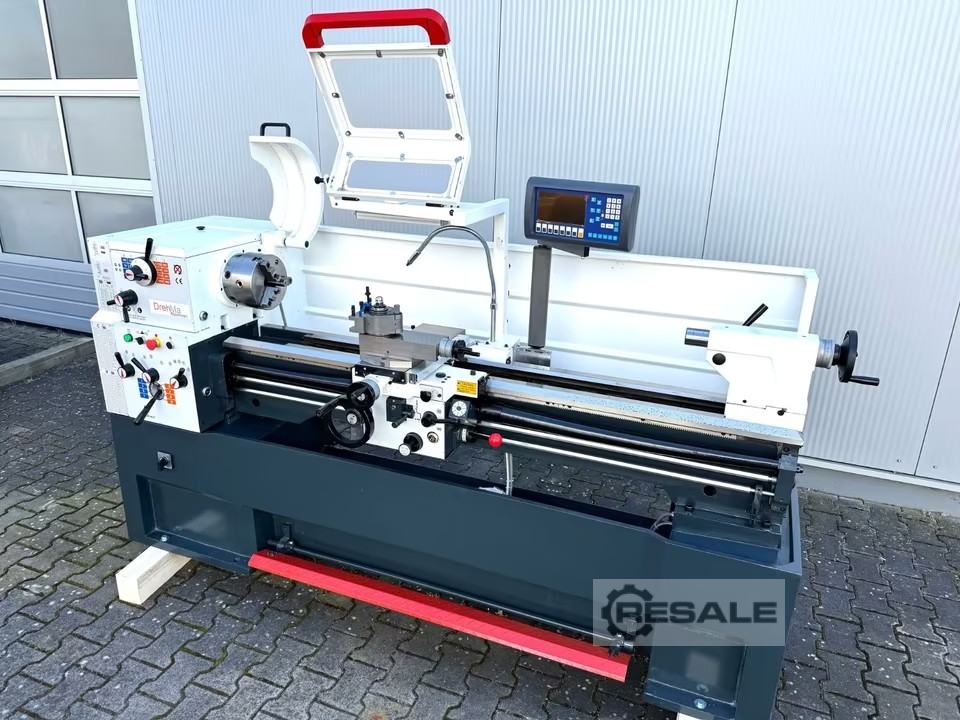

Leit & Pull Spindle Lathe "DREHMA - D410x1500mm -Demonstration machine - year 2025 -CE - Identifier -Digital display -Turning diameter over bed 410mm -Turning length 1500mm -Turning diameter over support 255mm -Turning diameter in the offset 580mm -Spindle Passage 52mm -Speed range 45-1800 rpm -Automatic longitudinal/plane feeds -Thread/Inch/Metric etc. -Tailstock Mk4 -Central lubrication -Drive power 3.5 KW -Fixed / Rotating bezel -Multifix holder with 4x inserts -Three-jaw chuck 200mm Hsbknowatv Ss Au S Tel -Four-jaw chuck 250mm -Face Plate -Lining protection -Front safety device -Coolant device -Work light -Running tip -Machine feet Dimensions: LxWxH 2.5x1x1.6 meters / Weight 1800Kg

TRAUB TNS 65 D / 5 - Axis CNC Lathe -For complete technical data, see data sheets -Control TX8 D -Built in 1994 -Rod passage 65 mm -Hydraulic bar loading magazine -Various driven tool holders -Tool holder -Three-jaw chuck -Complete documentation Hebkn Auovug Uls S Tel

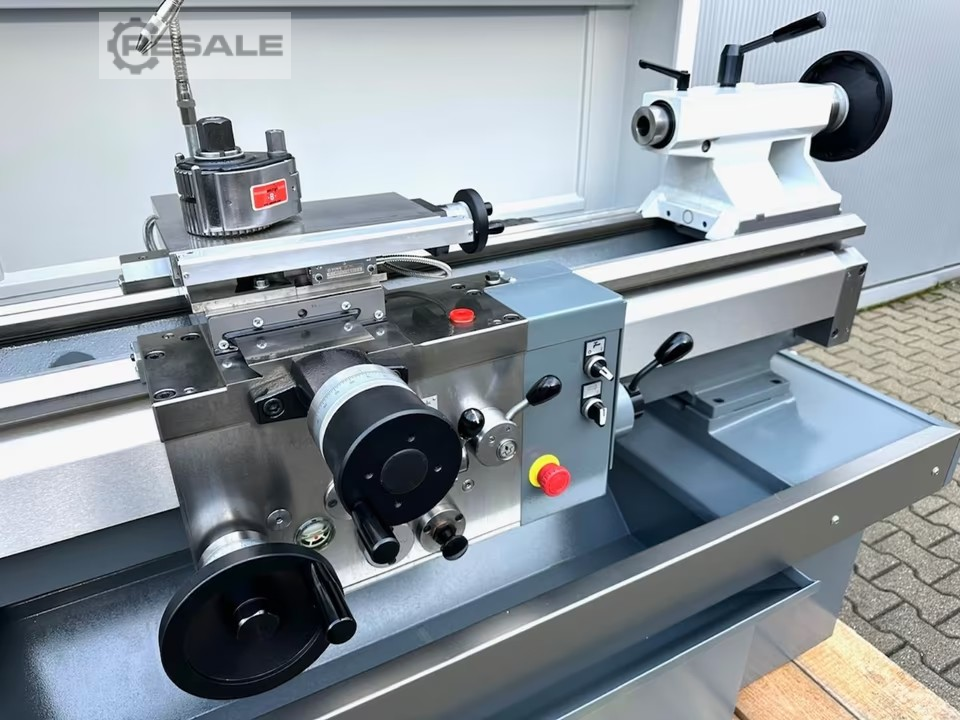

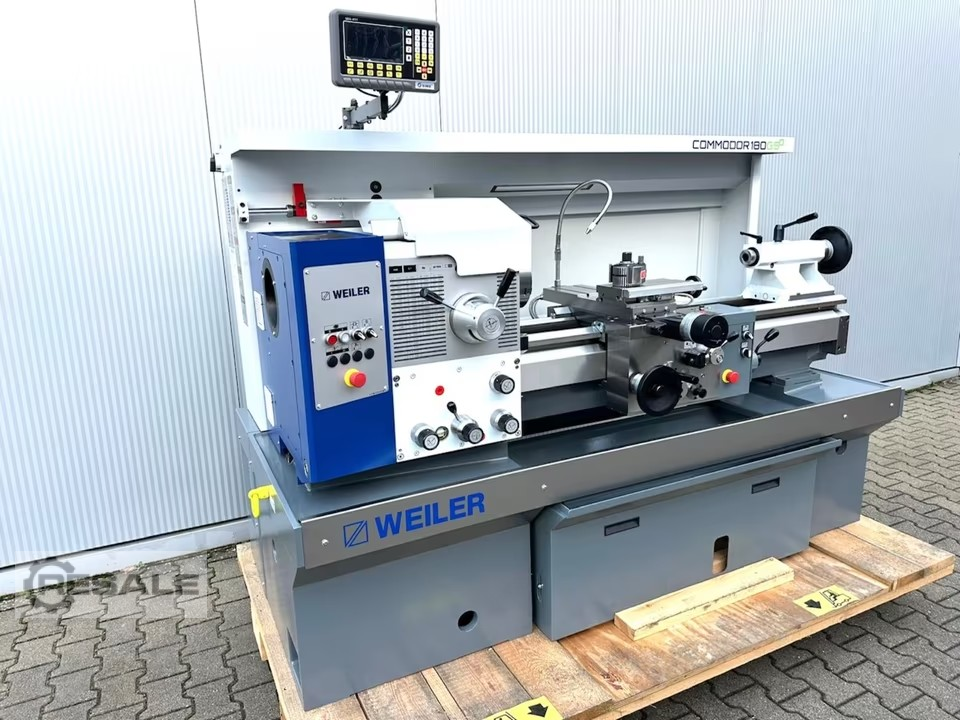

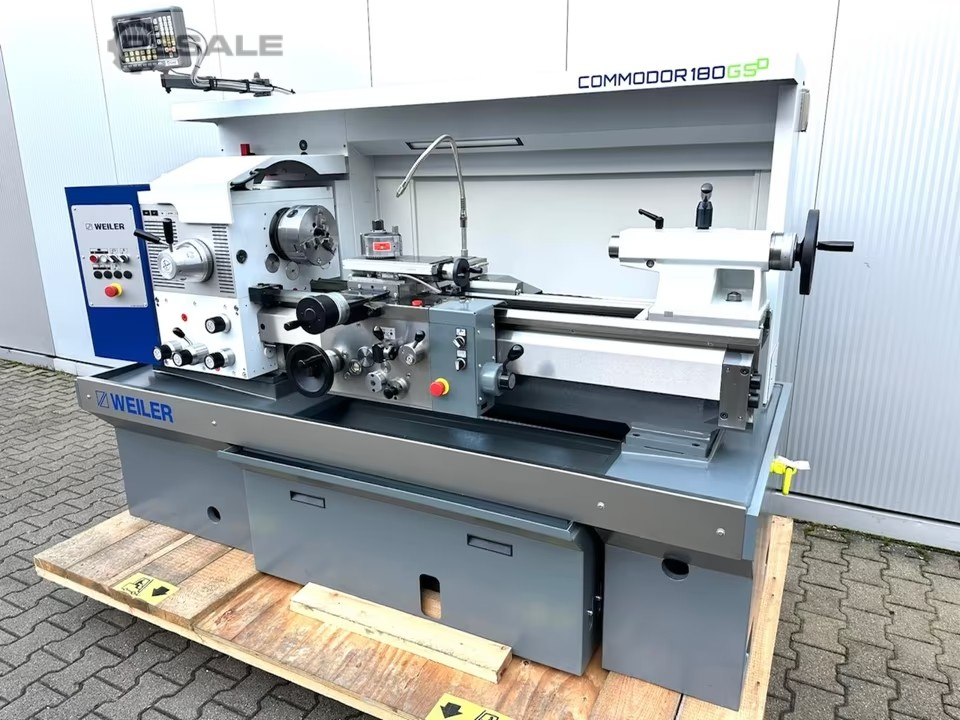

Leit & Tension Spindle Lathe WEILER COMMODOR 180 GSD / New -Unused -Exhibition machine / zero operating hours -CE marking -3 - Axis Digital Display -Tip width 1000mm -Tip height 180mm -Spindle passage 56mm -Circumferential diameter over bed 380mm -Circumferential diameter via face slide 215mm -Speed range / gearbox 25-2000 rpm -Automatic longitudinal/plane feeds -Thread/Inch/Metric/Diametrical -Tailstock / quill cone MK 4 -Quill stroke 150mm -Coolant device -Multifix with insert -Three-jaw chuck 200mm -Work light -Swarf back wall -Documentation Dimensions: LxWxH 2.6x1.6x1.7 meters / Weight 2000Kg

Weiler Condor B with Heidenhain 3 - Axle Digital Display -Circumferential diameter over bed 330mm -Turning diameter above the face slide 185mm -Tip height 165mm -Turning length 750mm -Spindle speeds 22-2800 rpm -Spindle passage 40mm -Tailstock quill holder MK 3 -Quill stroke 110mm -Total power requirement 3kW -Heidenhain 3 - Axis Digital Display -Multifix holder -Multifix cassette 3 pieces -3 jaw chuck Forkardt -div. machine key -Machine feet -LED work light -Lining protection with electrical shut-off -Revolver stop -Documentation/Instruction Manual Dimensions: LxWxH 1.8x0.8x1.2 meters / 1040Kg
