Shape moulding machines NAN-JHIEH NJ-150VM

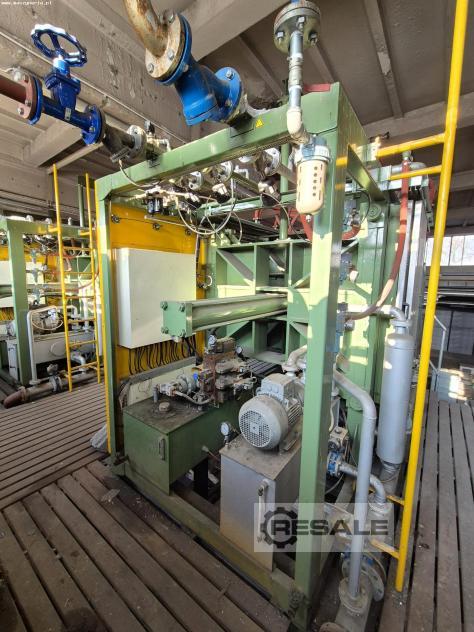

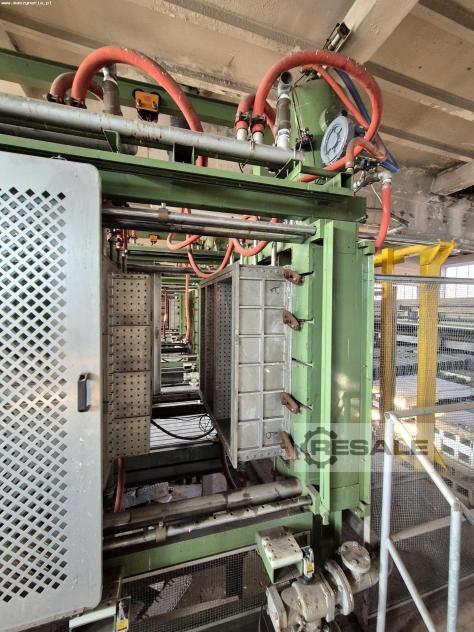

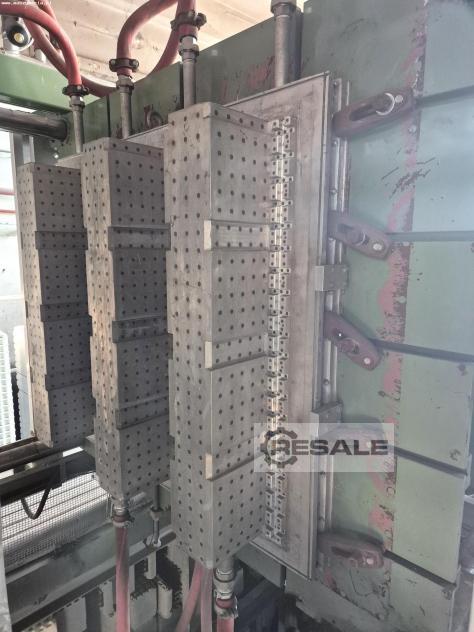

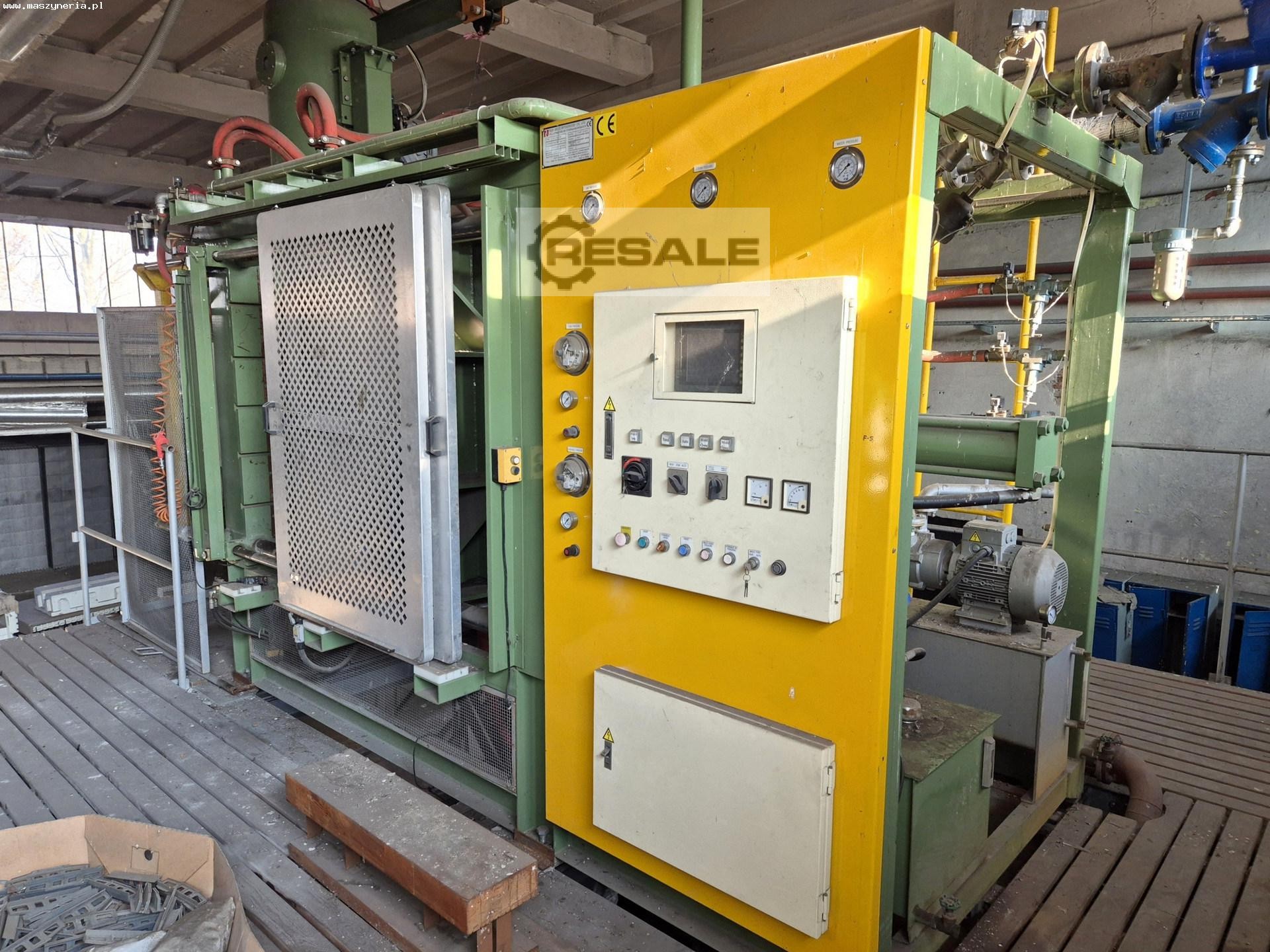

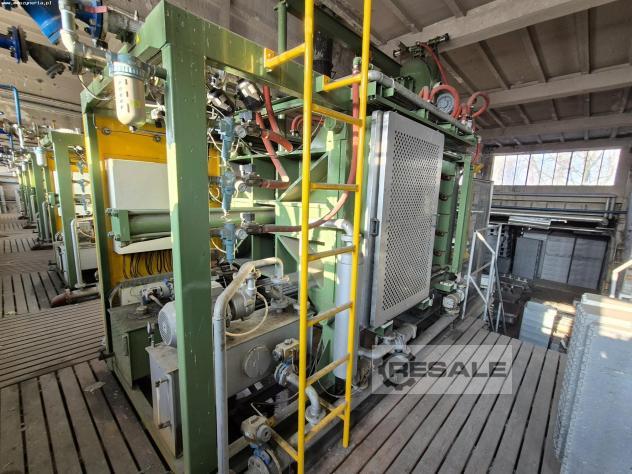

NAN-JHIEH NJ-150VM EPS/EPE styrofoam moulding machine was built in 2008 in Taiwan by NAN-JHIEH ENTERPRISES CO. LTD. The machine is designed for the efficient production of various types of polystyrene parts, such as coffers, stucco, packaging inserts and food containers (lunchbox, thermobox, menubox etc.). The polystyrene is processed by means of special moulds that give the component the desired shape. These moulds are interchangeable so the machine can be adapted to different production profiles. A press force of up to 35 tonnes, combined with an extremely rigid design, ensure the achievement of high repeatability and quality of the components produced.

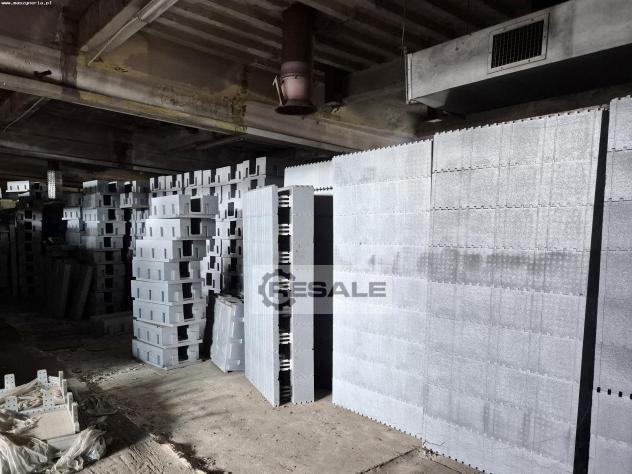

The NAN-JHIEH NJ-150VM polystyrene moulding machine is currently configured for the production of expanded polystyrene (EPS) building blocks. Polystyrene building blocks are used in the building industry as lost formwork. Once a wall is built, the polystyrene building blocks are poured with concrete, while the polystyrene automatically acts as insulation for the building. We have five of these machines for sale. The price on offer is for one unit. A platform on which the machines are located is available for purchase at a price of € 12 500 net.

The machine on offer is part of a larger EPS polystyrene fittings production line. It is also possible to purchase the entire technological line, consisting of the following components:
– polystyrene pre-expander
– EPS granulate feeding system
– NJ-150VM styrofoam forming machine (5 units)
– injection M6351405 moulding machine
– robot M6351405 for injection moulding machine
– pulse jet filter

Technical specifications of the NAN-JHIEH NJ-150VM styrofoam moulding machine
- press force: 35 t
- maximum moulding dimensions (L x W): 1300 x 1500 mm
- maximum dimensions of finished product (L x W x H): 1160 x 1350 x 400 mm
- opening range: 160-1460 mm
- hydraulic cylinder stroke: 1100 mm
- hydraulic cylinder dimensions: ⌀ 150 x 100 x 1 mm
- tie-bar diameter: ⌀ 80 mm
- hydraulic pump power: 7.5 kW
- vacuum pump power: 5.5 kW
- power supply: 380 V; 50 Hz
- dimensions (L x W x H): approx. 3950 x 2200 x 4000 mm
- weight of the NAN-JHIEH NJ-150VM machine: 6500 kg
