CNC Milling Machines DROOP UND REIN FP160-2

X-travel: 8500 mm Y-travel: 2100 mm CNC portal milling machine Droop & Rein FP160/2 – technically perfect, dismantled

Description:

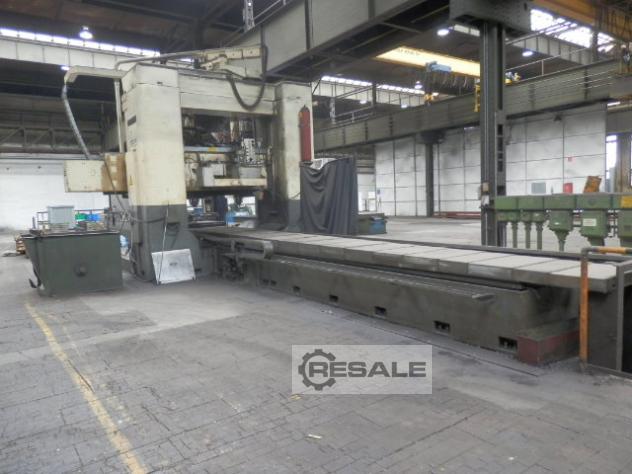

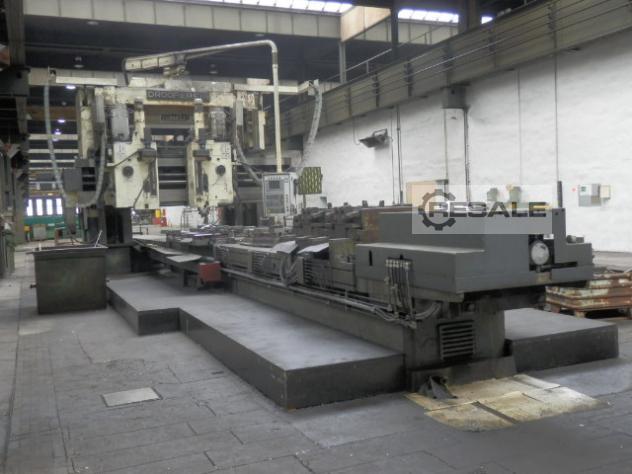

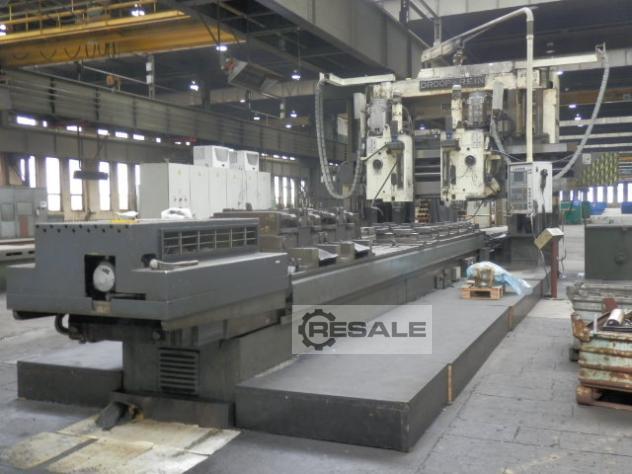

For sale is a Droop & Rein FP160/2 CNC portal milling machine, built in 1965, completely overhauled and converted to CNC by the Rottler company in 2003 (investment at the time: €750,000).

The machine is equipped with a Heidenhain TNC 430 control system and a Heidenhain LB 382 C length measuring system and guarantees a high precision of ±0.005 mm.

All components are technically flawless. The machine is currently dismantled and disassembled in our warehouse in Riesa, Germany, so that assembly, assembly and adjustment are required before commissioning. A viewing of the individual parts is possible.

Technical data:

Manufacturer: Droop & Rein

Type: FP160/2

Item no.: 2698

Year of construction: 1965 (CNC conversion 2003)

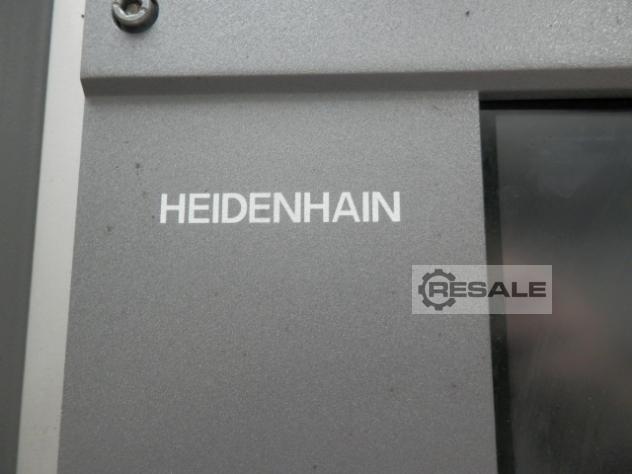

Control: Heidenhain TNC 430

Length measuring system: Heidenhain LB 382 C

Accuracy: ±0.005mm

Machine dimensions (required floor space when assembled):

Height: 4,250 mm

Width: 3,900 mm

Length: 20,000 mm

Work table: 8,300 × 1,200 mm

Axle data:

X-axis (horizontal table):

Feed: 0–5,900 mm/min

Rapid traverse: 0–5,900 mm/min

Travel distance: 8,500 mm

Feed force: 161,729 N (125 Nm)

Y1/Y2 axis (spindle box horizontal):

Feed: 0–1,515 mm/min

Rapid B6119740 traverse: 5,900 B6119740 mm/min

Travel distance: 2,100 mm

Feed force: 30,000 N

Z1/Z2 axis (quill vertical):

Rapid traverse: 420 mm/min

Travel distance: 400 mm

W-axis (vertical crossbar):

Feed: 0–850 mm/min

Rapid traverse: 0–850 mm/min

Travel distance: 1,100 mm

Feed force: 705,147 N (75 Nm)

S1/S2 axis (rotate quill):

Speed: 20–1,000 rpm

Torque: approx. 235 Nm

Location: DE – 01587 Riesa

Condition: technically perfect, CNC overhaul carried out, currently dismantled and disassembled. Construction and commissioning required. Viewing possible.
seller offer No. resale B11338
