other metal working machines used for sale (11,502)

KOLZER DGK36″ PVD sputtering machine was built in 2017. This specially constructed machine is used in the vacuum coating process, after which the workpieces are characterised by a metallic effect” with high resistance to abrasion and chemical agents, as well as innovative colours. The PVD sputtering process involves the expulsion of metal atoms from a target (evaporation material) placed in the working chamber, which are then transferred and deposited onto the surface of the workpieces. In this operation, the target is exposed to a technological vacuum, consisting of process gas and high voltage. At the end, the workpiece surfaces are cleaned and activated by the plasma installed in the machine. This solution offers virtually unlimited possibilities for coating any type of surface. In order to meet all demands and requirements, the KOLZER magnetron sputtering machine meets the hig ...

Model: EL390/1301 Quantity: 8 pieces Year of production: 2021 Travel 8000 mm Length 9000 mm

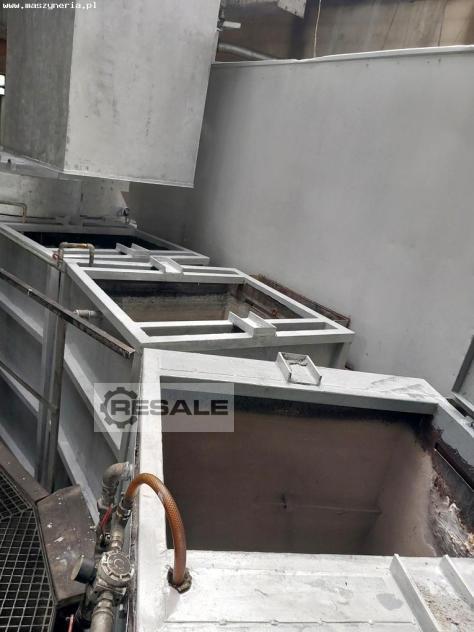

H.E.F. HEF DURFERRIT salt bath nitriding line was built in 2001. This highly advanced production line makes it possible to improve the mechanical properties of the workpiece by increasing its strength and resistance to wear and corrosion. To achieve this, the workpieces undergo thermo-chemical treatment in the form of salt bath nitriding, which results in an anthracite or black colour and a surface hardness of up to 1300 HV. The H.E.F. HEF DURFERRIT thermo-chemical treatment line has been continuously serviced and upgraded throughout its service life. About 2.5 years ago, the lining and heaters were overhauled and the main nitriding ladle was replaced. It is also possible to purchase a new spare main ladle for the offered machine at an additional cost. The production line includes: – a ladle for washing/rinsing workpieces (3 pcs.) – plunge pre-heating furnace – SURSULF nit ...

METRIS-NIKON MCA II 5124 measuring machine built in 2011 is a versatile device that can be used for measuring both small-sized objects as well as complex, large-sized parts. In addition, thanks to the computerisation of measurement procedures and its compact design, the machine can be used directly in the production environment or even inside the measured objects. The measurement process starts with an angular displacement of the arms to ‘pass’ through reference points. The operator then brings the machine’s measuring tip to the surface of the measured workpiece and validates the coordinates using a button located on the head. The coordinates are then transformed by the calculation procedures to the cartesian system (X,Y,Z), where they are used as the basis for determining the dimensions by approximation of the measured features and geometric figures, i.e. circles, cylinders and ...

HEXAGON OPTIV CLASSIC 321 GL tp optic measuring machine was built in 2009 in Switzerland. This technologically advanced machine is the best solution for highly accurate measurement and inspection of e.g. electronic parts, micro-hole dies, fibre optics and inkjet nozzles. Thanks to the use of an 8-segment LED ring light with RGB colour sensitivity adjustment, the HEXAGON vision measuring machine detects and captures the edges of coloured parts much more easily compared to standard greyscale or lighting modifications. The offered machine also features, among other things, a 3 axes microprocessor CNC with vector path control, a CCD camera with 6.5x zoom and PC-DMIS Vision metrology software with the innovative MultiCapture function, which finds all 2D characteristics in the field of view simultaneously, increasing the inspection speed by up to 50%. The total weight of the machine is 170 kg. ...

K240/12 nabertherm . Foundry machines Nabertherm Kippofen 600kg Aluminium Nabertherm Kippofen 600kg Aluminium Balzer Kippofen 600kg Aluminium Balzer Schöpfofen 300kg Aluminium Fulmina Wannenkippofen 20 to Zamak/Zink Reißaus Durchlaufmischer 4-8 to Furansand AXA Fräsmaschine 2300x1190x600 Silo Ø 2500x5000 Sand

K240/12 nabertherm . Foundry machines furnace, ovens Nabertherm Kippofen 600kg Aluminium Nabertherm Kippofen 600kg Aluminium Balzer Kippofen 600kg Aluminium Balzer Schöpfofen 300kg Aluminium Fulmina Wannenkippofen 20 to Zamak/Zink Reißaus Durchlaufmischer 4-8 to Furansand AXA Fräsmaschine 2300x1190x600 Silo Ø 2500x5000 Sand

SHUZ TUNG CNC 50 BRM CNC tube and profile bending machine built in 2014 in Taiwan allows for fully automatic, serial production of complex spatial workpieces in 5 axes with simultaneous hole punching. Excellent precision and accuracy of bending are guaranteed by the reliable servo motors used in the machine, which are responsible for realising the main working movements, i.e. bending, rotation and material feed. The rest of the movements are driven by a central hydraulic system with electronic lubrication. The SHUZ TUNG CNC mandrel bending machine is operated via a control panel with an installed CNC controller with the option of saving an unlimited number of programmes. In addition, the automatic servo bending machine is equipped with several bending rolls, a high-quality mandrel and an actuator to support material feed. The 50 BRM automatic CNC mandrel bending machine weighs 3500 kg ...

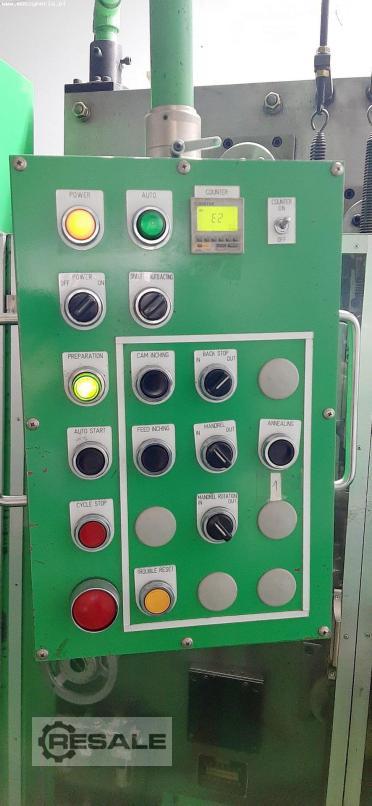

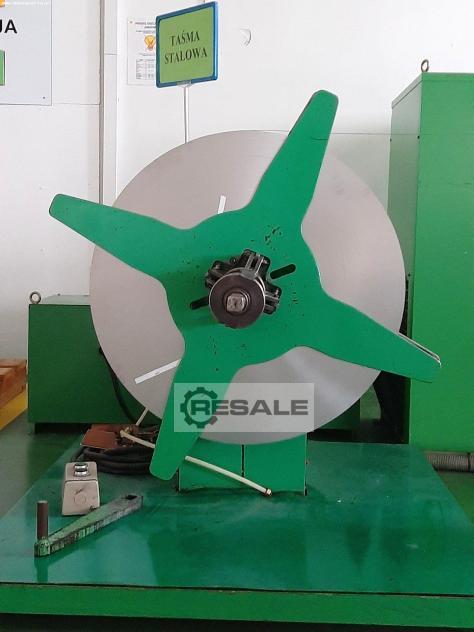

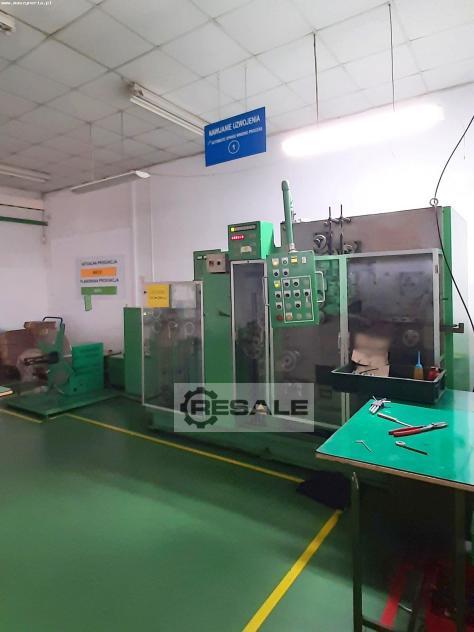

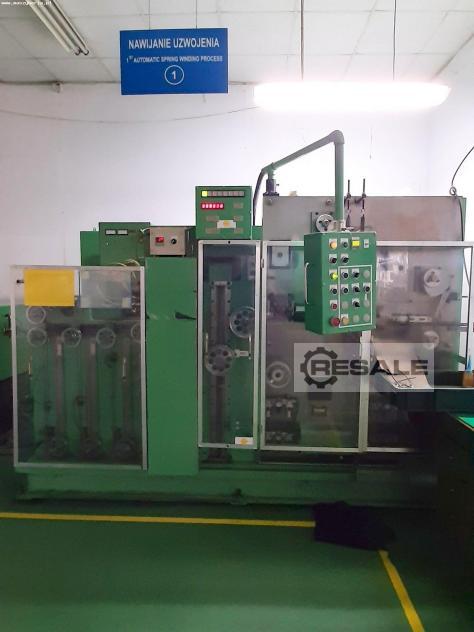

OKUNO MSC-15 spring coiling machine was manufactured in 1998 in Japan by OKUNO Machine Co. The machine designed for the efficient production of springs from wire with a maximum thickness of 0.3 mm, consists of a wire spool rack with a braking system, a heating device for annealing and a forming machine. The wire processing process begins with taking material from a spool mounted on the machine stand, which is then fed into the heating device to anneal both ends of the spool. The pre-treated material is then fed further into the forming machine, where it is shaped into a spring by automatic cutting and bending. The length of wire feed is regulated by a digital indicator located on the machine frame. Technical data of the OKUNO MSC-15 spring coiling machine - maximum wire feeding length: 10m ± 5 mm - thickness of material: 0.15 – 0.3 mm - material width: 5.0 – 15.0 mm - maxi ...

Key data: 530 mm

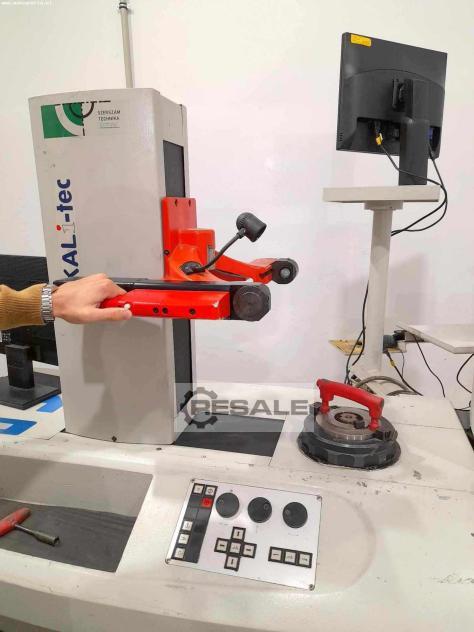

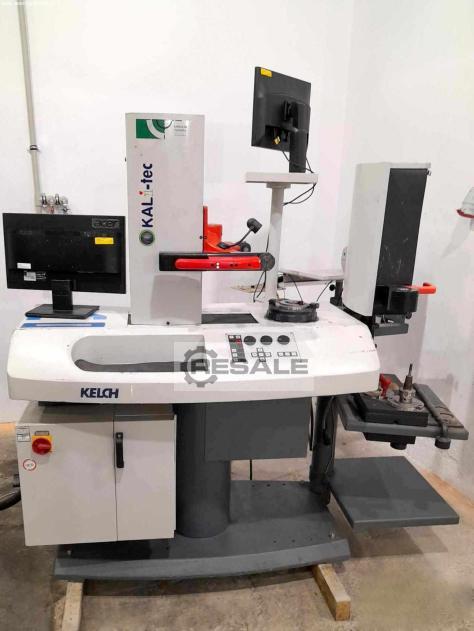

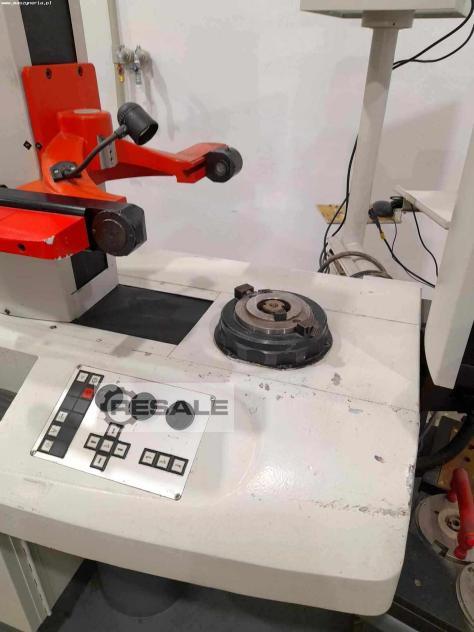

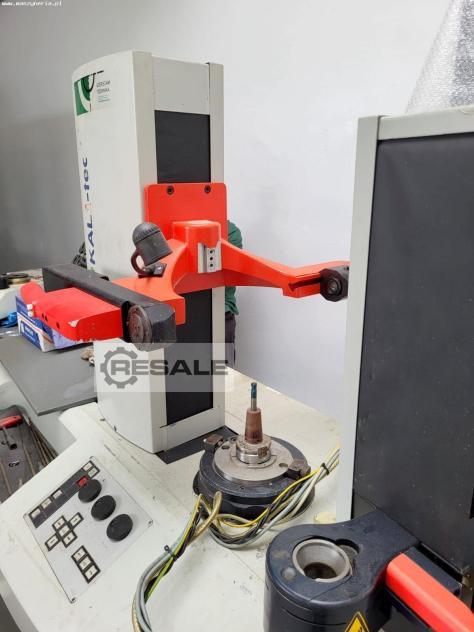

KELCH KALI-tec A tool presetter built in Germany in 2004 is a high-tech device for accurate measuring, presetting and simultaneous tool shrinking. The state-of-the-art KELCH tool presetter with integrated induction coil is offered with equipment that includes e.g. the electronic measuring system with intelligent image processing KELCH EasyVision and the KELCH Easy Webset computer software for tool measurement and inspection. The tool length is determined by the setting adapters before the chuck heating phase. The KALI-tec A tool measuring and presetting machine then automatically sets the tool exactly to the target length during the chuck opening phase by heating, while for more complex measuring tasks or tools made of high-speed steel the KELCH i-tec shrink-fit device shrinks the tool to the target length using intelligent calculations and pre-positioning of the setting pins. Tech ...

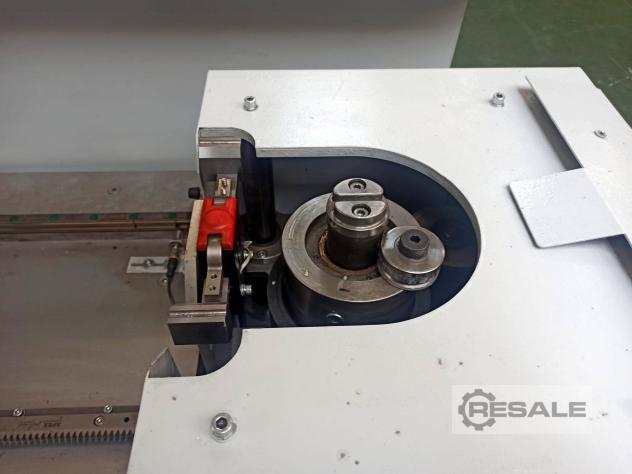

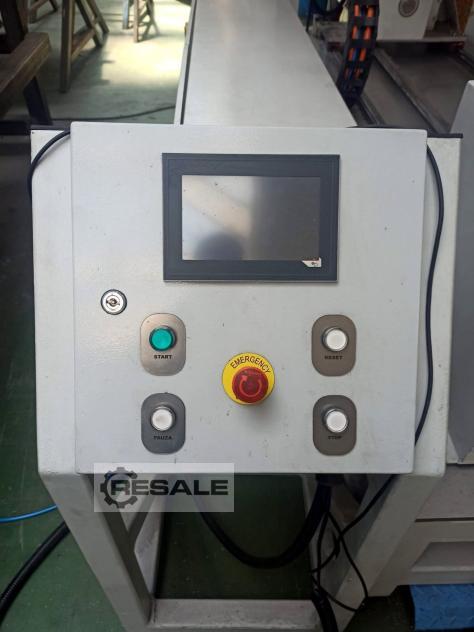

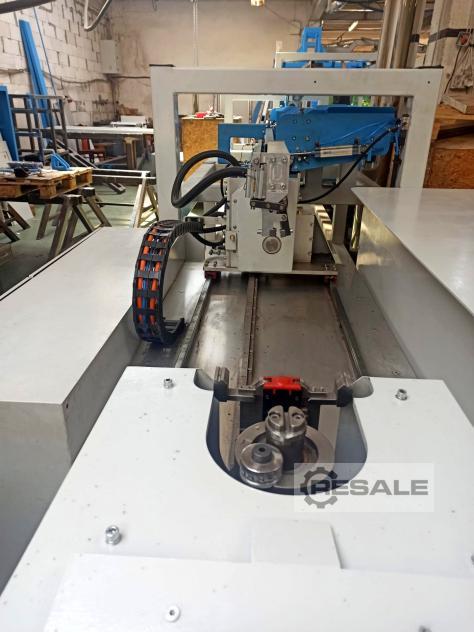

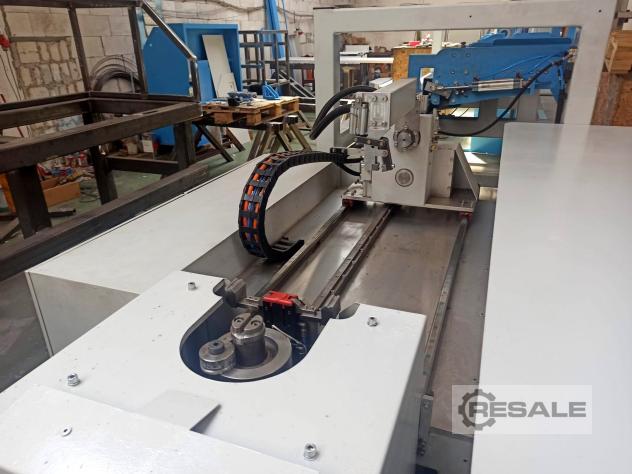

Automatic 3D wire bending machine was manufactured in Poland in 2022. The machine is used to automatically bend cut wire with a diameter of 4 to 8 mm. The structure made of thick-walled steel profiles, together with high-quality components, guarantee high bending precision and reliable operation. The automatic wire bending machine is equipped with a bending head with carriage and grippers and a wire feeding module consisting of a cut wire magazine and a choiceor mechanism. The workpiece taken from the magazine with a capacity of 150 kg, is fed via the wire choiceor mechanism into the feed channel, where it is pushed into the bending head and processed. At the end of the process, the bent wire falls into a receiving hopper or support table. All the capabilities of the wire bending machine are controlled by an installed PLC with an intuitive interface, taking care of the performance  ...

MAX CAPASITY 20 T

DEA GLOBAL S 07.05.05 coordinate measuring machine was manufactured in Italy in 2004. The machine performs fast and highly accurate measurements of workpieces with complex shapes using the contact or non-contact method, represented as a set of coordinate points. The excellent quality and precision of the process is guaranteed thanks to the mounted in the DEA GLOBAL S 07 05 05 CMM machine an indexable RENISHAW PH10MQ measuring head with a RENISHAW SP25M scanning probe, performing measurements in the X,Y,Z axes with feeds of 700 mm (X axis), 500 mm (Y axis) and 500 mm (Z axis). The DEA GLOBAL Status 07.05.05 measuring machine is also equipped with the highly advanced metrology software PC-DMIS 2019 R1, performing detailed geometric measurements. Technical specifications of the DEA GLOBAL S 07.05.05 measuring machine - maximum permissible error of length measurement MPEe: ± 2.3 + 3L/10 ...

Coordinate Measuring Machine Brown&Sharpe Model: Microval 454 PFX YOM: 1996 Measuring range X-axis: 457 mm Measuring range Y-axis: 508 mm Measuring range Z-axis: 406 mm Max table loading: 225 kg Machine dimensions (LHW): 895x885x1575 mm

Producer: HUTA ZYGMUNT, Model: MPM 6300B, Origin: Poland, New in: 1978, Force: 2500 kGm, Stroke of ram: 850 mm, Space between shears: 650 mm, Length of die seat in ram: 650 mm, Length of die seat in cushion: 900 mm, Max. weight of top die: 800 kg, Min. die height: 300 mm, Strokes/min: 100,

DEA SCIROCCO 151310 coordinate measuring machine built in 1997 in Italy, is used to make fast and highly accurate measurements of workpieces with complex shapes. Workpiece measurements are taken using contact or non-contact methods, which are then represented as a set of point coordinates. The dimensions of the measured workpiece are taken using the RENISHAW TP7M measuring probe, which is installed on the RENISHAW PH10MQ indexing head. The measuring probe uses strain gauge technology to eliminate granularity errors and achieve the highest measurement quality in the X,Y,Z axes with feeds of 1500 mm (X axis), 1300 mm (Y axis) and 1000 mm (Z axis). The measuring machine is offered with a wide range of equipment, including an advanced PC-DMIS package for Windows, performing detailed geometric measurements. The total weight of the machine is 3650 kg. Technical data of the DEA SCIROCC ...

Robot 6-axis ABB IRB 2400 Arm range: 1550 mm Control: IRC5 Camera System Evolut Teach pendant Payload: 12 kg

ABB IRB 2400 M2000 robotic machining cell manufactured in 2004 in Switzerland, is equipped with an ABB IRB 2400/16 6-axis industrial robot and an ABB IRC5 controller for the control of the manipulator and peripherals. The machining station has so far been configured and used for milling of allowances after thermoforming workpieces. The high-performance milling robot has an arm with a maximum reach of 1550 mm, capable of handling workpieces weighing up to 16 kg. The industrial robot achieves the best cycle performance thanks to modern technology that automatically optimises parameters and executes the programmed path regardless of speed or operating mode, even after an emergency stop or power failure. The BaseWare OS operating system is used to fully control every aspect of the machine, ensuring the highest machining accuracy is achieved. The robotic milling station is offered with  ...

Painting cell with ABB robot Year of construction: 2016 Robot ABB IRB 1600 Payload: 6 kg Arm area: 1200 mm Control: IRC5 Number of axles: 6 Axis range: J1 +180° – 180° J2 +136° – 63° J3 +55° – 235° J4 +200° – 200° J5 +115° – 115° J6 +400° – 400° Turntable Suction Automatic V5 HVLP paint sprayer DO Combo Diaphragm Pump

End milling machine GRAULE AKF 6/250 Single head saw GRAULE ZS 170N Copy router MECAL FR 811 Corner crimper WEGOMA EV 175

WIWOX MC 110 II ultrasonic cleaning machine, built in Germany in 2004, cleans metal parts from unwanted deposits using ultrasonic waves. The use of such technology allows for fully professional cleaning of workpieces, as well as preventing surface damage and saving time and costs. The ultrasonic cleaning machine allows for cleaning workpieces weighing up to 110 kg, even in the most inaccessible places. The cleaning process takes place in a working chamber with dimensions (L x W x H) of 516 x 360 x 435 mm, where the placed workpiece is cleaned by ultrasonic waves at a temperature of 80°C for approximately 5-15 minutes. The total weight of the device is 280 kg. Specification of WIWOX MC 110 II ultrasonic cleaning machine - dimensions of the working chamber (L x W x H): 516 x 360 x 435 mm - maximum weight of workpiece: 110 kg - ultrasonic power: 1.2 kW - connection power: 6.2 kW  ...

ZOLLER SMILE / PILOT 3.0 presetting and measuring machine was manufactured in 2019 in Germany. The machine is a professional tool measuring and presetting device, whose easy operation and precision guarantee flawless results. A telecentric lens and a CCD camera with integrated LED ring for measurements in reflected light (blade inspection) are used to perform the measurements. ZOLLER SMILE 420 is equipped with the CNC controller ZOLLER »pilot 3.0« and functions such as automatic blade recognition, measurement of radial run-out and axial run-out, maximum contour function and cutting edge control. The tool to be measured can have a maximum length of 420 mm and a maximum diameter of 420 mm. Specifications of the ZOLLER SMILE / PILOT 3.0 presetting and measuring machine - maximum tool length Z: 420 mm - maximum tool diameter D: 420 mm - diameter measurement according to Abbe’s p ...

The FORNI INDUSTRIALI FIBEX COMBI 6GX-10.130-7110.2E.270 brazing furnace was built by the Italian company Forni Industriali Heat Treating Plants in 2007. The furnace is used for soldering steel elements with solder paste at temperatures up to 1120 degrees Celsius. At the entrance and exit of the furnace, two pairs of gas burners (so-called safety pilots) are installed to prevent the escape of the protective atmosphere outside the furnace. Electric heaters powered by thyristor temperature regulators are responsible for the proper temperature in the furnace. The belt furnace has a conveyor speed adjustment in the range from 0 to 500 mm / min, and the working length of the soldering zone is 7100 mm. The furnace for brazing steel elements was modernized in 2021 - the thermal insulation and the cooling module for sections 1 and 2 were replaced. The cost of the modernization was 70,000 Euro.  ...

Tube laser Bodor T230 Laser power: 1 kW Round tubes 20 mm to 230 mm Square tubes 20 x 20 mm to 160 x 160 mm Cutting of welded assemblies Year of construction 2017, but installed and put into operation in 2018

ERMAKSAN LASERMAK 6000 6X2 laser cutter was produced in 2014. Technical parameters: – laser source: 6000 W CO2-laser GE Fanuc C6000i-Model C – RF-excitation: 2 MHz – power stability: ± 2% (power monitor) – laser wave length: 10.6 μM – beam mode: Fanuc Low Order Mode – laser shutter: mechanical safety shutter – laser gas composition: CO2 / He / N2 – gas consumption by laser: 20 l / h – cooling water flow rate: 250 l / min – maximum cutting capacity: mild steel 25 mm (during tests the maximum achieved: 30 mm), stainless steel 15 mm, aluminum 12 mm - machine activation time: 22899 h - working time: 10122 h - cutting time: 8429 h – total energy requirement: 100-120 kW – cutting head focal length: 5 -7” -10 inch – maximum worksheet size: 6150 x 2000 mm – maximum burden capacity: 4000 kg – machine axes: 5 axes [X, Y, Z, U (X2), V] – axis ...

Wire EDM machine SODICK A 600 manufactured in 1997. Technical parameters of the SODICK A 600 EDM machine: - table travel (X axis): 600 mm - table travel (Y axis): 400 mm - Z axis travel: 270 mm - maximum dimensions of the processed part (width x depth x height): 800 x 550 x 260 mm - maximum weight of the workpiece: 900 - auxiliary table travel (U axis x V axis): 70 x 70 mm - wire diameter: 0.1 ~ 0.3 mm - maximum wire speed: 250 mm / sec. - wire tension: 0.2 ~ 2.8 kgf - cutting inclination at an angle: + -15 degrees per 100 mm of thickness - height from the floor to the surface of the working table: 1000 mm - machine tool dimensions (width x depth x height): 2188 x 2645 x 2100 mm - machine tool weight: 3700 kg

IMR Model F.A. 2.5 S Sand Core Shooter, 2.5 litres San Capacity, 10 Sec Dry Cycle Time, 25 kg Sand Hopper Capacity, 100kg Core Box Weight. Size of heating plates: 200x350x60mm Max. size of core box: 400300x200Sp.mm Max. weight of core box: 100kg Max. distance between heating plates: 400mm Max. closing stroke: 300mm

Max. useful capacity [dm3] 170 Max. batch weight [kg] 500 Blast room inside dimensions [mm] : Ø700 x 988 Max. workpiece diagonal [mm] : 350 Max. weight per workpiece [kg] : 23 Number of blast wheels : 1 Power per blast wheel [kW] : 11 Abrasive throughput, max. [kg/min] : 180 Initial abrasive filling [kg] : 180 Air required for dust collection [m3/h] : 1 600 Installed power, approx. [kW] : 12,3 Dimensions, approx. [mm] A : 3 730 x B: 2 070 x C : 1 610 Weight, approx. [kg] : 2 300 Max. carrying capacity of loader [kg] : 500 Power of loader [kW] : 7,5 Weight of loader [kg] : 1 250

More information on request Excellence working condition

Working range: tube Ø 21,3 – 114,3 mm Wall thickness 2,3 - 11 mm Length: 6-12m Composed of two RFA14 chamfering machines with transport devices between the machines. The task of machines is to chamfer inside and outside both ends of the tubes. The range of diameters of chamfered tubes 21.3-114,3mm and wall thickness of 2.3-11mm in the length range of 6-12m. The task of transport in the area of the chamfering machines is to collect the tubes from the roller table and move them between the chamfering machines. Machine is new, never used.
