Powder Coating Equipment used for sale (115)

Powder coating furnace 20 kW – Electric curing furnace for the polymerization of powder coating Precise curing, industrial quality, maximum efficiency Are you looking for a reliable powder coating stove that makes your production processes noticeably more efficient? Our electrically heated powder coating oven was specially developed for the professional polymerization of powder paint and impresses with its robust design, precise temperature control and a well thought-out transport system. With external dimensions of 300 x 100 x 150 cm, this furnace offers sufficient capacity for long and large-format workpieces – ideal for high-throughput operations and demanding manufacturing processes. Whether in metalworking, vehicle construction or industrial production, this furnace ensures consistent, high-quality curing results with every cycle. Advantages at a glance High heating c ...

Powder coating furnace 14 kW – Electric curing furnace for the polymerization of powder coating Precise curing, industrial quality, maximum efficiency Are you looking for a reliable powder coating stove that makes your production processes noticeably more efficient? Our electrically heated powder coating oven was specially developed for the professional polymerization of powder paint and impresses with its robust design, precise temperature control and a well thought-out transport system. With its generous interior of 230 x 100 x 150 cm, this furnace is particularly suitable for longer workpieces and larger batches – ideal for high-throughput operations. Whether in metalworking, vehicle construction or industrial production, this furnace ensures consistent, high-quality curing results with every cycle. Advantages at a glance Powerful heater with 14 kW for fast and even hea ...

Powder coating oven – Electric curing oven for the polymerization of powder coating Precise curing, industrial quality, maximum efficiency Are you looking for a reliable powder coating stove that makes your production processes noticeably more efficient? Our electrically heated powder coating oven was specially developed for the professional polymerization of powder paint and impresses with its robust design, precise temperature control and a well thought-out transport system. Whether in metal processing, vehicle construction or industrial production, this furnace ensures consistent, high-quality baking results with every cycle. Advantages at a glance Powerful 12 kW heater for fast and consistent heat-up times Excellent thermal insulation (200 mm) for minimal energy loss and low operating costs Spacious interior (200 x 100 x 150 cm) for coating even larger workpieces Prec ...

PAINT STRIPPING TANK 2500: Industrial dipping made by RG MASCHINEN – since 2004 Do you need a reliable and durable solution for stripping industrial parts, assemblies or rims? With the PAINT STRIPPING TANK 2500 from RG MASCHINEN, you get a branded product that has proven itself in daily industrial use since 2004. Without compromising on quality and performance: This cymbal is designed for demanding users who value German workmanship, safety and efficiency. High-quality equipment for maximum performance The 2500 paint stripping tank impresses with its well thought-out design and high-quality components – for a smooth and safe working day. Technical data at a glance: Working dimensions (LxWxH): 2500 x 700 x 700 mm Material: High quality stainless steel V2A Capacity: 1225 litres Heating capacity: 2 x 5 kW industrial heating elements (stainless steel sheathed)  ...

PAINT STRIPPING TANK 2000: Your robust partner for flawless surfaces No more inefficient and uneven paint stripping methods! Imagine how you can easily, cleanly and completely remove paints and coatings from rims, metal parts and assemblies in an immersion bath – without the cumbersome handling of a basket. This is exactly where the PAINT STRIPPING TANK 2000 from Royal Gold Industries comes in. This robust industrial immersion tank is the perfect complement to highly effective paint strippers such as our METALSTRIP ROYAL and was developed for tough, daily use. High-quality workmanship that is impressive We believe in long-lasting quality. That's why we rely on thoughtful details and first-class materials for this pool. Made in Germany: German engineering for maximum reliability. Robust material: Made of durable V2A stainless steel that can withstand the aggressive che ...

Paint stripping tank 1250×800×800 mm – Made in Germany Efficient and safe chemical paint stripping for rims, motorcycle parts and industrial components – with our high-quality paint stripping tank made of stainless steel V2A. The tank is extremely resistant to rust and acids and guarantees Germany's proven brand quality. Technical details: Dimensions (L×W×D): 1250 × 800 × 800 mm Material: Stainless steel V2A (rust & acid resistant) Filling volume: 550 litres Heating: 3.9 kW industrial heating elements, digitally adjustable up to 110 °C Weight: 250 kg Safety: CE certified, RCCB, DIN 9001 tested Top Features: ✔ Sturdy construction with height-adjustable feet for a secure stand ✔ Safety cover with gas pressure dampers and baffle for splash-free work ✔ High Quality Stainless Steel Drain Valve (Ball Valve) ✔ Optional: Suction, crane equipment, timer, SMS ...

Paint stripping tank 1200 including basket – The complete solution for perfect rim paint stripping! Professional paint stripping system for workshops and industry Are you looking for an efficient solution for gentle paint stripping of rims? Our paint stripping tank 1200 including basket offers you a complete system for outstanding results – made in Germany! Your advantages with the complete system: ✅ All inclusive Complete set with robust stainless steel basket for easy handling ✅ Extremely powerful 7 kW industrial heating rods for fast heat-up times and optimal results ✅ Perfect temperature control Digital control (0-110 °C) with safety limiter ✅ Maximum durability High-quality stainless steel V2A for long service life Technical data Dimensions: 1200 x 700 x 700 mm Material: Stainless steel V2A Capacity: 550 litres Weight: 250 kg Heatin ...

Paint Stripping Tanks 1200 – Chemical paint stripping tanks directly from the manufacturer with price guarantee! Professional paint stripping solution for workshops and industry Are you looking for a reliable paint stripping tank for rims, components or profiles? Our paint stripping tank 1200 combines German processing quality with innovative technology – for outstanding results in chemical paint stripping. This is what distinguishes our paint stripping tank: ✅ Spacious work surface 1200 x 700 x 700 mm for flexible applications ✅ High-quality materials Stainless steel V2A for maximum resistance and longevity ✅ Powerful heating technology 3.9 kW industrial heating rods for fast heat-up times ✅ Modern control Digital temperature control (0-110 °C) with safety limiter Technical data at a glance Working dimensions: 1200 x 700 x 700 mm Material: Stain ...

Paint Stripping Tank 1000 for Rims – Chemical Paint Stripping with Professional Quality Directly from the manufacturer – our 1000 paint stripping tank is the perfect solution for efficient and safe rim paint stripping. Manufactured in robust stainless steel V2A quality, it meets the highest industrial requirements and offers maximum durability and chemical resistance. Product details: Dimensions (L×W×H): 1000 × 700 × 700 mm Material: Stainless steel V2A, rust & acid resistant Filling volume: 550 litres Weight: 250 kg Power: 3.9 kW Industrial Heating Elements Temperature control: Digitally controlled with temperature limiter (0 – 110 °C) Control cabinet: Permanently installed or wall-mountable Safety: CE certified, DIN 9001, RCD protection Features: ✔ High-quality electronics for precise control ✔ Robust hinges and dampers for easy opening and secure clo ...

Powder booth with 3 filter system and 3 fans Professional powder coating booth from Royal Gold Industries The powder coating booth with 3-filter system from Royal Gold Industries is a powerful solution for the professional powder coating of larger workpieces and components. With a usable width of 2,000 mm, it offers a generous working area and is suitable for paint shops, metal processing plants, industrial companies and professional coating workshops. The filter system with three filters and three fans is designed to extract the powder overspray produced during coating. The filters capture excess coating powder and help to reduce the stress on the work area. The manual pneumatic filter cleaning facilitates regular cleaning of the filters and supports the reliable operation of the system. Integrated LED lighting ensures good visibility during coating. The conventional contr ...

Powder booth with 3 filter system and 3 fans Professional powder coating booth from Royal Gold Industries The powder coating booth with 3-filter system from Royal Gold Industries is a powerful solution for the professional powder coating of larger workpieces and components. With a usable width of 2,000 mm, it offers a generous working area and is suitable for paint shops, metal processing plants, industrial companies and professional coating workshops. The filter system with three filters and three fans is designed to extract the powder overspray produced during coating. The filters capture excess coating powder and help to reduce the stress on the work area. The manual pneumatic filter cleaning facilitates regular cleaning of the filters and supports the reliable operation of the system. Integrated LED lighting ensures good visibility during coating. The conventional control syste ...

# Powder booth with 2 filter system and 2 fans Professional powder coating booth from Royal Gold Industries The Powder Coating Booth with 2 Filter System from Royal Gold Industries offers a practical solution for professional powder coating of larger workpieces. With its generous usable dimensions of 1,900 × 1,500 × 600 mm, it is suitable for paint shops, metal processing plants, workshops and industrial production areas. The filter system with two filters and two fans supports the reliable extraction of the powder overspray produced during coating. This captures excess coating powder and reduces the load on the work area. The manual pneumatic filter cleaning facilitates regular cleaning of the filters. An integrated LED light ensures good visibility during coating. Thanks to the conventional control system, the system is simple and uncomplicated to operate. At a gl ...

# Powder booth with 1 filtration system and 1 fan Compact powder coating booth from Royal Gold Industries The Powder Coating Booth with 1 Filter System from Royal Gold Industries is a compact and practical solution for professional powder coating of small and medium-sized workpieces. Thanks to its space-saving design, it is particularly suitable for workshops, metal processing plants, paint shops and industrial applications with limited space. A powerful fan extracts the powder overspray produced during coating and feeds it to the filter system. This reduces the load on the work area caused by excess coating powder. The manual pneumatic filter cleaning makes it easier to clean the filter and helps maintain the extraction performance. An integrated LED light ensures a good view of the workpiece during the coating process. The conventional control system enables simple and u ...

# Continuous powder furnace with doors on both sides and 3 transport rails The continuous powder furnace from Royal Gold Industries was developed for professional powder coating and thermal treatment of large workpieces. With its generous internal dimensions of 4000 × 2000 × 2000 mm, it offers a chamber volume of 16 m³ and is suitable for large components, long workpieces and the simultaneous machining of several parts. The well thought-out flow concept with doors on both sides enables efficient loading and unloading. The 3 integrated transport rails support the structured guidance of the workpieces through the furnace and facilitate integration into industrial production processes. With a heating capacity of 60 kW and a circulating air system for the even distribution of hot air, the furnace is designed for professional use in industrial powder coating. The electronic temp ...

# Continuous powder furnace with doors on both sides and 3 transport rails The continuous powder furnace from Royal Gold Industries has been developed for the efficient and uniform thermal treatment of workpieces and powder coating curing. With its generous internal dimensions of 4000 × 1500 × 2000 mm, it offers enough space for long workpieces, larger components and the simultaneous machining of several parts. Thanks to the flow concept with doors on both sides, workpieces can be conveniently fed and removed again on the opposite side. The integrated 3 transport rails enable the workpieces to be guided through the furnace in a structured manner and support an efficient workflow. The recirculation system ensures an even distribution of hot air in the interior. With a heating capacity of 45 kW, the furnace is suitable for professional use in industrial powder coating. At a g ...

Convection chamber furnace with large interior: 3000 × 1200 × 1800 mm The convection chamber furnace from Royal Gold Industries offers a furnace chamber with a volume of 6.48 m³. It is suitable for very long and large workpieces and for many parts at the same time. The multi-point hot air circulation system distributes the heat evenly throughout the chamber. The electronic temperature control and easy operation ensure fast response times. The doors are located on one side of the unit, making it easy to load and unload the chamber. At a glance: Type: Convection Oven with Convection Air Circulation Internal dimensions (L × W × H): 3000 × 1200 × 1800 mm Chamber volume: 6.48 m³ Heating capacity: 27 kW Power supply: 380 V / ___ A Insulation: 150 mm thermal insulation Control: conventional Doors: on one side Scope of delivery: 1 oven in the described configuration S ...

Convection chamber furnace with large interior: 2000 × 1200 × 1800 mm The convection chamber furnace from Royal Gold Industries offers a furnace chamber with a volume of 4.32 m³. It is suitable for long and large workpieces and for several parts at the same time. The multi-point hot air circulation system distributes heat evenly throughout the chamber. The electronic temperature control and easy operation ensure fast response times. The doors are located on one side of the unit, making it convenient to load and unload the chamber. At a glance: Type: Convection Oven with Convection Air Circulation Internal dimensions (L × W × H): 2000 × 1200 × 1800 mm Chamber volume: 4.32 m³ Heating capacity: 18 kW Power supply: 380 V / ___ A Insulation: 150 mm thermal insulation Control: conventional Doors: on one side Scope of delivery: 1 oven in the described configuration S ...

Powder Coating Booth with Filter Trolley & Fluid Bottom For sale is a professional, industrial powder coating system from the traditional manufacturer Gema Volstatic. It is the proven MRS system (Multirecover System), which ensures highly efficient powder recovery (overspray extraction) and clean work in the workshop. The system is extremely robustly built and is ideal for manual operation (hand coating) thanks to the generous hand coating opening. Technical data & connected loads: • Manufacturer: Gema Volstatic AG • System / Type: MRS Cabin with Filter Trolley and Fluid Bottom • Electrical connection: Voltage 3 x 380 V / 50 Hz (standard three-phase current) • Compressed air connection (inlet pressure): min. 6 bar / max. 10 bar (recommended pressure: 7 bar) • Compressed air quality: water vapour content max. 1.3 g/m³, oil content max. 0.1 ppm • Comp ...

Powder coating booth with multicyclone and post-filter For sale is a professional complete industrial system for powder coating: A Gema Volstatic powder coating booth of the type MRS (multi-cyclone recovery system with post-filter). The system stands for the highest Swiss quality, extreme robustness and maximum efficiency in powder recovery. Thanks to its generous dimensions, it offers plenty of space for long and bulky workpieces. It is ideal for industrial companies, powder coaters or workshops looking for a high-performance and reliable system. Technical data • Manufacturer: Gema Volstatic • Type: MRS (multicyclone and post-filter system) • Electrical connection: 3 x 380 V / 50 Hz • Equipment: Cab substructure with inlet, hand coating opening and gun driving slots. • Recovery: Highly efficient multi-cyclone with cleaning flap and powder collection ...

Electric convection oven SL 15kW,Passage oven, indoor BHL: 1300x2000x1300 Floor Rails, 7" Color Touch Screen, MTS System, Wall thickness from 240mm to 300mm, circulating fan 1.1kw; Ventilation flap electric with separate fan f. Ventilation electric.

AEROTERM UV coating line was built in 2015 in the Czech Republic by AEROTERM a.s. The line was only used once for testing and is like new. The line is used for the automatic UV coating of flat components made of wood or metal. The process is performed continuously, without the need for manual handling of the workpieces. Transport between the individual stages is performed using a conveyor system. The system consists of: – loading conveyor belt – BSA 900uvkpa automatic spraying machine – ULTRATERM UV770/240two-kpa UV dryer – control system – coating application system UV coating is carried out in the AEROTERM BSA 900uvkpa automatic spraying machine. The unit is equipped with two spray arms, each with two spray guns. The spray guns are designed for applying solvent-free, non-flammable UV varnishes and paints. Their position can be adjusted according to the dimension ...

• Dimensions of the painting window 1400 width x 1200 mm height • External dimensions 2050 width x 2400 height x 1620 mm length • Filter cleaning system Automatic romer Jet • The type of sheet used: Black steel painted with insulating paint • Max. paint cost 500g/min • Light power 0 watts Electrical/pneumatic data • Type of electrical installation 380-420V 50-60Hz (3P N + PE) • Electrical connection 2.2kW • Pneumatic connection (cabin) quick connector / PUPE10x8 • Air consumption (cleaning) ~300Nl/min • Required air quality – oil below 0.1 mg/Nm3 • Required air quality – water vapor below 1.3g/nm3 Controls • Computer control – 4-inch touch panel • Real-time clock with date • 3 operating modes • Automatic – Filter Clogging Sensor, Automatic – Timer, Manual • Automatic filter cleaning • Settings for distance between fi ...

GIARDINA GROUP automatic powder coating line was built in 2018 in Italy by Giardina Finishing S.r.l. The line is characterised by a low level of wear, with a total operating time of approximately 6 months. During this period, it was used for coating panels intended for sectional doors. The GIARDINA GROUP powder coating line was designed for the comprehensive powder coating of flat metal components with maximum dimensions of 6000 x 1300 mm. The entire process is performed continuously, without the need for manual handling of the components. Transportation of parts between the individual stages is performed using a conveyor system. The system consists of: – BR-6000 loading roller conveyor – Dualtech 416 SB Dry automatic spraying machine – electronic control system with a PLC controller and touch screen – GPM/5 multi-level horizontal powder coating curing oven with hot air ...

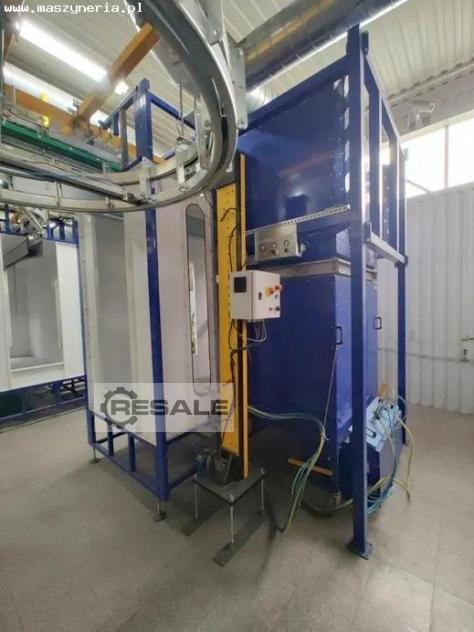

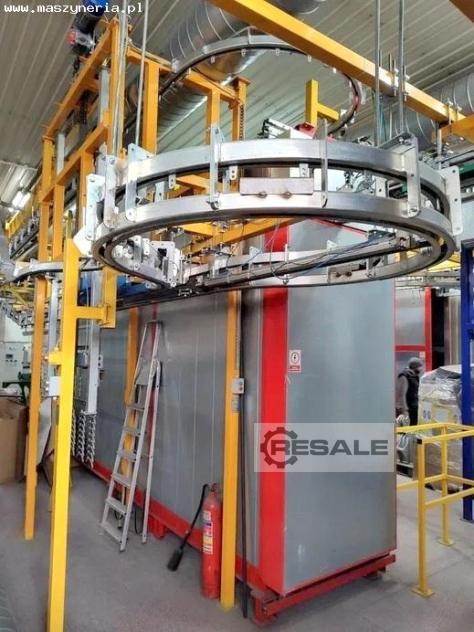

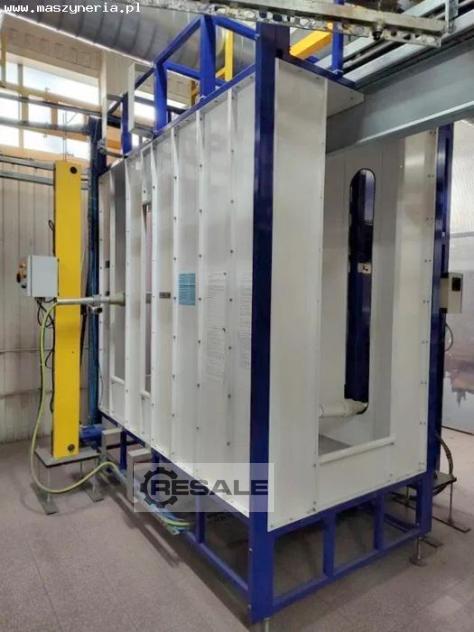

Automatic powder coating line was built in 2018. After a test launch, it has never been used. The powder coating line is designed for the automatic powder coating of metal components with a maximum length of 1500 mm and a width of 380 mm. It enables the performance of the entire technological process, from surface preparation, through the application of powder coating, to the final curing of the coating. The preparation of workpieces for coating takes place in a three-zone chemical section with immersion tanks. There, the elements are cleaned prior to the application of the coating. The process uses demineralised water, which ensures proper surface preparation and enhances coating adhesion and durability. Transportation of parts between successive stages is performed using a Power Free overhead conveyor system with height adjustment. Powder coating takes place in KC-08 spray boo ...

Professional powder coating booth / powder extraction system with filter wall & control system Description: Sell a compact, robust powder coating booth for manual workstations (e.g. for rims, small parts or locksmith work). Type: Open coating booth made of sturdy sheet steel with working opening. Dimensions working opening: approx. 110 cm width × approx. 128 cm height (working depth sufficient for common components). Equipment: Integrated filter wall / extraction in the background Bottom drip pan / pull-out drawer for excess powder (over-spray) Surface-mounted control cabinet / control system on the side wall Hanging option / workpiece holder at the top Condition: Used, solid mechanical condition with usual signs of wear.

Sell a used, mobile powder coating machine from GEMA (Switzerland) on a sturdy trolley. Control unit: GEMA Powder Gun Control Type PGC 1 Cup / powder gun: GEMA Type PG 1 / PG 1-A incl. hose package Accessories: trolley with undercarriage, compressed air / pneumatic connections, extension tube/nozzle attachment Power supply: 100-240 V (50/60 Hz) Condition: Used with optical signs of age and use (see pictures).

Pistol Control Modules: The many stacked bays on the right are ITW Gema PGC 3 control units. Each module regulates the high voltage (kV) and compressed air supply for a single automatic powder gun. The cabinet thus controls the entire automatic coating process – from powder conveying to gun settings

Pistol Control Modules: The many stacked bays on the right are ITW Gema PGC 3 control units. Each module regulates the high voltage (kV) and compressed air supply for a single automatic powder gun. Central control: On the left are the Micro Panel GF1-10 display as well as control units for axis and lifting device movement (A-Z, A-X, B-X) and conveyor belt control. Safety & add-on parts: The OLAER control cabinet cooling unit (for cooling the electronics) and a PAGG fire alarm and extinguishing control panel are also installed on the sides. The cabinet thus controls the entire automatic coating process – from powder conveying and gun settings to hoist and safety control.

Various spare parts for GEMA system

For sale is a professional, mobile powder extraction system / spray booth of the SFB brand. The system is ideal for manual powder coating or dust extraction in the workshop and industrial sector. Details & Equipment: Manufacturer: SFB Oberflächentechnik Design: Stainless steel work stand on mobile base (swivel castors) Filtering: Efficient cartridge filter extraction Cleaning: Pneumatic impulse cleaning (compressed air cleaning via switch/control) Safety: EX-proof design (ATEX marking on the control cabinet) Control: Integrated control cabinet (main switch, lighting, cab ON/OFF, cleaning) Working area: Large opening with stainless steel side walls for easy handling of the components Condition: Used condition from business liquidation / production (see original pictures).

Professional Grade Powder Device with Vibration Table Analog control, like new and 12 filters for powder booth in high industrial quality (extra price) Measuring instrument, unused, with full warranty, fully assembled Pick-up requested near Freiburg (D), shipping 150 Eur Scope of delivery Injector up to 300gr/min Control Unit Pro Analog Powder spray gun C2 (without remote control buttons) All cables and hoses Trolley and Vibrating Table Description Universal, processes almost all powder coatings and part structures Powder Coating Equipment 510 gram hand pistpole, flat spray nozzle Most important components from Switzerland Efficient and precise User-friendly rotary switch Car. Regulation of the charging voltage (mA) Fair prices on wear parts

POWDER ENAMEL COATING EQUIPMENT HIGH ENAMELING COVERAGE MANUAL OR AUTOMATIC MADE IN TÜRKİYE COST EFFECTIVE, GOOD QUALITY AND LONG LIFE TECHNICAL SPECIFICATIONS Gun Type : Corona System Polarization : Negative Cascade input voltage: 0-10,5V DC Output voltage : 100 kV Output current : 0 -150 μA Protection class : IP 54 Operating temperature :-20-50 ° C Nozzle : Ø16-20-24mm deflectör + Nozzle

Rail system for workpieces up to (as desired) 4m long and weighing 100kg Complete delivery, since 2010 in the DACH region Next reference page near you see PDF with all the details, see video Powder furnace, extraction stand for coating on both sides, can be upgraded with automatic coating equipment, be it Gema or Wagner Pow C EQ = Powder Coating Equipment We will respond to your inquiry immediately

Rail system for workpieces up to (as desired) 4m long and weighing 100kg Complete delivery, since 2010 in the DACH region Next reference page near you see PDF with all the details, see video Powder furnace, extraction stand for coating on both sides, can be upgraded with automatic coating equipment, be it Gema or Wagner Pow C EQ = Powder Coating Equipment We will respond to your inquiry immediately

For the automatic powder plant, conveys powder coating up to 20m in an even and 8kg quantity PDF with all details available, see also powceq com

Complete professional powder coating plant in excellent condition, available from today. 00000 00000 00000 Turnkey delivery, we take care of all the work Control units from Gema We will respond to your inquiry immediately with all the details. Smooth processing, since 2010 With plastic booths, powder center, pump delivery, automatic guns, visual controls from Siemens Simatec 3D scanners, according to the latest technology... and of course pre-treatment with nano-coating Drive only e.g. 2 hours and look at a reference plant, one of many in the DACH region (since 2010) Contact us now, it's worth asking See PDF for all details powceq com (project page) , see also video here

The curing furnace consists of a tunnel furnace in which the workpieces are baked after coating. The furnace is a straight tunnel furnace. The frame is made of steel with insulated panels. The mineral wool insulation becomes 150 mm thick in a special construction to prevent thermal bridges 1 Inner dimension length 7,000 mm Inner dimensions width 1,000 mm Inner dimensions height 2,500 mm 2 Outer dimensions incl. thermoblock, length 7,200 mm Outer dimensions incl. thermoblock, width 1,300/2,300 mm External dimensions incl. thermoblock, height 2,800 mm 3 substructure 1 set of steel profiles 80 x 80 and 40 x 80 mm 4 walls 1 set of double-sided galvanized sheets 1mm, outside RAL 5010 5 Insulation 1 set of rock wool 150mm 75 Kg/m³ 6 Ventilation system 1 set of galvanized steel sheet 7 Temperature max. 220°C 8 fans 1 pc. 7,500 m³/h 9 electric motors 1 pc  ...

Chemical pre-treatment for powder coating (3 zones) 1 Dimensions of the cabin length 3900 mm Width 1600 mm Height 2500 mm 2 dimensions of the pre-treatment complete length 4000 mm Width 3000 mm Height 4000 mm 3 Passage opening width 1000 mm Height 1700 mm The chemical pretreatment for the use of nanotechnology or phosphating consists of 3 stages in 1 spray chamber. Chemical spray pretreatment works in time and this means that the workpieces are manually pushed into the chamber. After closing the doors, the passage starts and the pumps start spraying. Each pump has different spray times. After the spraying process is finished, there is an alar ...

Chemical pre-treatment 3 zones for powder coating with spray ring (automatic) and manual Dimensions: Length: 8000 mm Width: 4500 mm Height: 3500 mm Max. workpiece dimensions (automatic): Length: 6500 mm Width: 1000 mm Height: 2300 mm Max. workpiece dimensions (manual): Length: 6500 mm Width: 2500 mm Height: 2300 mm Tanks are positioned at ground level with a sloping floor. Tank No.1 is thermally insulated and is heated by electric heaters. Achievement: 27 kW. Volume of each tank = 1.00 m³. For degreasing (1st tank), a medium pressu ...

Dimensions: Length: 8000 mm Width: 4500 mm Height: 3500 mm Extraction capacity: Q = 18000 m³ P = 15 kW The cab has 2 doors on one side for the insertion/outlet of the workpieces. The components are pushed into the cabin for coating via the overhead transport system. Walls, ceiling and doors are made of panels. The filters positioned on the roof absorb dust and other particles from the outside, thus ensuring clean ambient air in the cabin. The overspray during powdering in the cabin is absorbed by the extraction unit

Dimensions: Length: 7400 mm Width: 4000 mm Height: 3236 mm Extraction capacity: Q = 18000 m³/h P = 15 kW The cabin has a suction machine with filters to suck the powder from the cabin floor. The powder booth is set up in a pit to lower the entire height of the painting line. Manual doors are installed to enter the workpieces into the cabin. The overspray is extracted during powder coating via the floor. On the floor there is a grate for walking on and under the grate there is a second flat floor with automatic self-cleaning system, connected by air ducts with post-filter. A self-cleaning system automatically blows the powder from the bottom to the post-filter (suction machine) and consists of

Open Powder Spray Stand Dimensions: 2500 x 2250 x 2700 [mm] Extraction capacity: Q = 8000 m³/h P = 5.5 kW Filter: 1 stage: Filter cartridges 4 pieces à Ø 325 x 1000 [mm] 2nd stage: Pocket filter (absolute filter for fine dust) Note: The overspray during powdering is absorbed by the suction unit. The powder spray stand is delivered on rollers and is therefore mobile

Oven, doors single-sided, electric Dimensions: 3,000 x 1,700 x 2,000 [mm] (alternatively width 1900mm instead of 1700mm) Insulation: 150 mm (mineral wool 75 kg/m³) Temperature: max. 220°C Circulating air: Q = 7500 m³/h P = 3 kW Heat output: 46 kW Auxiliary heating: electrically indirect via thermoblock

Oven, doors single-sided, electric Dimensions: 3,000 x 1,700 x 2,000 [mm] (alternatively width 1900mm instead of 1700mm) Insulation: 150 mm (mineral wool 75 kg/m³) Temperature: max. 220°C Circulating air: Q = 7500 m³/h P = 3 kW Heat output: 46 kW Auxiliary heating: electrically indirect via thermoblock

Oven, doors single-sided, gas Dimensions: 4,500 x 1,700 x 2,000 [mm] (alternatively width 1900mm instead of 1700mm) Insulation: 150 mm (mineral wool 75 kg/m³) Temperature: max. 220°C Recirculating air: Q = 12000 m³/h P = 2 x 2.2 kW Heat output: 69 kW Auxiliary heating: Gas indirectly via thermoblock

Oven, doors single-sided, electric Dimensions: 3,500 x 1,700 x 2,000 [mm] (alternatively width 1900mm instead of 1700mm) Insulation: 150 mm (mineral wool 75 kg/m³) Temperature: max. 220°C Circulating air: Q = 7500 m³/h P = 3 kW Heat output: 54 kW Auxiliary heating: electrically indirect via thermoblock

COMPONENTS OF THE SYSTEM Preheating oven Powder coating booth Fluidized Bed Powder Coating Lifting system Automatic Transport System – Conveyor Belt C-80 Electrical control and installation Transport and assembly Fluidized Bed Powder Coating Booth The powder is fluidized in the fluidized bed vessel when the part is preheated and positioned over the fluidized bed container. The lifting system lifts the fluidized bed tank and the part is coated. After the coating process is completed, the fluidized bed is lowered again and an air blowing system blows off the excess powder on the part. The process can be carried out fully automatically. The cab's system is designed for powder coating with powder recovery and consists of a powder chamber for powder application, a monocyclone and a post-filter for extracting powder residues Chamber dimensions Length: 2000 mm Width 1 ...

Powder coating plant (complete) with 3 zones of chemical pre-treatment and Hybird ovens (dryer and curing oven) Gas and electricity (gas or electricity also possible) The facility consists of: Chemical pre-treatment with reverse osmosis system Dryer with hybrid thermoblock Walk-in coating booth with extraction unit KG PSW 8000 Powder curing furnace with hybrid thermoblock Conveyor system with transverse displacement, manual Electric control unit Specification of production Type of workpieces varies Material of the workpieces Steel (other metals or multimetal possible on request) Maximum weight of the load carrier 200 kg System type: Manual conveyor Dimensions of the maximum workpiece in the curing furnace Max. length 3000 mm Max. width 1500 mm Max. height 1500 mm Dimensions of maximum workpiece in chemical pretreatment Max. length 3000 mm Max. width 800  ...

Powder curing furnaces in various sizes, gas or electric 1 Inner dimension length 1500 - 6,500 [mm] 2 Inner dimensions width 1700 - 1,900 [mm] 3 Inner dimensions height 2,000 [mm] 4 Steel profile substructure 5 walls Galvanized sheets 1mm on both sides, RAL on the outside 6 Insulation walls, ceiling rock wool 150mm 75Kg/m² 7 Floor furnace gets 2 entry rails for tray trolleys (optionally with conveyor technology) 8 Temperature 220°C 9 fans 1 - 2 pcs. 2600 - 15,000 [m³/h] 10 electric motors 1 - 2 pcs 1.1 - 6 [kW] , 1450 [rpm], 3 F, 50 [Hz] 11 Thermal power 14 - 99 [kW] 12 hinged or sliding doors on one or both sides 2 - 4 pcs insulated with rock wool 150mm 75Kg/m² Heating Indirectly via Thermoblock 13 Thermoblock Stainless Steel INOX AISI 316 Heating Electric or Gas Heat-Resistant Fans and Heat-Resistant Bearings, Thermoblock Has Overheating Protection

The continuous system consists of the following components: Chemical pre-treatment by spraying Dryer Powder coating system Powder curing furnace Conveyor technology (cycle method) Electrical control Overall length: 30,000 mm Overall depth: 4,300 mm Width: 6,500 mm Workpiece weight (max.): 100 kg Temperature: 220 °C Heat output: 80,000 W Workpiece width (max.): 800 mm Workpiece height (max.): 1,200 mm Workpiece length (max.): 2,500 mm Insulating material: Mineral wool 75 kg/m³ Insulating thickness: 150 mm
