CNC Turning Machines used for sale (513)

The Okuma MA series is a horizontal machining center with long travel distances for heavy-duty machining. The travels X/Y/X 1000/900/1000 mm. This machine is designed for very high precision and, above all, stability when machining large workpieces. The pallet size is 630 x 630 mm -OSP P200M -BJ 2008 -Cuttng Time 17,500 h -Renishaw Tool Eye -ATC 150 SK50 -2 pallet system -Spindle speed 6000 RPM -B-axis NCB 0.001 degrees -X/Y/Z 1000/900/1000 mm -Mayfran Consept coolant system with chip conveyor & high pressure pump 60 bar In addition, we will be happy to provide you with the all-round carefree package, a tour of our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as a briefing and the subsequent service. We operate Okuma CNC service throughout Europe both electronically and mechanically and on top of  ...

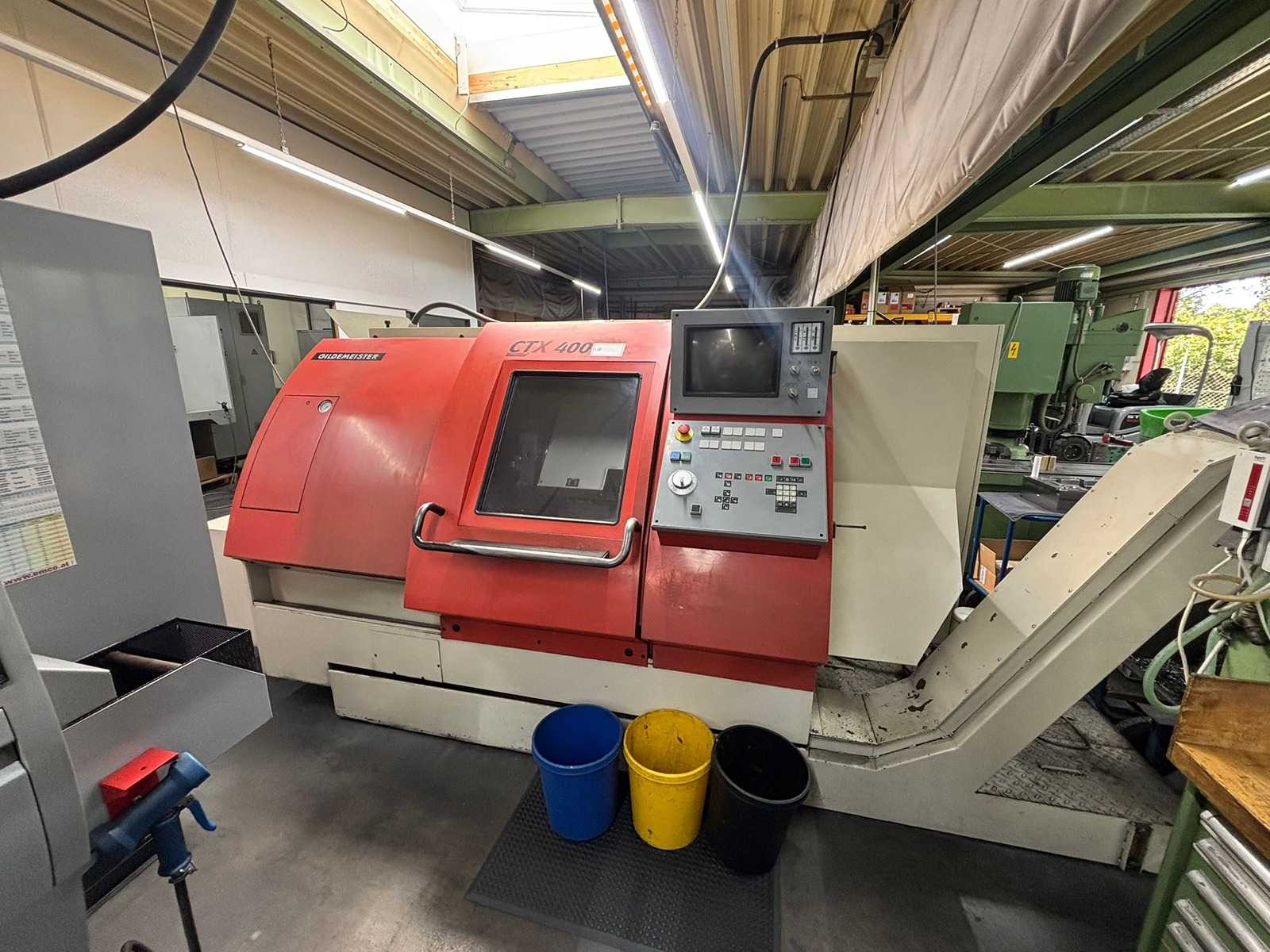

Technical data Manufacturer: GUILD MASTER Model: CTX 400 Machine Type: CNC Lathe Control: Gildemeister CNC / ElektroPilot Operating hours: approx. 18,462 h Max. turning diameter: 400 mm (Source: online) Max. turning length: 640 mm (Source: online) Circumferential diameter over bed: 500 mm (Source: online) Spindle bore: 72 mm (Source: online) Speed range: 25 - 5,000 rpm (Source: online) X-travel: 212 mm (Source: online) Z-travel: 640 mm (Source: online) Tool turret: 12-speed (Source: online) Tool holder: VDI 30 (Source: online) Machine weight: approx. 5.1 - 5.5 t (Source: online) Configuration 3-jaw chuck Berg KH200 12-speed tool turret Powered tools available Tool turret prepared for powered tool holders Chip conveyor available Coolant equipment available Closed work area cladding CNC controller with screen Note No original technical documentation available. The technical data was r ...

CNC lathe Okuma LB 4000 EX II – M C750 Control: OSP-P300LA Year of Make: 2017 Turning length: 750 mm Turning diameter: 430 mm Swivel diameter over bed: Ø 670 mm Swivel diameter over slide: Ø 480 mm Speed: 42 – 4,200 rpm Tool turret: V12 (all places driven) Equipment: - Chip conveyors - Touchsetter - 3-jaw chuck - Tailstock

: neu : ca. 6 Monate ab Auftragse : Taiwan : 87350 €: 1650.92 €: 540 mm: 1500 mm: 85 mm: 310 mm: 350 mm: D1-8 : 1/20 MK: 3 : 27 - 2250 1/min: 5000 mm/min: 8000 mm/min: 280 mm: 75 mm: 5 MK: 190 mm: 9 / 13,5 (S1 / S6 40%) kW: 0.02 mm: 0.016 mm: ISO3655 : 3340 mm: 1905 mm: 2235 mm: 3400 kgTHREE OPERATING MODES: CNC / TEACH-IN / MANUALSiemens 828D CNC control• 12-inch colour screen• Linear interpolation• Circular interpolation• Helical interpolation• Skip function• Workpiece coordinate system• Coordinate system rotation• Rigid tapping• Mirror image, scaling and rotation• Turning cycle• ShopTurn softwareLarge spindle bore, with precision bearings for high accuracy and consistent cutting stability.Precision ball screw Ø 40 mm (Class C5) on the Z-axis and ball screw Ø 25 mm (Class C3) on the X-axis.2-axis AC servo motors50-300 mm roller-type tailstock.Manual tailstoc ...

Control Fanuc ... 0i - TD Turning diameter ... 500mm Turning length ... 1090mm Inclined bed Spindle bore ... 86mm Number of tools (driven tools) ... 12/12 Axis X ... 300mm Axis Z ... 1200mm Spindle speed ... 10-3500 rpm Axis C ... 0,001° Main engine power ... 15/18.5kW Machine weight ... 6000kg L x W x H ... 4483x1800x1830mm

: neu : ca. 6 Monate ab Auftragse : Taiwan : 77850 €: 1471.37 €: 460 mm: 1000 mm: 56 mm: 230 mm: 350 mm: D1-6 : 1/20 MK: 3 : 33 - 3100 1/min: 5000 mm/min: 8000 mm/min: 280 mm: 75 mm: 5 MK: 190 mm: 9 / 13,5 (S1 / S6-40%) kW: 0.02 mm: 0.01 mm: ISO3655 : 2840 mm: 1905 mm: 2235 mm: 2900 kgTHREE OPERATING MODES: CNC / TEACH-IN / MANUALSiemens 828D CNC control• 12-inch colour screen• Linear interpolation• Circular interpolation• Helical interpolation• Skip function• Workpiece coordinate system• Coordinate system rotation• Rigid tapping• Mirror image, scaling and rotation• Turning cycle• ShopTurn softwareWith precision bearings ensuring spindle runout of less than 0.005 mm,for high accuracy and consistent cutting stability.Precision ball screw Ø 40 mm (class C5) on the Z-axis and ball screw Ø 25 mm (class C3) on the X-axis.2-axis AC servo motors20-160 mm roller-type  ...

The machine is in good technical condition, testing is possible after prior agreement. The machine was installed in 07/2023 and was used very little. The machine was switched on for 3900 hours, of which 540 hours the spindle was running. Swing diameter over bed mm 750 MACHINE SPECIFICATIONS STYLE 750 Machine STYLE 750 Swing diameter over bed mm 750 Swing diameter over slide mm 530 Distance between centers mm 4000 Bed width mm 450 Maximum load between centers kg 1800 Maximum load in combination with fixed steady rest (type U) kg 2500 Main spindle Main motor power (S6) kW 26 Maximum spindle speed (number of gears) rpm 2000 (3) Spindle bore mm Ø105 Spindle taper A2-11 X and Z axis X axis ball screw Ø mm 32 Z axis ball screw Ø mm 50 Rapid traverse m/min 8. Feed range mm/min 0.01-2000 Tailstock Ø quill mm 125 Quill stroke mm 225 Quill taper MT 6 General Weight kg 8150 Machine color Frame  ...

turning diameter: 40 mmturning length: 50 mmcontrol: Fanuc 0i-TD Spindle Speed: 8000 U/min.travel -x axis: 180 mmtravel -z axis: 200 mmrapid power traverse in X-and Z direction: 15 m/minweight of the machine ca.: 1500 kgdimensions of the machine ca.: 1500x700x1600 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

EMCO Hyperturn 45 - CNC lathe - Main spindle equipped with full-clamping cylinder (operation with bar feeder not possible or loading and unloading via automatic. Swivel loader, see video) - Year of construction 2011 Technical data Working Range: - Maximum circumferential diameter over bed: 430 mm - Circumferential diameter over face slide: 300 mm - Maximum turning diameter: 300 mm - Maximum part length: 480 mm - Maximum bar passage: 45 mm - Distance main spindle - counter spindle (spindle lugs): 720 mm Carriage travel range: - Carriage travel X / X2: 160 / 150 mm - Carriage travel Z / Z2 / Z3: 510 / 510 / 510 mm Main spindle (spindle 1): - Spindle connection - DIN 55026: KK 5 - Spindle bore: 53 mm - Spindle bearing (inner diameter): 85 mm - Maximum mass inertia for clamping device and workpiece: 0.08 kgm² Main spindle clamping system: - Hollow clamping cylinder ...

turning diameter: max. 246 mmturning length: 600 mmcontrol: 840 D Powerline Siemensgreates pass round over bed: 400 mmSwing dia. over traverse guideway: 300 mmcentre distance: 600 mmMain spindle:: turning speed range - main spindle: max. 6.000 min/-1power capacity - main spindel: 16 kWmax. Torque: 155 Nmspindle diameter in front bearing: 100 mmspindle bore: 68,5 mmspindle nose: 140H5 Subspindel:: Spindle speed range subspindle: max. 4.000 min/-1power capacity - Sub spindle: 7,5 kWmax. Torque: 48 Nmspindle diameter in front bearing: 75 mmspindle bore: 37 mmspindle nose: 140H5 turret:: number of toolpositions: 12 pos.Number of driven toolspositions: 12 pos.Spindle speed - driven tools: max. 5.000 min -1power capacity - driven tools: 3,7 kWmax. Torque: 24 Nmtool taper: VDI 30 Tool dimensions with square shank: 20 x 20 mmaxis stroke:: x-axis: 160 mmz-axis: 450 mmfeeds:: rapid traverse:  ...

Technical data: Circumferential diameter: 680 mm Center width: 1000 mm Speed: 2800 1/min Chuck: ø300 mm Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 - 12-speed revolver VDM 40 - C-axis

turning speeds: 6000 U/minx-axis: 550 mmz-axis: 200 mmrapid traverse: 30/20 m/minfeed: 11 m/mincontrol: Siemens 840 C total power requirement: 35 kWweight of the machine ca.: 6,5 t- speeds: [1/min.] : 6.000- torque [Nm]: 480- swing diam.: 290 mm- power: [kW] 34- chuck diam. 200 mm- turret: 12-fach, VDI 40, Sauter- driven tools 7,8 KW,- x -travel: 550 mm- z- travel: 200 mm- rapid travel: (X/Z) [m/min] 30 / 20- feeds: (X/Z) [m/min.] 11 KN- connected load: [KW] 36 kW- machineweight: [kg] 6.500- chip conveyor, pick up conveyor links,300mm wide, Auswurfhöhe 800mm- Messsystem direkt-linear, Glasmaßstäbe in allen Achsen, Heidenhain- parts conveyor for feeding parts into the machine- Specification:- Overhauled in 2007 for approx. €50,000, complete headstock replaced.- Feed unit replacedThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 600 mm, 2000 mm

CNC Lathe Manufacturer: Gildemeister Type CTX 500 Year of manufacture 1999 little used max turning length 2000mm Driven tools every 2nd turret station 315mm three-jaw chuck Schunk Bezel SMW Machine is in TOP condition Geometrically it is also still very good, deviation at 2000mm 0.02mm. Machine is available from week 18. For further information, I am available to you at any time at 01778957069.We also have Whatsapp.

turning diameter: max. 560 mmturning length: 600 mmcontrol: 840D powerline Siemensgreates pass round over bed: 680 mmSwing dia. over traverse guideway: 565 mmcentre distance: 620 mmMain spindle:: turning speed range - main spindle: 20 - 5.000 min/-1power capacity - main spindel: 25 / 37 kWmax. Torque: 390 Nmspindle nose: 170H5 spindle bearing diameter: 120 mmusable bar diameter: 65 mmmax. chucking diameter: 250 mmC-Axis: 0,025° / 360 °Subspindel:: Spindle speed range subspindle: 20 - 7.000 min/-1power capacity - Sub spindle: 25 / 33 kWmax. Torque: 213 Nmspindle bearing diameter: 90 mmspindle bore: 57 mmspindle nose: 140H5 C-Axis: 0,025° / 360 °turret:: number of toolpositions: 12 pos.Number of driven toolspositions: 12 pos.Spindle speed - driven tools: max. 4.500 min -1power capacity - driven tools: 12,2 kWtool taper: VDI 40 DIN 69880Tool dimensions with square shank: 40 mmaxis st ...

turning diameter: 190 mmturning length: 190 mmcontrol: BOSCH CC 200 total power requirement: 12 kWweight of the machine ca.: 1,6 tdimensions of the machine ca.: 2 (9 ) x 1,5 x 1,8 mMovie:https://www.youtube.com/watch?v=lr-NrroeTtAThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 6136 Type: CTX alpha 500 Producer: DMG Gildemeister Created: 2008 Parameters: Control system: Siemens 840 Switch-on hours: 22803 h Hours: 11505 h Maximum turning length: 500 mm Maximum turning diameter: 200 mm Maximum turning diameter over bed: 500 mm Distance between tips: 780 mm Maximum spindle speed: 6000 1/min Maximum workpiece weight: 45 kg Weight: 4500 kg Equipment: Filtration Bar Feeder CNC Spacesaver SS 2500 (2018)

turning diameter: max. 480 mmturning length: max. 2.000 mmcontrol: Sinumerik 840 D Siemensswing diameter max. over bed cover: 520 mmMain spindle:: turning speed range - main spindle: 7 - 2.800 min/-1transmission ratio: 2 power capacity - main spindel: 53 kWmax. Torque: 3.456 Nmspindle nose: 11 DIN 55026chuck diameter: 315 mmspindle bore: 103 mmusable bar diameter: 82 mmaxis stroke:: x-travel: 405 mmz-travel: 2.049 mmTailstock:: diameter of quill: 100 mmquill stroke: 100 mmtension force: 14 kNcapture: 30 DIN 2079feeds:: rapid traverse: 10 m/minWorking speed: 0,1 - 10.000 mm/minfeed power: 15 kNTool Mount:: number of toolpositions: 12 pos.driven statition: 6 pos.Shank diameter: 50 mmpower capacity: 5,4 kWMax. Speed: 2.500 / 625 min/-1max. Torque: 25 / 100 Nmtotal power requirement: ca. 50 kWweight of the machine ca.: 14 tdimensions of the machine ca.: 6,4 x 3,8 x 3,0 mDocuments: Chip ...

The machine is in good technical condition, after prior agreement it is possible to test it. Max. turning diameter over the bed 450 mm Max. machining diameter 320 mm Max. machining length 500 mm Distance between centers approx. 640 mm X-axis travel 160 mm Z-axis travel 540 mm Spindle bore diameter 65 mm Spindle taper CM4 Max. spindle speed 4,000 rpm Main motor power approx. 15 kW Turret head 8–12 tools Tool clamping type VDI Control system FANUC 18T (most common) Tailstock Usually no Bar feeder No Machine dimensions (L × W × H) approx. 3,650 × 1,200 × 1,980 mm Weight approx. 4,800 kg Power supply 400 V / 50 Hz

turning diameter: max. 356 mmturning length: 705 mmcontrol: M730 UM Mapps CELOSgreates pass round over bed: 920 mmSwing dia. over traverse guideway: 742 mmMain spindle:: turning speed range - main spindle: 4.000 min/-1power capacity - main spindel: 18,5 / 15 kWspindle nose: JIS A2-8 spindle bore: 80 (91) mmC-Axis: 0,001 °Subspindel:: Spindle speed range subspindle: 6.000 min/-1power capacity - Sub spindle: 11 / 7,5 kWspindle bore: 43 mmC-Axis: 0,001 °axis stroke:: x-travel: 260 mmz-travel: 795 mmY - Axis: +/-50 mmrapid traverse ( X / Y / Z ): 30 / 10 / 30 m/minturret:: number of toolpositions: 12 pos.Schank height for square tool: 25 mmDrill shank diameter: 50 mmturret change time: 0,27 sec.Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1power capacity - driven tools: 5,5 / 4,2 kWtotal power requirement: 41 kVAweight of the machine ca.: 6,4 tdimensions of t ...

CNC lathe Okuma LB 4000 EX – MY C750 Control: OSP-P200L Year of Make: 2008 Turning length: 750 mm Turning diameter: 430 mm Swivel diameter over bed: Ø 670 mm Swivel diameter over slide: Ø 480 mm Speed: 42 – 4,200 rpm Tool turret V12 (all places driven) Equipment: One touch IGF Chip conveyor Touchsetter 3-jaw chuck (Kitagawa B212)

turning diameter: 390 mmturning length: 507 mmcontrol: MSG 805 MAPPSmax. turning diameter: 390 mmgreates pass round over bed: 680 mmSwing dia. over traverse guideway: 510 mmcentre distance: 618 mmMain spindle:: turning speed range - main spindle: 45 - 4.500 min/-1power capacity - main spindel: 11 / 7,5 kWspindle bearing diameter: 110 mmspindle bore: 73 mmmax. bar capacity: 51 mmspindle nose: JIS A2-6 chucking diameter: 210 mmC-Axis: 0,001 °axis stroke:: x-axis: 235 (195+40) mmz-axis: 520 mmturret:: number of toolpositions: 12 pos.Number of driven toolspositions: 12 pos.Spindle speed - driven tool stations: max. 3.000 min -1power capacity driven tool-stations: 5,9 / 4,5 kWShank height for square tool: 25 mmDrill shank diameter: max. 50 mmturret change time: 0,2 sec.Tailstock:: tailstock adjustment: 490 mmdia. of quill: 85 mmtaper of center: MT 4 quill stroke: 120 mmfeeds:: rapid tr ...

Control Siemens Sinumerik 840D Max. turning diameter 280 mm Max. rod passage main spindle 61 mm Turning length 490 mm Speed main/sub-spindle 4700 / 6000 min-1 12-fold revolver with applied revolver Wkz. C-axis Y-axis Parts catcher Workpiece ejector Chip conveyor Various tool holders

turning diameter: 45 mmturning length: 50 mmcontrol: Mitsubishi FCA70LPC-V Spindle Speed: 8.000 U/min.travel -x axis: 180 mmtravel -z axis: 200 mmrapid power traverse in X-and Z direction: 20 / 30 m/minweight of the machine ca.: 1.600 kgdimensions of the machine ca.: 1700x700x1700 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8904 Type: SB-CNC Producer: SPINNER Created: 1999 Parameters: Maximum turning length: 250 mm Maximum turning diameter: 285 mm Spindle diameter: 42 mm Maximum spindle speed: 8000 1/min Weight: 1500 kg

turning diameter: 400 mmturning length: 600 mmcontrol: Turn Plus CNC Pilot 3190 total power requirement: 44 kVAweight of the machine ca.: 5 tdimensions of the machine ca.: 6 2,5 2 mMachine has been in use until now ( 2-axis turning )Known defects:- Driven tools without function- Tailstock leaking - out of service- Sporadic problems hydraulics / leakingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC lathe Okuma LU 300 M 2SC1000 Control: OSP-P200L Year of Make: 2007 Turning length: 1,000 mm Turning diameter: 340 mm Swivel diameter over bed: 530 mm Swivel diameter over slide: 410 mm Spindle bore 72 mm Speed: 45 – 5,000 rpm 2 Tool Turrets A-turret: 12 tool positions (driven) B-turret: 8 tool positions Equipment: Tailstock Transformer Touchsetter Chip conveyor OneTouch IGF

turning diameter: max. 366 mmturning length: 705 mmcontrol: M 730 BM MAPPS IVgreates pass round over bed: 920 mmSwing dia. over traverse guideway: 742 mmMain spindle:: turning speed range - main spindle: 4.000 min/-1power capacity - main spindel: 18,5 / 15 kWspindle nose: JIS A-8 spindle bearing diameter: 140 mmspindle bore: 91 mmmax. usable bar diameter: 80 mmchucking diameter: 250 mmSubspindel:: Spindle speed range subspindle: 6.000 min/-1power capacity - Sub spindle: 11 / 7,5 kWspindle nose: JIS A2-5 spindle bearing diameter: 85 mmspindle bore: 43 mmmax. usable bar diameter: ( - ) mmchucking diameter: 170 mmaxis stroke:: x-travel: 260 mmz-travel: 795 mmY - Axis: +/-50 mmrapid traverse ( X / Y / Z ): 30 / 10 / 30 m/minturret:: number of toolpositions: 12 pos.tool taper: BMT 60 Schank height for square tool: 25 mmDrill shank diameter: 50 mmturret change time: 0,27 sec.Driven Tool P ...

CNC lathe Okuma LB 3000 EX II Control: OSP-P300LA Year of manufacture: 2018 Turning length: 500 mm Turning diameter: 340 mm Swing diameter over bed: 530 mm Speed: 45 – 5,000 rpm Tool turret: 12 places (driven) Tool holder: BMT 65 Equipment: - Chip conveyors - Parts catcher - Touchsetter - Programmable sub-spindle - Bar feeder prepared - One Touch IGF - 3-Jaw Power Chuck Kitagawa

turning diameter: 168 mmturning length: 145 mmtravel -x axis: 130 mmtravel -z axis: 110 mmSpindle Speed: 45 - 6.000 U/min.control: spindle passage: mmspindle bearing diameter: mmbar material dia.: mmtotal power requirement: kWmachine weight ab.: kgrapid traverse x + z axis: 18 / 24 m/minrapid traverse X- and Y-axis: 24 m/minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8891 Type: HT 20 RIII Producer: Hitachi Seiki Generated: 2000 Parameters: Maximum turning length: 304.8 mm Max. turning diameter: 203.2 mm Maximum turning diameter over bed: 450 mm Maximum spindle speed: 5000 1/min Travel X: 400 mm Travel distances Z: 600 mm Number of tool positions: 12 Length: 2730 mm Width: 1930 mm Height: 1400 mm Weight: 4600 kg Equipment: Grasshopper Technical documentation Tool Holder Mayfran Chip Conveyor Hainbuch clamping

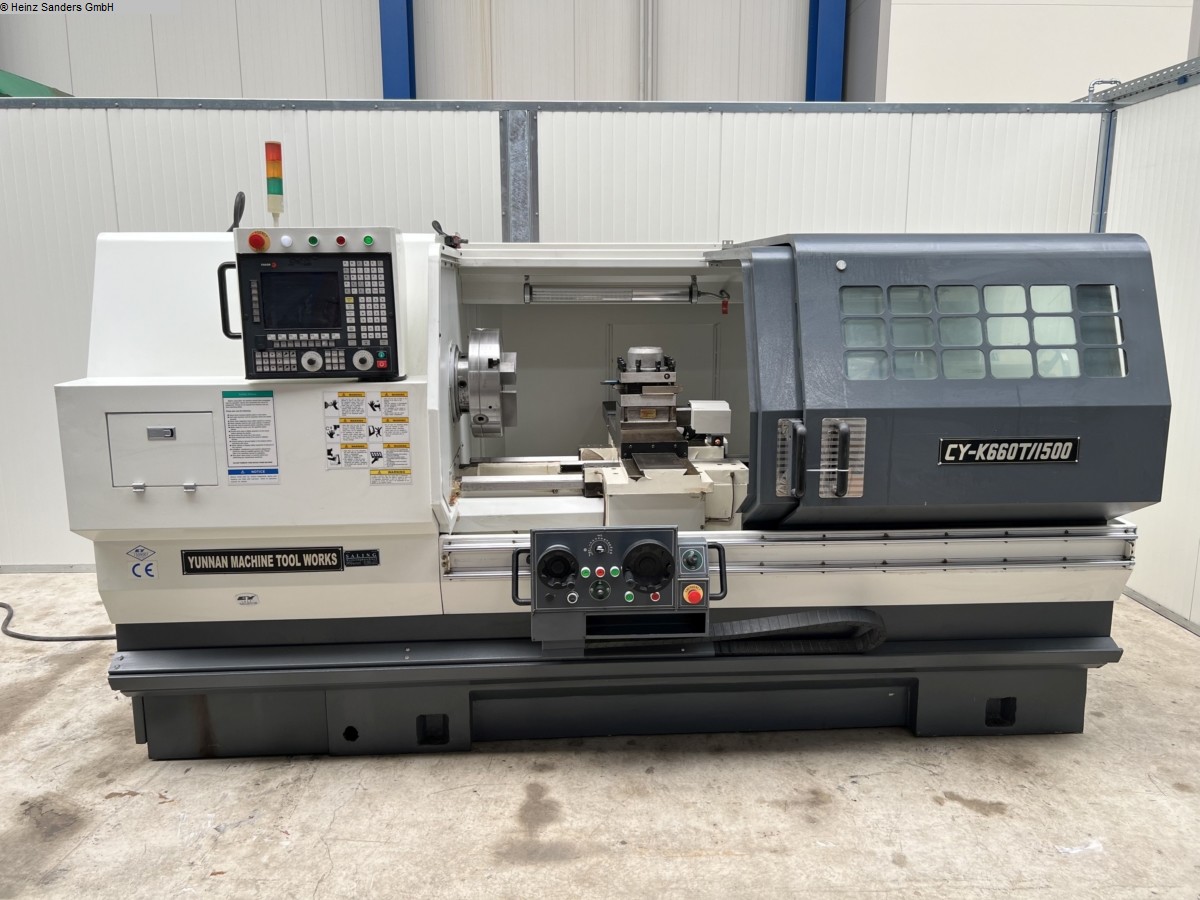

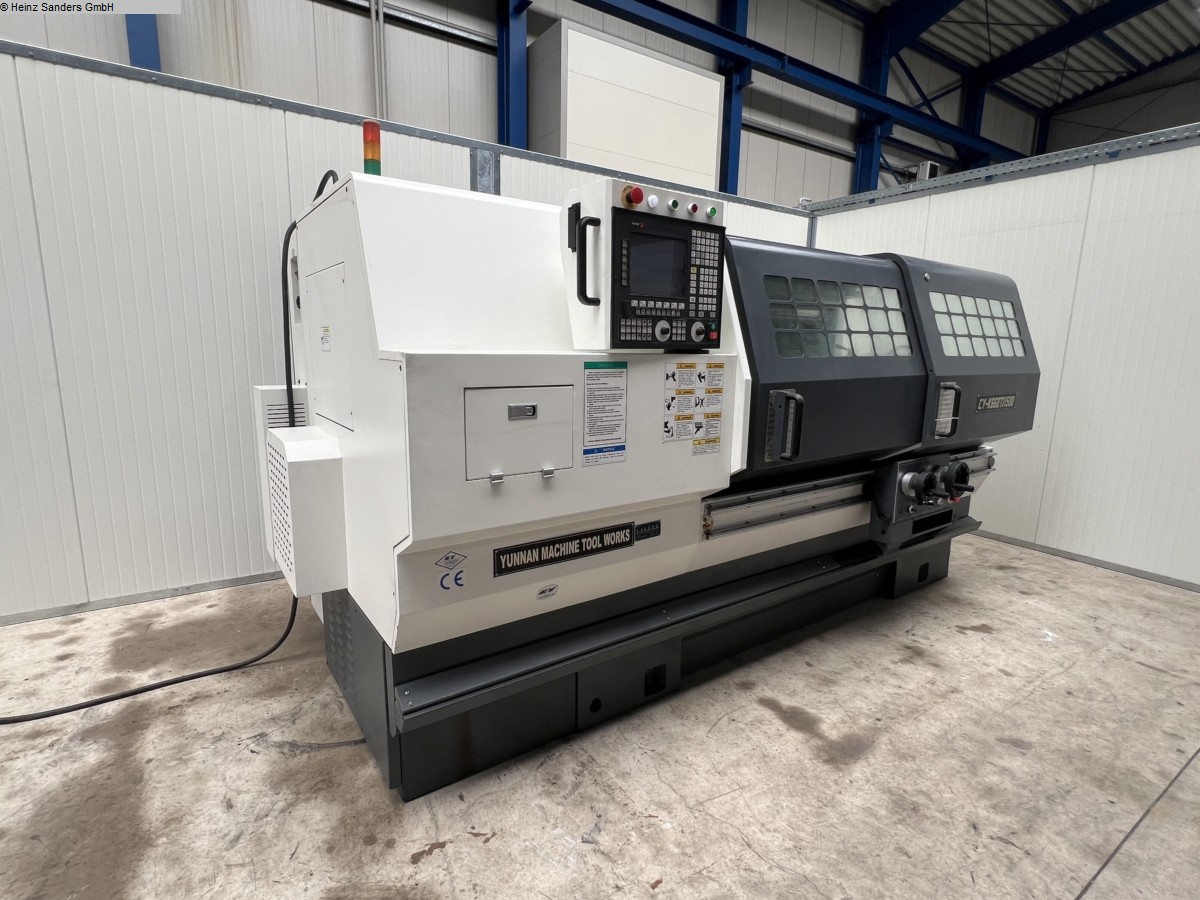

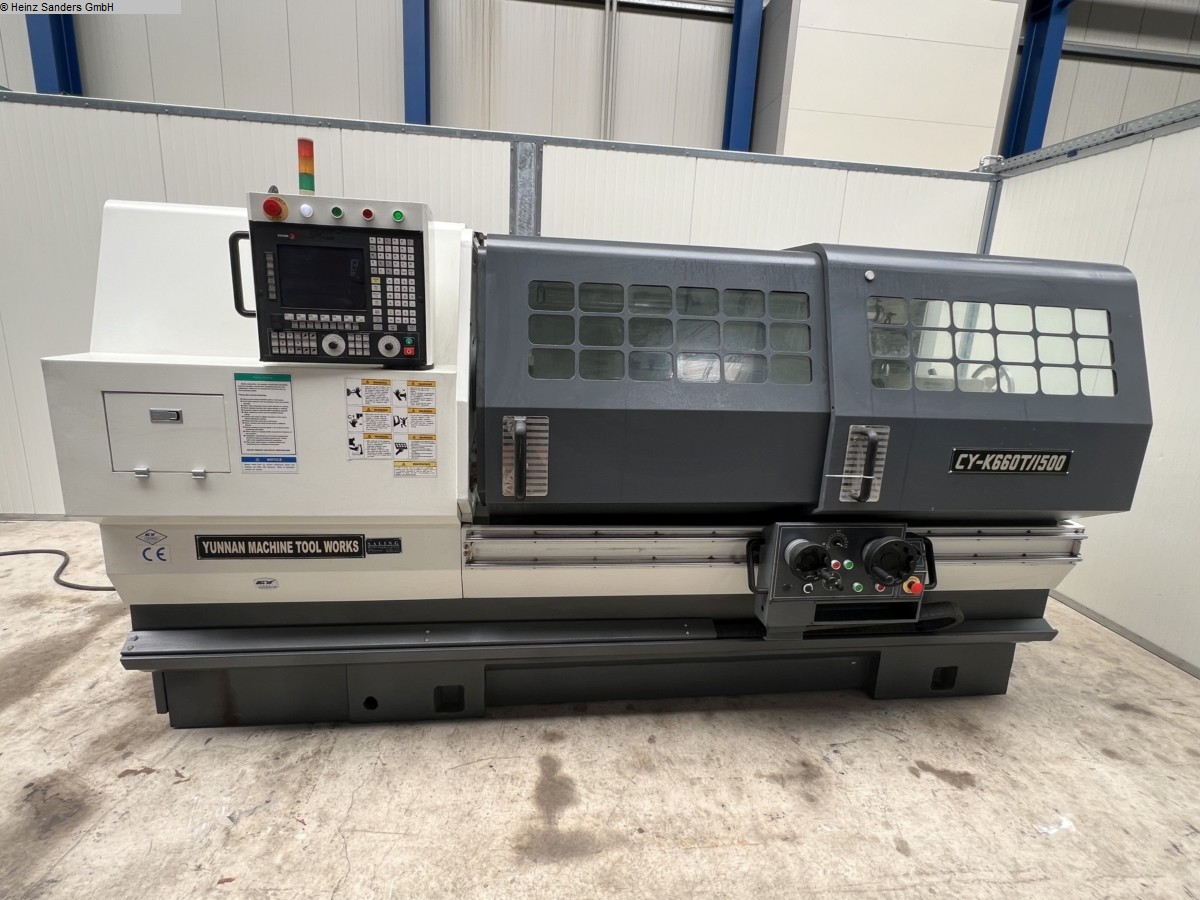

turning diameter: 660 mmturning length: 1500 mmcontrol: FAGOR centre height: 330 mmspindle passage: 82 mmnumber of spindle speeds: 30-2000 U/minbed width: 390 mmrapid speed: X/Z 4 - 8 m/mintailstock quill diameter: 75 mmMain spindle capacity: 15 kWweight of the machine ca.: 3200 kgdimensions of the machine ca.: 3800 x 1800 x 2150 mFirst commissioned in 2015, very good condition- FANUC Series 18i TB Control, Manual Guide i Function- Central control panel for machine and CNC control on the pedal arm 45 ° swiveling- 12-fold tool turret- Fanuc drive with 30 kW (50% ED)- Chip conveyor- Bezel- 3 jaw chucksThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MEXPOL TUB 830 C CNC lathe was built in 2007 in Germany by MEXPOL Werkzeugmaschinen GmbH. The machine, with its extensive machining capabilities, is an excellent choice for both unit and series production. Workpieces with a maximum diameter of 830 mm are machined inside a large workspace by means of components characterised by the best technical parameters. In order to achieve excellent feed dynamics and repeatability, the X and Z axes are driven by powerful drives of the renowned SIEMENS company. The rigid design of the TUB 830 C x 2250, in turn, eliminates any vibration and oscillation, guaranteeing maximum process stability during even the most intense challenges. The MEXPOL TUB 830C CNC lathe is offered with a wide range of equipment, including an advanced SIEMENS CNC control and a MULTIFIX toolpost. The total weight of the machine is 4930 kg. Technical specifications of the MEXPO ...

max. turning diameter: 580 mmturning length: 1500 mmcontrol: OSP 7000 L greates pass round over bed: 610 mmswing diameter over slide rest: 580 mmMain spindle:: turning speed range - main spindle: 12 - 2.800 min/-1spindle bearing diameter: 150 mmspindle bore: 110 mmspindle nose: JIS A2-11 power capacity - main spindel: 37 (30) kWC-Axis: 0,001 °axis stroke:: x-axis: 598 mmy-axis: 230 (+110 / -120) mmz-axis: 1.660 mmfeeds:: rapid traverse: X / Y: 12.000 mm/minrapid traverse: Z: 20.000 mm/minrapid traverse: C: 100 min/-1cutting feed speed: X / Z / Y: 0,001 - 1.000 mm/Uturret:: type: H2 ATC number of toolpositions: 2 (1x L-Tool / 1x M-Tool) pos.driven statition: stufenlos / stepless Spindle speed - driven tool stations: 40 - 3.000 min -1tool shank height: 25 mmBoring bar shank diameter: 50 mmTailstock:: diameter of quill: 120 mmquill stroke: 170 mmtaper of center: MT 5 tool magazin:: n ...

Lathe Pinacho smart turn 6 BJ 2006

turning diameter: 250 mmturning length: 400 mmcontrol: Siemens 840 D swing diameter: max. 300 mmworkpiece length - max.: 400 mmtravel -x axis: 280 mmfeed in x - axis: 0,1 - 30 m/minrapid traverse X-axis: 30 m/mintravel -z axis: 1150 mmfeed range Z-direction: 0,1 - 60000 mm/minrapid traverse Z-axis: 60 m/minspindle bearing diameter: 90 mmspindle head DIN 55026 - Size: A6 turning speeds: 1 - 5000 U/mintool turret 12 times: C4 Captototal power requirement: 45 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 7,0 x 5,0 x 3,2 mCNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyorwith chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor.Without coolant system, was connected to central supply.Machine can be inspected under power.The data for this ad  ...

Key data: 480 mm, 2000 mm, 3050 1/min

Stock number: 4009 CNC LATHE Manufacturer: Gildemeister , Type: CTX 600 Machines NO.: 361238, Year of manufacture: 1997 Specifications: Max. circumferential diameter 480 mm dia. Max. turn. About Bed 650 mm Dia. Turning length 2000 mm Main motor power 27 kw Main spindle speed range 4-3050 rpm Tool turret with 12 stations Powered stations revolver 1 6 pieces. Control Gildemaister EPL Fabr. Accessories: Hydr. Chuck main spindle 400 mm dia Tool holder vdi 50 Driving angle tools 2 pieces Driving Tools Straight 2 pcs. Various tool holders. 15 Chip conveyance. Cooling water system. Length: 4000 mm, Height: 2100 mm, Width: 2500 mm, Weight: 9100 kg

turning diameter: 1000 mmturning length: 4000 mmturning diameter over bed slide: 680 turning speeds: 0 - 1400 U/mincontrol: Siemens 810 D tool turret - number of stations: 2 centre distance: 4000 mmdrive motor: 30/37 kWTorque: 4140 Nmbed width: 550 mmmax. workpiece weight between centres: 4800 kgmax.workpiece weight:each extra steadyrest: 700 kgspindle diameter in front bearing: 150 mmspindle bore: 104 mmtotal power requirement: - kWweight of the machine ca.: 12 tdimensions of the machine ca.: 7 x 2,8 x 2,16 mequipped with:- CNC control Siemens 810D ShopTurn- jaw chuck dia 700mm- steady rest- 2-fold steel holder- Parat Tool Holder- Chip Conveyor23500h switch-on hours, 9300h spindle running hoursThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

With C axis Swing over bed Ø 610 mm Swing over slide Ø 360 mm Distance between centers on tailstock version 682 mm Maximum turning diameter Ø 500 mm Maximum part length 520 mm Maximum bar diameter Ø 65 Travel in X / Z 260 / 610 mm Spindle speed 5000 rpm Number of tool on turret 12 Tool holder type VDI30 Controller FANUC Oi TF

turning diameter: 250 mmturning length: 400 mmcontrol: Siemens 840 D swing diameter: max. 300 mmworkpiece length - max.: 400 mmtravel -x axis: 280 mmfeed in x - axis: 0,1 - 30 m/minrapid traverse X-axis: 30 m/mintravel -z axis: 1150 mmfeed range Z-direction: 0,1 - 60000 mm/minrapid traverse Z-axis: 60 m/minspindle bearing diameter: 90 mmspindle head DIN 55026 - Size: A6 turning speeds: 1 - 5000 U/mintool taper: Capto C4 total power requirement: 45 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 7,0 x 5,0 x 3,2 mCNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyorwith chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor.Without coolant system, was connected to central supply.Machine can be inspected under power.The data for this ad was creat ...

Heid S-200 CNC Lathe Manufacturer: Heid Type: S 200 Machine Type: CNC Lathe Tailstock travel: 175 mm Tailstock quill holder: Morse cone: 4 MK Quill stroke: 140 mm Quill diameter: 95 mm Pressure capacity: 17 kN Connection 50 Hz 3x: 380 Volts Total power requirement: 65 kVA Spindle speeds: Infinitely variable from 0 rpm to: 4000 rpm Spindle bore: 77 mm Tool shank cross-section: 25x25 mm Turning diameter above the bed: 420 mm Turning diameter maximum: 250 mm Turret slide: Longitudinal travel (Z-axis): 1150 mm Flat travel (X-axis): 230 mm More items - new and used - can be found in our shop! International shipping costs on request!

turning diameter: 250 mmturning length: 400 mmcontrol: Siemens 840 D swing diameter: max. 300 mmtravel -x axis: 280 mmfeed x-axis: 0,1 - 30.000 mm/minrapid traverse X-axis: 30 m/mintravel -z axis: 1.150 mmFeed z- axis: 0,1 - 60.000 mm / min.rapid traverse Z-axis: 60 m/minspindle bearing diameter: 90 mmspindle head DIN 55026 - Size: A6 turning speeds: 1 - 5.000 U/mintool turret - number of stations: 12 tool taper: Capto C4 total power requirement: 45 kWweight of the machine ca.: 11 tdimensions of the machine ca.: 7,0 x 5,0 x 3,2 mCNC lathe with SIEMENS SINUMERIK 840D control, Screw conveyorwith chip breaker and return pumping station, NC-steady SMW-SLU-1-OLD Ø10-70mm, 12-fold tool turret SAUTER 0.5.460.220, NC tailstock, Artis monitoring, Pickup-loading incl. conveyor.Without coolant system, was connected to central supply.Machine can be inspected under power.The data for this ad was cre ...

General Manufacturer: Stama Type: MT 733 two Year of Make: 2020 Control: Siemens Sinumerik 840D SL Travel: X 615 mm Y 290 mm Z 500 mm Rapid traverse: 65 m/min Feed: x 4,000 N / Y 4,000 N / Z 8,000 N Main spindle unit Speed: 12,500 rpm Tool holder: HSK-T63 Pull-in force: 18 kN Spindle bearing diameter: 80 mm Tool magazine Number of available magazine slots: 64 Tool diameter max. when fully equipped: 78 mm Tool diameter max. with free secondary positions: 140 mm Tool length: max. 300 mm Tool holder: HSK-A/T63 Tool weight: max. 10 kg Total chain load: max. 115 kg Rotary swivel unit Swivel angle: +30 to -180° Swivel axis repeatability: ±1" Swivel axis speed: max. 61 1/min Clamping torque tangential swivel axis: 3,000 Nm Clamping torque tangential counter bearing: 1,800 Nm Condition Condition: Used Functional: tested and fully functional

turning diameter: 400 mmturning length: 730 mmcontrol: FANUC 21i rapid traverse: 15/24 mm/minspindle turning speed range: 4000 U/minspindle motor: 19 kWx-axis: 240 mmz-axis: 640 mmrapid travel (x and z-axis): 18 /24 m/minspindle bore: 66 mmtailstock quill taper MT: 5 tailstock quill stroke: 120 mmtotal power requirement: 50 kVAweight of the machine ca.: 5,5 tdimensions of the machine ca.: 3 x 1,7 x 1,8 m- CNC control FANUC 21i-TB (with Manual Guide I)- hydraulic hollow clamping cylinder- 12-position tool turret, driven tools 4000 rpm, 2.8 kW- Tool monitoring- SMW Autoblok KNCS N225-65 chuck- C-axis (with disk brake for milling operation, Transmit software for end face machining and cylinder interpolation for shell machining)- B-axis- Tailstock (MK 5)- Chip conveyor- Coolant system with high-pressure pump- Parts catcher- Radial and axial milling headsTranslated with DeepL.com (free versio ...

Turning lenght 450 mm Turning diameter 210 mm With C axis Spindle bore 52 mm Number of tools 12 Spindle speed 5000 rpm Controller Heidenhain Plus it

turning diameter: 420 mmturning length: 600 mmcontrol: Sinumerik 810D spindle turning speed range: 4200 U/minspindle motor: 18 kWspindle bore: 65 mmx-axis: 210 mmz-axis: 610 mmgreates pass round over bed: 600 mmswing diameter over slide rest: 360 mmtailstock travel: 500 mmtailstock quill taper MT: 4 dimension of workpiece: dia 200 x 520 mmtotal power requirement: 20 kVAweight of the machine ca.: 4,5 tdimensions of the machine ca.: 3 x 1,9 x 1,9 m- CNC control Siemens Sinumerik 810D- 12-position turret (VDI 30),- Chuck SMW Autoblok dia 220mm- Main spindle- Tailstock (MK 4)- C-axis- Coolant device- suction unit- Chip conveyorMachine has mainly processed plasticThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8856 Type: SL-10 THE Producer: HAAS Created: 2006 Parameters: Switch-on hours: 23550 h Hours: 13463 h Maximum turning length: 355 mm Maximum turning diameter: 279 mm Maximum turning diameter over bed: 252 mm Maximum turning diameter over support: 203 mm Maximum length of travel in the X-axis: 159 mm Max. travel length of the Z-axis: 356 mm Maximum spindle speed: 6000 1/min Weight: 2500 kg Equipment: Collet chuck Universal chuck

turning diameter: 176 mmturning length: 570 mmswing diameter: 510 mmworking diameter: 420 mmtravel -z axis: 570 mmtravel -x axis: 245 mmspindle bore: 43 mmdiameter of quill: 85 mmquill stroke: 120 mmSpindle Speed: 60-6.000 U/min.rapid power traverse in X-and Z direction: 24 m/mintotal power requirement: 5,5 kWcontrol: MSG-805 V weight of the machine ca.: 3.400 kgdimensions of the machine ca.: 2000x1700x1800 mmFeatures/Accessories: - Integrated CNC control- Bed guides and cross-slide guides are induction-hardened and designed as flat guides- Continuously variable AC main spindle drive- Constant cutting speed programming- Cold light lamp integrated into the machine- Power meter for the main spindle drive (ammeter)- Control units for automatic and manual operation, as well as a CNC programming unit and control panel- Tailstock with hydraulically actuated MK 4 tailstock quill- Quill pressu ...

HYUNDAI WIA SE 2200 LMSA CNC Lathe GENERAL Project No.: 905806 Quantity: 1 pcs. Manufacturer: HYUNDAI Type: WIA SE 2200 LMSA Control: HYUNDAI WIA Fanuc i-Series Year of Make: 2021 Condition: Used machine Spindle in approx (hrs): 2149 Program run approx. (hrs.): 4106 Approx. (hrs): 8655 DESCRIPTION TURN Max. turning diameter 300 mm Max. turning length 508 mm Max. circumferential diameter over bed 600 mm Max. chuck diameter 210/125 mm Max. speed main spindle 4500 1/min Max. power main spindle at ED 10-40/100% 15/11 kW Spindle aperture main spindle 65 mm Axes on the main spindle unit C Hollow clamping cylinder on the main spindle Max. speed sub-spindle 6000 1/min Max. power sub-spindle at ED 10-40/100% 7.5/3.7 kW Spindle Diffuser Sub-Spindle 32 mm Axes on the sub-spindle unit C/Z Blowing air through the sub-spindle Workpiece ejector in the sub-spind ...

turning diameter: 120 mmturning length: 380 mmcontrol: Fanuc 18 iTB max. swing diameter: 300 mm: : 8000 min/-1: 7,5 kW: 26 Nmspindle nose: 100 mmspindle passage: 32 mmA-Axis: : 8000 min/-1: 5,5 kW: 23 Nmspindle nose: 100 mmspindle passage: 32 mm: : 12 pos.tool taper: VDI 16 Sub Spindle: x-axis: 400 mmz-axis: 400 mmfeeds:: rapid traverse: 12 m/mintotal power requirement: 20 kWweight of the machine ca.: 2,3 tdimensions of the machine ca.: 2,8 x 2 x 1,7 m2022 New glass scale Heidenhain and replacement of smaller parts, new FANUC CNC KeyboardCNC - Ultra precision turning centre (X-, Z-, E-, C-Axe)- CNC control Fanuc 18iTB- Main and counter spindle- SAUTER tool turret 16-fold (0.5.480.510) VDI 16- Linear tool slide- automatic doors- Chip tray- Coolant system with fine filter (high Pressure Pump)- 3 jaw chucks- Various clamping devices/pressure collets- Various tool holdersControl On: 240 ...
