CNC Turning Machines GILDEMEISTER CLX 350 V3
metal working machines / lathes / CNC Turning Machines
CNC lathe GILDEMEISTER CLX 350 V3 With control DMG MORI SLIMline Multi Touch Fanuc I series Year of manufacture: 2018 Turning diameter: 320 mm Travel in X: 242 mm Travel in Z: 540 mm Spindle bore: 65 mm Speed range: 20 – 5000 rpm With the following accessories: Slide protection with interior ...
Manufacturer: GILDEMEISTER
Model:CLX 350 V3
Type of machine: CNC Turning Machines
item-No.: 169711028
Quantity: 1
Date: 17.06.2026
Year of manufacture: 2018
Location:
Germany
78267 Aach
Price:
Machine in stock:Yes
CNC lathe GILDEMEISTER CLX 350 V3

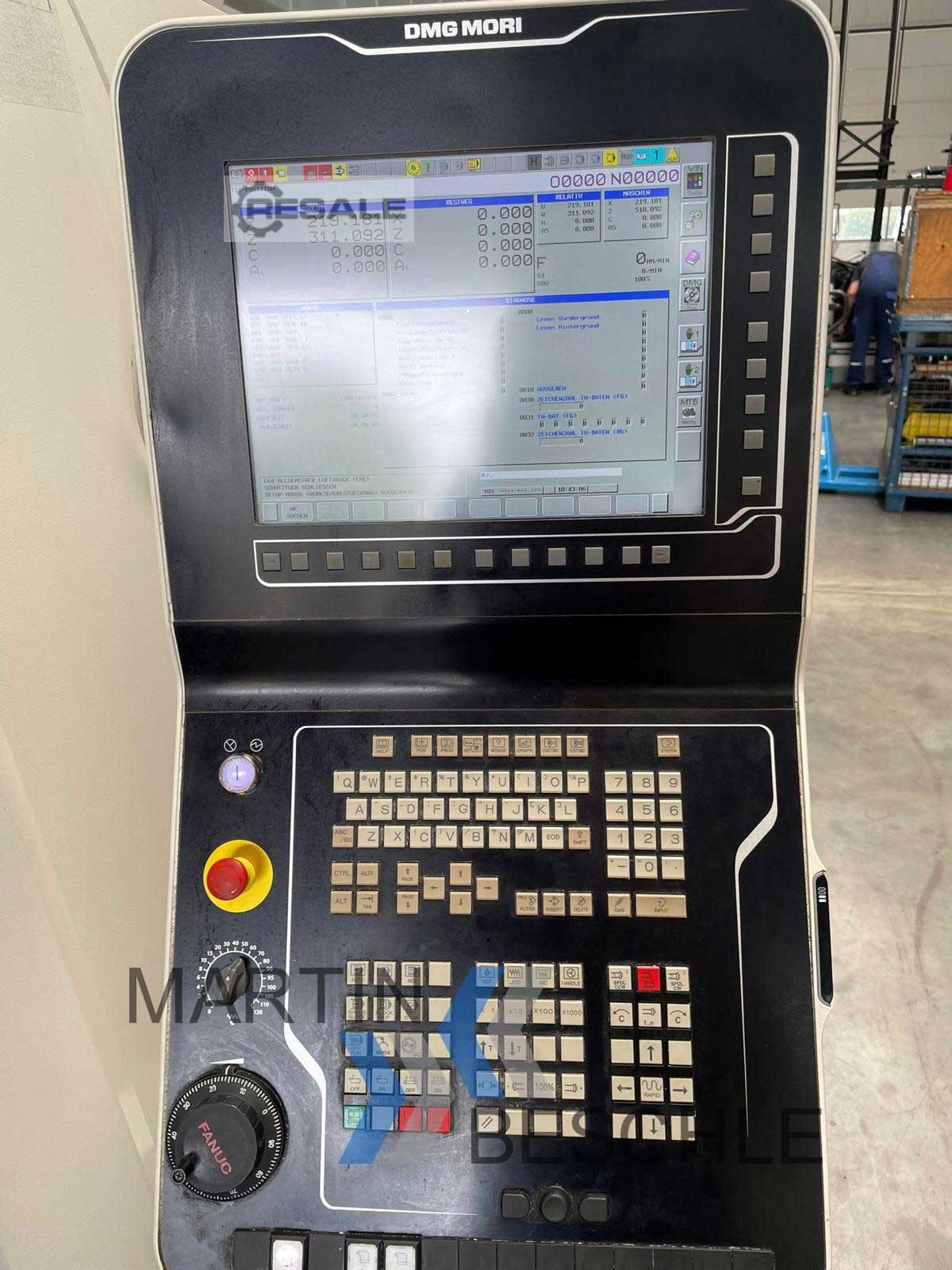

With control DMG MORI SLIMline Multi Touch Fanuc I series
Year of manufacture: 2018
Turning diameter: 320 mm
Travel in X: 242 mm
Travel in Z: 540 mm
Spindle bore: 65 mm
Speed range: 20 – 5000 rpm
With the following accessories:
Slide protection with interior lighting

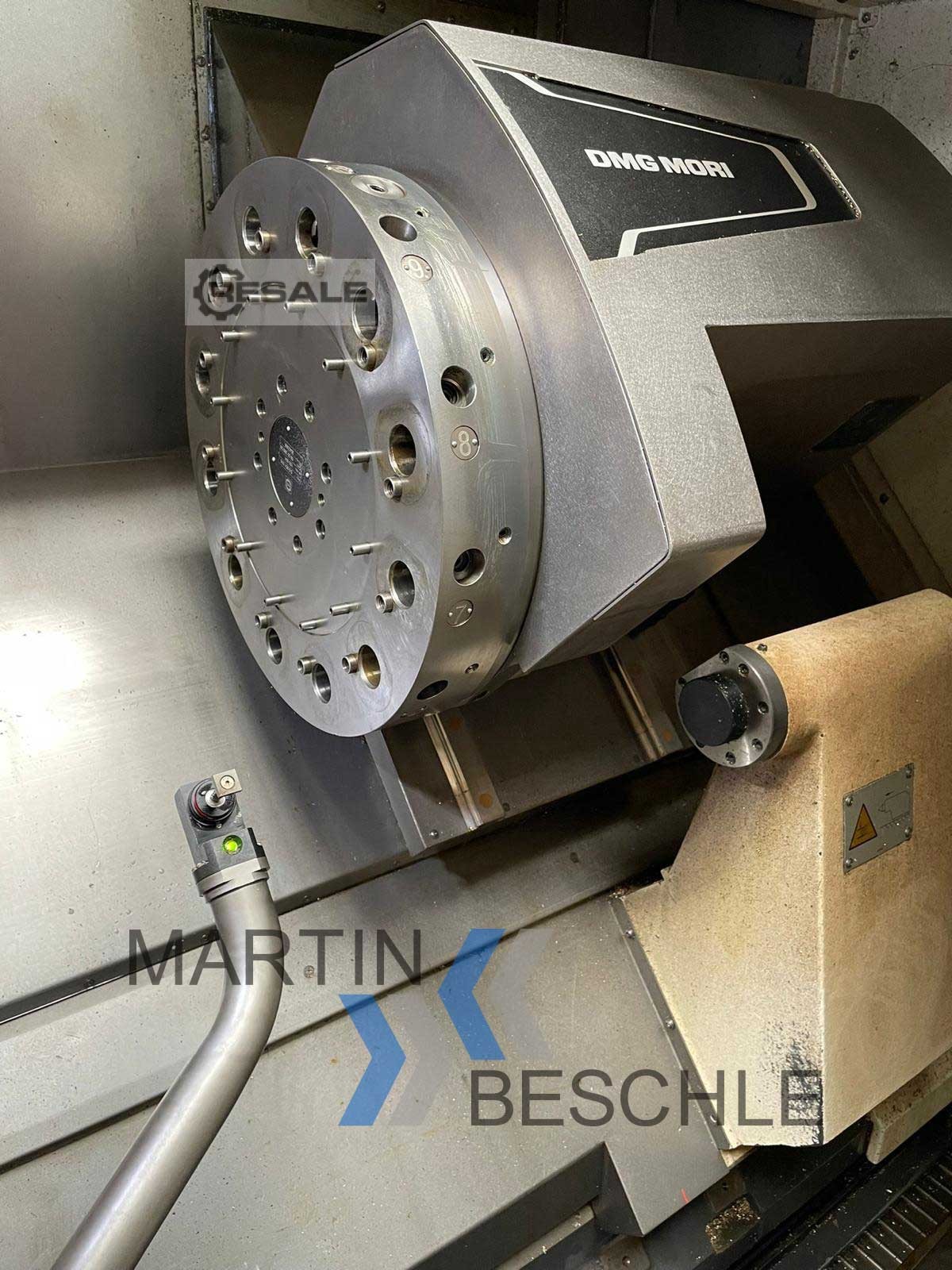

12-speed turret with 12 driven tool stations VDI 30
C Axis , Tailstock with Quill
Programmable tailstock via M function
Tool measurement in the work area
Electronic handwheel
Chip conveyor

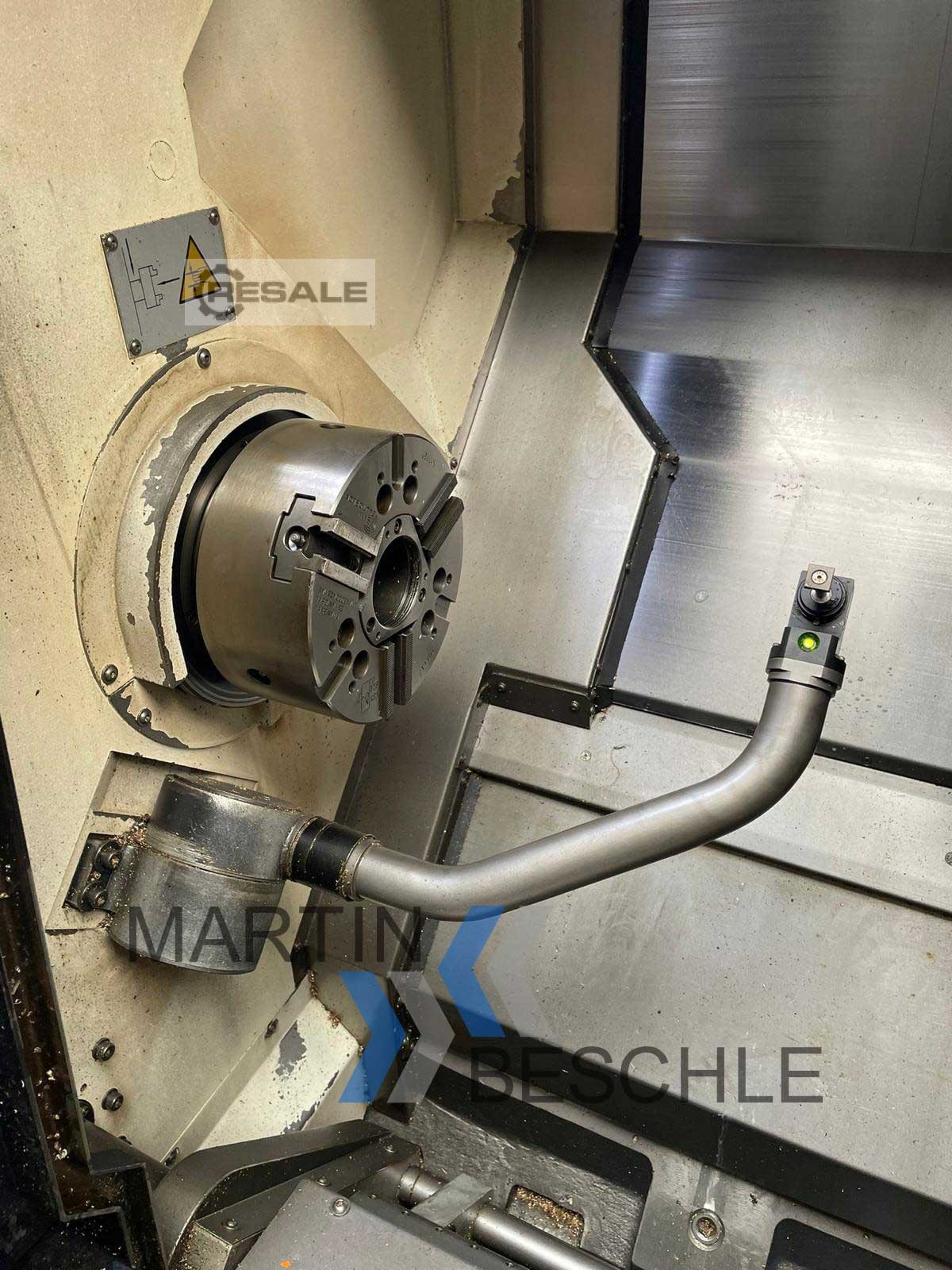

3 jaw chuck hydraulic Schunk ROTA THW plus 0 210 mm
Foot switch for jaw chuck adjustment
Parts catcher
Glass Scale in the X Axis
Coolant device with high-pressure pump 12 bar
Coolant spray gun
Operating Instructions
With control DMG MORI SLIMline Multi Touch Fanuc I series
Year of manufacture: 2018
Turning diameter: 320 mm
Travel in X: 242 mm
Travel in Z: 540 mm
Spindle bore: 65 mm
Speed range: 20 – 5000 rpm
With the following accessories:
Slide protection with interior lighting
12-speed turret with 12 driven tool stations VDI 30
C Axis , Tailstock with Quill
Programmable tailstock via M function
Tool measurement in the work area
Electronic handwheel
Chip conveyor
3 jaw chuck hydraulic Schunk ROTA THW plus 0 210 mm
Foot switch for jaw chuck adjustment
Parts catcher
Glass Scale in the X Axis
Coolant device with high-pressure pump 12 bar
Coolant spray gun
Operating Instructions
