grinding machines used for sale (2,180)

VOUMARD Model: CNC 300 Condition: Excellent Year: 2007 Machine type: BU 1000 T L7400 Was recently removed from power due to routine upgrades and was making good parts with full functionality. Siemens 840D CNC Control. Manuals included. Has grinding capability for: Internal diameters External diameters Front faces Back faces Internal tapers External tapers Profiles Drive spigots Face keyways Cams Bilobes and trilobes Internal threads External threads Bearing tracks Travels Display .0001degrees or .0001mm A - 360 degrees - 34 t/min B - -20/+1 degrees - 240 degree/min C- 360 degrees - 500 t/min U- 300mm - 20 m/min X - 300mm - 20 m/min Z travel - 1000mm - 20 m/min 4 position turret Workhead Through Bore - 50mm Rotation Speed - 850 Max workpiece weight - 200 daN at 100 mm from flange Taper - metric 70 Weight - 8000kg

Key data: 762 mm, 3048 mm, 813 mm

Minakuchi CNC Cylindrical Roll Grinder Year of Manufacture: 1990 Control: Fanuc Series O-GC (parameters need reloading) Technical Specifications: • Max. Swing: 32” (813 mm) • Distance Between Centers: 120” (3048 mm) • Max. Grinding Diameter: 30” (762 mm) • Grinding Wheel Size: 24” x 1.968” x 10” • Max. Grinding Wheel Width: 1.968” • Spindle Speeds: 1410 / 1530 RPM • Grinding Wheel Motor Power: 30 HP • Workpiece Weight Capacity: 20,000 lbs (approx. 9,070 kg) • Machine Weight: Approx. 30,000 lbs (13,600 kg) Equipped With: • Fanuc Series O-GC CNC Control • Remote hand wheel • Control Panel with Jog / Auto / Handle Modes • Spindle inching, feed hold, emergency stop, ZRN • Taper and crowning grinding capability • Wheel head motor • Work head & tailstock • Work rest supports • Extra wheel hub • I. ...

Key data: 585 mm, 4064 mm

JARBE Universal Cylindrical Grinder Year: 1981 Technical Specifications & Features: • Swing Over Table: 23″ Distance between centers 160” • Hydraulic Table Traverse • Swiveling Table for Taper Grinding • Universal Workhead • Universal Wheelhead • Grinding Wheel Capacity: 20″ • Includes 2 Workrests • Equipped with Coolant System • Electrics: 440 Volt

Key data: 318 mm, 648 mm

Key data: 3000 mm, 850 mm

Crankshaft Grinder BERCO RTM 425 Center height mm.425 Max swing mm.850 Center distance mm.3000 Wheel flanges Rests Machine dimensions mm.7100 x2350 Weight approx Kg 9000 Perfect working condition

ELB SURFACE GRINDER 460x2440mm CNC Dresser

VOUMARD CNC 300 S/N: 300030 Used - Excellent Year: 2007 DESCRIPTION: Machine type: BU 1000 T L7400 Was recently removed from power due to routine upgrades and was making good parts with full functionality. Siemens 840D CNC Control. Manuals included. Has grinding capability for: Internal diameters External diameters Front faces Back faces Internal tapers External tapers Profiles Drive spigots Face keyways Cams Bilobes and trilobes Internal threads External threads Bearing tracks Located at our warehouse in Preston, Idaho. We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers. Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and detail ...

Danobat RTM-2500 CNC X600 CNC Surface Grinder Grinding Length: 100" Grinding Width: 28" Table Length Dimension: 98.43" Table Width Dimension: 19.690" -Grinding Wheel- Grinding Wheel Diameter: 20" Grinding Wheel Width: 4" Grinding Wheel Bore: 8" -Wheel Head- Angle Adjustment: 0 DEG Wheel Head Motor: 20 HP Wheel Head Speed: 1,200 RPM -EQUIPPED WITH- Fagor 8055 CNC Control Magnetic Swarf Conveyor

Minakuchi NWT-300 CNC Cylindrical (ROLL) Grinder, I.D. Spindle, Fanuc O-GC, 30HP, New 1990 Machine Overall Capacity: 32" x 120" Swing: 32" Distance Between Centers: 120" Max. Swing over Table: 32" Max. Grinding Diameter: 30" Max. Work Piece Weight: 20000 LBS. Estimate at 32" x 120" Grinding Wheel: 24" x 1.968" x 10" Max. Grinding Wheel Width: 1.968" Spindle Speed: 1410/1530 RPM Spindle Wheel Motor: 30 HP Machine Weight: 30000 Lbs. Approximately Equipped with: Control: Fanuc Series O-GC (Parameters need to be reloaded) Fanuc Remote Hand Wheel Machine control functions: Coolant On/Off Switches, MODE: Off/Auto/Jog/Handle/Zero, Over Ride: 0-150%, Buttons: PRC, HIX, Spindle Inching, OTR on/off Switch, Cycle Start, Spindle Off, RT, Return, Feed Hold, Grind Off, ZRN, Emergency Stop Button Taper or Crowning Grinding Wheel Head Motor Work Head Work Rest Supports Extra W ...

Naxos CNC Multi-Axis Cylindrical Grinder Year: 1987/2013 Max. swing: 630mm Max. distance workhead face to tailstock face: 4850mm Max. travel for Z axis: 5000mm Max. grinding distance for main wheel: 4520mm X axis infeed travel for both headstocks: 720mm Approx. weight between centers: 4000kg Power requirements: 460/3/60 This machine was completely remanufactured to new specifications in 2013 and installed in 2014. It was stripped down to the bare casting, table/base/wheel heads/work head and tailstock and the second z axis ways were fit and rescrapped. New electrical cabinet with all new wiring to the machine and new all components, hydraulic lines, air lines and new cable carriers were added. New Marathon 60HP motors for both grinding wheel heads. (The drives in the cabinet are set for 40 Hp) The spindle drives in the cabinet are Yakawa built in the USA along with the workh ...

WALDRICH SEIGEN WST IV H80 X 12000 ROLL GRINDER YEAR: 1981 / INSTALLED 1982 MAXIMUM GRINDING DIAMETER: 78” ( 1981.2 mm) WITH 32” (812.8 mm) DIAMETER WHEEL MAX DIAMETER CAPABILITY: 2500mm DISTANCE BETWEEN CENTERS: 472.40” (12000mm) MAXIMUM WORKPIECE WEIGHT: 176000 lbs. (80t) WHEEL OD MAXIMUM: 32.00” WHEEL WIDTH MAXIMUM: 4.00” WHEEL ID: 12.00” WHEEL SPINDLE POWER: 27 - 59/59 HP WHEEL DRESSER: BED MOUNTED ROLL WHEELHEAD TRAVEL: 25.60” TABLE TRAVEL: (WHEEL HEAD TRAVEL) 488.40”( 12405 mm) TABLE SPEED: (WHEELHEAD SPEED) 157.5 in/min (4000 mm/min) WHEEL SPINDLE SPEED: 450 - 1800 RPM Infinitely Variable WORKHEAD POWER: 1.9 - 59/59 HP WORKHEAD SPEED: .5 - 300 RPM WAYS: CAST IRON FULL HYDROSTATIC SLUDGE CONVEYOR: NONE COOLANT: YES FILTRATION SYSTEM: COMBINATION 2 CARTRIDGE AND FABRIC FILTER WAY COVERS: METAL TELESCOPIC POWER 3PHASE / 50-60 Hz / 200 - 50 ...

: neu : 2024 : 5549 : prompt, Zwischenverkauf v : Taiwan : 63310 €: 1196.56 €: 1 : 1 : 610 mm: 610 mm: 600 x 300 mm: 300 x 600 mm: 650 mm: 700 mm: 5 - 25 m/min: 0 - 2,250 mm/min: 3 - 32 (0,001) mm: 320 mm: 5,5 kW kW: 0.74 kW: 1 kW: 1 kW: 2950 mm: 1490 mm: 2080 mm: 2200 kg: 355 x 50 x 127 mm: 1.450 U/min: 0,001 mm10.4", graphic NC control on a swivel arm with touchscreen for:Operating mode selectionCycle selection and program creationSurface grindingCross grindingPlunge grindingDressing with automatic compensationSemi-automatic balancing in the machineAutomatic spindle speed for constant surface speedSpindle load visualizationUnbalance controlGraphical status monitoringAlarm listaut. vertical feedservo drive for grinding wheel feed and table cross feedhardened slide ways in all 3 axes with needle rollerselectro-magnetic chuckcoolant equiptment with aut. paper filter and magnetic s ...

: gebraucht : 2023 : 5543 : prompt, Zwischenverkauf v : Niederlande : 3100 €: 1 : 100 x 2.000 mm: 20 - 76,1 mm: 1 : 3 kW: 190 kgDemo machine / mint conditionNet price (price for new machine € 3.798,00)The lever operated AL100U-01 can grind material from Ø 20 mm to Ø 76.1 mm. Its compound slide and carriage with rotatable clamp are continually adjustable allowing the machine to grind all pipe sections at any angle between 30° and 90°. The ALMI AL100U-01 can be used to grind square, rectangular and round pipes with a range of wall thicknesses and is suitable for all customary types of materials. ALMI’s belt tensioning system simplifies tensioning the grinding belt. The belt is tensioned using the hexagonal spanner supplied with the machine. The grinding belt can be tensioned quickly and the grinding rollers can be changed in seconds. All pipe grinders are equipped with a deburrin ...

: neu : ca. 2 Wochen ab Auftragse : Italien : 17940 €: 344.45 €: 350 mm: 300 mm: 500x160 mm: 350x150 mm: 300x150x55 mm: 2800 1/min: 3,6 kW: 1020 mm: 820 mm: 2170 mm: 440 kg: Dm. 200x78x78 mmThis Grinding machine with fixed table derives from the model R.V. 500 but it differs from it as it isequippedwith a long column supported by four bearings and is opportunely stiffenedby a sturdy column support.This Surface grinding machine, due to its stiffness and geometrical stability,is highly suitable for grinding with precision pieces of notable height: single or mass-produceddie-shop components, moulds, punches, gears and others.Moreover, the nuts of the vertical translation screw and the dowels to realign the wheel motorto the axis,equipping this model of Grinding machine with fixed table,allow preserving perfect work conditions over the years, too.CAST IRON BED to maintain the geometric s ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 111220 €: 2102.06 €: 400 mm: 500 mm: 400 mm: 225 mm: 400 mm: 50 kg: 450 mm: 500 - 2200 1/min: 5,5 kW: 19 kW: 2800 mm: 2800 mm: 2610 mm: 2850 x 2000 x 2470 mm: 3450 kg: Dm. 355 x 38 x Dm. 127 mm: 0,001 mm: 1.7 kW: 2.4 kW: 10 - 150 1/min: 0.005 mm: 0.003 mmiSurface control with 10,4", touchscreen for fully automatic grindingin machine manual wheel balancingtraveling column rib structureAC servo motors für Y/Z axes and rotary table1 pc. wheel flange1 pc. grinding wheel Dm. 355 x 38 x Dm. 127 mmCoolant equipment with automatic paper filter and magnetic separatorautomatic dresser on the table, with compensationfully enclosed splash guardelectromagnetic round chuck, fine pole pitch (1+3 mm)working lampwarning lampoperating manual in German and EnglishALTERNATIVE:model version FRG-400S with Smart iControl for profile grinding price on requ ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 122120 €: 2308.07 €: 600 mm: 500 mm: 600 mm: 325 mm: 600 mm: 205 kg: 450 mm: 500 - 2200 1/min: 5,5 kW: 19 kW: 2800 mm: 2800 mm: 2610 mm: 2850 x 2000 x 2470 mm: 3500 kg: 820 mm: Dm. 355 x 38 x Dm. 127 mm: 0,001 mm: 1.7 kW: 2.4 kW: 10 - 150 1/min: 0.005 mm: 0.003 mmiSurface control with 10,4", touchscreen for fully automatic grindingin machine manual wheel balancingtraveling column rib structureAC servo motors für Y/Z axes and rotary table1 pc. wheel flange1 pc. grinding wheel Dm. 355 x 38 x Dm. 127 mmCoolant equipment with automatic paper filter and magnetic separatorautomatic dresser on the table, with compensationfully enclosed splash guardelectromagnetic round chuck, fine pole pitch (1+3 mm)working lampwarning lampoperating manual in German and EnglishALTERNATIVE:model version FRG-600S with Smart iControl for profile grinding morepr ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 119350 €: 2255.72 €: 610 mm: 600 mm: 600 x 300 mm: 600 x 300 mm: 0 - 20 m/min: 0 - 3000 mm/min: 0,001 mm: 350 mm: 440 mm: 0 - 3000 mm/min: 0.001 mm: 500 - 1800 1/min: 11 kW: 3160 mm: 2450 mm: 2080 mm: 3400 x 2200 x 2530 mm: 4000 kg: 975 mm: 195 kg: 370 kg: 355 x 50 x 127 mm: 1,1 / 1,1 kW: 3.9 kW: 0,005 mm: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 4 angular contact ball bearings (P4, class 7)Longitudinal and cross guides with heavy duty needle roller bearing for lo ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 33640 €: 642.52 €: 457 mm: 450 mm: 457 x 203 mm: 450 x 200 mm: 500 mm: 530 mm: 5 - 25 m/min: 960 mm/min: 0,4 - 6 mm: 230 mm: - mm: 2850 1/min: 1,5 kW: 0.75 kW: 0.04 kW: 3,7 kW: 2200 mm: 1575 mm: 1950 mm: 1320 kg: 215 kg: 250 kg: 203 x 12,7 x 31,75 mmmanual vertical feedgrinding wheel spindle on 4 high precision angular contact bearingselectro-magnetic chuckcoolant equiptment 34 lt with magnetic separator and dust exhaustmanual dresser with diamondgrinding wheelgrinding wheel flangegrinding wheel balancing scalebalance arborLED machine lampmachine and equipment according to the CE-regulationsuser manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1250 mmgrinding width: 400 mmworkpiece height: 550 mmtable surface area: 1720 x 400 mmdimensions of grinding wheel: 400 x 50 x 127 mmtable height over floor: mm: 1250 x 600 mmgrinding spindle speed: 3000 U/mintable load capacity: 1100 kptotal power requirement: 13,8 kWweight of the machine ca.: 6,0 tdimensions of the machine ca.: 5,0 x 3,4 x 2,4 mSurface grinding machine- Magnetic grinding wheel- Coolant system- DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter:600 mmgrinding length:3000 mmcentre height:300 mmweight of the machine ca.:11,8 tdimensions of the machine ca.:7100x2300 mmspindle turning speed range:14 - 220 U/mingrinding wheel diameter:650 mmgrinding wheel flange for width 25-40 mm:3 Stk.open tailstocks:3 Stk.chuck:Ø310 mmfixed steady:320 mmDistance between center: 3000 mm.Height of centres: 300 mm.Spindle speed: (n°12) 14 - 220 RpmMax grinding diameter: 600 mm.Stroke the wheelhead:(rapid) 50 mm.Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. .Max grinding wheel diameter: 650 mm.Max tilt table: 3° 30'Total absorbed power: 27,7 HpDimension: 7100x2300 mm.Weight approx: 11800 Kg.

workpiece diameter:5-125 mmgrinding depth:50-1000 mmclamping length:1000 mmtotal power requirement:1.9 KVAweight of the machine ca.:630 kgmax. workpiece weight:100 kgCenter Hole Grinding Machine.Workpiece must be rotated by machine during grinding

grinding diameter:600 mmgrinding length:3000 mmcentre height:315 mmworkpiece weight max.:3000 kgwork piece spindle speed:8 - 120 U/mingrinding wheel motor:25 kWgrinding wheel speed:45 m/secgrinding wheel width x diameter:750 x 80 mmtable speeds:30 - 4500 mm/minfeeds of grinding head:0 - 5 mm/mintable swivelabel +/-:7,5 °total power requirement:55 kVAweight of the machine ca.:18 tdimensions of the machine ca.:11,5 x 4 x 2,2 m- Internal grinding device- taper grinding up to 10,1° based on diameter- automatic grinding cycle- grinding wheels and flanges- dressing device- coolant attachment- dust exhauster, various steady rests

grinding length:600 mmgrinding width:300 mmworkpiece height:450 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2,8 x 3,0 x 2,0 mgrinding spindle speed:1440 / 2905 U/minwith magnetic plate 600 x 200 mmautom. vertical feed coolant attachmentTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2024, Josef Weber. All rights reserved.

: neu : ca. 6 Monate ab Auftragse : Taiwan : 84310 €: 1593.46 €: 460 mm: 395 mm: 460 x 200 mm: 450 x 200 mm: 0 - 20 m/min: 0 - 3000 mm/min: 0,001 mm: 220 mm: 290 mm: 0 - 3000 mm/min: 0.001 mm: 1000 - 7000 1/min: 3 kW: 2280 mm: 2205 mm: 2020 mm: 1500 kg: 1060 mm: 175 kg: 210 kg: Dm. 205 x 12,7 x 31,75 mm: 1,1 kW: 2.4 kW: 0,004 mm: 0,003 mmSmart i control with 10.4", touchscreen on a swiveling panel, with electronic wired handwheel- RS232, USB I/O connection- SMART Grind Cam (dxf transfer in G code)-PC based control with graphical dialog programming or G-code programmingInfinitely variable speedSurface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycleSpindle with 4 angular contact ball bearings (P4, checkout 7)Longitudinal guides with double V shape, with Turcite-B coatingAll 3 axix with precision bal ...

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

grinding length:450 mmgrinding width:250 mmworkpiece height:280 mmTable area:760 x 250 mmgrinding spindle drive:2,5 kWgrinding wheel dia. x width:250x 25 mmgrinding spindle speed:1430/2900 U/minway of grinding spindle saddle, vertical:400 mmtotal power requirement:4,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:1,8 x 1,4 x 2,0 mMachine equiped with magnetic plate- dresser

grinding diameter:380 mmgrinding length:1000 mmcentre height:180 mmgrinding wheel diameter:400 mmmax. workpiece weight between centres:250 kgtotal power requirement:10 kWweight of the machine ca.:4,1 tdimensions of the machine ca.:3 x 2 x 1,6 mwith internal grinding attachmentwith fixed and swivelling headstockwith coolant tank

Auction-ID: A1-45793-88

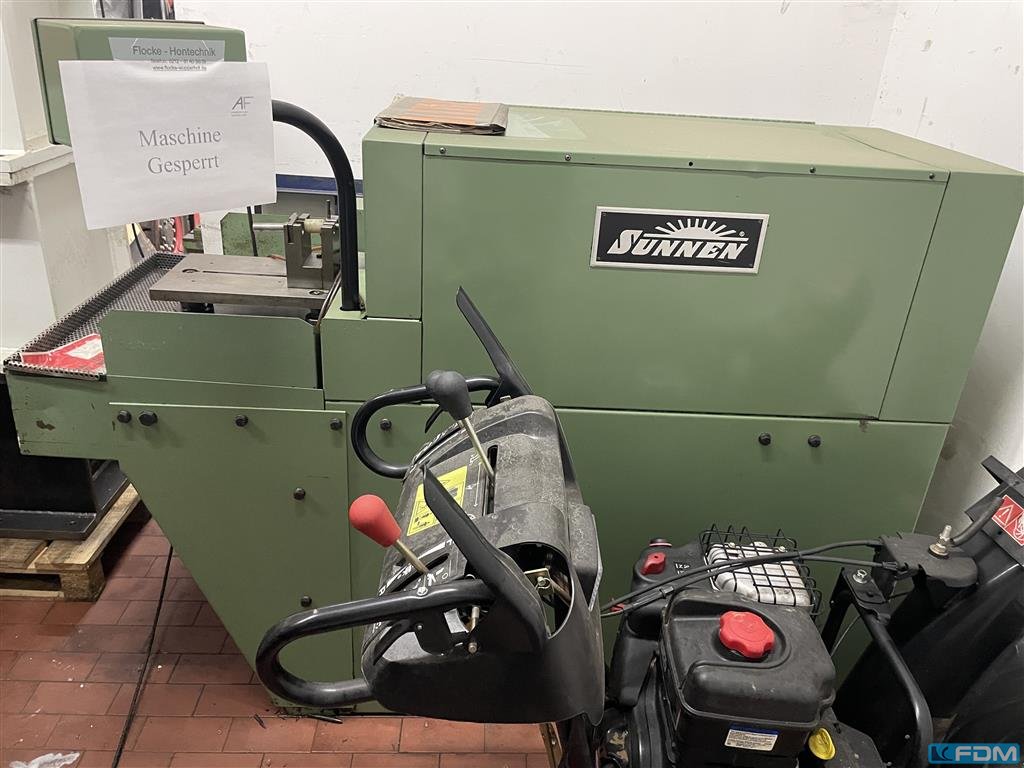

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device
