External Cylindrical Grinding Machines EMAG-KARSTENS HG 320 x 2000
metal working machines / grinding machines / External Cylindrical Grinding Machines
grinding diameter: 715 mmgrinding length: 2000 mmcentre height: 360 mmcontrol: Siemens 840 D centre distance: 2000 mmmax. workpiece weight between centers: 650 kgGrinding spindle:: Spindlespeed: 450 min/-1driving power - grinding spindle: 7,5 kWtaper: 1:5 tool taper: mmfeed speeds: 0,01 - 15.000 ...
Manufacturer: EMAG-KARSTENS
Model:HG 320 x 2000
Type of machine: External Cylindrical Grinding Machines
item-No.: 170049807
Quantity: 1
Date: 27.08.2026
Year of manufacture: 2003
Location: ab Werksstandort,unter Strom
Price:
Machine in stock:Yes
Seller-item-No.:1020-21128
grinding diameter: 715 mm
grinding length: 2000 mm
centre height: 360 mm
control: Siemens 840 D
centre distance: 2000 mm
max. workpiece weight between centers: 650 kg
Grinding spindle::
Spindlespeed: 450 min/-1
driving power - grinding spindle: 7,5 kW
taper: 1:5
tool taper: mm
feed speeds: 0,01 - 15.000 mm/min
travel -x axis: 500 mm
travel -z axis: 2700 mm
: 280 °
grinding speed: 15 m/min
total power requirement: 75 kW
weight of the machine ca.: 14,5 t
dimensions of the machine ca.: 5 x 2,4 m

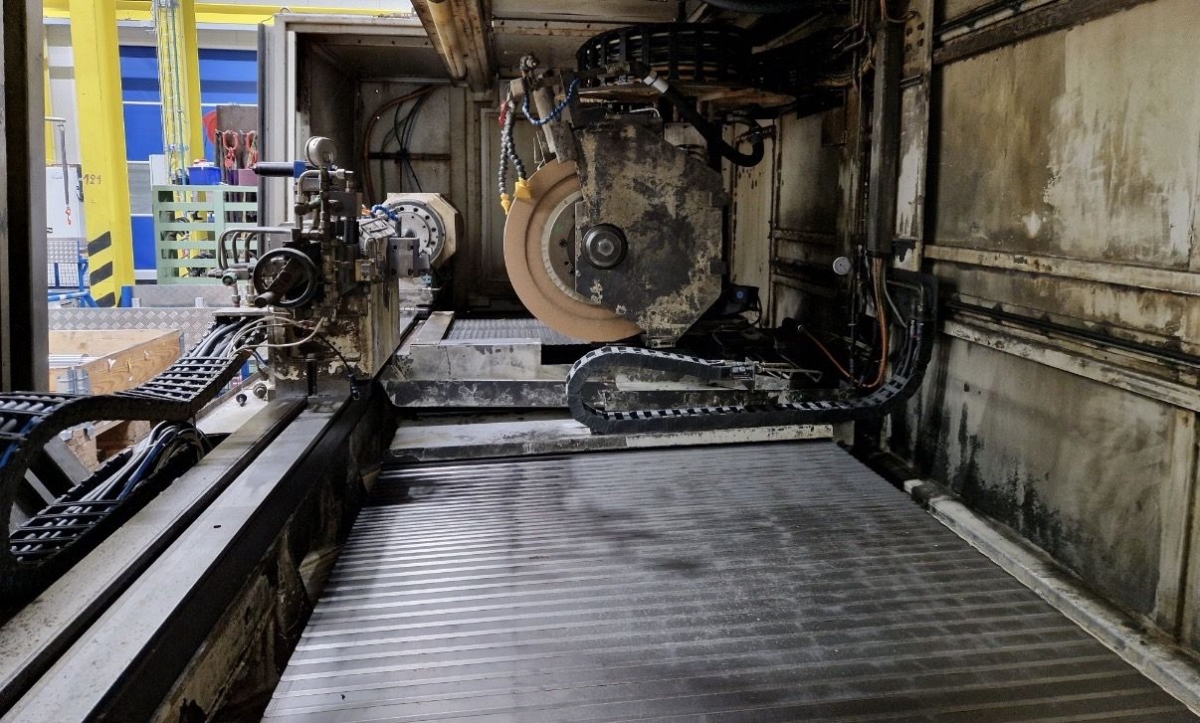

External cylindrical grinding machine
modernised in 2022

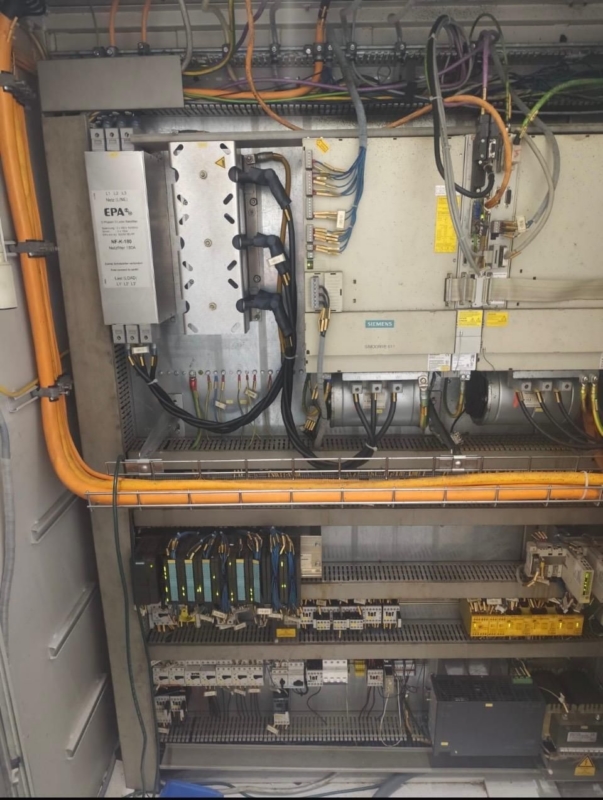

-- Siemens 840D / electrical system
-- Ball screws on the X and Z axes replaced
-- B axis repaired and encoder replaced.

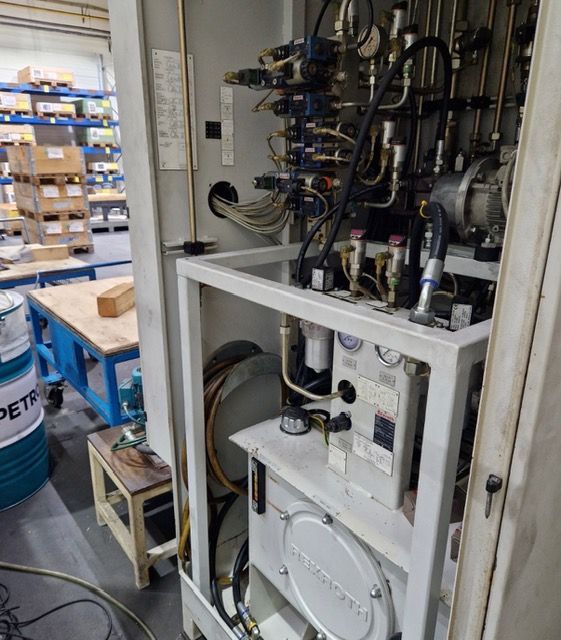

-- Hydrostatic system replaced.
Equipped with:
- Siemens 840D PowerLine CNC control (X, Z, C, B axes)
- Marposs measuring system
- BalaDyne system
- Tailstock
- Band filter system
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
