grinding machines used for sale (2,206)

Surface grinding machine. Magnetic chuck of 550x250mm. Table travel: 700mm. Grind surface area: 600x350mm. Max. height: 375mm. Cross travel: 300mm. Wheel: 350x127x50 / 300x127x100 Weight: 2900Kg.

Tool grinding machine Jungner US-2305 Table: 1020 x 114 mm, clamping surface: 625 x 114 mm Distance between centers: 305 mm Work piece diameter: 225 mm Travels: -X: 350 mm -Y: 90 mm Spindle motor: 0,55 kW Spindle speed: 3400 / 5000 / 6700 rpm

Center height: 180 mm Grinding diameter: Ø 290 mm Distance between centers: 1000 mm Lots of equipment

Center height: 300 mm Turning diameter: 600 mm Distance between centers: 2100 mm Eccentricity: max 140 mm Self centering chuck diameter: 200 mm Work piece weight: max 250 kg Grinding diameter: 224 mm Work piece turning speed: 18/40/63/90 rpm Grinding wheel dimeter: 915 mm Grinding wheel thickness: 32-63 mm Grinding motor: 7,5 hp Size: 5000 x 2100 x 1700 mm Weight: 4900 kg Includes 3 wheel hubs and 4 used grinding wheels

Working diameter: 40 - 250 mm Automatic work piece loading and removing for ball diameters: 40 - 105 mm Manual loading for diameters: 105 - 170 mm Direct ball attaching: 170 - 250 mm Rotation speed, stepless: 10 - 300 rpm Grinding spindle speed range: -160 - 3150 rpm -80 - 1580 rpm -38 - 775 rpm -20 - 385 rpm Weight: 6,5 tn Electrical connection: 17 kW Year of manufacturing: 1991

Type: MH 650Longitudinal stroke X: 650 mmTransverse stroke Y: 220 mmVertical stroke Z: 260 mmTable area: 650 × 220 mmWheel size: Ø 230 × 32 mmWheel rotational speed: 2850 rpmSpindle motor power: 2.2 kW (4 HP on plate)Feeds: longitudinal 0.8 to 28 m/min, transverse 0.5 to 5 m/minMagnetic table: B.J.P. Type STICK with 50 V demagnetizationFiltration: yesPower supply: 380 VSerial number: KH7105280/2-66489Manufacturer: H. ERNAULT-SOMUA

Cylindrical grinding machine (inter/exter) STUDER S20 Favorit Tailstock: 650 mm Inter. / exter. SONY 2-axis visualization Watering tray More information on request.

CNC cylindrical grinding machine STUDER S33 TECHNICAL FEATURES: Year: 2008 NC Type: FANUC 21i-TB Software version installed: StuderGrind Distance between points: 650 [mm] Peak height: 175 X-axis travel: 285 [mm] Minimum speed. X-axis stroke: 0.001 [mm/min] Maximum speed X-axis travel: 5000 [mm/min] X-axis resolution: 0.0001 [mm] Z-axis travel: 800 [mm] Minimum speed. Z-axis travel: 0.001 [mm/min] Maximum speed Z-axis stroke: 10000 [mm/min] Z-axis resolution: 0.0001 [mm] B-axis angular travel: -15 [°] / +195 [°] B-axis indexing accuracy: Hirth 1 [°] Coin Holder Spindle Nose: MT5 Minimum speed. Coin Holder: 1 [RPM] Maximum speed Workpiece Spindle: 1500 [RPM] Maximum weight Permissible headstock workpiece holder between points : 80 [Kg] Tailstock Cone: MT3 Tailstock sleeve stroke: 35 [mm] Diameter of tailstock: 50 [mm] Tailstock fine adjustment: +/- 40 [mm] W ...

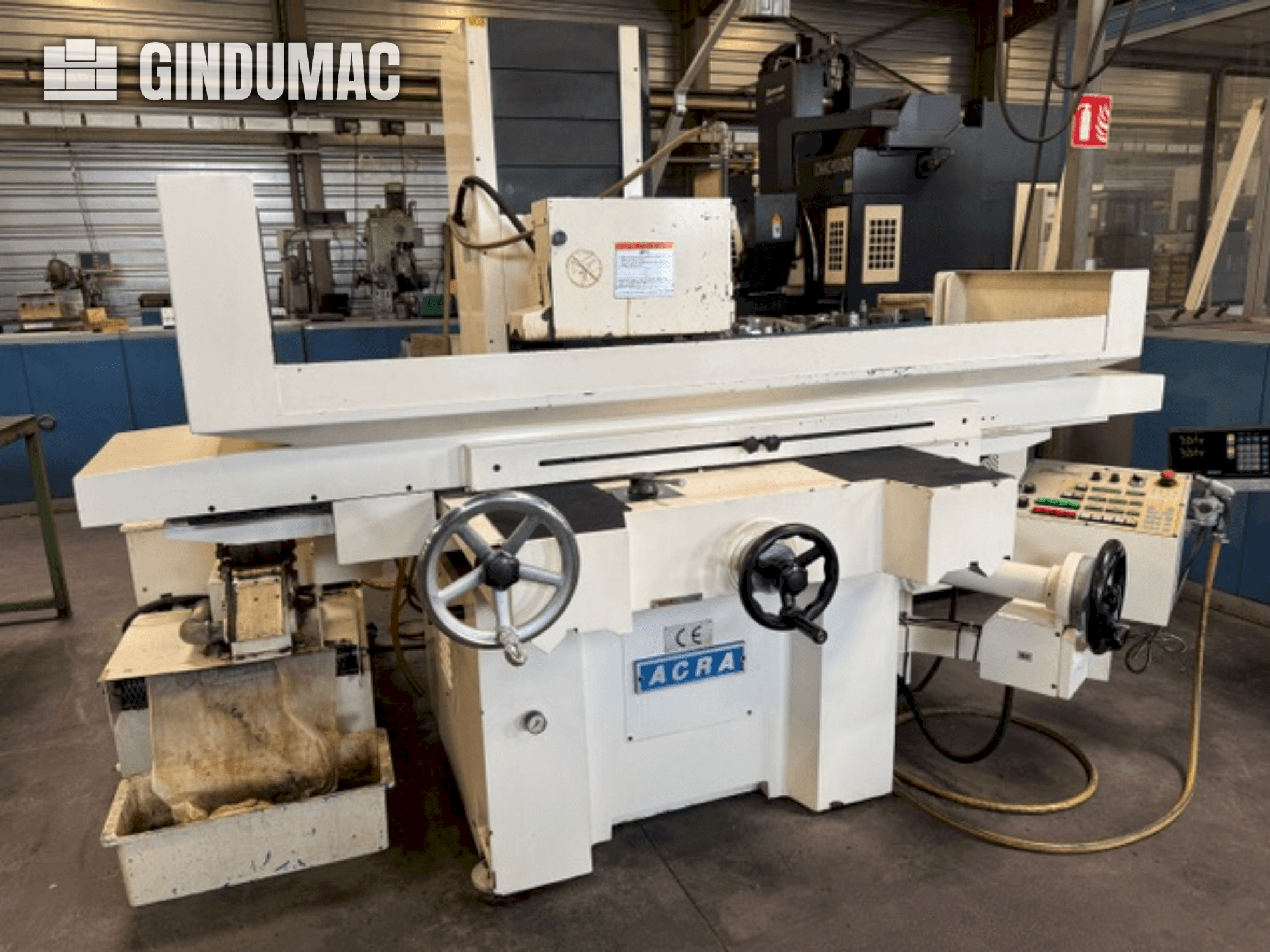

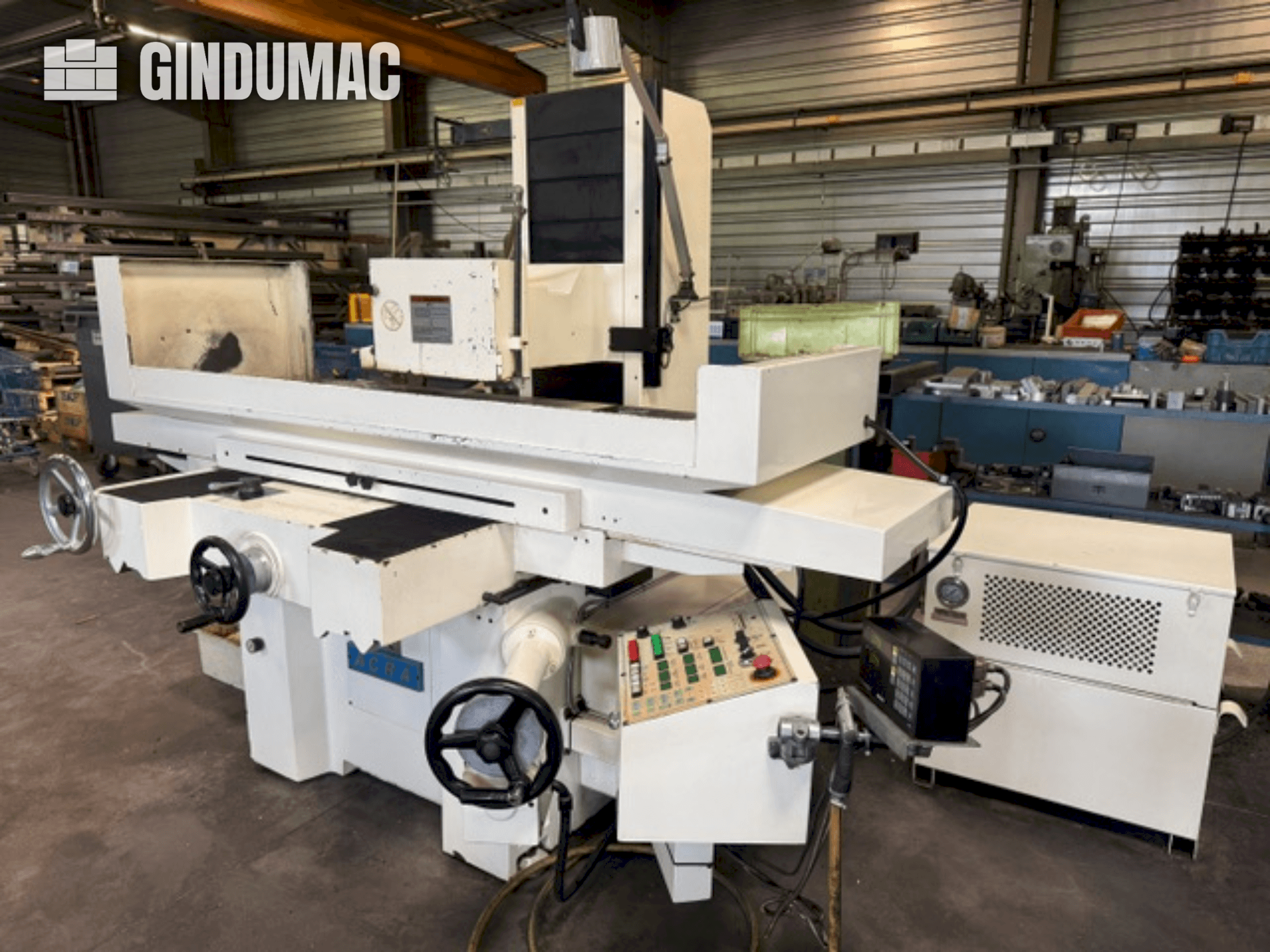

This ACRA CHALLENGER ASG-1632HS was manufactured in 2006. It features a robust hydraulic surface grinder with a table surface of 800 x 400 mm and a maximum table weight of 400 kg. Equipped with a variable electro-magnetic demagnetizing table and a 2-axis SONY DRO for enhanced precision. Very good condition. Contact us for more information about this machine.

DECKEL S11 Sharpener TECHNICAL FEATURES: Wheel diameter: 125 [mm] Workpiece Spindle Nose: ISO 40 Paper Filtration: No Supply voltage: 400 [V] Installed power: 2 [kVA] Dimensions: 1100 x 800 x 1760 Weight: 520 [Kg] EQUIPMENT INCLUDED: x1 Universal Divider with Quick Indexing – Part Number: 255X0X x10 divider rings for fast indexing x1 tailstock with transverse adjustment – Ref.: 2621000 x1 tailstockwith vertical adjustment – Item No.: 2624000 x1 complete swivel bracket – Article No.: 2626000 x1 Grinding Unit (Concave or Convex) – Item No.: 2628000 x1 1 Universal Depth Gauge – Part Number: 2570000 x1 1 helical sharpening device – Article No.: 2580000 x1 draft grinding slide – Item no.: 2673000 x1 universal vise – Ref.: 2635000 x1 optoelectronic measuring unit with microscope – Part Number: 2650012 x2 RSF-Elektronik digital axis visualizatio ...

OKAMOTO ACC42 SA-iQ – CNC Surface Grinding Machine TECHNICAL FEATURES: Year: 2017 Color Touch Screen: Yes Maximum surface area. Grinding Length x Width: 400 x 200 [mm] X-axis stroke (longitudinal axis): 510 [mm] Minimum speed. X-axis travel: 100 [mm/min] Maximum speed X-axis travel: 20000 [mm/min] Z-axis stroke (transverse axis): 220 [mm] Minimum distance. Spindle/table: 22.5 [mm] Maximum distance Spindle/Table: 357.5 [mm] Maximum weight Tabletop Allowable: 120 [Kg] Mini Wheel Spindle Speed. : 1000 [rpm] Maximum wheel spindle speed : 3600 [rpm] Spindle power : 2.2 [kW] Maximum diameter Grinding wheel: 205 [mm] Maximum width Grinding wheel: 16 [mm] Minimum width. Grinding wheel: 6 [mm] Wheel Bore: 31.75 [mm] Number of hours in operation: 59 [h] Supply voltage: 400 [V] Installed power: 11 [kVA] Weight: 2100 [Kg] EQUIPMENT INCLUDED: x1 150 [l] FB1/R waterin ...

Cylindrical Grinding Machine TSCHUDIN type HTG 400 Between points: 400 mm Centre height: 100 mm Cone: CM4 Spindle speed: from 70 to 500 RPM Max table travel: 420 mm Table orientation at 15° Grinding wheel: Ø 300 mm Retractable tailstock CM3 Machine rebuilt by REWITECH SA (Switzerland) in 1995 Equipped with one settling tank PHILIPS Voltage: 380 V Dimensions (L x W x H): 2000 x 1400 x 1600 mm Weight: approx 1,5 T

Polish Lathe / Polishing Machine Between points: 1500 mm Centre height: 180 mm Spindle CM3 Spindle speed driven by speed variator Pneumatic tailstock Equipped with a vaccum system (only air hose to plug in) Machine was used to polish axes Voltage: 220 V mono Dimensions (L x W x H): 3200 x 1000 x 1900 mm Weight: 1,2 T

Double Bench Grinder REMA DS 04/150 Rotation: 2900 RPM Grinding wheel: Ø 150 x 25 mm Motor power: 0,3 kW Voltage: 380 V Width: 450 mm Depth: 300 mm Total height: 1100 mm Weight: env. 50 KG

Bench Grinder REMA DS 12/200 - 1 grind Rotation: 2900 RPM Grinding wheel: Ø 200 mm x 30 mm Motor: 0,9 kW Voltage: 380 V Width: 600 mm Depth: 400 mm Total height: 1100 mm Weight: approx 80 KG

Surface Grinding Machine ABA FFV 1000/50 Travel X: 1000 mm Travel Y: 500 mm Travel Z: 400 mm Magnetic chuck dimensions: 1000 x 400 mm Auto stepover X / Y / Z Separate electrical panel Separate lubricant tank Separate hydraulic group Voltage: 380 V Length: 4000 mm Depth: 1700 mm Total height: 2300 mm Weight: approx 6 T

External/Internal Cylindrical Grinding GENDRON RU 28.100 Between points: 1000 mm Maxi grinding diameter: Ø 290 mm Tool holder rotation: from 70 to 370 RPM 4-jaws Ø 200 mm chuck Grinding wheel: Ø 300 mm Auto pass plug Swivel table External hydraulic group External lulbricant tank Voltage: 380 V Dimensions (L x W x H): 3000 x 1900 x 2000 mm Weight: approx 3 T

Machine Details Stock-No. 1105-04056 Type of machine Surface Grinding Machine - Horizontal Make CHEVALIER Type FSG- 818 AD Year of manufacture 1998 Type of control conventional Storage location HAGUENAU FRANCE Country of origin Taiwan Delivery time immediately Freight basis ex stock Price Technical details grinding length 450 mm grinding width 200 mm workpiece height 350 mm electro magnetic clamping plate 350 x 200 mm table speed -stepless- 5 - 25 m/min dimensions of grinding wheel 200 Ø x 19 x 32Ø mm total power requirement 1.7 kW weight of the machine approx. 3.6 t Additional information automatic vertical feed, dressing devise, electro magnet, coolant with paper filter, hydraulic separate

Machine Details Stock number 1105-04042 Machine Type: Surface Grinding Machine Make JACOBSEN Type 1432 Year of construction 1992 Condition Conventional control type Storage location HAGUENAU FRANCE Country of origin Delivery time at short notice - by arrangement. Freight base delivery from site. Price Technical details Grinding length 900 mm Grinding width 410 mm Travel - x 900 mm Travel - y 410 mm Travel - z 300 mm Machine weight approx. 2700 kg Information Distance table - spindle center: 135-575 mm Table speed X: 30-30000 mm/min. Table speed Y: 4-3750 mm/min. Table speed Z: 4-4000 mm/min. Max. grinding wheel dimension: 300x50x76.2 mm Drive power grinding spindle: 4.7 kW MAGNETIC PLATE BRAILLON 800 X 400 MM 5 GRINDING FLANGES

Surface Grinding ERNAULT SOMUA FU 660 Travel X: 660 mm Travel Y: 400 mm Travel Z: 400 mm Magnetic chuck BRAILLON 700 x 300 mm Grinding wheel: Ø 355 mm Motor power: 7,5 CV Swivel head Automatic diamond cutting Auto stepover X - Y - Z Lubricant tank Hydraulic Group Voltage: 220 V Tri Length: 2900 mm Depth: 2000 mm Total height: 2200 mm Weight: approx 4,5 T

Drills Grinding Machine DECKEL SOE Spindle speed: 4500 RPM Maxi bore of clamps: 17,5 mm Maxi sharpenable radius: 10 mm Maxi lateral displacement: 10 mm Angle adjustment: 45° Maxi displacement: 100 mm (see technical details) Delivred with 1 set of clamps + different diamond grinding wheels Voltage: 380 V Width: 600 mm Depth: 600 mm Total height: 1300 mm Weight: approx 150 kg

Surface Grinding Machine JONES and SHIPMAN 540 P Travel X: 483 mm Travel Y: 168 mm Maxi grinding height: Wheel chuck 190 mm / without chuck 240 mm Spindle rotation: 3200 RPM Year of construction: 1996 Magnetic chuck dimensions: 450 x 150 mm Grinding wheel: Ø 200 mm x thickness 25 mm Auto stepover X - Y Manual Z-axis rise Voltage: 380 V Equipped with: 1 Manual Magnetic Chuck BRAILLON PFF Equipped with: 1 Lubricant tank DARENTH type 1004/01 Tank dimensions: L 650 mm x Depth 700 mm x H 900 mm Dimensions (L x W x H): 1500 x 1100 x 1800 mm Weight: approx 1 T

Surface Grinding Machine MONOPRECIS 1DR Travel X: 400 mm Travel Y: 150 mm Maxi grinding height (Z): 220 mm Year of construction: 1983 Manuel Magnetic chuck dimensions: 2500 x 130 mm Max Grinding wheel dimensions: Ø 170 mm Diamond system Manual movement Voltage: 380 V Dimensions (L x W x H): 1300 x 1200 x 1800 mm Weight: approx 800 kg

Surface Grinding Machine BLANCHARD type 20D Shelf diameter: Ø 915 mm Shelf speed: from 5 to 27 RPM Grindstone diameter: Ø 500 mm Maxi height under wheel: 450 mm Spindle motor: 30 CV - 715 RPM Electromagnetic chuck Rapid Up/Down Voltage 220 V Tri Dimensions (L x W x H): 3700 x 2000 x 2600 mm Weight: 6 T

Surface Grinding Machine BLANCHARD No 18 Shelf diameter: Ø 925 mm Shelf speed: 5 / 7,5 / 10 / 15 / 21 / 27 RPM Grindstone speed rotation: 750 RPM Max height pieces: 300 mm Grinding wheel dimensions:Ø 500 x 125 x 406 mm Maxi loading capacity: 1300 kg Motor power: 25 CV Voltage: 380 V Dimensions (L x W x H): 3200 x 1800 x 2400 mm Weight: approx 5,3 T

Machine Details Stock-No. 1105-03893 Type of machine Surface Grinding Machine - Horizontal Make CANTALUPPI Type 2100 x 450 Year of manufacture 1975 Type of control conventional Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Technical details grinding length 2100 mm grinding width 450 mm workpiece height 650 mm table surface area 2200 x 750 mm distance table - spindle center max. 600 mm table speeds 1 - 25 m/min Cross Feed Autom. 1 - 60 mm/stroke grinding wheel size 400 x 100 x 76 mm grinding wheel speeds 1450 rpm total power requirement 15 kW Additional information Accessories: Magnetplate, 2100 x 400 mm, grinding wheel with flange, draw-off Device.
