grinding machines used for sale (2,209)

Discus level sanding machine with Vertikaler-Schleifspindel and Schleifradaufnahme f?r Ceramische-Schleifsegmente. Construction year 1957 the machine is technical and geometrically in very good state. it was waited up to Au?erbetriebsetzung 2006 regelmig. hydraulic table impulse: infinitely variable adjustably vertical delivery: hydraulically Schleifrad-Durchme?er: 600 mms impulse achievement: 22 kW Magnetabme?ung: 300 x 1,000 mms Schleiftischabme?ung: 400 x 1,700 mms

The machine is technical and geometrically in a very good state. it was till 2years in use an application and any time inbetrieb are taken. Grter draggable Durchme?er 60 mm the smallest tench-cash Durchme?er 0.5 mm Schleifscheiben-Durchme?er 356 mm Schleifdcheiben width 150 mms control disc-Durchme?er 254 mms control discs width 150 mms Drehzahl-Schleifscheibe 1,780 revo impulse achievement main engine 7 kW speed-control disc 20-250 revos weight 2,900 kg Platzbetarf 8 m²

Tip height 120 mm, grinding length 1000 mm, 8 spindle speeds 55 - 600 rpm, spindle head holder MK 3, table sash. infinitely adjustable, table swivel 7 each, delivery by hand or automatically, grinding wheel-dm. max 400 mm, Grinding wheel width approx. 60 mm, tailstock holder MK 2, connection value approx. 3.5 kW, automatic working cycle, express speed 30 mm, automatic. Piercing loops. The machine is functional and does not require a geometric revision. Accessories on request!

The machine is equipped with controlled B-axis smallest delivery 0.001, swivel range 340, controlled workpiece spindle stick (C-axis)smallest delivery 0.05, max. 42 rpm, equipped with an external grinding spindle (left and right spindle end), 1 internal grinding spindle. For an additional charge, a second internal grinding spindle can be delivered. Z-way 680 mm, X-way 255 mm, smallest delivery of the axles 0.001 mm. Tip height 175 mm, W.-stock MK 5, step. adjustable 1 - 1200 rpm, external grinding spindle 1000 - 3000 rpm, max. grinding wheel perm. 300 mm. The machine is suitable for ideal for the processing of carbide and technical ceramics (SIC and Al 2). Intermediate sale:reservations Delivery time:4-6 months

Grinding body dimension: 200 x 40 x 76 mm Circumference speed: 30 m / sec Follow-up value: 0.7 kW Weight: approx. 250 kg Specification: Double grinding bracket with integrated suction

This 3-axis EASTAR ESG-1640ASD II surface grinding machine was manufactured in 2008. It features a substantial work plane of 400 x 1000 mm, ideal for various grinding tasks. If you are looking to get high-quality grinding capabilities, consider the EASTAR ESG-1640ASD II machine we have for sale. Contact us for more information.

Key data: 450 mm, 1500 mm, 225 mm

Stock number: 3995 CNC CYLINDRICAL GRINDING MACHINE Manufacturer: KELLENBERGER, Type: KEL-Varia 225 - 1500 Machines NO.: 650533, Year of manufacture: 2002 Specifications: Grinding length 1500 mm Gr. grinding diameter 450 mm Z-ash 1650 mm X-ash 320 mm Caschen 0.001 degree B ash 0.001 Large stone diameter 500 x 80 x 203.2 mm Control Heidenhain 1830 m Fabr. Accessories: Cooling water system. Grinding hubs 2 pcs Weight: 6000 kg

Stock number: 3986 SURFACE GRINDING MACHINE Manufacturer: SEEST , Type: Surface grinder Specifications: Large stone diameter 350 mm Automatic feed. Length: 1500 mm, Height: 1200 mm, Width: 800 mm , Weight: 1000 kg

Bearing number: 3694 HONING MACHINE Manufacturer: PLEIGER, Type: B - 290 Year of construction: 2002 Specifications: honing length 10000 mm workpiece size dia. 355 mm Min. Max. Honing Dia. 290 mm Length: 27,000 mm, Høhe: 10,000, Width: 2,000 mm, Weight: 30,000 Kg

GENERAL CHARACTERISTICS:, Grinding Wheel Dimensions: Ø610xØ304,8x300 mm, Regulating Wheel Dimensions: Ø355xØ152,4x300 mm

Distance between points: 1000 mm, Height of points: 250 mm, Axis B: Accuracy 0.1 , CNC brand: Kelco , CNC model: 90, Left grinding wheel dimensions (OD x ID x W): Ø400 x Ø127 x 63 mm, Right grinding wheel dimensions (OD x ID x W): Ø400 x Ø127 x 50 mm, Rotation of the workpiece head: -30º +120º , Workpiece holder head cone: MK 5, Max. workpiece weight between points: 150 Kg, tailstock cone: MK 4, Counterpoint reed route: 50 mm, Max tangential speed: 32 m/s, High-frequency internal grinding spindle: Ø120 mm, High-frequency internal grinding spindle brand: WARNER model K 3.000, Main engine power: 7.5 Kw, Total power: 26.5 Kw, Max travel Z axis: 1.150 mm, Max speed Z axis: 15 m / min, Work table rotation: 0º to 9º, Max travel X axis: 320 mm, Max speed X axis: 7.5m/min, Long: 3600 mm, Width: 2000 mm, Weight approx.: 5.000 Kg

Distance between points: 1000 mm, Ø max to be rectified: 400 mm, Maximum length to be rectified: 600 mm, Max travel Z axis: 1300 mm, Max travel X axis: 378 mm, Height of points: 205 mm, Ø of the grinding wheel: 600 mm, Grinding wheel width: 63 mm, Maximum width of grinding wheel: 125 mm, Grinding wheel hole Ø: 203 mm, cnc brand: SIEMENS, cnc model: 840D, Main engine power: 22 Kw, Grinding wheel speed: 45 m/s, tailstock cone: mk5, Counterpoint tour: 100 mm, Workpiece head cone: mk5, Workpiece head rotation: 90º, Maximum piece weight: 300 Kg, Working accuracy of the machine: IT4 ISO, Fine taper adjustment +/-: O, 1 mm/a, speed of the working feed of the table: from 0 to 7.5 m/min, Plan dimensions: 4500x3000x2500 mm, Weight approx.: 8000 Kg

Distance between points: 760 mm, Max travel Z axis: 650 mm, Maximum length to be rectified: 430 mm, Max. diameter to be rectified: 250 mm, Height of points: 125 mm, Working wheel dimensions (od x id x width): Ø 406 x Ø127 x 50 mm, Max. grinding wheel diameter: 500 mm, Max travel X axis: 320 mm, CNC brand: FANUC, CNC model: 18TB, Main engine power: 7.5 Kw, Z and X axis resolution: 0.1 µmm, Workpiece holder head cone: MORSE 5, Ø of the hole in the workpiece holder head: 38 mm, tailstock cone: MORSE 4, Rotation speed of the workhead: 8 to 800 rpm, Dimensions (length x width): 2500x2000 mm, Weight: 4700 Kg

Distance between centers: 1000 mm, Height of points: 230 mm, Main engine power: 9.2 Kw, Working wheel dimensions (od x id x width): 500x80x203.2mm, Ø max to be rectified: 460 mm, Tailstock cone: MORSE 4, Workpiece head cone: MORSE 5, Max. Z axis travel : 1115 mm, Max. X axis travel: 260 mm, Approximate dimensions (length x width): 440x370 cm, Approximate Weight: 4700 Kg

Distance between points: 760 mm, Max travel Z axis: 650 mm, Maximum length to be rectified: 430 mm, Working wheel dimensions (od x id x width): Ø406 x Ø127 x 50 mm, Max. diameter to be rectified: 250 mm, Ø max to be rectified: 250 mm, Height of points: 125 mm, Max. grinding wheel diameter: 500 mm, Ø max. molar: 500 mm, Max travel X axis: 320 mm, CNC brand: FANUC, cnc brand: FANUC, CNC model: 18i-T, cnc model: 18i-T, Main engine power: 7.5 Kw, Ø max. wheel: 400 mm, Z and X axis resolution: 0.1 µmm, main motor power: 7.5 Kw, Workpiece holder head cone: MORSE 5, Ø of the hole in the workpiece holder head: 38 mm, Distance between centers: 430 mm, Workpiece head cone: MORSE 5, tailstock cone: MORSE 4, Ø of the workpiece head hole: 38 mm, Rotation speed of the workhead: 8 to 800 rpm, Accessories: FELSOMAT gantry loader with SIEMENS CNC; Coolant system with paper filter; Forkardt automa ...

Grinding wheel gap: 1.5 / 50 mm, Max.width of wheel in feed grinding: 125 mm, Working wheel dimensions (od x id x width): 325 x 175 x 125 mm, Øext.min. working wheel: 220 mm, Max. profile depth of the working wheel: 8 mm, Lubrication (auto / manual): Manual, Control type ((cnc / manual): Manual, Driving wheel dimensions (od x id x width): 220 x 125 x 125 mm, Øext.min. driving wheel: 165 mm, Working wheel motor power: 7,5 Kw, Long: 1520 mm, Width: 1020 mm, High: 1260 mm, Weight: 1550 Kg, Driving wheel motor power: 0.75 Kw, Angle of inclination of the working grinding head: +/- 5º, Angle of inclination of the drive wheel head: -2/+5º

Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Longitudinal auto, manual penetration of both grinding wheels, Cnc axes nº: 1, Diamond dressing speed: 255 r.p.m., Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Power hydraulic motor: 3 Kw, Total power: 60 Kw, Voltage: 220 / 380V, Long: 2.300 mm, Width: 2.800 mm, Accessories included: Grinding wheel balancer, plongeé rule holders / Grinding wheel balancer, plongeé rule holders., High: 2.100 mm, Weight: 15.000 Kg

Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Peripheral grinding wheel speed (m / s): Variable with regulator, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Dressing (auto / manual): Automatic CNC the 2 grinding wheels, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Lubrication (auto / manual): Automatic, Control type ((cnc / manual): CNC, Cnc axes nº: 8, Infeed (auto / manual): Automatic, Diamond dressing speed: 255 r.p.m., Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 75 Kw, Power hydraulic motor: 3 Kw, Accessories included: Fairing, rule holder and plongeé, MARPOSS E50 meter, speed regulator. grinding wheel work, Total power: 90 Kw, Voltage: 220 / 380V, Lo ...

Grinding wheel gap: 1.5 / 50 mm, Max.width of wheel in feed grinding: 125 mm, Working wheel dimensions (od x id x width): 325 x 175 x 125 mm, Øext.min. working wheel: 220 mm, Max. profile depth of the working wheel: 8 mm, Regulating wheel speed nº: infinite, Infeed (auto / manual): Automatic / Automatic, Driving wheel dimensions (od x id x width): 220 x 125 x 125 mm, Øext.min. driving wheel: 165 mm, Working wheel motor power: 7,5 Kw, Driving wheel motor power: 0.75 Kw, Long: 1520 mm, Width: 1020 mm, High: 1260 mm, Weight: 1550 kg, Angle of inclination of the working grinding head: +/- 5º, Angle of inclination of the drive wheel head: -2/+5º

Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Ø min/max to be rectified: 1.5 / 120 mm, Regulating wheel width: 254 mm, No. of regulating wheel speeds: Infinite, Regulating wheel speed nº: Infinite, Min/max speed of regulating wheel (r.p.m.): 10/250 rpm, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Dimensions of the regulating wheel (OD x ID x W): 305 x 190.5 x 254 mm, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Maximum length to be rectified in plongeé: 254 mm, Power hydraulic motor: 0.55 Kw., Hydraulic motor power: 0.55 Kw., Total power: 27 Kw., Voltage: 220/380V, Long: 1.800 mm, Width: 2.800 mm, High: 1.900 mm, Tall: 1.900 mm, Weight: 6.420 Kg.

Ø grinding wheel dimensions (od x id x width): Ø650xØ304.8x500 mm, Ø min / max to grinding: 3/200 mm, Peripheral grinding wheel speed (m / s): 35 m / s, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/225 rpm, Dressing (auto / manual): Automatic CNC the two wheels, Diamond dressing speed: infinite 10/225 rpm, Lubrication (auto / manual): automatic, Control type ((cnc / manual): CNC, Cnc axes nº: 6, Infeed (auto / manual): Automatic CNC, Regulating wheel dimensions (od x id x width): Ø355xØ203,2x500 mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Weight: 14,000 Kg machine + peripherals, Accessories included: Fairing, hydraulic work cap, hydraulic ruler / Machine casing, hydraulic cover of the grinding wheel, hydraulic workrest

Automatic wheel balancer, CNC gantry loader, electric hoist, cutting speed regulator, hydraulic lifting wheel grinder, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Speed ​​255 r.p.m., Diamond dressing speed: 255 r.p.m., Control type ((cnc / manual): CNC, Cnc brand: SIEMENS, Cnc model: 840D, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Power hydraulic motor: 3 Kw, Total power: 60 Kw, Voltage: 220 / 380V, Long: 2.300mm, Width: 2.800mm, High: 2.100mm, Weight: 14.000 kg, Accessories included: Automatic wheel balancer, CNC gantry loader, ...

This 3-axis DANOBAT CHROMA 30 was manufactured in 2011. It features a punching force of 30 t, a maximum sheet thickness of 6 mm, and a working area of 3000 x 1500 mm. The machine operates at a punching speed of 1000 strokes/min and includes a tooling system valued at €20,000. If you are looking to get high-quality punching capabilities, consider the DANOBAT CHROMA 30 cylindrical grinding machine we have for sale. Contact us for further details.

Grinding wheel gap: 1.5 / 50 mm, Max.width of wheel in feed grinding: 125 mm, Working wheel dimensions (od x id x width): 325x175x125 mm, Øext.min. working wheel: 220mm, Max. profile depth of the working wheel: 8 mm, Regulating wheel speed nº: infinite, Infeed (auto / manual): Automatic / Automatic, Driving wheel dimensions (od x id x width): 220 x 125 x 125 mm, Øext.min. driving wheel: 165 mm, Working wheel motor power: 7,5 Kw, Driving wheel motor power: 0.75 Kw, Angle of inclination of the working grinding head: +/- 5º, Angle of inclination of the drive wheel head: -2/+5º, Long: 1.520 mm, Width: 1.020 mm, High: 1.260 mm, Weight: 1.550 Kg

Centerless grinding machine manufactured in 2008. This DANOBAT 327 MDA features a maximum wheel width for plunge grinding of 500 mm and a peripheral wheel speed of 50 m/s. It has a grinding wheel motor power of 55 kW and a regulating wheel speed that is infinitely variable from 10 to 225 min⁻¹. If you are looking to get high-quality grinding capabilities, consider the DANOBAT 327 MDA machine we have for sale. Contact us for further details.

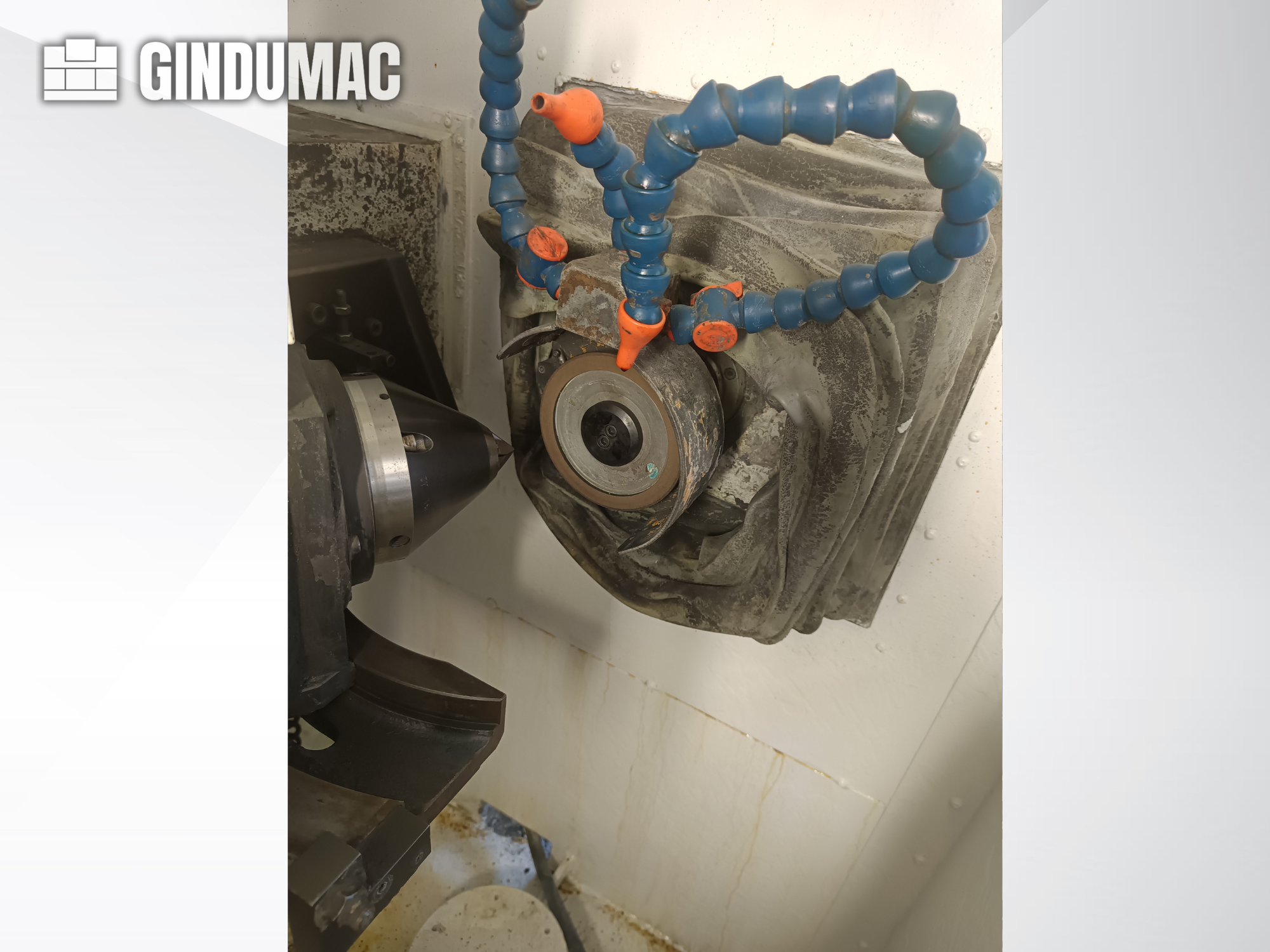

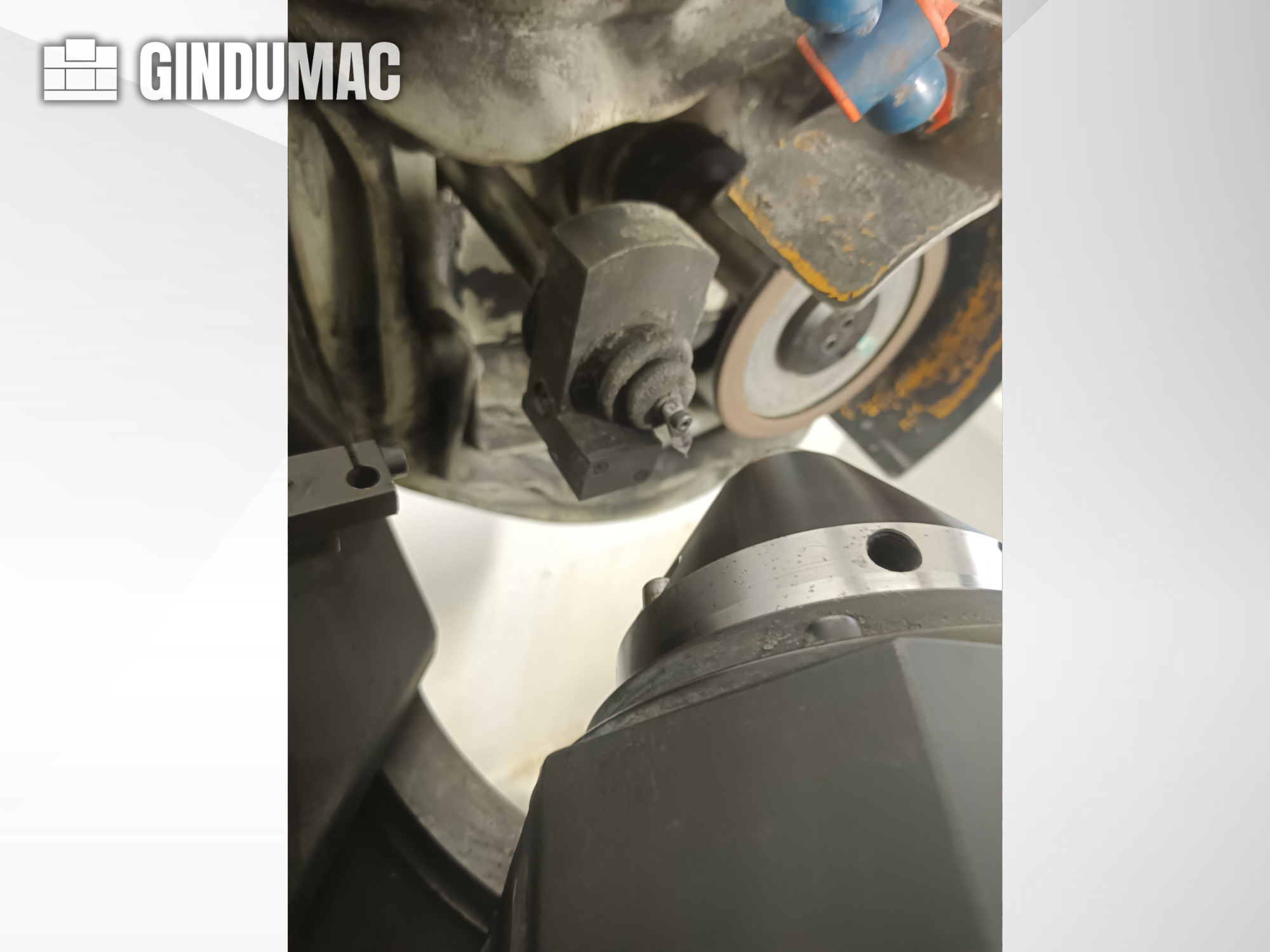

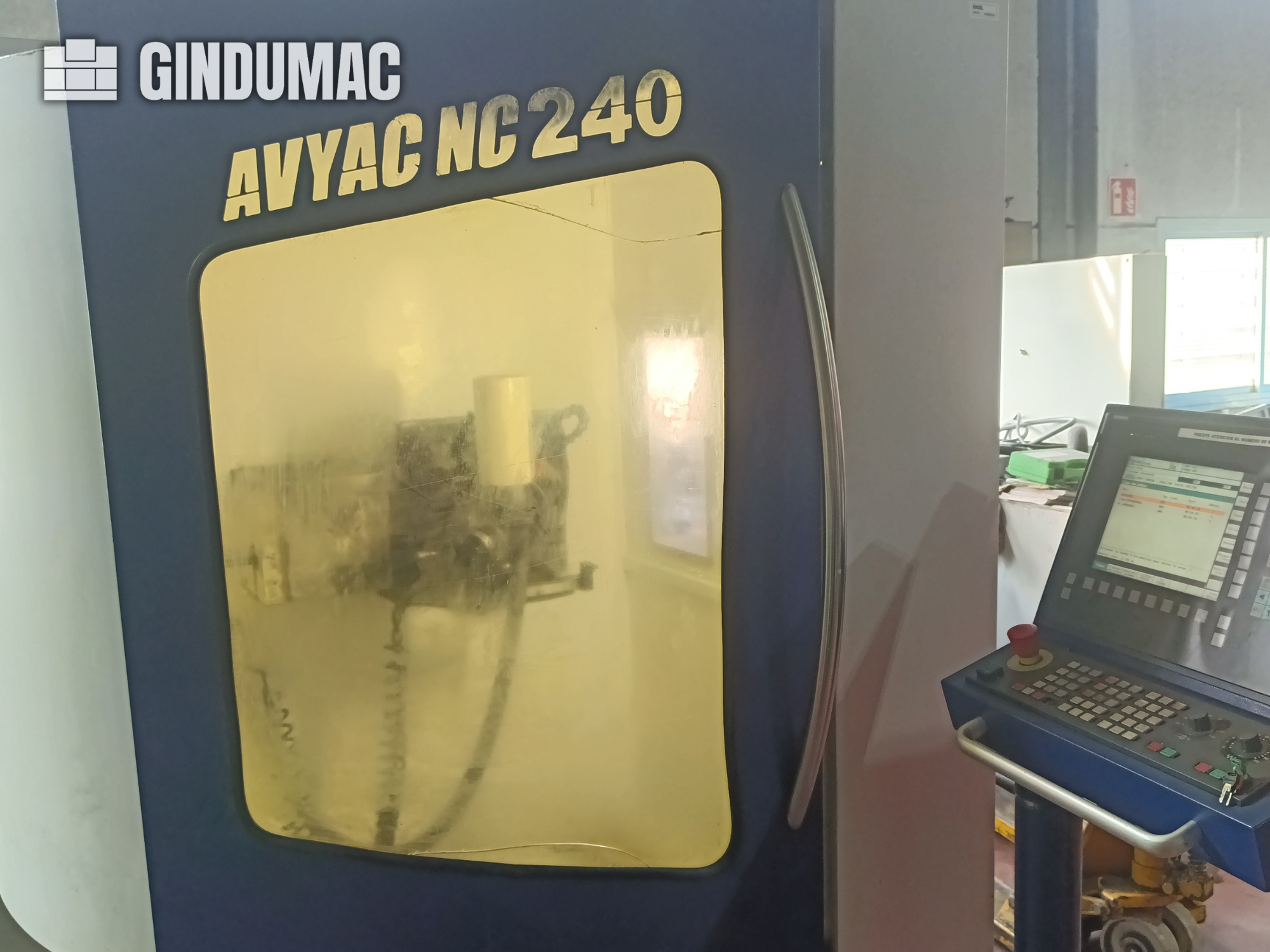

Cylindrical grinding machine manufactured in 2004. This AVYAC NC240 features a maximum tool diameter of 40 mm and a sharpening length of 950 mm. It is compatible with HSS and carbide materials, equipped with an automatic touch probe for precise tool positioning. The machine also includes programmable indexing for variable teeth/flutes and an integrated oil mist extractor for effective mist control. If you are looking to get high-quality grinding capabilities, consider the AVYAC NC240 machine we have for sale. Contact us for further details.

Grinding wheel dimensions (od x id x width): Ø350 x Ø200 x 150 mm, Ø min/max to be rectified: 1.5 - 75 mm, Peripheral speed of grinding wheel (m/s): 1.700 RPM, Regulating wheel width: 150 mm, No. of regulating wheel speeds: 4, Min/max speed of regulating wheel (r.p.m.): 21, 30, 42, 310, Regulating wheel dimensions (od x id x width): Ø250 x Ø140 x 150 mm, Grinding wheel width: 150 mm, Maximum length to be rectified in plongeé: 150 mm, Grinding wheel head motor power: 15 Cv, Total power: 16,5 Cv, Long: 1.654 mm, Width: 1.500 mm, Tall: 1.535 mm, Weight: 2.200 kg
