Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) used for sale (244)

Manufacturer: Optimum Year of construction: 2024 Condition: as good as new, workshop tested Delivery time: immediately available Specifications Tip height: 165 mm Center width: 830 mm Circumferential diameter over bed: 330 mm Circumferential diameter over face slide: 208 mm Swivel length in the bed bridge: 430 mm Speed ranges: 16 steps, 70–2000 rpm⁻¹ Drive motor: 1.5 kW, 400 V, 50 Hz Spindle holder: Camlock DIN ISO 702-2 No.4 Spindle bore: 38 mm Spindle cone: MK5 Tailstock mount: MK3, quill stroke 110 mm Weight: approx. 512 kg Machine dimensions (LxWxH): 1685 × 745 × 1590 mm Gradients and feed Metric: 0.4-7 mm/rev (26 pitches) Inches: 56-4 Gg/1" (34 pitches) Longitudinal feed: 0.052–1.392 mm/rev (32 feeds) Face feed: 0.014–0.38 mm/rev (32 feeds) Accessories: Fixed bezel (Ø 6–50 mm) Rotating bezel (Ø 8–3 ...

turning diameter over bed: 280 mmturning diameter over slide rest: 170 mmturning length: 600 mmweight of the machine ca.: 400 kgspindle passage: 26 mmspeeds: 55-2000 U/mintotal power requirement: 1,4 kWdimensions of the machine ca.: 1,5 x 0,8x 1,3 mIncluding EMCO SOD grinding supportIncluding EMCO 4-jaw chuckIncluding machine feetIncluding change gearsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25432 Specifications: - Turning diameter 320 mm - Center width 750 mm - Largest turn – Ø over bed 550 mm - via flat slide 175 mm - Spindle bore 32 mm - Spindle holder - Pick-up cone of the tailstock quill MK 3 - Quill stroke 180 mm - 18 spindle speeds 85 - 2000 rpm - Feeds longitudinal + flat - Metric thread pitches -Thread - Module thread - Diametrical Pitsch thread -Arbor - Cheek chuck -Lunette - Drive 400 V / 2.2 kW - Space requirement approx. W 2100 x D 750 x H 1300 mm - Weight approx. 750 kg

turning diameter over bed: 20 mmturning diameter over slide rest: 1200 mmturning length: 3.000 mmcentre distance: 3000 mmdigital readout: 4 - Achsen bed width: 800 mmspindle bore: 122 mmturning speed range: 1,80 - 355 U/minpower requirement: 22 kW3-jaw-chuck diameter: mmtaper in tailstock-quill: 100 (1:20) dia. of quill: 150 mmquill stroke: 350 mmcoolant: voltage: 400 Vtotal power requirement: 31 kWspindle nose: Gr. 11, DIN 55027 weight of the machine ca.: 10 tdimensions of the machine ca.: 8,20 x 2,20 x 2,20 m- Serial No.: 75.217- Rapid feed for carriage- 4-Axis DRO-System SINOThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip height: 355 mm Center width: 3000 mm large circulation Ø over bed/recess/bed slide: 715/790/520 mm Spindle bore: 86 mm Spindle holder according to DIN 55027: Gr. 11 Tailstock quill taper: MK 5 21 spindle speeds: 5.6 - 560 rpm 42 feeds longitudinal/flat: 0.09 - 5.6/0.045 - 2.8 mm 22 Whitwort Thread: 2 - 28 Gg 28 metric thread pitches: 1 - 14 mm 27 module thread pitches: 0.25 - 3.5 module 32 module threads: 4 - 56 module 32 Diametrical Pitch Threads: 8 - 112 DP Drive motor, pole-switchable: 380 V, 7/11 kW Weight approx.: 7 t Approx. space requirement: 6000 x 2300 mm

turning diameter over bed: 660 mmturning diameter over slide rest: 450 mmturning length: 2000- 2880 mmthroat: Ø 1200 x 880 mmHeight of centres: 330 mmspindle passage: 85 mmturning speed range: 10- 700 U/mintail stock: MK 5 transmission ratio: 24 tool holder: Multifix C dimensions: 3,5/4,4 x 1,45 x 1,1 mweight of the machine ca.: 4,2 tkonv. lathe with movable bed for long gap.- movable bed 880 mm- swing Ø in gap: Ø 1400 mm- 3- jaw chuck Ø 315 mm- facing plate Ø 800 mm- facing plate Ø 500 mm- rapid travers- some tool holdersThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: Tip height: 140 mm Turning length: 500 mm Accessories (included): Lunette Multifix "A" Collets 0.5 – 24 mm Milling device (Y-axis) 3-jaw chuck 125 mm Cs Urh Axexlr Hkszorh Face Plate 260 mm Running tip Chuck Die stock 4-jaw chuck Coolant pump Instruction manual (German)

turning diameter over bed: 430 mmturning diameter over slide rest: 220 mmturning diameter in the gap: . mmturning length: . mmturning speeds: 12,5-1600 U/minbed width: 410 mm3-jaw chuck: 250 mmspindle passage: 550 mmcentre distance: 750 mmtotal power requirement: kWweight of the machine ca.: 2 tdimensions of the machine ca.: mNo. 65The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsch TeamT ...

Tip height: 195 mm Center width: 1250 mm large recirculating Ø over bed/support slide: 400/265 mm Spindle Holder/Bore: Camlock D1-6"/54 mm Tailstock quill taper: MK 5 Spindle speeds infinitely variable in 3 groups: 0 - 2500 rpm Feeds longitudinal: 0.018 - 1.2 mm Feed plan: 1/2 of the longitudinal feeds 51 metric thread pitches: 0.2 - 14 mm 56 Inch Thread: 2 - 56 Gg/" 20 module threads: 0.2 - 3.5 module 20 Diametrical Pitch Threads: 8 - 56 DP electr. Connection: 400 V, 7.5 kW Weight: 1500 kg Space requirement: 2500 x 1300 x 1300 mm

: 0330 mm: 210 mm: 0635 mm: 167 mm: 40 mm: 2,2 kWspindle turning speed - stepless: 30-3000 U/minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 165 mm, 330 mm, 2800 U/min

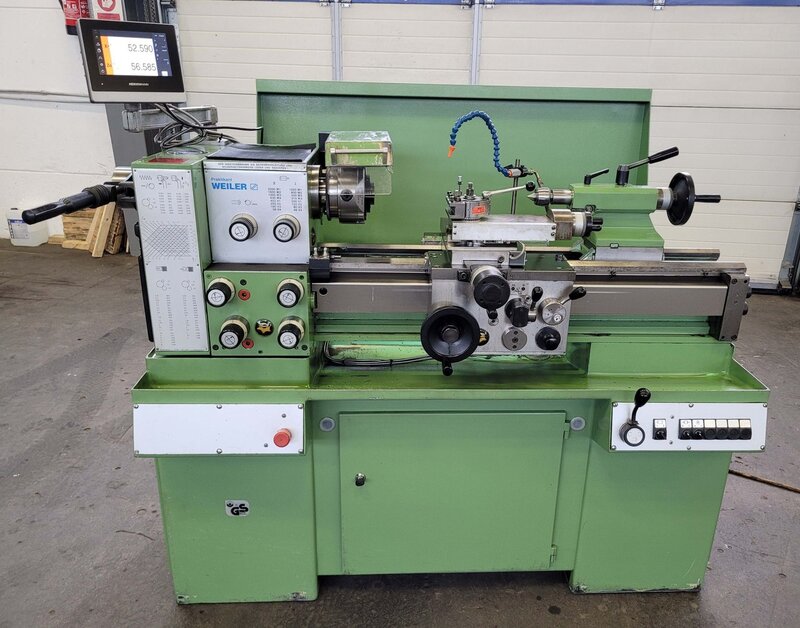

WEILER Condor lead and pull spindle lathe (overhauled) Circumferential diameter over bed 300 mm Center width 800 mm Turning diameter over carriage 170 mm Gr. workpiece weight between the tips 100 kg Bed width 240 mm Spindle bore 38 mm Spindle speeds 24 - 2800 rpm Spindle motor 3 KW Z-travel 800 mm X-travel 170 mm Z1-travel 100 mm Lead screw diameter 24 mm Thread pitches: 35 Metric 0.35 - 12 mm 40 Witworth 2 - 45 Gg / " 25 Module 0.2 - 4 Module 32 Diametrical Pitch 5 - 90 D.P. Tailstock quill stroke 110 mm Tailstock quill diameter 50 mm Tailstock quill cone 3 MK 2-axis digital display 3-jaw chuck Multifix holder B with 8 cassettes Rotating grain tip Tailstock Thread Device: Metric, Witworth, Module, Diametral Pitch Geometrically outdated!

turning diameter over bed: 160 mmTurning diameter over slide: 90 mmturning length: 700 mmSpindle Speed: 85-2000 U/min.taper MK: 3 spindle bore: 30 mmtotal power requirement: 2,2 kWweight of the machine ca.: 700 kgdimensions of the machine ca.: 1800x800x1600 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip height: 175 mm Center width: 800 mm Circumferential diameter over bed: 350 mm Circumferential diameter over support: 310 mm Spindle bore: 46 mm Speed range: 25 - 2000 rpm With digital display

turning diameter over bed: 430 mmturning diameter over slide rest: 230 mmturning length: 1000 mmcentre height: 215 mmcentre distance: 1000 mmspindle bore: 56 mmspindle turning speed range: 19 - 2000 U/mintotal power requirement: 7,5 kWweight of the machine ca.: 1,9 tdimensions of machine L x W x H: 2,78 x 1,25 x 1,40 mAccessories: 3-jaw chuck 250 mmø, 4-pos. tool post, solid steadyThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Make: Colchester Type / Model: Student Center width: 500 mm Passage: 42 mm Tip height: 175 mm Turning diameter over bed: 350 mm over slides: 200 mm Speed range: 34 to 1,500 mm Feed lengthwise: flat: 0.04 to 0.25 mm/rev Connection: 1.1 / 2.2 kW Accessories: Steel holder, 3-jaw chuck, 4 jaw chucks, steel bracket Weight: approx. 800 kg Dimensions: 1,550 x 900 x 1,200 mm

turning diameter over bed: 380 mmturning diameter over slide rest: 190 mmturning length: 1000 mmtotal power requirement: 4 kWweight of the machine ca.: 2 tdimensions of the machine ca.: 2,5+1+1,8 mMovie:https://www.youtube.com/watch?v=ckpr4-sE7K4The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 315 mm, 655 mm, 9 U/min

Turning diameter over bed: 655 mm Turning diameter over support: 390 mm Turning length: 5000 mm Spindle bore: 82 mm Spindle speeds: 9-1120 rpm Feeds: 0.049-3 mm/rev Total power requirement: 12 kW Machine weight approx.: 82 t Price ex stock Nuremberg

centre height: 200 mmcentre distance: 1.000 mmspindle turning speed range: 1600 U/minspindle bore: 42 mmturning length: 1600 mmturning diameter over bed: 410 mm: 230 mmmachine weight ab.: 1.700 kgdimensions: 2000 × 1000 × 1500 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Lead and pull spindle lathe WEIPERT Year of Make: 1956 Spindle bore: 90 mm Center width: 3000 mm Circulation Ø over bed : 800 mm Circulation 0 over slide: 610 mm Circulation 0 in offset: 1120 mm Speed range: 7.5 – 475 rpm With the following accessories: Multifix tool holder with 11 inserts Coolant Setup Three-jaw chuck 0315 mm Three-jaw chuck 0 400 mm Three-jaw chuck 0 500 mm Face Plate 0 400 mm Face Plate 0 800 mm Face Plate 0 1000 mm Running Lynette Various turning tools (30 pcs. indexable insert tools) 2 moving centering tips 1 drill chuck Operating instructions

turning diameter over bed: 380 mmturning diameter over slide rest: 190 mmturning length: 1000 mmbar capacity: 56 mmturning speed range: 25 - 2000 U/minspindle nose: A2-6 total power requirement: 4,0 kWweight of the machine ca.: 1,5 tdimensions of the machine ca.: LBH ca. 2,5 x 1,2 x 1,8 m- RÖHM 3 Jaw Chuck Ø 250 mm- MULTIFIX Holder - Size B - Tailstock- Coolant pump with reservoir- Various turning tool holders- Various small partsWorkshop machineOtherwise, the gearbox runs quietly and the guides have no scratches, etc.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This offer is aimed exclusively at entrepreneurs within the meaning of § 14 BGB. The price is net plus 19% VAT. Manufacturer: EST Ticino Type: ET-BM 400 Turning length: 1500 mm Turning diameter bed Ø: 800 mm Turning diameter slide: 470 mm Turning diameter pit Ø: 400 mm Pit length: 750 mm Spindle bore: 130 mm Power spindle: 15 kW Bed width: 600 mm Quill: 130 Ø Stroke quill: 300 mm Spindle mount: 6 Mk Speed: 600 rpm Dimensions (estimated) Length: 4500 mm Width: 1800 mm Height: 1800 mm Weight: 5200 kg with accessories: -Safety equipment - Face plate, four-jaw chuck, clamping jaws, tool holders, tips, drill chucks, tools All information is made to the best of our knowledge, errors excepted. The sale is subject to exclusion of any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of the S ...

turning diameter over bed: 410 mmturning diameter over slide rest: 220 mmturning length: 1000 mmcentre height: 205 mm: mmspindle bore: 46 mmspindle turning speed range: 40 - 2000 U/mintotal power requirement: 22,0 kWweight of the machine ca.: 1,8 tdimensions of the machine ca.: 2,42 x 1,3 x 1,55 mmLathes with:- Copying attachment- Forkardt 3-jaw chuck F250- Multifix tool post- Coolant system- Machine light- Chuck guard- Chip tray- Chip guard wall- Foot brakeThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 180 mm, 2000 U/min

Built in 1990 Center height 180 mm Turning diameter over carriage 190 mm Center width 1,000 mm Spindle passage 55 mm Max. spindle speed 13-2,000 rpm Spindle drive 7.5 kW Quill stroke 150 mm (MK4) Machine weight 1,650 kg Accessories: Digital display, 3-jaw chuck, quick-change steel holder with 4 inserts, 2 steady rests, coolant device.

turning diameter over bed: mmTurning diameter over slide: mmcentre distance: mmSpindle Speed: U/min.weight of the machine ca.: kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip width: 430mm Tip Height: 120mm Spindle bore: 23mm Spindle speeds: 60-3000 RPM Short taper spindle head DIN 4 Tailstock MK2 Feeds from 0.03 to 2.5 mm Weight approx. 360 kg New Aikron 3-axis digital display, brake of spindle motor renewed, technically checked. Accessories: Collet device, lathe chuck Quick-change steel holder

turning diameter over bed: 440 mmturning diameter over slide rest: 270 mmturning length: 1.500 mmcenter height over bed: 220 mmdigital readout: FAGOR 3 Achsenturning diameter in the gap: 620 mmcentre distance: 1.500 mmbed width: 280 mmspindle bore: Ø 52 mmturning speed range: 30 - 2.360 U/min3-jaw-chuck diameter: 250 mmquick change toolholder: KLOPFER Typ GX2Bdrive capacity - spindle motor: 6,3 kWtaper in tailstock-quill: MK 4 dia. of quill: 60 mmquill stroke: 200 mmcoolant: voltage: 380 Vtotal power requirement: 6,5 kWweight of the machine ca.: 1,5 tdimensions of the machine ca.: 2,90 x 1,10 x 1,75 m- Serial-No.: D8KK0633- 3-axis digital readout FAGOR- Quick-change steel holder- rapid clamping boring chuck RÖHM 1-13 mm- Coolant deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Center distance 5,000mm Height of the tips 600mm 105mm bar passage carriage equipped with grinding Machine in very good condition

turning diameter over bed: 980 mmturning diameter over slide rest: 720 mmturning length: 7000 mmbed width: 620 mmturning speeds: 1,8-355 U/minfaceplate diameter: 800 mm: turning dia. in gap: 1000 mmlength of gap: 350 mmquill stroke: 900 mmspindle hollow: 80 mmweight: 20 tsteady: 600 mmsteady: 480 mmsteady: 480 mmDistance between the canter 7000mmFaceplate diameter 1400urning diameter in the offset 2450, length 940 mmTravel over support 1200Over support with autom. travelThe tech. Data are manufacturer or operatorinformation and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contac ...

Center distance 11,000 mm Turning diameter 730 mm Drill height 500 mm turnable on the bench 1050 mm Motor power 22 kW

turning diameter over bed: 380 mmturning diameter over slide rest: 215 mmturning length: 1250 mmspindle bore: 41 mmbed width: 340 mmnumber of spindle speeds: 12 spindle turning speed range: 14-2800 U/mintotal power requirement: 6 kWweight of the machine ca.: 1,85 tdimensions of the machine ca.: 3 x 1 x 1,35 mMachinelight: 3 jaw chuck: Multifix-toolholder with tapers: Special price sale directly from the factory!Machine dealer with own stock of 1600 m².The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

:::TECHNICAL SPECIFICATIONS::: CNC Model: ECS CNC Version: 4802 Self-centering diameter: 1500mm Turning diameter on the bench: 2000mm Turning diameter on the carriage: 1360mm Turning length: 4000mm Turret: automatic Number of tool turrets: 1 Number of tool positions for the first turret: 4 Number of fixed tool positions for the first turret: 4 Tailstock: yes Positioning: Automatic Chip conveyor: belt Machine equipment: Large steady rest up to 1300 mm small bezel up to 600mm Large boring bar diameter 150 by 2000 mm long

: 0330 mm: 210 mm: 1000 mm: 167 mm: 40 mm: 2,2 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 24177 Specifications: - Tip height 180 mm - Center width 1000 mm - larger circulation – Ø over bed 355 mm - via flat sleds approx. 200 mm - Spindle bore 36 mm - Pick-up cone of the tailstock quill MK 5 - Travel of the tailstock quill 260 mm - Spindle speeds 18 - 1800 rpm -Feeds - Travel of the cross slide approx. 200 mm - Travel of the upper slide approx. 115 mm - Drive 400 V / 5.8 kW - with: - Tailstock, 3-jaw lining, bezel - Steel holder, moving center punch, - Chip tray - Space requirement approx. W 2500 x H 1500 x D 1200 mm - Weight approx. 2100 kg

: 0330 mm: 210 mm: 1000 mm: 167 mm: 40 mm: 2,2 kWThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip height: 205 mm Center width: 1500 mm Circumferential Ø: over bed 410 mm Spindle bore: 47 mm Spindle holder: size 6 Pick-up cone tailstock: 4 MK Spindle speeds: 28 - 1250 rpm Feeds: longitudinal/flat 0.03-1.3/0.008-0.33 mm/rev Thread pitches: 0.25 - 76 mm Electrical connection: 380 V, 3 kW Space requirement: 2800 x 1100 x 1600 mm Weight: 1330 kg

turning diameter over bed: 820 mmturning diameter over slide rest: 575 mmturning length: 3300 mmcentre height: 410 mm: mmspindle bore: 125 mmspindle turning speed range: 7,1 - 1400 U/mintotal power requirement: 22,0 kWweight of the machine ca.: 6,0 tdimensions of the machine ca.: 6,3 x 1,6 x 2,0 mmLathes with:- Digital readout- Rapid traverse- Röhm 3-jaw chuck 315mm- 4-position tool post- 2 steady rests- Coolant system- Emergency stop device- Machine light- Chuck guard- 2 chip trays- Spare jaws (internal and external)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip height: 250 mm Center width: 2000 mm Circumferential Ø: over bed 500 mm Spindle bore: 50.8 mm Spindle holder: size 6 Pick-up cone tailstock: 5 MK Spindle speeds: 22 - 2000 rpm Feeds: longitudinal/flat 0.05-6.4/0.025-3.2 mm/rev Thread pitches: 80 - 1 mm Electrical connection: 380 V, 5.5 kW Space requirement: 3600 x 1100 x 1500 mm Weight: 1875 kg

turning diameter over bed: 540 mmturning diameter over slide rest: 340 mmturning diameter in the gap: 800 mmlength of gap: 350 mmturning length: 3000 mmturning speeds: 40-1800 U/minbed width: 340 mm3-jaw chuck: 255 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mNo. 65The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsch TeamThe data for this ad was ...

Center height: 400 mm Center width: 1250/1300 mm Circumferential Ø: over bed 440 mm Spindle bore: Spindle holder: Pick-up cone tailstock: 5 MK Spindle speeds: 11.2 - 2240 rpm Feeds: longitudinal/flat 0.1-2.8/0.05-1.4 mm/rev Thread pitches: Electrical connection: 380 V, 11 kW Space requirement: 3400 x 1400 x 1300/1700 mm Weight: approx. 2700 kg

turning diameter over bed: 1250 mmturning diameter over slide rest: 1250 mmturning length: 9000 mmturning speeds: U/minfaceplate: 1300 mm3-jaw chuck: 500 mmsteady: 2 centre distance: 10.000 mmbed width: 1250 mmturning dia. in gap: 1600 mmtotal power requirement: 54 kWweight of the machine ca.: 33 tdimensions of the machine ca.: mMultifix steel holder with insertsThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your ...

Center height: 300 mm Center width: 1000 mm Circumferential Ø: over bed 610 mm Spindle bore: 71 mm Spindle mount: size 8 Pick-up cone tailstock: 5 MK Spindle speeds: approx. 11.2 - 1800 rpm Feeds: longitudinal/flat 0.014-16/0.063-7 mm/rev Thread pitches: 0.1 - 112 mm Electrical connection: 380 V, approx. 5.5 kW Space requirement: 2900 x 1450 x 1750 mm

greates pass round over bed: 540 mmswing diameter over face slide: 370 mmcentre distance: 3000 mmcentre height: 270 mmturning dia. in gap: 815 mmbed width: 344 mmspindle bore: 88 mmspindle diameter in front bearing: 133 mmspindle taper: 11 D1 Camlock turning speed range: 18-1400 U/minturning speeds: 16 3-jaw chuck: Röhm Ø 315 longitudinal feeds:: 0,06-1,0 mmface feeds: 0,03-0,5 mmmetric threading: 0,4-14 mminch threading: 2-72 G/1thread - module: 0,3-3,5 mmthread - DP: 8-60 Pitchtailstock quill diameter: 75 mmquill stroke: 230 mmtaper of tail spindle: MK 5 slide valve travel: 280 mmupper head travel: 150 mmOverall size: ca. 4700 x 1100 x 1400 mmweight: ca. 3200 kgpower capacity: 9,4 kWAccessories:3-axis digital display FagorRöhm wedge bar chuck Ø 315 mmMultifix steel holder size Cincl. 6 interchangeable cassettesRotating center pointTurning chuck guardRear chip guardCoolant deviceWor ...

Key data: 140 mm, 280 mm

Zimas D290V - Lathe Special price € 2,800 instead of € 3,490 excl. VAT - 2-axis position indicator - Stepless speed adjustment with digital display - Plan feed - Camlock mount C4 - Upper slide can be rotated 360° - Tailstock adjustment +/- 5 mm for taper turning Accessories - Undermount with 1x door & 3x drawer - Three-jaw chuck 160 mm with interchangeable jaws - Fixed bezel - Centering tip - Operating tools Specifications Range: - Circumferential Ø over bed: 290 mm - Circulating Ø over cross slide: 180 mm - Turning length between tips: 700 mm - Bed width: 182 mm Headstock: - Spindle bore: 38 mm - Spindle nose: MK5 - Speed levels: infinitely variable - Speed range: 80 - 2000 rpm Feed: - Metric threads: 0.2 - 3.5 mm / 18 steps - Inch thread: 8 - 56 dpi / 21 levels - Longitudinal feed: 0.085 - 0.832 mm - Transverse feed: 0.01 - 0.10 mm Sleds a ...

turning diameter: 360 mmturning length: 1000 mmswing diameter over bed slide: 360 mmcentre height: 180 mmturning speeds: 70-2400 U/mintotal power requirement: 2,2 kWweight of the machine ca.: 680 kgdimensions of the machine ca.: 2000x1500x900 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 400 , 800 , 1000

Center distance 6000 mm Height of centers 400 mm Max diameter on the bench 800 mm Max diameter on the carriage 520 mm Max diameter in the recess 1100 mm Bar passage 130 mm Undercarriage stroke notes 340 mm TURRET Standard BENCH Max weight between tips 3500 Kg Max weight on steady rests 4500 Kg Pallet width 520 mm TAILSTOCK Steerer diameter 115 mm Steerer stroke 380 mm Cone cm6 HEAD Spindle power 25 Kw Spindle speed 5/1000 Rpm 11" cam-lock spindle attachment Spindle torque 560 Nm GiVi axis display measurements Self-centering 500 Use and maintenance books Yes Wiring Diagrams Yes Protections yes Ready for availability Visible in the warehouse in operation

turning diameter over bed: 840 mmturning diameter over slide rest: 640 mmturning length: 3300 mmspindle bore: 74 mmturning speeds: 7,1-1400 U/min3-jaw chuck: 315 mmsteady: rapid traverse: turning dia. in gap: 920 mmlength of gap: 370 mmtotal power requirement: 22 kWweight of the machine ca.: 10 tdimensions of the machine ca.: 8x2x1,8 mMultifix steel holder with insertsThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward t ...

Digital Turning diameter 120 mm Turning length 700 mm Spindle speed 2000 min-1 Tailstock

turning diameter over bed: 1000 mmturning diameter over slide rest: 760 mmturning length: 6000 mmspindle bore: 82 mmturning speeds: 4,5-900 U/minfaceplate: 1000 mm3-jaw chuck: 500 mmsteady: rapid traverse: total power requirement: 22 kWweight of the machine ca.: 10 tdimensions of the machine ca.: 8x2x1,8 mMultifix steel holder with insertsThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsc ...

Self-learning lathe CMT TCH 700 x 5000 :::TECHNICAL SPECIFICATIONS::: CNC model: ECS - Spindle nose: ASA 11 - Spindle power: 35Kw - Turning diameter on the bench: 720mm - Turning diameter on the carriage: 385mm Turning length: 5000mm - Number of revolutions: 2200 - Bar passage: 105mm - Mechanical range change: yes - Number of ranges : 2 Turret: automatic Number of tool turrets: 1 Number of tool positions for the first turret: 12 First turret tool attachment type: VDI First turret X-axis travel: 450mm Z-axis travel first turret: 5000mm :::D DIMENSIONS AND WEIGHT::: Weight: 8000Kg

turning diameter over bed: 1450 mmturning diameter over slide rest: 1000 mmturning length: 8000 mmspindle bore: 160 mmturning speeds: 2,8-560 U/minfaceplate: 1400 mm3-jaw chuck: mmbed width: 850 mmturning diameter in the gap: 1800 mmlength of gap: 600 mmsteady: 1070 mmsteady: 1070 mmdigital readout: Rapid travel: chip conveyor: kWtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMultifix steel holder with insertsThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can f ...
