other wood working machines used for sale (1,357)

Hemco hydraulic tracing lathe Hopper feed very good condition...$7,900 obo Contact Fred (716) 433 4224 (12:00 noon is best time to call)

Lmacchia Barley twist lathe- model012/FE Spiral/rope turning lathe Barley twist with automatic indexing 67" max. length 8" max. working diameter as new condition...$9,500 obo Contact Fred (716) 433 4224 (12:00 noon is best time to call)

Reichenbacker copy lathe mills/ turns (6) concentric or non concentric pieces at a time (1) station for your model/sample (models may be wood or metal) complete set up for duck decoys various sizes - items like Queen Ann legs, ect (photos available) (6) milling /working stations

Reinbacker- rope turning lathe chuck up your part- twin routers transverse your material as lathe slowly rotates your material several passes give you a straight or tapered spiral like a rope turning or straight or spiral flutes

ZUCKERMAN CHALLENGER- auto copy lathe and sander, capacity - ( mills 10" dia.by a max. of 120" long) hopper feed mills using cup cutters- followed by (1) sanding station, unit has hopper feeder, mills & sands one part at a time, does parts like: boat oars, shovel handles, gunstocks, chair legs, ect. Price-$10,900

Edge banding machine Type: KDF 220 Manufacturer: Brandt Year: 2012 Machine in good condition, fully functional, under power, current after major service. Find more here - .ucymachines/ Contact us at - sales@ucymachines

Auction-ID: A3-46156-20548

Auction-ID: A3-46156-20551

Auction-ID: A3-46156-20550

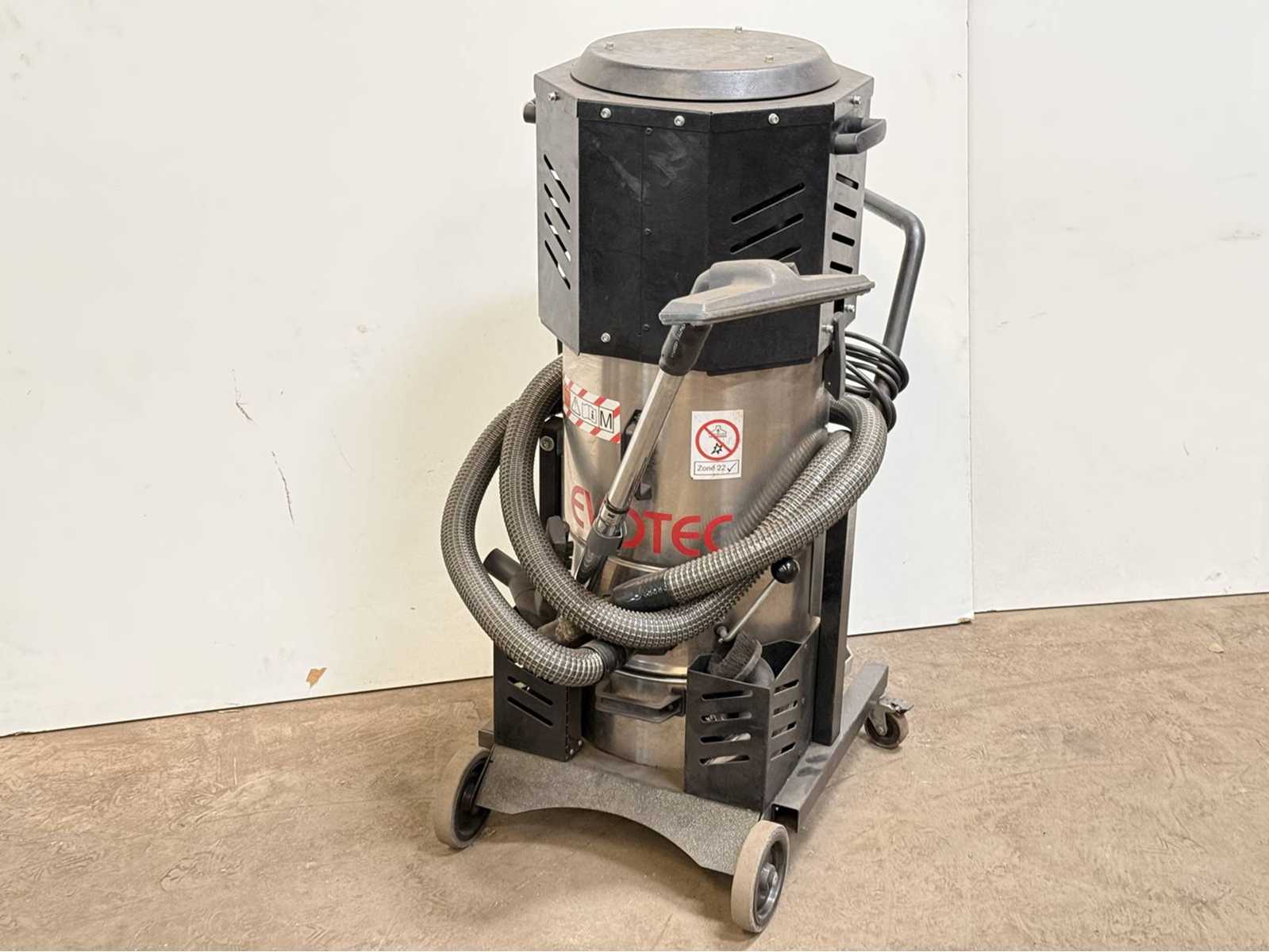

Nominal voltage: 230V , Nominal consumption: 1.5kW , Serial number: 160009340 , Dust class: M/Type22 , see photos for more details Auction-ID: A7-49942-1071

Auction-ID: A3-46156-2681

Auction-ID: A3-46156-20547

Auction-ID: A3-46156-20549

- Oscillating screen with 3 independent screening floors for sorting wood chips and shavings. - Equipped with interchangeable meshes, designed for the classification of chips used in the inner layer of chipboard, equipped with 10x10 mm - 2.20 - 0.36 - powder meshes. - Total installed power 15 KW. - 2 chip inlets with a diameter of 650 mm. - 3 + 3 sieve planes with a total sieving area of 78 m². - Chip outlets: 3 with a diameter of 650 mm and one with a diameter of 500 mm. - Longitudinal distance between supports 3730 mm. - Transverse distance between supports 3940 mm. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accr ...

- Centrifugal viruter mill with knife ring for the manufacture of flat chips. - Main motor power 315 KW. - Power of the hydraulic power plant 2.60 KW. - Rotor rotation speed 1107 rpm. - Rotor diameter 1393 mm. - Number of blades: 54. - Blade length 690 mm. - Maximum production up to approx. 20000 kg/h (depending on the type of wood, moisture and chip thickness). - Stripper. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-9

- Knife ring virute mill for the manufacture of flat chips. - Percussion wheel motor power 250 KW. - Blade ring motor power 25 KW. - Percussion wheel rotation speed 850 rpm. - Cutting circle diameter 1200 mm. - Number of blades: 49. - Blade length 450 mm. - Maximum production up to approx. 10000 kg/h (depending on the type of wood, moisture and chip thickness). - Stripper. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-7

- Knife ring virute mill for the manufacture of flat chips. - Percussion wheel motor power 250 KW. - Blade ring motor power 22 KW. - Percussion wheel rotation speed 850 rpm. - Cutting circle diameter 1200 mm. - Number of blades: 49. - Blade length 450 mm. - Maximum production up to approx. 10000 kg/h (depending on the type of wood, moisture and chip thickness). - Stripper. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-6

- Dual-stream mill for fine wood chip production with segmented internal grinding elements. - Main motor power 315 KW. - Equipped with PALLMANN CLEANOMAT system (installed according to documentation in 2009). - Stripper. - The upper feed hopper with vibratory system and the magnet are NOT included (marked with a cross in photograph no. 4). - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-14

- Updated in 2002. - Total installed electrical power approx. 200 KW. - Capacity 10000 kg/h (atro) - Water evaporation 9700 kg/h. - Initial humidity 100% (atro). - Final humidity 3% ±1% (atro). - Gas inlet temperature 520 °C. - Gas outlet temperature 130 °C. - Chip output temperature approx. 60 °C (at ambient temperature 10 °C). - Total thermal energy consumption approx. 8,670,000 kcal/h. - Maximum pressure allowed: 26 mbr. - Includes: • Hot air generator. • Fuel oil burner: maximum consumption 600 kg/h. • Dust burner. • Mixing chamber. • Rotary drum dryer: diameter approx. 4000 mm, length approx. 12000 mm. • 4 cyclones for the separation of dry material from process air. • Fans and pipes. • Support structures with stairs and walkways for inspection and maintenance. - Operating conditions of this machine: un ...

- Updated in 2002. - Total installed electrical power approx. 180 KW. - Capacity 8500 kg/h (atro) - Water evaporation 8500 kg/h. - Initial humidity 100% (atro). - Final humidity 3% ±1% (atro). - Gas inlet temperature 550 °C. - Gas outlet temperature 120 °C. - Total thermal energy consumption approx. 7,800,000 kcal/h. - Maximum pressure allowed: 26 mbr. - Includes: • Hot air generator. • Fuel oil burner: maximum consumption 600 kg/h. • Dust burner. • Mixing chamber. • Rotary drum dryer: diameter approx. 3600 mm, length approx. 11000 mm. • 2 cyclones for the separation of dry material from process air. • Fans and pipes. • Support structures with stairs and walkways for inspection and maintenance. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal a ...

- Oscillating screen with 2 independent screening floors for sorting wood chips and shavings. - Equipped with interchangeable meshes, designed for the classification of fine chips used in the outer layers of chipboard, equipped with 10x10 mm - 2.20 - 2.28 - 0.21 meshes. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-12

Technical details Serial number: 4BKF8KB6X5125110450918 Type: Industrial dust extraction and filtration unit Configuration: - 4 dust collection bins with clamping brackets (600 × 500 mm) - Automatic pneumatic JET filter cleaning system - 120 filter bags - Powder fire extinguisher included - Main on/off switch Power supply: 400 V / 50 Hz / 3 Ph Motor power: 11.0 kW Current consumption: 32 A Airflow: 8640 m³/h Vacuum: 3600 Pa Filter area: 45.2 m² Residual dust content: 0.1 mg/m³ Dust collection capacity: - 4 × 200 l bins - Total volume: 800 l Suction inlet diameter: 350 mm Application: - Woodworking machinery - Central dust extraction systems - Industrial workshops - Manufacturing facilities - Dust and chip collection Dimensions: - Length: 5470 mm - Width: 1100 mm - Height: 2500 mm Weight: 1100 kg Condition: Used Observed condition: - Complete filtration unit - Automatic JET filter re ...

Auction-ID: A7-49492-3

Exhaust system Auction-ID: A7-40557-2

Power: N/C; heating registers for supply air ceiling + 2 drying zones Operating parameters: O-structure; approx. 12 material frame supports; frame length 3,500 mm; frame width 600 mm; 2 opposite painting surfaces; 1 longitudinal roller conveyor; cross conveyors in drying zones; capacity approx. 2 frame elements per drying zone Workpiece capacity: Frame elements/components up to 3,500 mm length; continuous infeed/outfeed system Supported edges: Wood, metal or industrial components (typ. spray application) Edge types: Spray painting; airless + fine spray application; drying Included equipment: Type designations TR3750; GT180/3500/4100/CT; TR377; Serial No. 04019/250; 6x WALTER pump stations; 6x WAGNER fine spray guns; 3x WAGNER airless pumps w/ hand guns; 8x explosion-proof lamps (supply air ceiling); 2 painting stands w/ floor extension; integrated heating registers; conveyor system Compl ...

Various lengths. Auction-ID: A1-49727-104

Between size is 1850 mm. Total length 2300mm. Auction-ID: A1-49727-96

CNC machining center Type: BMG 311/42/F/K Manufacturer: Homag Year: 2015 Control: Homag powerTouch Software: HOMAG WOODWOP 7.0 Working dimension X: 4.200 mm Working dimension Y: 1.550 mm Working dimension Z: 270 mm Number of milling spindles: 1 Main motor power: 10 kW Rotation speed max: 24.000 rpm 4th axis: Yes 5th axis 5-axes spindle Tool clamping system: HSK-F63 Tool changer positions: 18 Disc tool changer Vertical drilling spindles: 17 Horizontal drilling spindles in X: 2 Horizontal drilling spindles in Y: 2 Groove saw: 90° turnable Gantry machine: Yes Machine table Pod and rail table Number of consoles: 6 Positioning aid Crosshair laser Vacuum pump Number of vacuum pumps: 2 Capacity vacuum pump: 180 m³/h Safety device Bumper Two rows of stops Workpiece support aids Stop for top layer protrusion Machine in good condition, fully functional Find m ...

Edge banding machine Type: PROFIMATIC PM 2508-F Manufacturer: OTT Year: 2005 Hours: approx 300 Edge thickness: 0.220 mm Min width of the working part: 70 mm Min height of the working part: 8 mm Max height of the working part: 60 mm Min length of part: 150 mm Operating voltage: 400 V / 50 Hz Continuous speed: 1020 m/min Adhesive application: glue application cylinder with Vario Melt automatic dosing Working height: 880 mm Compressed air connection: 6 bar / 1/4 Dimensions: 8850 x 1250 x 1500 mm Weight: 4,000 kg Machine in good condition, fully functional, under power Find more here - .ucymachines/ Contact us at - sales@ucymachines
