Hardware assembly center for door and window frame OMGA BA 525 A

Code: 0407
Brand: OMGA
Model: BA 525 A - CE Standard

Hardware assembly center for door and window frames - CE Standard

Technical data:

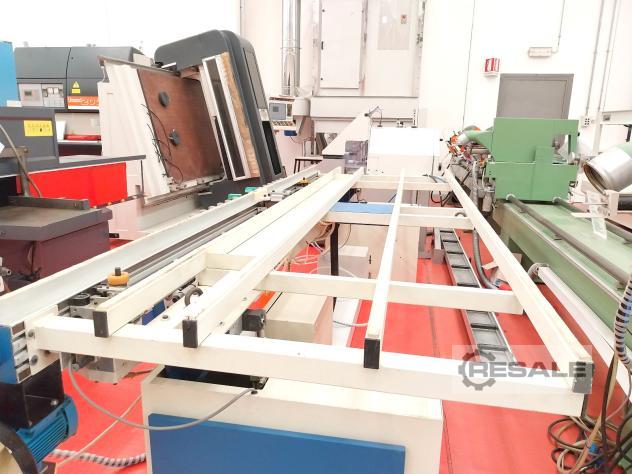

Work table covered with felted scratch proof strips , rear part pneumatically inclinable from 0° to 10° with intermediate angles

Composition:

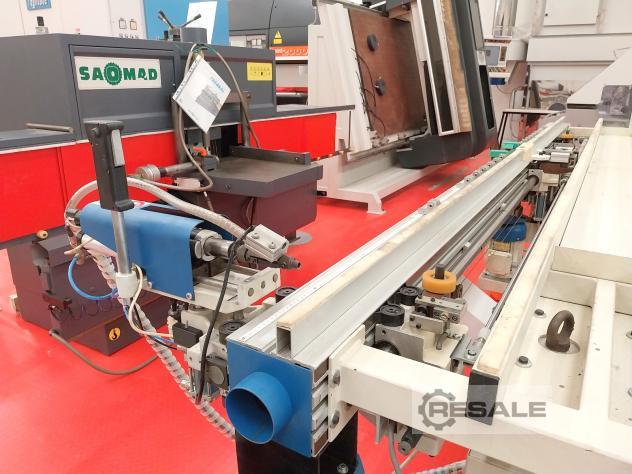

Carriage with self-fed pneumatic screwer with Böllhoff loader, work stroke controlled by a pneumatic cylinder with a inclusion-exclusion system , height adjustment
Right/left backstops for height positioning of right/left handle holes

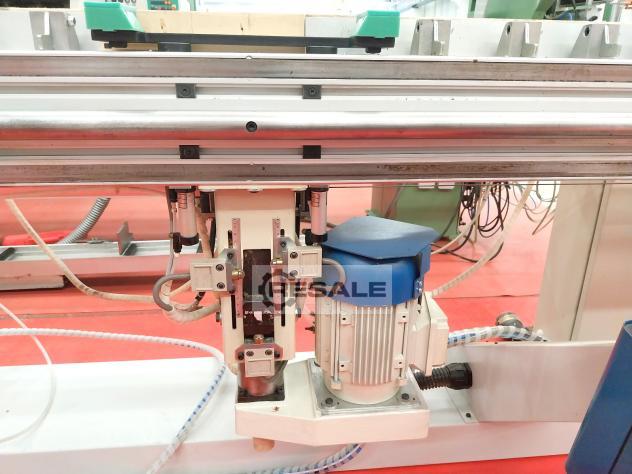

Drilling unit with 3-bit head for the execution of handle holes
Pneumatically operated hydraulic shear for cutting hardware
Work table size mm 3500 x 1230
Work table height mm 920
Max working dimension mm 2800 x 2450
Min working dimension mm 350
Dust collector
Working pressure 6/7 bar
Overall dimensions mm 3600 x 1700 x 1000 h
Weight kg 480




seller offer No. resale Code: 0407
