Column-Type Drilling Machines used for sale (163)

Key data: 28 mm, 300 mm

SerrMac Drill TCO 28 Manufacturer: SerrMac (Italy) Year of Make: 2002 Machine Type: Column Drill / Bench Drill Drilling diameter (max.): 28 mm Drilling depth: 150 mm Projection: 300 mm Spindle mount: Morse taper MK3 Speed ranges: 205–325–1050 / 410–650–2100 rpm (via belt drive, 2 gears) Table size: approx. 500 mm length Construction: solid cast construction Drive: Belt drive with manual feed control

bore capacity in steel (diameter): 32 mmthroat: 300 mmbore stroke: 160 mmmorse taper: 4 MKtable:: 460 x 460 mmturning speeds: 75 - 3200 U/minengine output: 1,5 kWcolumn diameter: 125 mmthread: M16 ST60feed: 0,10/0,18/0,26 mm/Udimensions: 800 x 500 x 2200 mmweight: 350 kg- automatic drill feeds (magnetic clutch)- Height adjustable and angle adjustable table- Movable work table- Integrated cooling system- Powerful engine- 3 hand levers for drilling feed- Safety shield with limit switch- Separate emergency stop- Built-in working lights- Incl. drill chuck 16mm - B16- Built-in automatic thread cutting.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

: neu : 2024 : 3983 : prompt, Zwischenverkauf v : Spanien : 7400 €: 142.82 €: 1 : 1 : 32 mm: MK 3 : 250 mm: 65 - 125 - 185 - 365 - 54 U/min: 1,8 / 2,6 kW: M24 : 600 mm: 640 mm: 2020 mm: 260 kg: 100 mm: 85 - 635 mm: 1.170 mm: 300 x 270 mm: 600 x 380 mm: 120 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEgeardrive machinemanual feedleft-right drillingtable with t-slotsdepth adustable endtool ejectordrill guardCE normsuser manual in GERMAN(sample photo)OPTIONS (PRICES ON REQUEST):lighting equipmentcoolant equipment and machine base with T-slotsreverse for tappingDELIVERY TIME WITH OPTIONS APPROX. 6 WEEKS.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25251 Specifications: - Drilling capacity in steel ST 60 45 mm - Drilling capacity in steel ST 60 55 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 200 mm - Drilling spindle speeds infinitely adjustable 60 – 1600 rpm - Right - Counterclockwise rotation - 3 Feeds electr. Magnetic indentation 0.1; 0,16; 0.25 mm/rev - Projection 360 mm - Max distance drilling spindle – table / base plate 775 / 1255 mm - Table with 2 T-slots 630 x 540 mm - Height adjustable via rack with hand crank - Drive 400 V / 2.7 / 4.0 kW - Space requirement approx. W 800 x H 2100 x D 980 mm - Weight approx. 750 kg - with: - Machine vise - Keyless chuck 1 - 13 mm - Emergency stop button -Lighting

: neu : ca. 8 Wochen ab Auftragse : Spanien : 11530 €: 221.38 €: 40 mm: MK 4 : 300 mm: 75 - 150 - 235 - 325 - 47 U/min: 1.3 kW: Stahl: M 30, Guss: M 32 : 600 mm: 640 mm: 2020 mm: 305 kg: 0,1 — 0,2 — 0,3 mm/U: 160 mm: 125 mm: 420 x 400 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEgeardrive machine2 aut. feedsleft-right drillingdrill guardCE normsuser manual in GERMANOPTIONS (PRICES ON REQUEST): lighting equipment coolant equipment and machine base with T-slots Reverse for TappingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Lg.Nr. 25072 Specifications: - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 150 mm - Drilling spindle speeds infinitely variable rpm - Projection 350 mm - Max. distance from drilling spindle to table 580 mm - Table with 2 T-slots 600 x 450 mm - Height adjustable via rack with hand crank - Table left + right tiltable - Drive 400 V / 3 kW - Space requirement approx. W 700 x H 1950 x D 950 mm - Weight approx. 650 kg -with: - Machine vise - Keyless chuck 1-13 mm -Lighting

bore capacity in steel (diameter): 40.0 mmthroat: 293 mmbore stroke: 140 mmmorse taper: 3 Kurzspindel MKtable:: 420 x 350 mmturning speeds: 160 - 2250 U/mincolumn diameter: 115 mmthroat: 293 mmdistance spindle /table: min 117 / max 701 mmT-slots: 2 x 14 x 224 total power requirement: 1.45 / 1.90 kWweight: 370 kgdimensions of the machine ca.: 1200 x 800 x 1840 mm Current list price ~ 12.500 euros Special price available upon request Features:- Sturdy column drill press (V-belt)- stepless speed adjustment - pole-changing drive motor - height-adjustable worktable with 2 T-slots - R/L rotation of the drill spindle (reversing switch)- Main switch with motor protection switch- Mushroom-head pushbutton (latching) for EMERGENCY STOP - Operating instructions (PDF)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Spindle mount MK 3 Drilling capacity in steel: 30.0 mm Coolant pump

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 7401.09 €: 142.84 €: 20 mm: MK 3 : 260 mm: 30 - 3000 U/min: 1,5 kW: M12 : 430 mm: 715 mm: 1800 mm: 290 kg: 115 mm: 110 mm: 230 - 850 mm: 420 x 340 mmDrilling capacity / normal drilling Performance 20/23 (in E335/ST60)Main switchThread cutting deviceControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with CEE plug3 years warranty for single shift operationOPTIONS (PRICES ON REQUEST):Drill package 3 (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity steel/GG: approx. 25 mm Spindle mount: 2 MK Projection: 300 mm Table size: 305 x 380 mm Quill stroke: 115 mm Spindle speeds: 200 - 1200 rpm Drive motor: 380 V, 1/1.5 kW Space requirement: 800 x 400 x 1800 mm Weight: approx. 280 kg

bore capacity in steel (diameter): 55.0 mmthroat: 300 mmbore stroke: 140 mmmorse taper: 4 MKtable:: 615 x 430 mmturning speeds: 70 - 1200 U/mincolumn diameter: 145 mmthread: M 30 ST60thread: M 36 GG20feed: 0.10 + 0.30 mm/Udistance spindle /table: 150 / 735 mmengine output: 1.8 / 2.9 kWweight: 380 kgMachine height: 1850 mm NEW ALZMETALL MODEL RANGE 7 TFT - LCD display with touch function: Spindle speed setpoint Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status displays and warnings in the display Service information Selectable user language: DE / EN / FR / ES / IT / NL / RU.Furnishing:- Thread cutting device for thread cutting with a stop max. 6 threads / min (thread cutting performance depends on the spindle speed) Thread depth adjustable via depth stop in the TFT - LCD display (3 tools).- auto ...

Drilling capacity steel/GG: 15 mm Spindle holder: 1 MK Projection: 300 mm Table size: 210 x 300 mm Quill stroke: 110 mm Spindle speeds: 200 - 3000 rpm Drive motor: 380 V, 1.1 kW Space requirement: 850 x 420 x 1860 mm Weight: 220 kg

Boring power: 16 mmtable-size: 280 x 360 mmquill stroke: 120 mmtotal power requirement: 0,8 kWweight of the machine ca.: 350 kg- Manufacturer: Chemnitzer Maschinenbau GmbH Chemnitz- speed (stepless): 460 - 1840 U/min , 140 - 560 U/min- Table dimensions: 280 x 360 mm- Adjustment travel table: 540 mm- Holder: MK 2The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 25 mm

Special price 2.630,- instead of € 3.090,- excl. VAT - Exact setting of the drilling depth - Suitable for drilling and tapping (optional) - The drilling table is height-adjustable and can be rotated around the column - Made in Sweden Specifications - Drilling capacity: 25 / 28 mm - Quill stroke: 130 mm - Tapping capacity (steel / cast iron): M 16 / M 20 - Spindle holder: MK3 - Spindle speed: 129 - 1498 rpm - Gear stages: 4 - Max. distance spindle/table: 730 mm - Projection: 255 mm - Drilling table size: 500 x 400 mm - Column diameter: 100 mm - Motor power: 0.65 kW - Voltage: 400 V - Dimensions WxHxD: 500 x 1720 x 500 mm - Weight: 185 kg

bore capacity in steel (diameter): 40.0 mmthroat: 293 mmbore stroke: 120 mmmorse taper: 3 MKtable:: 515 x 360 mmturning speeds: 80 - 1125 U/mincolumn diameter: 115 mmthread: M 24 ST60thread: M 30 GG20feed: 0.10 + 0.20 mm/Udistance spindle /table: 117 / 701 mmengine output: 1.0 / 1.6 kWweight: 270 kgMachine height: 1840 mm NEW ALZMETALL MODEL RANGE 7 TFT - LCD display with touch function: Spindle speed setpoint Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status displays and warnings in the display Service information Selectable user language: DE / EN / FR / ES / IT / NL / RU.Furnishing:- Thread cutting device for thread cutting with a stop max. 6 threads / min (thread cutting performance depends on the spindle speed) Thread depth adjustable via depth stop in the TFT - LCD display (3 tools).- Infi ...

Key data: 30 mm

Special price € 4,100 instead of 4,930 excl. VAT Solberga SE2030 - Gear drilling machine (new) Recording: MK3 Capacity: 30 mm - The drill head can be swivelled 360° around the column and is height-adjustable. - The gearbox is built with our traditional and tested technology for the highest possible torque. Helical gears in combination of steel and reinforced fiber material provide a high degree of efficiency, a low noise level, as well as a long service life and an almost maintenance-free transmission. - The spindle is made of steel and ensures optimal concentricity of the tool thanks to its adjustable tapered roller or ball bearing. The machine has an adjustable spindle return spring. This allows the restoring force to be adapted to the weight of the tool. - Automatic feed (M model) - When the preset drilling depth is reached, the spindle returns to its original positio ...

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 7519.51 €: 145.13 €: 23 mm: MK 3 : 260 mm: 20 - 2000 U/min: 1,5 kW: M16x1 : 430 mm: 715 mm: 1800 mm: 290 kg: 115 mm: 110 mm: 230 - 850 mm: 420 x 340 mmDrilling capacity / normal drilling Performance 23/25 (in E335/ST60)Main switchThread cutting deviceControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobEMERGENCY STOP pushbuttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with CEE plug3 years warranty for single shift operationOPTIONS (PRICES ON REQUEST):Drill package 3 (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 24280 Specifications: - Drilling capacity in steel ST 60 32 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 175 mm - Drilling spindle speeds infinitely adjustable 60 – 1600 rpm - 3 feeds 0.1; 0,16; 0.25 mm/rev - Projection 290 mm - Max distance drilling spindle – table / base plate 790 / 1210 mm - Table with 2 T-slots 570 x 475 mm - Height adjustable via rack with hand crank - Drive 400 V / 1.1 / 1.8 kW - Space requirement approx. W 600 x H 1950 x D 980 mm - Weight approx. 450 kg - with: - Emergency stop button -Lighting - Machine vise - 15 pieces HSS – drill bits 8 to 20 mm

bore capacity in steel (diameter): 32 mmthroat: 280 mmbore stroke: 110 mmspindle taper MT: 3 table-size: 340 x 400 mmturning speeds: 210- 2600 U/mintotal power requirement: 1,8 kWweight of the machine ca.: 325 kgdimensions of the machine ca.: 950 x 450 x 1750 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: - Drilling capacity in steel ST 60 40 mm - Drilling capacity in steel ST 60 50 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely adjustable with countershaft - Level 1: 60 - 210 rpm - Level 2 210 - 765 rpm - Projection 330 mm - 3 feeds 0.1 - 0.2 - 0.3 rpm - Table with 2 T-slots 720 x 360 mm - Table height-adjustable via rack with hand crank - Max. distance table – drilling spindle approx. 780 mm - Max. distance between machined base plate and drilling spindle approx. 1250 mm - Coolant device -Lighting - Drive 400 V / 4 kW - Space requirement approx. W 720 x H 2050 x D 1150 mm - Weight approx. 500 kg

bore capacity in steel (diameter): 50 mmbore capacity in cast iron (diameter): 60 mmthreading cutting capacity:: M42 throat: 360 mmbore stroke: 200 mmspindle taper: MK 4 feed range - spindle: 0,1-0,2-0,3-0,4 mm/Uspindle turning speed range: 190 - 1900 U/mincolumn diameter: 175 mmtable surface area: 550 x 550 mmtotal power requirement: 4 kWweight of the machine ca.: 0,85 tdimensions of the machine ca.: 2,2 x 0,7 x 1,3 m- large stepless speed range in 3 stages- mechanical speed adjustment with hand lever (model V)- electronic speed adjustment with frequency converter (model VE)- Front digital speed display- Gear lubrication by automatic oil pump VE”- Machine base plate with integrated coolant device- Machine light- MGI rotating and tilting table- Advance and automatic retraction with electromagnetic clutch- Front hand wheel for fine adjustment of the manual feed- Scale with adjustable dr ...

Key data: 16 mm

Column Drill Speed 200- 3000 rpm 380 V 16 A Height adjustable 55 cm Expellers Drill chuck Albrecht 3 - 16 mm

bore capacity in steel (diameter): 40.0 mmthroat: 293 mmbore stroke: 140 mmmorse taper: 3 MKtable:: 415 x 350 mmturning speeds: 160 - 2.250 U/mincolumn diameter: 115 mmtotal power requirement: 1.45 / 1.90 kWweight: 285 kgrange L-W-H: 500 x 800 x 1920 mmFeatures:- Heavy-duty column drill press - Continuously variable speed control (V-belt)- Pole-changing motor- Fixed drilling depth stop- Machine table with 2 T-slots Height-adjustable via hand crank- Mushroom-head pushbutton (latching) for EMERGENCY STOP- Reversing switch for clockwise and counterclockwise rotation- User manual (PDF)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 22090 Specifications: - Drilling capacity in steel ST 60 20 mm - Drilling spindle holder MK 2 - Drilling spindle stroke 120 mm - 4 drilling spindle speeds 400 - 2000 rpm - Projection 250 mm - Max. distance table - drilling spindle 720 mm - Table with 2 T-slots 440 x 360 mm - Height adjustable via rack with hand crank - Drive 380 V / 0.6 kW - Space requirement approx. W 550 x H 1900 x D 850 mm - Weight approx. 260 kg - with: - Drill chuck 3 - 12 mm

bore capacity in steel (diameter): 40 / 23 mmthroat: 320 mmbore stroke: 180 mm: 4 speeds: 30 - 765 U/mintable-size: 720 x 550 mmweight: 480 kgdimensions: 750 x 900 x 1900 mmEquipment:- Multi-spindle head, drill Ø 23 mm- automatic feed- coolant device- infinitely variable speed- adjustable drilling depth stopThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity steel/GG: 23 mm Spindle holder: 3 MK Projection: 275 mm Table size: 300 x 400 mm Quill stroke: 90 mm Spindle speeds: 100 - 1180 rpm Feeds: 0.1/0.6/0.25 mm Drive motor: 380 V, 1.25/2.15 kW Dimensions: 850 x 400 x 1770 mm Weight: 280 kg

spindle cone: MK 1 turning speeds: 200 - 3000 U/mintable-size: 300 x 220 mmtotal power requirement: 520 Wweight of the machine ca.: 200 kgdimensions of the machine ca.: 8004001800 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Drilling capacity in St 60, 30 mm - Short spindle MK 3 - Spindle stroke 120 mm - Projection 293 mm - Table support 420 x 300 mm, 2 T-slots - Machined base plate 320 x 329 mm, 2 T-slots - Distance base plate - drill chuck 1000 mm - Feed via turnstile - Weight 220 kg - Spindle speed 160 - 2250 rpm. - Operating voltage 380V-50Hz - Infinitely variable speed adjustment, by means of an adjustment lever - Engine speed in 2 stages, 700/1435 rpm - Tapping device with rotation direction change after reaching the end stops - Coolant device fully installed. - Coolant tank in machine base - Work light with LED - RÖHM drill chuck 1 - 16 mm - Precision machine vice new (test winner)

bore capacity in steel (diameter): 65 mmthroat: 390 mmbore stroke: 250 mmspindle taper MT: 5 table-size: 880x670 mmspindle turning speed - stepless: 40-800 U/minweight of the machine ca.: 1.2 twww.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 25 mm, 225 mm, 150 mm

Drilling capacity steel: ø 25 mm Table dimensions: ø 390 mm Spindle Adapter: MK3 Spindle speeds: 100 - 2900 rpm. Spindle stroke: 150 mm Projection: 225 mm Equipped with: - Drill protection -Drilling Country of origin: Netherlands Motor power: 0.75 kW Machine LxWxH: 700 x 700 x 1800 mm Machine weight: 300 kg

: neu : 2024 : 3982 : prompt, Zwischenverkauf v : Spanien : 10830 €: 207.94 €: 1 : 35 mm: MK 4 : 300 mm: stufenlos 100 - 2.000 U/min: 3 kW: bis M 27 : 1100 mm: 600 mm: 1950 mm: 360 kg: 0,10 / 0,20 / 0,30 (3) mm/U: 150 mm: 125 mm: 90-890 mm: 1250 mm: 480 x 480 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEcolumn drilling machine with vario gear1-stage V-belt drive with stepless variable speed with a frequency converter and digital speed display3 automatic feedschuck guardleft-right drillingT-Slots and integrated coolant equipment in base standintegrated lightingdrill guardHEIGHT ADJUSTABLE, ROTATING AND TILTING TABLE WITH T-SLOTSreverse for tappingfast and precise setting and control of the speed without switching operations and without defined levelsmore particularly robust parts for wear resistant operation and smooth runningcompact design with high performanceCE normsuser manual  ...

NEW ex works Standard equipment - Threading device - Control panel with OLED display - Robust, high-quality drill head hood - LED lighting - Quickly adjustable and ergonomic drilling depth stop - infinitely variable speed control via rotary knob - thermal overload protection - Spindle stop - Drill protection with electr. Hedge - Connection cable with CEE plug - Mechanical feed of the Z-axis - Incl. electromagnetic clutch for 3 feed speeds - Drill cross with push button - in tapping mode: right-left SPECIFICATIONS Continuous/normal drilling capacity (mm) R1 - 30/35 (in E335/ST60) R2 - 27/32 (in E335/ST60) R3 - 35/40 (in E335/ST60) Thread cutting capacity max.: R1= M30x3,5 / R2= M24x3 / R3= M36x4 Spindle MK IV Drilling depth: 160 mm Projection: 300 mm Column diameter: 140 mm Usable table area (W x D): 590 x 450 mm Digital speed display Digital drilling depth  ...

bore capacity in steel (diameter): 20.0 mmbore capacity in cast iron: 25.0 mmthroat: 210 mmbore stroke: 100 mmturning speeds: 240 - 3800 U/mintable-size: 300 x 425 mmmorse taper: MK 3 total power requirement: 0.6 / 1.2 kWweight of the machine ca.: 300 kgrange L-W-H: 500 x 700 x 1750 mm Machine from a vocational school ()- in checked condition - machine video -https://www.youtube.com/watch?v=WGhTKBNBT2EFurnishing :- Column drilling machine - Drive: V-belt- manual spindle feed- Pole-changing drive motor- Work table with T-slots- Height adjustable via hand crank- adjustable drilling depth stop- Keyless drill chuck including taper mandrel- Connection cable + 16A plugThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer | Manufacturer: Chemnitzer Maschinenbau GmbH Chemnitz Type | Type: CMB 16 Pinole Lift | Quill stroke: 120 mm Speed (infinitely variable) | speed (stepless): 460 - 1840 rpm ; 140 - 560 rpm Dimensions table | Table dimensions: 280 x 360 mm Adjustment range table | Adjustment travel table: 540 mm Recording | Holder: MK 2 Connected load | Connection Value: 0.8 kW Total weight | Total Weight: 350 kg

bore capacity in steel (diameter): 28 mmthroat: 250 mmbore stroke: 130 mmmorse taper: 3 MKtable:: 380 x 380 mmturning speeds: 75 - 3000 U/minengine output: 1,1 kWcolumn diameter: 98 mmthread: M16 ST60dimensions: 700 x 450 x 1500 mmweight: 200 kg- Height adjustable and angle adjustable table- Movable work table- Prepared for cooling system- Powerful engine- 3 hand levers for drilling feed- Safety shield with limit switch- Separate emergency stop- Built-in working lights- Incl. drill chuck 16mm - B16- Built-in automatic thread cutting.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity steel/GG: 18/23 mm Spindle mount: 2 MK Projection: 250 mm Table size: 250 x 370 mm Spindle speeds: 400 - 5000 rpm Drive motor: 0.48/0.6 kW Space requirements: 750 x 500 x 1670 mm Weight: 130 kg

: neu : ca. 8 Wochen ab Auftragse : Spanien : 12570 €: 241.34 €: 50 mm: MK 4 : 350 mm: 93 - 152 - 204 - 298 - 44 U/min: 3 kW: M35 : 480 mm: 755 mm: 2265 mm: 435 kg: 0,1 / 0,18 / 0,24 mm/U: 180 mm: 150 mmERLO (MADE IN SPAIN)FOR DEMANDING WORKSHOP USEGear drive3 aut. feedssliding machine tablesolid drill headtiltable turntablefront wheel for sensitive fine feed(sample photo)OPTIONS (PRICES ON REQUEST):lighting equipment Lcoolant equipment and machine base with T-slots ERBReverse for tapping IR/RSThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

offer 22054 Specifications: - Drilling capacity - in steel 15 mm - - in aluminium 18 mm - Drilling spindle holder MK 2 - Drilling depth 70 mm - Projection spindle / column 180 mm - Drilling spindle speeds 80 - 4000 rpm - Drive 400 V 0.45 / 0.75 kW - height-adjustable drilling table 280 x 240 mm - Distance drilling spindle / table approx. 360 mm - Distance drilling spindle / base plate approx. 410 mm - Space requirement approx. W 280 x H 1700 x D 600 mm - Weight approx. 85 kg - with : - Quick-change drill chuck 1 - 13 mm - Machine vice - div. Gebr. HSS drill 5 - 15 mm

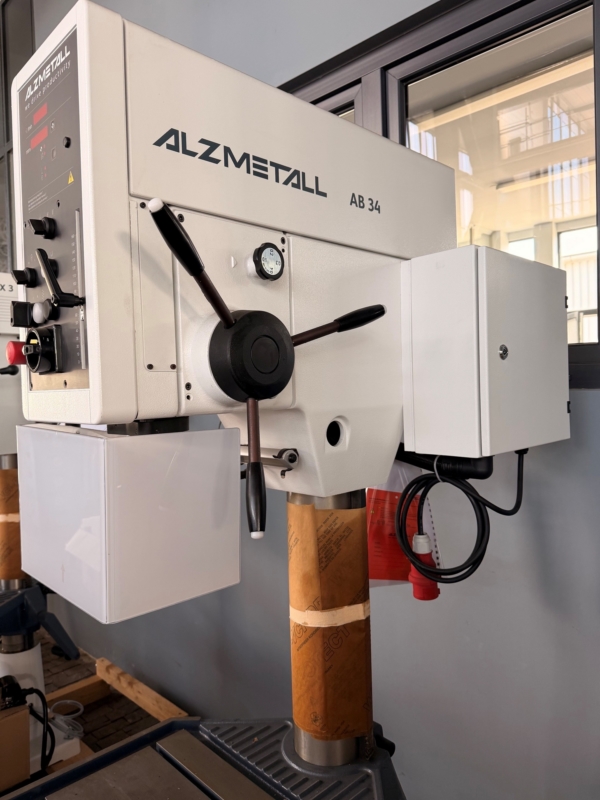

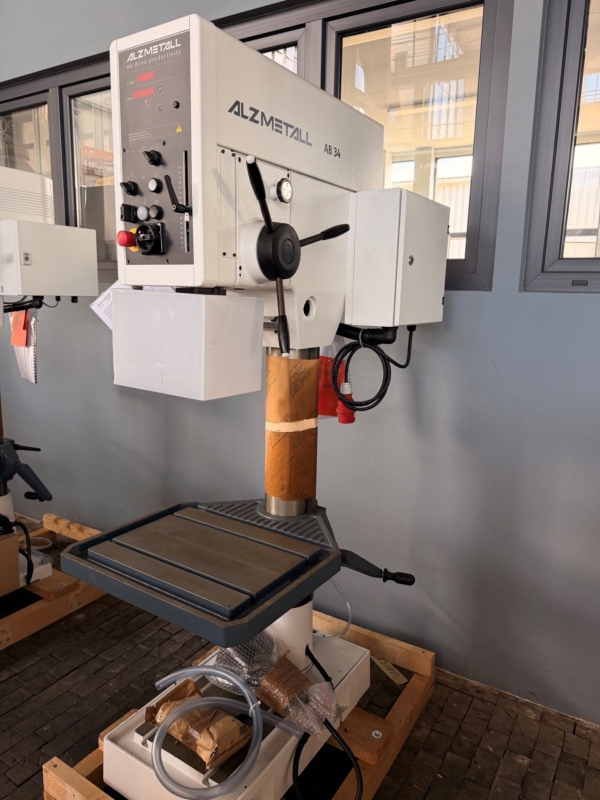

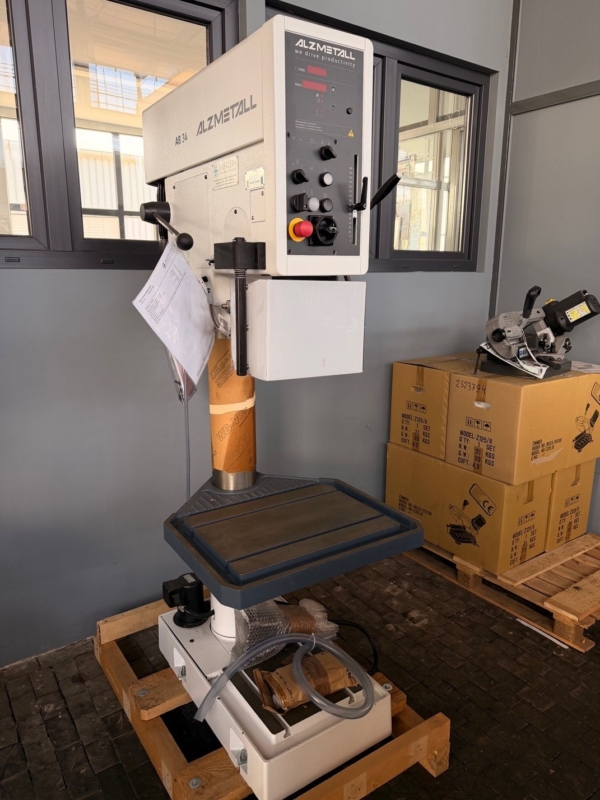

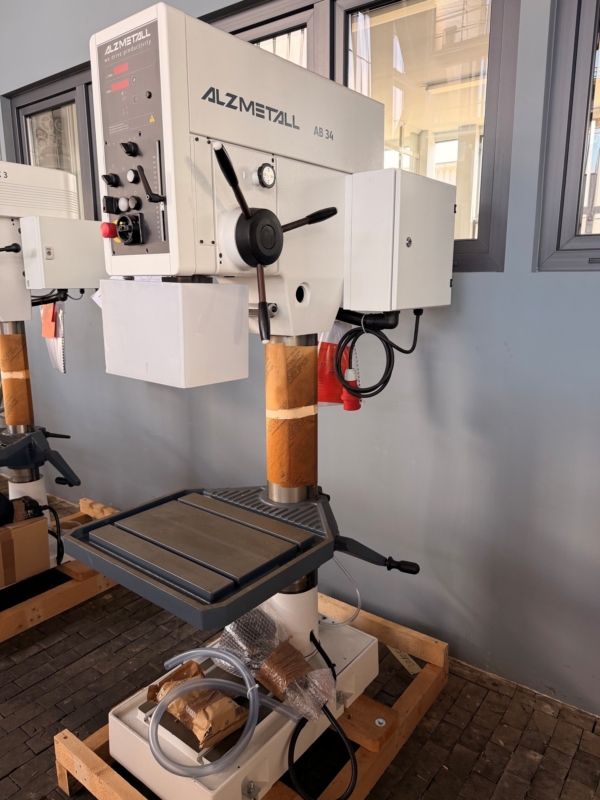

: 34 mm: 40 mm: 40 mm: MK 4 : 100-1.800 U/min.throat: 300 mm: 615x430 mm: 2 x 14 x 224 mm: 138/688 mmcolumn diameter: 145 mmspindle stroke: 160 mmfeeds: 0,1-0,2-0,3-0,4 mm/UMachine height: 1865 mmtotal power requirement: 1,4/2,2 kWStandard equipment:- Electromagnetic feed clutch with overload protection and electricalCross Handle Switches- Main switch lockable- Motor protection switch- Mushroom pushbutton (latching) for EMERGENCY STOP in the front panel- Speed adjustment stepless- Speed display digital- Protection class IP 54- Motor insulation class F- Spindle protection with electrical protectionPos. 20.1Tapping device with foot switch, for thread cutting withStop, max. 6 threads/min., (Tapping power dependent on spindle speed)Pos. 25.Coolant device B, consisting of: separate container (33 l), pump withMotor protection switch, complete fittingThe data for this ad was created with ModulM ...

offer 22326 Specifications: - Drilling capacity in steel ST 60 35 mm - Drilling capacity in steel ST 60 40 mm - Drilling spindle holder MK 4 - Drilling spindle stroke 170 mm - Projection 345 mm - Rotary table with 2 T-slots 550 mm - distance table – drilling spindle 650 mm - distance base plate – drilling spindle 1000 mm - Feed rates 0.09 - 0.16 - 0.28 mm/rev - AZ transmission continuously variable with manual transmission - Drilling spindle speeds infinitely adjustable 40 - 720 rpm -Right. - Left-hand rotation - Drive 400 V / 2.5 kW -Lighting - Coolant device - Space requirement approx. W 750 x H 1950 x D 1000 mm - Weight approx. 700 kg

: neu : ca. 8 Wochen ab Auftragse : Spanien : 12910 €: 247.87 €: 40 mm: MK 4 : 350 mm: 132-194-277-319-466-666-8 U/min: 2.2 kW: M33 : 755 mm: 480 mm: 2280 mm: 490 kg: 0,1 - 0,2 - 0,3 mm/U: 150 mm: 80 - 880 mm: 1225 mm: 480 x 480 mm: 175 mmAutomatic feed with mechanical clutchGeared driveHardened and ground high quality steel gearsSpeed plate and selecting levers on head front.Depth scale and adjustable depth stopAutomatic tool ejectorEmergency STOP push buttonSpindle reversing switchElectric equipment integrated on machine’s headMachined base with coolant tankWorklightMGI: Rotating and tilting table for model 40Safety drill guard with microswitchCE markALTERNATIVE:VERSION BX.40MIT ELEKTROMAGNETIC CLUTCH PRICE ON REQUESTOPTIONS (PRICES ON REQUEST): Electronic speed variato with speed digital reader(VE+TAK) A) 66-211 B) 97-310 C) 138-443 D) 160-510 E) 233-746F) 333-1066 G) 440-1413 ...

Standard equipment - Thread cutting device - Control panel with OLED display - robust, high-quality drill head hood - LED lighting - quickly adjustable and ergonomic drilling depth stop - infinitely variable speed control via rotary knob - thermal overload protection - Spindle stop - Drilling protection with electr. Hedge - Connection cable with CEE plug - mechanical feed of the Z-axis - incl. electromagnetic coupling for 3 feed speeds - Drill cross with push button - in thread cutting mode: right-left SPECIFICATIONS Continuous/normal drilling performance (mm) R1 - 27/32 (in E335/ST60) (100) R2 - 25/30 (in E335/ST60) (70) R3 - 30/35 (in E335/ST60) (200) Thread cutting capacity max.: R1= M24x3, R2= M20x2.5, R3= M30x3.5 Spindle MK III Drilling depth: 125 mm Projection: 300 mm Column diameter: 125 mm Usable table surface (W x D): 590 x 450 mm Speed display digit ...

bore capacity in steel St 60: 25 mmDrilling capacity in St 60: 30 mmthreading in St 60: M 16 : M 20 Short spindle: MK 3 spindle stroke: 140 mmthroat: 293 mmcolumn diameter: 115 mmMachine table - usable table surface: 514x360 mmT-Slots Amount - Width - Distance: 2x14x224 mmdistance spindle - column min./max.: 132/724 mmfeed: von Hand 0: stufenlos Spindle Speed: 225-4300 U/min.engine: 1,0/1,6 kWvoltage: 400 VStandard equipment:- 7 TFT LCD display with touch function: Manual input of spindle speed set value Actual speed display Integrated drilling depth display with touch zero point transfer Virtual drilling depth scale in the display Machine status indicators and warnings on the display Service information Selectable operating language: DE/EN/FR/ES/IT/NL/RU- Thread cutting device, for thread cutting with stop, max.6 threads/min (thread cutting capacity depending on spindle speed), thread d ...

Specifications: - Drilling capacity in steel ST 60 30 mm - Drilling spindle holder MK 3 - 4 feeds 0.1 - 0.16 - 0.25 - 0.4 mm/U - Drilling spindle speeds in gear stages 95 - 2000 rpm - Right - Left - Drilling spindle stroke 160 mm - Projection 350 mm - Table with 3 T-slots height-adjustable 340 x 320 mm - Table can be tilted left + right - distance table – drilling spindle 500 mm - distance machined base plate – drilling spindle 1050 mm - Column diameter 160 mm - Lighting - Coolant device - Drive 400 V / 2.4 kW - Space requirement approx. W 600 x H 1950 x D 800 mm - Weight approx. 350 kg

: neu : 3935 : ca. 10 Wochen ab Auftrags : Spanien : 18150 €: 348.48 €: 50 mm: MK 4 : 400 mm: 54 - 1032 (9) U/min: 2.9 kW: M36 : 600 mm: 1200 mm: 2500 mm: 710 kg: 0,1 / 0,2 / 0,3 / 0,4 mm/U: 230 mm: 200 mm: 50 - 850 mm: 1290 mm: 550 x 550 mm: 1060 x 600 mmERLO(MADE IN SPAIN)FOR MANUFACTURING USEHigh quality gear drilling machinecooling equipmentVDE electricchuck protectionleft right drillinglightingfront handwheel for sensitive feedtable turn and tiltableuser manual in GERMANOPTIONS (PRICES ON REQUEST): manual tapping systemIR/IRS electronic speed variator with digital read out VE+TAK digital read out for drilling depth LBCALTERNATIVE:ERLO B-50 VERSION WITH ELECTROMAGNETIC CLUTCH PRICE ON REQUESTThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Column drilling machine with cross table Manufacturer: Helgerit / Perfect Type BF40VS Tool holder MK4 automatic feed Handwheel for fine feed Stageless speed control Digital rev counter 2 Pole motor 2 gear gearbox lighting Notaus Special price

: 23 thread capacity: M10 bore stroke: 90 mmShort spindle: MK2 throat: 180 mmMachine table - usable table surface: 285x285 mmtable load: 45 kgspindle turning speed range: 150-1.250/350-3.000 UpMtotal power requirement: 0,75 kWOverall size: 735x470x1080 mmweight of the machine ca.: 106 kgStandard equipment:- Digital speed display- Movable LED machine light- Stepless spindle speed via frequency converter- Tiltable work table +/- 45 degrees- Mains cable and plug so ready for immediate use- Drilling table adjustable via gear rack- Depth stop with scale- Emergency stop- In accordance with current CE conformityThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

High performance column boring machine Technical data: - Drilling capacity in steel ST 60 32 mm - Thread cutting device up to M 20 - Drilling spindle holder MK 3 - Feeds 0.1 + 0.2 + 0.3 mm/U - Drilling spindle stroke 150 mm - 12 drilling spindle speeds 80 - 1400 rpm - Extension 280 mm - max distance table - drilling spindle 760 mm - Table with 2 T-slots 550 x 400 mm - Height adjustable via rack with hand crank - Drive 400 V / 1.4 / 2.3 kW - Space requirement approx. W 550 x H 1950 x D 850 mm - Weight approx. 360 kg - with: - coolant device - Quick-release drilling chuck - 20 pcs. HSS div. Drill 8 - 25 mm

: neu : ca. 2 - 4 Wochen ab Auftr : Deutschland : 5309.85 €: 102.48 €: 18 mm: MK 2 : 240 mm: 30 - 3000 U/min: 0.75 kW: M12 (steigungsabhängig) : 705 mm: 355 mm: 1825 mm: 195 kg: manuell mm/U: 82 mm: 180 - 870 mm: 340 x 280 mm: 100 mmDrilling capacity / normal drilling capacity 18/20 (in E335/ST60)Thread cutting systemControl panel with OLED displayRobust, high quality drill head hood with ergonomically inclined frontLED lightingQuickly adjustable and ergonomic drill depth stopStepless speed control via central rotary knobManual feedEMERGENCY STOP pushbuttonThermal overload protectionSpindle stopDrill protection with electr. FuseConnection cable with Schuko plug3 years warranty for single shift operationOPTIONS:Drill package 3 (vice &, keyless chuck)Coolant deviceLED lighting with pivot armThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
