peripheral equipment (e.g. heating, conveying, drying) used for sale (606)

table length: 1300 mmtable width: 800 mmstroke height: 1020 mmweight max. in kg: 2000 kg: mmconnected load frequency: 400 Vtotal power requirement: 0,75 kWstroke speed - idle stroke upwards: sek.stroke speed - idle stroke downwards: sek.weight of the machine ca.: 0,3 tdimensions of the machine ca.: 1,3 x 0,8 x 0,4 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Type: Complete Scope & Dust Extraction Plant

Extraction system with chip bunker and discharge Technical data - Manufacturer: SCHUKO - Type: Validus SBG-160-2330/25/207/BD - Year of manufacture: 02/2017 (all components) - Make No.: 1061064 - Filter area: 207 m² - Filter material: Dust class M, AWN 16 - Moving floor top filter, basic element with vibration, pneumatic and mechanical - Pressure surge cleaning, inlet pressure 6 bar, working pressure 4 bar - Air requirement per regeneration cycle and element: 56 l at 4 bar - 2 x explosion flaps - Pressure relief surfaces according to EN 14491 - Dry extinguishing line up to the lower edge of the filter - Cleanroom elevation for the installation of the fans - 2 x 18.5 kW fans (1 x FU-controlled, 1 x star-delta start-up) - Volume flow: 24,814 m³/h at 3,718 Pa - Discharge height: 2,700 mm above the ground - Length of screw: approx. 5000 mm - Vertical ladder with back protection and platfo ...

Auction-ID: A1-48377-17

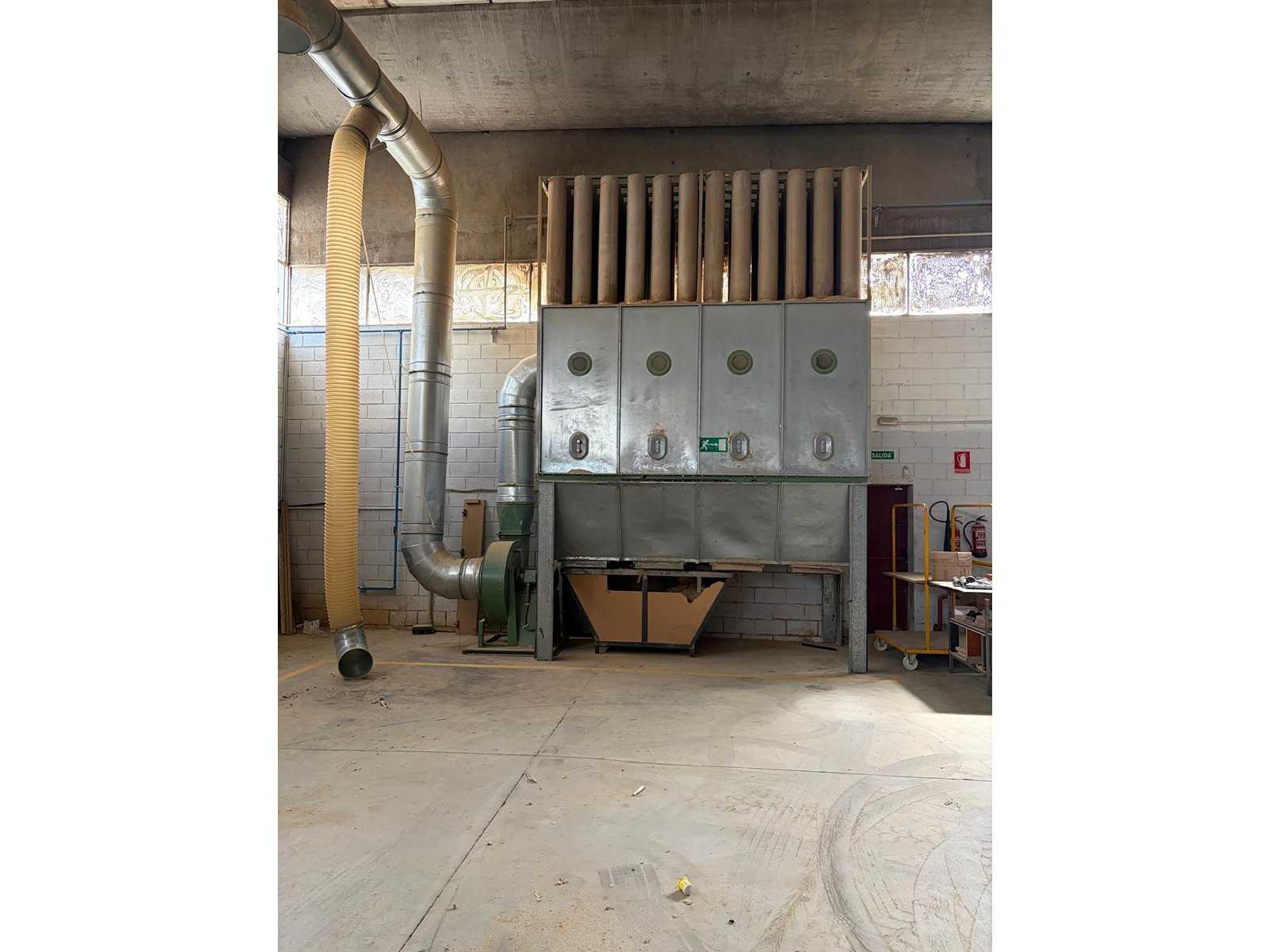

- Industrial vacuum and filtration system for dust and fibers. - Integrated cyclone separator for particle pre-filtration. - Dust collector by means of 24 bag filters with a length of 1800 mm and a diameter of 150 mm. - Lower drawers for the collection of filtered material. - Built-in suction fan with 4 KW motor. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. - Operating conditions of this item: unchecked. Auction-ID: A7-48840-29

Operating voltage: 220-240 VFrequency: 50/60 HzConnection: 1000 Wincl. matching filterReference: Common - Lot 37 Auction-ID: A7-49056-402

coolant capacity: 500 lFilter capacity: 800x900 mmdimensions of the machine ca.: 2x1,4x1,5 mtotal power requirement: kWweight of the machine ca.: 1 tThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsch TeamThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mmtable width: 1000 mmstroke height: 400 - 1010 mmweight max. in kg: 300 kgweight of the machine ca.: 220 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Venyeskob, Type: Trommelwender, Year: 2014, Control: Programm, Work piece width min-max mm: 1350, Min.-max. workpiece length in mm: 4700, Min.-max. workpiece height in mm: 30-180, Continous adjustable feeding speed m/min: 10-30, Feeding engine kw: ca.4, Working hight mm: 980 +/-, Klemmun Pneumatisch: klemmung, Roll transport: 1400, Single machine: möglich, Machine from production line: yes, Belt width: 1400 Rollenbreite, Total lenght: 5200, Total power kW: ca 15, Feeding speed min m/min: 10-30, Feeding speed continous adjustable: yes, Working hight adjustable mm: ca.980, Required space L x W x H mm: 5000 X, Roller pitch mm: 180, roller diameter: 80, Year :2014

Manufacturer: Venyeskob, Year: 1995, Working length mm: 3950, Working widht mm: 1300, UV-Band: no, Total hight mm: 920 +/- 50, Belt width: 1300, UV conveyor belt: no, Bandkühlung: no, Own controller: no, Bandsteuerung : yes, Total hight mm: 920 +/- 50, Engine power kW: 0,75, Total power kW: 0,75, Feeding speed min-max m/min: 12-20, Feeding speed continous adjustable: extern FU, Belt control: yes, Working hight adjustable mm: yes, Movable: no, Required space L x W x H mm: 4000x1600x1000, Total lenght: 4000, Feeding speed adjustable: extern, Hydraulic platforms: no, Installation height: 920, Weight approx. kg: 500, CE-Sign: no, Year :1995

Manufacturer: Helotec, Type: Plattenlager, Year: 2006, Control: Ferrocontrol, Online connection to following machines: möglich, Chaotische Lager: yes, Lagerabmessung Meter: ca.10 X 38, Plattenstärken min-max mm: 8-22, Beschichtet Platten: yes, Halbformatplatten-Format: yes, Einlagerplätze: 1, Auslagerplätze: 1, Min-max stack dimensions length: 2800 X 2100, Verstellbare Saugtraverse : no, Transport roller conveyor: yes, Geschwindikeitfahrträger Brücke m/min: 80/60, Drehvorrichtung Hubsytem : yes, Hight of stacks max mm: 1440, Weight measurement: 200, Number of sucking lines: 2, Feeding speed continous adjustable: yes, Year :2006

Manufacturer: R & R Filteranlage, Type: RRFHS-650-JET, Year: 2009, Filter system - negative pressure: yes, Volume flow rate m³/h: 78.000, Filter surface in m²: 651,44, Qty. filter hoses: 324, Hose diameter in mm!: 160, Length of filter tubes: 4.000, Number of filter filter gallerys: 4, Return air capable: yes, Cleaning of scavenging air: yes, Star feeder: RTZ 100, Screw conveyor: yes, Number of fans: 5, 1st transport fan - bunker kW: 7,5, 2nd Exhaust fan kW: 37, 3rd Exhaust fan kW: 37, Suction pipe diameter 3 mm: 37, 5th extractor fan kW: 37, Container connection: möglich, FREE TEXT: Aufstellmass 4400 X 4400 mm + Ventilatoren Einhausung 4000 X 4000 mm, Year :2009

Manufacturer: Homag, Type: Profi BAZ/20/40/14/3/KA, Year: 2003, Control: Woodwop, Maschinensteuerung: Homag, Programming station office: möglich, Work piece width min-max mm: 1400, Min.-max. workpiece length in mm: 5200, Min.-max. workpiece height in mm: 10-60, C axis: yes, Number of milling spindles vertical: 2, Anzahl Frässpindeln horizontal: no, Milling engine 1 hours power: ca.12, U/min 1) Vertikal: 1500-24000, Milling engine 2 hours power: ca.12, U/min 2) Vertikal: 1500-24000, Number of tool changers: 2 (1 defekt), Tellerwechseler: yes, Number of tools per tool-magazine: 12, Mitfahrender Werkzeugwechsler: yes, Belt conveyor: Rollentransport, Traverse table: yes, Stops in the table front: yes, Automatische Beladung: yes, Automatschische Entladung : yes, Vacuum pumps m³/h: 100, Tool clamping system: HSK 63, Saw unit: yes, Radial arm machine: yes, Laser positioning: no, incl. tools: ...

Manufacturer: Giardina Lackwalze, Year: 1999, Control: Siemens, Program: yes, Work piece width min-max mm: 10-1300, Min.-max. workpiece length in mm: 300, Min.-max. workpiece height in mm: 3-80, Durchlassbreite min-max mm: 1400, Working height: 890, Lackauftragseinheiten: 1, Vorschub Transport m/min min - max: 5-25, kW - Leistung Transport: ca.1,5, Auftragswalzengeschwindigkeit m/min min-max: 5-25, Gummierte Auftragswalze(n): yes, Roller lift out: yes, Hight adjustment by engine: yes, Type of transportation: Rolle, Pump system: Membrane, Carriage: yes, Electronic control board: yes, Strassenbetrieb: möglich, Einbaulänge Auftragsmaschine mm: 900, Carriage: yes, Year :1999

Dimensions (L/W/H): 2400x1200x410 mmWeight: 1300 kgTotal power requirement: 0 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 820x410x810 mmWeight: 64 kgTotal power requirement: 2,2 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 1070x495x895 mmWeight: 80 kgTotal power requirement: 3 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 750x705x1800 mmWeight: 170 kgTotal power requirement: 4 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 945x705x1800 mmWeight: 206 kgTotal power requirement: 4 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Mobile dust extractor Brand: SCHUKO Type: Vacomat 160 XPe New machine Technical data: Connection Ø: 160 mm Filter cleaning: motorised Volume flow: 1.593 m³/h Nominal volume flow: 1447 m³/h Motor power: 2,2 kW Negative pressure: 2.200 pa Filter surface area: 9,5 m² Test sign H3 / BGHM HO 123027 Dust level M, AWN 16 Noise absorbation: 69 dB(A)

mobile extraction Brand:SCHUKO Typ: Vacomat 200 XPe Techncal data: Connection Ø: 200 mm Filter cleaning: motorical Nominal volume flow: 2262 m³/h Motor power: 4,0 kW Filter surface area: 14,5 m² Dust level M, AWN 16 Noise absorbation: 73 dB(A) Test sign H3 / BGHM HO 123027

Intelligent transport systems Brand: Formetal Type: diverse Wehrmann offers tailor-made transport systems for a wide variety of requirements. No matter whether it is about the transport of carcasses, single plates or stacks. For every transport task, however unusual, there is the optimal system, with a superordinate control that can recognize parts, send them on the right journey and integrate the connected machines. Roller conveyors, chain transports, webbing systems, link belt conveyors, turning stations, carcass erectors, carcass turners, etc ... All of these transport units, which are tailored to your requirements, are provided with a current touch-panel control computer, via which a complex line can be centrally and simply controlled. With a perfect design and tuning of the mechanical components, with a frequency-controlled speed control, both high feed rates can ...

Manufacturer: Handke Schweisstaubabsagung, Control: no, Filter system - positive pressure: yes, Volume flow rate m³/h: ca.1500, Number of filter filter gallerys: 1, Return air capable: yes, FREE TEXT: inkl. Auffangbehälter,

Manufacturer: Purete, Type: PRT-C9213, Year: 2020 neu, Working length mm: 2.000, Working widht mm: 1.320, Ex-schutz: no, UV-Band: no, Total hight mm: +/- 880 , Belt width: 1320, Bandkühlung: no, Own controller: yes, Total hight mm: +/- 880 , Engine power kW: 0,75, Feeding speed min-max m/min: 5 - 20, Feeding speed continous adjustable: yes, Working hight adjustable mm: yes, Längen möglich von-bis mm: 1.500 - 5.000, FREE TEXT: andere Längen auf Anfrage, Year :2020 neu

Manufacturer: Purete, Type: D1313, Year: neu, Control: HMI, Dust removal brush: yes, Brush type: Sisal, Diameter of brushes: 150, Number of units: 2, kW Leistung Motoren: 0,75, Number of rotations controlled: no, Units mounted upright: yes, Fast exchange device: yes, Working width mm: 1.320, Through running hight mm: 3 - 80, Vacuum belt: no, Feeding speed continous adjustable: yes, Feeding speed min-max m/min: 5 - 25, kW-Vorschub: 0,75, Operating side: rechts, Electrical hight adjustment: yes, Ionising: no, rotor jets: no, Required space L x W x H mm: 3.000 x 1.850 x 1.700, Year :NEU

Manufacturer: Hackemack Transportband, Working length mm: 2500, Working widht mm: 1300, Own controller: no, Bandsteuerung : yes, Total power kW: ca.0.75, elektronisch regelbar: 6-30,

Manufacturer: PramacHubwagen, Fork length in mm: 2000, Lifting power kg: 1200,

Manufacturer: Venyeskob 2 Stück 90 Grad, Type: Transportbandkurve, Year: ca, Inner radius in mm: ca.4500, Working hight mm: 890, Feeding speed max m/min: 6-30, Engine power kW: ca 2 X 1,5, FREE TEXT: eine Kurve ist überbaut, Year :ca

Manufacturer: Ernst , Type: AB 1 1300, Year: 1982, Control: no, Compressed air cleaning: yes, Number of units: 2, Units mounted upright: yes, Roll transport: yes, Feeding speed continous adjustable: gekoppelt an Schleifmaschine, rotor jets: Kanal, FREE TEXT: Arbeitsbreite 1400/Arbeitshöhe 80/inkl.Turbine, Year :1982
