machines and plants for process engineering used for sale (7,698)

ENTRY STRIP THICKNESS: MAX. 12 MM, EXIT THICKNESS: 1.8 MM, STRIP WIDTH: 1000 - 1500 MM, AGC SYSTEM (2000), COMPLETE LINE!

DANIELI, 1989, 550 T/DAY, BILLETS SQUARE: 130 x 6000 MM, REBARS: D8 - D14

PICKLING LINES, TANDEM MILL, 18 ANNEALING FURNACES, TEMPER MILL, SLITTING LINES, SHOT BLAST MACHINE, STRIP WIDTH: 1000-1279 MM, ENTRY THICKNESS: 1.8 - 4.5 MM, EXIT THICKNESS: 0.7 MM

used, kpl. 1 year warranty, plate size 400 x 400 mm, 25 plates, open outlet, 25 mm cake thickness, capacity 75 liters, filter area 6.5 m2, pressure max. 10 bar, dimensions 2000 x 800 x 1600 mm, weight approx. 800 kg

used, kpl. 1 year warranty, built in 1999, plate size 1200 x 1200 mm, 70 plates with 50mm cake thickness (3500 liters capacity + 160 m2 filter area) or 90 plates with 30 mm cake thickness (2700 liters capacity + 205 m2 filter area), open outlet, pressure max. 15 bar, dimensions 9000 x 2000 x 2400 m m, weight approx. 18 to, PP - drip plate (motorized)

used, kpl. 1 year warranty, plate size 800 x 800 mm, optional 60 - 85 plates, open outlet, 25 mm cake thickness, pressure 15 bar, capacity 800 - 1100 liters, filter area 64 - 90 m2, dimensions 7000 x 1500 x 2400 mm, weight approx. 11 tons

used, kpl. 1 year warranty, plate size 300 x 300 mm, 10 plates, open outlet, 25 mm cake thickness, pressure max. 10 bar, capacity approx. 20 liters, filter area 1.5 m2, dimensions 1200 x 600 x 600 mm, weight 400 kg, optionally with manual or motor hydraulics, available now

used, kpl. 1 year warranty, plate size 250 x 250 mm, 15 plates, open outlet, 15 mm cake thickness, pressure max. 15 bar, capacity 10 liters, filter area 1.5 m2, dimensions 1300 x 500 x 1300 mm, weight 300 kg, optionally with manual or motor hydraulics, with or without feeding pump and Piping

used, kpl. 1 year warranty, plate size 500 x 500 mm, 45 plates, open outlet, 20 mm cake thickness, pressure 15 bar, capacity approx. 171 liters, filter area approx. 18m2, dimensions 3500 x 900 x 1200 mm, weight 1.5 to, optionally with hand pump or motor hydraulics, with or without filter cloths

used, kpl. 1 year warranty, built in 1994, plate size 800x800 mm, 60 plates, open outlet, 25 mm cake thickness, pressure 15 bar, capacity approx. 800 liters, filter area 64m2, dimensions 5500 x 1500 x 2200 mm, weight approx. 6 to

used, kpl. 1 year warranty, plate size 800x800 mm, 50 plates, open drain, 25 mm cake thickness, pressure 15 bar, capacity approx. 660 liters, filter area 53m2, dimensions 5500 x 1600 x 1200 mm, weight approx. 5 to

used, kpl. 1 year warranty, plate size 800 x 800 mm, 95 plates, closed drain ( 4-hole), 30 mm cake thickness, pressure 15 bar, capacity approx. 1350 liters, filter area 95m2, dimensions 7500 x 1300 x 2000 mm, weight approx. 7 to

Nitrogen generators membrane or PSA systems for laboratory up to production (500 L/h to several m3/h) No more gas cylinders in laboratory, plant or car repair shop (tyre gas)! Wear-free operation >99.5% pure nitrogen from mostly existing in-house compressed air Constant and safe gas generation guarantees reliable analytical results Operation-free 24-hour operation also in hazardous areas Safe operation due to low operating pressures Economically thanks to fast payback even on a technical scale! N2 production according to the membrane process The nitrogen generators continuously supply nitrogen up to a maximum purity of 99.5%. After the compressed air flows through highly effective filters, the compressed air is decomposed in a hollow fiber membrane module into a concentrated nitrogen flow and an oxygen-enriched portion. The membrane process has ...

with 15 cards + Rack S5 187U with 10 expansion cards. scope of delivery as seen in the photos.

Type: VGL 5000. Double-current mixer in standard steel version with 5,000 l. useful content, cylindrical mixing tank and conical bottom, with vertical middle screw, distribution arm and power line controller, rectangular connector for pocket filter, manhole, lower Screw bearing with air flushing, pneumatic flat slider at the outlet.

Piston dosing pump, type EK 1 H, with batch control via electric pulse preselection counter incl. remote summier movement. Working pressure 7.5 bar, max dosing current 290 l./h, pipe connection Rd 34 x 1/8 inch with hose sleeve NW 15, with control cabinet, mounted on table.

Horizontal batch mixer with 630 l. gross content, pneumatic outlet flap (new cylinder), 37 kW engine, Flender gearbox (N2 = 58.58 UPM) and carbide-armoured mixing tools. Workshop overhauled in 2016; very good condition.

Type: Pipeline Model 63, magnet separator for removing iron from ceramic chippings etc., input: 380/220/115 V, output: 24 V / 7.5 A (transformer built-in), 2.4 to./h.

Type: RHS 1 U 200 GR 360, Y&cams: 1995, engine: Loher, 4,500 rpm / 5.5kW, on base frame, with suction and pressure bellows and 7 vibration dampers.

Type: HM 200, high-performance mixer, partly in VA, Y:00, 1987, 6.5 / 9.5kW, 2 knife heads, control cabinet, completely on base frame, drives can be polum-switched.

Type: 100 FSG, Y&l: 1986, granulation plant with circular gas operation, sifter 100 ATP (4 kW Vario, up to 11,500 rpm), and reblow filter K 6 R (2.4 m2 filter area). All in stainless steel. Very good condition.

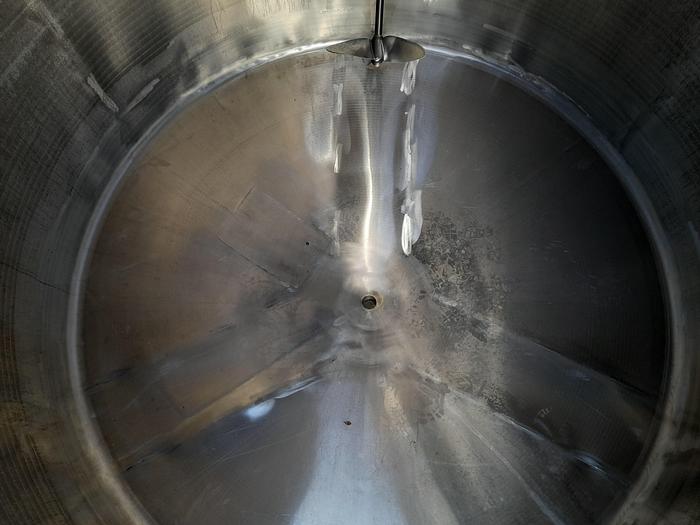

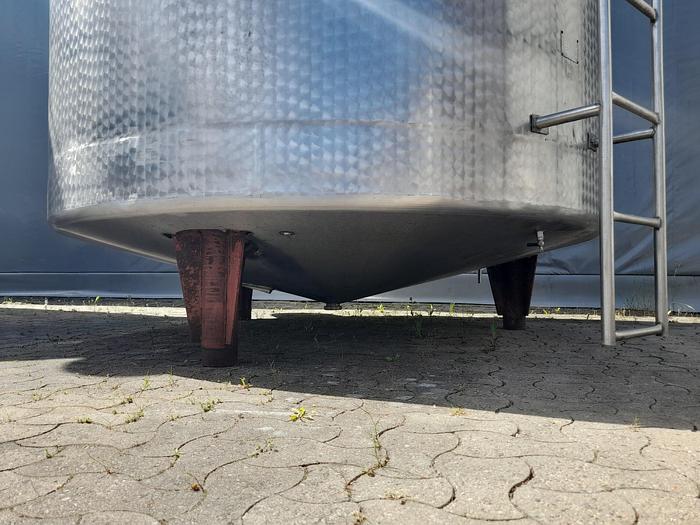

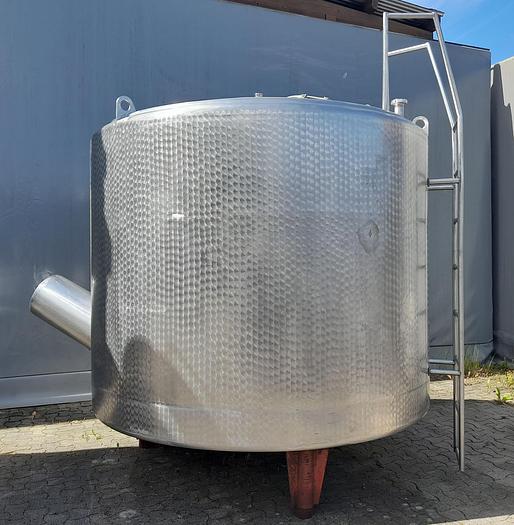

6.300 litre, Stock number: T3876, Litre: 6.300, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: Tank, Standing: 3 pcs. legs, Top: Conical, Bottom: Conical, Insulated: Yes, Outer cladding: Fully welded stainless, Tank cover: In the top, Ø 500 mm., Agitator: Yes, Agitator type: 3-bladed propeller, Motor: 0,55 kW - 220/380 Volt - 670 rpm., CIP: Washing wing, Inner diameter: Ø 2200 mm., Outer diameter: D 2320 mm., Dimensions: L 3230 x H 2860 mm., Manufacturer: Chotěboř, Model/type: STU 63, Year: 1986

Stock number: D1242, In stock: Yes, Amount in stock: 1 pc., Item: Circular table, Standing: 4 pcs. legs, Motor: 0,18 kW - 220/380 Volt, Table plate diameter: Ø 1200 mm., Table plate material: Plastic, Total height: H 1200 mm.

Stock number: D1237, In stock: Yes, Amount in stock: 1 pc., Item: Circular table, Standing: 4 pcs. legs, Motor: 0,09 kW - 220/380 Volt, Table plate diameter: Ø 800 mm., Table plate material: Stainless steel AISI 304, Total height: H 980 mm.

Stock number: D1238, In stock: Yes, Amount in stock: 1 pc., Item: Circular table, Standing: 4 pcs. legs, Motor: 0,09 kW - 230/400 Volt, Table plate diameter: Ø 800 mm., Table plate material: Stainless steel AISI 304, Total height: H 1150 mm.

Stock number: D1236, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: Feeding conveyors, Construction: With plastic lamellar conveyors and exit puller, Standing: 4 pcs. legs, Dimensions: L 2000 x W 1000 x H 850 mm., Motor: Variable speed

1.370 litre, Stock number: T3966, Litre: 1.370, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: Tank, Standing: 4 pcs. legs, Top: Conical, Bottom: Conical, Double jacket: Yes, electrically heated, Insulated: Yes, Outer cladding: Fully welded stainless, Tank cover: In the top, Ø 410 mm., Turbolence plate: Yes, 1 pc., Agitator: Yes, 2 pcs., Agitator type: Propeller and anchor agitator with scrape, Agitator placement: From the top, Motor Propeller: 5 kW - 380 Volt - 150 rpm., Motor Anchor agitator: 6,8 kW - 230/400 Volt - 40 rpm., Working temperature: 0-100° C, Working pressure tank: -1/+1 Bar, Inner diameter: Ø 1250 mm., Outer diameter: D 1470 mm., Total height: H 2650 mm., Manufacturer: Intersteel, Year: 1994

Stock number: D1240, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: RO plant, Standing: In stainless rack, Dimensions: L 720 x W 650 x H 1700 mm., Capacity: 500 l/h, Manufacturer: HOH Best Water Technology, Type: Duo 2020, Model: RO 2-Pass 500, Documentation: Yes

Stock number: D1216, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: Table, Size: L 750 x W 450 x H 900 mm., Legs: 4 pcs. with wheels, Drain shelf: 1 pc.

Stock number: F1121, Material: Stainless steel AISI 304, In stock: Yes, Amount in stock: 1 pc., Item: Labeling machine, Standing: On legs, Dimensions: L 2450 x W 1100 x H 1350 mm., Label size: Max H 200 mm., Label placement: Side, Packaging form: Cylindrical/square, Conveyor: Plastic lamella, Conveyor dimensions: L 2300 x W 113 mm., Manufacturer: EME, Model: 1200, Type: 1000, Other: Back pressure belt
