Process vessels BOCCARD 577 l
process engineering / machines and plants for process engineering / Process vessels
Manufacturer: BOCCARD
Model:577 l
Type of machine: Process vessels
item-No.: 168542946
Quantity: 1
Date: 19.02.2026
Year of manufacture: 1999
Location:
Poland
05850 Ozarow Mazowiecki
Price:
Machine in stock:Yes
Seller-item-No.:U2474
Stock# U2474

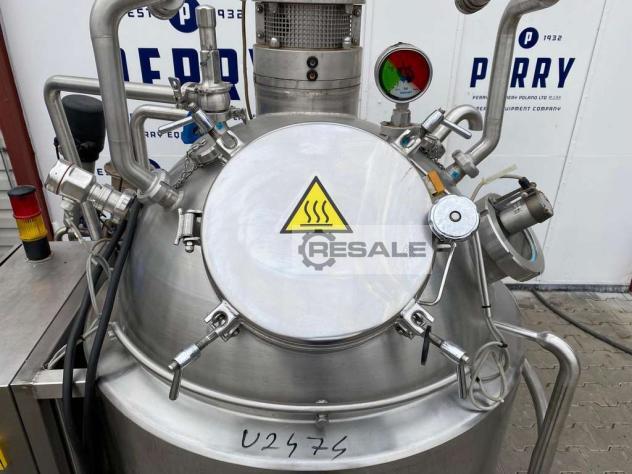

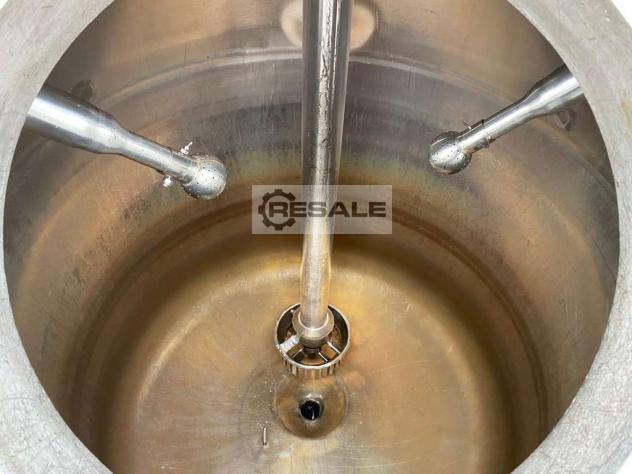

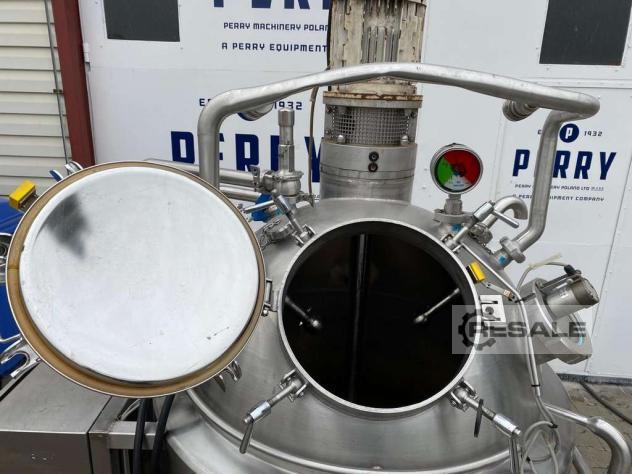

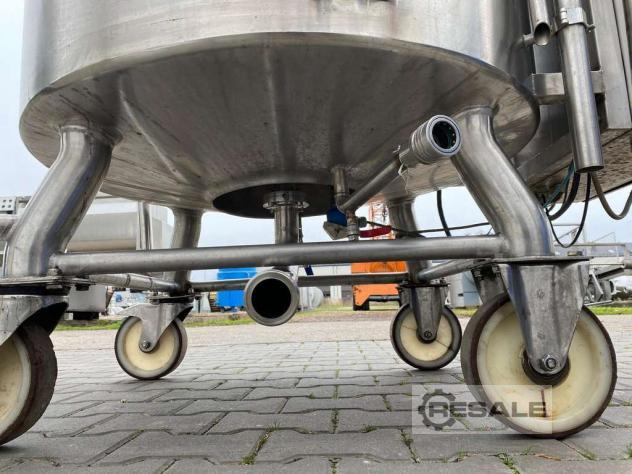

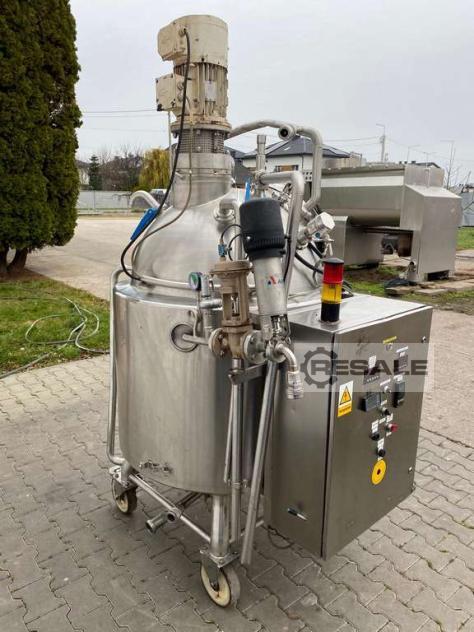

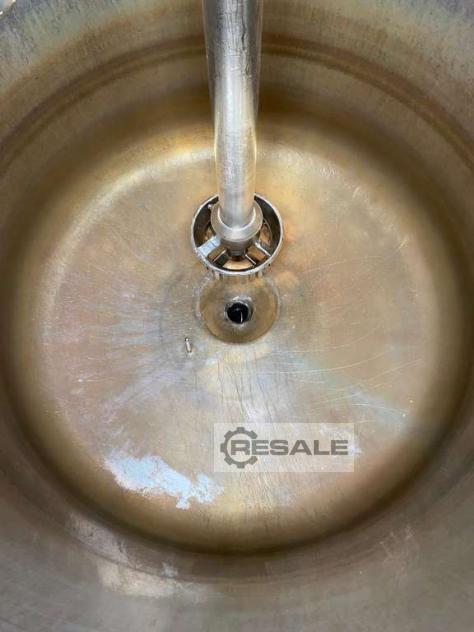

Used vertical, mobile, stainless steel AISI 316L reactor by BOCCARD (France) with a total capacity of 577 l. Reactor has a working volume of 300 l and is designed to operate at pressures ranging from -1 to 0,5 bar and temperatures up to 110 ºC. Internal dimensions: diameter 880 mm, length of straight wall line to inspection manway 800 mm. The heating and cooling jacket made of stainless steel AISI 304 has a capacity of 35 l and is designed to operate at pressures up to 3,5 bar and temperature up to 145 ºC. The jacket is insulated and clad with stainless steel sheet. Reactor has welded dished top equipped with inspection manway, with internal diameter 350 mm. Also in the top head there is a vertically downward P6331183 installed homogenizing mixer, directly driven by an electric motor with a power of 2.2 kW, 400 V, 960 rpm, 50 Hz. Reactor has welded dished bottom with central discharge outlet and manually operated valve. Machine is mounted on an integrated frame with 4 wheels and an electrical cabinet equipped with an frequency inverter.
Used vertical, mobile, stainless steel AISI 316L reactor by BOCCARD (France) with a total capacity of 577 l. Reactor has a working volume of 300 l and is designed to operate at pressures ranging from -1 to 0,5 bar and temperatures up to 110 ºC. Internal dimensions: diameter 880 mm, length of straight wall line to inspection manway 800 mm. The heating and cooling jacket made of stainless steel AISI 304 has a capacity of 35 l and is designed to operate at pressures up to 3,5 bar and temperature up to 145 ºC. The jacket is insulated and clad with stainless steel sheet. Reactor has welded dished top equipped with inspection manway, with internal diameter 350 mm. Also in the top head there is a vertically downward P6331183 installed homogenizing mixer, directly driven by an electric motor with a power of 2.2 kW, 400 V, 960 rpm, 50 Hz. Reactor has welded dished bottom with central discharge outlet and manually operated valve. Machine is mounted on an integrated frame with 4 wheels and an electrical cabinet equipped with an frequency inverter.
