ALZMETALL alzstar used machines

Column drilling machine ALZMETALL ALZSTAR 30/S Year of Make: 2012 Drilling capacity in steel 30 mm Threading in ST 60 M16 Clamping surface table 514 mm x 360 mm Guard Drilling depth 140 mm Spindle mount MK 3 Spindle speeds 225 rpm – 4300 rpm infinitely variable with digital display Drill Table Lighting 1 drill chuck up to 13 mm Machine vise

Drilling capacity in St 60: 40 mm threading in St 60: M 24 mm threading in GG 20: M 30 bore stroke: 120 mm Short spindle: MK 3 throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle - machine table min./max.: 117 / 701 mm feed: 0,10 + 0,20 mm/U spindle turning speed range: 160 - 2250 UpM total power requirement: 1,45 / 1,9 kW height of the machine: 1840 mm weight of the machine ca.: 285 kg Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pu ...

: 18 mm : M 12 : M 14 : MK 2 : 225-4.300 U/min. spindle stroke: 80 mm throat: 190 mm column diameter: 65 mm : 300x240 mm : 2 x 12 x 80 mm : 75/357 mm : 300x240 mm : 2 x 12 x 80 mm : 437/437 mm feed: von Hand : Handkurbel total power requirement: 0,37/0,55 kW Machine height: 840 mm weight: 110 kg Standard equipment: - Main switch with motor protection switch lockable - Reversing switch for clockwise and anti-clockwise rotation - Speed adjustment stepless - Protection IP 54 - Mushroom pushbutton (latching) for EMERGENCY STOP - Spindle protection with electrical protection The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 mm : M 24 : M 30 : MK 3 bore stroke: 120 mm throat: 293 mm column diameter: 115 mm : 514x360 mm : 2 x 14 x 224 mm : 117/701 mm feed: 0,10 + 0,20 mm/U spindle turning speed range: 160-2.250 UpM total power requirement: 1,45/1,9 kW height of the machine: 1840 mm weight of the machine ca.: 285 kg Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 293 mm bore stroke: 120 mm spindle taper MT: 3 column diameter: 115 mm table surface area: 514 x 360 mm spindle turning speed - stepless: 160 - 2250 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 0,285 t dimensions of the machine ca.: m Condition: new / unused: The machine can be viewed under current.: 37981 400 V, 50 Hz, colour: light grey RAL 7035 continuous speed control, digital speed indication, push button for emergency switch off, turning switch for clockwise/counterclockwise rotation, motor protection switch, IP 54, connecting plug, finish: structure varnish, new spindle bearing, new step pulleys, belts aso. operation manual, wiring diagram. Machine has been checked in our workshop, including electr. testing report. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Box column drill Alzstar 40S 16 A 380 V Speed 160 - 2250 rpm Length 1 m Width 0.80 m Height 1.80 m Weight 270 kg Work lamp Color: White

bore capacity in steel (diameter): 30.0 mm throat: 293 mm bore stroke: 140 mm morse taper: 3 MK table:: 515 x 360 mm turning speeds: 225 - 4300 U/min engine output: 1.0 / 1.6 kW column diameter: 115 mm distance spindle /table: 132 / 724 mm weight: 260 kg Machine height: 1790 mm Furnishing: - stepless speed adjustment - Reversing switch for R / L run - digital speed display - Connector and cable mounted - Spindle protection with electr. validation - 2 mtr. Connection cable with plug 16A The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 23.0 mm throat: 250 mm bore stroke: 100 mm morse taper: 2 MK table:: 370 x 300 mm turning speeds: 225 - 4300 U/min column diameter: 90.0 mm distance spindle /table: 140 / 670 mm engine output: 0.6 / 0.95 kW weight: 175 kg Machine height: 1770 mm Furnishing : - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for clockwise and counterclockwise rotation - Motor protection switch - Infinitely variable speed adjustment - Digital speed display - Protection class IP 54 - Connection plug (fully assembled, cable length 2m) - Spindle protection with electrical fuse - Painting: DD textured paint, light gray RAL 7035, anthracite RAL 7016 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 18.0 mm throat: 190 mm bore stroke: 80 mm morse taper: 2 Kurzspindel MK turning speeds: 225 - 4.300 U/min voltage: 400 / 50 Hz Volt table:: 300 x 240 mm column diameter: 65 mm engine output: 0.37 / 0.55 kW weight: 110 kg Furnishing: - Large spindle speed range - stepless speed adjustment - machined base plate - Electrically secured spindle protection - Main switch lockable with motor protection switch - Reversing switch for clockwise and counterclockwise rotation - Operating instructions in German The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40.0 mm throat: 293 mm bore stroke: 120 mm morse taper: 3 MK table:: 515 x 360 mm turning speeds: 160 - 2250 U/min column diameter: 115 mm feed: 0.10 + 0.20 mm/U T-slots: 2 x 14 x 224 mm distance spindle /table: 117 / 701 mm engine output: 1.45 / 1.90 kW weight: 285 kg Machine height: 1840 mm ** NEW ALZMETALL MODEL RANGE ** 7 TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Infinitely variable speed setting by means of an adjusting lever - automatic spindle feed with feed overload protection - Spindle protection with electrical fuse - Three separate butt ...

bore capacity in steel (diameter): 40.0 mm throat: 293 mm bore stroke: 120 mm morse taper: 3 MK table:: 515 x 360 mm turning speeds: 160 - 2250 U/min column diameter: 115 mm feed: 0.10 + 0.20 mm/U distance spindle /table: 117 / 701 mm total power requirement: 1.45 / 1.90 kW weight: 285 kg range L-W-H: 500 x 800 x 1840 mm Furnishing: - autom. Feed 0.10 + 0.20 mm / rev - stepless speed adjustment - Short spindle MK 3 - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for clockwise and counterclockwise rotation - Digital speed display - Feed overload protection - Spindle protection with electrical fuse - 2 m cable with plug 16A - Operating instructions in German including special equipment: - Coolant device B pos. 25. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 30.0 mm throat: 293 mm bore stroke: 140 mm morse taper: 3 MK table:: 515 x 360 mm turning speeds: 225 - 4300 U/min column diameter: 115 mm distance spindle /table: 132 / 724 mm engine output: 1.0 / 1.6 kW weight: 260 kg Machine height: 1790 mm ** NEW ALZMETALL MODEL RANGE ** 7 TFT - LCD display with touch function: * Spindle speed setpoint * Actual speed display * Integrated drilling depth display * with touch zero point transfer * Virtual drilling depth scale in the display * Machine status displays and warnings in the display * Service information * Selectable user language: DE / EN / FR / ES / IT / NL / RU. Furnishing: - Infinitely variable speed setting by means of an adjusting lever - Spindle protection with electrical fuse - Three separate buttons for clockwise rotation - counterclockwise rotation - stop - Mushroom pushbutton (latching) for EMERG ...

: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel St 60: 25 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 225 - 4300 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 mm threading in St 60: M24 threading in GG 20: M30 Short spindle: MK 3 Center of spindle to wall or column: 293 mm spindle turning speed - stepless: 160 - 2250 U/min Column diameter: 115 mm spindle stroke: 120 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 117/701 mm feed: 0,10 + 0,20 mm/U Motor output: 1,45 / 1,9 kW height of the machine: ca. 1840 mm weight of the machine ca.: 285 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel St 60: 30 mm bore capacity in cast iron GG 20: 30 mm Drilling capacity in St 60: 30 mm threading in St 60: M 16 threading in GG 20: M 20 Short spindle: MK 3 spindle stroke: 140 mm throat: 293 mm column diameter: 115 mm Machine table - usable table surface: 514 x 360 mm T-Slots Amount - Width - Distance: 2 x 14 x 224 mm Distance spindle-table min.: 132 / 724 mm feed: von Hand spindle turning speed - stepless: 100 - 1.800 U/min total power requirement: 1,0/1,6 kW weight of the machine ca.: 260 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

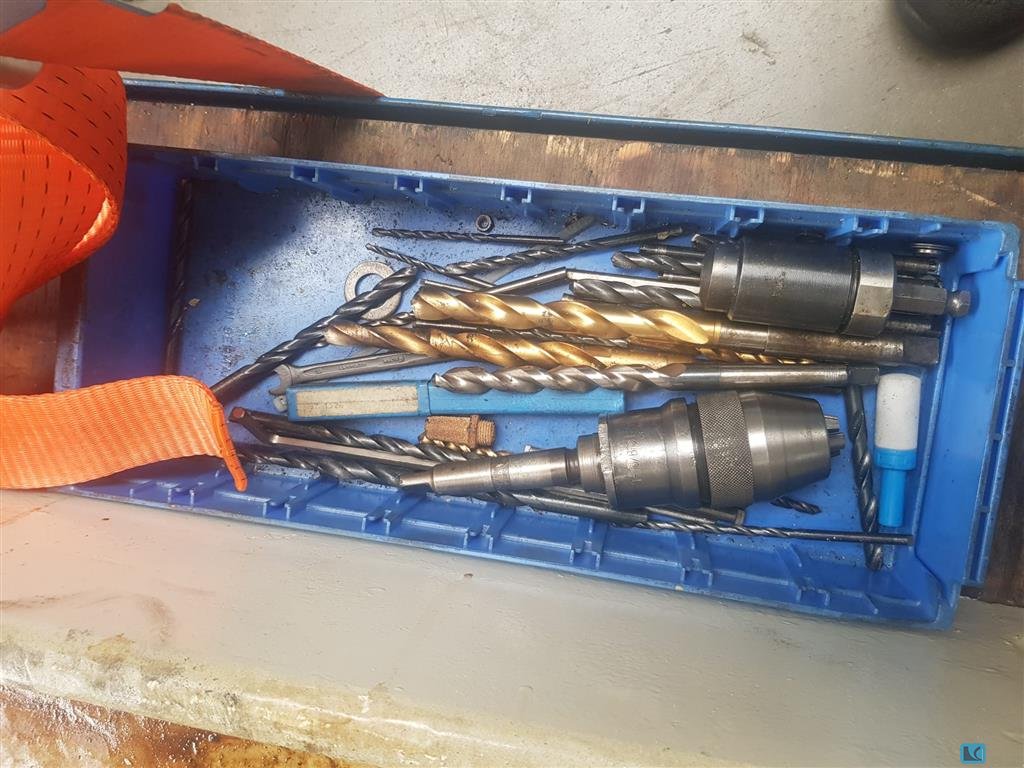

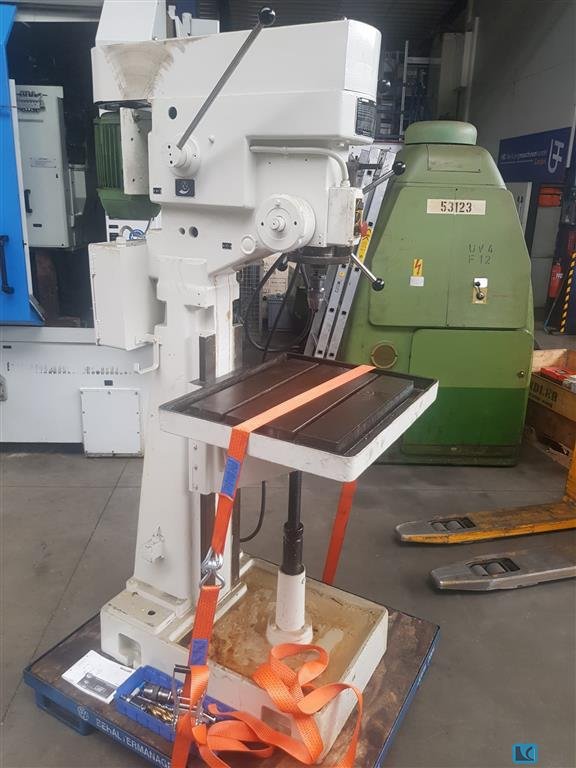

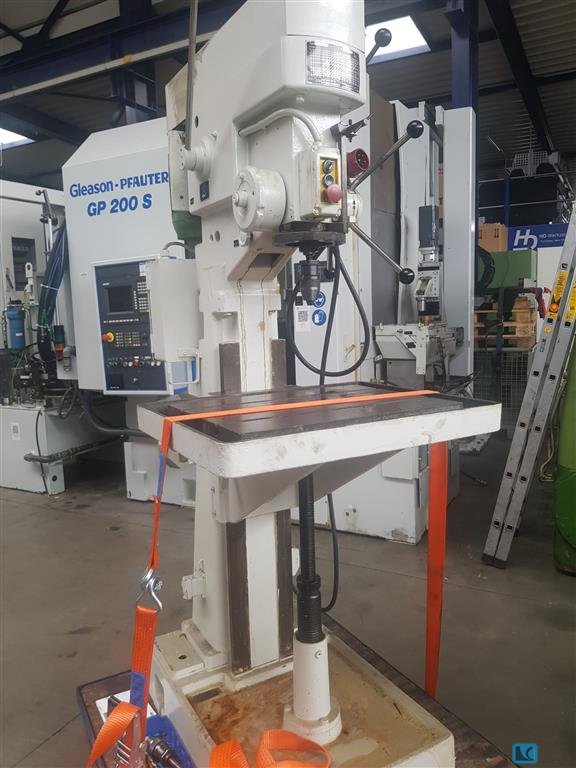

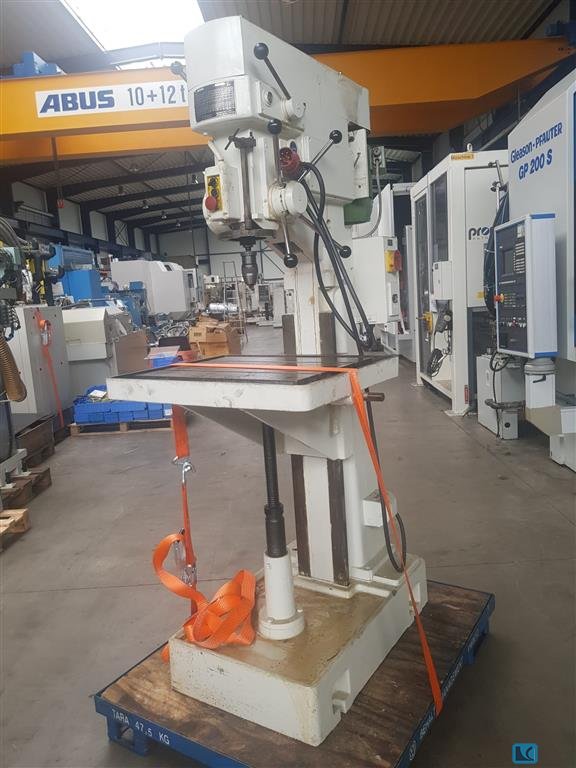

Alzmetall AB4SJ Tool holder MK4 automatic feed with 3 feed speeds 2 shoot stages and infinitely variable speed control right left barrel, thread cutting device Cooling agent device in the foot Round table with holes without rev counter Machine hood modern made of plastic with cracks and loechers Speed: 80-710 rpm Table diameter: 450 mm Max distance from spindle to foot: 1200 mm Extension to center spindle: 170 mm Machine hoe approx. 200 cm Bt323s8 SPECIAL PRICE due to visually poor condition according to photos, technically usable condition, the drill is not locked at the shaft drill spindle tool holder in the rotational motion (see photos). If the drill is not firmly in the drill spindle, it rotates through. Special price

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

with NC round table WALTER 1000 mm, see pictures

with NC round table WALTER 1000 mm, see pictures

Drill diameter: 65mm, outreach: 380mm, tool holder: SK50, speed: 1600rpm, table dimensions X/Y: 630mm/500mm, rapid traverse Z: 4750mm/min, drilling capacity steel/cast iron: 65mm/80mm, thread cutting capacity steel/cast iron: M68/M72, machine dimensions X/Y/Z: approx. 1500mm/1200mm/2950mm, weight: approx. 2000kg, control: PLC. Including three tool holders, safety enclosure, minimum quantity lubrication system, spare parts and digital readout. Without milling head attachment and drill crown. The control cabinet has optical damage. Documentation available. An on-site inspection is possible.

: 14 mm : M 10 : MK 2 : 230-4.000 U/min. spindle stroke: 80 mm throat: 190 mm column diameter: 65 mm : 300x240 mm : 2 x 12 x 80 mm : 75/357 mm : 300x240 mm : 2 x 12 x 80 mm : 437/437 mm feed: von Hand : Handkurbel Machine height: 825 mm total power requirement: 0,7 kW weight: 83 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 16 mm : M 12 : MK 2 : 100-2.000 U/min. spindle stroke: 80 mm throat: 190 mm column diameter: 65 mm : 300x240 mm : 2 x 12 x 80 mm : 75/357 mm : 300x240 mm : 2 x 12 x 80 mm : 437/437 mm feed: von Hand : Handkurbel Machine height: 825 mm total power requirement: 0,7 kW weight: 83 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
