ALZMETALL ab used machines

with NC round table WALTER 1000 mm, see pictures

Alzmetall AB4SJ Tool holder MK4 automatic feed with 3 feed speeds 2 shoot stages and infinitely variable speed control right left barrel, thread cutting device Cooling agent device in the foot Round table with holes without rev counter Machine hood modern made of plastic with cracks and loechers Speed: 80-710 rpm Table diameter: 450 mm Max distance from spindle to foot: 1200 mm Extension to center spindle: 170 mm Machine hoe approx. 200 cm Bt323s8 SPECIAL PRICE due to visually poor condition according to photos, technically usable condition, the drill is not locked at the shaft drill spindle tool holder in the rotational motion (see photos). If the drill is not firmly in the drill spindle, it rotates through. Special price

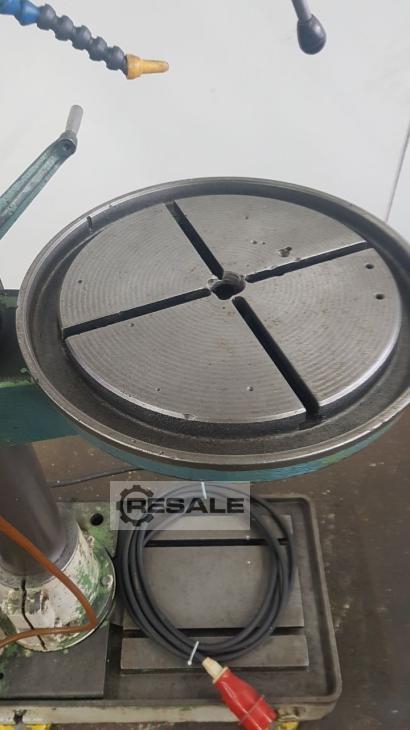

Column Drilling Machine ALZMETALL AB3 ESV Spindle: CM3 Rotation: 1 range 220 -800 RPM + 1 range 800-2900 RPM Table size: Length 615 mm x Width 470 mm Spindle travel: 160 mm Throat depth: 280 mm Speed adjustment by belt drive Rotative table at 360° Automatic Descent 3 speeds: 0,006 - 0,12 - 0,18 mm/min. Lubricant pump Voltage: 380 V Width: 800 mm Depth: 1300 mm Total height: 1900 mm Weight: approx 800 kg

Drill, pillar drill, column drill, column drill -Manufacturer: Alzmetall, pillar drilling machine type AB5/S -Engine: VKS 3 kW -Speed: 40 - 800 rpm, continuously variable right-left rotation -Feed: 0.1 - 0.14 - 0.2 - 0.28 - 0.4 mm/rev. -Table size: Ø 500 mm, travel 470 mm -Spindle holder: MK5 -Spindle stroke: 240 mm -Projection: 380 mm -Column Ø: 220 mm -Dimensions: 1450/680/H2160 mm -Weight: 1262 kg

Alzmetall AB 30 / R-1400 Radial Drilling Machine -Projection 1400mm -Drilling capacity / steel 45mm -Tapping device max. M30 -Spindle holder MK 4 -Spindle stroke 160mm -Speed range 40 - 1800 rpm -Automatic feeds 4 levels / 0.15-0.36 mm/u -Column diameter 300mm -Clamping cube -Motor power 3KW Dimensions: LxWxH 2.3x1x2.2 meters / Weight 1700Kg

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

Specifications: - Drilling capacity in steel ST 60 28 mm - Drilling capacity in steel ST 60 32 mm - Drilling spindle holder MK 3 long spindle - Drilling spindle stroke 180 mm - Drilling spindle speeds infinitely variable approx. 140 - 1600 rpm - 3 feeds 0.1 ; 0,2 ; 0.3 mm/U - Projection 290 mm - max distance table - drilling spindle 620 mm - Rotary table with 2 T-slots 450 mm - Height adjustable via rack and pinion with hand crank - Coolant device - Drive 380 V / 0.9 / 1.3 kW - Space requirement approx. W 750 x H 1900 x D 700 mm - Weight approx. 280 kg

Drill diameter: 65mm, outreach: 380mm, tool holder: SK50, speed: 1600rpm, table dimensions X/Y: 630mm/500mm, rapid traverse Z: 4750mm/min, drilling capacity steel/cast iron: 65mm/80mm, thread cutting capacity steel/cast iron: M68/M72, machine dimensions X/Y/Z: approx. 1500mm/1200mm/2950mm, weight: approx. 2000kg, control: PLC. Including three tool holders, safety enclosure, minimum quantity lubrication system, spare parts and digital readout. Without milling head attachment and drill crown. The control cabinet has optical damage. Documentation available. An on-site inspection is possible.

: throat: mm bore capacity in steel (diameter): 35 mm tool taper: MK4 0 bore spindle turning speed range: 1400 U/min feed range: 0.04-0.40 mm/min total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore diameter: 65 mm throat: 380 mm Control: PLC-Steuerung bore spindle turning speed range: 63 - 1600 U/min table-size: 630 x 500 mm rapid traverse Z-axis: 4,75 m/min boring feeds:: 0,05 - 0,56 mm/U total power requirement: 9 kW weight of the machine ca.: 2,0 t dimensions of the machine ca.: 1,50 x 1,20 x 2,95 m Drilling capacity in steel ST60: 65 mm Drilling capacity in cast iron GG20: 80 mm Thread cutting ST60: M68 Thread cutting GG M72 SPS-controlled automatic drilling machine with Drilling/deep hole drilling/thread cutting Sequence: 1st rapid traverse to start position 2. switch on the speed 3. switch on the drilling feed 4. drilling until the drilling depth is reached 5. return in rapid traverse to start position Manual operation possible (speed and direction of rotation, rapid traverse positioning, Switching the drill feed on/off) Selection of the drill feeds and spindle speed man ...

bore capacity in steel (diameter): 40 mm throat: 300 mm bore stroke: 180 mm turning speeds: 55-1450 U/min Feed: 0,1-0,3 mm/U keyless drill chuck: machine.: Nummer 5112 table surface area: 620x470 mm spindle taper metric: 4 thread cutting attachment: The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoT ...

Drilling capacity: 35mm, mounting: MK4, speed: 1400 rpm, feed: 0.4mm/rev. On-site inspection is possible.

weight: 1,4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: - bore capacity in steel (diameter): - mm bore stroke: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 65 mm throat: 390 mm bore stroke: 250 mm spindle taper MT: 5 table-size: 880x670 mm spindle turning speed - stepless: 40-800 U/min weight of the machine ca.: 1.2 t www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 65 mm throat: 390 mm bore stroke: 250 mm spindle taper MT: 5 table-size: 880x670 mm spindle turning speed - stepless: 40-800 U/min weight of the machine ca.: 1.2 t www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 65 mm throat: 390 mm bore stroke: 250 mm spindle taper MT: 5 table-size: 880x670 mm spindle turning speed - stepless: 40-800 U/min weight of the machine ca.: 1.2 t www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m Description to follow! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity 32 mm Spindle mount MK 3 Projection 290 mm Pinol stroke 160 mm Table size 510 x 300 mm Column diameter 115 mm Spindle speed 55 - 1450 rpm infinitely variable Motor power 0.9 and 1.3 kW pole-switchable Mains connection 380 volts, 50 Hz. Spindle speed via 2 gear stages, 2 motor speeds and infinitely variable via variator gear Table height adjustment via hand crank Machine Light Keyless chuck 1 to 13 mm Space requirements L x W x H 1200 x 650 x 1900 mm Weight 400 kg

bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 180 mm spindle turning speed range: 25-640 U/min column diameter: 180 mm table-size: Ø ca. 560 mm surface area: Ø 445 mm feeds: 0,1, 0,2, 0,3 mm/U spindle taper MT: 4 weight of the machine ca.: 1 t dimensions: ca. 650 x 1000 x 2100 mm with thread cutting device foot switch With coolant device in the base steplessly variable speeds, 2 gear stages, and 2 motor speeds The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 3 bore capacity in steel (diameter): 40 mm bore stroke: 180 mm weight of the machine ca.: 2,3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 / 23 mm throat: 320 mm bore stroke: 180 mm : 4 speeds: 30 - 765 U/min table-size: 720 x 550 mm weight: 480 kg dimensions: 750 x 900 x 1900 mm Equipment: - Multi-spindle head, drill Ø 23 mm - automatic feed - coolant device - infinitely variable speed - adjustable drilling depth stop The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
