modul gear cutting and hobbing machines used for sale

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg

MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg

MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears

weight of the machine ca.:4 t

Various milling heads for milling machines and gear cutting machines, hobbing machines

max. wheel diameter: 400 mm gear width: 275 mm max. module: 6 Overall size: 300x330x245 cm weight of the machine ca.: 5,5 t dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW The data for t ...

max. wheel diameter: 400 mm gear width: 275 mm gear width: 275 mm max. module: 6 weight of the machine ca.: 5,5 t shifting: 100 mm dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 620 mm gear width: 90 mm max. module: 12 min. module: - no. of teeth: 6 - 100 pivoting angle: 0 - 90 Grad spindle taper: metr. 100 milling head speed: 28 - 56 U/min connected load: 18 kVA Control: total power requirement: 14 kW weight of the machine ca.: 12 t 2020 Retrofit with new control/electrical system) - CNC control NTC (Fanuc) (German/English) - electric handwheel - new motors/ electrics - various change wheels - chip conveyor - coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mm gear width: 600 mm max. module: 16 min. module: 2 tooth width: 490 mm Zahnschrägungswinkel max.: 45 ° shifting: 200 mm max. number of teeth: 12 diameter of hob: 240 mm cutter length max.: 280 mm table diameter: 1020 mm milling spindle speeds (infinitely variable): 28 - 200 U/min power capacity: 25 kW weight of the machine ca.: 16,2 t dimensions of the machine ca.: 4,5 x 4,6 x 2,7 m equipped with: - universal hob head - change gears machine has been partly overhauled (electrical and machnical) and is now with programmable, digital Infeed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Circulation cutter from Klingelberg

Gear hobbing machine 53A50H, STANKO, with change gears

Gear hobbing machine STAEHELY mod. SH25US + n. 2 Basket sanders D 1700 and D 1400

KOEPFER 151 Gear Hobbing Machine - Horizontal Available 2 machines. Semi-automatic machine Max. gear dia 150 mm Module 2 Max Profile depth / Plunge cut depth 7 mm Max hobbing length 135 mm Max length of workpiece, approx. 280 mm Hob slide swivable 250 degrees Hob size dia x length 65 x 60 mm Hob shifting, manually max. 40 mm Hob Spindle speeds 140 – 1120 rpm Workspindle bore 24 mm Bore of collet chuck, max. 3 – 24 mm Feed range, axial/plunge cut 0.06 – 2 mm/rev No. of teeth, min./max. 6 - 200 Spindle Drive/Total electrical load, approx. 2,2 / 4 kW Weight, approx. 1,400 kg Very good condition

MAX DIAMETER 640 MAX MODUL 8 TABLE DIAMEER 550

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

max diam 340 , max modul 8

Key data: 1600 mm, 460 mm, 16

TABLE DIAM 1350

Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears

Gear hobbing machine vertical Pfauter P251 With accessories

Pfauter RS 2 With accessories

Under power , complete

Gear hobbing machine LIEBHERR ET 1200

Gear hobbing machine STANKO 5K32 with accessories.

CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives

Key data: 800 mm, 16

good working condition

Gear hobbing machine TOS OF-71 with change gears

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

Key data: 400 mm

working condiiton

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...

max. wheel diameter: 2000 mm gear width: . mm max. module: 22 max. hob diameter: 250 mm hob turning speeds: 16-92 U/min total power requirement: 13 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The conception of the basic machine is characterized by the following features: - horizontal position of the workpiece spindle; vertical position of the milling cutter spindle or of the milling head - The workpiece is picked up between the workpiece headstock (left) and the tailstock (right) - The radial slide is mounted on the base (X-axis) - The axial slide moves on the radial slide (Z-axis) - The shift milling head is equipped with automatic angle adjustment (A-axis); the shift slide (Y-axis) moves tagential to the Workpiece diameter - CNC controlled - IBH control - Charging device - a lot of accessories Technical data: - Largest millable module with hobs according to DIN 8002: 4.5 mm - Largest millable module for high-performance milling: 3.0 mm - Number of teeth: 2 - 999 - Max. workpiece nozzle for manual loading: 200 mm - Max. workpiece nozzle for autom ...

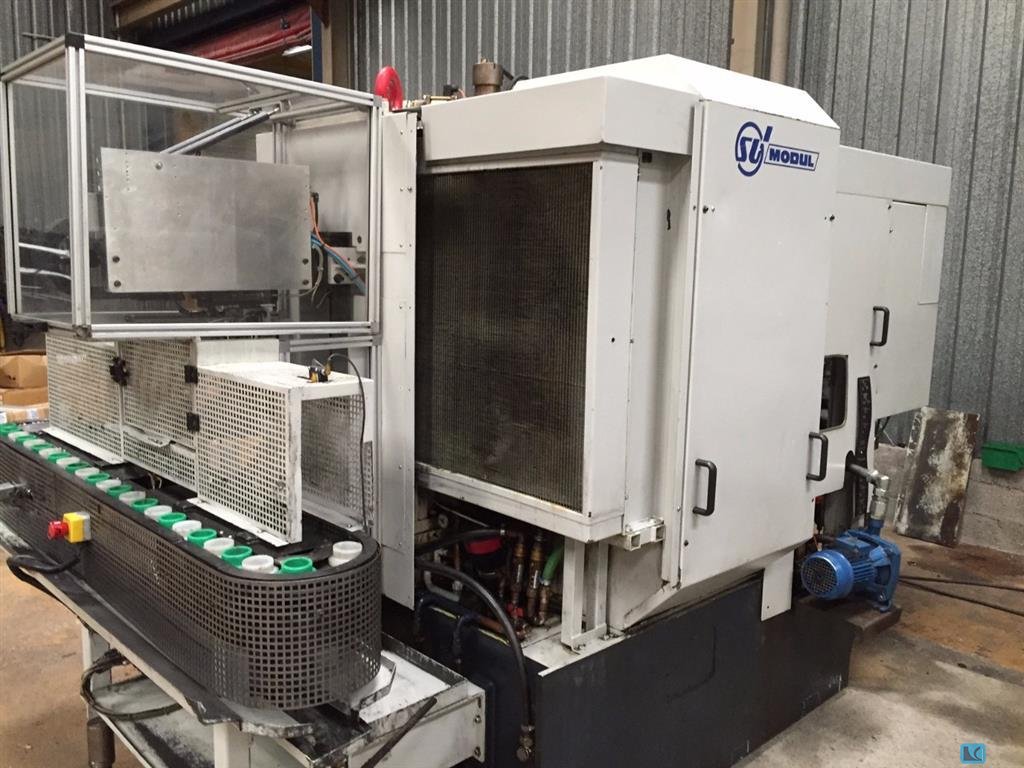

max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt

max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

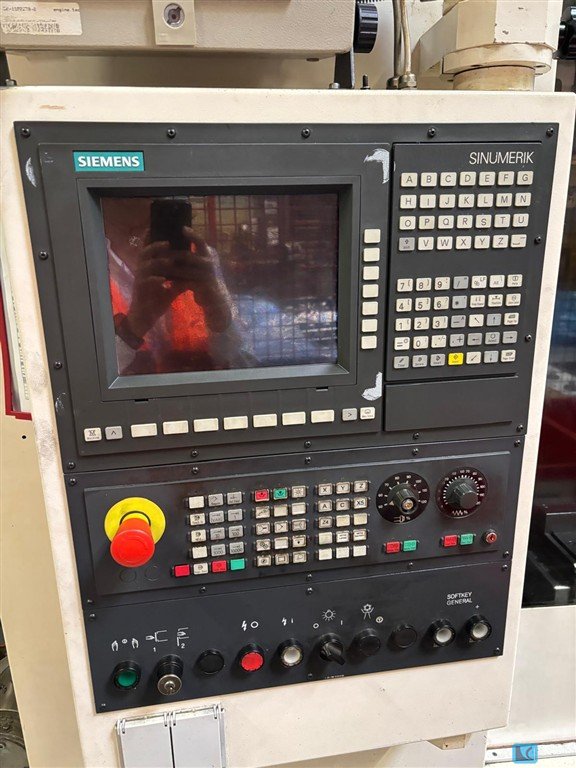

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

Year of manufacture approx. 1980, wheel diameter: 406mm, wheel width 420mm, module min.-max.: 0.5-+4.3, milling cutter speeds 49-246 rpm

Year of construction: approx. 1981 Accessories: - Universal milling head, tangential milling head, - Interchangeable wheels - 2 cutting equipment, - little used

max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

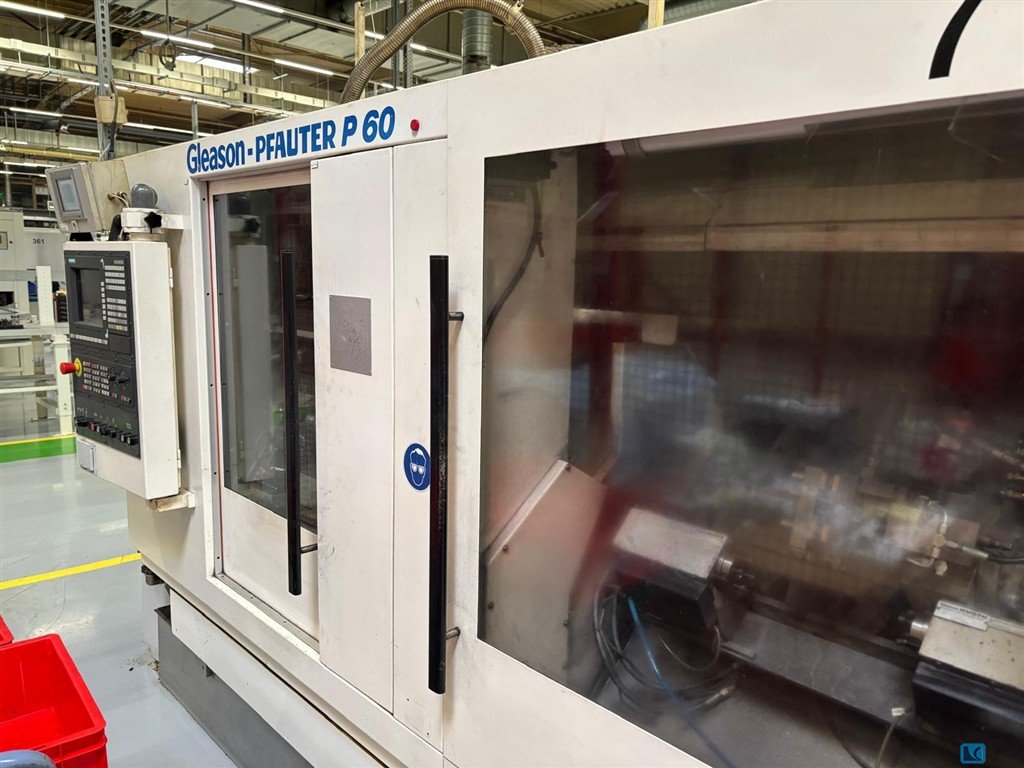

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...

max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min.  ...

max. wheel diameter: 0 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: 300 mm max. module: 4,5 min. module: total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 kg dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8631 Type: OFA 16 A Producer: TOS Created: 1976 Parameters: Machine weight: 3550 kg

Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.

Inv. Num. : 8799 Type: FO-10 Producer: TOS Created: 1958 Parameters: Maximum gear diameter: 1000 mm Maximum module: 10 Machine dimensions: 3120 x 1870 x 2525 mm Machine weight: 9000 kg

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Liebherr / Lorenz S800 Gear - Hobbing Machine -Max. workpiece length with counter holder 600mm -Max. workpiece length with retracted counter holder 800mm -Max. travel of the milling carriage 360mm -Largest millable pitch for the largest workpiece 5 Pi / in the normal power range 8 Pi -Pick-up taper - milling spindle MK 5 -Mandrel 22/27/32/40mm -Max. cutter diameter 186mm -Max. cutter length 170mm -Max. cutter displacement 80mm -Milling cutter speeds 40-220 rpm -Feeds infinitely variable / horizontal -Feeds infinitely variable / vertical -Feeds infinitely variable / tangential -Clamping table without water rim 550mm -Clamping table hole 100mm -Mandrel taper MK5 Accessories: 1x pallet interchangeable wheels 1x pallet hob 1x pallet clamping mandrels Documentation Machine feet Dimensions: LxWxH 3.6x1.8x1.9 meters / weight 5000Kg

Inv. Num. : 8974 Type: OFA 16 SC Producer: TOS Generated: Parameters: Machine weight: 5 t

Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories

Hydraulic tailstock, Ø max. gear: 250 with 3 cutter, Module: 5,5, Hobbing length: 70, Cutter module: 5,5, Outside ø max. acknowledged: 300 mm, Ø spindle: 85 mm, Ø hole table: 39 mm, Ø table: External centering Ø139,75, Power tool motor (b): 4 Cv, High: 1.800 mm, Long: 1.450 mm, Weight: 2.450 Kg, Width: 1.000 mm

WMW MODUL ZFWZ 160/3 gear hobbing machine was built in 1971 in the GDR by VEB Werkzeugmaschinenkombinat 7. Oktober” Berlin. The machine is used in plants manufacturing extremely precise drive components for, among others, the automotive, aerospace and machinery industries. It enables the efficient machining of spur and worm gears with a maximum external diameter of 160 mm. The machining process is performed by means of a spindle with a cutter with a maximum diameter of 110 mm. The spindle of the MODUL ZFWZ 160X3 machine moves along the contour of the workpiece, cutting the material along its entire circumference. Using this method, it is possible to achieve the desired shapes and teeth finish with the highest accuracy. The WMW MODUL ZFWZ gear hobbing machine weighs 3000 kg. Technical specifications of the WMW MODUL ZFWZ 160/3 gear hobbing machine General data - maximum external di ...

Year of manufacture approx. 1980, wheel diameter: 406mm, wheel width 420mm, module min.-max.: 0.5-+4.3, milling cutter speeds 49-246 rpm Auction-ID: A1-47017-11

Year of construction: approx. 1981 Accessories: - Universal milling head, tangential milling head, - Interchangeable wheels - 2 cutting equipment, - little used Auction-ID: A1-47017-85

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

max. wheel diameter: 350 mm gear width: 350 mm max. module: 8 min. module: total power requirement: 7,5 - 22 kW weight of the machine ca.: t dimensions of the machine ca.: m Gear hobber with gear shaping device, 2-cut cycle The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

From September 2022 immediately available newly overhauled Multigrind HT retrofit machine prepared for resharpening hobs / worm gear cutters / pushers and cutting rotor Control: Siemens 840 D X - axis 650 mm Y - axis 400 mm Z - axis 280 mm A - axis (dividing apparatus) 360 ° SK50 C - axis (rotary table) 270 ° X3 - axle with tailstock Grinding spindle: HSK50 Dressing unit Tool changer: 10-fold magazine plate Coolant system: Turbo Separator Suction: LTA Extinguishing system Other accessories: Available ex works Software: Customer-specific delivery Financing / hire purchase possible.

Hobbb sharpening machine KAPP AST305

Hobbing machine Manufacturer: Liebherr Type S600

Surface reference plates, roughness measures MASSI hobing TGL 4763 Rz 6.3 μm and Rz 20 μm in wooden box Dimensions: 240 x 120 x 30 mm

Surface reference plates, roughness measures MASSI hobbing hobs TGL 4763 Rz 6.3 μm - Rz 20 μm in wooden box Dimensions: 240 x 125 x 40 mm

amount: 1 STK Dimensions (HxWxD): 280 x 190 x 190 mm diameter: 60 mm -> Bestcut gear hobbing cutter with HSS cutting material - Chip angle < 8° -> Module 16 F.20° 1gg Lks -> BP IV D-Stg < 5°40 -> 5° 40 Sp Stg 00 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 STK Dimensions (HxWxD): 300 x 190 x 190 mm diameter: 60 mm -> Gear hobbing cutter with HSS cutting material -> Module 18 -> L1 -> 5° 48` The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 STK Dimensions (HxWxD): 300 x 190 x 190 mm diameter: 60 mm -> Gear hobbing cutter with HSS cutting material -> Module 18 20°1 gg Lks. -> HSS-C 70.251VF The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 STK Dimensions (HxWxD): 280 x 190 x 190 mm diameter: 60 mm HSS hob for high wear resistance The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amount: 1 STK Dimensions (HxWxD): 300 x 190 x 190 mm diameter: 60 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

press power 1000 to clear width 585 mm daylight 410 mm stroke 380 mm table size 0/ 700 mm

harden furnace 1200 0.6x0.6x1.0m temperature 100 - 1200 Celsius possible various size Industrieöfen Neubauten Industrieöfen gebraucht Plasmanitrieranlagen Drehherdöfen Drehtrommelöfen Durchlauföfen Herdwagenöfen Induktionshärteanlagen Kammeröfen Ofenanlagen Schachtöfen Vakuumöfen Herdwagenofen Rollenherdofen Kammerofen Drehtellerofen Wagenherdofen & Tunnelofen Poreba Gurutzpe Tacchi Geminis Tos Amutio cazeneuve Skoda Morando Niles Colchester Heyligenstaedt Kramatorsk Mondiale Safop Cazeneuve Alzmetall mas stankoimport csepel carlton kolb soraluce bergonzi flott Erfurt Weingarten smeral schuler ebu mueller zts kosice wlochy minster Stanko stankoimport glaser huta zygmunt aft donaldson eumuko Elblag Engel Demag Arburg Krauss Maffei Battenfeld Manesty Mazak Voronezh Trumpf Amada Cincinnati Netstal Rose Forgrove Illig Foremost Nissei Sandretto Fette Mazak Mori seiki Ha ...
