Gear Hobbing Machines LIEBHERR LC 180

max. wheel diameter: 180 mm
table diameter: 145 mm
max. module: 3-5 mm
gear width: 250 mm
table turning speeds: 800 U/min
milling head vertical adjustable: 400 mm
Milling axis swiveling range: + / - 45 °
max. milling cutter diameter: 90 mm
hob turning speeds: 0 - 6000 U/min
cutter length max.: 211 mm

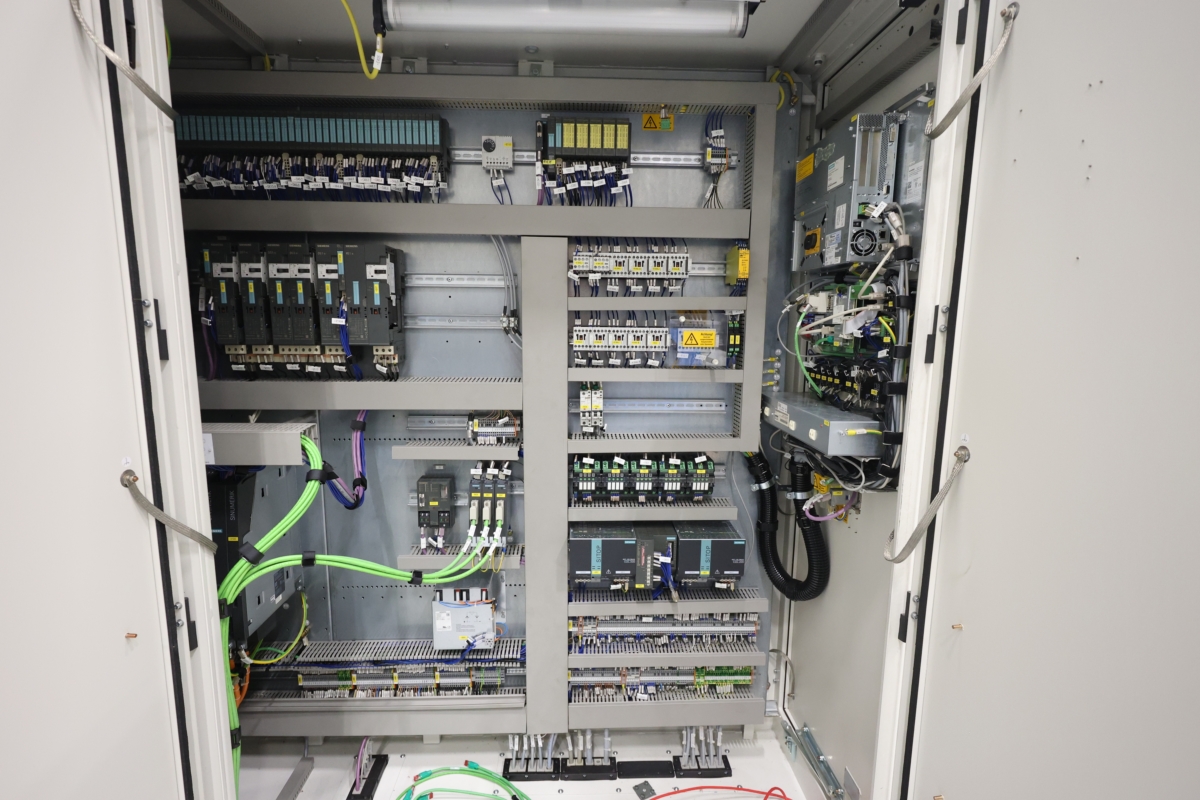

control: Siemens 840 D
total power requirement: 23 kW
weight of the machine ca.: ca. 10 t
dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m
The LC series is a machine system for the machining of spur and helical gears
and cylindrical gear shafts and helical gears and cylindrical gear shafts,
which is characterised by its special performance and versatility.

Compared to other gear manufacturing processes, gear hobbing is characterised
by its characterised by its high consistency of machining results over the
entire tool life.


Technical data of the machine:

Basic specifications:

--> Machining type: dry
--> Voltage: 400 V +/-10 %
--> Frequency: 50 Hz +/- 2%
--> Mains form: TN-S
--> Pneumatic supply Operating pressure: 4.5 bar
--> Machine cooling Cooling variant: Central cooling water supply
--> Control type: Siemens 840D sl

Technical data:

--> min. centre distance: 10 mm
--> max. centre distance: 200 mm
--> max. radial speed: 5000 mm/min
--> max. workpiece diameter: 180 mm
--> Coolant volume in the machine bed approx. 290 litres
--> Max. machine table speed: 800 1/min
--> Table plate diameter: 145 mm
--> Machine stand axial travel: 250 mm

Milling head swivelling device:

--> max. swivelling speed: 18 °/s
--> max. swivelling angle with FK 1.32: +/- 45 °

Milling head:

--> drive power: 23 kW
--> max. speed: 6000 1/min
--> max. tool diameter: 90 mm
--> max. tool clamping length: 211 mm
--> max. hobbing module: 3 mm
--> max. profile milling module: 5 mm
--> max. tangential speed: 7500 mm/min
--> max. tangential path: 180 mm

Counterpart:

--> axial travel: 300 mm
--> max. counter column speed: 30000 mm/min
--> max. counter-column clamping force: 13 kN

Parallel gripper:

--> max. workpiece weight form-fit: 15 kg
--> max. workpiece length: 400 mm

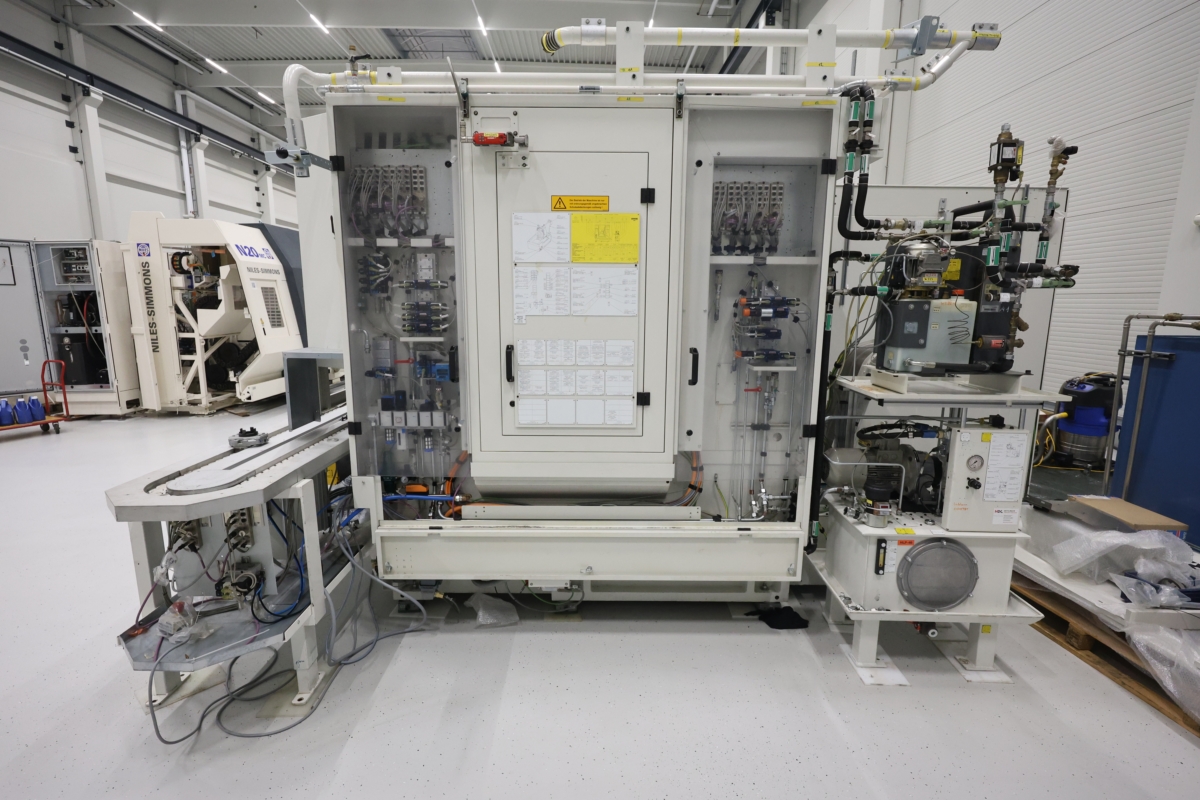

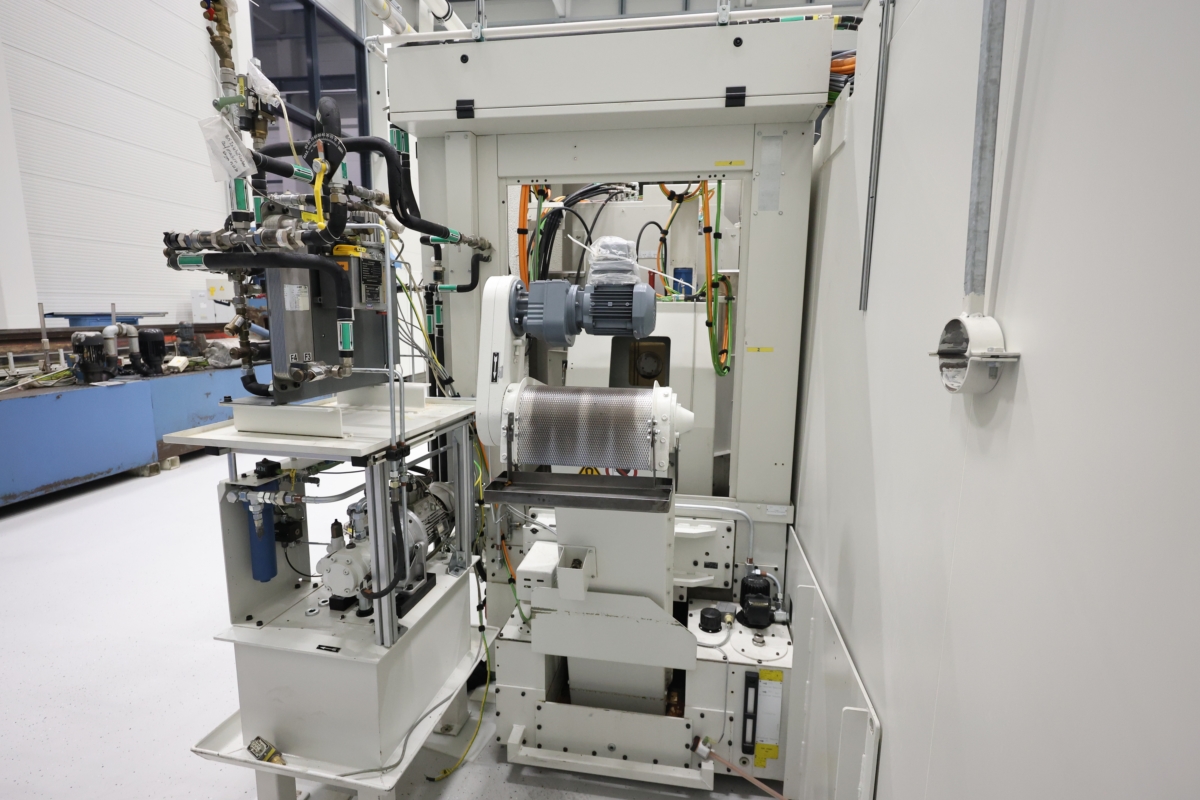

Free-standing hydraulic unit (100 litres):
--> max. operating pressure: 70 bar
--> Pump delivery rate: 25 l/min
--> Oil designation: HLP46
--> Oil volume in tank approx.: 100 litres
--> Lubricant: Oil

Machine in top condition, with ring loader, deburring device.
