lorenz gear cutting and hobbing machines used for sale

max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Liebherr / Lorenz S800 Gear - Hobbing Machine -Max. workpiece length with counter holder 600mm -Max. workpiece length with retracted counter holder 800mm -Max. travel of the milling carriage 360mm -Largest millable pitch for the largest workpiece 5 Pi / in the normal power range 8 Pi -Pick-up taper - milling spindle MK 5 -Mandrel 22/27/32/40mm -Max. cutter diameter 186mm -Max. cutter length 170mm -Max. cutter displacement 80mm -Milling cutter speeds 40-220 rpm -Feeds infinitely variable / horizontal -Feeds infinitely variable / vertical -Feeds infinitely variable / tangential -Clamping table without water rim 550mm -Clamping table hole 100mm -Mandrel taper MK5 Accessories: 1x pallet interchangeable wheels 1x pallet hob 1x pallet clamping mandrels Documentation Machine feet Dimensions: LxWxH 3.6x1.8x1.9 meters / weight 5000Kg

max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO CNC no. of strokes: 32-800 Hub/min total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,4 m Machines increase 100 mm intermediate plate automatic Hublageverstellung automatic Hublängeverstellung 5 axis controlled machine BWO last type C, D, X, Z, L axes are CNC The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

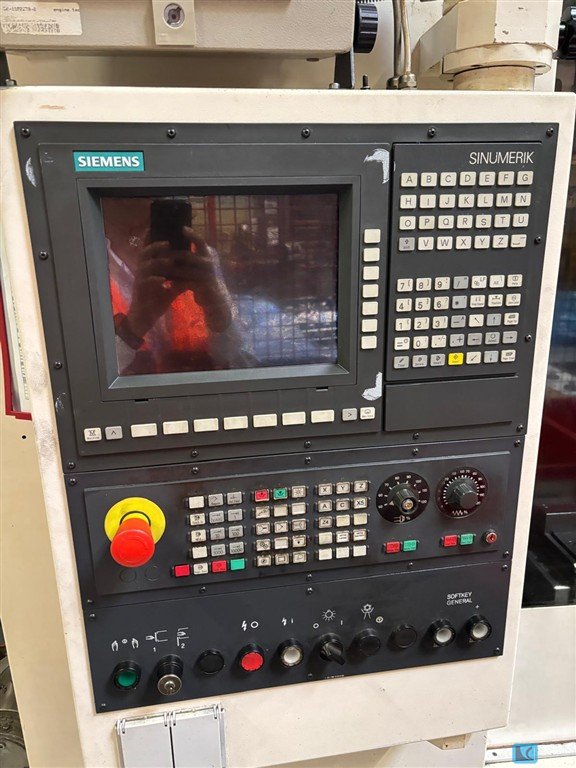

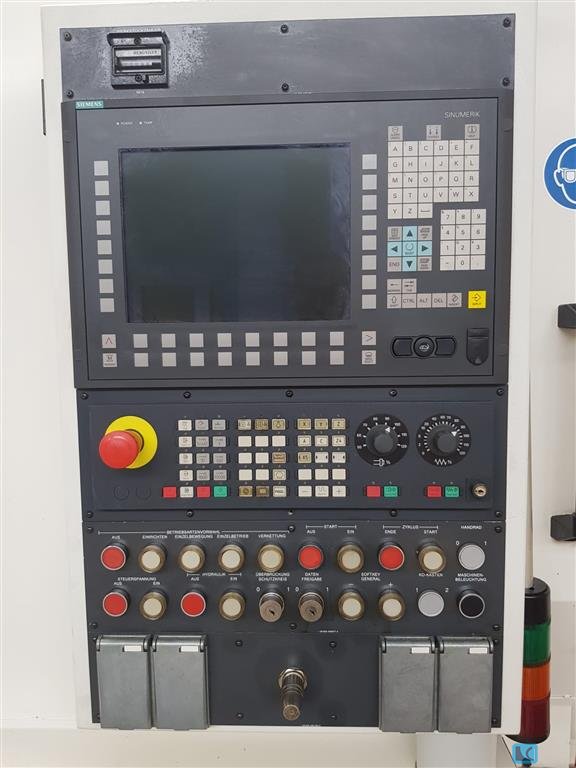

1996 sinumerik 840C video available

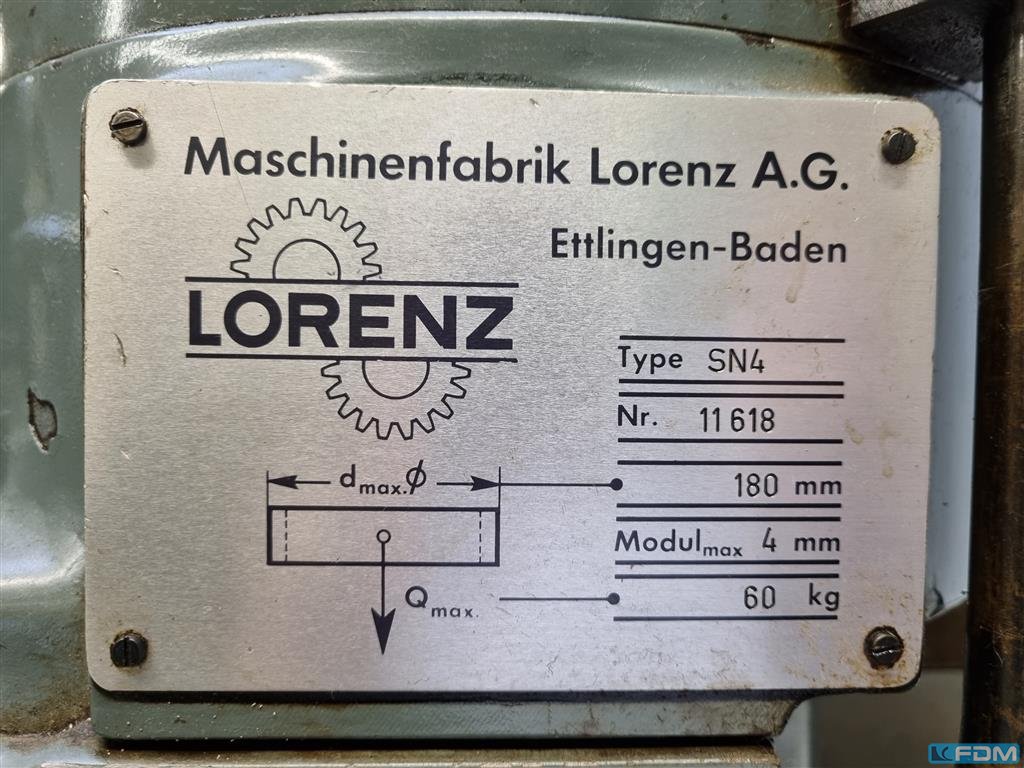

max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg With rack and pinion unit Change gear set Year of construction: Approx. 1981 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mm gear width: 45 mm max. module: 4 min. module: 0,5 stroke length max.: 0 - 52 mm spindle taper: innen MK 4 table diameter: 160 mm table bore diameter: 75 mm no. of strokes: 355 - 630 Hub/min feed range: 0,008 - 0,4 mm/Hub dimensions of the machine ca.: 2,30 x 1,50 x 2,36 m power capacity: 6 kW weight of the machine ca.: 2.500 kg Year of construction: Approx. 1970 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 630 mm, 8

A used gear pusher Lorenz S8/630 with interchangeable wheels.

Key data: 630 mm, 8

Max. outer diameter (gear): 630 mm Max. inner diameter (gear): approx. 750 mm Max. tooth width: 180–200 mm Max. module: 8 Shock stroke: up to 220 mm Stroke rate: 47–300 strokes/min Tool holder: MK 4 Drive power: approx. 8 kW Total connected load: approx. 10–12 kW Njbmsww Er Hompw Spjwk Machine weight: approx. 5,500–5,800

max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO 783 no. of strokes: 32 - 800 Hub/min stroke: 0-137 mm table diameter: 400 mm table bore diameter: 125 mm total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,5 m CNC control Heckler und Koch BWO 783 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1000 mm gear width: 180 mm max. module: 7 min. module: 0,5 min. ram stroke: 16 mm max. ram stroke: 180 mm table hole: 160 mm total power requirement: 4 kW weight of the machine ca.: 5,2 t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1000 mm gear width: 200 mm max. module: 10 min. module: 0,5 max. dia. of teeth cutting: 1000 mm min. dia. of teeth cutting: 75 mm table diameter: 1000 mm boring diameter: 400 mm spindle stroke: 0 - 230 mm stroke position adjustment: 250 mm distance between table / ram: 480 / 730 mm dia. of shaper cutter: 8 Zoll taper: Morse 5 tool taper: 1 3/4 Zoll total power requirement: ca. 20 kW weight of the machine ca.: 11 t Standard version - Chip conveyor - Two additional tables with diameters of 850 mm and 1,500 mm - Several cutting tools - Set of interchangeable gears - Program for cutting in 1-2-3-4 passes/cycles - Program for spiral cutting - Several holders and clamps for workpieces The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Straight guide, 3-jaw plate, change wheels, High: 1100 mm, Long: 1800 mm, Width: 2300 mm, Module: 5, Weight: 5.000 Kg, Voltage: 220 / 380V, Ø table: 310 mm, Ø spindle: 78 mm, Total power: 3 Kw, Maxi. stroke: 75 mm, Ø max. gear: 500 mm, Cutting speed: 18, Ø hole table: 125 mm, Ø max. inside: 450 mm, Ø max. external carving: 500 mm, Number of strokes / min cutter: 45/424

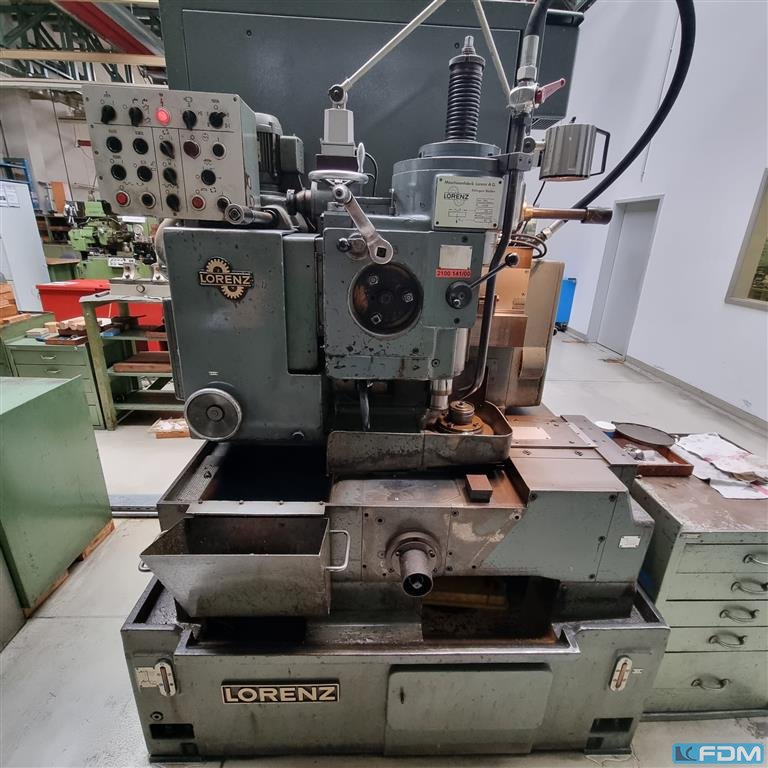

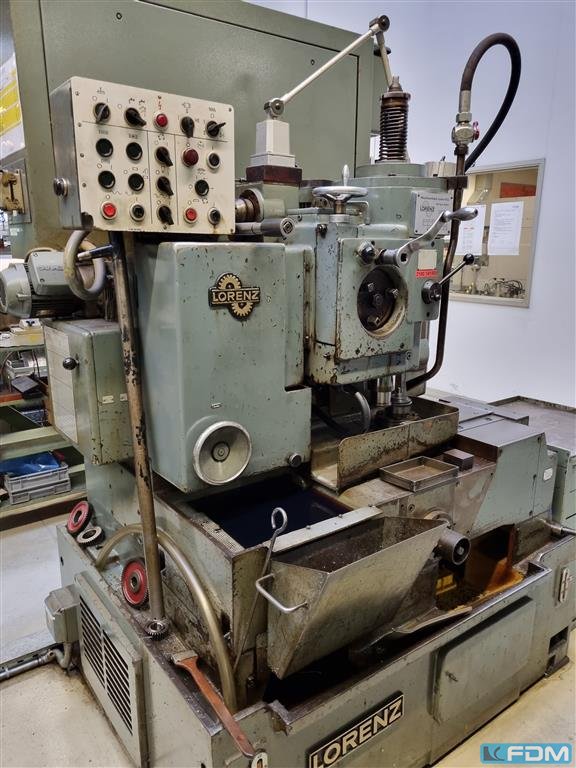

LORENZ vertical impact machine SV00 - see pictures

Lorenz SV00

max. wheel diameter:180 mm

max. wheel diameter:180 mm

max. wheel diameter: 650 mm gear width: 200 mm max. module: 10 min. module: 1 work accuracy: DIN 6 clamping table diameter: 710 mm table bore diameter: 150 mm number of strokes - stepless: 35,5 - 560 c/min max. ram stroke: 230 mm feeds: 3,55 - 40 mm/min radial feed: 0,8 - 9 mm/min work-spindle diameter: 110 mm total power requirement: 28,2 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 3,8 x 2,3 x 2,5 m Gear shaping machine for the production of spur gears, for Internal and external gears - Built under licence from LORENZ and identical in construction to LORENZ LS 630 complete Modernisation + overhaul in 2012 with: - new painting - new electrical system from Telemecanique - Counter Holder - Chip conveyor - Coolant unit - change gears Not used in production again after overhaul The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 75 mm max. module: 0,5 min. module: 6 total power requirement: 25 kW weight of the machine ca.: 7000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 75 mm max. module: 0,5 min. module: 60 total power requirement: 25 kW weight of the machine ca.: 7 t dimensions of the machine ca.: m L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 ______________________________________________________________________ ___________ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12 ...

max. wheel diameter: 85 mm gear width: max. 125 mm max. module: 3 Control: ja total power requirement: 30 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: . mm gear width: . mm max. module: . min. module: . Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 0 mm y-travel: 0 mm table length: 600 mm table width: 400 mm total power requirement: 2 kW weight of the machine ca.: 1500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

material width: 1650 mm material thickness: 3,00 mm no. of straightening rolls: 21 Control: sheet thickness - min.: 0,50 mm diam. of the rolls ca.: 50 mm between stands ca.: 1720 mm run-in height: 1250 mm total power requirement: 45 kW weight of the machine ca.: 24,50 t dimensions of the machine ca.: m 6-HIGH LEVELER / Strip Leveler / with Quick-Change System - 18 Back-up Supports - Digital Roll Adjustment (0.01 mm resolution) - Gearbox renewed in 2021 - Quick-Change System The quick-change system is mounted on a sliding plate. This sliding plate—on which the leveling rolls as well as the entire back-up support assembly are mounted—can be extended, allowing for quick and easy roll replacement in an easily accessible position. The extension and retraction of the sliding plate are hydraulically actuated. Connection to the drive mechanism is automatic. - Intermediate Rolls The intermed ...

Flow meter, vibration measurement, display device vibration measurement, monitor display -Manufacturer: Lorenz, measuring amplifier -Type: GM40 -Price: per piece -Number: 5 piece -Dimensions: 75/20/H110 mm -Weight: 0.1 kg/piece

7 stueck LORENZ or LIEBHERR Schraegfuehrungen - see picture Further: Airfilter (Euro 1000,--)

Shaper cutters from Module 1 to Module 14 available: - different no. of teeth, different pressure anles, different profiles, bores and sizes! shaft cutters Module 1-3 = 150 Euro, 4-5 = 250 Euro, >5 = 300 Euro disc cutters Module 1-3 = 150 Euro, 4-6 = 200 Euro, 7-10 = 250 Euro, 10-14 = 300 Euro. complete list on request! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 4-axis Lorenz LS 420 was manufactured in 2008. It features a NUM control system, capable of handling external and internal splines, single points, and segment splines. It can manage spline jointing up to B = 25 mm and spline hub profiles. The stroke length is 140 mm. Consider the opportunity to buy this Lorenz LS 420. Contact us for more information.

This 3-axis LORENZ LS 150 was manufactured in 2015. It features a connected load of 60KVA, a rated current of 50A, and operates on a 400V system. Weighing 7000kg, this machine has been modernized to enhance performance. If you are looking to get high-quality milling capabilities, consider the LORENZ LS 150 machine we have for sale. Contact us for more information.

max. wheel diameter: 620 mm gear width: 90 mm max. module: 12 min. module: - no. of teeth: 6 - 100 pivoting angle: 0 - 90 Grad spindle taper: metr. 100 milling head speed: 28 - 56 U/min connected load: 18 kVA Control: total power requirement: 14 kW weight of the machine ca.: 12 t 2020 Retrofit with new control/electrical system) - CNC control NTC (Fanuc) (German/English) - electric handwheel - new motors/ electrics - various change wheels - chip conveyor - coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cone distance min./max.: 0-108 mm Pitch angle min/max: 5°/84° Control: GE Fanuc Series 0-GC Pitch diameter (1:1 ratio): 152 mm pitch diameter (10:1 ratio): 216 mm Diametral pitch (finest/coarsest): 1.3/8.5 Mod. Face width gear wheel max.: 35 mm Knife spindle - Speed range: 41-121 U/min working spindle speed range: 0-33.33 U/min weight: 9025 kg dimensions of the machine ca.: 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406,4 mm gear width: 66 mm max. module: ca. 12,5 min. module: Control: Zyklengesteuert total power requirement: 21 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 3,3 x 2,5 m The GLEASON 641 G-PLETE bevel gear generating machine is a proven and robust solution for the production of spiral bevel gears, hypoid gears, and Zerol bevel gears usingthe well-established Gleason generating method. Designed for reliable and repeatable machining processes, this machine is ideally suited for small to medium batch production in industrial gear manufacturing. The 641 supports both roughing and finishing operations in a single setup (completing process), ensuring consistent gear quality while reducing handling time. Its mechanical generating system with variable roll ratio and plunge feedmechanism allows precise control of the tooth geometry, making it a depend ...

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Circulation cutter from Klingelberg

Gear hobbing machine 53A50H, STANKO, with change gears

Gear hobbing machine STAEHELY mod. SH25US + n. 2 Basket sanders D 1700 and D 1400

KOEPFER 151 Gear Hobbing Machine - Horizontal Available 2 machines. Semi-automatic machine Max. gear dia 150 mm Module 2 Max Profile depth / Plunge cut depth 7 mm Max hobbing length 135 mm Max length of workpiece, approx. 280 mm Hob slide swivable 250 degrees Hob size dia x length 65 x 60 mm Hob shifting, manually max. 40 mm Hob Spindle speeds 140 – 1120 rpm Workspindle bore 24 mm Bore of collet chuck, max. 3 – 24 mm Feed range, axial/plunge cut 0.06 – 2 mm/rev No. of teeth, min./max. 6 - 200 Spindle Drive/Total electrical load, approx. 2,2 / 4 kW Weight, approx. 1,400 kg Very good condition

MAX DIAMETER 640 MAX MODUL 8 TABLE DIAMEER 550

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

max diam 340 , max modul 8

max. wheel diameter: 200 mm gear width: 400 mm max. module: 4,5 min. module: 0,3 weight of the machine ca.: 6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 630 mm gear width: 375 mm max. module: 10 clamping table: 550 mm table hole: 125 mm milling spindle speeds infinitely variable: 62 - 390 U/min taper: MORSE 5 axial-feeds: 0,40 - 6,80 mm/U radial feeds: 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle: 50 - 425 mm no. of teeth: min. 8 milling cutter dia. x width: 192 / 215 mm shifting: 200 mm main drive motor: 7,5 kW total power requirement: 21 kVa weight of the machine ca.: 8,2 t Main features: -Universal hob head with tangential movement -Automatic shifting -Automatic dwell attachment -Hydraulic clamping in table -Pressure reduce valve for outer steady -Magnetic swarf conveyor Accessory: 1 set of tools for operating and maintenance 1 set differential gears, module 1,75 1 set indexing change gears module 2,5 1 change gear cabinet The data for this ad was created with ModulMWS - the software solution of Lo ...

Key data: 1600 mm, 460 mm, 16

TABLE DIAM 1350

Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears

x-travel: 350 mm y-travel: 200 mm z-travel: 350 mm table surface area: 700 x 280 mm spindle taper: SK 40 : 150 - 1660 U/min feeds: 25 - 285 mm/min rapid traverse: 1 m/min quill stroke: 80 mm milling-head swivable +/-: 45 ° total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of machine L x W x H: 1,27 x 1,1 x 1,65 m Accessories: vertical head with quill retraction, solid table, univ. table, rotary table 250 mmø, dividing unit with 3-jaw chuck 135 mmø, counter bearing, various tool fixtures, drill chuck, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg

max. wheel diameter: 400 mm gear width: 275 mm max. module: 6 Overall size: 300x330x245 cm weight of the machine ca.: 5,5 t dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW The data for t ...

max. wheel diameter: 180 mm table diameter: 145 mm max. module: 3-5 mm gear width: 250 mm table turning speeds: 800 U/min milling head vertical adjustable: 400 mm Milling axis swiveling range: + / - 45 ° max. milling cutter diameter: 90 mm hob turning speeds: 0 - 6000 U/min cutter length max.: 211 mm control: Siemens 840 D total power requirement: 23 kW weight of the machine ca.: ca. 10 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m Machine in top condition, equipped with loading unit, many accessories. This machine is equipped with manual deburring function with a cutting wheel, no chamfering. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg

max. wheel diameter: 400 mm gear width: 275 mm gear width: 275 mm max. module: 6 weight of the machine ca.: 5,5 t shifting: 100 mm dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine vertical Pfauter P251 With accessories

Pfauter RS 2 With accessories

Under power , complete

Gear hobbing machine LIEBHERR ET 1200

max. wheel diameter: 5500 mm gear width: 1500 mm max. module: 32 faceplate diameter: 3740 mm swing diameter: 6200 mm turning height: 1200 mm control: FANUC 31i MODEL B : 1250 mm cross rail - adjustment: 3000 mm turning speeds: 3-15 U/min spindle turning speed - stepless: 15 - 1500 U/min workpiece weight: 39,4 t max. dia. of teeth cutting: 5500 mm tooth width: 550 mm module: 32 cutter speeds: 10 -150 U/min milling cutter dia. x width: 450 x 110 mm milling head axial adjustable: 2060 mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m Complex TurnMill & Gear Cutting Machine - CNC control FANUC 31i B - Turning and Milling Function - ATC - Angular Milling Head - Gear Hobbing (internal and external) - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine STANKO 5K32 with accessories.

max. wheel diameter: 250 mm gear width: 242 mm max. module: 4 min. module: 0,5 table diameter: 250 mm table bore diameter: 68 mm milling cutter dia. x width: 130 x 130 mm spindle stroke - max.: 110 mm min. number of teeth: 6 center distance betw. workpiece-tool min/max.: 10 - 210 mm milling spindle speeds (infinitely variable): 80 - 500 U/min feeds axial: 0,32 - 4 mm/WU radial feed: 0,05 - 1,6 mm/WU feeds - tangential: 0,16 - 2 mm/WU Control: LAUER PCS table diameter: 250 mm table hole: 62 mm milling cutter dia. x width: 130 x 130 mm total power requirement: 16 kVa weight of the machine ca.: 3,6 t dimensions of the machine ca.: 2,8 x 2,4 x 1,9 m Machine ideal for electrical retrofitting Equipped with: - LAUER PCS NC control - Siemens Simatic S5 PLC - Loading device/magazine for workpiece size max. 140 mm Ø - Shifting - 2-cut cycle The data for this ad was created with ModulMWS - the s ...

MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears

CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives

max. wheel diameter: 600 mm gear width: 0 mm max. module: 16 (25) min. module: 1 center distance betw. workpiece-tool min/max.: 40 - 590 mm diameter of hob: 290 mm cutter length max.: 470 mm tangential adjustment: 450 mm milling head -swivable +/-: 45 ° milling head speed: 15 - 380 U/min table rotation speed: 50 U/min milling spindle drive: 37 kW table diameter: mm table load: 3750 kg feeds: 2000 mm/min Control: Siemens 840D total power requirement: 115 kVA weight of the machine ca.: 31 t dimensions of the machine ca.: m - 6-axis CNC control Siemens Sinumerik 840 D - complete covering - counter stay - Coolant Unit - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mm gear width: 600 mm max. module: 16 min. module: 2 tooth width: 490 mm Zahnschrägungswinkel max.: 45 ° shifting: 200 mm max. number of teeth: 12 diameter of hob: 240 mm cutter length max.: 280 mm table diameter: 1020 mm milling spindle speeds (infinitely variable): 28 - 200 U/min power capacity: 25 kW weight of the machine ca.: 16,2 t dimensions of the machine ca.: 4,5 x 4,6 x 2,7 m equipped with: - universal hob head - change gears machine has been partly overhauled (electrical and machnical) and is now with programmable, digital Infeed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 2500 mm gear width: 750 mm max. module: 18 / 22 min. module: table diameter: 1800 mm min. number of teeth: 12 table hole: 300 mm hob turning speeds: 20 - 100 U/min table load: 10 t milling cutter dia. x width: 250 x 340 mm shifting: 150 mm feeds - tangential: 0,25 - 3 mm/min feeds - radial: 0,07 - 1,5 mm/min feeds - longitudinal: 0,55 - 3,5 mm/min milling feeds: 13,4 - 80 (Einzelteilen) mm/min total power requirement: ca. 30 kW weight of the machine ca.: 28 t - change gears, arbors, toolings, clamping plots - universal hob head - swiveling outer steady - single indexing device party overhauled in 2023 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 3000 mm gear width: 500 mm max. module: 25 / 40 spindle turning speed range: 250 U/min feed speeds: max. 4000 mm/min faceplate diameter: 2000 mm table bore diameter: 700 mm table turning speeds: 51 U/min power capacity - milling spindle: 53 kW drive motor for milling spindle: - kW axial adjustment: 1200 mm milling head swivable ca.: +/- 45 ° control: Siemens 840D total power requirement: - kW weight of the machine ca.: 55 t - CNC Control Siemens 840D - Internal Hob Head IFK - External Hob Head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine TOS OF-71 with change gears

max. wheel diameter: 160 mm gear width: 355 mm max. module: 4,5 min. module: 0,5 centre distance: 450 mm total power requirement: 11 kW weight of the machine ca.: 3,8 t dimensions of the machine ca.: 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation The data for this ad wa ...

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

max. wheel diameter: 600 mm max. module: 6 range L-W-H: 2540 x 1500 x 1920 mm table diameter: 160 mm weight of the machine ca.: 3,6 t High-performance gear hobbing machine Tooth helix angle 15° Tooth width 270 mm Wheel diameter 620 mm Tooth helix angle 30° Tooth width 250 mm Wheel diameter 610 mm Tooth helix angle 45° Tooth width 200 mm Wheel diameter 500 mm Tooth angle 60° Tooth width 100 mm Wheel diameter 450 mm Maximum cutter diameter 105 mm Maximum cutter width 115 mm Clamping table diameter 420 mm Bore of clamping table 75 mm Depth of bore below table surface — mm Diameter of workpiece clamping wheel 450 mm of clamping mandrel 30 mm of milling mandrels 22–27–32 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MAX DIAMETER 800 , MAX MODULE 10

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt

max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...

max. wheel diameter: 2000 mm gear width: . mm max. module: 22 max. hob diameter: 250 mm hob turning speeds: 16-92 U/min total power requirement: 13 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight of the machine ca.: 5 t working width: max. 300 mm : 6 extensive accessories: viele Wechselräder Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 0 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...

max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min.  ...

max. wheel diameter: 150 mm gear width: 300 mm max. module: 4,5 min. module: total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
