liebherr gear cutting and hobbing machines used for sale

max. wheel diameter: 180 mm table diameter: 145 mm max. module: 3-5 mm gear width: 250 mm table turning speeds: 800 U/min milling head vertical adjustable: 400 mm Milling axis swiveling range: + / - 45 ° max. milling cutter diameter: 90 mm hob turning speeds: 0 - 6000 U/min cutter length max.: 211 mm control: Siemens 840 D total power requirement: 23 kW weight of the machine ca.: ca. 10 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m Machine in top condition, equipped with loading unit, many accessories. This machine is equipped with manual deburring function with a cutting wheel, no chamfering. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Under power , complete

Gear hobbing machine LIEBHERR ET 1200

max. wheel diameter: 2500 mm gear width: 750 mm max. module: 18 / 22 min. module: table diameter: 1800 mm min. number of teeth: 12 table hole: 300 mm hob turning speeds: 20 - 100 U/min table load: 10 t milling cutter dia. x width: 250 x 340 mm shifting: 150 mm feeds - tangential: 0,25 - 3 mm/min feeds - radial: 0,07 - 1,5 mm/min feeds - longitudinal: 0,55 - 3,5 mm/min milling feeds: 13,4 - 80 (Einzelteilen) mm/min total power requirement: ca. 30 kW weight of the machine ca.: 28 t - change gears, arbors, toolings, clamping plots - universal hob head - swiveling outer steady - single indexing device party overhauled in 2023 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 3000 mm gear width: 500 mm max. module: 25 / 40 spindle turning speed range: 250 U/min feed speeds: max. 4000 mm/min faceplate diameter: 2000 mm table bore diameter: 700 mm table turning speeds: 51 U/min power capacity - milling spindle: 53 kW drive motor for milling spindle: - kW axial adjustment: 1200 mm milling head swivable ca.: +/- 45 ° control: Siemens 840D total power requirement: - kW weight of the machine ca.: 55 t - CNC Control Siemens 840D - Internal Hob Head IFK - External Hob Head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt

max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 kg dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 Control: weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 150 mm gear width: . mm max. module: 5 min. module: 0,5 Control: . total power requirement: . kW weight of the machine ca.: 10.000 t dimensions of the machine ca.: 6500 × 2700× 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 500 mm gear width: 400 mm max. module: 10 mm Control: SIEMENS Sinumerik 840D sl max. workpiece diameter: 500 mm Max. Distance from table to counterholder: 1.120 mm Max. Distance table to center of milling spindle: 585 mm Min./max. center distance between milling spindle: 50/475 mm table diameter: 420 mm table hole - depth: 150 mm Table equipped with hydraulic clamping device: : milling spindle: : milling spindle speeds: 48- 480 1/min stufenlos milling head swivelling angle: +/- 50 A-Achse Grad tool taper: SK 40 Tangential path of the milling carriage: 200 mm milling cutter diameter: 170 mm Max milling width: 250 mm electrical supply data: : voltage: 400 V operating frequency: 50 Hz connecting power: 55 kVA weight of the machine ca.: 10,5 t dimensions of the machine ca.: 6,2 x 4,2 x 3,e m Equipment and Accessories • High-performance CNC gear hobbing machine LIEBHER ...

Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories

max. wheel diameter: 36 mm gear width: 36 mm max. module: 10 min. module: total power requirement: 12 kW weight of the machine ca.: 11,2 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Liebherr / Lorenz S800 Gear - Hobbing Machine -Max. workpiece length with counter holder 600mm -Max. workpiece length with retracted counter holder 800mm -Max. travel of the milling carriage 360mm -Largest millable pitch for the largest workpiece 5 Pi / in the normal power range 8 Pi -Pick-up taper - milling spindle MK 5 -Mandrel 22/27/32/40mm -Max. cutter diameter 186mm -Max. cutter length 170mm -Max. cutter displacement 80mm -Milling cutter speeds 40-220 rpm -Feeds infinitely variable / horizontal -Feeds infinitely variable / vertical -Feeds infinitely variable / tangential -Clamping table without water rim 550mm -Clamping table hole 100mm -Mandrel taper MK5 Accessories: 1x pallet interchangeable wheels 1x pallet hob 1x pallet clamping mandrels Documentation Machine feet Dimensions: LxWxH 3.6x1.8x1.9 meters / weight 5000Kg

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

Hobbing machine Manufacturer: Liebherr Type S600

max. wheel diameter: 780 mm gear width: 130 mm max. module: 8 / 10 table diameter: 510 mm table bore diameter: 160 mm number of strokes (double strokes): 30 - 1500 DH/min Control: Siemens Sinumerik 3 distance table - lower edge of ram: 650 mm table-size: 500 mm total power requirement: 36 kVA weight of the machine ca.: 8,5 t dimensions of the machine ca.: 4,9 x 3,65 x 3,8 m The machine is suitable for: - Internal and external gear teeth in small quantities - Internal gear teeth in blind holes (non-through holes) - External gear teeth without run-out, as hobbing would not be possible Examples of components are: Internal gear rings for planetary gears, drive shafts, clutch hubs... - Siemens Sinumerik 3 CNC control - Chip conveyor Machine was only used sporadically The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 380 mm gear width: 200 mm max. module: 6 min. module: Control: SIEMENS Sinumerik 840D working area: - max. gear diameter: 380 mm max. workpiece diameter: 400/ 600 (800) Außen innen beg max. gear width: 200 mm Center distance between gear head and table center: -50 / 450 mm Travel range of the lifting position: 250 mm Max. module for straight gearing: 6 mm Max. axial travel: 250 mm work table:: - table diameter: 400 mm table hole: 150 mm max. table speed: 30 1/m no. of T-slots: 6 St. Table equipped with hydraulic clamping device: - Multi-interface for pallet loading and zero-point: - clamping system in the working area: Shaping Head and Lift-off Cam:: - Drive power of face milling head: 37 kW Max. stroke rate: 600 DH/min Face milling head axis angle adjustment: +/- 0,5 ° spindle cone: HSK-B100 DIN 69893 taper of shaper cutter: 60 work-spindle diameter: 110 mm Stro ...

gear hobbing diameter - external: 1200 mm gear hobbing diameter - internal: 1200 mm gear hobbing width -max.: 260 mm control: Liebherr PC-NC max. workpiece diameter: 1500 mm table diameter: 900 mm table bore diameter: 320 mm max. table load: 95 kN power capacity: 30 kW coolant pump: 120 l/min Axial distance between thrust spindle - table: 0-820 mm Shaping spindle diameter: 125 mm tool taper: SK 45 DIN weight of the machine ca.: 26 t dimensions of the machine ca.: 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mm gear width: ca. 220 mm max. module: 3 / 5 mm Control: Siemens 840D sl max. radial velocity: 5000 mm/min max. workpiece diameter: 180 mm table rotation speed: 800 U/min table diameter: 145 mm axial travel: 250 mm mm back rest:: axial travel: 300 mm clamping force max.: 13 kN milling head:: swivelable +/-: 45 ° drive capacity: 23 kW turning speeds: 6000 U/min diameter of tools max.: 90 mm tool clamping length max.: 211 mm module hobbing max.: 3 module profile milling max.: 5 tangential speed max.: 7500 mm/min weight of the machine ca.: 9,5 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m Equipment / Accessories: - The machine is equipped for dry milling. - workpiece magazine - parallel gripper: - workpiece weight form-fit max. 15 kg - workpiece length max. 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

gear hobbing diameter - external: 1200 mm gear hobbing diameter - internal: 1200 mm gear hobbing width -max.: 260 mm max. workpiece diameter: 1500 mm Control: Siemens 840 D table diameter: 900 mm Table hole Diameter / depth: 320 / 520 mm max. table load: 95 kN coolant pump: 120 l/min Axial distance between thrust spindle - table: 0-820 mm work-spindle diameter: 125 mm tool taper: SK 45 DIN Table rpm: 12 1/min power requirement: 30 kW weight of the machine ca.: 24 t dimensions of the machine ca.: 11,715 x 5,565 x 4,505 m Strokes: - Stroke length min./max.: 0 mm / 270 mm - Stroke length adjustment range: 270 mm - Stroke rate (double strokes): 10 to 270 strokes/min Sliding head carriage: - Max. travel speed: 5000 mm/min Machine bed: - Axial travel: 600 mm Slotting head: - Max. module for rolling slotting: 16 mm - Slotting spindle diameter: 125 mm - Max. tool diameter: 30 ...

module: 10 diameter: 180 mm Bore diameter: 40 mm width: 75 mm : 2 weight: 14 kg Milling cutter is as new, without signs of use Other used rack and pinion group cutters up to module 10 on request The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

module: 4 diameter: 180 mm Bore diameter: 40 mm width: 67 mm : 5 weight: 15 kg Milling cutter is as new, without signs of use Other used rack and pinion group cutters up to module 10 on request The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter:280 mm max. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/min tool length:210 mm CBN

max. wheel diameter: 265 mm gear width: 45 mm max. module: 4 min. module: 0,3 max. workpiece diameter: 300 mm stroke length max.: 0-50 mm stroke position adjustment: 25 mm distance work spindle /surface of the table: 170/245 mm spindle taper: innen MK 4 table-size: 180 mm table hole: 95/75 mm strokes per minute: 450 - 840 total power requirement: 10 kW weight of the machine ca.: 5200 kg dimensions of the machine ca.: m : : : : : : : Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 m ...

Gear shpping machine LIEBHERR LS 200F.

Gear shapping machine LIEBHERR LFS 200

Liebherr WSC 1200____________Description:In General:Year of manufacture:2009Control system:Siemens 840 DExternal gear diameter:1,200 mmInternal gear diameter:1,200 mmMaximum gear width:260 mmMaximum workpiece diameter:1,500 mmMachine base:Travel:600 mmLateral adjustment:+/- 60 mmCutting head:Spindle diameter:125 mmTool holder:SK 45Distance between spindle and table:0–820 mmStroke length:270 mmMax. module:16 mmMax. tool diameter:300 mmMax. spindle speed:25 rpmTable:Table diameter:900 mmTable bore:320 mmBore depth:520 mmMax. speed:12 rpmMax. table load:95 kNEquipment:Chip removal:2 magnetic belt conveyorsCoolant supply:Cutting oil system with filter and temperature controlSet-up operation:Electronic handwheel

max. wheel diameter:780 mm gear width:130 mm max. module:10 weight of the machine ca.:8,5 t no. of strokes:30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height ? table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be dem ...

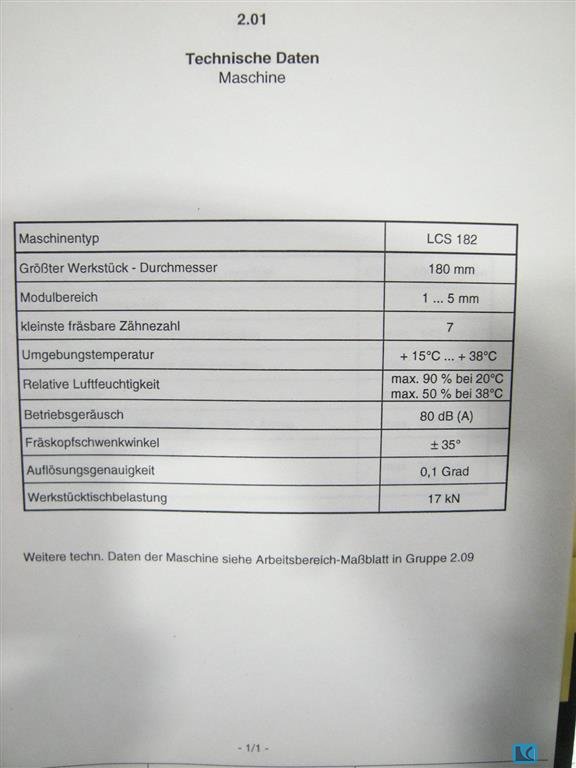

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

7 stueck LORENZ or LIEBHERR Schraegfuehrungen - see picture Further: Airfilter (Euro 1000,--)

max. wheel diameter: 150 mm max. module: 5 min. module: 0,5 weight of the machine ca.: 10.000 kg dimensions of the machine ca.: 6500x 2700x 3600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 280 mm gear width: 330 mm max. module: 5 min. module: 1 Control: LIEBHERR CNC total power requirement: 28 kW weight of the machine ca.: 12 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Type : Thread rolling machine Manufacturer : Thommen – Made in Switzerland Model : RT 70 RCA Year of manufacture : 2004 Bosch Control unit Machine has arrived. The machine brings an electronic error. Therefore, the machine is offered in need of repair. The machine comes from the first owner, from a German company. Accessories: according to photos Machine weight approx. [weight]: 1 t Dimensions approx. [size machine]: 140x140x230cm Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted. We ask for your order. Other machines and systems available from stock – please inquire. We are looking for ...

max. wheel diameter: 620 mm gear width: 90 mm max. module: 12 min. module: - no. of teeth: 6 - 100 pivoting angle: 0 - 90 Grad spindle taper: metr. 100 milling head speed: 28 - 56 U/min connected load: 18 kVA Control: total power requirement: 14 kW weight of the machine ca.: 12 t 2020 Retrofit with new control/electrical system) - CNC control NTC (Fanuc) (German/English) - electric handwheel - new motors/ electrics - various change wheels - chip conveyor - coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cone distance min./max.: 0-108 mm Pitch angle min/max: 5°/84° Control: GE Fanuc Series 0-GC Pitch diameter (1:1 ratio): 152 mm pitch diameter (10:1 ratio): 216 mm Diametral pitch (finest/coarsest): 1.3/8.5 Mod. Face width gear wheel max.: 35 mm Knife spindle - Speed range: 41-121 U/min working spindle speed range: 0-33.33 U/min weight: 9025 kg dimensions of the machine ca.: 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406,4 mm gear width: 66 mm max. module: ca. 12,5 min. module: Control: Zyklengesteuert total power requirement: 21 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 3,3 x 2,5 m The GLEASON 641 G-PLETE bevel gear generating machine is a proven and robust solution for the production of spiral bevel gears, hypoid gears, and Zerol bevel gears usingthe well-established Gleason generating method. Designed for reliable and repeatable machining processes, this machine is ideally suited for small to medium batch production in industrial gear manufacturing. The 641 supports both roughing and finishing operations in a single setup (completing process), ensuring consistent gear quality while reducing handling time. Its mechanical generating system with variable roll ratio and plunge feedmechanism allows precise control of the tooth geometry, making it a depend ...

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Circulation cutter from Klingelberg

Gear hobbing machine 53A50H, STANKO, with change gears

Gear hobbing machine STAEHELY mod. SH25US + n. 2 Basket sanders D 1700 and D 1400

KOEPFER 151 Gear Hobbing Machine - Horizontal Available 2 machines. Semi-automatic machine Max. gear dia 150 mm Module 2 Max Profile depth / Plunge cut depth 7 mm Max hobbing length 135 mm Max length of workpiece, approx. 280 mm Hob slide swivable 250 degrees Hob size dia x length 65 x 60 mm Hob shifting, manually max. 40 mm Hob Spindle speeds 140 – 1120 rpm Workspindle bore 24 mm Bore of collet chuck, max. 3 – 24 mm Feed range, axial/plunge cut 0.06 – 2 mm/rev No. of teeth, min./max. 6 - 200 Spindle Drive/Total electrical load, approx. 2,2 / 4 kW Weight, approx. 1,400 kg Very good condition

MAX DIAMETER 640 MAX MODUL 8 TABLE DIAMEER 550

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

max diam 340 , max modul 8

max. wheel diameter: 200 mm gear width: 400 mm max. module: 4,5 min. module: 0,3 weight of the machine ca.: 6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 630 mm gear width: 375 mm max. module: 10 clamping table: 550 mm table hole: 125 mm milling spindle speeds infinitely variable: 62 - 390 U/min taper: MORSE 5 axial-feeds: 0,40 - 6,80 mm/U radial feeds: 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle: 50 - 425 mm no. of teeth: min. 8 milling cutter dia. x width: 192 / 215 mm shifting: 200 mm main drive motor: 7,5 kW total power requirement: 21 kVa weight of the machine ca.: 8,2 t Main features: -Universal hob head with tangential movement -Automatic shifting -Automatic dwell attachment -Hydraulic clamping in table -Pressure reduce valve for outer steady -Magnetic swarf conveyor Accessory: 1 set of tools for operating and maintenance 1 set differential gears, module 1,75 1 set indexing change gears module 2,5 1 change gear cabinet The data for this ad was created with ModulMWS - the software solution of Lo ...

Key data: 1600 mm, 460 mm, 16

TABLE DIAM 1350

Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears

x-travel: 350 mm y-travel: 200 mm z-travel: 350 mm table surface area: 700 x 280 mm spindle taper: SK 40 : 150 - 1660 U/min feeds: 25 - 285 mm/min rapid traverse: 1 m/min quill stroke: 80 mm milling-head swivable +/-: 45 ° total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of machine L x W x H: 1,27 x 1,1 x 1,65 m Accessories: vertical head with quill retraction, solid table, univ. table, rotary table 250 mmø, dividing unit with 3-jaw chuck 135 mmø, counter bearing, various tool fixtures, drill chuck, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg

max. wheel diameter: 400 mm gear width: 275 mm max. module: 6 Overall size: 300x330x245 cm weight of the machine ca.: 5,5 t dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW The data for t ...

MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg

max. wheel diameter: 400 mm gear width: 275 mm gear width: 275 mm max. module: 6 weight of the machine ca.: 5,5 t shifting: 100 mm dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine vertical Pfauter P251 With accessories

Pfauter RS 2 With accessories

max. wheel diameter: 5500 mm gear width: 1500 mm max. module: 32 faceplate diameter: 3740 mm swing diameter: 6200 mm turning height: 1200 mm control: FANUC 31i MODEL B : 1250 mm cross rail - adjustment: 3000 mm turning speeds: 3-15 U/min spindle turning speed - stepless: 15 - 1500 U/min workpiece weight: 39,4 t max. dia. of teeth cutting: 5500 mm tooth width: 550 mm module: 32 cutter speeds: 10 -150 U/min milling cutter dia. x width: 450 x 110 mm milling head axial adjustable: 2060 mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m Complex TurnMill & Gear Cutting Machine - CNC control FANUC 31i B - Turning and Milling Function - ATC - Angular Milling Head - Gear Hobbing (internal and external) - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine STANKO 5K32 with accessories.

max. wheel diameter: 250 mm gear width: 242 mm max. module: 4 min. module: 0,5 table diameter: 250 mm table bore diameter: 68 mm milling cutter dia. x width: 130 x 130 mm spindle stroke - max.: 110 mm min. number of teeth: 6 center distance betw. workpiece-tool min/max.: 10 - 210 mm milling spindle speeds (infinitely variable): 80 - 500 U/min feeds axial: 0,32 - 4 mm/WU radial feed: 0,05 - 1,6 mm/WU feeds - tangential: 0,16 - 2 mm/WU Control: LAUER PCS table diameter: 250 mm table hole: 62 mm milling cutter dia. x width: 130 x 130 mm total power requirement: 16 kVa weight of the machine ca.: 3,6 t dimensions of the machine ca.: 2,8 x 2,4 x 1,9 m Machine ideal for electrical retrofitting Equipped with: - LAUER PCS NC control - Siemens Simatic S5 PLC - Loading device/magazine for workpiece size max. 140 mm Ø - Shifting - 2-cut cycle The data for this ad was created with ModulMWS - the s ...

MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears

CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives

max. wheel diameter: 600 mm gear width: 0 mm max. module: 16 (25) min. module: 1 center distance betw. workpiece-tool min/max.: 40 - 590 mm diameter of hob: 290 mm cutter length max.: 470 mm tangential adjustment: 450 mm milling head -swivable +/-: 45 ° milling head speed: 15 - 380 U/min table rotation speed: 50 U/min milling spindle drive: 37 kW table diameter: mm table load: 3750 kg feeds: 2000 mm/min Control: Siemens 840D total power requirement: 115 kVA weight of the machine ca.: 31 t dimensions of the machine ca.: m - 6-axis CNC control Siemens Sinumerik 840 D - complete covering - counter stay - Coolant Unit - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mm gear width: 600 mm max. module: 16 min. module: 2 tooth width: 490 mm Zahnschrägungswinkel max.: 45 ° shifting: 200 mm max. number of teeth: 12 diameter of hob: 240 mm cutter length max.: 280 mm table diameter: 1020 mm milling spindle speeds (infinitely variable): 28 - 200 U/min power capacity: 25 kW weight of the machine ca.: 16,2 t dimensions of the machine ca.: 4,5 x 4,6 x 2,7 m equipped with: - universal hob head - change gears machine has been partly overhauled (electrical and machnical) and is now with programmable, digital Infeed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine TOS OF-71 with change gears

max. wheel diameter: 160 mm gear width: 355 mm max. module: 4,5 min. module: 0,5 centre distance: 450 mm total power requirement: 11 kW weight of the machine ca.: 3,8 t dimensions of the machine ca.: 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation The data for this ad wa ...

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

max. wheel diameter: 600 mm max. module: 6 range L-W-H: 2540 x 1500 x 1920 mm table diameter: 160 mm weight of the machine ca.: 3,6 t High-performance gear hobbing machine Tooth helix angle 15° Tooth width 270 mm Wheel diameter 620 mm Tooth helix angle 30° Tooth width 250 mm Wheel diameter 610 mm Tooth helix angle 45° Tooth width 200 mm Wheel diameter 500 mm Tooth angle 60° Tooth width 100 mm Wheel diameter 450 mm Maximum cutter diameter 105 mm Maximum cutter width 115 mm Clamping table diameter 420 mm Bore of clamping table 75 mm Depth of bore below table surface — mm Diameter of workpiece clamping wheel 450 mm of clamping mandrel 30 mm of milling mandrels 22–27–32 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MAX DIAMETER 800 , MAX MODULE 10

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...

max. wheel diameter: 2000 mm gear width: . mm max. module: 22 max. hob diameter: 250 mm hob turning speeds: 16-92 U/min total power requirement: 13 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

weight of the machine ca.: 5 t working width: max. 300 mm : 6 extensive accessories: viele Wechselräder Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
