klingelnberg gear cutting and hobbing machines used for sale

Circulation cutter from Klingelberg

max. wheel diameter: 600 mm gear width: 450 , 600 mm module: distance gear spindle / pinion head: 40 - 450 mm distance pinion spindel head / gear head: -160 - 600 mm axis adjustment +/-: 60 mm spindle turning speed - stepless: 1 - 2120 U/min spindle bore: 130 mm taper in main spindle: MK 60 total power requirement: 30 kW weight of the machine ca.: 6,6 t dimensions of the machine ca.: 2,8 x 1,8 x 2,1 m Bevel gear testing machine, 2 flank testing! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 500 mm gear width: 200-400 mm module: 12 turning speeds: 0-3250 U/min bracke pressure: bis max. 95 Nm inner taper: Konus #39 Control: Fanuc 16 total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2.350 x 2.240 x 2.500 mm HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- Control: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

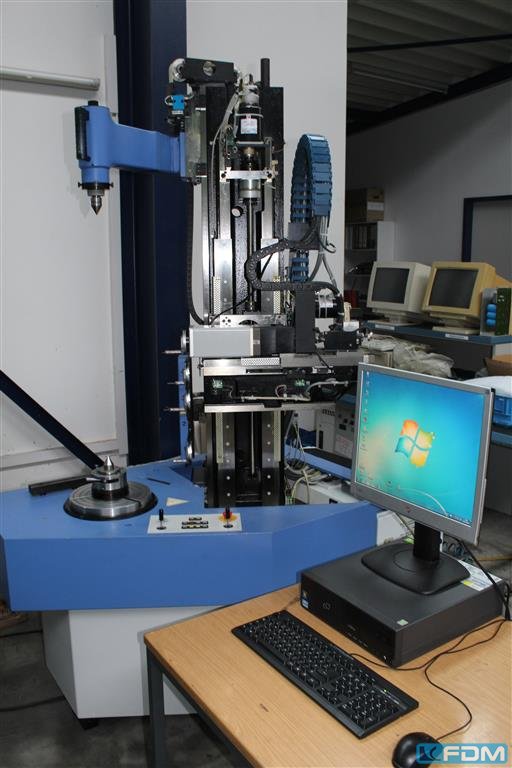

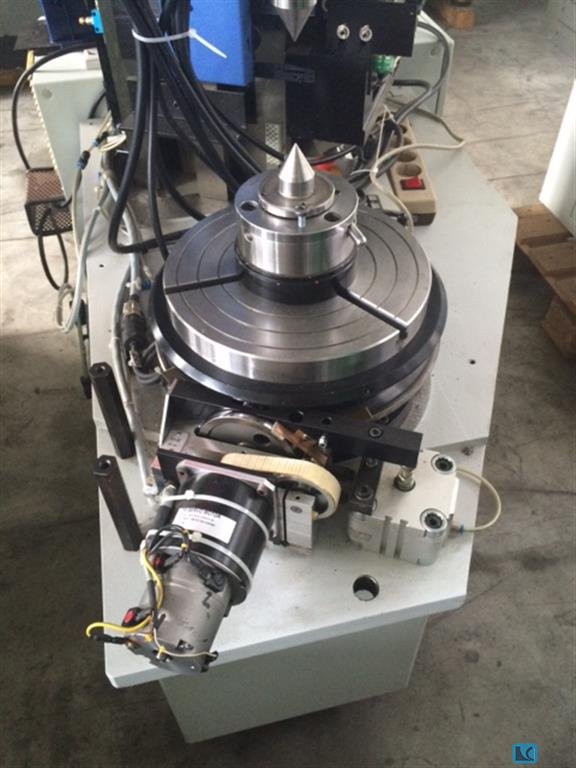

Klingelnberg ZW 301 Gear Measuring Machine Weight 750 kg

max. wheel diameter: 500 mm Hypoid adjustment: ±70 mm axial cross angle: 90 ° Distance Y-: 150 - 350 mm Distance Z-axis: 120 - 340 mm turning speed range - stepless: 0 - 5000 U/min max. torque on the spindle: 57 Nm Cone: 99,2 mm Pull-in force Tool clamping: 23000 N Braking torque max.: 93 Nm total connected load: 20 kVA total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,35 x 2,24 x 2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: mm max. module: Control: total power requirement: kW weight of the machine ca.: 4 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 450

The Klingelnberg PEK 300 H bevel gear testing machine is designed for universal single-flank rolling testing of bevel gears and crown gears. Here, gears can be measured and graphically evaluated by means of single-flank rolling testing. These test methods are particularly suitable for determining defects in the gear geometry such as concentricity and axial running properties, rolling deviations or pitch errors. Here, a practical installation situation of a gear outside the gearbox is simulated under real load conditions and then evaluated. Deviations in the gear geometry, machining errors due to defective tools and damage to the gears can thus be detected and eliminated even before assembly. The following parameters can be measured here: » Single-flank deviations Fi', fi', fl', fk' » Crossing, Runout Roundness (Option) » Carrying diagram with digital camera » Pit ...

Key data: 540

The Klingelnberg GKP 90 bevel gear testing machine was designed as a universal machine and is used by manufacturers of gears and transmission technologies, for the process of noise and contact pattern tests on bevel gears and hypoid gears. Technical data Diameter: 540 (400) mm Hypoid: ±50 mm mm Pinion spindle Dm: 90 mm mm Dimensions: 1,800 x 1,800 x 1,600 m Machine weight: approx. 2,800 kg Information and data are non-binding, subject to prior sale Special features: The machine is intended for noise and contact pattern tests on bevel and hypoid gears of all gears. By simulating operating conditions, applying different speeds and changing the load states for drive and outlet, the optimal installation distance for standstill can be determined. Digital actual value display for 2 axes Stepless speed adjustment via frequency converter Electrically fused and acceptable ...

max. wheel diameter: 0-200 mm max. module: 25 min. module: 0,5 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 160 - 1.600 mm gear width: 250 mm max. module: 20 min. module: 1,5 total power requirement: 1 kW weight of the machine ca.: 3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter:5 - 260 mm gear width:400 mm max. module:15 min. module:0,5 gear hobbing diameter - internal:30 mm max. helix angle:> 85 ° Aussenverz. max. helix angle:> 45° Innenverz. Testing Range vertical:400 mm dist. between centers:5 - 600 mm table diameter:260 mm max. table load:100 kg speeds:30 1/min total power requirement:1,6 kVA weight of the machine ca.:900 kg dimensions of the machine ca.:200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

max. wheel diameter: 275 mm gear width: 55 mm max. module: 6 min. module: 1 Control: 840 C Siemens total power requirement: 100 kW weight of the machine ca.: 16,7 t dimensions of the machine ca.: 5,2 x 2,3 x 2,4 m m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 275 mm gear width: 55 mm max. module: 6 min. module: 1,5 control: Sinumerik 840C tooth width: 5,5 mm spiral angle: 0/60 ° max. number of teeth: 120 min. number of teeth: 5 transmission ratio max.: 1:10 transmission ratio min.: 1:1 spindle speeds: max. 110 mm blade head turning speeds: 20-110 1/min total power requirement: 100 kW weight of the machine ca.: 16700 kg dimensions of the machine ca.: 5200x2300x2400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 275 mm max. module: 6 min. module: 1,5 Control: SINUMERIK 840 C tooth width: 5,5 mm spiral angle: min. 0 / max. 60 ° max. number of teeth: 120 min. number of teeth: 5 ratio of transmission: 1:10 min. ratio of transmission: 1:1 work piece spindle speed: max. 110 U/min blade head turning speeds: 20 - 110 U/min total power requirement: 100 kW weight of the machine ca.: 16,7 t dimensions of the machine ca.: 5,20 x 2,30 x 2,40 m Internal deburring device U axis / Q spindle chip conveyor coolant device Electrostatic air purifier ELBARON no tools No workpiece clamping device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

voltage: 110 - 230 V frequency range: 50 - 60 Hz Power connection: 0,5 kVA Dimensions (HxWxD): 1000 x 800 x 1750 mm weight: 150 kg Measuring machine for bar knives. Equipment/accessories: -Measuring tools -Clamping devices -Computer -Monitor -Printer -Cabin -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

z-travel: 200 mm Clamping diameter of the cutter heads: max. 550 mm Max. permissible cutter head weight: 150 kg Mounting plate diameter for cutter heads: 360 mm Mounting cone for cutter heads Nominal diameter: 500 mm weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2 x 1,5 x 2,03 m Cutter Head Set-Up- and -Measuring Machine In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in dry milling, high gear cutting quality and a long service life can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing devic ...

grinding diameter: mm grinding length: mm max. module: 0 min. module: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

dimension of workpiece: 400 mm voltage: V feed power: weight of the machine ca.: 1900 t dimensions of the machine ca.: 2,5 x 1,5 x 2,4 m module: 0,5 - 15 mm The KLINGELNBERG P 40 is a fully automatic CNC-controlled gear measuring center with a compact machine design. It was specifically designed for the lower workpiece diameter range up to 400 mm and is suitable for the precise inspection of a wide variety of rotationally symmetrical components. The measuring center can be used, among other applications, for the inspection of spur gears, shaving cutters, gear cutting tools, worms and worm wheels, hobs, and bevel gears. In addition, the machine is also suitable for general dimensional, form, and position measurements as well as for the inspection of camshafts, rotors, and similar workpieces. The P 40 features a rigid mechanical structure with machine bed, workpiece rotary drive, column w ...

max. wheel diameter: 2500 mm gear width: 0 mm max. module: 34 min. module: 1 total power requirement: ca. 15 kW weight of the machine ca.: 15 t dimensions of the machine ca.: 4,20 x 2,00 x 2,90 m Extra große ZR-Prüfmaschine, Gegenhalter The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1600 mm gear width: 250 mm max. module: 20 min. module: 1,5 base circle dia. - max.: 1450 mm base circle dia. - min.: 150 mm specimen weight from/to: 4000 kg feeler adjustment movement - parallel: 1400 mm max.helical angle: 0 - 90 ° wheel diameter with counterstay: 1000 mm feeler adjustment movement - parallel: 800 mm centre height: 1150 mm electrics - voltage/frequency: 400 / 50 V/Hz dimensions of the machine ca.: 2,8 x 2,4 x 2,3 m total power requirement: 2 kW weight of the machine ca.: 3 t Universal Involute and Helix Testing Machine - modernized 1995 Machine is suitable for measuring all individual tooth data on straight and helical spur gears, and shaping and shaving cutters. Following tooth data can be tested: Tooth flanks, Involute base circle dia. and pressure angle, Profile c ...

max. wheel diameter: 620 mm gear width: 90 mm max. module: 12 min. module: - no. of teeth: 6 - 100 pivoting angle: 0 - 90 Grad spindle taper: metr. 100 milling head speed: 28 - 56 U/min connected load: 18 kVA Control: total power requirement: 14 kW weight of the machine ca.: 12 t 2020 Retrofit with new control/electrical system) - CNC control NTC (Fanuc) (German/English) - electric handwheel - new motors/ electrics - various change wheels - chip conveyor - coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cone distance min./max.: 0-108 mm Pitch angle min/max: 5°/84° Control: GE Fanuc Series 0-GC Pitch diameter (1:1 ratio): 152 mm pitch diameter (10:1 ratio): 216 mm Diametral pitch (finest/coarsest): 1.3/8.5 Mod. Face width gear wheel max.: 35 mm Knife spindle - Speed range: 41-121 U/min working spindle speed range: 0-33.33 U/min weight: 9025 kg dimensions of the machine ca.: 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 406,4 mm gear width: 66 mm max. module: ca. 12,5 min. module: Control: Zyklengesteuert total power requirement: 21 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: 3,3 x 2,5 m The GLEASON 641 G-PLETE bevel gear generating machine is a proven and robust solution for the production of spiral bevel gears, hypoid gears, and Zerol bevel gears usingthe well-established Gleason generating method. Designed for reliable and repeatable machining processes, this machine is ideally suited for small to medium batch production in industrial gear manufacturing. The 641 supports both roughing and finishing operations in a single setup (completing process), ensuring consistent gear quality while reducing handling time. Its mechanical generating system with variable roll ratio and plunge feedmechanism allows precise control of the tooth geometry, making it a depend ...

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Gear hobbing machine 53A50H, STANKO, with change gears

Gear hobbing machine STAEHELY mod. SH25US + n. 2 Basket sanders D 1700 and D 1400

KOEPFER 151 Gear Hobbing Machine - Horizontal Available 2 machines. Semi-automatic machine Max. gear dia 150 mm Module 2 Max Profile depth / Plunge cut depth 7 mm Max hobbing length 135 mm Max length of workpiece, approx. 280 mm Hob slide swivable 250 degrees Hob size dia x length 65 x 60 mm Hob shifting, manually max. 40 mm Hob Spindle speeds 140 – 1120 rpm Workspindle bore 24 mm Bore of collet chuck, max. 3 – 24 mm Feed range, axial/plunge cut 0.06 – 2 mm/rev No. of teeth, min./max. 6 - 200 Spindle Drive/Total electrical load, approx. 2,2 / 4 kW Weight, approx. 1,400 kg Very good condition

MAX DIAMETER 640 MAX MODUL 8 TABLE DIAMEER 550

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

max diam 340 , max modul 8

max. wheel diameter: 200 mm gear width: 400 mm max. module: 4,5 min. module: 0,3 weight of the machine ca.: 6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 630 mm gear width: 375 mm max. module: 10 clamping table: 550 mm table hole: 125 mm milling spindle speeds infinitely variable: 62 - 390 U/min taper: MORSE 5 axial-feeds: 0,40 - 6,80 mm/U radial feeds: 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle: 50 - 425 mm no. of teeth: min. 8 milling cutter dia. x width: 192 / 215 mm shifting: 200 mm main drive motor: 7,5 kW total power requirement: 21 kVa weight of the machine ca.: 8,2 t Main features: -Universal hob head with tangential movement -Automatic shifting -Automatic dwell attachment -Hydraulic clamping in table -Pressure reduce valve for outer steady -Magnetic swarf conveyor Accessory: 1 set of tools for operating and maintenance 1 set differential gears, module 1,75 1 set indexing change gears module 2,5 1 change gear cabinet The data for this ad was created with ModulMWS - the software solution of Lo ...

Key data: 1600 mm, 460 mm, 16

TABLE DIAM 1350

x-travel: 350 mm y-travel: 200 mm z-travel: 350 mm table surface area: 700 x 280 mm spindle taper: SK 40 : 150 - 1660 U/min feeds: 25 - 285 mm/min rapid traverse: 1 m/min quill stroke: 80 mm milling-head swivable +/-: 45 ° total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of machine L x W x H: 1,27 x 1,1 x 1,65 m Accessories: vertical head with quill retraction, solid table, univ. table, rotary table 250 mmø, dividing unit with 3-jaw chuck 135 mmø, counter bearing, various tool fixtures, drill chuck, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MODUL ZFWZ 3150/3 Gear hobbing machine max. wheel dia. 3150 mm min. wheel dia. 500 mm max. wheel diameter with outboard-support 1600 mm max. module 30 mm gear width 1000 mm max. helical angle 45 deg tangential adjustment 500 mm cutter length max. 440 mm diameter of cutter (hob) 350 mm table diameter 2400 mm table bore diameter 500 mm depth of hole 1100 m table load max. 30 t Accessories Dimnsions 6700x5400x4800 mm Weight 65000 kg

max. wheel diameter: 400 mm gear width: 275 mm max. module: 6 Overall size: 300x330x245 cm weight of the machine ca.: 5,5 t dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min Specification: Max wheel diameter: 400 mm Min module: 1 Max module: 6 Table diameter: 370 mm Max wheel diameter: -With counterstay: 340 mm -Without counterstay: 400 mm Max axial offset: 275 mm Max tangential adjustment: 100 mm Tooth helical angle: 45 degrees Max cutter diameter: 145 mm Max hobbing length: 170 mm Hob turning speeds capacity: 63-180 U/min Feeds infinitely variable axial: 0,2-10 mm/U Feeds infinitely variable tangential: 0,1-5 mm/U Radial for spur gears: 0,1-4 mm/U Radial for worm gears: 0,025-1 mm/U Rapid traverse axial: 500 mm/min Rapid traverse tangential: 250 mm/min Radial for spur gears: 400 mm/U Radial for worm gears: 100 mm/U Motor power: 7.4 kW The data for t ...

MODUL ZFWZ 630 Gear hobbing machine Wheel diameter 630-710 mm Gear width 400 mm Module 1-10 Max. axial feeding travel 400 mm Max. tangential feeding travel (hob shift) 200 mm Max. helix angle 45 degrees Min. number of teeth hobbed 10 Min. number of teeth hobbed with indexing drive 5 Max. hob diameter 200 mm Max. hob length 250 mm Diameter of working table 580 mm Hole in working table 100-250 mm Depth of hole in working table 45-300 mm Distance center of hob to working table surface 175-575 mm Driving taper for hob arbor (step taper) 50 mm Hob speeds of universal hobbing head steeped 50-400 rpm Milling spindle speeds (infinitely variable) 40-400 rpm Power capacity 29 kW Machine dimensions 3380x2715x2250 mm Machine weight: 9200 kg

max. wheel diameter: 400 mm gear width: 275 mm gear width: 275 mm max. module: 6 weight of the machine ca.: 5,5 t shifting: 100 mm dist. cutter spindle - workpiece spindle: 40/265 mm hob turning speeds: 50-400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine vertical Pfauter P251 With accessories

Pfauter RS 2 With accessories

Under power , complete

Gear hobbing machine LIEBHERR ET 1200

Gear hobbing machine STANKO 5K32 with accessories.

MODUL ZFWZ 1250x14I gear hober (can do 1580 mm) Max. Diameter: 1250 mm Cutting width: 600 mm Module 2-16 Maximum size of the hob: 240 x 280 mm Table diameter: 1020 mm Speeds: 28 – 200 rpm Axial feed rates: 0.28 – 8 mm/min Radial feed rates: 0.1 – 2 mm/min Tangential feeds: 0.16 – 4 mm/min Stand tilt – left/right: +/- 45 Main motor power: 5 / 19.5 kW Power of the rapids motor: 12,5 kW Max. diameter of the part without tailstock: 1,250 mm Max. diameter of the part with tailstock: 800 mm Weight of the machine : 16 t Machine dimensions approx. 4.5 x 2.1 x h 3.3 m EQUIPMENT: Extended driven shaft for gear cutting up to Ø 1580 mm Capability to work with hob cutters Ø 235 mm and length 380 mm. Inverter control of the main electric motor. Expanded set of change gears

CHURCHILL PH3615 gear hobbing machine Max workpiece diameter 914 mm Max diametral/ pitch- 8 Module, 3 D.P. Horizontal centre distance:-63,5- 559 mm Max horizontal travel 469 mm Height hob centre to worktable: 127- 508 mm Max travel of vertical feed 381 mm Max height worktable to tailstock centre768 mm Table diameter 762 mm Table hole (diameter x depth) 89 x 381 mm Hob dia x length 178 x 203 mm Max travel of hob slide 127 mm Diameter of hob arbor 32 mm Hob spindle speeds, infinitely variable 50 – 200 rpm Vertical feeds 0.38 – 5 mm Main drive motor 10 HP Floor area 3960 x 2130 x 2300 mm Weight 11,500 kg Extended set of change gears Complete documentation Operational variable speed drives for main motor and feed drives

max. wheel diameter: 600 mm gear width: 0 mm max. module: 16 (25) min. module: 1 center distance betw. workpiece-tool min/max.: 40 - 590 mm diameter of hob: 290 mm cutter length max.: 470 mm tangential adjustment: 450 mm milling head -swivable +/-: 45 ° milling head speed: 15 - 380 U/min table rotation speed: 50 U/min milling spindle drive: 37 kW table diameter: mm table load: 3750 kg feeds: 2000 mm/min Control: Siemens 840D total power requirement: 115 kVA weight of the machine ca.: 31 t dimensions of the machine ca.: m - 6-axis CNC control Siemens Sinumerik 840 D - complete covering - counter stay - Coolant Unit - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mm gear width: 600 mm max. module: 16 min. module: 2 tooth width: 490 mm Zahnschrägungswinkel max.: 45 ° shifting: 200 mm max. number of teeth: 12 diameter of hob: 240 mm cutter length max.: 280 mm table diameter: 1020 mm milling spindle speeds (infinitely variable): 28 - 200 U/min power capacity: 25 kW weight of the machine ca.: 16,2 t dimensions of the machine ca.: 4,5 x 4,6 x 2,7 m equipped with: - universal hob head - change gears machine has been partly overhauled (electrical and machnical) and is now with programmable, digital Infeed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 2500 mm gear width: 750 mm max. module: 18 / 22 min. module: table diameter: 1800 mm min. number of teeth: 12 table hole: 300 mm hob turning speeds: 20 - 100 U/min table load: 10 t milling cutter dia. x width: 250 x 340 mm shifting: 150 mm feeds - tangential: 0,25 - 3 mm/min feeds - radial: 0,07 - 1,5 mm/min feeds - longitudinal: 0,55 - 3,5 mm/min milling feeds: 13,4 - 80 (Einzelteilen) mm/min total power requirement: ca. 30 kW weight of the machine ca.: 28 t - change gears, arbors, toolings, clamping plots - universal hob head - swiveling outer steady - single indexing device party overhauled in 2023 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gear hobbing machine TOS OF-71 with change gears

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : Set all sizes M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

max. wheel diameter: 600 mm max. module: 6 range L-W-H: 2540 x 1500 x 1920 mm table diameter: 160 mm weight of the machine ca.: 3,6 t High-performance gear hobbing machine Tooth helix angle 15° Tooth width 270 mm Wheel diameter 620 mm Tooth helix angle 30° Tooth width 250 mm Wheel diameter 610 mm Tooth helix angle 45° Tooth width 200 mm Wheel diameter 500 mm Tooth angle 60° Tooth width 100 mm Wheel diameter 450 mm Maximum cutter diameter 105 mm Maximum cutter width 115 mm Clamping table diameter 420 mm Bore of clamping table 75 mm Depth of bore below table surface — mm Diameter of workpiece clamping wheel 450 mm of clamping mandrel 30 mm of milling mandrels 22–27–32 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MAX DIAMETER 800 , MAX MODULE 10

Key data: 800 mm, 16

Spiral bevel gear dia. 800 mm

max. wheel diameter: 160 mm gear width: 355 mm max. module: 4,5 min. module: 0,5 centre distance: 450 mm total power requirement: 11 kW weight of the machine ca.: 3,8 t dimensions of the machine ca.: 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation The data for this ad wa ...

Tall: 1300 mm, Weight: 200 kg, Width: 760 mm, Long: 1200 mm, Voltage: 220/380V, Total power: 1 CV, Diameter of the tooth: 150 mm, Serial number: 93095, Sharpening length: 600 mm, Ø max. of the workpiece: min/max = 2/26, Wheel speed: 3000 rpm, Specification: drill bits

GP130 milling head without motor

PE 150 TABLE; 2 course OVERHAULED

max. wheel diameter: 5500 mm gear width: 1500 mm max. module: 32 faceplate diameter: 3740 mm swing diameter: 6200 mm turning height: 1200 mm control: FANUC 31i MODEL B : 1250 mm cross rail - adjustment: 3000 mm turning speeds: 3-15 U/min spindle turning speed - stepless: 15 - 1500 U/min workpiece weight: 39,4 t max. dia. of teeth cutting: 5500 mm tooth width: 550 mm module: 32 cutter speeds: 10 -150 U/min milling cutter dia. x width: 450 x 110 mm milling head axial adjustable: 2060 mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m Complex TurnMill & Gear Cutting Machine - CNC control FANUC 31i B - Turning and Milling Function - ATC - Angular Milling Head - Gear Hobbing (internal and external) - Chip Conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 3000 mm gear width: 500 mm max. module: 25 / 40 spindle turning speed range: 250 U/min feed speeds: max. 4000 mm/min faceplate diameter: 2000 mm table bore diameter: 700 mm table turning speeds: 51 U/min power capacity - milling spindle: 53 kW drive motor for milling spindle: - kW axial adjustment: 1200 mm milling head swivable ca.: +/- 45 ° control: Siemens 840D total power requirement: - kW weight of the machine ca.: 55 t - CNC Control Siemens 840D - Internal Hob Head IFK - External Hob Head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mm table diameter: 145 mm max. module: 3-5 mm gear width: 250 mm table turning speeds: 800 U/min milling head vertical adjustable: 400 mm Milling axis swiveling range: + / - 45 ° max. milling cutter diameter: 90 mm hob turning speeds: 0 - 6000 U/min cutter length max.: 211 mm control: Siemens 840 D total power requirement: 23 kW weight of the machine ca.: ca. 10 t dimensions of the machine ca.: 4,5 x 3,5 x 2,7 m The LC series is a machine system for the machining of spur and helical gears and cylindrical gear shafts and helical gears and cylindrical gear shafts, which is characterised by its special performance and versatility. Compared to other gear manufacturing processes, gear hobbing is characterised by its characterised by its high consistency of machining results over the entire tool life. Technical data of the machine: Basic specifications: --> Machining ...

Gear cutting data: --> max. millable module for hobbing: 2.5 mm --> max. millable module for high-performance milling: 2.0 mm --> Number of teeth: 1 - 999 teeth Workpiece data: --> max workpiece Ø automatic loading: 60 mm --> max workpiece Ø manual loading: 100 mm --> max workpiece length automatic loading: 200 mm --> max workpiece length manual loading: 300 mm

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

Gear hobbing machine MIKRON 102 Max. workpiece diameter 120 mm Max. Modul 2 Max. lenght of teeth 130 mm Min./max.nr of teeth 6 – 325 Angle on helical gears 0 – 90 °

max. wheel diameter:180 mm max. module:7 hob turning speeds:200-2000 U/min min. number of teeth:4 excluding conveyor belt

max. wheel diameter:180 mm gear width: mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

max. wheel diameter: 406 mm gear width: 420 mm max. module: 4,3 min. module: 0,5 hob turning speeds: 49 - 246 U/min table bore diameter: 80 mm total power requirement: 7 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,8 x 1,6 x 2,2 m Year of construction approx. 1980 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 280 mm max. module: 1 min. module: 4 total power requirement: 15 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 0 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 80 mm gear width: 120 mm max. module: 3 min. module: 1 control: SIEMENS 840 C total power requirement: 30 kW weight of the machine ca.: 7500 t dimensions of the machine ca.: m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 ______________________________________________________ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rate ...

max. wheel diameter: 150 mm gear width: 300 mm max. module: 4,5 min. module: total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 80 mm gear width: 150 mm max. module: 2,5 min. module: total power requirement: 10 kW weight of the machine ca.: 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 ____________________________________________________________ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min.  ...

max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8631 Type: OFA 16 A Producer: TOS Created: 1976 Parameters: Machine weight: 3550 kg

Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.

Inv. Num. : 8799 Type: FO-10 Producer: TOS Created: 1958 Parameters: Maximum gear diameter: 1000 mm Maximum module: 10 Machine dimensions: 3120 x 1870 x 2525 mm Machine weight: 9000 kg

Inv. Num. : 8974 Type: OFA 16 SC Producer: TOS Generated: Parameters: Machine weight: 5 t

max. wheel diameter: 500 mm gear width: 400 mm max. module: 10 mm Control: SIEMENS Sinumerik 840D sl max. workpiece diameter: 500 mm Max. Distance from table to counterholder: 1.120 mm Max. Distance table to center of milling spindle: 585 mm Min./max. center distance between milling spindle: 50/475 mm table diameter: 420 mm table hole - depth: 150 mm Table equipped with hydraulic clamping device: : milling spindle: : milling spindle speeds: 48- 480 1/min stufenlos milling head swivelling angle: +/- 50 A-Achse Grad tool taper: SK 40 Tangential path of the milling carriage: 200 mm milling cutter diameter: 170 mm Max milling width: 250 mm electrical supply data: : voltage: 400 V operating frequency: 50 Hz connecting power: 55 kVA weight of the machine ca.: 10,5 t dimensions of the machine ca.: 6,2 x 4,2 x 3,e m Equipment and Accessories • High-performance CNC gear hobbing machine LIEBHER ...

Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories

Hydraulic tailstock, Ø max. gear: 250 with 3 cutter, Module: 5,5, Hobbing length: 70, Cutter module: 5,5, Outside ø max. acknowledged: 300 mm, Ø spindle: 85 mm, Ø hole table: 39 mm, Ø table: External centering Ø139,75, Power tool motor (b): 4 Cv, High: 1.800 mm, Long: 1.450 mm, Weight: 2.450 Kg, Width: 1.000 mm

WMW MODUL ZFWZ 160/3 gear hobbing machine was built in 1971 in the GDR by VEB Werkzeugmaschinenkombinat 7. Oktober” Berlin. The machine is used in plants manufacturing extremely precise drive components for, among others, the automotive, aerospace and machinery industries. It enables the efficient machining of spur and worm gears with a maximum external diameter of 160 mm. The machining process is performed by means of a spindle with a cutter with a maximum diameter of 110 mm. The spindle of the MODUL ZFWZ 160X3 machine moves along the contour of the workpiece, cutting the material along its entire circumference. Using this method, it is possible to achieve the desired shapes and teeth finish with the highest accuracy. The WMW MODUL ZFWZ gear hobbing machine weighs 3000 kg. Technical specifications of the WMW MODUL ZFWZ 160/3 gear hobbing machine General data - maximum external di ...

MAX DIAMETER 800 , MAX MODULE 10
