dmg boring mills and machining centers used for sale

GeneralTravelling column machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal3000 mmCross1100 mmVertical1050 mmFeed drives:Feed rate X / Y / Z42000/42000/42000 mm/minRapid feed X / Y / Z42/42/42 m/minNC-swivel head (B-axis)Controlled NC-swivel milling head (B-axis) with clamping in position. Continuously positioning NC swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel torque: 3,300 / 2,300 Nm // 2,433 / 1,696 ftDynamic package for DMF 300|11 linearDynamic package for DMF 300|11 linear Linear motor X-axis with 80 m/min // 262.48 ft/min Rapid speed XYZ 80 m/min // 262.48 ft/min Acceleration XYZ 8 m/s² // 26.25 ft/s² Active cooling for Linear motorToolchanger with twin-grippertoolchanger with twin-gripperType of magazine ChainNumber of tools 40CabineFull protection cabinPackage Mill / Turn 20,000 rpm, H ...

GeneralTraveling column machine; Control: CELOS X with HEIDENHAIN TNC7 Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal2000 mmCross800 mmVertical850 mmTool changerType of magazineChain Number of tools50 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmSwivelhead, B-axisControlled NC swivel milling head 12,000 rpm (B-axis) with clamping in position Continuously positioning NC- swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel speed: 50 rpm Swivel range: ±12Clamping System HSK-A 100Spindle taper HSK-A 100Speed range 20 -12000 rpmTorque (40% DC) 288 NmTorque (100% DC) 187 NmDrive power (40% DC) 44 kWDrive power (100%  ...

GeneralTraveling column machine DMG MORI Design; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal1800 mmCross700 mmVertical700 mmTool changerType of magazineChain Number of tools30 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmFloor space/WeightDimensions (L x W x H)6,75 x 3,45 x 2,75 mWeight approx.14320 KgMiscellaneousClamping SystemDIN 69872 NC-swivel head (B-axis)Controlled NC-swivel milling head (B-axis) with clamping in position. Continuously positioning NC swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel range: +/- 90° Swivel speed: 40 rpmFixed tableFixed TableTable ...

-X-Way-700mm -Y-way-700mm -Z-way-700mm -Control-ITNC 530 -Spindle holder HSK A63 -Spindle speed-12000rpm -Plate changer with 7 pallets -Tool magasin with 120 -Internal cooling feeder-40bar -Spindle motor-20kW -Pallet size 500x500mm -Machine weight approx.16t -Top condition,to be visited under electricity

x-travel: 700 mm y-travel: 700 mm z-travel: 700 mm total power requirement: 68 kW weight of the machine ca.: 10500 kg dimensions of the machine ca.: 4300x2400x2600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control Heidenhain TNC 620 Travel X/Y/Z: 1035/560/510 mm, Spindle speed: 12,000 min-1, Tool magazine for 30 Wkz., SK 40, Cooling by the spindle 12 bar, Conveyor

DMG GILDEMEISTER CTX ALPHA 300 CNC turning center was built in 2008. The machine, designed for machining workpieces with a maximum diameter of 500 mm, is equipped with state-of-the-art technical solutions that guarantee extraordinary accuracy and precision. Machining is performed inside a large, fully illuminated workspace by a reliable spindle and high-quality cutting tools taken from a 12-position turret. In turn, the operator is provided with a state-of-the-art touchscreen control panel with a perfectly optimised FANUC CNC controller. High reliability, precision and structural stability make the GILDEMEISTER CTX ALPHA 300 CNC lathe the perfect choice for even the most intensive production work. The total weight of the machine is approximately 4350 kg. Technical data of the DMG GILDEMEISTER CTX ALPHA 300 lathe - maximum turning diameter: 500 mm - maximum cutting diameter: 200 mm  ...

DMG MORI SEIKI DMC 635 V Ecoline CNC machining center was built in 2013. The machine, designed for precision machining of workpieces, is distinguished by its extremely stable construction made of high-quality cast iron, which perfectly dampens any vibrations and oscillations. To achieve the highest precision and accuracy, reliable components in the form of cutting tools and a high-speed spindle are used in the machining process. Tools are changed in a very short time, so that the overall milling time is significantly reduced. The DMG DMC 635 V ECO CNC vertical machining center is offered with a modern touchscreen control panel and integrated chip conveyor. To this date, the machine has only worked for 9069 hours. The DMC 635 V ECOLINE milling center weighs 3900 kg. Technical specifications of the CNC milling machine DMC 635 V ECO - number of axes: 3 (X,Y,Z) - feed in the X/Y/Z ax ...

DMG CTX 510 ECO CNC turning center built in 2011 is used for precision machining of workpieces with a maximum diameter of 465 mm. This extremely efficient and perfectly optimised machine features a specially constructed, inclined bed that effectively dampens all vibrations and oscillations. This solution ensures the highest possible process stability, bringing results such as improved workpiece surface quality or increased cutting tool life. Workpiece machining is carried out using reliable components in the form of a high-speed spindle and cutting tools taken from a 12-position turret. Tools are changed in a very short time, so that the overall process time is significantly reduced. The DMG GILDEMEISTER CTX 510 ECO CNC lathe also features an intuitive SIEMENS CNC control and an integrated chip conveyor. The total weight of the machine is 7800 kg. Technical parameters of the DMG CT ...

DMG GILDEMEISTER CTX 510 CNC turning center was built in 2008. Designed for machining workpieces with a maximum diameter of 465 mm, the machine features a fully illuminated workspace, a high-speed spindle and high-end cutting tools. The extremely stable design combined with the perfectly optimised SIEMENS CNC control ensures maximum process efficiency, even during the most intensive production work. The DMG CTX 510 CNC lathe weighs 7500 kg. Technical specifications of the DMG GILDEMEISTER CTX 510 lathe - maximum turning diameter: 465 mm - maximum swing diameter: 680 mm - maximum swing diameter above cross guideway: 465 mm - maximum external diameter of clamped workpiece: 400 mm - feed in the X/Z axis: 300/1050 mm - rapid traverse in X,Z axis: 30 m/min - maximum spindle rotational speed: 3500 rpm - spindle passage: 97 mm - spindle drive power (40%/100% DC): 42/31 kW - chuck s ...

DMG GILDEMEISTER CTX 410 CNC lathe built in 2006 is an extremely powerful machine designed for precision machining of workpieces with a maximum diameter of 320 mm. The machining process is performed inside a large, fully illuminated workspace using reliable components in the form of cutting tools and a high-speed spindle. The specially designed inclined bed effectively dampens all vibrations and oscillations, resulting in better quality of the machined surface and increased tool life. The offered DMG CTX 410 CNC turning center is also equipped with an integrated chip conveyor and a perfectly optimised, intuitive HEIDENHAIN CNC control. The total weight of the machine is approximately 6000 kg. Technical specifications of the DMG GILDEMEISTER CTX 410 turning center - CNC controller: HEIDENHAIN - turning diameter: 320 mm - turning length: 600 mm - feed in the X/Z axis: 250/635 mm -  ...

x-travel: 635 mm y-travel: 510 mm z-travel: 460 mm Control: Siemens 840D total power requirement: kW weight of the machine ca.: 4 t dimensions of the machine ca.: 3,4 x 2,4 x 2,8 m Brand DMG Mori Seiki Machine no F666 Type DMC 635 V Ecoline Control Siemens 840D Year of make 2012 Table length 790 mm Table width 560 mm X 635 mm Y 510 mm Z 460 mm Spindle taper SK40 Speed maximum 12.000 RPM Chip transport Machine size 3.400 x 2.400 x 2.800 mm Machine weight 3.950 kg Tool magazine positions: 30 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical details x-travel 600 mm y-travel 560 mm z-travel 510 mm Steuerung Siemens Slim Line Multi Touch Control Main spindle: Max. speed 15,000 rpm/-1 Drive power - main spindle 20 / 14.5 kW Max. torque 121 / 84 Nm Tool holder SK 40 Distance between spindle nose and table 120 - 630 mm Workbench: Table clamping area 900 x 560 mm max. table load 600 kg T-slots 5 Working height 850 mm Tool magazine: Number of tool positions 60 pos. Tool holder SK 40 max. tool diameter 80 mm max. tool diameter. with a free neighboring box. 130 mm max. tool length 300 mm max. tool weight 8.0 kg Tool-tool changeover time 2.4 sec Changeover time chip - chip 6.7 sec Feeds: Rapid traverse 30 m/min Feed force 5 kN Feed speed max. 30,000 mm/min Total power requirement 32 kVA Machine weight approx. 5.0 t Space requirements approx. 4.0 x 5.0 x 3.0 m

With Indumatik Automation x-travel 500mm Y travel 450mm z-travel 400mm Control Siemens 810 D Shopmill Main spindle: Speed Range - Main Spindle ((( 20 - 8,000 )))min/-1 Drive power - main spindle 13 / 9kW Tool holder SK 40 Max. torque 83Nm NC rotary table: Table clamping area 630 x 500mm Max. table load 200kg Swivel range -5 / +110° Rotation range 0.001° T-slots 7x 14 x 63mm Tool magazine: Number of tool locations 16pos. max. tool weight 6kg max. tool diameter 80mm max. tool diameter. with a free neighboring box. 130mm max. workpiece length 300mm Feeds: Rapid traverse 12m/min Feed force 4.5kN Feed speed 1 - 12,000mm/min Total power requirement 18kW Machine weight approx. 5.0t Space requirements approx. 4.5 x 3.5 x 2.3m

Number of axes: 5 Feed speeds in the X/Y/Z axis: 500/420/380 mm Feed rates in the C/B axes: 180°/360° Dimensions of the work table (L x W): 500 x 380 mm Maximum workpiece weight: 350 kg Spindle power: 15 kW Maximum spindle speed: 18000 rpm Tool magazine capacity: 30 pcs. Overall dimensions (L x W x H): 3360 x 2550 x 2600 mm Total weight of the DMU 50 eVolution machine: 6000 kg

x-travel: 350 mm y-travel: 240 mm Ucblcnl2H9 z-travel: 340 mm Speed: 20 - 4,500 1/min Table: D 400 x 280 Control: 810 D Shop mill SIEMENS Tool holder: SK 40 Rapid traverse: 5 m/min Spindle: 6.3 / 10 kW Total connected load: 15 kVA Approx. space requirement: 1.7 x 1.55 x 2.1 m Universal CNC Milling Machine, Rotary swivel table manual with angle display on the screen, El. Handwheel

CONTROL .. CNC Control HEIDENHAIN TNC426 WORKSPACE -CUBIC- .. Number of machining axes (without parallel axes): 3 .. X-axis travel: 500 mm .. Y-axis travel: 400 mm .. Travel Z-axis: 400 mm TABLE .. Clamping surface (left-right): 700 mm .. Clamping surface (front-rear): 500 mm SPINDLE / HEAD .. Speed range up to: 9000 rpm .. Tool holder: ISO SK 40 TOOL MAGAZINE .. Number of tool positions: 16 ELECTRICAL CONNECTION DATA .. Connection voltage: 400 V .. Mains frequency: 50 Hz DIMENSIONS / WEIGHTS Bsicvzmv7Vm .. Space requirement -left/right-: 5000 mm .. Space requirement -front/rear-: 3700 mm .. Total height: 2500 mm .. Total weight approx.: 4500 kg

DMG MORI CMX 1100 V CNC machining center was built in 2019 in Japan by DMG MORI CO.,LTD. The machine, designed for machining workpieces with a maximum weight of 1000 kg, is distinguished by the use of state-of-the-art components and technical solutions which guarantee excellent machining results for many years of continuous operation. The machining process is performed inside a fully illuminated workspace by means of reliable components in the form of cutting tools and a high-speed spindle. The ‘C’ shaped cast iron bed perfectly dampens any vibrations and oscillations generated during machining, while ensuring the highest possible process stability. The CMX 1100 V CNC vertical machining center on offer also has a wide range of optional equipment, consisting of, among others, measuring probes from the renowned RENISHAW brand, a divider and the advanced MAPPS FANUC CNC control. Over ...

x-travel: 750 mm y-travel: 650 mm z-travel: 650 mm total power requirement: kW weight of the machine ca.: 12 t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1250 mm y-travel: 880 mm z-travel: 800 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 780 mm y-travel: 560 mm z-travel: 560 mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 640 mm max. turning passage: 640 mm control: Simens 840 D Powerline - - - - - Main spindle - - - - -: - - - - - - bar material dia.: 65 mm chuck diameter: 200 - 315 mm spindle bore diameter: 80 mm diam. of main spindle in forward position: 120 mm --- Subspindle ---: - - - - - - bar material dia.: 65 mm chuck diameter: 315 mm spindle bore diameter: 80 mm forward bearing diameter: 120 mm - - - - - General data - - - - -: - - - - - - spindle distance: 1.500 mm turning length: 1.185 mm Main-/Counter -spindle turning speeds: 5.000 U/min driven tools turning speeds: 12.000 U/min Slide cross: X1, Y1: 550 / 180 mm Slide cross: Z1: 1.185 mm Slide cross: B1: 240 ° Slide cross: X2: 180 mm Slide cross: Z2: 1.050 mm Slide cross: Z3: 1.150 mm CNC Turning- and Milling Center | DMG GILDEMEISTER - GMX 250 linear equipped with main/counter spindle, chip conveyor, tool changer, a turret fo ...

x-travel: 450 mm y-travel: 400 mm z-travel: 400 mm control: Heidenhain Mill Plus V600 total power requirement: kW weight of the machine ca.: 7000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Manufacture: SIEMENS 840D x-travel: 600 mm y-travel: 560 mm z-travel: 510 mm table-size: 900 x 560 mm spindle turning speed range: 12000 U/min tool magazin:: 30 weight of the machine ca.: 5 t HEIDENHAIN TNC-426 Prepared for the 4th axis www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction 2019 Control Celos with Siemens 840D sl Operate including 21.5 ERGOline Control Travel X-axis: 490 mm Y-axis: 250 mm Z-axis: 1,300 mm B-axis: +120° to -120° Max. turning diameter 500 mm Max. turning length 1,200 mm Main spindle ISM102 Drive power: 37/28 kW Max. torque: 700/800 Nm Max. spindle speed: 4,000 rpm Max. bar passage: 104 mm Sub-spindle ISM52 Drive power: 14.5 kW Max. spindle speed: 6,000 rpm Milling spindle Drive power: 22 kW Max. spindle speed 12,000 rpm HSK-63A DIN69893 Tool magazine 80 tool positions Other equipment Interface for robots Glass scales in X, Y and Z axes MP 1.0 – Machine Protection Control Tool probes Workpiece probe, BLUM TC60 Sorting the tools in the magazine Technology cycle for the application of an alternating speed for vibration-critical voltages Chuck rinsing device on the ...

Inv. Num. : 8514 Type: CLX 450 TC Producer: DMG Created: 2022 Parameters: Switch-on hours: 13312 h Hours: 8547 h Maximum spindle speed: 5000 1/min X-axis travel: 750 mm Y-axis travel: 200 mm Travel Z axis: 1000 mm Max. workpiece diameter: 400 mm Maximum length of the workpiece: 1100 mm Machine weight: 9200 kg

CNC lathe Graziano GT 300 Y Gital Gildemeister CNC Fanuc 16i - T ASA 5 Main spindle power 15 Kw Self-centering diameter 175 mm ASA 5 spindle connection Bar passage 52 mm Turning diameter 230 mm Turning length 500 mm Number of revolutions 5000 Number Tool holder turrets1 Number of tool places first turret 12 Number of motorized first turret 12 First turret tool attachment typeVDI 30 X Axis Travel 160 mm Y Axis travel + - 32 mm Z Axis travel 550 mm Linear axis rapid feeds X Y Z30 m/min Counter spindle yes ASA 5 spindle nose Number of counter spindle revolutions 5000 Power sub spindle 9 Kw Spindle Hole 30 mm Model and brand of bar loader LNS single bar tube Belt chip conveyor Presetting yes 2000 The machine can be seen under power in our warehouse in Gussago BS. Mimu machine tools

x-travel: 1040 mm y-travel: 600 mm z-travel: 500 mm Control: Heidenhain iTNC 530 table surface area: 1250 x 600 mm table load: 600 kg tool taper: SK 40 spindle turning speed range: 1 - 8000 U/min max. torque on the spindle: (S1/S6) 140/200 Nm feed range: 40000 mm/min rapid power traverse in X-and Z direction: 70 m/min rapid motion - y-axis: 40 m/min spindle drive: (100/40 % ED) 13/19 kW total power requirement: 39 kVA weight of the machine ca.: 8,9 t dimensions of the machine ca.: m Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR ...

DMG MORI CTX Beta 2000 CNC turning center was built in 2020 in Italy by Graziano Tortona S.r.l.. This extremely efficient machine is offered together with an extensive range of equipment, which significantly expands the machining capabilities and guarantees the achievement of high repeatability of the manufactured parts. Thanks to additional function packages, it is possible to perform, e.g. precise gear milling or polygon turning. All machining processes are performed inside a large working area by means of a reliable spindle and cutting tools taken from a 12-position turret. The tailstock coupled to the Z-axis moves collision-free on separate sliding guides, mounted on a bed of high thermal stability. This bed is excellent at reducing the influence of heat, while increasing the life of all components and tools. Over its service life, the machine has worked for a total of 6219 hours. ...

control: SIEMENS 840D SL ShopTurn turning diameter: 700 mm swing over bed: 900 mm turning length: 3065 mm c-axis: indexing: 0.001 ° turning speeds: -2500 U/min tool taper: VDI 50 Top turret tool hodler:: 12 tailstock quill taper MT: 5 y-travel: 160 mm rapid traverse X-axis: 40 m/min rapid traverse Z-axis: 30 m/min Overall size: 4450x2100x2350 mm rapid traverse Z-axis: m/min weight of the machine ca.: 7200 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DMG, Type DMC 635 Ecoline, YOC 2013 Travel: X 635mm Y 510mm Z 460mm Spindle speed 0-10000/min. Controlled axes 3 Spindle holder SK 40. L x W x H 3,500x4,000x2,700mm Machine weight 4500kg

DMG MORI NEF 400 CNC turning center was built in 2009 in Poland by FAMOT Pleszew S.A. The machine, distinguished by its compact design and high efficiency, is used for precision machining of workpieces with a maximum diameter of 350 mm. The machining process is performed inside a fully illuminated workspace by means of a high-speed spindle and precision cutting tools taken from a 12-position turret. The extremely rigid design eliminates any vibration and oscillation, ensuring maximum process stability during even the most intense challenges. All these features make the DMG NEF 400 the best choice for any industrial plant. The GILDEMEISTER NEF 400 CNC lathe was used for prototyping and worked for a total of 6492 hours. The offer also includes extensive equipment, consisting of, among others, an advanced HEIDENHAIN CNC control, driven tools and a chip conveyor. Technical specificatio ...

x-axis: 675 mm z-axis: 1530 mm y-axis: 300 mm control: CELOS ERGOline turning speed range - main spindle: 4000 min/-1 spindle passage: 91 mm spindle motor: 18,5 / 15 kW speed range - counter spindle: 4000 min/-1 : 76 tool length - max.: 400 mm tool diameter: 130 mm no. of tools in turret 1: 12 milling head speed: 12000 U/min milling spindle - taper: Capto C6 milling spindle drive: 22 kW total power requirement: 88 kVA total wight: 18,2 t dimensions of the machine ca.: - m Equipped with: - CELOS ERGOline CNC control - Main and counter spindle with 4000 rpm, 91 mm passage - Kitagawa 304 mm chuck - Milling spindle with Capto C6 and 12,000 rpm, 22 kW - 76-position tool changer - Counter spindle with tailstock function - Manual tool presetter - High-pressure coolant system / IKZ 70 bar - Coolant gun - Chip conveyor - Oil skimmer - Oil separator - Renishaw Power On: 17700h, Machining: 7200h  ...

Switch-on hours 51800 h Program running hours 15100 h Specifications: Speed, max.: 12,000 rpm Power: 77 kVA Weight, approx.: 18,100 kg

Key data: 660 mm, 983 mm

CONTROL PANEL FANUC F31-IA5 AXIS MOVEMENT X 750 MM / Y ± 210 MM / MM / Z 1.220 MM ROTARY AXIS MOVEMENT B + / - 120 ° / C 360 °/ 0.001 ° MAX. TURNING DIAMETER 660 MM MAX. TURNING LENGTH 983 MM SPINDLE - 1 CHUCK SPİNDLE SPEED 3.000 MIN/-1 CHUCK DIAMETER 12 INC / 315 MM BAR CAPACITY 90 MM TOOL SPINDLE SPEED ( S1 ) 12.000 MIN/-1 TOOL HOLDERS CAPTO C6 NUMBER OF TOOL POSITION 100 SPINDLE - 2 SPİNDLE SPEED RANGE SUP SPİNDLE 3.000 MIN/-1 CHUCK DIAMATER SUP SPINDLE 12 INC / 315 MM WEIGHT OF THE MACHINE 22.300 KG DIMENSIONS OF THE MACHINE 5.33 X 3.27 X 2.93 M

turning diameter: 400 mm turning length: 1100 mm control: Siemens Sinumerik 840D SL greates pass round over bed: 500 mm Swing dia. over traverse guideway: 370 mm Main spindle:: Max. rpm: 5000 min/-1 power capacity - main spindel: 17 / 25.5 kW max. Torque: 345 Nm spindle diameter in front bearing: 130 mm spindle bore: 67 mm chucking diameter: 325 mm spindle nose: A8 axis stroke:: x-axis: 750 mm y-axis: +/- 100 mm z-axis: 1200 mm feeds:: rapid traverse: 40 / 40 / 40 m/min Tailstock:: tailstock: 1200 mm taper of center: Mk 5 tension force: max. 8 kN milling head: b-axis: +/- 120 ° tool taper: HSK A 63 tool piece magazine with: 60 spindle turning speed - stepless: 12000 U/min spindle motor: 10,5 kW max. torque on the spindle: 90 Nm total power requirement: - kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 4,6 x 2,5 x 2,82 m Equipped with: - Siemens 840D SlimLine / Cel ...

2 x BAZ DMG DMU 60T BJ 2000/2002

Fabricante DMG Modelo DMU 125 P hy-dyn Año 2001 CNC HEIDENHAIN TNC 430D Mesa Dimensiones de la mesa 1.250 x 1.000 mm. Peso máximo permitido sobre mesa 2.000 kg. Recorridos y avances Cursos longitudinal, transversal y vertical (Ejes X/Y/Z) 1.250/880/800 mm. Rotación de mesa (Eje C) 0,001 º (Continuo) Avance rápido de los Ejes 30.000 mm/min Cabezal Tipo Automático Horizontal / Vertical Posicionamiento cabezal (Eje A) 0,001 º (Continuo) Cono husillo SK-40 DIN 69871 Gama de revoluciones 20-18.000 rpm Potencia motor principal 37 kW Equipamiento Cargador automático de herramientas INCLUIDO N.º de herramientas del cargador 30 Refrigeración interna 40 bar INCLUIDO Reglas Ópticas HEIDENHAIN INCLUIDO Transportador de Viruta INCLUIDO Volante Portátil HEIDENHAIN HR-410 INCLUIDO Otros Peso Neto 13.000 kg.

Horizontal BAZ DMG MORI NHX 4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar Chip conveyor Renishaw 3D - Pushbutton

Inv. Num. : 8929 Type: DMC 635 V Producer: DMG Created: 2007 Parameters: Control system: Heidenhain iTNC 530 Work table length: 790 mm Work table width: 560 mm Maximum table load (uniform): 600 kg Maximum vertical spindle speed: 10000 1/min X-axis travel: 635 mm Y-axis travel: 510 mm Travel travel Z-axis: 460 mm Machine weight: 4500 kg

Inv. Num. : 8930 Type: DMC 635 V eco Producer: DMG Created: 2008 Parameters: Control system: Siemens 810D Work table length: 790 mm Work table width: 560 mm Maximum table load (uniform): 600 kg Maximum vertical spindle speed: 8000 1/min X-axis travel: 635 mm Y-axis travel: 510 mm Travel travel Z-axis: 460 mm Machine weight: 4500 kg

Table: 450 x 500 mm 60 Way Tool Changer IKZ Breakage control lasers 5 axes Further technical information on request

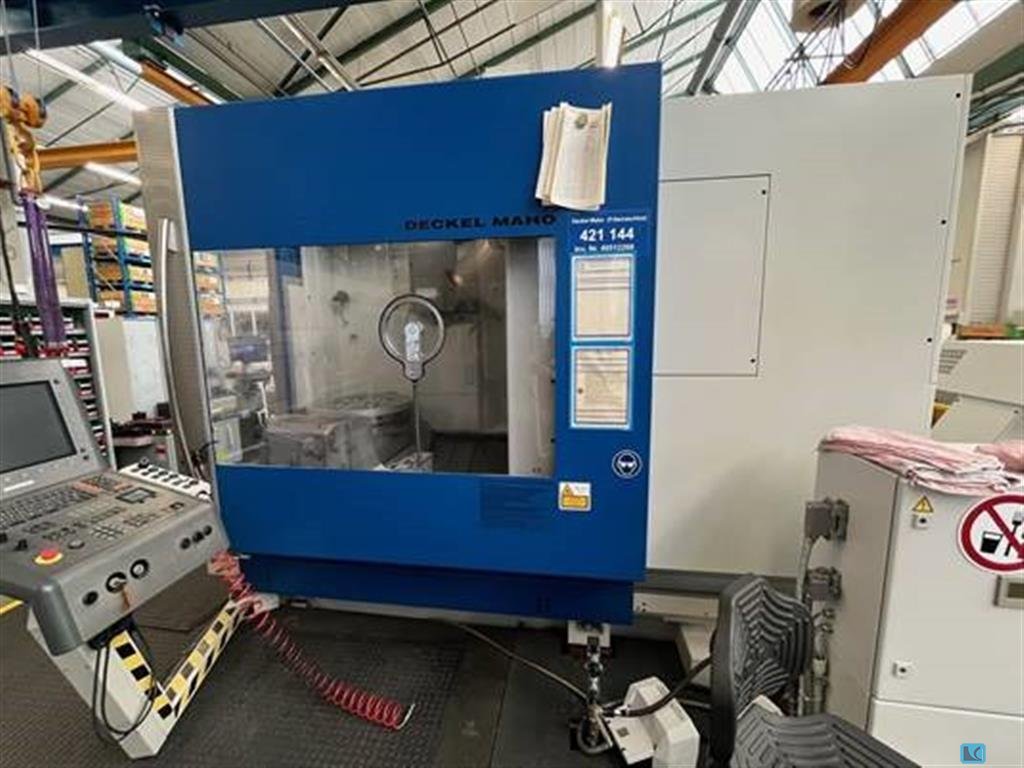

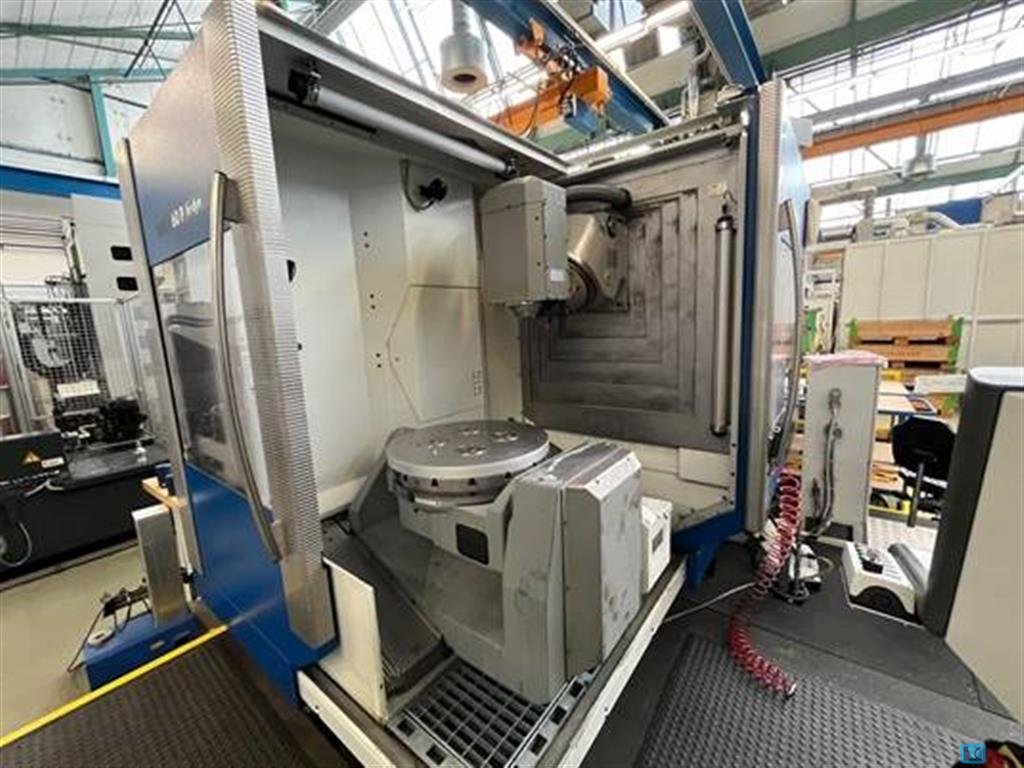

Horizontal BAZ DECKEL MAHO DMC 60 H Linear with 2-fold pallet changer and 180 magazine locations Year of Make: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0-18,000 min-1 Drive power: 35KW Torque: Spindle mount: HSK 63 Number of magazine slots: 180 pieces Number of pallets: 2 Pallet size: 500x500mm Travels: X-axis: 630mm Y-axis: 800mm Z-axis: 650mm C-axis: 0.001° All axes have linear actuators Accessories: -Coolant system -Chip conveyor Machine was regularly serviced Video available on request.

Key data: 620 mm, 800 mm, 650 mm

Horizontal BAZ LID MAHO DMC 60H Linear with 2-fold pallet changer and 180 magazine locations Year of Make: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0-18,000 min-1 Drive power: 35KW Torque: Spindle mount: HSK 63 Number of magazine slots: 180 pieces Number of pallets: 2 Pallet size: 500x500mm Travels: X-axis: 630mm Y-axis: 800mm Z-axis: 650mm C-axis: 0.001° All axes have linear actuators Accessories: -Coolant system -Chip conveyor Machine was regularly serviced Video available on request.

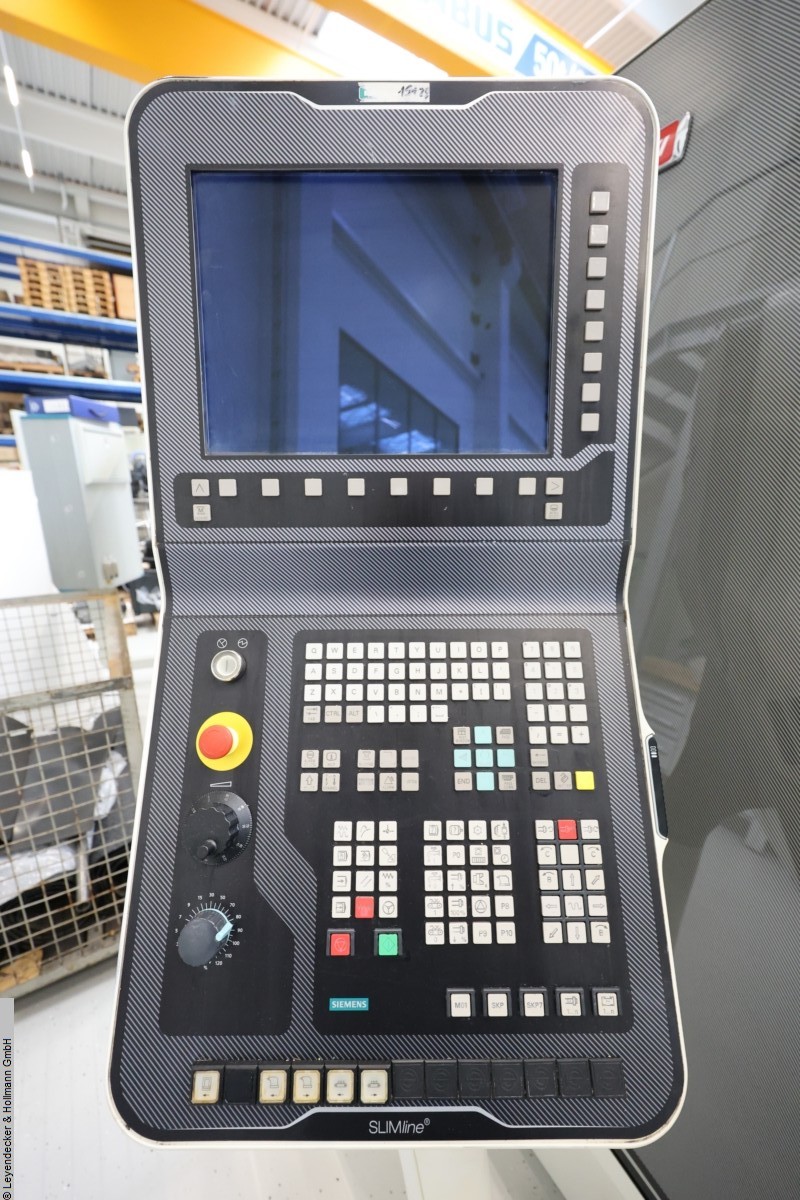

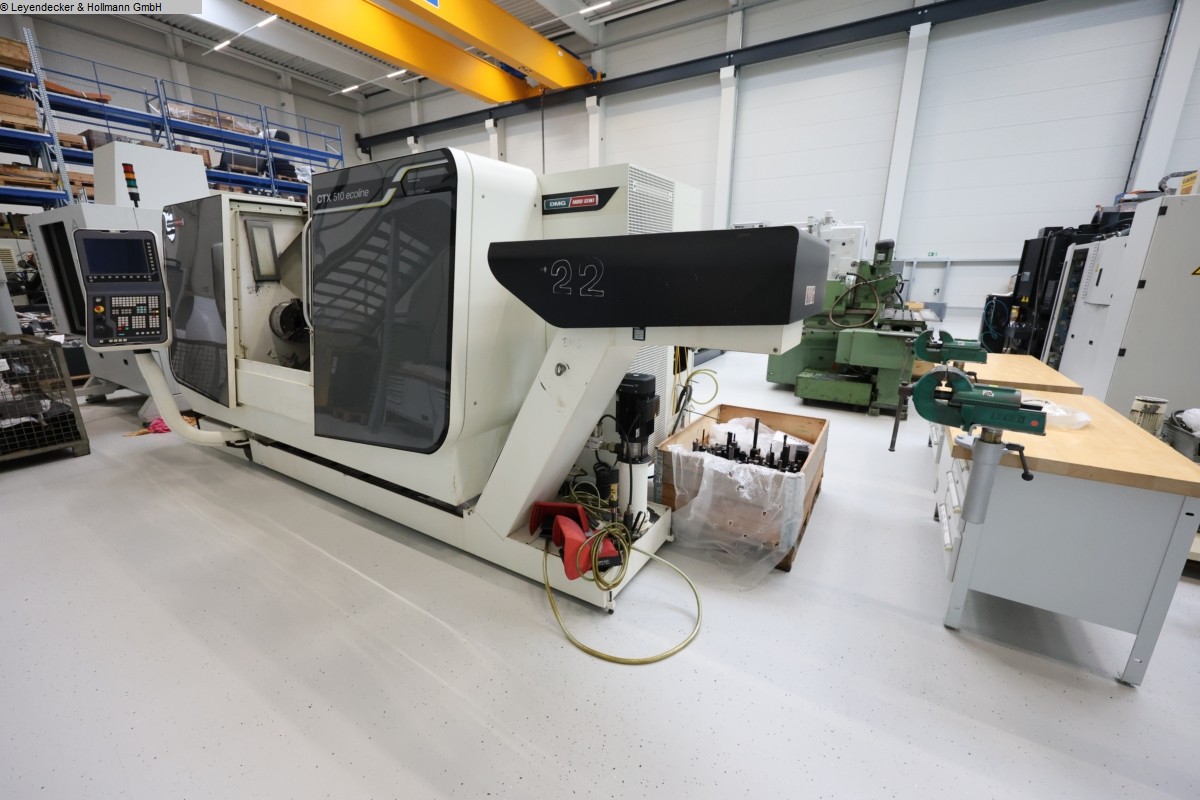

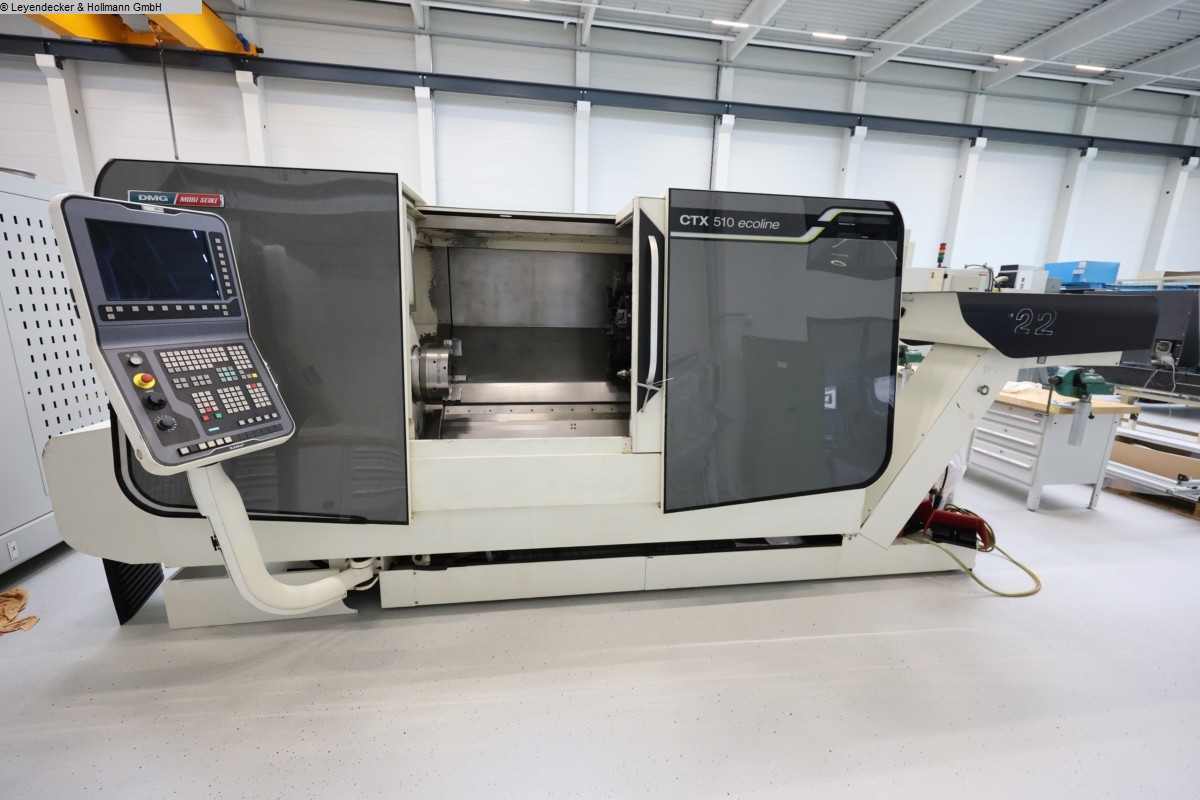

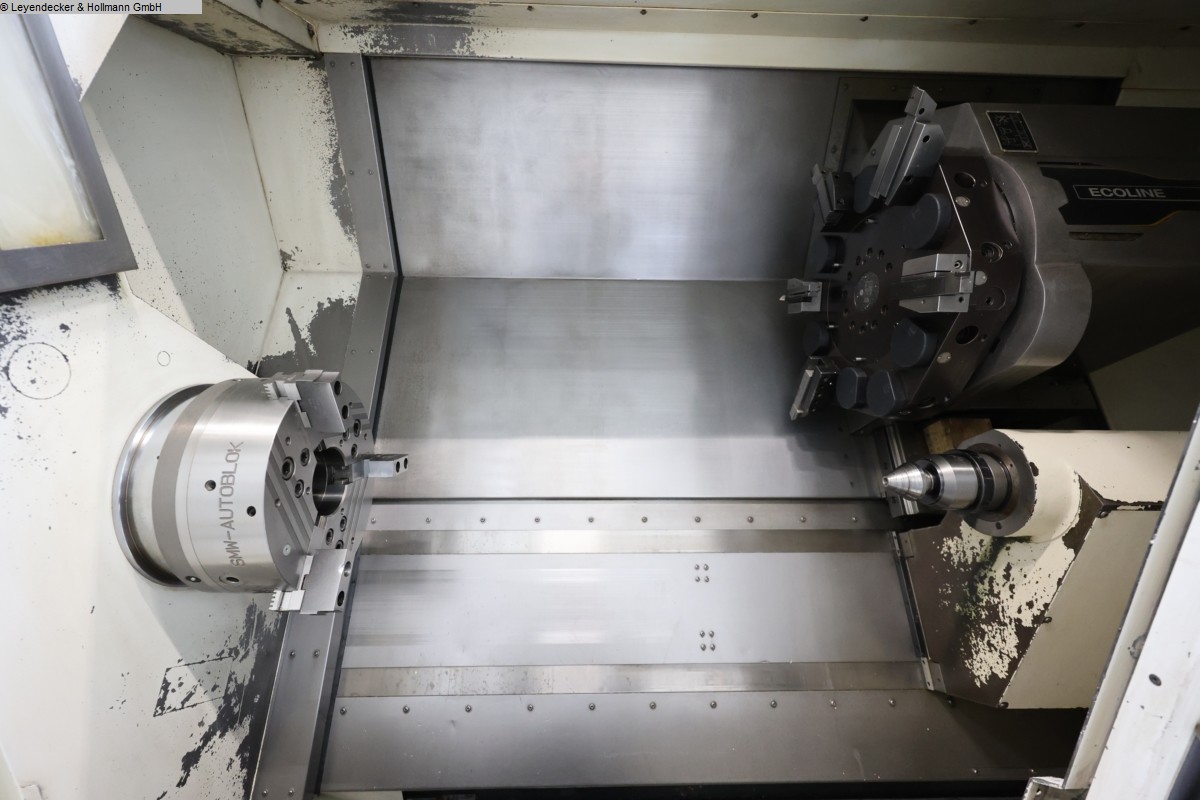

DMG Turning lathe GILDEMEISTER CTX 510 ecoline V3

Key data: 254 mm, 700 mm

Turning milling center Manufacturer: DMG Mori Type NLX 2500/700 Control M730UM Mitsubishi with Celos Turning length 700mm 12 tool stations, all 12 of which are driven Y-axis Bar passage 91mm Program runtime Head1 4036h Cumulative cutting time Head 1 2058h Machine running time 8605h Bar loading magazine TOP Automazioni 3m Incl. tool package NP 64.000 euro Machine is in TOP condition

x-travel: 1250 mm y-travel: 1000 mm z-travel: 1000 mm spindle taper: HSK-A 100 turning speed range: 10.000 U/min spindle drive: 28 kW Torque: 1240 Nm feed range: 0 - 12.000 mm/min rapid traverse: 60 m/min table surface area: 800 x 1000 mm workpiece weight: 1500 kg Control: Siemens 840D total power requirement: 80 kW weight of the machine ca.: 21 t dimensions of the machine ca.: 5,9 x 6,5 x 3,5 m 5-axis simultaneous machine equipped with: - CNC control Siemens 840D - 6-fold pallet station - Tool changer (HSK 100) - Coolant system with IKZ 40/80bar - Probe - tool breakage control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mm turning length: 1200 mm control: Siemens 840D greates pass round over bed: 700 mm Main spindle:: turning speed range - main spindle: 20 - 5000 min/-1 power capacity - main spindel: 25 /34 kW max. Torque: Nm C-Axis: 0,0001 ° spindle diameter: 67 mm milling spindle: milling spindle motor: 13 / 22 milling head speed: 12000 U/min b-axis: +/- 110 ° axis stroke:: x-axis: 450 mm y-axis: +/- 100 mm z-axis: 1300 mm feeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/min feed power: 5,6 / 5,6 / 7,4 kN turret:: number of toolpositions: 24 pos. tool taper: Capto max. chucking diameter: 250 mm tail stock: tailstock quill taper MT: 5 tailstock adjustment: 1200 mm total power requirement: 65 kVA weight of the machine ca.: 8 t dimensions of the machine ca.: 6 x 2,7 x 2,1 m CNC - Turning and milling centre - 5 axes simultaneous - CNC control Siemens 840D SolutionLine w ...

x-travel: 600 mm y-travel: 500 mm z-travel: 500 mm total power requirement: --- kW weight of the machine ca.: 9,6 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used machine Machine Type: CNC Turning Center Model No.: NLX3000Y/3000 Manufacturer: DMGMORI Control: Celos Year of Make: 2020 #001355 Turning diameter max. approx. 420 mm Turning diameter standard approx. 310 mm Chuck size approx. 300 mm Turning length approx. 3,123 mm Rod diameter max. approx. 90 mm Turret stations approx. 12 X-axis approx. 280 mm Z-axis approx. 3,170 mm Y-axis approx. 120 (±60) mm Tailstock approx. 3,164 mm Spindle speed max. approx. 3,000 rpm Speed AGW max. approx. 6,000 rpm Rapid traverse X/Z approx. 30 m/min Rapid traverse Y approx. 10 m/min Rapid traverse C approx. 300 rpm Power consumption approx. 54 kVA Compressed air bar,L/min approx. 5, 100 bar,L/min Footprint L x W x H approx. 8.30 x 3.50 x 2.41 m (without chip conveyor) Machine weight approx. 14,200 kg Main spindle 22/18,5KW • 3jaw chuck set • rpm 3000 • 12 station turre ...

Description Machine type: CNC-BAZ Vertical Model: M1 Pro with 4th axle incl. tailstock Manufacturer: DMGMORI Control: Siemens 828 D Year of Make: 2022 #001283 Location: Germany TECHNICAL DATA: Technical data Traversing range X-axis approx. 550 mm Y-axis approx. 550 mm Z-axis approx. 510 mm Table size approx. 850 x 650 mm Workpiece weight max. approx. 600 kg Speed max. approx. 12,000 rpm Spindle motor approx. 13/9 KW Number of tool positions approx. 24 Rapid traverse X / Y / Z approx. 24 m/min Pick-up taper approx. SK40 Footprint L x W x H approx. 3.1 x 2.7 x 2.9 m Machine weight approx. 5,600 kg Facilities Main spindle 12,000 rpm 13/9 kW - Separate electronic handwheel - 24 places chain magazine - SK40 - Coolant tank - IKZ pump 20bar - Filter for coolant - Bed flushing via M-function switchable - coolant spray gun - spindle blowing air switchable via M-funct ...

Used machine Machine Type: CNC Turning Center Model: CLX 750 V3 Manufacturer: DMGMORI Control: SLIMllne® Multi-Touch Control Siemens Year of Make: 2021 Location: Germany #001273 Turning diameter max. approx. 700 mm Turning diameter standard approx. 610 mm Chuck size approx. 400 mm Turning length approx. 1,300mm Rod diameter max. approx. 127 mm Turret stations approx. 12 X-axis approx. 435 mm Z-axis approx. 1,300 mm Tailstock approx. 1,200 mm Spindle speed max. approx. 2,000 rpm Speed AGW max. approx. 4,000 rpm Rapid traverse X/Z approx. 30 m/min Compressed air bar,L/min approx. 5, 100 bar,L/min Machine weight approx. 10,200 kg Facilities - Main spindle A2-11" with AC motor, 36/46 kW (100/40%), 2,000 min-¹ - 3-jaw chuck 300mm - Partial hollow clamping device for the main spindle 127mm - Chuck flush for the main spindle - 12-fold servo tool turret mount VDI ...

Used machine DMGMORI NHX6300 Machine type: CNC machining center horizontal Model No.: NHX6300 Manufacturer: DMGMORI Control: CELOS MAPPS Year of Make: 2021 Location: Germany #001396 TECHNICAL DATA: Travels: X-axis: [mm] 1050 Y-axis: [mm] 900 Z-axis: [mm] 1030 B-axis 0.001° Rapid traverse: (X/Y/Z) [m/min.] 60 Speed range: [1/min.] 12,000 Drive power: [kW] 55/30 Tool holder: HSK100 Tool Changer Tool Positions: 120 Pallet system Number of pallets: 2 Pallet size: [mm] 630 x 630 Machine weight: [kg] 18,700 Facilities Control F31iB with CELOS spindle cone HSK-A100 preparation for coolant system by the spindle rotary table with full-fledged 4th axis 120-fold tool magazine (HSK-A100)- Coolant Washer Nozzles for Mist Separator INTERLIT TMF300/980 Setup Station Connection Compact filter system 70 bar-INTERLIT coolant cooler 15 kW in-machine measuring system (spindle ...

Used machine CNC machining center horizontal Manufacturer:DMGMORI Type:NH4000DCG Year of construction:2021 Control Type:FANUC F31iB Origin: Japan Location:Germany Delivery Time Technical data Traversing range X-axis approx. 560mm Y-axis approx. 560mm Z-axis approx. 630mm Table 360° 1° Workpiece diameter approx. 630mm Workpiece weight max. approx. 400kg Speed max. approx. 14,000 rpm Spindle motor approx. 18.5/11KW Number of tool positions approx. 40 Rapid traverse approx. 50m/min Mounting Taper BT40 Compressed air bar,L/min approx. 5, 300 bar,L/min Power consumption approx. 34kVA Footprint L x W x H approx. 2,360×3,914x2,711m Machine weight approx. 9,600 kg Automatic Rotary APC Tool Holder: BT40-Max. Spindle speed 14,000 min-1,-18.5/11 kW (10min/100% ED)-Number of Tools: 40 (Chain Type)-Table Indexing 1° Scraper Belt Conveyor with drum filter preparati ...

Used machine Universal Machining Center Machine type: DMG DMF 360 / 11 linear Control: Heidenhain TNC 640 Celos Year of Make: 2017 TECHNICAL DATA: Travels: X-axis: [mm] 2,600 Y-axis: [mm] 1,100 Z-axis: [mm] 900 B-axis C-axis Number of controlled axes: 5 Dynamic Pack for DMF 360 linear (Y1100) Rapid traverse: (X/Y/Z) [m/min.] 80 / 60 / 60 Speed range: [1/min.] 20 - 15,000 Drive power: [kW] 46 / 30 Tool holder: SK 40 Tool Changer Tool positions: 60 NC rotary table Table size: [mm] 3,200 x 1,100 Max. table load: [kg] 1,200 Features: Internal cooling (IKZ): [bar] 40 Coolant tank: [l] 600 Chip conveyor Chip rinsing gun Oil mist extraction Air through spindle center Probe Spindle Preparation for use 3D quickSet Automatic doors Electronic handwheel This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Used machine Machine Type: CNC Swiss Automatic Lathe Model: Sprint32/8 Manufacturer: DMGMORI Control: Fanuc 32i First commissioning: 2019 #001328 Location: Germany T-main and sub-spindle - Y-axis on carriage 1 - Y-axis on carriage 2 - C-axis on main spindle - C-axis on sub-spindle - Tank for chips included Coolant Pump - Workpiece unloading belt - Flushing for counter-spindle pliers - Hinge belt chip conveyor - Signal lamp 4-colour - IEMCA Boss 338/32HD bar feeder This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

Used machine Machine type: CNC turning and milling center Model: CTXalpha 500 V6 Manufacturer: DMGMORI Control: Celos with Siemens 840D si First commissioning: 2022 #001272 Technical data Turning diameter max. approx. 240mm Turning diameter standard approx. 200mm Chuck size approx. 210mm Turning length approx. 480mm Rod diameter max. approx. 52/option65mm Turret Stations 12 X-axis approx. 210mm Z-axis approx. 525mm Spindle speed 1/2 approx. 5000/6000 rpm Speed AGW max. approx. 5000U/ Rapid traverse X/Z/Y 30/30/22.5 • Main spindle 5000 Ulmin • Hydraulic 3-jaw chuck 210 mm • Sub-spindle 6000 Ulmin • Hydraulic 3-jaw chuck 170mm • 12 station turret VDI 30 Trifix • Tool drive for all stations • C-axis • Y-axis • Alternating speed • Coolant supply through the sub-spindle • Swivelling tool presetter • Coolant spray gun, 5bar • CTXalpha  ...

Used machine Machine Type: CNC Machining Center Vertical Model: NVX5100 2nd with Matris robot cell Manufacturer: DMGMORI Control:DMG MORI Celos Year of construction / Ib: 2019 / 2022 #001312 Technical data Travel range X-axis approx. 1050 mm Y-axis approx. 530 mm Z-axis approx. 510 mm Table size approx. 1,350x600 mm Workpiece weight max. approx. 1,200 kg Speed max. approx. 12,000 rpm Spindle motor approx. 37/22 KW Number of tool positions approx. 30 Rapid traverse approx. 30 m/min Mounting cone approx. BT40 Compressed air bar,L/min approx. 5, 300 bar,L/min Power consumption approx. 45 kVA Footprint L x W x H approx. 3.1 x 2.85 x 2.6 m (without chip conveyor, without robot) Machine weight approx. 7,300 kg Main Drive with Higher Torque - Tool Holder Cone for BT-40 Tool Holder - Tool magazine with 30 places (#40) - Door for tool magazine - Hinged belt conveyor  ...

Used machine Machine Type: CNC Machining Center Vertical Model No.: CMX1100V Manufacturer: DMGMORI Control:DMG MORI SLIMline® Multi-Touch Heidenhain Year of Make: 2022 #001358 Options: - Main spindle 12,000 rpm 13/9kW SK40 - Tool holder BT 40 for tightening bolts DIN 69872 - Direct position measuring system X-Y-Z - Magazine with 30 tool positions - Coolant supply through spindle (IS) bar 20 - Double switching filter - Coolant-blown air switching externally via M-function - Chip conveyor (scraper belt, left side) - Tank capacity left side chip conveyor 250 - Coolant spray gun for chip removal - Automatic cab roof - Signal light - Electronic handwheel - Button kit spindle and table Traversing range X-axis 1100 mm Y-axis 560 mm Z-axis 510 mm Table size approx. 1400 x 560mm Workpiece weight max. approx. 1000kg Rapid traverse X / Y / Z 30 m/min Footprint L x ...

x-travel: 1135 mm y-travel: 1050 mm z-travel: 710 mm 0: dia 1240 x 690 mm control: Heidenhain TNC 640 : : 15000 min/-1 : 35 kW tool taper: SK 40 work table:: table surface area: 1050 x 860 mm max. table load: 2000 kg : : 30 pos. tool taper: SK 40 change-time chip to chip: 6 sec feeds:: : 40 m/min feed speeds: 40000 mm/min total power requirement: - kW weight of the machine ca.: 18 t dimensions of the machine ca.: 5,1 x 3,99 x 3,4 m 5-Axis Machine equipped with: - CNC Control Heidenhain TNC 640 - universal Milling Head (B-Axis +30/-130°) - NC- rotary Table dia 800mm (C-Axis) - BMF coolant and filtration system. - electr. Handwheel The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1.135 mm y-travel: 1.050 mm z-travel: 750 mm control: iTNC 530 Heidenhain Main spindle:: turning speed range - main spindle: max. 14.000 min/-1 power capacity - main spindel: 19 kW max. Torque: 100 Nm tool taper: HSK-A 63 table surface area: 1.400 x 1.050 mm max. table load: 2.500 kg max. workpiece sizes: 1.400 x 1.240 mm max. workpiece height: 750 mm tool magazin:: number of toolpositions: 30 pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 365 / 395 mm max. tool weight: 8,0 kg change-time chip to chip: 6,1 sec feeds:: feed speeds: max. 40.000 mm/min rapid traverse: 40 m/min Accelaration: 6 m/s² Feed force ( X / Y / Z ): 14 / 20 / 14 kN total power requirement: 44 kVA weight of the machine ca.: 14,4 t dimensions of the machine ca.: 6,0 x 5,0 x 3,3 m Documents: Chip conveyor: Coolantsystem: high pressure coolan ...

To mediate on behalf of the customer. Used machine Machine Type: CNC Swiss Automatic Lathe Model: Sprint32 Manufacturer: Gildemeister Control: Fanuc 160iB First commissioning: 2003 #009328 Location: Poland Control Fanuc 160i-B Turning length 120 mm Turning diameter 32 mm Number of axes 8 Travel X1 axis 65 mm Travel Y1 axis 350 mm Travel Z1 axis 120 mm Travel X2 axis 265 mm Travel Y2 axis 235 mm Travel Z2 axis 320 mm C1-axis travel 360° Travel C2 axis 360° Spindle bore 42 mm Spindle speed 8000 rpm Motor power 7.5 kW Total power requirement 34 kVA Dimensions L 4900 x W 1630 x H 1920 mm Weight 4350 kg The above information was provided to us by the seller and must be checked during inspection. This offer is subject to change and non-binding. Changes, errors and prior sale expressly reserved.

DMG MORI CL2000A CNC turning center was built in 2017 in Japan by DMG MORI CO., LTD. The machine is new and has never been used. The DMG MORI CL2000A is an excellent choice for the production of high-precision and repeatable parts used in many industrial sectors. This compact yet extremely powerful lathe will excel in even the most demanding production challenges. All machining processes, i.e. precision turning or threading, are performed fully automatically by means of the spindle and the cutting tools, taken from a 10-position turret. The spindle, driven by a high-powered motor, rotates at a maximum speed of 4500 rpm and operates in two X,Z axes with feeds of 245 mm and 370 mm respectively. What’s more, the machine’s design is based on the Finite Element Method (FEM). This solution guarantees the maintenance of high geometrical accuracy of the design, even under heavy loads.  ...

x-travel: 2600 mm y-travel: 1100 mm z-travel: 900 mm control: Heidenhain 530 total power requirement: kW weight of the machine ca.: 25050 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 750 mm y-travel: 210 mm z-travel: 1150 + 100 mm control: Fanuc MSX-701III Maximum turning diameter: 660 mm Max. turning length: 1498 mm Diameter over cross slide max.: 400 mm number of spindle speeds: 3000 U/min tool piece magazine with: 40 Plätzen turret: 10 Fach total power requirement: 90 kVA weight of the machine ca.: 26,6 t dimensions of the machine ca.: 5301 x 2997 x 2788 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 650 mm y-travel: 520 mm z-travel: 475 mm control: Heidenhain TNC 530 tool adaptor: turning speeds: 15000 U/min spindle motor: 25/35 kW tool change unit: 30 pos. table surface area: 630 X 500 mm workpiece weight: 300 kg c-axis: 360 (0,001) ° A-Axis: -35 / +110 ° rapid traverse: 42 m/min feed: 10 m/min total power requirement: 31 kVA dimensions of the machine ca.: 3,3 x 2,2 x 2,78 m total wight: 7,5 t 5-Axis Machine ausgestattet mit: - CNC Control Hiedenhain TNC 530 / DMG ERGOLine - elektr. Handwheel - NC-Rotary / swivelling Table - Coolat - Vollkabine - ATC 30-fold - Renishaw Measuring - Chip Conveyor - 3D-Quick-Set The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 2100 mm y-travel: 2100 mm z-travel: 1250 mm spindle motor: 20 kW spindle turning speed range: 24000 U/min tool taper: HSK A 63 b-axis: -70 / +180 ° table diameter: 1700 mm table load: 8 t Feed speed: 60 / 40/ 40 m/min. rapid traverse: 60 / 40 / 40 m/min Control: Heidenhain iTNC 530 total power requirement: 89 kVA weight of the machine ca.: 41 t dimensions of the machine ca.: 9,8 x 7,5 x m - CNC Control Heidenhain iTNC 530 - Tool Changer 93-fold (HSK A 63) - Motor Spindle / Pick-Up Spindle approx 40900h Working Hours and 27100 Spindle Hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: - mm turning length: - mm control: - total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m On behalf of the customer The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mm turning length: 1200 mm control: Siemens 840D greates pass round over bed: 700 mm Main spindle:: turning speed range - main spindle: 20 - 5000 min/-1 power capacity - main spindel: 25 /34 kW C-Axis: 0,0001 ° spindle diameter: 65 mm milling spindle: milling spindle motor: 23 / 13 kW milling head speed: 12000 U/min b-axis: +/- 120 ° axis stroke:: x-axis: 490 mm y-axis: +/- 100 mm z-axis: 1300 mm feeds:: rapid traverse ( X / Y / Z ): 60 / 22,5 / 30 m/min feed power: 5,6 / 5,6 / 7,4 kN number of toolpositions: 24 pos. tool taper: HSK A 63 total power requirement: - kW weight of the machine ca.: 15 t dimensions of the machine ca.: 6 x 3 x 2,3 m CNC turning and milling center - 5 axes simultaneous - CNC control Siemens 840D Ergo Line with ShopTurn - C-axis (0.0001°) - Milling head with B-axis - Y-axis - Coolant device/paper belt filter (through Spindle) - Chip c ...

Key data: 2600 mm, 1200 mm, 1000 mm

Inv. Num. : 9211 Type: DMF 260 Producer: DMG Created: 2010 Parameters: Control system: Heidenhain iTNC 530 Switch-on hours: 63822 h Hours: 29578 h Maximum vertical spindle speed: 8000 1/min X-axis travel: 2600 mm Y-axis travel: 1200 mm Travel Z axis: 1000 mm Number of axles: 5 pieces Machine weight: 25000 kg

Control Heidenhain iTNC 530 Travel X/Y/Z: 2200 x 560 x 720 mm Spindle speed 18,000 min-1 Clamping area 2600 x 600 mm Max. table load 2200 kg Swivel head IKZ 25 bar Tool magazine for 30 Wkz, SK 40 Choice of C- or A-axis Measuring Probe Heidenhain TS 640 Chip conveyor Paper Belt Filter

x-travel: 2600 mm y-travel: 1100 mm z-travel: 920 mm tool magazin:: 30 internal coolant system feed: 40 Bar tool taper: SK50 total power requirement: --- kW weight of the machine ca.: 26,1 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 390 mm turning length: 2250 mm control: Sinumerik 840D swing diameter: 610 mm cross movement. (x-axis): 605 mm longitudinal traverse (z-axis): 1.870 mm y-axis: 210 mm b-axis: 240 ° Axial travel (X2) / Longitudinal travel (Z2): 267/1.840 mm Longitudinal travel (Z3): 1.840 mm main spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: max 82 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 82 mm Diameter in front bearing: 180 mm Counter spindle: - clamping chuck diameter: 250-315-400 mm bar material dia.: 92 mm spindle head: Ø 220H5 spindle bore: Ø 118 mm Clamping tube inner diameter: 104 mm Diameter in front bearing: 180 mm Main spindle drives left and right: - power requirement: 45/47 kW speed area: 20 - 3.200 1/min Buckling speed: 650 1/min torque: 650/ 1.080 Nm C-axis speed: 3.200 1/min Torque C-axis: 660 1/min Partial  ...

x-travel: 850 mm y-travel: 520 mm z-travel: 475 mm Control: 840D sl Operate (CELOS) Siemens Main spindle:: turning speed range - main spindle: 20 - 14.000 min/-1 power capacity - main spindel: 20,3 / 14,5 kW max. Torque: 121 / 84 Nm tool taper: SK 40 DIN69871 work table:: table surface area: 1.160 x 570 mm max. table load: 1.000 kg work height max.: 800 mm tool magazin:: number of toolpositions: 30 pos. tool taper: SK 40 DIN69871 max. tool diameter: 80 / (130) mm max. tool length: 300 mm change-time chip to chip: 5,9 sec feeds:: rapid traverse ( X / Y / Z ): 42 m/min feed speeds: max. 36.000 mm/min feed power: 6,5 kN Accelaration: 5 m/s² total power requirement: 18 kVA weight of the machine ca.: 6,7 t dimensions of the machine ca.: 5,5 x 3,5 x 2,8 m Documents: Chip conveyor: Coolantsystem: 245 l through spindle coolant: 20 bar direct travel-measuring-system: Spray gun: elektr. h ...

greates pass round over bed: 700 mm swing diameter over slide rest: 380 mm max. turning diameter: 410 mm control: HEIDENHAIN - 4290 max. Spindle speed: 5.000 U/min. centre distance: 975 mm travel -x axis: 300 mm travel -y axis: 120 (+/- 60) mm travel -z axis: 850 mm numbers of positions in the tool changer: 12 tool taper: VDI40 CNC Turning- and Milling Center | DMG - CTX 800 Beta equipped with a turret for driven tools, SCHUNK lathe chuck (Ø 315 mm) as well as tailstock and chip conveyor. An extensive tool package is in the Scope of delivery includes. The machine is in a well-maintained condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: CTX800beta | CTX800 beta | CTX-800 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1035 mm y-travel: 560 mm z-travel: 510 mm Control: SIEMENS 810 D table surface area: 1200 x 560 mm table load: 1000 kg tool taper: SK 40 spindle turning speed - stepless: 20 - 8000 U/min feeds longditudinal/cross/vertical: - 20000 mm/min rapid traverse: 25 m/min spindle drive motor: 13 kW dimensions of machine: 2,6 x 2,6 x 2,7 m weight of the machine ca.: 4,1 t Working hours: - Power on: 44113 - Spindle hours: 13284 Equipped with: CNC control SIEMENS 810 D powerline 20-station ATC Coolant equipment Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, after prior agreement it is possible to test it. It has a modified system to TNC640, touch screen. Without tools and without water management,

x-travel: 735 mm y-travel: 650 mm z-travel: 560 mm control: 840D sl FD operate Siemens Main spindle:: turning speed range - main spindle: max. 18.000 min/-1 power capacity - main spindel: 35 / 24 kW max. Torque: 119 Nm tool taper: HSK-A63 DIN 69893 swiveling-rotary-table:: table diameter: 680 mm max. table load: 600 kg max. workpiece sizes: 650 x 650 x 500 mm swivellable: +/- 120 ° rotatable: 360 ° tool magazin:: number of toolpositions: 30 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 160 mm max. tool length: 315 mm max. tool weight: 8,0 kg change-time chip to chip: ca. 4,9 sec feeds:: feed speeds: max. 40.000 mm/min rapid traverse: 40 m/min total power requirement: 65 kVA weight of the machine ca.: 11,6 t dimensions of the machine ca.: 4,0 x 3,0 x 2,95 m Documents: Chip conveyor: Coolantsystem: 600 L through spindle coolant: 40 bar paper ba ...

turning diameter: 65 mm turning length: 150 mm control: Siemens 840D spindle passage: 75 mm turning length: 150 mm c-axis: 2x 0,001 ° gripping station: 65 mm speeds: 5000 U/min rapid traverse: 30 m/min turret (x-stations): 3x12 Number of axles: 10 St. number of toolholder-holes: 36 chip conveyor: ja / yes kW coolant filtering unit: ja / yes kW Number of working hours: 35000 h total power requirement: 22 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 4,4 x 2 x 2,3 + Iemca m bar loader: Iemca Master 880 DMG Sprint 64 Linear CNC lathe, built in 2007, 10 axes, 2 spindles, 3 turrets with Iemca Master 880 loading magazine Accessories: a large number of tool holders in total 104 off, 24 of them are driven tool holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 65 mm turning length: 150 mm control: Siemens 840D spindle passage: 75 mm turning length: 150 mm c-axis: 2x 0,001 ° gripping station: 65 mm speeds: 5000 U/min rapid traverse: 30 m/min turret (x-stations): 3x12 Number of axles: 10 St. number of toolholder-holes: 36 chip conveyor: ja / yes kW coolant filtering unit: ja / yes kW Number of working hours: 35000 h total power requirement: 22 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 4,4 x 2 x 2,3 + Iemca m bar loader: Iemca Master 880 DMG Sprint 64 Linear CNC lathe, built in 2007, 10 axes, 2 spindles, 3 turrets with Iemca Master 880 loading magazine Accessories: a large number of tool holders in total 104 off, 24 of them are driven tool holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Horizontal BAZ DMG MORI NHX-4000 with 2-fold pallet changer Year of Make: 2017 Control: Celos with Sinumerik 840Dsl Operate Program running hours: 21,000h Technical data: Spindle speed: 10 - 20,000 min-1 (motor spindle speedMASTER)® Drive power: 35/25 KW Torque: 130/85 Nm Tool holder: HSK 63 Number of magazine slots: 60 - Ring magazine Travels: X-axis: 560mm Y-axis: 560mm Z-axis: 660mm C-axis: 0.001° Pallet size: 400x400mm Accessories: 2-fold pallet changer Coolant system for IKZ 70bar - 900 litre tank - paper belt filter Chip conveyor Preparation Renishaw 3D - Probe

Control: Siemens 840D Country of origin: Germany Spindle speed n-1: 12,000 Spindle motor kW: 9 Z - Path mm: 510 Y - Path mm: 510 X - Path mm: 835 Speed m/min: 30 Tool holder: HSK 40 Table load: 800 kg Clamping area mm: 1,000 x 560 Machine footprint mm: 2,100 x 2,700 Machine weight approx. kg: 4,200
