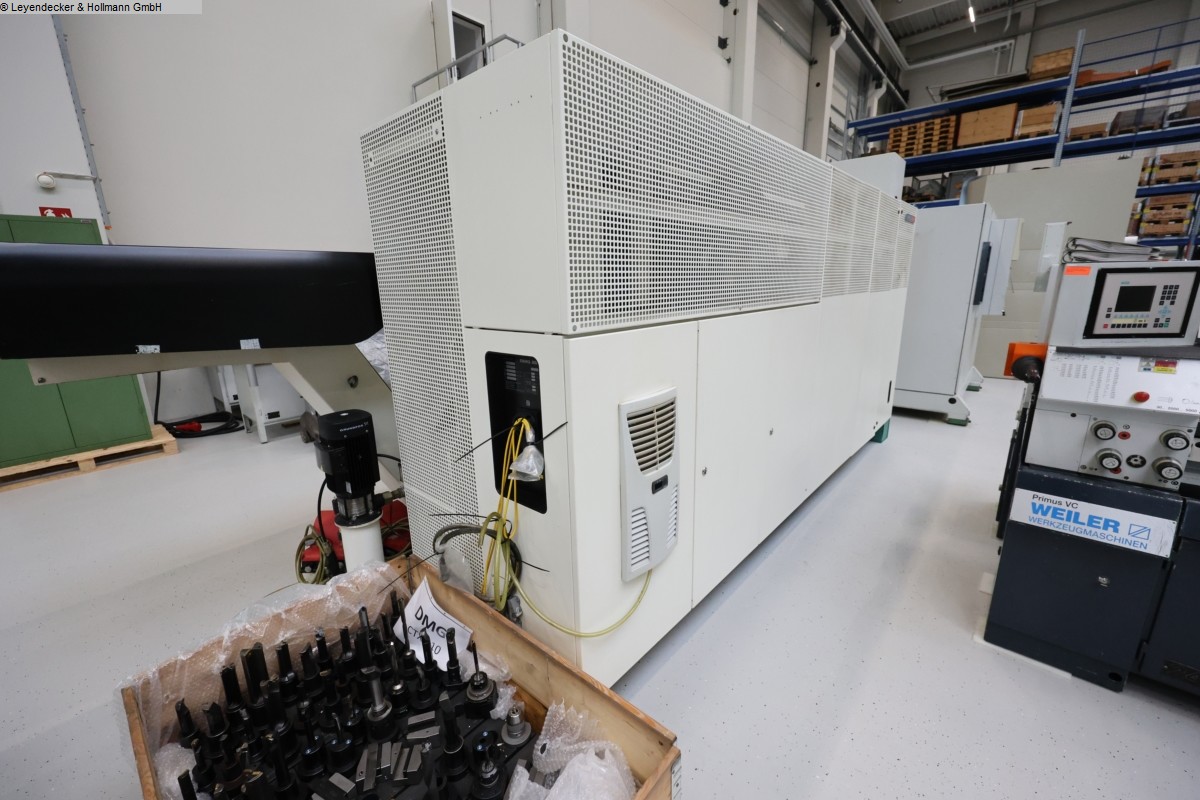

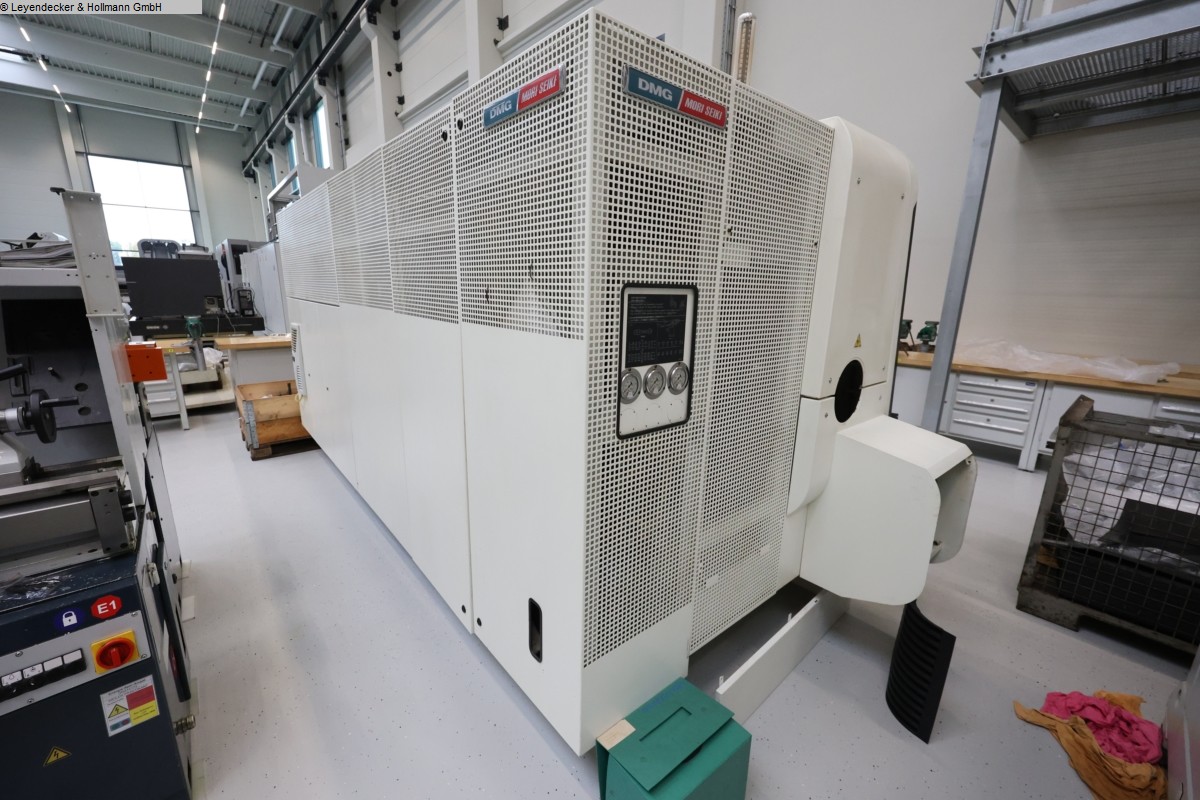

CNC Turning Centers DMG-MORI SEIKI CTX 510 ecoline V3
metal working machines / lathes / CNC Turning Centers
turning diameter: 465 mmaxis distance: 1.150 mmcontrol: Siemens 840D centre height: 360 mmSwivel range via X-slide: 465 mmchuck diameter: 250 mmtravel -x axis: 300 mmtravel -z axis: 1.050 mmrapid power traverse in X-and Z direction: 30 m/minMax. workpiece weight – chuck: 150 kgMax. workpiece ...
Manufacturer: DMG-MORI SEIKI
Model:CTX 510 ecoline V3
Type of machine: CNC Turning Centers
item-No.: 170383871
Quantity: 1
Date: 28.10.2026
Year of manufacture: 2012
Location: Hilden
Price:
Machine in stock:Yes
Seller-item-No.:1083-03495
turning diameter: 465 mm
axis distance: 1.150 mm
control: Siemens 840D
centre height: 360 mm
Swivel range via X-slide: 465 mm
chuck diameter: 250 mm
travel -x axis: 300 mm
travel -z axis: 1.050 mm
rapid power traverse in X-and Z direction: 30 m/min
Max. workpiece weight – chuck: 150 kg
Max. workpiece weight – tailstock: 350 kg
Max. workpiece weight – steady and tailstock: 600 kg
weight of the machine ca.: 7,5 t
dimensions of the machine ca.: 2,5 x 5,3 x 2,2 m
Equipment/Accessories:
- 12-station tool turret (VDI 40 mount)
- With 6 driven tool stations (VDI 40 coupling)
- Hinged chip conveyor
- Reinforced coolant pump (12 bar)
- Hydraulic 3-jaw chuck (D 315 mm)
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
