extruders used for sale (297)

GAMMA MECCANICA GM 90-35D COMPAC HP (photos taken before reconditioning . see how we recondition [HERE](.germanplast/pages/photo-gallery)), automatic cycle from waste to granule, Material: hard and soft plastics PP, PE, PP/PE, PS, ABS - film reels, Optimal scrap size 40 mm. (ask for [size reduction equipment](.germanplast/listings?q=granulators) if you need), Nominal throughput rate 250-500 kg/h depending on the type of material and feeding rate, Loading belt with metal detector, Reel feding system, Compactor AF-T 105, 90 kW drive, Extruder 90 mm. 36 L/D - 90 kW drive, degassing vacuum pump, BDO 90/140 screen changer 144 mm. Ø screen [ fully automatic screenchanger available on separate request](.germanplast/listings/7610249-used-fimic-ras-325-automatic-sc reenchanger), GMC 50 hydraulic power unit, Cooling tank with TDA 4.0 granulator, C285 granulate centrifuge, Granulate drying tower,  ...

TECOM BLOWN FILM EXTRUDER, for LDPE-RLDPE blends, Contrex feeding, 2 gravimetric components + 1 volumetric dosing units, Screw diam.70 mm 30 L/D, Rotating head, Low neck, 1.600 mm pull off unit, gusseting unit, Cason corona treatment, single color printer (for marks), 1.600 mm double collection frame, BRA 36+ Eurochiller, Connected and running., conditions: used - running, working width: 1600, availability: February 2026

EREMA 1109 TVE PLUS, Complete regranulation line for LDPE LLDPE HDPE PP PS, Throughput rate 400-500 kg /h depending on materials, Including:, loading conveyor belt, tunnel metal detector, compacting unit, extruder with 90 mm.screw Ø, double piston, backflush screen-changer, double degassing unit,, water ring pelletizer, stainless steel centrifugal dryer, closed cycle water flow, electric cabinet for full management, 44.500 worked hours, in production, Users manuals, CE compliance declaration, Electrical drawings available, capacity: 400-500 kg/h depending on materials, conditions: very good conditions - now disconnected , type: compact line from scraps to granule, highlighting: The Erema lines are particularly appreciated for the high efficiency production/consumption and for the screening which happens before degassing.

EREMA INTAREMA 1309 TVE plus SD, Complete regranulation line for LDPE LLDPE HDPE PP PS, Throughput rate 480-750 kg /h depending on materials, Including:, loading conveyor belt, tunnel metal detector, compacting unit, extruder with 90 mm.screw Ø - first part of screw is in new plasma welding., double piston, backflush screen-changer, double degassing unit,, water ring pelletizer, stainless steel centrifugal dryer, closed cycle water flow, electric cabinet for full management, 3 years of work (26.365) hours with commercial LDPE washed and dried yielding 500-600 kg/h, The line is in very good conditions, Users manuals, CE compliance declaration, Electrical drawings available, capacity: 480-750 kg/h depending on materials, conditions: very good conditions - now disconnected , type: compact line from scraps to granule, highlighting: The Erema lines are particularly appreciated for the high e ...

CDM PREALPINA USED EXTRUSION LINE, for HDPE LDPE LLDPE PS PC ABS PP, nominal throughput rate 380 kg/h (depending on material and feeding rate), ABB Main drive 117 KW 380 V 50 H 3Ph (65% used in work), loading hopper, extruder with heaters and vents, fitted with a 105 mm Ø screw 40 L/D, n.1 vacuum degassing pump, semi-automatic non-stop hydraulic screen-changer (200 mm Ø)complete with hydraulic pack, water ring pelletizer, drying centrifuge, electric cabinet, CE compliance, User’s manuals, Electrical drawings, The line is offered either CHECKED or RECONDITIONED to various extents., capacity: 300-430 kg/h nominal

TECNOVA RECYCLING EXTRUDER, mod.Mini 60 mm., for PE PP scraps, throughput rate around 127 kg/h, buffer silo, forced feeding unit, extruder with 60 mm screrw diam., 35,3 kw drive, semi-automatin changer, water ring pelletizer, drying centrifuge, electric cabinet for whole management., Machine offered reconditioned, installed power - used power in work: about 60-65% : 35,3 kw, capacity: 127 kg/h depending on materials, conditions: used,reconditioned, type: single screw PE PP ABS PS PC recycling

TECNOVA RECYCLING EXTRUDER, mod.Mini 60 mm., for PE PP scraps, throughput rate around 127 kg/h, buffer silo, forced feeding unit, extruder with 60 mm screrw diam., 35,3 kw drive, semi-automatin changer, water ring pelletizer, drying centrifuge, electric cabinet for whole management., installed power - used power in work: about 60-65% : 35,3 kw, capacity: 127 kg/h depending on materials, conditions: used, in good conditions

CDM PREALPINA REGRANULATING LINE 130 mm 2xdegassing, for PE PP PS PP PC ABS (it has been working with clean scraps only), extruder with 130 mm. screw Ø 40L/D, including buffer silo with agitators, horizontal extraction screw, crammed feeding unit synchronized to extruder screw, a.c. 283 kw drive, n.2 degassing pumps, semi-automatic screen changer 230 mm diam.screens , water ring pelletizing unit, stainless steel drying centrifuge, vibrating screen, electric cabinet, blower + pipings, vertical mixer, machine reconditioned, can be fitted with a [FIMIC RAS](.germanplast/listings/5241333-refurbished-fimic-ras-400-automatic -screenchager-reconditioned) fully automatic screenchanger, installed power - used power in work: about 60-65% : 435, capacity: 500-600 kg/h, availability: 5 weeks time, options available: fully automatic screenchanger, conditions: refurbished, type: double degassing fo ...

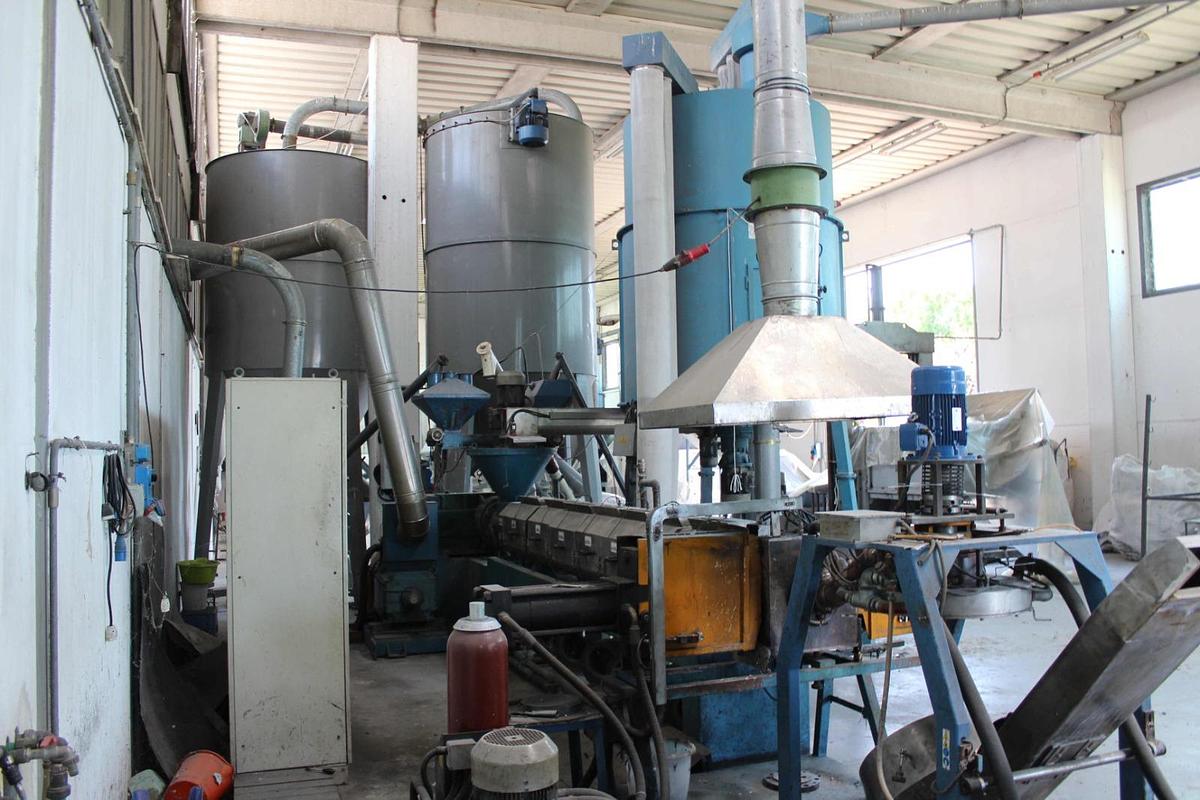

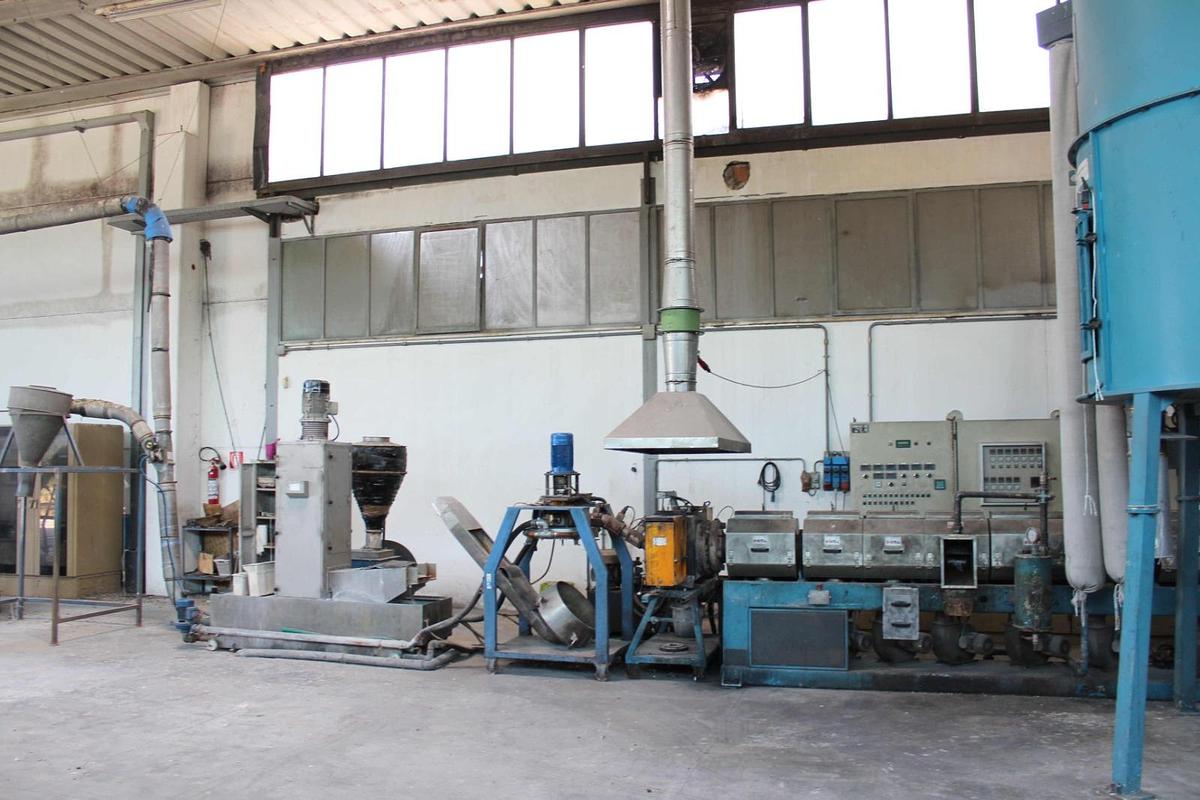

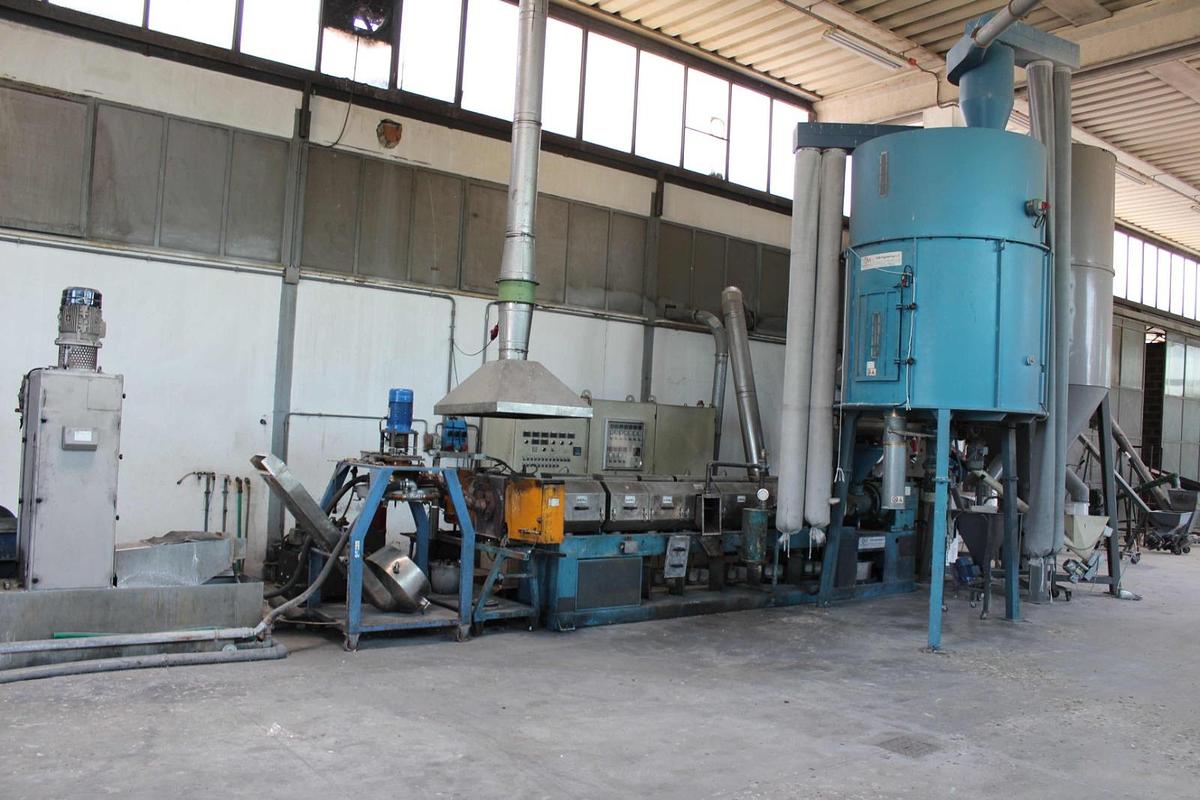

CDM PREALPINA RECYCLING EXTRUDER, Materials PE PP PC PS ABS PA, extruder with 130 mm. screw diam., Constructed in 2006, crammed feeding unit, extruder 130 mm., a.c. 283 kw drive, one degassing pump 5,5 kw, semi-automatic, non-stop hydraulic screen changer 230 mm diam.screens, hydraulic power station, water ring pelletizing unit, drying centrifuge, heat exchanging unit, vibrating screen, electric cabinet, machine reconditioned, installed power - used power in work: about 60-65% : 283, options available: different pelletizer, with or without buffer silo, with blower + bag filling station with vertical mixer, capacity: 500-600 kg/h depending on material and feeding rate, conditions: reconditioned (or as is)

FIMIC RAS+REF 400 FULLY AUTOMATIC SCREENCHANGER, screening area 1.206cm², for PP / LDPE / LLDPE / HDPE / PS / EPS / ABS / PVB, possible setting as : continuous scraping OR scraping on an Amp.threshold OR backflush, it was mounted on extruder producing 800 kg/h with 100-150 my screening, Always used as RAS (REF equipment brand new), 30 kw drive, totally checked in 2024 by constructor, Immediately available, remote connection (Industry 4.0) with pressure control system from pulpit, 4-5 spare laser filters available, multipolar plug connectors, We can supply spare screens for this machine., Laser screen from 80 to 300 µ - Mesh from 180 to 50, Punched screen from 400 to 2.000 µ - Mesh from 40 to 10, installed power - used power in work: about 60-65% : 30

MOLD BLOCKS for MAJOR CORRUGATORS, precision engineered in proven OEM quality, Range : 4,5 mm.ID to 500 mm OD, fast delivery, high precision, durable and reliable, accurate fit, maximum flexibility for bespoke parts

Here is a list of available equipment for pipes and profile extrusion from EU constructors., New equipment is constructed by renouned German Constructors, Used equipment is in good working conditions, Check the PDF list below and revert to us with your inquiries., Be very specific in yuoe questions and please don not forget to give your full contact, yourname, your Company name, Country, Whatsapp and phone no. Well be happy to assist you.

ROTATING SCREEN, construction in Aisi304 stainless steel, previously working on a 160 mm extrusion line, stainless steel screen with 17 mm holes, 2 exits for lumps and good materials, 0,25 kw motor, Bonfiglioli gearbox, loading hopper 305 x 505 mm., excellent conditions, installed power - used power in work: about 60-65% : 0,25 kw, availability: immediate, conditions: excellent

PREALPINA CDM EXTRUSION LINE 105 mm strand, loading hopper for hard plastics (possible addition of feeding screw on request), extruder with screw Ø 105 mm 35 L/D, n.1 vacuum degassing pump, d.c. motor 117 kw 400 V 3Ph.50 Hz, semi-automatic, non-stop, hydraulic screen changer, hydraulic pack, strand die, cooling bath, air drying tunnel, strand pelletizer, vibro classifier, The line is offered reconditioned, availability: 6 weeks from confirmation, options available: different cutting, different screen, upstream and downstream equipment, capacity: 400 kg/h, conditions: reconditioned with warranty, type: single screw

CRAMMED FEEDING UNIT, reconditioned, This unit can be synchronized to feeding screw from buffer silo and horizontal screw in extruder to grant a uniform, continuous feeding, for light scraps, mounted on a 130 mm extrusion line, totally reconditioned, possible addition of mastebatch feeder, availability: in stock, conditions: reconditioned, type: for up to 700 kg/h extruders

PRT WATER RING PELLETIZER, for PE PP PS PC ABS, nominal capacity 600-700 kg/h (tested up to 900 with PS), N.4 cutting blades, N.1 thermoregulation zones, Heating power 8.00 kW, Cutting motor power 4.00 kW, N.1 water pumps, heat exchanging unit, Single water pump power 3.00 kW, Vertical centrifuge power 5.50 kW, Steam vacuum power 0.25 kW, soundproofed discharging cyclon, Total installed power 20.75 kW, constructed in 2006, only 200 worked hours, excellent conditions, installed power - used power in work: about 60-65% : 20.75, conditions: as new, availability: immediate, capacity: up to 600-700 kg/h (tested with PS 900 kg/h), PRESENT CONDITIONS: as new, excellent quality, price is less than 50% of a new one

COMAC TWIN SCREW EXTRUDER EBC60, barrel with n. 2 x 60 mm. diam co-rotating screws, 42 L/D, for PE PP ABS PC PS, compounds, masterbatches, Average throughput rate 600 kg/h depending on material and feeding rate, spare : 2 screws and 1 barrel reconditioned to 100% performances, Mounted: screws + barrel in very good conditions, n.1 dosing unit with hopper, N.2 vacuum degassing points, d.c.132 kw Siemens main drive 400V 50 Hz, non-stop hydraulic screen-changer with 90 mm screens (available with fully automatic screenchanger, on separate request), hydraulic pack, fitted with strand die (available with water ring pelletizer on request) + stainless steel cooling bath with heat exchanging unit + air-blowing dryer, electric cabinet (for extruder, screen-changer, hydraulic pack), pelletizer for strands, TVV Cooling column for granule., constructed i n 2001, The line is offered totally or partiall ...

FIMIC RAS 325 BACKFLUSH, fully automatic screenchanger, for back-flush only, so for contamination under 5%, no costs for doctor blades, no cost for laser filter., works with standard mesh, capacity related to screening mesh - with a 250 µ mesh, up to 700 kg/h, connected for test, offered totally reconditioned, with new control panel (or with drawings only), availability: 4 -5 weeks time, capacity: Max 500-600 kg/h, conditions: totally reconditioned, type: fully automatic - backflush

PLASTIMAC LAB EXTRUDER, for blown film, suitable for testing granulate, 25 mm screw diameter, 70 mm diam. die, 500 mm collection frame, 7,5 Hp drive, complete wuth supporting structure, (corona treatment+small printer can be sold separately if required), installed power - used power in work: about 60-65% : 7,5 Hp, working width: 500 mm, conditions: good

VENANZETTI COOLING TOWER, for granule. This system allows to cool the granule after extrusion with little space taken, READ CONSTRUCTORS DESCRIPTION :, Spiral elevators, The spiral elevator is the perfect solution for moving a product upwards while simultaneously treating it thermally in very small spaces., The conveyor surface is a rising helicoidal trough, or rather a spiral with a constant pitch. The width of the trough is determined by the difference between the helicoid’s external and internal diameter. The product moves upwards on the conveyor by means of an oscillating thrust movement with controlled frequency and amplitude, and the direction is inclined in order to throw the product upwards., The advantages of this solution are:, -, very small layout space;, - thermal treatments while the product is on the conveyor (heating, cooling, drying, curing, etc.);, - speed on the conve ...

GAMMA MECCANICA GM 125 COMPAC - TOTALLY RECONDITIONED, Extrusion line with pre-compactor, Nominal throughput rate 700-800 kg/h depending on the type of material and feeding rate, Average energy consumption : 0.25-0,30 kwh/kg, The line includes:, Loading belt, tunnel metal detector, compactor with dosing unit, extruder with 125 mm screw diameter, 35 L/D, nitrided screw and barrel in very good conditions., The line was working with LDPE film and PPL non woven., Previous owner never pushed the extruder over 600 kg/h, semi-automatic, non-stop hydraulic screenchanger, oleo-dynamic pack, water ring pelletizer, drying centrifuge, recycling water tank, electric cabinet for the complete management of the line, The line is offered reconditioned, See Constructors [description](.gamma-meccanica.it/en/plastic-recycling/plastic-recycli ng-compac/) for a new line like this one, availability: immediate, ...

FULLY-AUTOMATIC can be used in SEMI- AUTOMATIC mode with small different batches on and off when needed No operator (you save 1 man per shift) Low maintenance costs (no discs, just knives which can be re-sharpened) No need to reduce size, on most scraps. Suitable for film + foam + fibers, moisture and some contamination are well tolerated. Best degassing in the process, compared with other systems. Remote assistance through modem Agglomerator with barrel diam. 1500 mm.,LxWxH 4,3 x 2,3 x 5,050 mt. 570 kw , installed power abput 370 kw in work Steel cylinder case with inspection door, Side opening panel for inspection and replacing blades Power switchboard, Exchangeable inner steel liner for barrel Oleo-dynamic power station 0,75 kw with electro-valve opening, Hub temperature control system, Grease lubricated drive bearings, 0,4 kw ventilator for belt cooling with air conveyor, Steam vacuu ...

This LEISTRITZ ZSE60MAXX-48D was manufactured in 2012. A co-rotating twin-screw extruder, its designed for high-performance compounding of advanced polymer materials, including biodegradable polymers. Adaptable to various extrusion processes, its ideal for bioplastics, masterbatch production, or specialty compounding. Contact us for more information about this machine.

FIMIC RAS 325 SCRAPER, fully automatic screenchanger, screening surface 77.900 mm², Throughput: up to 600 kg/h depending on material and contamination, with scraping system, suitable for extrusion lines with capacity up to ca 500 kg/h or more depending on screening, Just disconnected, excellent conditions, constructed in 2023, immediately available, We can supply spare screens for this machine at competitive prices., Laser screen from 80 to 300 µ - Mesh from 180 to 50, Punched screen from 400 to 2.000 µ - Mesh from 40 to 10, capacity: 600 kg/h depending on material and mesh, availability: immediate, type: fully automatic

Gamma Meccanica 105 mm 40 L/D, for LDPE HDPE PP ABS PC PS, Nominal throughput rate 300-400 kg/h depending on feeding rate and material, Average energy consumption : 0,23-0,28 kWh/kg including buffer-silo feeding auger crammed feeder extruder with 105 mm screw 40 LD, n.1 vacuum degassing pump 110 kw a.c.drive with inverter non-stop hydraulic screenchanger (can be fitted with a [fully automatic screenchanger](.germanplast/listings/7610249-used-fimic-ras-325-automa tic-screenchanger)) water ring pelletizer drying centrifuge electrical cabinet user’s manuals and drawings constructed in 2000 offered RECONDITIONED, Total length 11.000 mt., Possible addition of upstream and downstream equipment., options available: fully automatic used screenchanger, capacity: 300-400 kg/h with only 0,23-0,28 kWh per kg produced, conditions: reconditioned, type: buffer silo+crammed feeder, Location: IT- 11020 ...

NGR S-GRAN 65 VHD, Constructed in 2011, nominal throughput rate 250 kg/h max, offered checked for good conditions, including:, loading conveyor belt, tunnel metal detector, densifier, extruder with 65 mm Ø screw, degassing point, hydraulic screenchanger, water ring pelletizer, drying centrifuge, extraction vent with cyclon and bag supporting structure., The line is offered reconditioned, capacity: 250 kg/h, conditions: used, checked, type: compact recycling line

GAMMAMECCANICA TANDEM SYSTEM 125 mm. 950 kg/h double screening, Throughput rate up to 600-950 kg/h ca, depending on material and feeding rate only 0,30-0,40 Kwh/kg., Line suitable for the recycling for heavily printed, high humidity and contaminated materials., High performance degassing chamber for removal of up to 10 times more gas and humidity in the melted material compared to other systems (so you save on the cost of an agglomerator), The line includes :, Loading conveyor belt, tunnel metal detector, automatic compactor, N.2 Dosing unit for masterbatches and more, 1st extruder with 125 mm. screw Ø 28 L/D, 1st degassing point, FIMIC RAS 500 fully aumatic screenchanger, control cabinet, 2nd extruder with 140 mm. screw Ø 18 L/D, 2nd degassing point, BD-PLAST non-stop screen-changer, TDA6 GM water ring pelletizer, heat exchanging unit, vibrating screen, blower, Water treatment unit ,  ...

EREMA RECYCLING LINE for PE PP, Type RM80E, constructed in 2004, including :, loading belt with metal detector, compactor, extruder 85 mm screw Ø, non-stop hhydraulic screenchanger, water ring pelletizer, sacking station, electric cabinet, availability: immediate, conditions: stored

CMG-MAM BLOWN FILM EXTRUDER for LDPE, extruder with screw diam. 80 mm., Production rate about 150 kg/h, die diam. 150 mm. on rotating head, haul off unit width 1.200 mm., corona treatment, winder mm.1.200, max reel diam. 1.200 mm., min/max film width 600/1200 mm
