saws used for sale (1,273)

Key data: 550 mm

IMMEDIATELY AVAILABLE - video link on request CNC-controlled 3-axis sawing and drilling center for sophisticated production technology Encapsulated, compact machine - designed as a closed production island - no noise and no chips in the machine environment - large extraction connection for efficient chip extraction. (The machine is also supplied as a two-axis sawing center without drilling unit). Dimensionally accurate 90° saw cuts both in small series and in large series production. CNC control based on Windows® with touch screen and color screen, simple menu-driven programming with symbols, remote maintenance module. Absolutely burr-free precision sawing of all materials such as - aluminum - bronze - GRP (glass fiber reinforced plastics) - wood - copper - brass and various plastics such as PVC and polyamide. Drilling (through holes and blind holes – step drill ...

Very high quality under-table double miter circular saw machine with manual saw blade feed – for cutting profiles and solid material made of aluminium – non-ferrous metal – plastics – wood and other soft materials Optionally available with roller conveyor and manual measuring stop with digital display. Largest saw blade diameter 620 mm Cutting Area - Examples - 90° - 130 mm x H 125 mm 90° - 80 mm x H 145 mm 45° - 100 x H 130 mm Infinitely variable miter adjustment +/- 20° Saw blade drive power 2.2 kW Dimensions approx. 0.9 x 1.2 m x H 1.6 m (with open protective cover) Weight approx. 350 kg

High-quality PLC – controlled automatic 90° under-table – straight-cut circular saw machine, for the rational cutting of profiles made of aluminium – non-ferrous metals – plastics – wood and other soft materials Smallest possible section length 5 mm Largest stroke of the feed clamping stick 620 mm (feed length unlimited) Infinitely adjustable feed speed Feed accuracy +/- 0.2 mm Horizontal and vertical material tension Largest saw blade diameter 450 mm Cutting area - - 300 mm x H 50 mm - 260 mm x H 98 mm - 240 mm x H 100 mm (see the figure with the section diagram) Saw blade speed 2,800 rpm Saw blade drive power 2.2 kW Dimensions approx. 1.5 x 0.9 m x H 1.36 m Weight approx. 440 kg

UKM 600 DG High quality semi-automatic under-table double miter circular sawing machine, for cutting profiles and solid material made of aluminum – non-ferrous metal – plastics – wood and other soft materials Largest saw blade diameter 600 mm Cutting range - 0° - 400 x H 135 mm, 245 x H 100 mm, 190 x 190 mm - 45° - 160 x H 100 mm, 145 x 145 mm Saw blade speed 2,800 rpm Stepless miter adjustment + 10°/-170° with grid points at +/- 45° and 0° Saw blade drive power 3 kW Dimensions approx. 1.1 x 1.2 m x H 1.65 m Weight approx. 310 kg

Very high-quality CNC – controlled two-unit double mitre precision circular sawing machine (heavy version - 2,500 kg dead weight) Brand new, immediately available from stock (subject to prior sale) For precise and rational cutting even of large and heavy profiles made of aluminium - non-ferrous metals - various plastics. The machine can be used both for single cutting - when cutting with two sawing units at the same time (smallest section length 370 mm / largest section length 6,000 mm) or in automatic mode – when used as single-unit circular saw machines, so that Section lengths from 5 mm to 15,000 mm and longer possible. Three CNC axes, electronic inclination of the saw units infinitely variable over the entire inclination range. SCHNEIDER® feed motors and electronic motor controllers. CNC control with Windows 10 operating system and 10.4" colo ...

Very high-quality CNC – controlled under-table two-unit double miter precision circular sawing machine with schifter cutting device (heavy version - 3,500 kg dead weight) Brand new, immediately available from stock (subject to prior sale). For the precise and rational cutting of large and heavy profiles made of aluminium - non-ferrous metals - various plastics. The machine can be used both for single cutting - when cutting with two sawing units at the same time (smallest section length 450 mm / largest section length 5,000 mm) or in automatic mode – when used as single-unit circular saw machines, so that Section lengths from 5 mm to 15,000 mm and longer possible. Five CNC axes for the electronic rotation of the saw tables infinitely variable over the entire rotation range, the vertical inclination of the saw blades electronically infinitely variable ...

CNC – controlled two-head double miter circular saw machine for the rational cutting of profiles made of aluminium – non-ferrous metals and various plastics. The machine can be used for single cutting – to saw the profile with two saw heads at the same time – or in automatic mode – here the two-head saw becomes a single-head saw The PKM 500 DG model is available in two versions – Version A – electrical / electronic miter adjustment of the saw heads, miter angle infinitely programmable between +/- 20°, CNC control with color graphics – profile drawings can be read as DXF file – remote maintenance via TeamViewer – software for wing cutting. Version B - pneumatic miter adjustment of the saw heads to preset stops, miter angle infinitely programmable between +/- 20°, CNC control with simple color graphics with the possibility to create cutting lists. Saw blade ...

PLC – controlled high-performance precision cold-circuit sawing machine with loading magazine and unloading magazine of very high quality - equipped with software for industrial production in accordance with Industry 4.0, designed for the precision cutting of rod material – tubes and hollow profiles made of steel and stainless steel Saw blade dimensions up to a maximum of 315 mm x 2 mm to 2.5 mm, maximum cutting range 0° - 12 mm to 80 mm tubes and hollow profiles - 12 mm to 40 mm solid material - saw blades made of TCT material are normally used (TUNGSTEN CARBIDE TIPPED) - this material allows very high cutting speeds and low saw blade thicknesses, which significantly limits material loss, saw blade speeds 20 to 130 rpm - optionally available with different saw blade speeds, controlled unloading unit for four different unloading positions - largest automatically unloadable sectio ...

PLC – controlled high-performance precision cold-circuit sawing machine with very high quality loading magazine – equipped with software for industrial production in accordance with Industry 4.0, designed for the precision cutting of steel and stainless steel rods – high-strength alloys – forged materials and similar materials and similar materials Saw blade dimensions 460 mm x 2 mm to 2.5 mm, maximum cutting range 0° - 150 mm or 130 x 130 mm - saw blades made of TCT material are normally used (TUNGSTEN CARBIDE TIPPED) - this material allows very high cutting speeds and low saw blade thicknesses, which significantly limits the material loss, saw blade speeds 60 to 130 rpm, controlled unloading slide for two different unloading positions, largest bar length in the loading magazine 6,000 mm, maximum material weight in the loading magazine 3,000 kg, largest material feed per fee ...

CNC – controlled double miter precision circular sawing machine of very high quality, designed for demanding metal construction, which requires a rational and precise cutting. Miter adjustment range infinitely variable - 90° / + 90°, cutting range 0° - 240 x H 85 mm or 125 x 125 mm or 140 mm / 45° - 150 x H 100 mm or 120 x 120 mm or 140 mm - 60° - 130 x H 80 mm or 120 x 120 mm or 130 mm, Saw band drive power 7.5 kW - saw blade speeds 13/26 - 17/34 - 52/104 - 74/148 - 105/210 m/min - saw blade diameter 425 mm, saw table height 1,000 mm, largest material feed per stroke 1,500 mm - drive by ball roller spindle CNC control with touchscreen and color graphics - software for automatic pushing and pulling the profile rod - extremely easy programming and operation - cut lists can be loaded as an Excel file, dimensions 1.2 x 2.1 m x H 1.9 m, weight 1,250 kg

Forte cold circular sawing machine with roll feed. Outfeed table and bundle magazine doesn't exist.

TRENNJAEGER Cold circuit saege - see pictures

Vertical band aege KOeLLE ST105, table 950/900 mm, v= 15 - 2300 m/min - table must be overhauled - see pictures

DOUBLE HEAD CUTTING MACHINE Inv. No. 13.109Z1 Make MECAL Model SW-453 Mach. No. 9001099 Year 2002 Useful cutting length 4.000 mm Max. lame diameter 500 mm Pneumatic inclination of the heads 90° / 45° - 22.5° Including: External inclination Feeler

Equipped with chip conveyor

Machine has been disassembled. Operation unknown

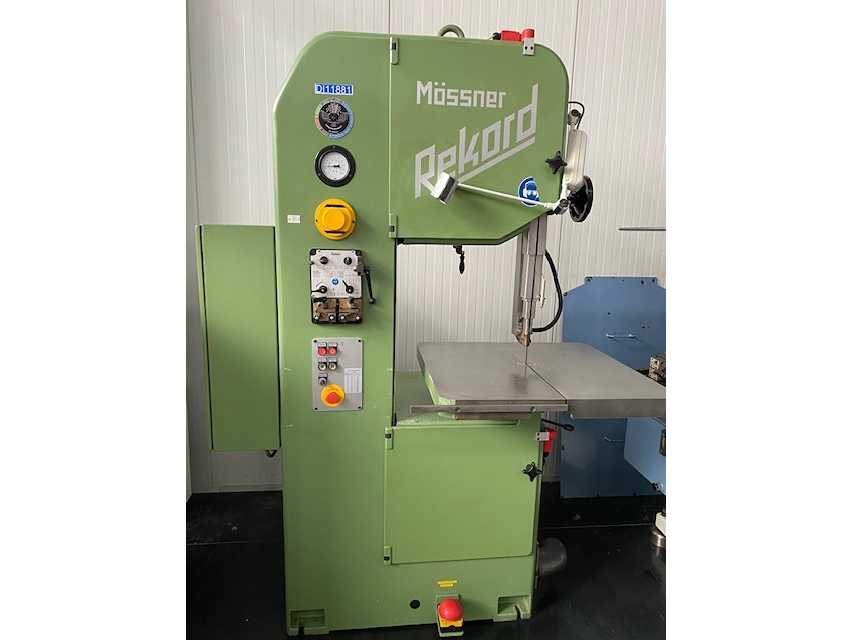

VERTICAL BAND SAWING MACHINE Inv. No. 12.895Z1 Make MÖSSNER Model SSF520 Wheel diameter 520 mm Table dimensions 750 x 800 mm Throad dept 510 mm Passage under upper guide 380 mm Cutting speeds Variables 18-160/240-2280 m/min Motor power 5.5 KW Net weight 1000 kg Max. thickness for fusion cutting 15 mm Including: Coolant Mushroom shaped emergency stop

in carrying case

This Emmegi Luna 450 TU/5 Circular Metal Saw was manufactured in 2008. It features a saw blade diameter of 450 mm and a spindle diameter of 32 mm. The saw blade motor operates at 2.2 kW with a speed of 2800 rpm. It supports cutting lengths from 310 mm to 5000 mm and has a weight of 1400 kg. Dimensions are 9400x1400x1838H. Contact us for more information about this machine.

CONTROLS  PLC TECHNICAL SPECIFICATION  max. cutting height: 360 mm  sawband length: 5334 mm  sawband width: 41 mm  max. bar feed (single stroke): 600 mm  cutting speed min.: 14 m/min  cutting speed max.: 102 m/min  power of band drive: 5.5 kWELECTRICAL SPECIFICATIONS  total power consumption: 10 kWDIMENSIONS / WEIGHTS  space requirements -left/right-: 2840 mm  space requirements -front/back-: 2800 mm  total height: 2130 mm  total weight approx.: 2540 kg

CONTROLS  NC controls SIEMENS S7 TECHNICAL SPECIFICATION  max. diameter of saw blade: 460 mm  cutting capacity round: 146 mm  cutting capacity square: 138 mm  mitre cutting: no   .. oblong: 250 mm  .. .. x: 100 mm  .. to: 220 mm/minDIMENSIONS / WEIGHTS  space requirements -left/right-: 2200 mm  space requirements -front/back-: 1950 mm  total height: 2000 mm  total weight approx.: 2700 kgHigh-performance automatic saw for cutting aluminium and non-ferrous metal profiles to length in 90° cuts.With feed conveyor and discharge / vibrating section and extraction system.- max. profile width / height to be processed: 250 / 148 mm- Min. profile width / height to be processed: 10 / 20 mm- Cut-off lengths from 10 mm- Saw blade motor 12/18.5 KW, S6 60%

CONTROLS  electronic controls TECHNICAL SPECIFICATION  max. diameter of saw blade: 260 mm  cutting capacity round: 260 mm  cutting capacity square: 260 mm  mitre cutting: yes   cutting range     round: 260 mm  .. oblong: 400 mmTECHNICAL SPECIFICATION  max. cutting height: 260 mm  sawband length: 4310 mm  sawband width: 0.9 mm  cutting speed min.: 17 m/min  cutting speed max.: 90 m/min  power of band drive: 2.2 kWELECTRICAL SPECIFICATIONS  total power consumption: 3.2 kW  mains voltage: 400 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 2400 mm  space requirements -front/back-: 2100 mm  total height: 2000 mm  total weight approx.: 1220 kgMachine overhauled, cleaned, and all oils replaced!The machine is fully hydraulically equipped, with a cooling water tank and pump, and a chip container for quick emptying.

TECHNICAL SPECIFICATION  max. cutting height: 150 mm  sawband length: 3660 mm

Circular Metal Saw manufactured in 2007. This FomIndustrie Blitz Alva 450/500 ABC features a blade diameter of 450 mm, allowing for precise miter cuts. With a tool speed of 2800 RPM, it is designed for high-speed cutting across various materials. The robust construction ensures stability and longevity, making it ideal for heavy-duty industrial environments. Consider the opportunity to buy this FomIndustrie Blitz Alva 450/500 ABC Circular Metal Saw. Contact us for further details.

saw blade diameter: 250 mmcutting diameter: 70 mmtiltable up to: 45 Graddimensions of the machine ca.: 3.5 x 0.6 x 1.8 mweight of the machine ca.: 300 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
