Circular Sawing Automatics ADIGE TT640

ADIGE TT640 circular sawing machine was built in 2009 in Italy by ADIGE S.p.A. The machine enables precise, automatic cutting of a wide range of metal workpieces, such as bars, tubes and profiles. Solid, square and rectangular sections are machined by means of a cutting disc with a maximum diameter of 275 mm. It ensures high repeatability and cutting precision in both unit and series production.

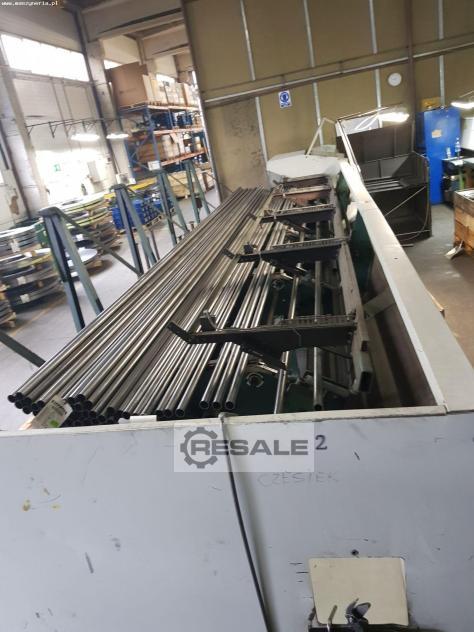

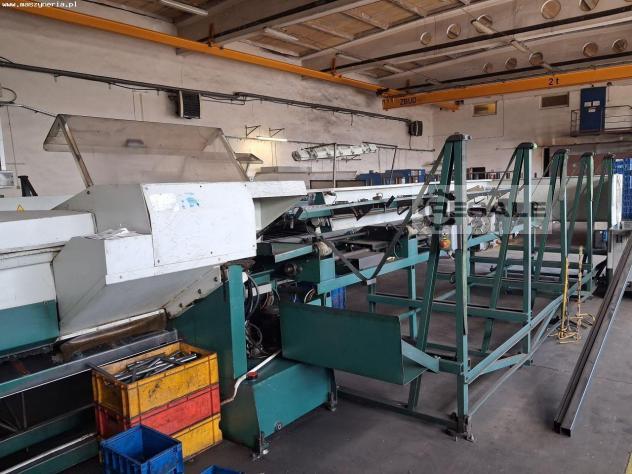

The ADIGE TT640 is equipped with a feeder that facilitates the loading of material into the workspace and enables continuous machine operation. The intuitive SIEMENS SIMATIC PANEL HMI control panel enables precise programming and control of process parameters, ensuring user-friendly operation. All this is complemented by an extremely rigid design that maintains high operational stability even during the most intensive use. The ADIGE TT 640 automatic circular sawing machine weighs 1350 kg.

Technical specifications of the ADIGE TT640 circular sawing machine
- cutting capacity (round cross-section): 10-80 mm
- cutting capacity (square cross-section): 10×10-70×70 mm
- cutting capacity (rectangular cross-section): 80×70 mm
- cutting capacity (solid cross-section): 30 mm
- minimum cutting length: 50 mm
- maximum cutting disc diameter: 275 mm
- minimum cutting disc diameter: 175 mm
- feeder
- HMI panel: SIEMENS SIMATIC PANEL
- operating hours: 45240 h
- installed power: 7,6 kW
- control voltage: 24 V
- power supply: 3x 380 V; 50 Hz
- weight of the TT 640 machine: 1350 kg
seller offer No. resale 169903460
