other wood working machines used for sale (1,425)

technical data: Make: Möhringer Type: KW 2h Types No:: 126 450 Track gauge: 980 mm Support height: 430 mm electr. Page verst.: yes Feeding: yes Wooden feeder: from the left Drive: 0.37 kW Wheel diameter: 200 mm

technical data: Track gauge: 980 mm Support height: 420 mm reinforced execution circulating chain Drive by worm gear motor with built-in slip clutch Kippstool adjustable stem holder Cable and cable balancing

technical data: Strand spacing: 700x700x1200x1500 Rank: 5 Axle distance approx.:5500 mm Make: Unknown

Machines No.: 0052 QFL 0053 Insertion Drawing No.: 146 001 75 1 cross conveyor light with insertion: Power: 0.37 kW Axle distance: 2.06 m Rank: 3 Transport by 3/4" chain and stanhl chain wheels Drive by special gear motor Substructure and bearing housing in steel construction

technical data: Rank: 10 90 curved Transport by roller link chain and steel chain wheels Drive without motor

1 roller movement: Machines No.: 0018 Drawing No.: 242 002 54 Roller speed length: 4 m Roll width: 300 mm Mounted with ball bearing rollers on profilesteel frames Drive by special gear motor Precision roller chain Spring-loaded length compensation 1 pull-off cross conveyor: Machine number: 0037 Drawing number: 147 501 46 Axle distance: 6.5 m Rank: 3 3/4" chain V2A built-in in roller aisle Transport of the cut material is carried out by roller link chain and screwed-on carriers Drive by gear edible motor Chain carriers made of profiled steel 1 pull-off cross conveyor: Machines No.: 0038 Drawing No.: 147 501 47 Axle distance: 6.5 m Rank: 3 3/4" Chain V2A built-in in roller aisle Transport of the cut material is carried out by roller link chain and screwed-on carriers Drive by gear edible motor Chain carriers made of profiled steel 1 pull-off cross c ...

technical data: Machines No.: 0115 Drawing No.: 170 317 00

technical data: Make: Möhringer Power: 5 kW

technical data: Type: not driven Make: Möhringer Rolls Number: 3 pieces Warehouse: Wiesentheid

technical data: Purpose: for boards Dimensions: 700 mm wide Note: as good as new Warehouse: Wiesentheid

technical data: Funding length: 2 m Axle distance: 1.8 m Bandwidth: 1500 mm

technical data: Roller speed length/width: 4.10 m Roll Dimensions: 550 x 140 Roll spacing: different

technical data: Roller length/width: 745 mm / 5500 mm Roll Dimensions: 600x .113 Roll spacing: different Free-standing

complete debarking plant Matelest, including mechanisation and control station. Type EM90 Infeeding up to 40 m/min. Motor 37 kW Log diameter 100-900 mm 4 hard netal knifes Continiursly reconditioned. Very good condition.

Semi-automatic board sorting Year of construction - ca 1997 Box quantity - 7 + 1 Task table, tilting table, separation, sorting, capping Infrared messystem Computer control Top Condition

This 5-axis WEINIG U23 wood moulder was manufactured in 1991. Ideal for detailed woodworking, it offers precision and efficiency. Consider the opportunity to buy this WEINIG U23 wood moulder. Contact us for more information about this machine.

This STEFANI Solutions 86 edgebander was manufactured in 2009. It features Nordson equipment, a maximum glued edge thickness of 25 mm, and a maximum panel thickness of 60 mm. The machine includes electric height adjustment, upper belt pressure, and a preheating zone. It also boasts interchangeable roller storage with 12 positions and a replaceable glue pot. Consider the opportunity to buy this STEFANI Solutions 86 edgebander. Contact us for more information about this machine.

This 5-axis SCM Stefani MD HP edgebander was manufactured in 2013. It features a robust steel construction, high-frequency motors, and a Startouch control system with a 12 touchscreen. Capable of handling solid wood edges up to 15 mm and rolls up to 3 mm, it includes a pre-milling unit, interchangeable glue pot, and a feed speed of 25 m/min. Consider the opportunity to buy this SCM Stefani MD HP edgebander. Contact us for more information.

This MAQUINARIA LDM VPS 2103 was manufactured in 2020. An industrial automated system for wood production, it features a hydraulic nailing system, chain-driven pallet transport, and servo motors for precise block positioning. It operates on 220V or 380V and handles pallet widths from 800 mm to 1500 mm. Safety certified under EN 12100 standards. Contact us for more information about this machine.

This HOMAG KAL 210 AMBITION 2264 edgebander was manufactured in 2010. It features a max glued edge thickness of 20 mm, edge gluing height up to 60 mm, and a max feed speed of 25 m/min. Equipped with a granulate glue system, preheating zone, and various processing units including a joint trimming and corner rounding unit. Consider the opportunity to buy this HOMAG KAL 210 AMBITION 2264 edgebander. Contact us for more information about this machine.

This MAYPRO LC2 was manufactured in 2018. It features an industrial PC with proprietary software, PLC integration, and can produce up to 2,000 pallets per 8-hour shift. Minimum and maximum pallet dimensions are 600 mm x 600 mm and 1,500 mm x 1,500 mm, respectively. It includes an automated wood feed system, multi-head nailing, and an integrated stacking system. Total installed power is 20-40 kW. Contact us for more information about this machine.

This 6-axis Bi Matic CH 2.2 edgebander was manufactured in 2010, featuring a glue pot capacity of 2 liters and dual vertical saws for end trimming at 12,000 rpm. It supports edge thickness up to 3 mm and requires an air pressure of 6 bar. If you are looking to get high-quality edgebanding capabilities, consider the Bi Matic CH 2.2 machine we have for sale.Contact us for more information.

Pinomatic cross conveyor for a planing and sawing line Year of construction 2001 Manufacturer Pinomtatic OY Type POS 9+10 S/N P1033 motorised cross conveyor with 7 chain hoists length of the arms: : 6000mm Width of the cross conveyor up to 4000mm ( variable adjustable ) Height: 900mm 6 chain hoists fixed mounted 1 chain hoist can be variably adjusted Voltage 230/ 400VAC

This HOMAG KAL 330/6/A3/S2 was manufactured in 2009. A used edgebander featuring a gluing unit for EVA hot melt adhesive, pressure zone, cutting unit, copy milling, scrapers, and a buffing unit. Includes a LIGMATECH workpiece returning system. Consider the opportunity to buy this HOMAG KAL 330/6/A3/S2 edgebander. Contact us for more information.

This DELTA pallet nailing machine line was manufactured in 2008. It features a comprehensive setup including a base nailer, a nailing machine with pneumatic feeder and nail control, units for marking, turning by 90 and 180 degrees, a corner saw, and a stacking unit, complemented by a conveyor belt. Consider the opportunity to buy this DELTA pallet nailing machine line. Contact us for more information.

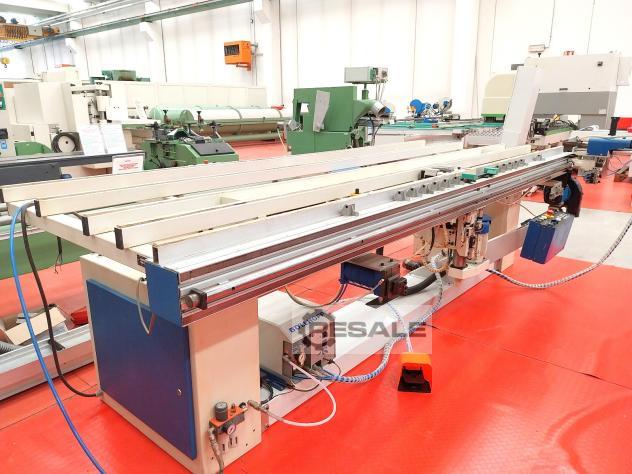

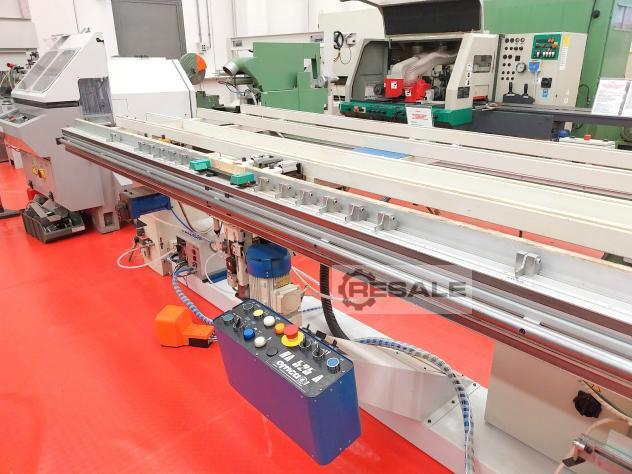

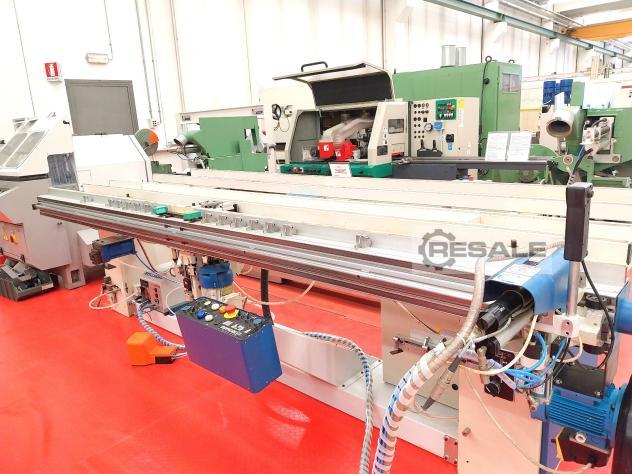

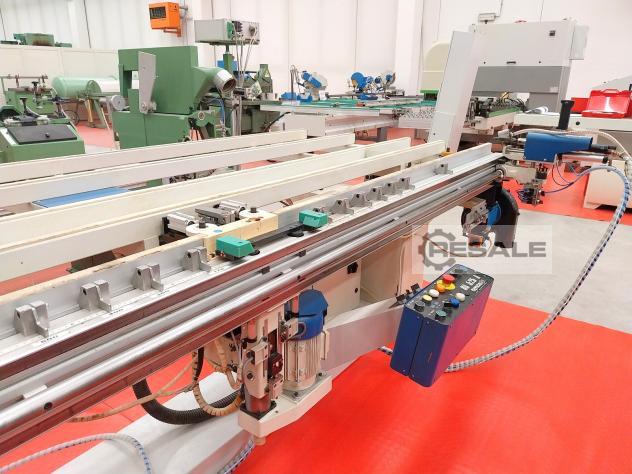

Code: 0407 Brand: OMGA Model: BA 525 A - CE Standard Hardware assembly center for door and window frames - CE Standard Technical data: Work table covered with felted scratch proof strips , rear part pneumatically inclinable from 0° to 10° with intermediate angles Composition: Carriage with self-fed pneumatic screwer with Böllhoff loader, work stroke controlled by a pneumatic cylinder with a inclusion-exclusion system , height adjustment Right/left backstops for height positioning of right/left handle holes Drilling unit with 3-bit head for the execution of handle holes Pneumatically operated hydraulic shear for cutting hardware Work table size mm 3500 x 1230 Work table height mm 920 Max working dimension mm 2800 x 2450 Min working dimension mm 350 Dust collector Working pressure 6/7 bar Overall dimensions mm 3600 x 1700 x 1000 h Weight kg 480

Code: 0404 Brand: HAMMER - FELDER GROUP Model: A3 - 31 - CE Standard 2-works combined machine (Surface Planer/Thickness planer ) for joinery, furniture, joinery fittings, custom-made furniture, plastic and various – CE Standard Technical specifications: Planer width 310 mm Table length 1400 mm Tilting guide 90-45° Three-phase motor v. 380 4 Hp Planer shaft with 3 knives Max chip removal 4 mm Thickness table width 306 mm Thickness table length 540 mm Min workpiece length 145 mm Thickness feed speed 6 mt/min Suction inlet diameter 120 mm Overall dimensions mm 1450 x 600 x 1000 h Weight kg 290

Code: 0403 Brand: SICAR Model: BRAVA 350/3 - CE Standard 3-works combined machine (Surface planer /Thickness planer /Mortiser) for wood, joinery, furniture, joinery fittings, plastics and various – CE Standard Technical specifications: Working width 350 mm Work surface length 1600 mm Tilting of fenknives Knives dimensions 350 x 20 x 3 mm Thickness planer table dimensions 350 x 660 mm Max working height 220 mm Min working height 7 mm Feed speed 7 mt/min Router: Table dimensions 250 x 500 mm Longitudinal stroke 200 mm Transversal stroke 100 mm Vertical stroke 90 mm Chuck 16 mm Chuck rotation speed 5700 rpm Workpiece clamping presser Three-phase motor 2,2 Kw Overall dimensions mm 1700 x 950 x 1000 h Weight kg 340

Code: 0400 Brand: SCM GENIUS Model: M 10/SI Universal 6-works combined machine with 3 motors for woodworking, joinery, furniture, custom-made furniture , window and door frames, doors and various Specifications: Three-phase motors V.380/50 Surface planer: Total table length 1400 mm Table width 300 mm N° 3 blades Motor Hp 3 Thickness planer: Max planing width 300 mm Max planing thickness 150 mm Feed speed 7 mt/min Table lifting by handwheel Circular saw: Max blade diameter 250 mm Hole 20 Max cutting height 85 mm Max cutting width 700 mm Blade tilt 0–45° Motor 2 Hp Panel saw: Flag-type sliding carriage mounted on a movable bar Spindle moulder: Spindle diameter 30 mm Vertical stroke 120 mm Spindle speed 3000/4500/6000/7500 rpm Max tool diameter 150 mm Max spindle projection over table 100 mm Motor 2 Hp Mortising machine: Table di ...

Code: 0399 Brand: TECNOMAX SCM Model: ST 4 ELITE - CE Standard Saw spindle moulder with tilting blade and scoring unit and tilting spindle moulder for carpentry, furniture, wooden window frames, doors, panels and various - CE Standard Technical data: Squaring carriage length 3200 mm Blade inclination 90-45 degrees Max saw blade diameter with scoring unit mounted 315 mm Max saw blade projection from the table at 90°/45° mm 100/70 Cutting width at parallel guide 1000 mm Scoring unit blade diameter 100 mm Workpiece clamping press Tilting Spindle moulder 90-45° Useful spindle length 125 mm Spindle rotation speed rpm 3500/6000/8000/10000 Max tool diameter 210 mm Tenoning table and head Electrical connection and removable support for the feeding Three-phase motors 5,5 Hp Suction inlet diameter mm 120 Overall dimensions of assembled machine mm 3600 x 300 ...
