Machining Center - Vert. DMG CMX 600 V

CONTROLS
  CNC controls SIEMENS SOLUTION LINE

WORKING RANGE -CUBIC-
  number of processing axes (excl parallel axes): 3
  X-axis travel: 600 mm
  Y-axis travel: 560 mm
  Z-axis travel: 510 mm

TABLE
  table surface (left-right): 900 mm
  table surface (front-back): 560 mm
  workpiece load (max): 600 kg

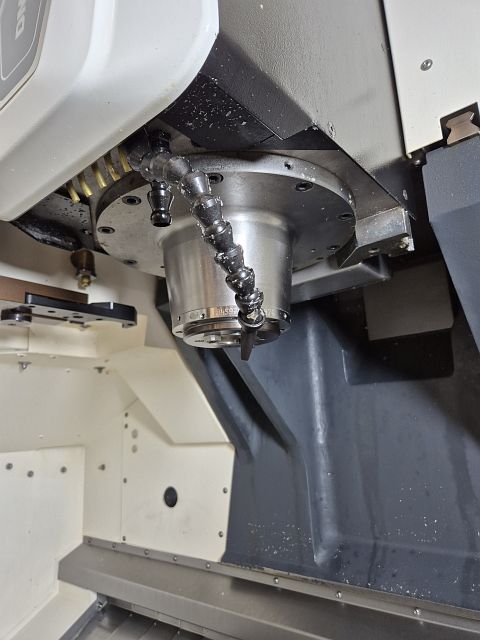

SPINDLE / HEAD
  spindle revolutions (min): 20 /min
  spindle revolutions (max): 12000 /min
  tool fixture: ISO SK 40
  drive power S6 40%: 13 kW
  drive power S1 100%: 9 kW
  spindle torque S6 40%: 82 Nm
  spindle torque S1 100%: 54 Nm

AXIS DRIVES
  traverse velocity X (max): 20000 mm/min
  traverse velocity Y (max): 20000 mm/min
  traverse velocity Z (max): 20000 mm/min
  rapid traverse X: 30000 mm/min
  rapid traverse Y: 30000 mm/min
  rapid traverse Z: 30000 mm/min

TOOL MAGAZINE
  number of positions: 30
  tool diameter max.: 80 mm
  - with free neighbour positions: 125 mm
  tool length max.: 300 mm
  tool weight max.: 8 kg

DIMENSIONS / WEIGHTS
  space requirements -left/right-: 2757 mm
  space requirements -front/back-: 1864 mm
  total height: 2935 mm
  total weight approx.: 5000 kg

ATTACHMENTS
  chip conveyor: yes
  coolant unit: yes
  through spindle coolant attachment: yes
  closed cabin: yes
  European CE standards: yes


The machine has 10,700 operating hours and 1,600 spindle hours, of which approximately 1,000 hours were warm-up time.

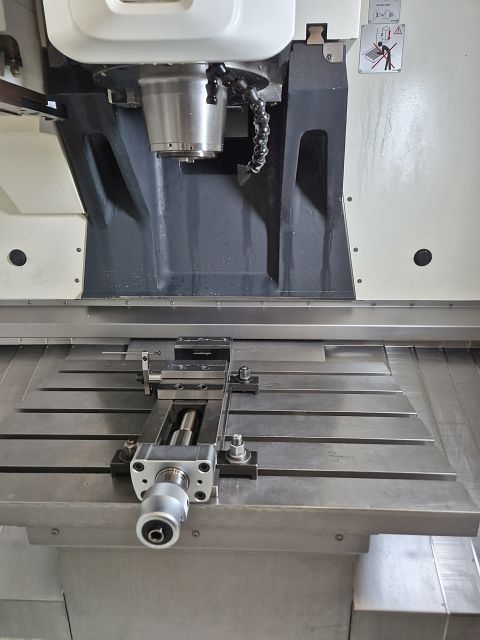

The vise can be purchased separately for an additional charge.

The machine is equipped with its own cooling system, but is currently connected to a central cooling unit. To use the built-in cooling system, a pump would need to be retrofitted. A parts list for the required components can be provided.

Overall, the machine is in like-new condition.
seller offer No. resale 55699
