5 WMW radial drilling machines used machines

Extension 1600 mm

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

arm length: 300... 1600 mm bore radius max./min: 1800 mm bore capacity in steel (diameter): 56 mm threading: max. 65 mm bore depth: 400 mm tool taper: MK 5 base plate: 1700 x 1000 mm turning speed range - drilling: 14...1800 U/min feed: 0,0315...1,6 m/min total power requirement: 4,5 kW weight of the machine ca.: 7,13 t dimensions of the machine ca.: m - distance Spindle head to base: max. 1600 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bohrleistung in Stahl (-Ø: 45 mm throat: 1250 mm workpiece height max.: 1100 mm swival range +/-: 360 ° height adjustment: 745 mm base plate surface area: 1450 x 920 mm Bohrspindel-Ø/ Aufnahme: 90 mm / MK 5 bore spindle stroke: 355 mm max. torque on the spindle: 250 Nm feed power: 14000 N turning speed range: 20 - 1200 U/min feed range: 0,063 - 0,63 mm/U drilling capacity steel/cast iron: mm power capacity: 3,7 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Radial drilling machine BR 56 x 1600 Year of construction: approx. 1965 (estimate) equipped with coolant device and drilling table as optional accessories

arm length: 1600 mm tool adaptor: ja fabric-no.: 9787 weight: 4,6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tool holder MK 5 Speed range 20-1200 infinitely variable in 3 rows 1/min Feed rate 0.063-0.63 mm/min Projection 300-1250 mm, quill travel 355 mm Distance from spindle head to base plate 375-1375 mm Swivel range boom 360° Connected load 5 kW

Radial drilling machine, used radial drilling m/c, used Type: BR 56 x 1600 Manufacturer/ make: WMW Year built/ year of make: 1965 Extension/ length of arm: 300...1600 mm Ma. Drilling radius / max. drill. Radius: 1800 mm Drilling capacity at boring: 56 mm ( St 60 ) Drilling capacity at boring: 80 mm ( GGL 20 ) Thread cutting/ thread cutting: max. 65 mm ( St 36 ) 76 mm ( GGL 20 ) Drilling depth/ drilling depth: 400 mm Tool holder / taper in spindle: MK 5 Removal spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base plate/ base: 1700 x 1000 mm Speed range/ range of speeds: 14..1800 rpm Feed: 0.0315 .. 1.6 mm/U// mm per round Connection value: 7.13kW Weight: about 4.5 t

Drilling capacity in steel/cast iron: 40mm/60mm, throat depth range: 300mm-1250mm, max. workpiece height: 745mm, spindle mount: MK5, spindle stroke: 355mm, speed: 1200rpm, feed: 756mm/min, column diameter: 300mm, spindle-plate distance: 280mm-1380mm, table dimensions X/Y: 1400mm/750mm. Machine dimensions X/Y/Z: approx. 2200mm/1000mm/2800mm, weight: approx. 3000kg. On-site inspection is possible.

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

Key data: 63 1/min, 25 mm, 200 mm

Manufacturer: WMW Type: BKR 25 x 4 AI Stock number: 1023 Number of Spindles: 4 Spindle spacing: 475 mm Table working surface: 450 mm x 1900 mm Drilling capacity in steel: 25 mm Morse taper of spindle: MK 4 Connected load: 10.2 kW Weight: 3000 kg

bore capacity in steel (diameter): 50 mm throat: 355 mm bore stroke: 280 mm spindle taper: MK 5 spindle head adjustment: vertikal 280 mm motorisch feed: 0,11-1,73/9step mm/min turning speeds: 32-1400/12step U/min table-size: 770 x 640 mm surface area: 630 x 500 mm base plate: 490 x 530 mm total power requirement: 8,1 kW weight of the machine ca.: 1,7 t dimensions of the machine ca.: 1,25 x 0,8 x 2,75 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm throat: / mm bore stroke: / mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

bore capacity in steel (diameter): 40 mm continious capacity: 25 mm throat: 315 mm bore stroke: 200 mm bore depth: 280 mm spindle taper MT: 4 feed range: 0,1-1,5 U/min number of feeds: 9 column diameter: ca. 230 mm table-size: 700 x 600 mm surface area: 450 x 560 mm distance spindle/base plate: 1100 mm dimensions: ca. 1000 x 700 x 2400 mm total power requirement: 2,6 kW weight of the machine ca.: 1,1 t emergency stop switch renewed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles: 4 Stk bore capacity in steel (diameter): 25 mm spindle distance: 475 mm table-size: 450 x 1900 mm morse taper: MK 4 total power requirement: 10,2 kW weight of the machine ca.: 3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm throat: / mm bore stroke: / mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): / mm throat: / mm bore stroke: / mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity in steel: 50mm, spindle mount: MK5, speed: 1000rpm, throat depth: 355mm, drilling stroke: 280mm, spindle-table distance: 710mm, spindle-column distance: 355mm, table dimensions X/Y: 630mm/500mm, column diameter: 160mm. Machine dimensions X/Y/Z: 1200mm/800mm/2700mm, weight: approx. 1650kg. On-site inspection is possible.

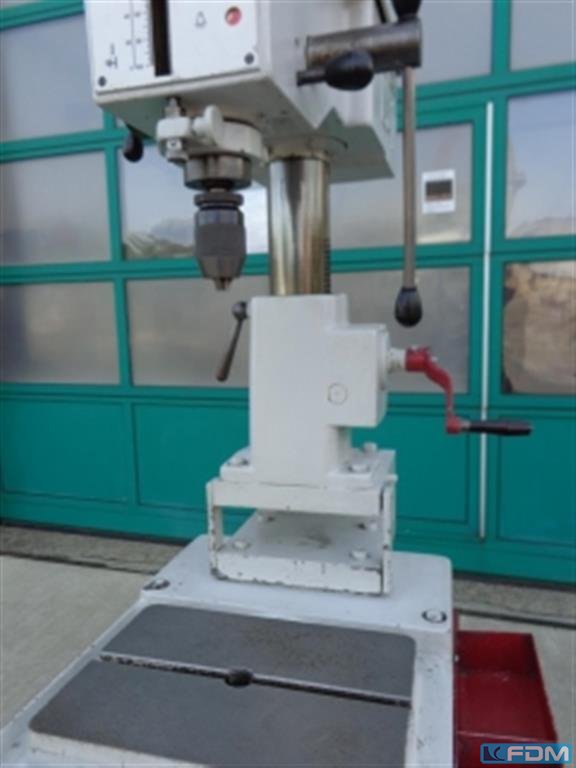

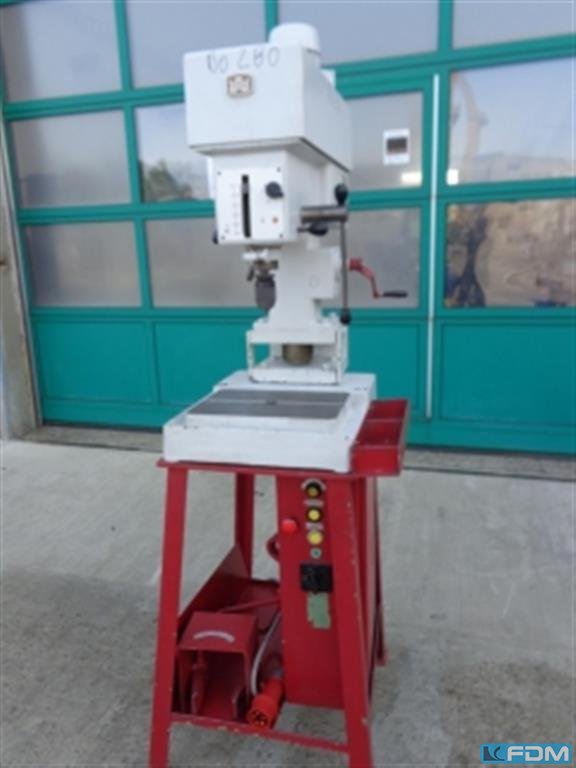

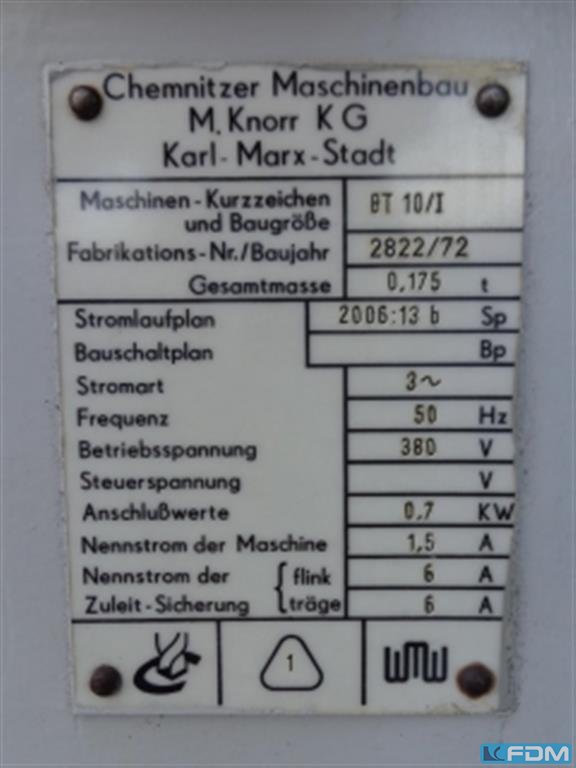

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:100 mm total power requirement:0,7 kW weight of the machine ca.:302 kg dimensions of the machine ca.: 620 x 800 x 1950 mm Table dimensions:350 x 250 mm spindle speeds::250, 355, 710, 1000, 1400, 2000, 2500 U/min

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm

bore capacity in steel (diameter):50 mm total power requirement:7,8 kW weight of the machine ca.:1720 kg dimensions of the machine ca.:1200 x 770 x 2700 mm number of spindle speeds:45 - 1000 mm surface area:630 x 500 mm
