3 WEYRAUCH high speed radial borers used machines

Offer 24130 Specifications: - Drilling capacity into solid steel ST 60 32 mm - Drilling capacity GG 25 40 mm - Threading ST 60 M 27 - Drilling spindle holder MK 4 - Quill stroke 150 mm - 12 drilling spindle speeds 102 - 2000 rpm - 3 drill feeds 0.1 - 0.3 mm - min./ max. distance spindle – table 310 / 610 mm - Drilling radius min / max 380 / 1200 mm - Table height 720 mm - Table size 1200 x 500 mm - Drive 400 V / 2.0 / 2.4 kW - Space requirement approx. W 1200 x H 2800 x D 2300 mm - Weight approx. 1500 kg - with: - Tapping device - hydr. Columns + Boom Clamp - Coolant device - T – Vertical grooves on the rear side of the machine

Straightening and welding plate SIEGFRIED WEYRAUCH GemmingenCast steel-grey cast iron heavily ribbedformer marking plate and measuring plateheavy straightening plateLength 1000 mmwidth 800 mmthickness 28/125 mmworking height approx. 850 mm- feet with adjustment screws for aligning the plateWeight 370 kggood surface; used

bore capacity in steel (diameter): 32 mm arm length: 950 mm turning speed range: 102 - 2000 U/min turning speeds steps: 12 bore spindles - Morse Taper: MK 4 quill stroke: 160 mm feed range: 0,075 x 0,3 mm/min table surface area: 1200 x 510 mm total power requirement: 2 kW weight of the machine ca.: 1,9 t dimensions of the machine ca.: 1,8 x 1,2 x 2,25 m Compact style with hydraulic fast-clamping, motorised height adjustment, feeder device and thread-cutting device. Integrated coolant container in machine frame. Main switch. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm arm length: 950 mm turning speed range: 51 - 1000 U/min turning speeds steps: 12 bore spindles - Morse Taper: MK 4 quill stroke: 160 mm feed range: 0,075 x 0,3 mm/min table surface area: 1200 x 510 mm total power requirement: 2 kW weight of the machine ca.: 1,9 t dimensions of the machine ca.: 1,8 x 1,2 x 2,25 m High-speed radial end mill with - Thread cutting attachment - Vertical table 750 x 620 mm - Horizontal table 1200 x 510 mm - Emergency stop device - Documentation Machine-No. 445 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Code 220406 Description of fast radial MK-4 Brand DONAU Type DR – 32 Machine r. 686 – 3 Year of construction ± 19.. Capacity in steel 60 32 mm Capacity in GG 45 mm Tapping in steel 60 M 26 Thread cutting in GG M 36 Spindle holder 4 MK Projection 900 mm Table 1200 x 600 mm Vertical movement of the boom 400 mm Spindle stroke 190 mm Spindle table min. – max. 80 – 650 mm 18 spindle speeds 31 – 1370 rpm Spindle feeds 0.1 – 0.15 – 0.2 – 0.3 mm/rev Power 1.5 / 2.2 kW – 380 volts Accessories tapping device Dimensions Br. x D x H 1200 x 1600 x 1910 mm Weight 1700 kgs Condition machine is in normal condition

Code 230302 Description of fast radials Brand DONAU Type DR – 13 G Machine r. 321 – 2 Year of construction 1966 Capacity in steel 60 13 mm Capacity in GG 16 mm Thread cutting capacity in steel M8 – M 10 Thread cutting capacity in cast iron M 10 – M 12 Spindle holder 2 MK Projection 820 mm Table 1000 x 700 mm Vertical movement of the boom 400 mm Spindle stroke 100 mm Spindle table min. – max. 180 – 580 mm Spindle speeds infinitely variable in 2 steps 200 – 1100 / 600 – 3400 rpm Power 0,37 / 0,44 kW – 380 Volt Dimensions Br. x D x H 1000 x 1300 x 1800 mm Weight 590 kgs Condition machine is in normal condition

Key data: 40 mm, 1007 mm

Code 231027 Rewriting Controlled Fast Radials Make DONAU Type DR 40 Machine No. 1137 – 3 Built in 1988 Drilling into full stem 60 40 mm Drilling into full GG 22 50 mm Tapping capacity into the St. 60 M 33 Tapping capacity into the GG 22 M 45 Steep taper of the drilling spindle SK 40 Feed normal ( 5x ) 0.075 – 0.6 mm/rev Drilling spindle speeds 18 pcs. 35 – 1800 rpm Drilling spindle stroke 200 mm Drilling radius min/max 350 / 1300 mm Projection min/max 120 / 1007 mm Height adjustment of the drilling spindle head 450 mm Distance drilling spindle/table min/max 350 / 800 mm Table top 1225 x 750 mm Power 2 / 3 kW 380 Volt Weight 2000 kgs Dimensions LxWxH 2300 x 1225 x 2400 mm Accessories for tapping device Coolant system Condition machine is in good condition

Specifications: - Drilling capacity into solid steel ST 60 28 mm - Drilling capacity GG 25 40 mm - Threading ST 60 M 30 - Threading GG 25 M 40 - Drilling spindle holder MK 3 - Spindle diameter 50 mm - Quill stroke 150 mm - 18 drilling spindle speeds 45 - 2240 rpm - 4 drill feeds 0.1 - 0.45 mm - min./ max. distance spindle – table 300 / 700 mm - Drilling radius min / max 305 / 1005 mm - Table height 820 mm - Table size 1200 x 600 mm - Drive 400 V / 6 kW - Space requirement approx. W 1300 x H 2800 x D 2300 mm - Weight approx. 1500 kg -with: - Tapping device - hydr. Columns + Boom Clamp - Coolant device - T – Vertical grooves on the left side of the machine

Specifications: - Drilling capacity into solid steel ST 60 32 mm - Drilling capacity GG 25 40 mm - Threading ST 60 M 27 - Drilling spindle holder MK 4 - Quill stroke 150 mm - 12 drilling spindle speeds 102 - 2000 rpm - 3 drill feeds 0.1 - 0.3 mm - min./ max. distance spindle – table 310 / 610 mm 0P2Fdo3 - Drilling radius min / max 400 / 1200 mm - Table height 720 mm - Table size 1200 x 500 mm - Drive 400 V / 1.6 / 2.9 kW - Space requirement approx. W 1200 x H 2800 x D 2300 mm - Weight approx. 1500 kg - with: - Tapping device - hydr. Columns + Boom Clamp - Coolant device - T – Vertical grooves on the rear side of the machine

Drilling capacity 45mm Table size : 1200 x 560 mm Drilling capacity 45mm Spindle Holder MK 4 Quill stroke 170mm Speed / Steps 70-2000 rpm Feed / Steps 0.1 0.2 0.3mm/rev Motor 2.9 KW

Key data: 40 mm, 900 mm

40 DONAU fully functional, Condition : well used

Key data: 32 mm

Boom travel approx. 600 mm Distance table - spindle nose min. 250, max. 650 mm Quill stroke 190 mm Speed range: 18 speeds 41-1,850 rpm Drill feeds: 4 pieces ( from 0.1 - 0.3 mm/rev ) Work table 600mm x 1200mm Tool holder MK 4

Danube DR 23 - High Radial Drilling Machine -Drilling capacity / steel approx. 28mm -Projection approx. 700mm -Morse taper MK 3 -Speed range 70-1550 rpm - Gearbox -Feed range 0.075-0.3mm -Drilling depth 130mm -Tapping device -Hydraulic clamping -Documentation Dimensions: Hjbkn Asvw D Smeu S Tol LxWxH 2x1.7x1.9 meters / Weight 1900Kg

: 40 1008 rated current: 20 A voltage: 24 V weight of the machine ca.: 3,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

threading: 30 M bore capacity in steel (diameter): 40,0 mm workpiece height max.: 380 - 785 mm arm length: 985 mm spindle taper: 4 MK boring head swiweling right/left: -80 / +80 Grad turning speeds: 50 - 2000 U/min table surface area: 1210 x 520 mm column diameter: 220 mm column diameter: 220 mm table surface area: 1.210 x 520 mm quill stroke: 200 mm feed range - spindle: 0,08 - 0,5 mm/U total power requirement: 2,2 kW weight of the machine ca.: 2.800 kg. dimensions of the machine ca.: 2,45 x 1,2 x 2,72 m characteristics - A variety of clamping and machining options thanks to the construction-related construction - Electromotive height adjustment of the drill head without adjusting the Drilling position, ideal for deep hole drilling - Drill head can be swiveled 180 °, boom can be moved back and forth and horizontally pivotable - Thread cutting device and 6 automatic drilling feeds in ...

High speed radial drilling machine, radial drilling machine, drilling machine, boom drilling machine, high speed radial drilling machine -Clamping table: 400 x 1100 mm -Projection: 930 mm -Taper mount: MK4 -Engine power: 1.35/1.8 kW -Speed: 41-1700 rpm -Columns: Ø 200 mm -Spindle stroke: 125 mm -Thread cutting device: YES -Feed: 0.075 - 0.3 mm/rev -Dimensions: 1800/1235/H2240 mm -Weight: 1500kg

bore capacity in steel (diameter):45 mm WORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mm WORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total weigh ...

bore capacity in steel (diameter):1-13 mm The machine has a 2.2 kW spindle motor with a 2-stage gearbox for drilling and tapping. Table size is 100 x 50 cm Stroke length approx. 200 mm

Drill bits for rock drills in different lengths

Lots of monobloc boring bars Rock drills and extensions from tunnelling unused and used - Diameter: 23 to 83 mm - Length: 500 mm - 5600 mm Manufacturer: ROCBO, SANDVIK, BÖHLERIT u.a. Cone Boring Rods, Monobloc Boring Rods and Extension Boring Bars The drills come from the bearing dissolution of a tunnel construction company and are mostly as good as new. See list for details Changes and errors in technical data, information and prices as well as prior sale. Number Description Description Addendum 3 cone boring bars length approx. 4,000 mm inserting end approx. 25x159 mm, as good as new 1 cone boring bar length approx. 5,000 mm Inserting end approx. 22x82 mm, as good as new 2 cone boring bars length approx. 1,000 mm Inserting end approx. 22x82 mm, as good as new 25 cone boring bars length approx. 2,400 mm inserting end approx. 25x159 mm, as good as new 18 c ...

WMW Union BFT 80/2 X: 1000 - Y: 1000 - Z: 1600mm Spindle Dia: 80 mm Spindle bore: ISO 50 Table dimensions : 1100 x 1000 mm Table longitudinal travel (X-axis): 1000 mm Cross travel Table/colom (Y-axis): 1000 mm Height travel head (Z-axis): 1600 mm Max travel spindle: 700 mm Power on spindle: 1250 rpm Power principal motor: 8,5 kW Weight: 11 ton

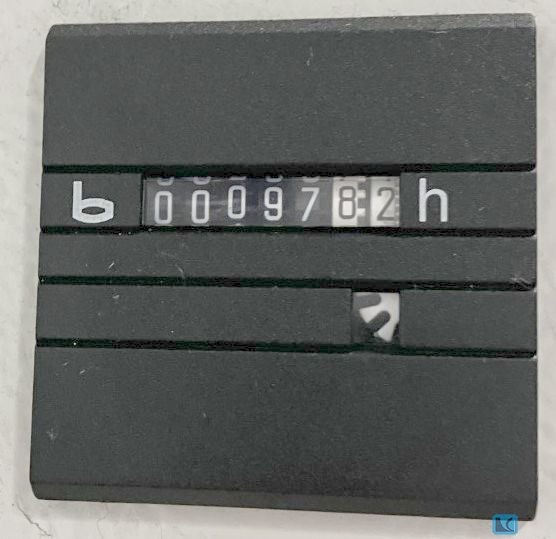

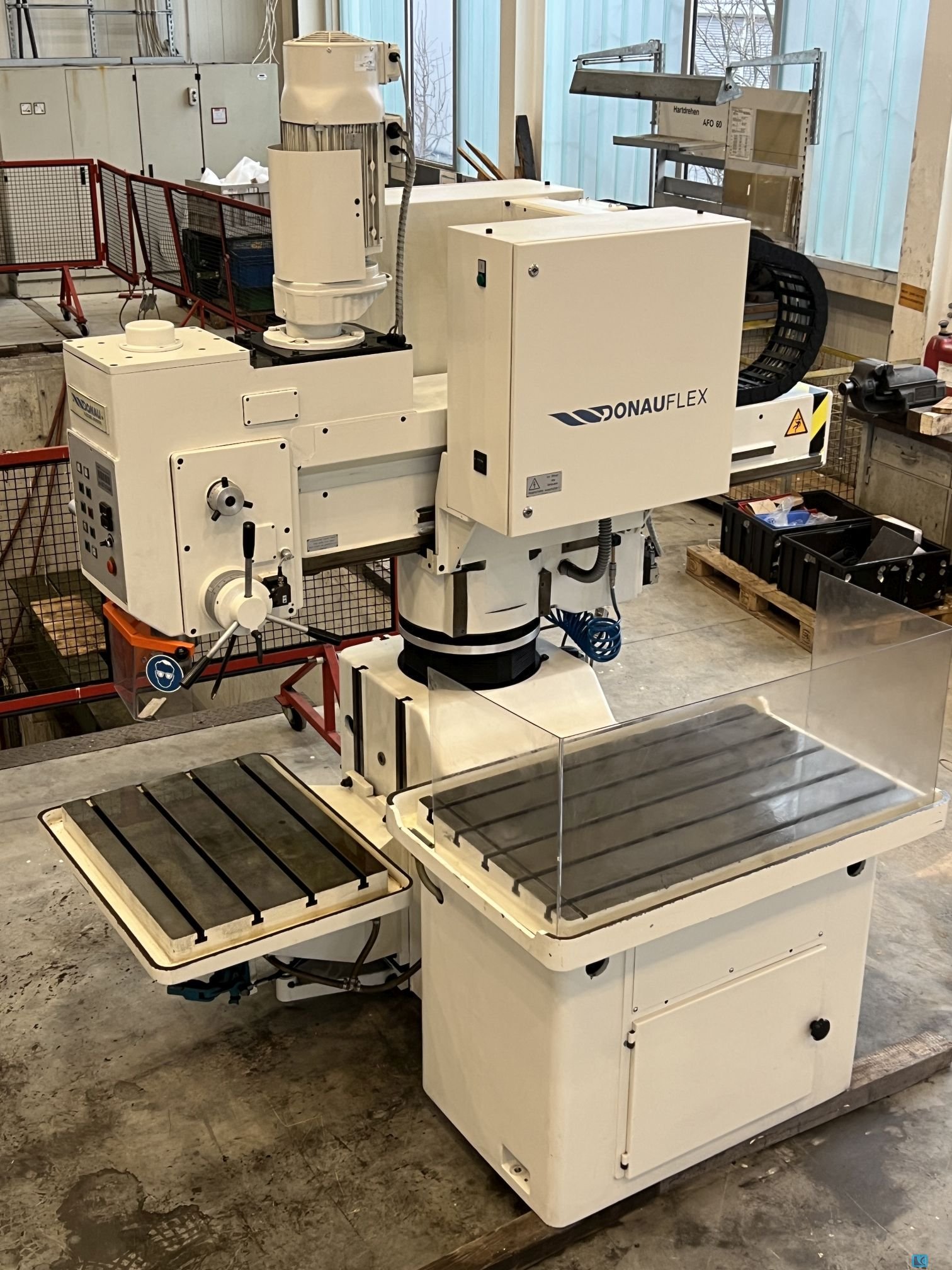

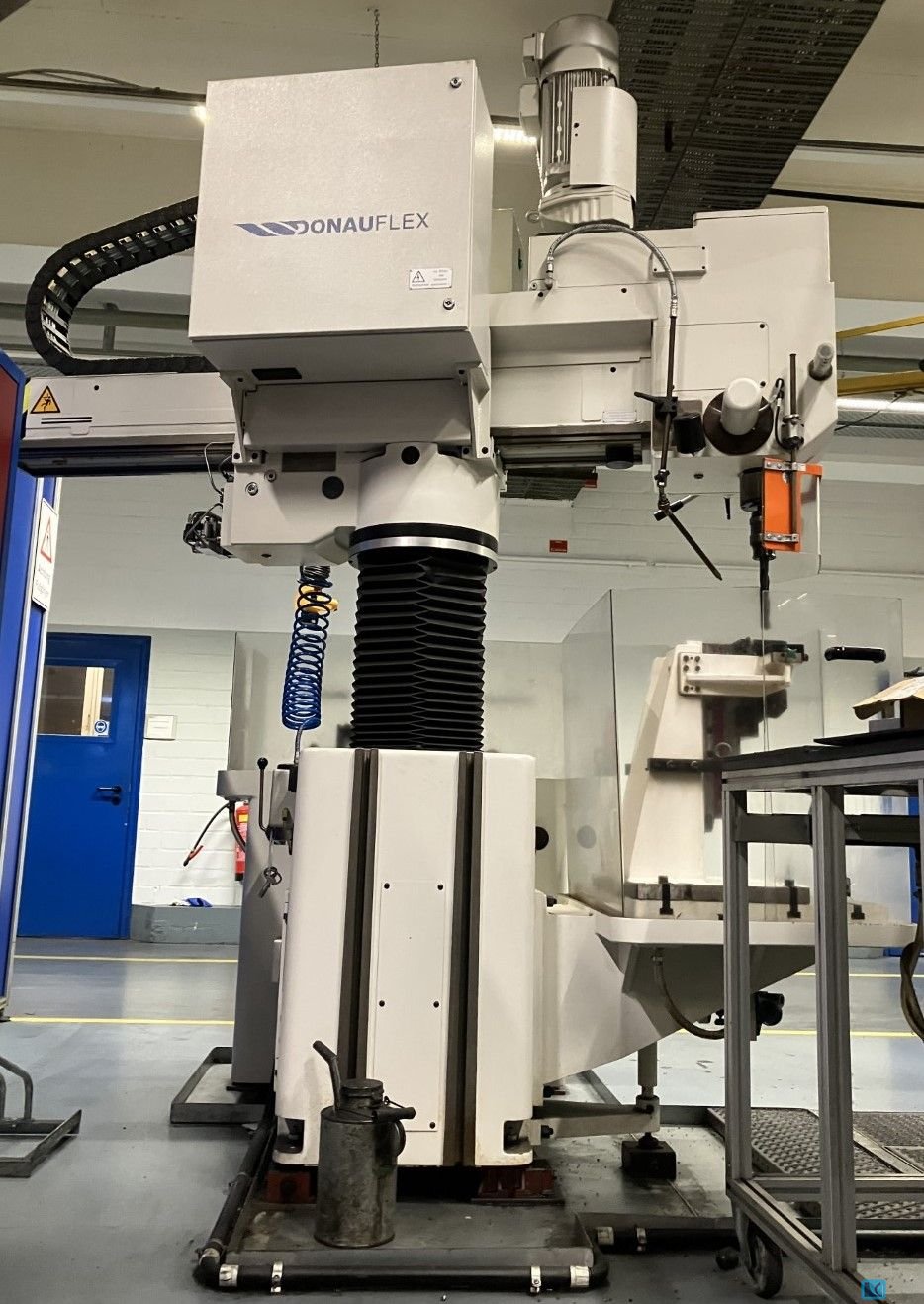

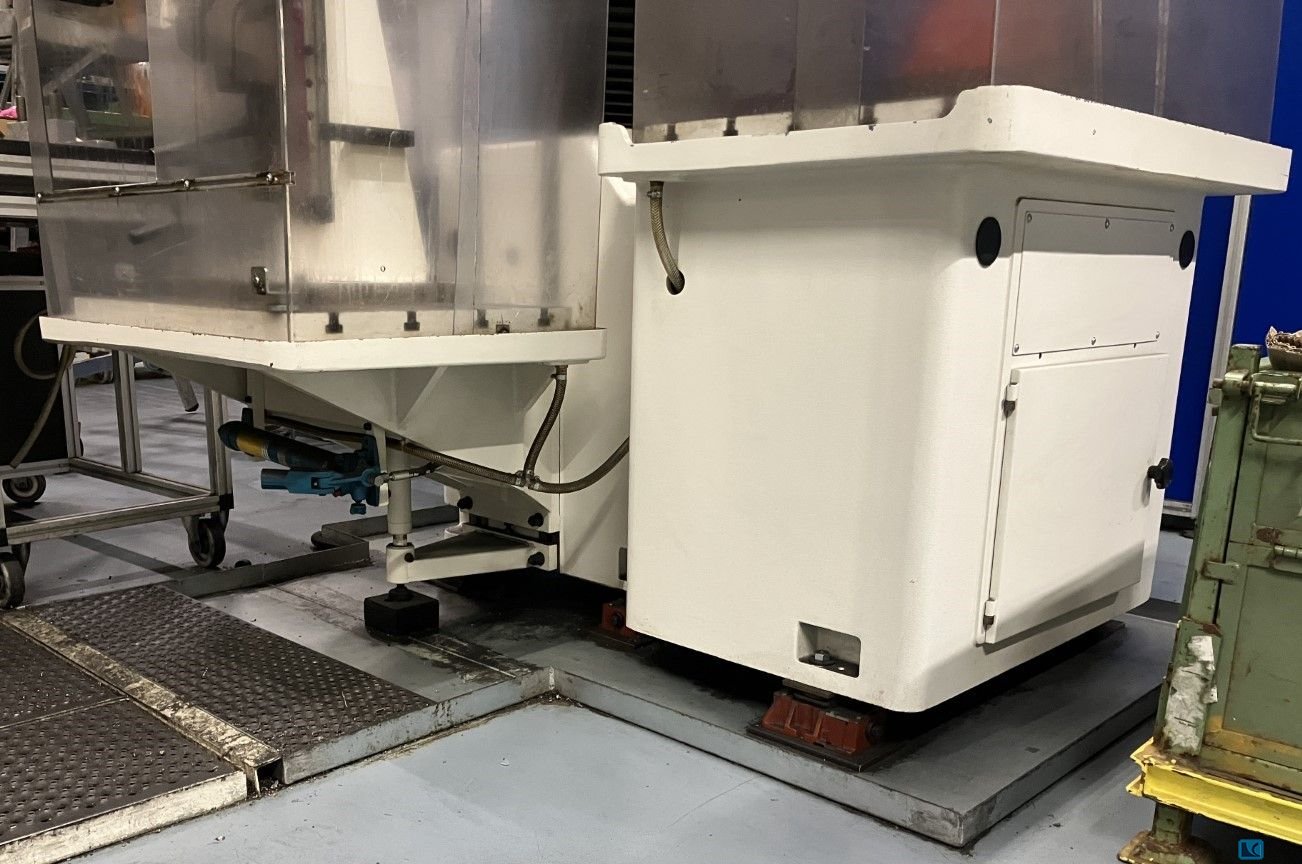

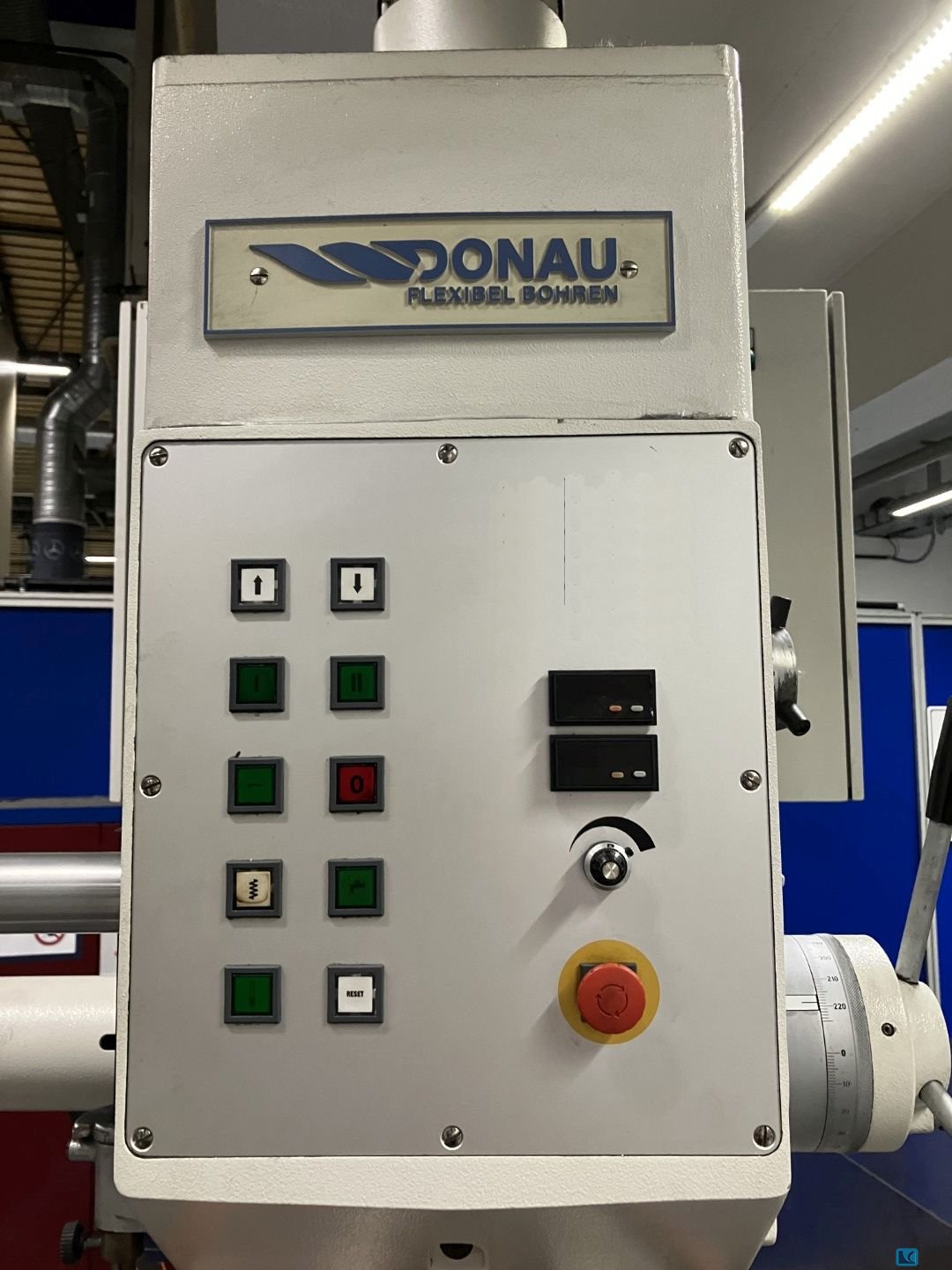

Used Radial Drilling Machine DONAU Donauflex 145 Year of Make: 2006 Only a few hours of operation. • Drilling capacity in steel 45 mm • Boom travel 1,050 mm • Drilling radius min. 540 mm / max. 1,590 mm • Spindle speed 15 - 2,800 rpm • Tapping device • Tool holder MK 4 • Hydraulic clamping for boom and lifting column • Electromagnetic feed clutch • Machine light

Force of pressure: 63 t table size: 610 x 800 mm throat depth: 350 mm stroke: 200 mm Electr. Supply: 380 V, 15 kW space: 1800 x 920 x 2440 mm weight: 3940 kg

High speed press Original Manufacturer by: BRUDERER Type: BSTA 30 Technical data: Stroke power 300 KN (30 tons) Adjustable speed 100 - 600 strokes per minute up to 10 strokes in one second Equipped with synchronized BBV feeder Feed pitch up to max. 60 mm adjustable, highly accurate With PLC control Three working mode: single punch, complete stroke and full automatic Emergency stop Pneumatic clutch and brake Weight approx 2.5t Automatic in feed, fully synchronized with punching moment Tool and coiler not included (price on request) Technical Air 8 bar Operators instruction manual Machine with new CE certificate Overhauled - Rebuilt by Silicon plus

DEUTER 480 m2, 16x30 m, 5 m high high high high-speed steel hall / Steel Construction Year 1998 - Insulation / Sandwich Panels & Heating - Snow load zone 2 = 85 KG / m2 - no statics available / flying buildings, - Location North Germany - easy assembly / self-assembly, Year 1998
