wmw milling machines used for sale

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Max diam 250 , max lenght 2000, 3 x heads , change gears

Key data: 850 mm, 270 mm, 355 mm

Table width 315 mm, table length 1250 mm Tool holder SK 50 Speed range 28 - 1400 rpm Feed range 16 - 800 mm/min Travel x=850 mm, y= 270 mm, z=355 mm Connected load 8 kW Incl. Electric clamp horizontal Vertical head in X swivel with manual tightening Dispensing as present, no longer energized

Fully functional and still energized. Can be seduced by the owner with pleasure . Tons of accessories included.

Key data: 690 mm, 400 mm, 500 mm

Universal milling machine from WMW, type FW Good general condition Mechanically flawless function Milling Machine - Horizontal Make:WMW Fritz Heckert Type: FW 250x1000/2 Year of construction: approx. 1980 Control Type: Conventional Freight base: ex-site, freely loaded Location: 17034 Neubrandenburg Shipping time: immediately Price: 2,800 net free loading Technical details: x-travel: 690 mm Y-travel: 400 mm z-travel: 500 mm Table Mounting Surface:: 1250x250 max. table load: 1500 kg Spindle speeds:: 18 steps/step 55-2800 rpm Height above floor: 1350 mm Feed rate: 10-630 infinitely variable m/min Tool holder: SK40 Total power requirement: 6.3 kW Machine weight approx.: 2.0 t Machine dimensions LxWxH: L:1.8xW:1.7xH:2.0 m The work table can also be adjusted manually. The projection of the counter-holder boom = 500mm, the total length = 1050mm. with end pos ...

Horizontal Bracket Milling Machine Universal milling machine WMW Heckert FU 250 x 1000 • Table LxW: 1,250 x 335 mm • Spindle: 28 – 2800 rpm • Tool holder: SK 40 • Rapid traverse in: X-Y-Z • 3-axis digital display • Coolant device • Task lighting • Connected load 6 kW • Accessories: according to picture • Dimensions: L x W x H.: 1800 x 1600 x 1900 mm • Weight: 1,700 kg Good condition flawless operation Currently still with 400V collar plug -> will be converted to CEE plug on request Includes a wide range of accessories A function video can be sent via WhatsApp. The machine can be viewed in our showrooms at any time. You are very welcome - metalworking machines and accessories on more than 1000 square meters On-site loading with forklift no problem

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

MAX DIAM 250 MAX LENGHT 800

MAX DIAM 250 X 2000

WMW HECKERT FU450R-51 universal milling machine was built in 2009 in Belarus by Gomel Machine Tool Plant S.M. Kirov.. This extremely versatile, functional and reliable machine is designed for precision machining of workpieces with a maximum weight of 1500 kg. The machining process is performed by a powerful spindle on a large work table. T-slots in the table allow for quick installation of additional tooling such as a vice. The precision and repeatability of the manufactured parts, in turn, is maximised by the design made of the highest quality cast iron, which maintains excellent stability during even the most intensive challenges. All this makes the offered FU450R conventional milling machine an excellent choice for both unit and series production. The WMW HECKERT vertical milling machine weighs 4300 kg. Technical specifications of the WMW HECKERT FU450R-51 milling machine - number ...

Tool holder, milling holder, milling tool -Number: 7x SK40 mounts with tool carrier -Executions: different -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills -Sale: only complete -Dimensions: 590/120/H210 mm -Weight: 12 kg

Tool holder, milling tool holder -Number: 9x SK30 recording -various versions -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills, spindle tools -with transport box -Price/Sale: complete -Weight: 10 kg

Tool holder, milling holder, milling tool -Number: 2x SK45 holders -Inside mount: Ø 36 x 90 mm -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -suitable for: tool changer -Sale: only complete -Weight: 5.4 kg

Tool holder, milling holder, milling tool -Number: 2x SK45 holders -1x recording inside: Ø 28 mm -1x recording outside: Ø 40 mm -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -suitable for: tool changer -Sale: only complete -Weight: 4.5 kg

Tool holder, milling holder, milling tool -Number: 58x SK40 mounts -different designs -partly with pull studs -Spindle tools: different diameters -Sale: only complete -Weight: 108 kg

Tool holder, milling holder, milling tool -Quantity: 4x recording SK40 -1x Ø: 16 x 19 mm -1x Ø: 16 x 25 mm -1x Ø: 27 x 25 mm -1x: drill chuck - is only sold complete -Weight: 6kg

Shell end milling cutters, milling cutters, milling cutters, shell milling cutters -Manufacturer: WMW, shell milling cutter, milling cutter type N 9960 -Size: 160x63x50mm -Receptacle: Ø 50 mm -Dimensions of box: 175/175/H100 mm -Weight: 5.9 kg

tool holder, milling holder, milling tool, long milling mandrel, attachment holder -Milling holder: SK50 holder -Type: 50 x 50 x 630 mm -Dimensions: Ø 100 x 850 mm -Weight: 23.5 kg

Tool holder, milling holder, milling tool, long milling arbor, mounting bracket -Milling chuck: SK50 chuck -Type: 50 x 50 x 630 mm -Shaft: Ø 27 mm / Sleeves Ø 40/85 mm see photos -Dimensions: Ø 100 x 835 mm -Weight: 23.5 kg

Milling cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 160 ( 4x25x160 ) TGL 30-4113 MK4 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 490 x 45 x 45 mm

Cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 80 ( 4x25x80 ) TGL 30-4113 MK4 shaft diameter: Ø 16 mm Tool holder: Ø 25 mm New ! Dimensions: 300 x 45 x 45 mm

Milling cutter mandrel, tool holder, with tightening thread WMW 3 x 25 x 160 ( 3x25x160 ) TGL 30-4113 MK3 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 425 x 45 x 45 mm

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

Travel X/Y/Z: 820mm/300mm/485mm, table dimensions X/Y: 250mm/1000mm, spindle mount: SK40, speed: 2800rpm, spindle head swivel: +/-45°, quill stroke: 100mm, feed: 630mm/min, connected load: 9.5kW, machine weight: approx. 1600kg. Documentation available. On-site inspection is possible.

Feed rate: 250mm/min, speed: 2800rpm, tool diameter: 200mm, weight: approx. 850kg. An on-site inspection is possible.

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Gear milling cutter, modular milling cutter, hob cutter, tooth form milling cutter, modular milling head, shell end mill, roller milling cutter, milling cutter, hob cutter, spline shaft hob cutter -Manufacturer: WMW PWS, 17 hob cutters -Hole: Ø 27 mm 4 pieces, Ø 32 mm 7 pieces, Ø 40 mm 6 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 400/400/H150 mm -Total weight: 52.5 kg

Spline hobs, gear cutters, modular milling cutters, gear hobbing cutters, gear form cutters, modular milling heads, shell end mills, cylindrical milling cutters, milling cutters, hobs, spline hobs -Manufacturer: WMW PWS, 29 hob cutters -Hole: Ø 27 mm 25 pieces, Ø 32 mm 4 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 490/300/H70 mm -Total weight: 30.7 kg

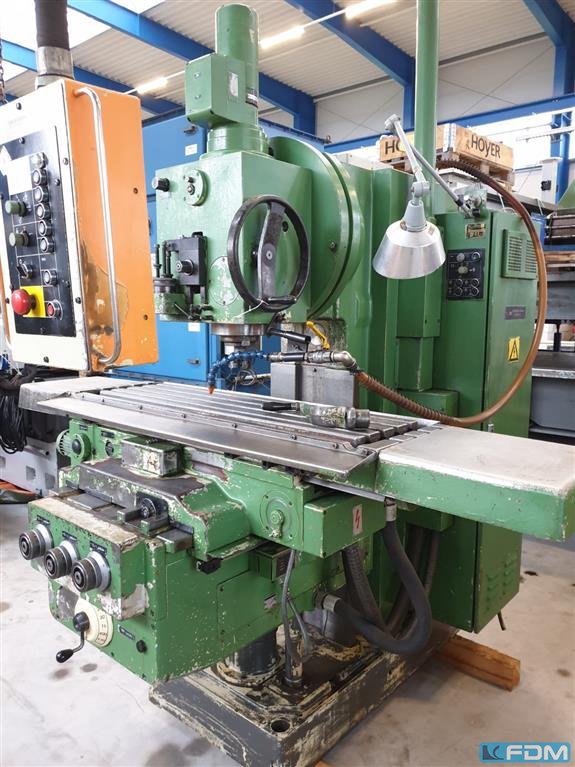

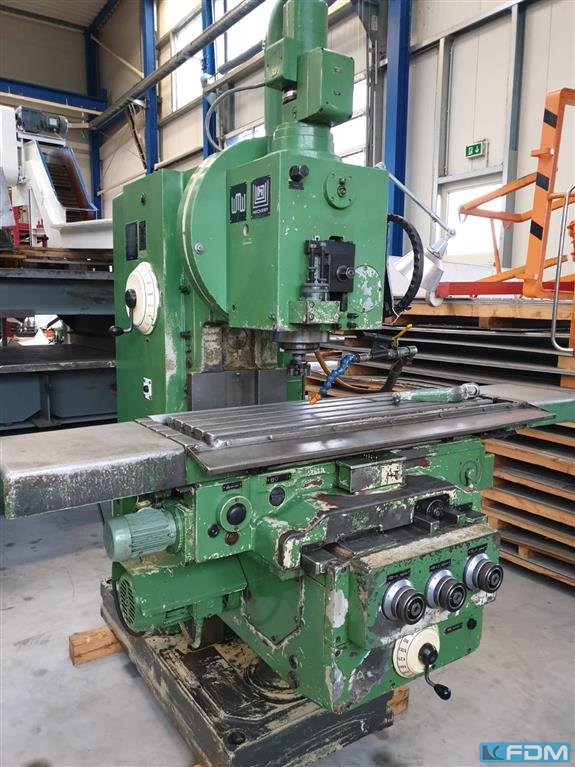

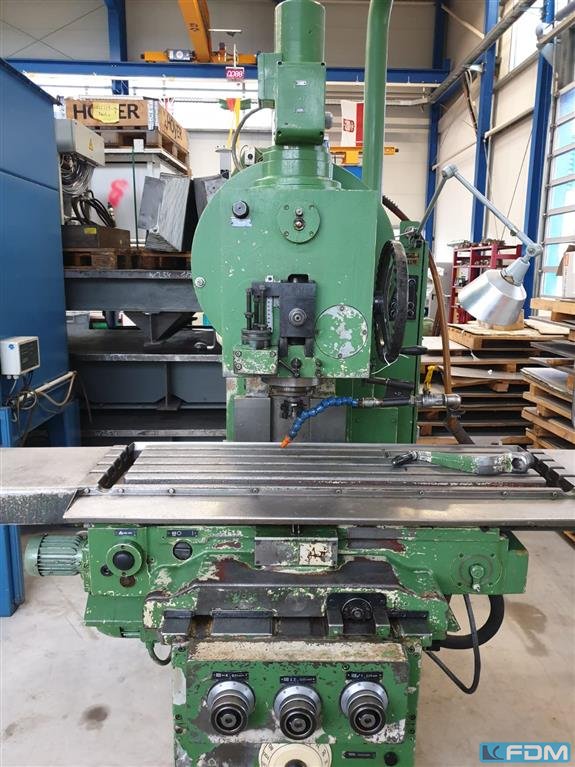

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg

Universal milling head, milling adapter, milling extension, angle milling head -Spare part of a: WMW HECKERT milling machine -Number: 1 piece angle milling head -Recording output: SK50 -Recording: input gear -Milling head: completely swiveling -Rezes recording: mm -Pitch circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Tool holder, milling holder, collet holder, collet chuck, chuck, milling tool, adapter, clamping unit, tool holder, -Manufacturer: WMW Smalcalda, milling chuck SK40 5 pieces -Type: SK 40/B12 40908 3 pieces -Type: SK 40/B18 41076 2 pieces -Versions: see photos -Price/Delivery: complete -Transport dimensions: 340/180/H70 mm -Total weight: 6.6 kg

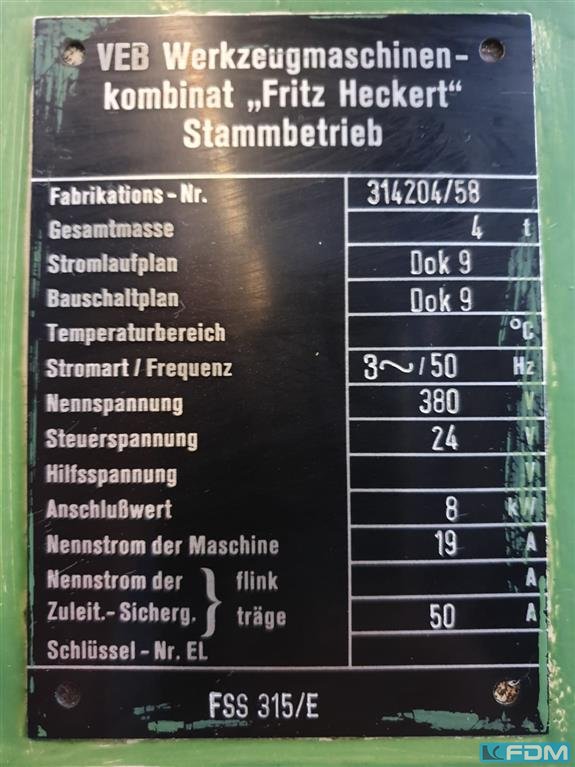

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

Extension 1600 mm

Code 101237 Description Universal Cylindrical Grinder Make WMW Heckert Model SA 5 U x 630 Serial No. 3115 Year 1981 Grinding length, max. 630 mm Grinding diameter, max. 275 mm Centerheight 140 mm Max. Weight workpiece 125 kg Table tilting angle - 5° till + 11,5° Diam. Grinding wheel 500 mm Width Grinding wheel, max. 100 mm Motorpower grindingwheel 5,5 kW Speeds workpieceholder 31,5 – 710 rpm Total power 12,5 kVA 380 Volts Machine size L x W x H 3,9 x 2,3 x 1,6 meter Weight 4800 kg Accessories coolant with magnetic some tooling Condition Machine is in good condition

MAX DIAMETER 1500 MAX MODUL 15

Jig Boring Machine WMW BKoE 450 x 800 Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth:2500 mm Total height: 2600 mm Weight: 4,5 T

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

Parallel Lathe WMW NILES type DLZ 500 IV L 1000 Between points: 1000 mm Maxi Ø on bench: 500 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock CM4 Auto Feeds transverse + longitudinal + rapid Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1400 x 1500 mm Weight: approx 2,5 T

Key data: 2000 mm, 10 mm

Sheet metal straightener, partially overhauled       sheet leveller, partly overhauled   Typ/ type:                                � �                                  � �              UBR 10 x 2000 /1-16 WDKS Manufacturer / make: WMW Gotha Year of construction/ year: 1989/2024 electrically overhauled max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Straightening roller diameter/diameter of     Straihgtening rollers: 145 mm Speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Distance between b/n rollers centres: 150 mm Diameter of bottom rollers: 290 mm Number of bottom rollers / number of bottom rollers 21/24 Number of outr ...

WMW SI 4/1 Internal Grinding Machine YOM 52/1999 VEB Berliner Werkzeugmaschinenfabrik Grinding diameter 5-250 mm Max. grinding length 250 mm Max workpiece dia 370/450 mm (with/without safety cover) Spindle head speed 35-1400/min Work piece spindle speed 70-775 mm Max. table travel 560 mm Table speed stepless 0,5-6 m/min. Total power 16,5 kW Total Dimensions 3300x1440x2000 mm Machine 2200x1400x2000 mm Weight 4.8t.

max diam 340 , max modul 8

Key data: 40 mm, 315 mm, 200 mm

Solid column drilling machine of the brand WMW, model BS 25 B Mk4 Ready to use. Technically flawless Machine Type: Column Drilling Machine Make: WMW Saalfeld Type: BS 25 B Year of construction: 1962 Control Type: Conventional Freight base: ex-site, freely loaded Location: 17034 Neubrandenburg Shipping time: immediately Price: 2.250,00 net Technical details Drilling performance in steel (diameter): 6 - 40 mm Projection: 315 mm Drilling stroke: 200 mm Headstock adjustment: 280 mm Spindle speeds - infinitely variable: 63...1000 rpm Spindle mount MK: MK 4 Feed: 0.08...1.2 rpm Clamping surface table L x W: 700 x 600 mm Clamping surface of the base plate: 440 x 490 mm Distance Spindle / Base Plate: 1100 mm Total Power Requirement: 2.61 kW Machine weight approx.: 1000 kg Dimensions machine approx. LxWxH: L:1010 x 700 x 235 ...

Grinding lenght 6000 mm Grinding diameter 1050 mm

Key data: 63 1/min, 25 mm, 200 mm

Manufacturer: WMW Type: BKR 25 x 4 AI Stock number: 1023 Number of Spindles: 4 Spindle spacing: 475 mm Table working surface: 450 mm x 1900 mm Drilling capacity in steel: 25 mm Morse taper of spindle: MK 4 Connected load: 10.2 kW Weight: 3000 kg

Key data: 2500 mm, 32 mm

Manufacturer / make: WMW Schwermaschinenbau Wildau Type/ type: UBR 32 x 2500-7/16 Lagernummer / stock number: 1019 Baujahr / new in: 1969 max. sheet width: 2500 mm Bale length / convexity length of rollers: 2700 mm Max. sheet thickness ( St 50): 32 mm Max. sheet thickness ( St 34): 39 mm min. sheet thickness ( St 50): 8 mm Number of straightening rollers:7 rollen / rollers Number driven straightening rollers: 5 rollers Straightening roller diameter of straightening rollers: 290 mm Output straightening rollers / diameter of input / output straightening rollers: 345 mm Number of support rollers: 13 Stützrollendurchmesser / diameter of support rollers: 288 mm Oberbolenhub/ stroke of upper beam: 120 mm Straightening speed / speed of straightening: 16 m / min Hauptantrieb / rated power of main drive: 90 kW Total load: 138 kW Gewicht de ...

Inv. Num. : 8171 Type: UDARA 10 Producer: WMW Created: GO 2019 Parameters: Wire diameter: 3-8 mm Cable length: 150-3000 mm Input power: 7.5 kW Machine weight: 1200 kg

MAX DIAM 200

MAX CAPASITY 63 T, DIAMETER ROLLING 110

Thread rolling machine UPW 25.1

Key data: 50 mm, 335 mm, 280 mm

Power: 7.8 kW Weight: 1,650 kg Table size: 630 x 500 Speed: 45 - 1,000 rpm Machine is ready for operation and can be dispensed immediately.

Radial drilling machine BR 56 x 1600 Year of construction: approx. 1965 (estimate) equipped with coolant device and drilling table as optional accessories

Key data: 2 mm, 10 mm

Sheet Straightener 2,000 x 10 mm Execution.. 4high Blechdicje . 3-10 mm Straightening rollers.. 13 pcs. Straightening rollers durcm.. 145 mm Support rollers Duchm 290 mm Weight... 32,000 kg Drive mot... 30 KW

Spiral bevel gear machine ZFTKK 500/3V. Some of the change gears missing

Cylindrical grinding machine WMW SA 6Ux3000 with accessories

1 Internal and surface grinding machine Make: WEMA Glauchau Model No.: SI 6/1 AS-Nx500 Year of Make: 1989 Grinding depth: 500 mm Workpiece spindle speed range: 40 – 400 mm Distance from workpiece spindle flange up to the grinding spindle carrier: 1450 mm Adjustment range of the internal grinding device: 530 mm Max. workpiece diameter: 500 mm Distance from workpiece spindle flange to steady rest seat: 280 – 650 mm Grinding diameter inner grinding: 40 – 400 mm Grinding diameter external grinding: 400 mm Rapid traverse: 10m/min. Grinding infeed: 0.1 – 8 m/min. Weight of the machine: 6.5 tons.

Thread grinding machine WMW 5822M with change gears.

Internal grinding machine WMW SI4

Internal grinding machine WMW SIW5B

Tool holder MK 5 Speed range 20-1200 infinitely variable in 3 rows 1/min Feed rate 0.063-0.63 mm/min Projection 300-1250 mm, quill travel 355 mm Distance from spindle head to base plate 375-1375 mm Swivel range boom 360° Connected load 5 kW

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

see picture for data. Table hoehen-adjustable. mass approx.: 1.55 x 0.8 x 2.1 m high

3-spindle line boring machine

lechrichter, used,       sheet leveller, used,   Type: UBR 10 x 2000 /1-16 Manufacturer / make: WMW Gotha max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Directionroller Diameter/diameter of     straihgtening rollers: 145 mm Directional speed / speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Center distance of directional rollers/ distance b/n rollers centers: 150 mm Support roller diameter / diameter of bottom rollers: 290 mm Number of bottom rollers 21/24 Number of supports (top/bottom): 3 /3 Lifting speed of the traverse / speed   ...

Clamping angle with T-slots Size 1600x1250x1000 mm and 1250x1000x750 mm

various wedge shoes, set-up elements, machine feets
