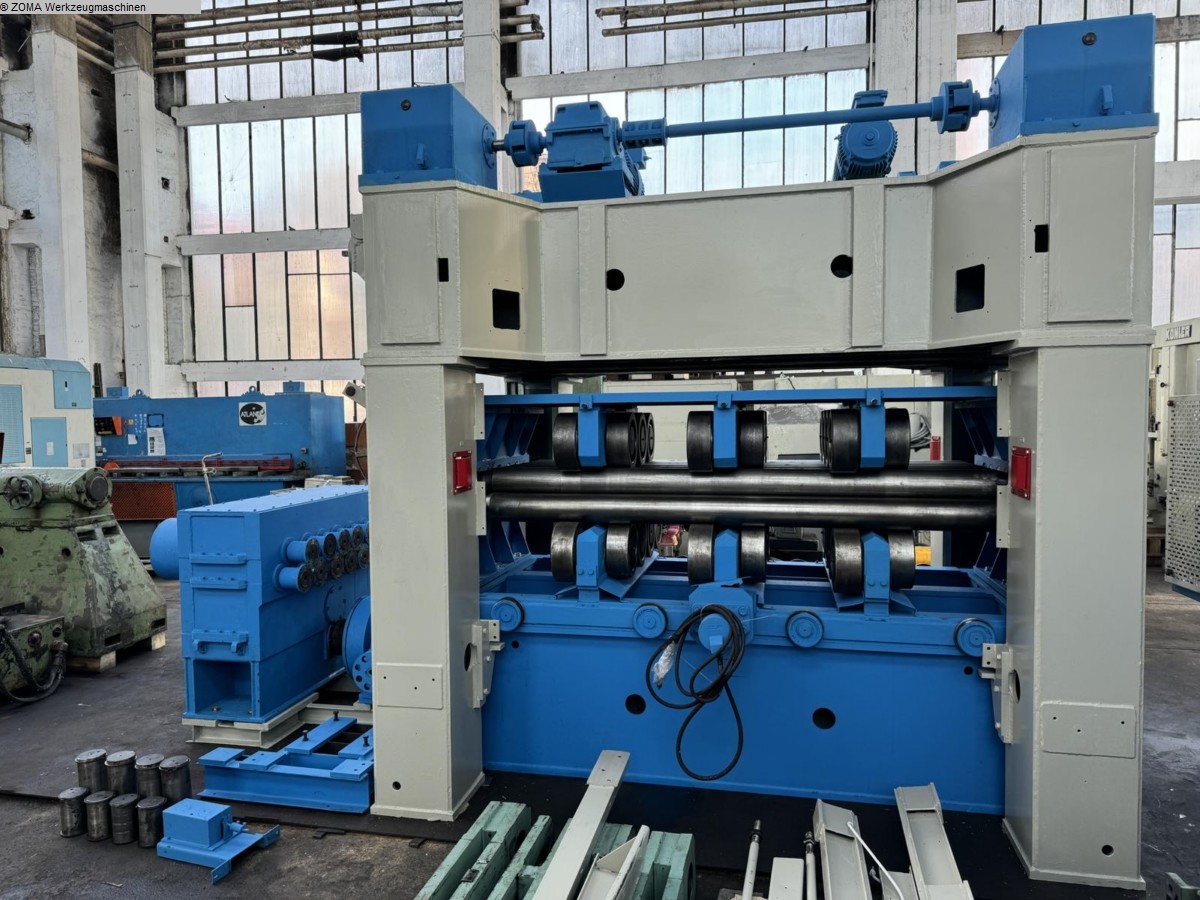

Sheet metal blowroom machines WMW GOTHA UBR 10 x 2000 /1-16

plate width: 2000 mm
sheet thickness - max.: 10 mm
sheet thickness - min.: 3 mm
number of straightening: 13 Rollers
straightening roll diameter: 145 mm
straightening feed: 16 m/min
bale length: 2330 mm
distance b/n rollers centers: 150 mm
diameter of bottom rollers: 290 mm
main drive motor: 30 kW
weight: 32 t
Sheet width: 2,000 mm
Max. sheet thickness: 10 mm
Min. sheet thickness: 3 mm
Number of leveling rollers: 13
Leveling roller diameter: 145 mm
Leveling speed: 16 m/min
Roller face length: 2,330 mm
Center distance between leveling rollers: 150 mm
Backup roller diameter: 290 mm
Main drive motor: 30 kW
Machine weight: 32 t

Additional Information

Number of backup rollers: 21 / 24
Number of support rows (upper / lower): 3 / 3
Traverse lifting speed: 0.71 mm/s
Traverse adjustment range: –18 mm to +42 mm
Max. lower traverse tilt: 8 mm



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 2084-1045
