5 PROTH flat grinding machines used machines

Ref. -No.: 10265 Manufacturer: PROTH Type of control: Konventionell Storage location: Halberstadt Country of origin: Taiwan Serial no.: 0011G-05 Max. Grinding length: 600 mm Grinding Width: 300 mm Workpiece Height: 312 mm Travel X: 700 mm Travel Y: 340 mm grinding wheel dimension: 355 x 25 x 127 mm

Travel paths X/Y/Z: 900 x 400 x 200 mm Table size 800 x 400 mm

Sanding length: 700mm, sanding width: 330mm, max. workpiece height: 450mm, table dimensions X/Y: 280mm/600mm, table speed: 25m/min, sanding wheel dimensions: 305mm/25mm/76.2mm, spindle power: 3PS, machine dimensions X/Y/Z: approx. 2100mm/1600mm/2000mm, weight: approx. 2000kg. Documentation available. On-site inspection is possible.

This 3-axis Proth PSGS-3060AH surface grinding machine was manufactured in 2008. It offers precision and durability for various grinding applications. Consider the opportunity to buy this Proth PSGS-3060AH surface grinding machine. Contact us for more information.

This 3-axis Proth PSGS 3060 BH / S1 surface grinding machine was manufactured in 2018. It features a table size of 300 × 600 mm and an electromagnetic chuck of the same dimensions. The grinding wheel measures 355 × 38 × 127 mm. Powered by a 3.7 kW spindle motor, this robust machine weighs approximately 1,900 kg. Consider the opportunity to buy this Proth PSGS 3060 BH / S1 surface grinding machine. Contact us for more information.

: 0600 mm : 300 mm : 342 mm : 700x340 mm : 355x38x127 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0800 mm : 400 mm : 342 mm : 900x460 mm : 355x38x127 mm : 2400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0600 mm : 300 mm : 382 mm : 700x340 mm : 355x38x127 mm : 1500 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0600 mm : 300 mm : 382 mm : 700x340 mm : 355x38x127 mm : 2400 U/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hand bending machine >br>flat bar max. 16 mm>br>square steel 16 mm>br>round steel 16 mm>br>weight 45 Kg>br>bending angle max. 180 °>br>Dimensions L x W x H 0.4 x 0.4 x 1.1 m

Key data: 1000 , 600 , 400

Surface grinders - horizontal ELB perfect BD 10 PLC Second-hand machine overhauled 2014 Surface grinders - horizontal ELB-SCHLIFF perfect BD 10 PLC Second-hand machine Grinding length: 1000 mm Grinding width: 600 mm Workpiece height: 600 mm Table size: 1000 x 600 mm Grinding wheel dimensions: 400 x 100 mm Grinding spindle motor: 11 kW Table speed: 2-30 m / min Grinding wheel speed: 0-35 m / s U/min Total power consumption: 35kW Machine weight approx.: 6 t Space requirement approx.: 3.8 x 2.5 x 2.5 m Part of 2014 overhauled with 12 month warranty Paper machine Magnetic clamping plate 1000 x 600 Automatic dressing device with compensation 1 flange Items put up

Horizontal grinding optimum surface grinders ELB - 6375 ND - PLC Second-hand machine Surface grinders - horizontal ELB optimal 6375 ND - PLC Second-hand machine overhauled 2016 Surface grinders - horizontal ELB-SCHLIFF optimal 6375 ND - PLC Second-hand machine Grinding length: 600 mm Grinding width: 375 mm Workpiece height: 375 mm Table clamping surface: 600 x 350 mm Grinding wheel dimensions: 300 x 50 mm Grinding spindle motor: 4.7 kW Table speed: 2-30 m / min Grinding wheel speed: 1450 RPM Total power: 12kW Weight approximately: 3.5 t Space requirement approx.: 2.8 x 2.5 x 2.5 m Part overtaken 2016 + 12 months warranty, condition Control with touch screen new Paper machine Magnetic Chuck 600 x 350 Automatic table dressing with compensation 1 flange Items put up Installation / commissioning / transport

Surface grinders - horizontal ELB-SCHLIFF SWBE 10 PLC Second-hand machine Mint Control cabinet, motors, wiring, control new Hydraulic new, trim, loop length: 1000 mm Grinding width: 500 (600) mm Workpiece height: 600 mm Table size: 1000 x 550 mm Grinding wheel dimensions: 400 x 100 mm Grinding spindle motor: 11 kW Table speed: 2-30 m / min Grinding wheel speed: 5-35 m / sn Total power: 18 kW Machine weight approx.: 5,5 t Space requirement approx.: 3.5 x 2.5 x 2.5 m General outrun 2019 with 12 month warranty Paper machine Levelling feet Installation included Instruction includes

Gr. Grinding length: 620 mm gr. Grinding width: 250 mm table size: 200 x 620 mm grinding wheel dimensions: 200 x 220 x 51 mm Electr. Supply: 380 V, 1/1.8 kW space: 1650 x 1450 x 1800 mm weight: 1350 kg

Stock number 1105-02617 Machine type flat grinding machine Make Elf Type OPTIMALLY 4250 NC-K Built in 1993 Control type NC Storage warehouse Country of origin Germany Delivery time immediately Exhibition Hall, ver free freight basis Technical details Grinding length 450 mm Grinding width 250 mm Workpiece height 375 mm Table length 800 mm Table width 250 mm maximum work-piece weight 400 kg Autom. Cross feed adjustable 3-50 mm / stroke Vertical delivery, 1 Division 0.001 - 0.06 mm Grinding wheel diameter 300 mm Grinding wheel width 50 mm Grinding wheel diameter 36 mm Voltage 380 V Grinding spindle motor 3.7 / 4.7 kW Total power demand 9 kW Machine weight approx. 2.6 t Space requirement of approx. 2800 X 2500 2300 mm Additional information automatic delivery -Electro magnetic clamping plate with straight fine pole pitch, dimens ...

Precision flat grinding machine Manufacturer: COSMOS Model: Earth 1050 NC Built: New factory Grinding length: 1000 mm Grinding width: 500 mm Grinding height: 400 mm Electric magnetic release plate 1000 x 500 mm Single fitters at the table firmly assembled for straight judting with compensation Programble display 4.7 " Unseated grinding spindle drive Universal paper tape filter

Figure shows precision flat grinding machine: FSM 2550 AH Table size: 300 x 600 mm Installation height: 500 mm Max table load: 300 kg Engine power: 4.6 kW Connection: 400 V Dimensions: 2300 x 1790 x 2200 mm Weight, approx.: 2000 kg Equipment and scope of delivery: - All castings, such as machine stand, table, etc. made of MEEHANITE® quality casting - Automatic cross and longitudinal feed - Permanent lubrication - Automatic cross-stroke device - Rear splash protection - Grinding wheel - Grinding wheel flange - Pulling device - Balancing mandrel - Balancing scales - Dressing diamond - Machine light - Nivilier elements - Operating tool - Operating instructions - CE Special equipment of our storage machine: - Electric magnetic clamping plate 300 x 600 mm (fine pole) - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Automatic verti ...

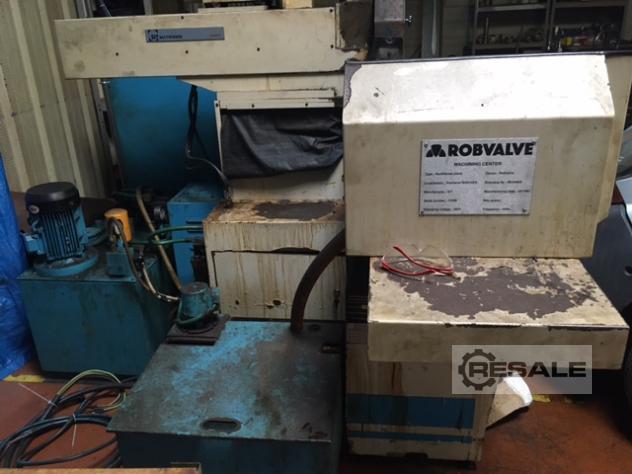

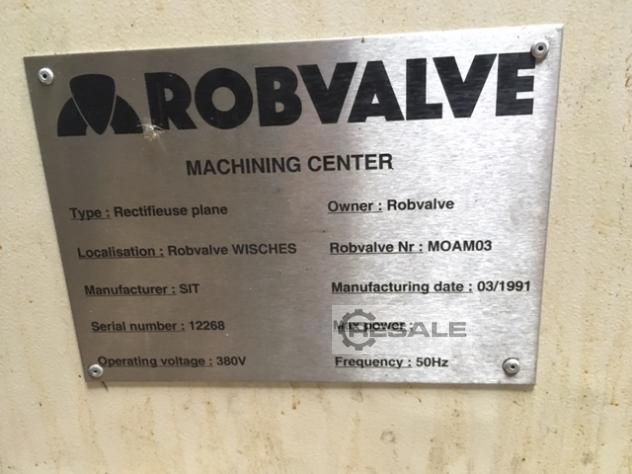

Machine details Bearing number 1105-03191 Machine type flat grinding machine Make sit Type RP 800 Built in 1991 Control type NC Warehouse LAGER Country of origin Germany Delivery time immediately Freight base from the exhibition hall, free Technical details Grinding length 800 mm Grinding width 400 mm Workpiece height 475 mm Table length 1100 mm Table width 500 mm max. workpiece weight 700 kg Auto. Cross feed adjustable 3-50 mm/stroke Vertical delivery, 1 tick mark 0.001 - 0.06 mm Grinding wheel diameter 300 mm Grinding wheel width 50 mm Grinding wheel bore diameter 76.2 mm Connection voltage 380 V Grinding spindle motor 3.7 / 4.5 kW Total power requirement 4.5 kW Machine weight approx. 4.5 t Room requirement approx. 3500x2000x2700 mm Information Automatic delivery, - Electro-magnetic clamping plate with straight fine pole division, dimensions 800x400mm  ...

Grinding range: 400 x 200 mm Magnet table: 400 x 175 mm Height adjustment: 410 mm Grinding wheel dimensions: 225 x 25 x 50.8 mm Grinding wheel speed: 1420 / 2840 rpm. Equipped with: - Coolant device - Band filter - Hydraulic system - Operating instructions Country of origin: Germany Motor power: 1.5 kW Machine LxWxH: 2200 x 1500 x 2100 mm Machine Weight: 1100 kg

Grinding range: approx. 130 x 255 mm Grinding speed: 2800 rpm Table size: 150 x 300 mm Drive motor: 380 V, 1.5 kW Space requirement: 750 x 700 x 1700 mm Weight: approx. 380 kg Pot disc Ø: 180 mm

aba FF 625 Surface grinding machine ABA Precision Surface Grinding Machine FF600/25 Grinding length 600mm Scrap width 250mm Electric Magnet 600x250mm Workpiece height 400mm Diamond puller Height adjustment digital Motor 3,27 KW 400 V 50 HZ Coolant device Grinding wheels and flanges Weight: approx. 1350 kg G&-5020-M1768

Manufacturer: ELB Type: SWN 6 VA2 Year of construction: 1982 Grinding length: 600 mm Grinding width: 320 mm Workpiece height: 525 mm Table clamping surface: 600x300 mm Magnetic plate: 600x300 mm Machine dimensions: 2600x1500x2000 mm Machine weight: ca. 2t

Surface Grinding HARIG Super 612 - No 2 Travel X: 300 mm Travel Y: 170 mm Travel Z: 250 mm Grinding wheel: Ø 200 mm Spindle motor: 3600 RPM Manual movement X - Y - Z Manual magnetic tray 345 mm x 145 mm Auto lubrication axes X and Y Delivered with 2 new grinding wheels 1 vacuum cleaner Voltage: 380 V Width: 1400 mm Depth: 1500 mm Total height: 1900 mm Weight: approx 1 T

Surface Grinding HARIG Super 612 - No 1 Travel X: 300 mm Travel Y: 170 mm Travel Z: 250 mm Grinding wheel: Ø 200 mm Spindle motor: 3600 RPM Manual movement X - Y - Z Manual magnetic tray 345 mm x 145 mm Auto lubrication axes X and Y Delivered with 2 new grinding wheels 1 vacuum cleaner Voltage: 380 V Width: 1400 mm Depth: 1500 mm Total height: 1900 mm Weight: approx 1 T

- E L B - HIGH-PRECISION ROTARY TABLE SURFACE GRINDING MACHINE TYPE: ROTARY 80 SPS-NK / YEAR OF CONSTRUCTION 2002 =========================== GRINDING DIAMETER : 800 mm GRINDING HEIGHT : 400 mm (from work table) TABLE LOAD : 300 kg Machine dimensions : 2800 X 2800 X 2660 mm ( WxDxH) Machine weight : 5,500 kg Motor version : DS flange motor Grinding spindle drive : 10 kW Grinding spindle speed : adjustable via frequency controller Grinding spindle cone : 60 mm Grinding wheel : 400x100x127 mm Control voltage : 24V DC Installed power : 20KW Fuse : 50A FULL ROOM COVERAGE
